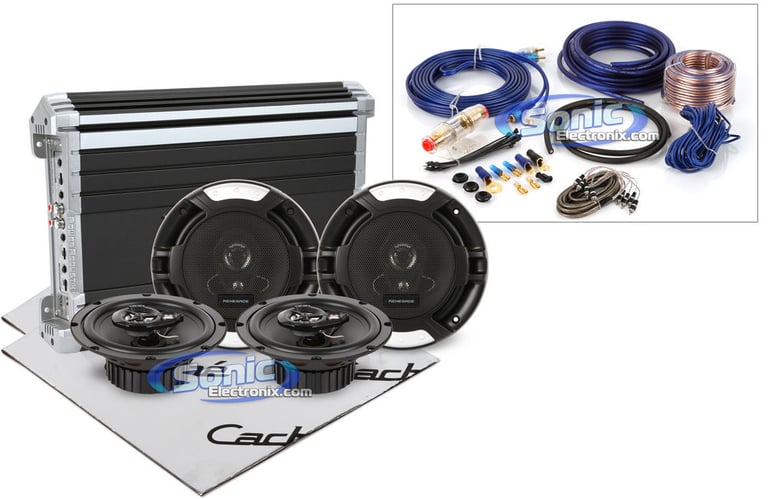

Renegade Speakers + Power Acoustik Amplifier Bundle

Two Sets of RX62 6-1/2" 3-Way RX Series Speakers and 1200W Max, CPT4-1200 Amp, Amp Kit, Sound Dampening

78
Renegade
Shop all Renegade
EXCLUSIVE
Product videos
highlight-star-icon

6-1/2" RX Series Car Speakers • 3-Way Coaxial • 200W Max • 100W RMS • 4 ohm Impedance • Polypropylene Woofer Cone • Butyl Rubber Surround • 5/8" Dome Tweeter and 3/8" Super-Tweeter • Amplifier, and Amp Wiring Kit, and Sound Dampening Included!

Learn more about the cpt41200_2-rx62

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
NVX - Worth the Envy - Direct to Consumer Car Audio

Product Highlights

6-1/2" RX Series Car Speakers • 3-Way Coaxial • 200W Max • 100W RMS • 4 ohm Impedance • Polypropylene Woofer Cone • Butyl Rubber Surround • 5/8" Dome Tweeter and 3/8" Super-Tweeter • Amplifier, and Amp Wiring Kit, and Sound Dampening Included!

Description

Renegade brand icon

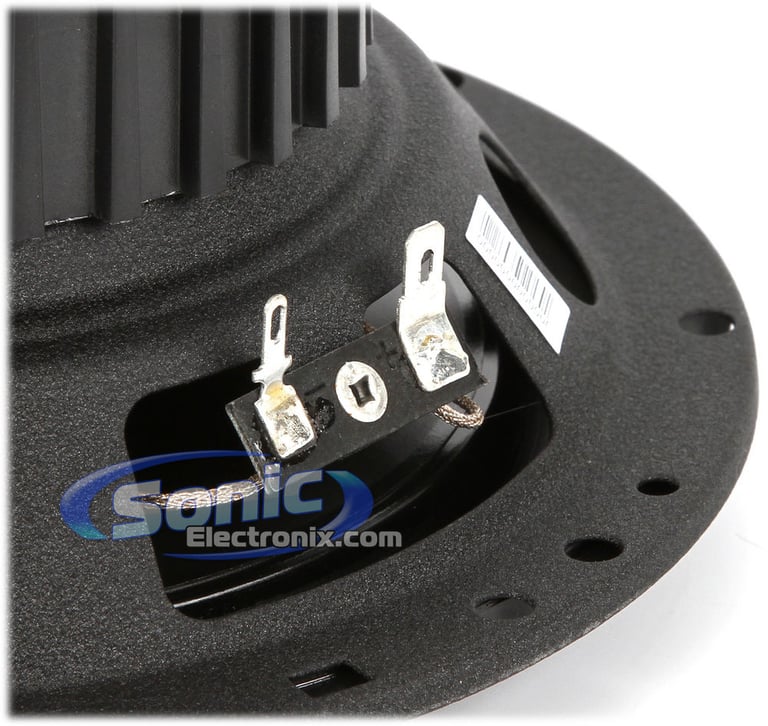

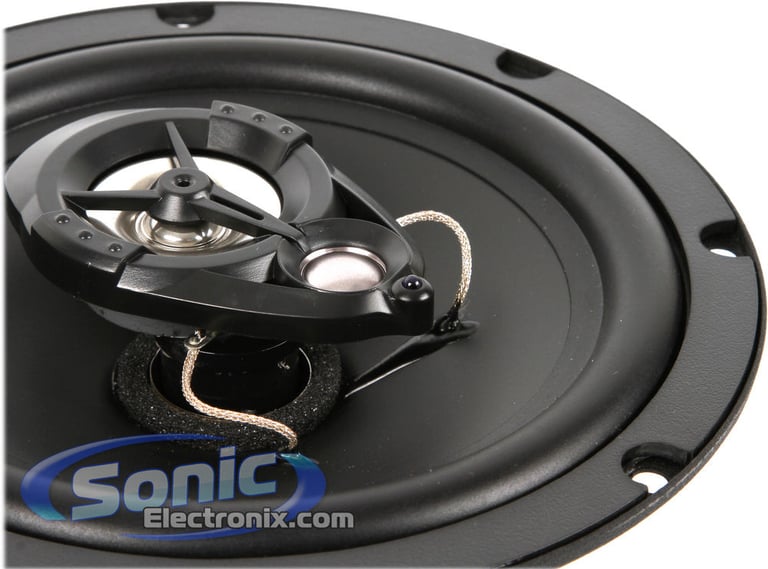

Speaker Features:

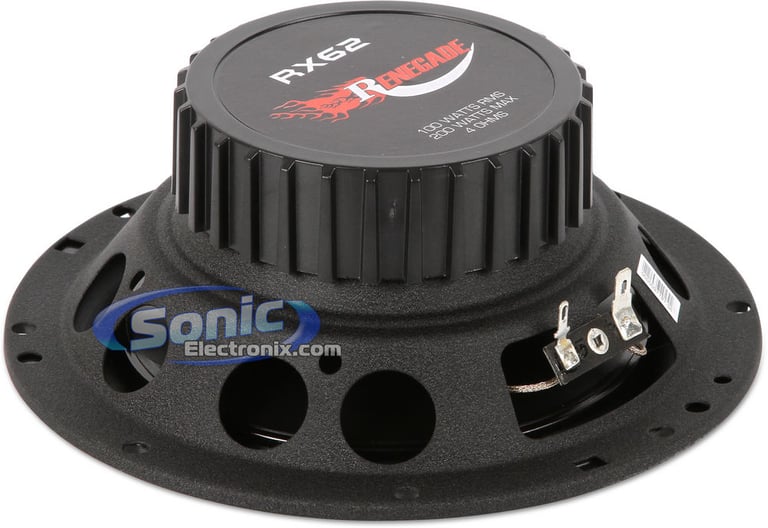

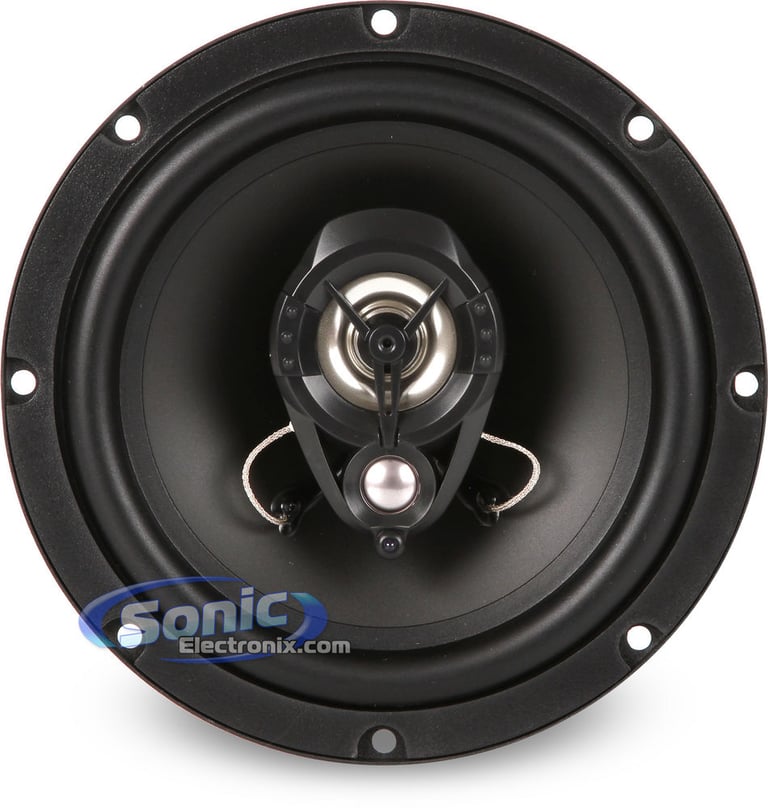

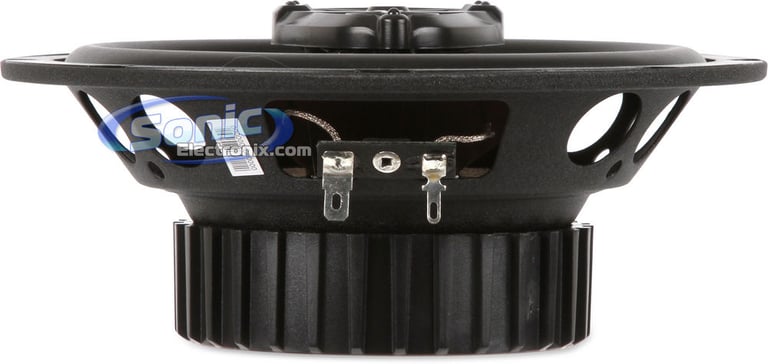

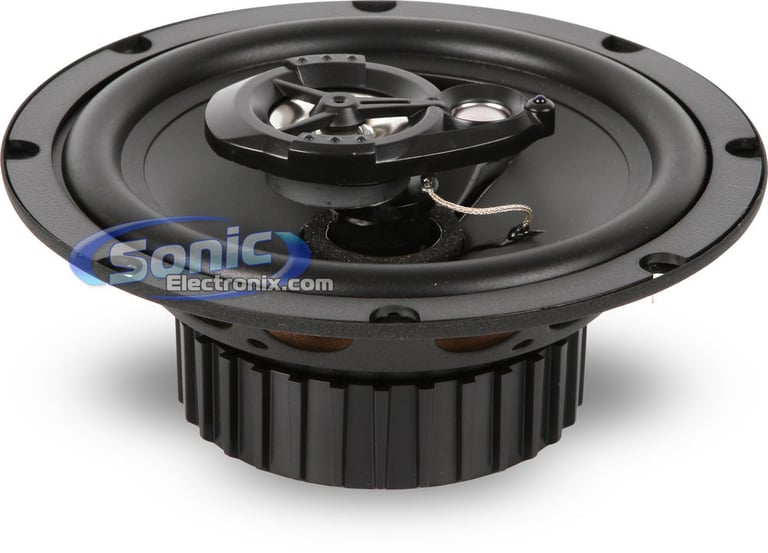

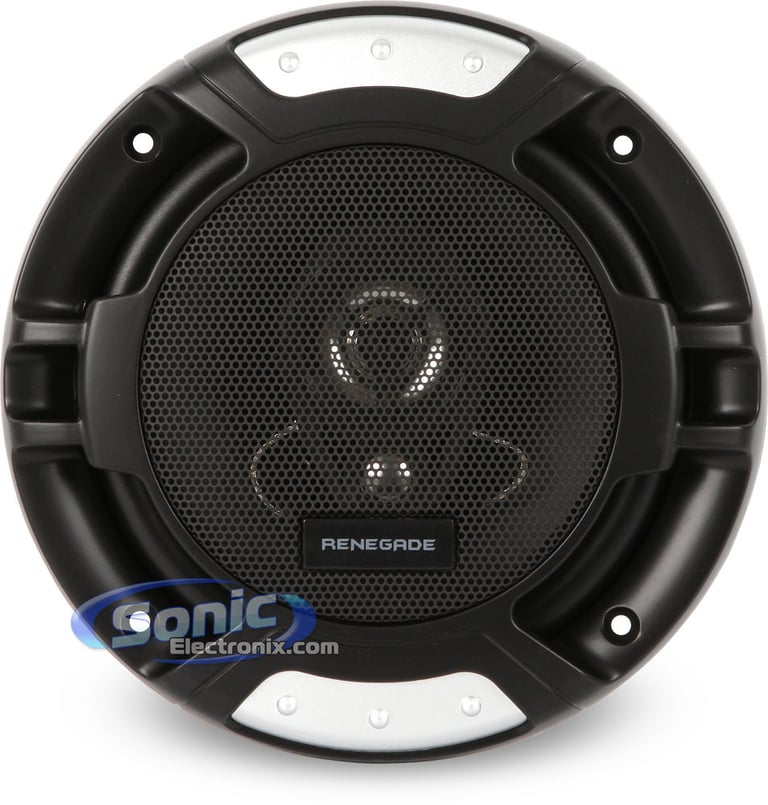

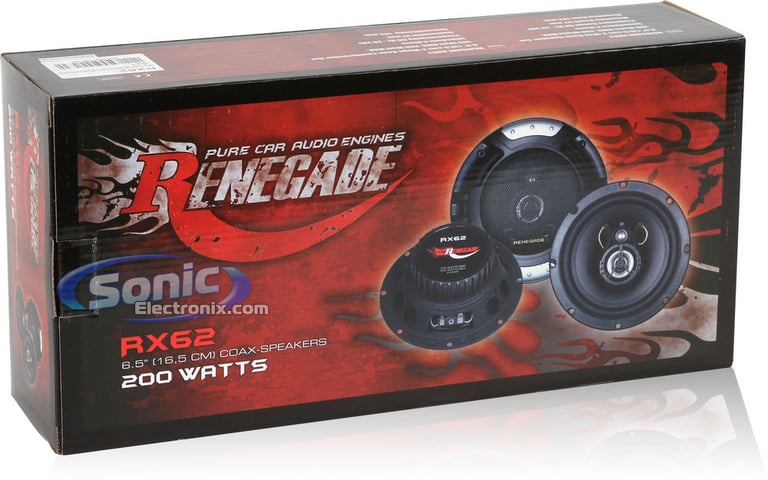

  • 6-1/2" RX Series 3-Way Car Speakers
  • Power Handling:
    • Peak: 400 watts per pair / 200 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Polypropylene woofer cone
  • Butyl rubber surround
  • 5/8" Dome tweeter and 3/8" super-tweeter
  • 4 ohm impedance
  • High temperature voice coil
  • Top-mount depth: 2-1/4"
  • Frequency response: 60-20,000 Hz
  • Includes grilles
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

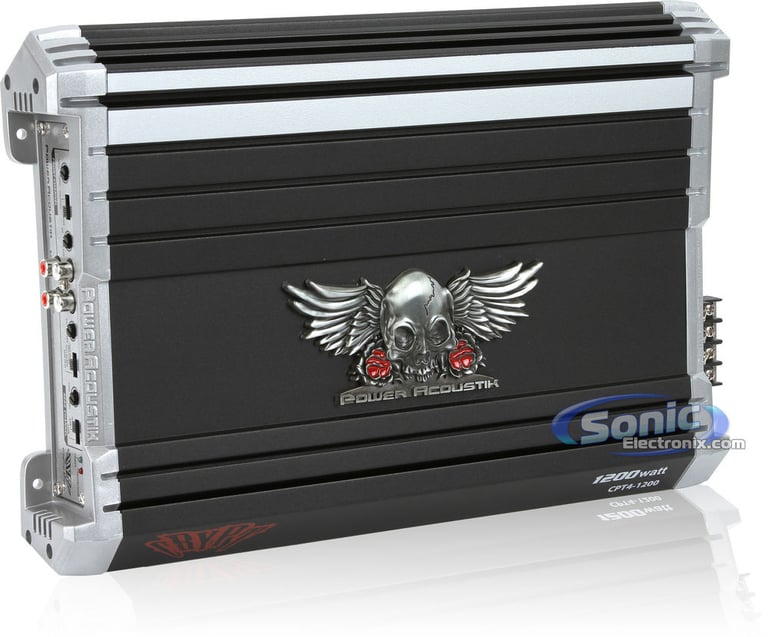

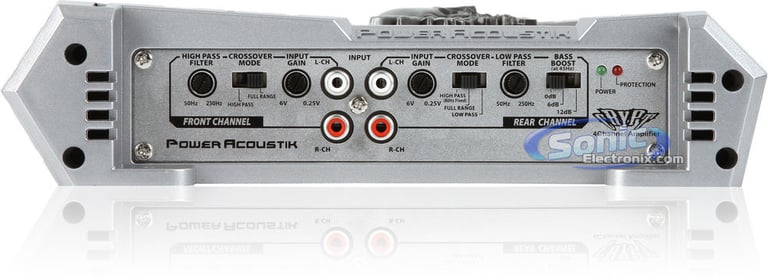

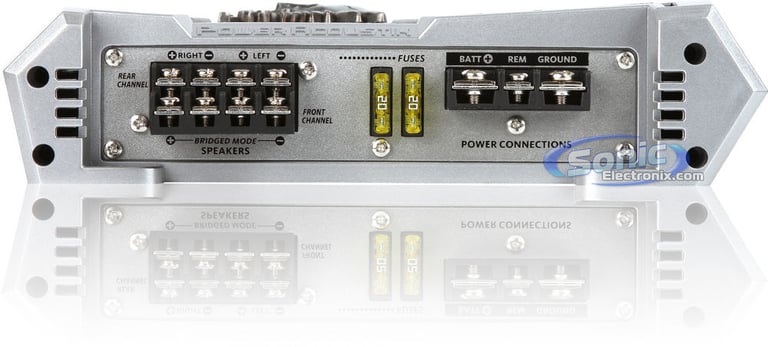

Amplifier Features:
  • Power Acoustik CRYPT Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 100 watts x 4 chan.
    • 2 ohm: 125 watts x 4 chan.
    • Bridged, 4 ohm: 250 watts x 2 chan.
  • Max power output: 1200 watts
  • MOSFET PSU transistors
  • Regulated PWM Power Supply
  • Black texture finish with silver trim and cast metal badge
  • Extruded aluminum chassis
  • LED power (green) and protect (red) indicators
  • Selectable Bass Boost (6dB, 12dB @ 45 Hz)
  • High Pass, Low Pass, and Subsonic Filters
  • 4-Channel operation
  • Low level speaker-level inputs (200mV - 8V)
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (50-250 Hz, 12 dB/octave)
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Subsonic filter (50-250 Hz)
  • Signal-to-Noise ratio: 90dB
  • THD (Total Harmonic Distortion): .01%
  • Frequency response: 10-20,000 Hz
  • Dimensions: 14"L x 9-7/8"W x 2-1/4"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

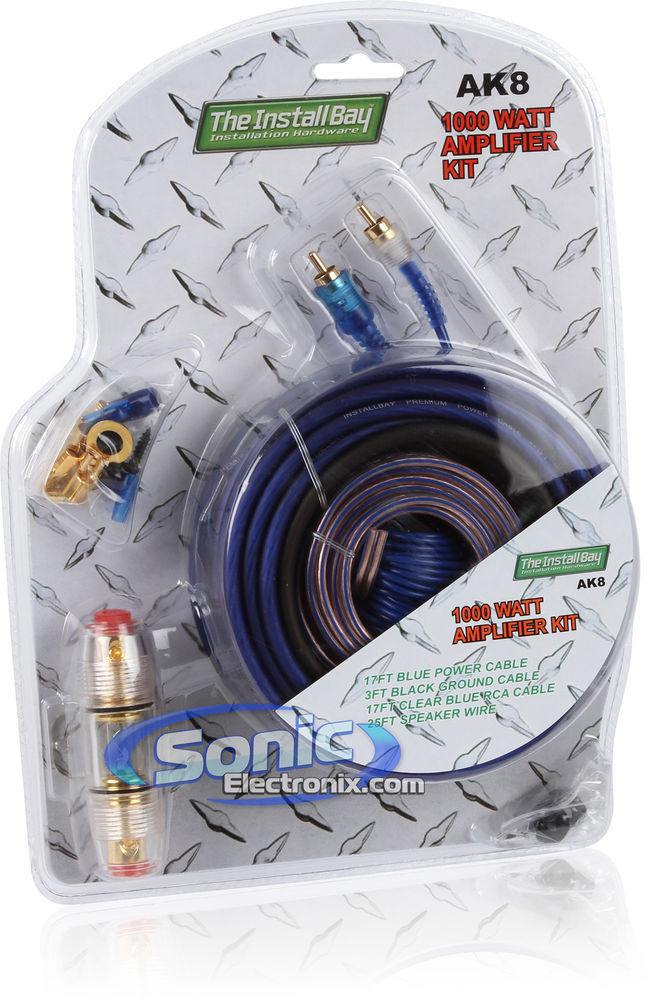

Amplifier Kit Features:
  • Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
  • Includes gold plated RCA interconnect cables
  • Designed by the manufacturer for systems up to 1000 watts max
  • Everything you need for an amplifier installation in one convenient package
  • 1-year Manufacturer's warranty

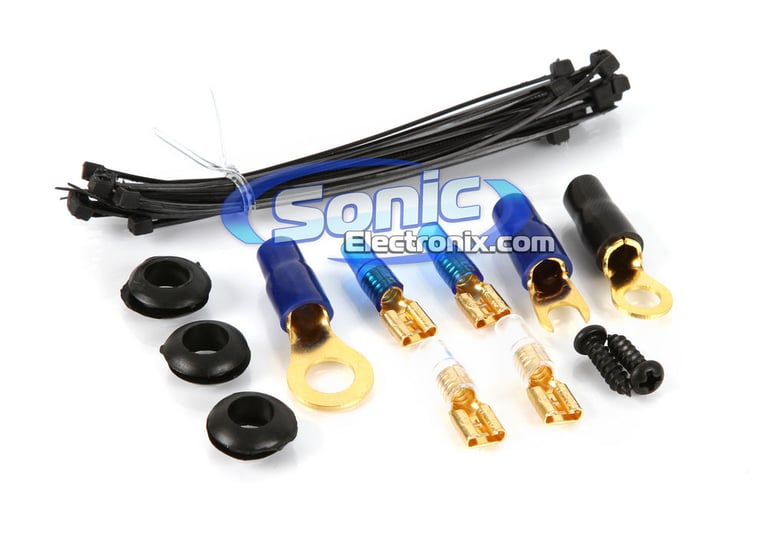

Amplifier Kit Includes:

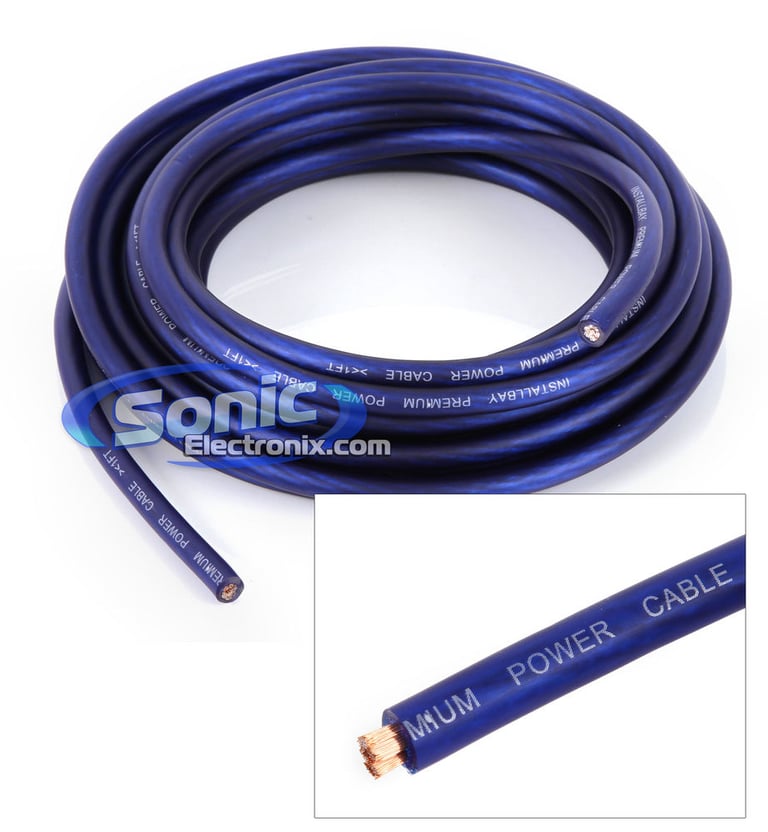

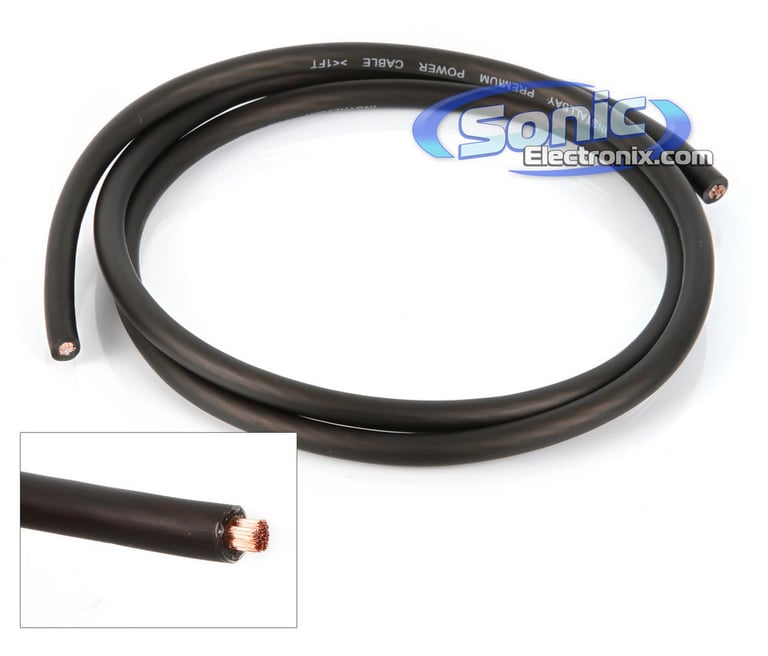

  1. 17 ft. of 8AWG Blue power cable
  2. 3 ft. of Black ground cable

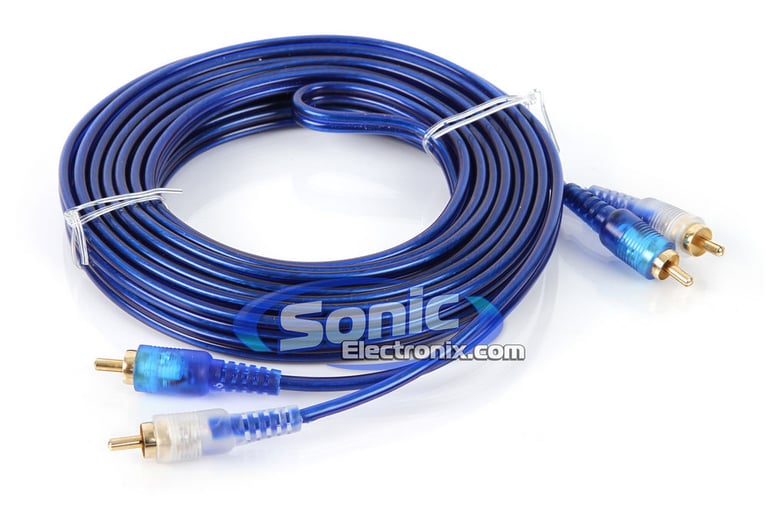

  3. 17 ft. of Clear blue RCA cable

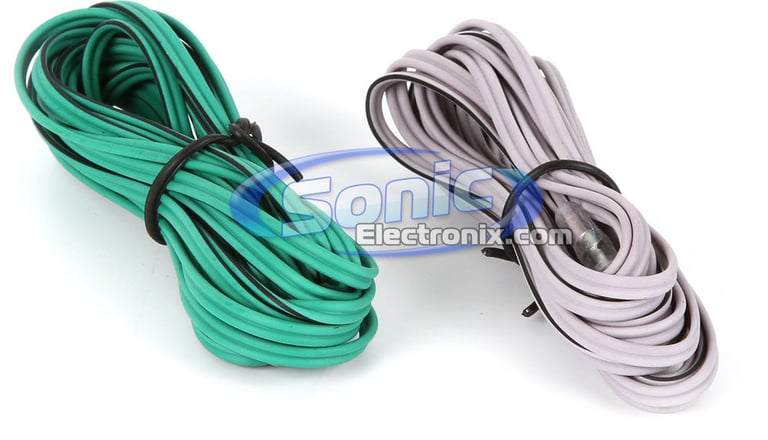

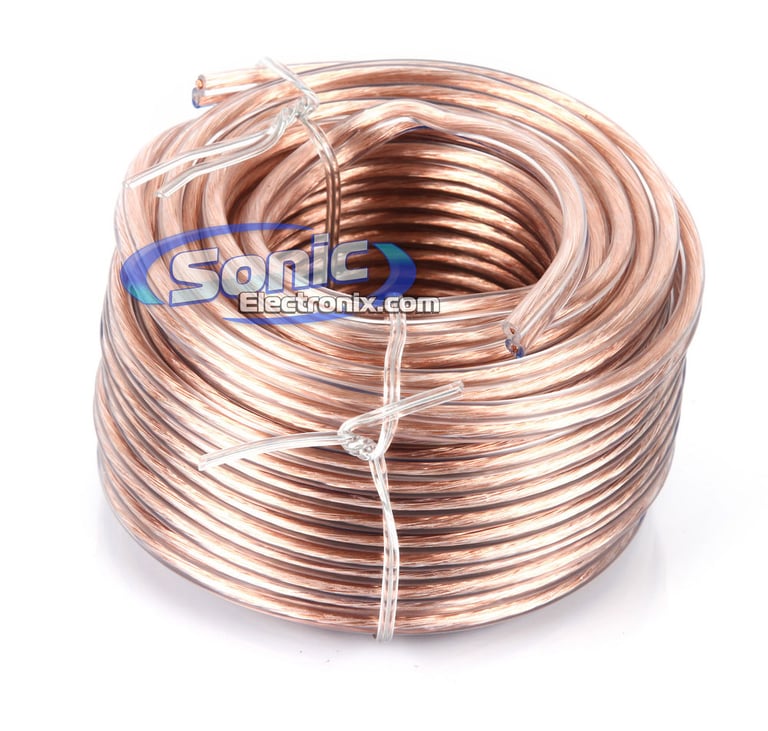

  4. 25 ft. Speaker wire

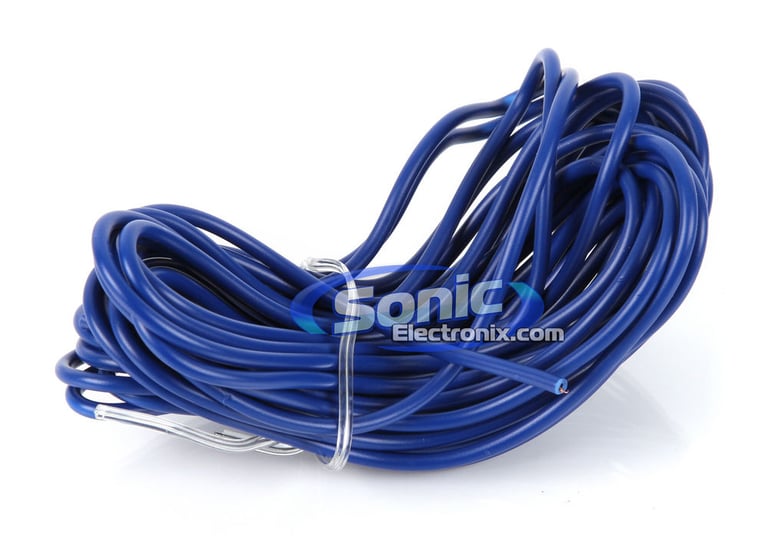

  5. 17 ft. of Clear blue remote turn-on wire

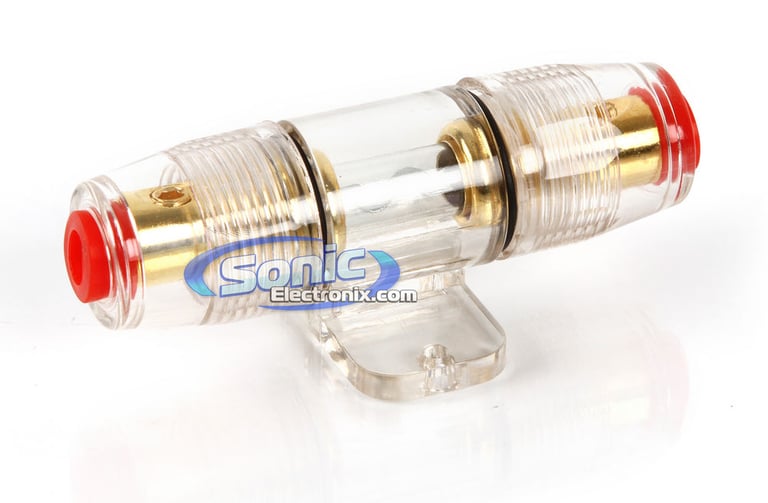

  6. 1 AGU fuse holder + 40AMP AGU fuse
  7. 5/16" Gold ring terminal
  8. 1/4" Gold ring terminal
  9. #10 Gold spade terminal
  10. 4 Gold speaker terminals
  11. 3 Grommets
  12. 20 4" cable ties

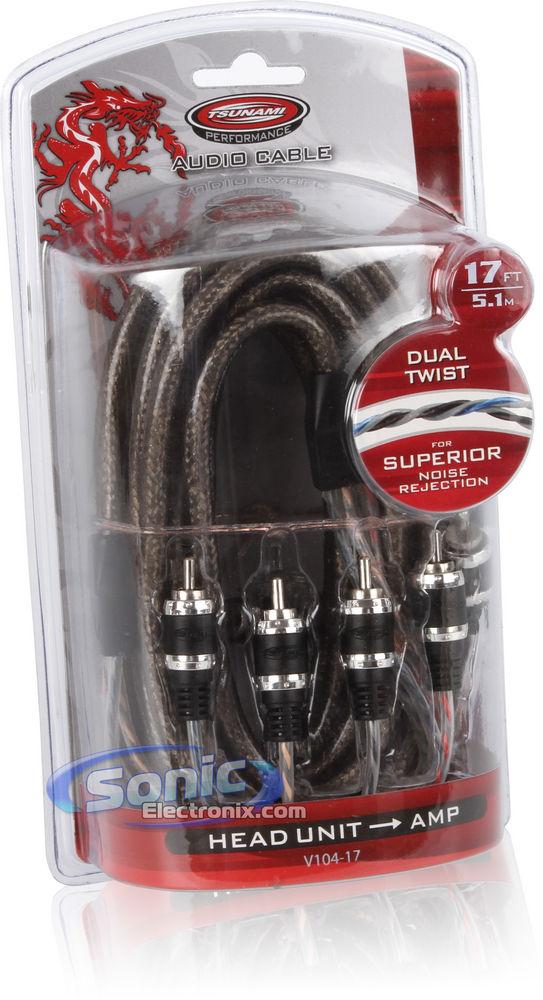

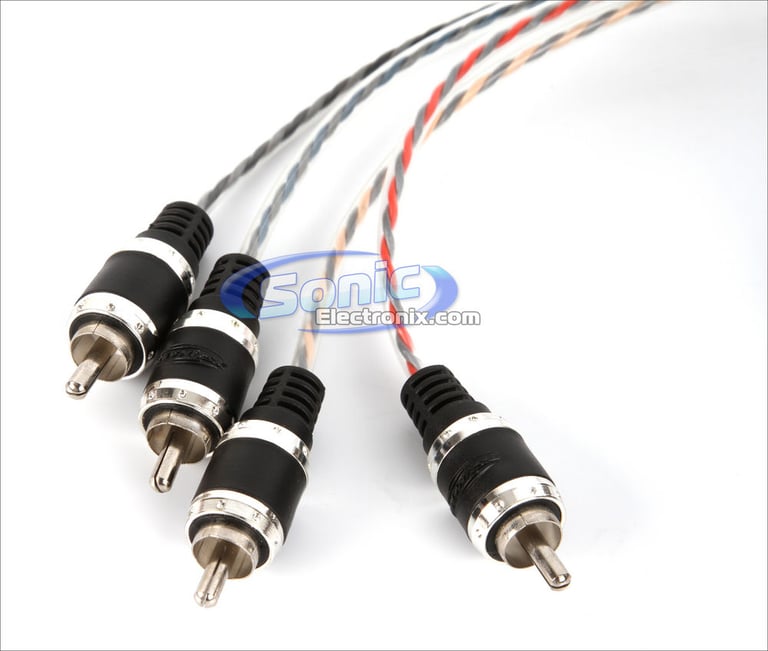

RCA Interconnect Cable Features:

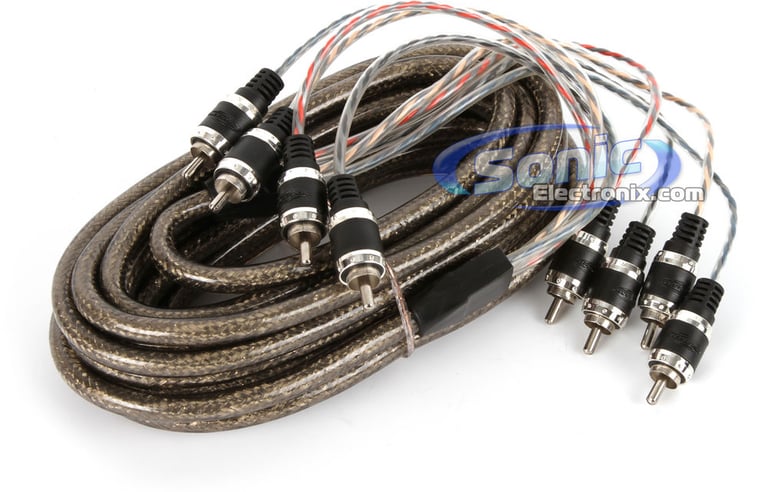

  • 17 ft. 4-Channel RCA Interconnect Cables
  • Two cut nickel-plated connectors for a tight and secure connection
  • Short connector design for easy installation
  • Protective Jacket minimizes friction for easy install
  • Dual twist construction provides protection against interference and noise
  • Provides signal from the car stereo to the amplifier
  • Color coded wires for channel identification
  • Audio RCA interconnect cable use
  • Cable Length: 17ft. (5.1 meters)
  • Color: Smoke Black
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
Sound Dampening Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Specifications & Details

Front Speaker Specifications
Speaker Size
6-1/2"
Design
3-way Coaxial
Shallow Mount Installation
No
Tweeter Design
Dome
Tweeter Composition
Aluminum
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Frequency Response
60 - 20,000 Hz
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
2-1/4"
Cutout Dimensions
5-5/8\" x 5-5/8\"
Speaker Grilles
Yes
Rear Speaker Specifications
Speaker Size (Rear)
6-1/2"
Design
3-way
Shallow Mount Installation
No
Tweeter Design
Dome
Tweeter Composition
Aluminum
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Frequency Response
60 - 20,00 Hz
Impedance (per voice coil)
4 ohm
Top Mount Depth
2-1/4"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
100 watts x 4 channel
RMS Power @ 2 ohms
125 watts x 4 channel
Bridged RMS Power
250 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
1200 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 250 Hz
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
50 - 250 Hz
Signal-to-Noise Ratio
90 dB
Bass Boost
6dB, 12dB @ 45 Hz
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Renegade

Model Number:

CPT4-1200_2-RX62

Weight:

24.49lbs

Internal SKU:

cpt41200_2-rx62

Internal Product ID:

37123
