  4. Amp + Speakers Combo
  5. JVC 11DX200.4_2-CS-V527

See all parts that fit your 2024 Canyon

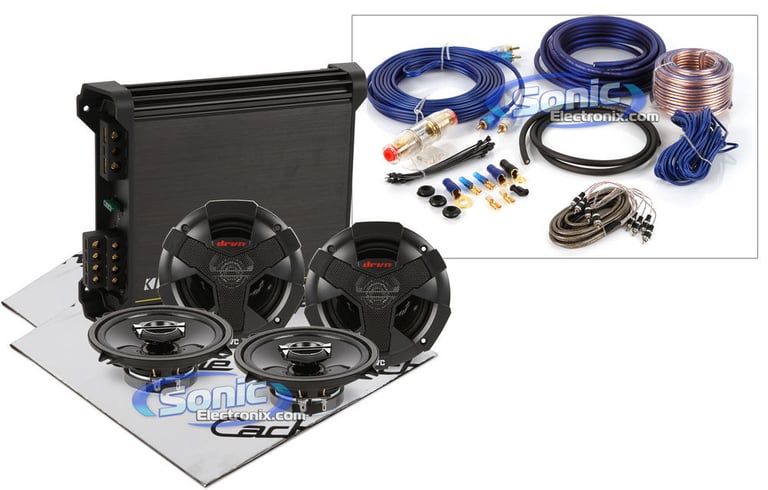

JVC Speakers + Kicker Amplifier Bundle

Two Sets of CS-V527 5-1/4" 2-Way DRVN Series Speakers and 200W RMS, 11DX200.4 Amp, Amp Kit, Sound Dampening

JVC
Shop all JVC
EXCLUSIVE
Product videos
highlight-star-icon

5-1/4" DRVN Series Car Speakers • 2-Way Coaxial • 27W RMS • 4 Ohm Impedance • Carbon Mica Woofer Cone • Hybrid Cloth and Rubber Surround • 1" PEI Midrange Tweeter • Amplifier, and Amp Wiring Kit, and Sound Dampening Included!

Learn more about the 11dx2004_2-csv527

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
NVX - Worth the Envy - Direct to Consumer Car Audio
82-3004 main

Metra 82-3004

6x9" Speaker Mounting Adapter for select 2012-2025 vehicles from GMC, Chevrolet, Cadillac

25
-11.77%

$29.99

List price $33.99

Add to cart
72-4572 main

Metra 72-4572

Install New Speakers in select 2006-2024 vehicles from Chevrolet, GMC, Cadillac

36
-6.67%

$13.99

List price $14.99

Add to cart
Limited time!
C2-600X main

JL Audio C2-600X

120W RMS 6” C2 Series 2-Way Coaxial 4-ohm Car Speakers

8
-17.86%

$229.99

List price $279.99

Add to cart
C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42

$129.99

Add to cart
Limited time!
CF-275mt main

JL Audio CF-275mt

60W RMS 2.75" CF Series Custom-Fit Midrange 4-ohm Tweeters

12
-14.71%

$144.99

List price $169.99

Add to cart
Limited time!
C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
-17.86%

$229.99

List price $279.99

Add to cart
TS-A709 main

Pioneer TS-A709

900W Peak (200W RMS) 2.75" A-Series 2-Way Coaxial Speakers

1
-25.00%

$60.00

List price $80.00

Add to cart
C1-690 main

JL Audio C1-690

120W RMS 6x9" C1 Series 2 Way Component 4-ohm Car Speakers

16

$189.99

Add to cart
Limited time!
C2-690tx main

JL Audio C2-690tx

140W RMS 6x9" C2 Series 3-Way Coaxial 4-ohm Car Speakers

21
-16.67%

$249.99

List price $299.99

Add to cart
C1-690x main

JL Audio C1-690x

200W RMS 6x9" C1 Series 2 Way Coaxial 4-ohm Car Speakers

8

$179.99

Add to cart

Product Highlights

5-1/4" DRVN Series Car Speakers • 2-Way Coaxial • 27W RMS • 4 Ohm Impedance • Carbon Mica Woofer Cone • Hybrid Cloth and Rubber Surround • 1" PEI Midrange Tweeter • Amplifier, and Amp Wiring Kit, and Sound Dampening Included!

Description

JVC brand icon

Authorized dealer

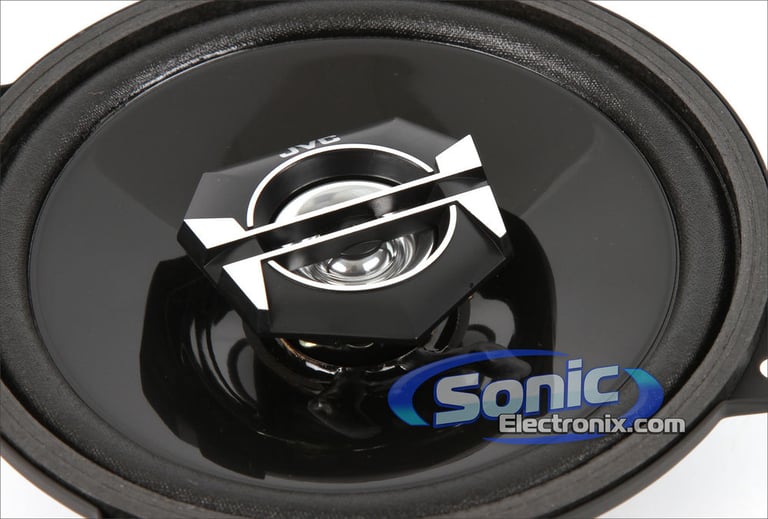

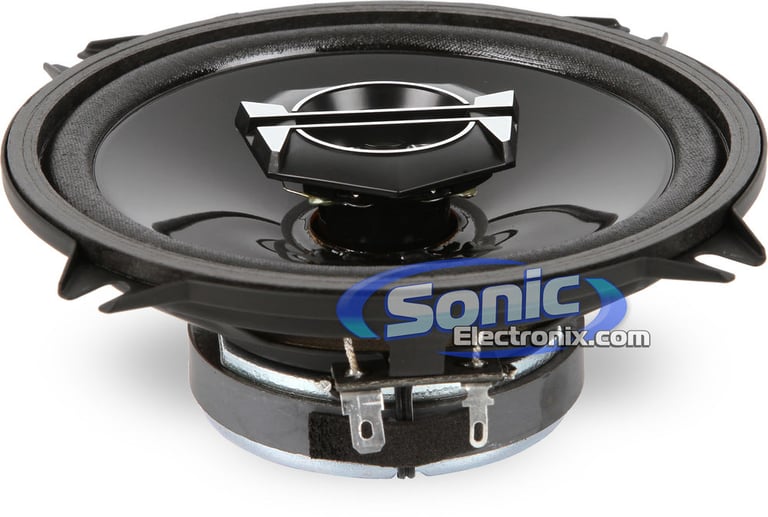

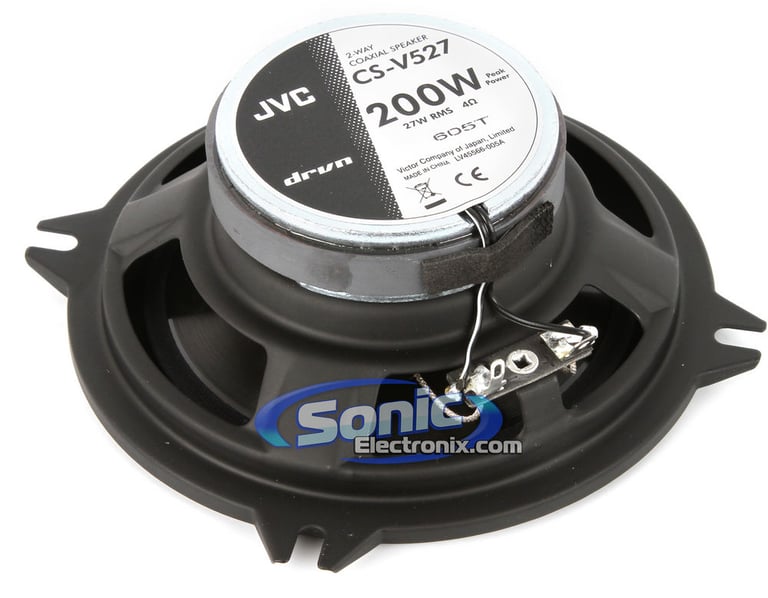

Speaker Features:

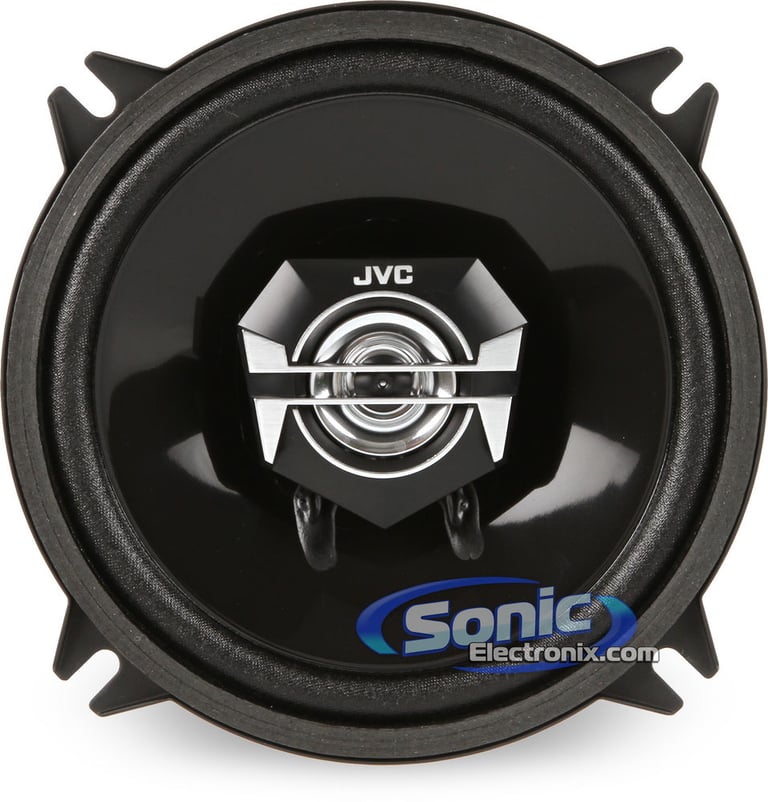

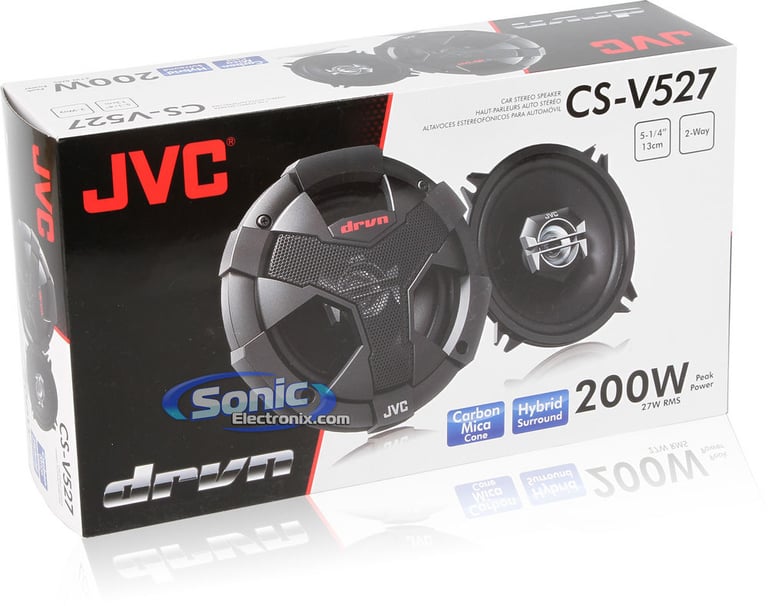

  • 5-1/4" DRVN Series 2-Way Coaxial Car Speakers
  • Power Handling:
    • Peak: 400 watts per pair / 200 watts each
    • RMS: 54 watts per pair / 27 watts each
  • Carbon mica cone material
  • Hybrid cloth and rubber surround
  • 1" PEI midrange tweeter

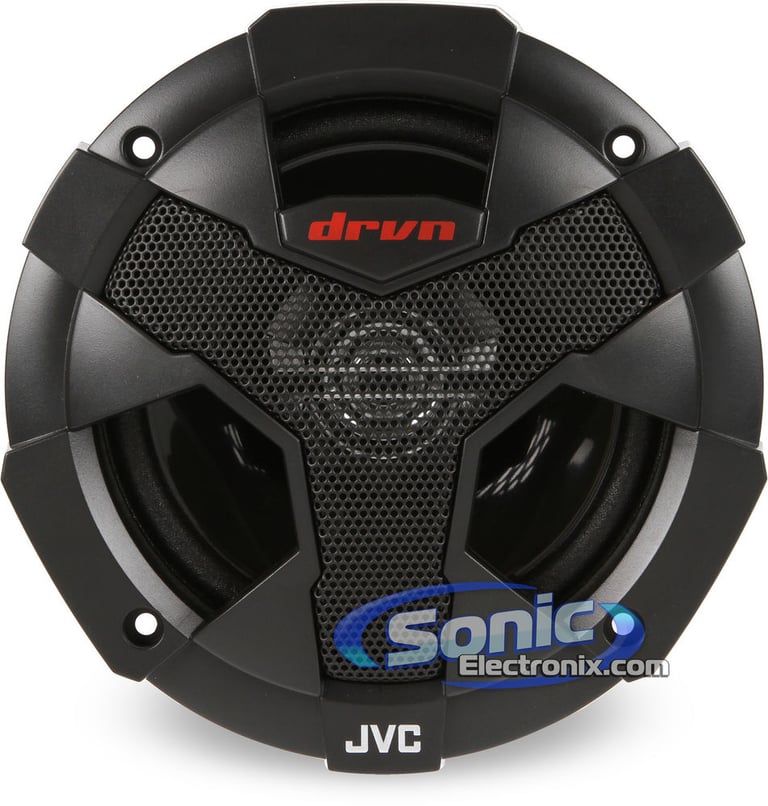

  • Includes grills for speaker protection
  • 4 ohm impedance
  • High temperature voice coil
  • 5.4 oz magnet structure

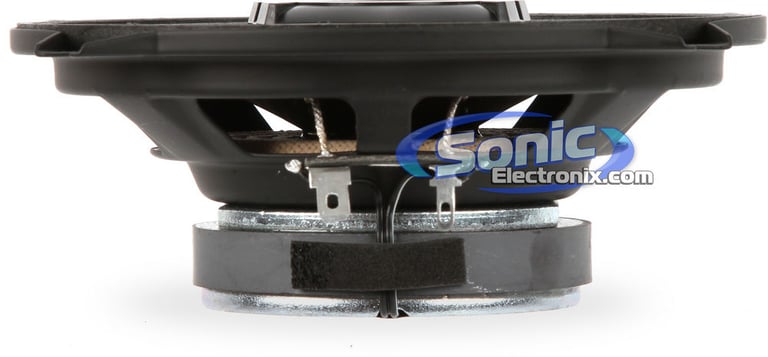

  • Top-mount depth: 1-3/4"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

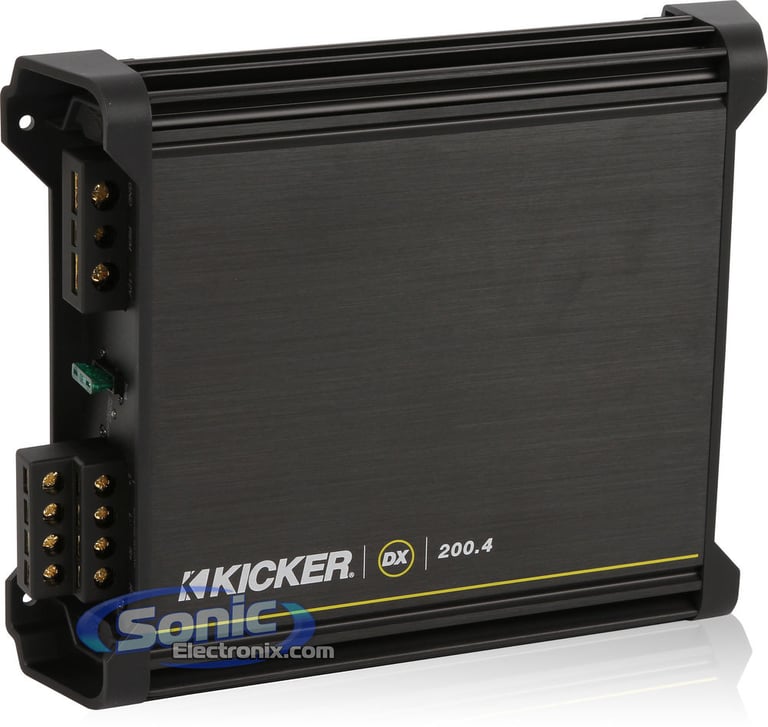

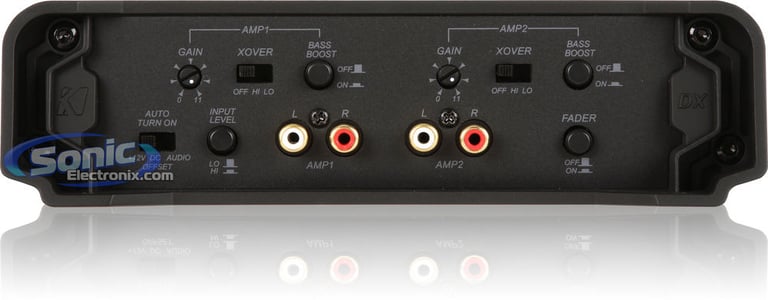

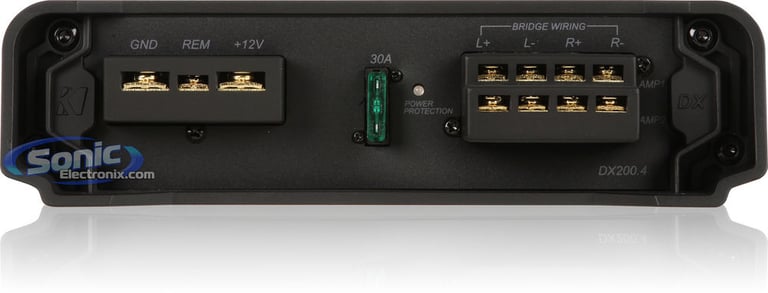

Amplifier Features:
  • DX Series 4-Channel Class A/B Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 25 watts x 4 chan.
    • 2 ohm: 50 watts x 4 chan.
    • Bridged, 4 ohm: 100 watts x 2 chan.
  • Max power output: 100 watts x 2 chan.
  • High efficiency MOSFET power supply
  • LED power and protect indicators
  • Selectable bass boost (0 or +9 dB at 40 Hz)
  • Mono channel operation
  • Preamp RCA outputs
  • Muting circuit cancels out unwanted noise
  • FIT (Fail-Safe Integration Technology) utilizes differential inputs to reject noise and electrical interference for the quietest operation possible and ultimate audio clarity
  • Balanced differential inputs for noise elimination and factory-radio compatibility
  • 3 Automatic turn-on modes (remote, DC offset, signal sense)
  • High-density convection heat sink for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Fixed high-pass filter (100 Hz, 18 dB/octave)
  • Fixed low-pass filter (80 Hz, 18 dB/octave)
  • CEA-2006 compliant amplifier
  • Frequency response: 20-20,000 Hz
  • Dimensions: 10-1/4"L x 8-5/16"W x 2-1/4"H
  • Actual power exceeds rated power, documented inside each carton
  • Item is a part of Kicker ProFit Group
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty

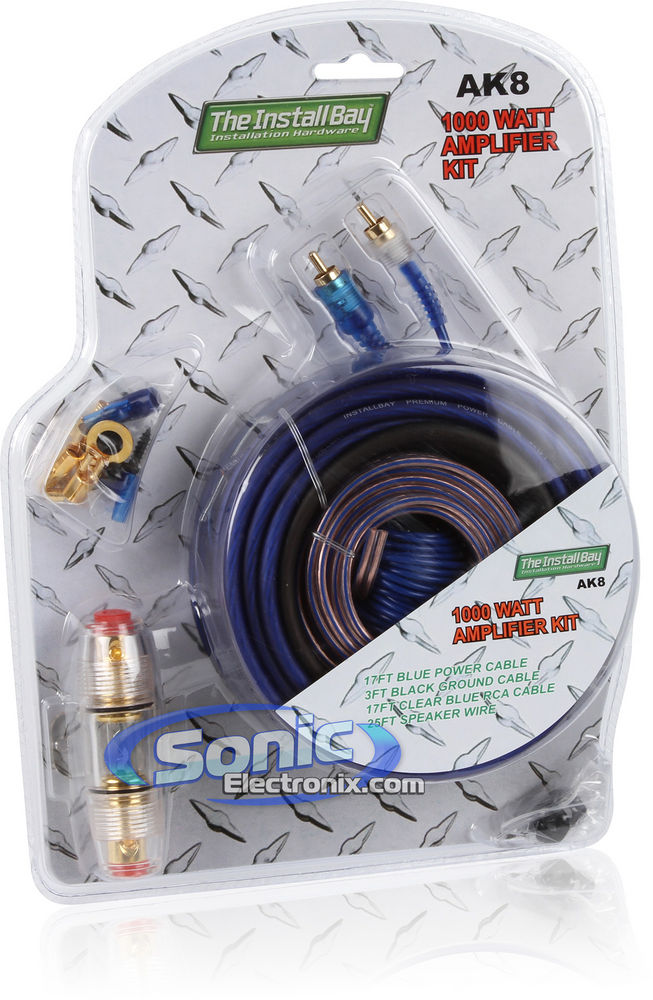

2011 Kicker Authorized Online Dealer and eBay Seller Amplifier Kit Features:
  • Complete 8 Gauge Amplifier Installation Kit for a full installation of an amp
  • Includes gold plated RCA interconnect cables
  • Designed by the manufacturer for systems up to 1000 watts max
  • Everything you need for an amplifier installation in one convenient package
  • 1-year Manufacturer's warranty

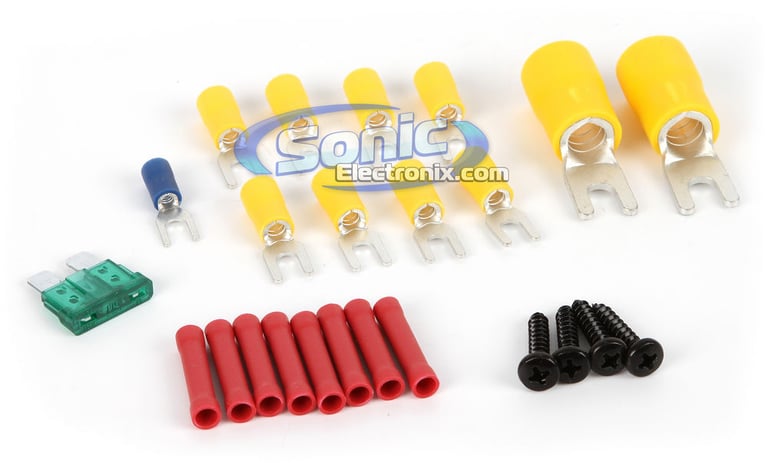

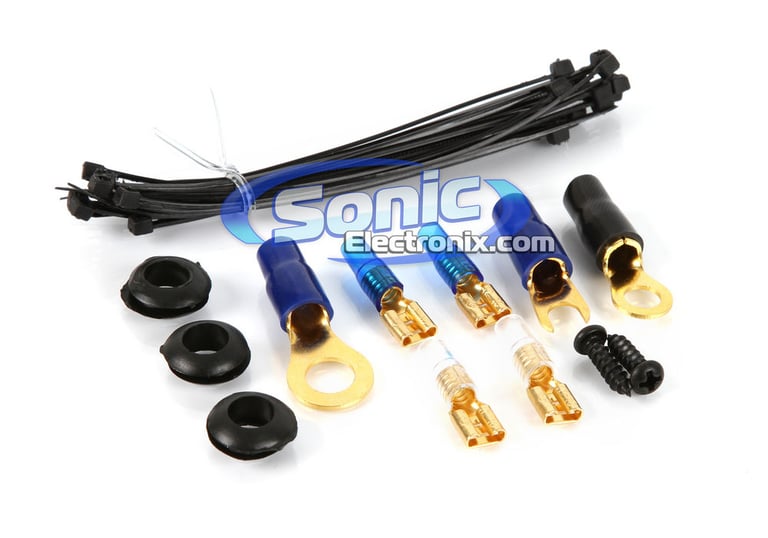

Amplifier Kit Includes:

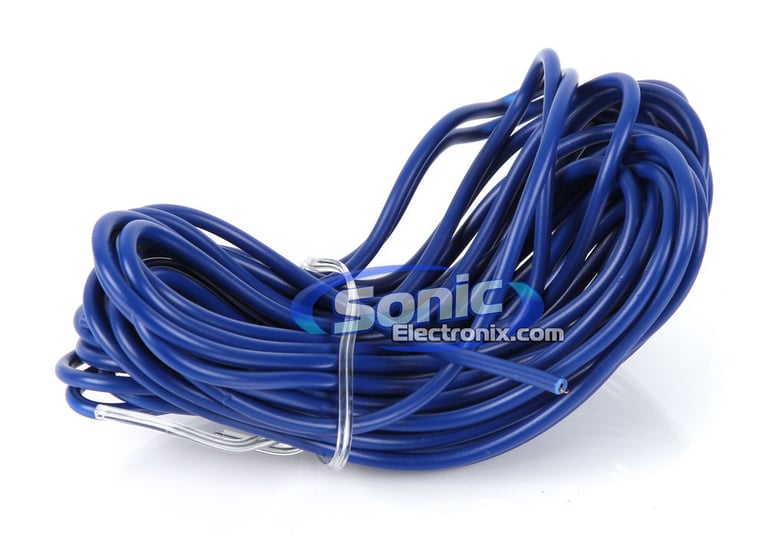

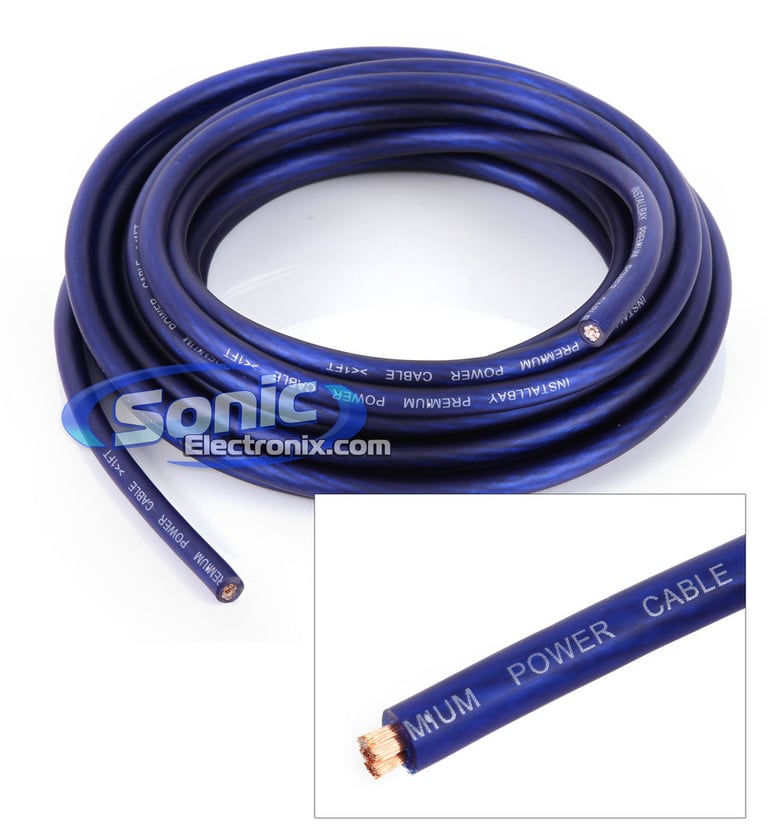

  1. 17 ft. of 8AWG Blue power cable

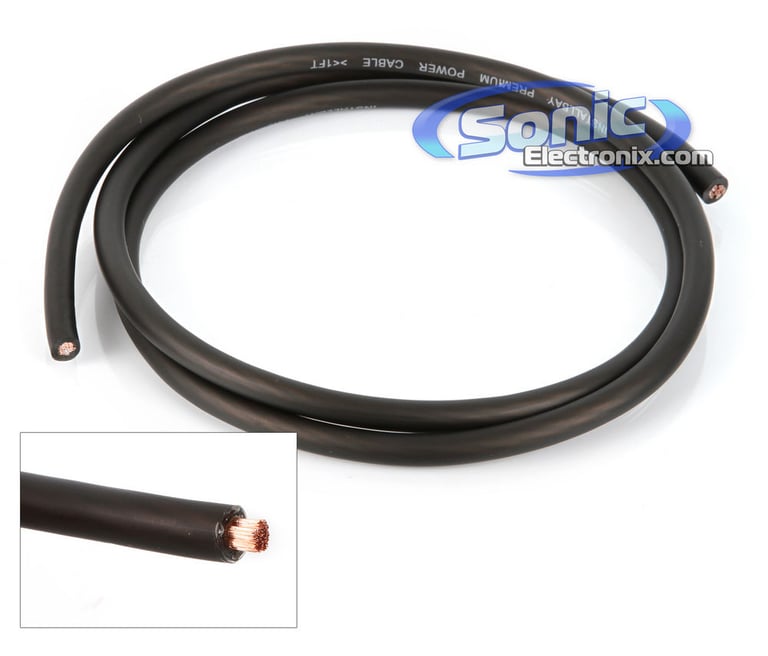

  2. 3 ft. of Black ground cable
  3. 17 ft. of Clear blue RCA cable

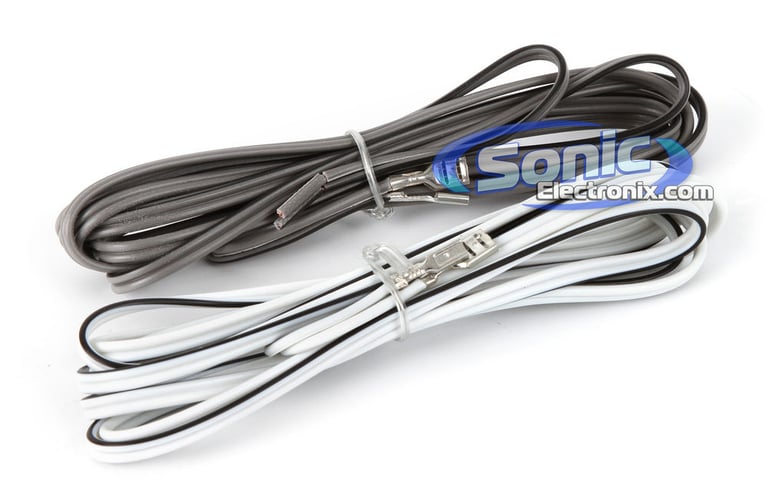

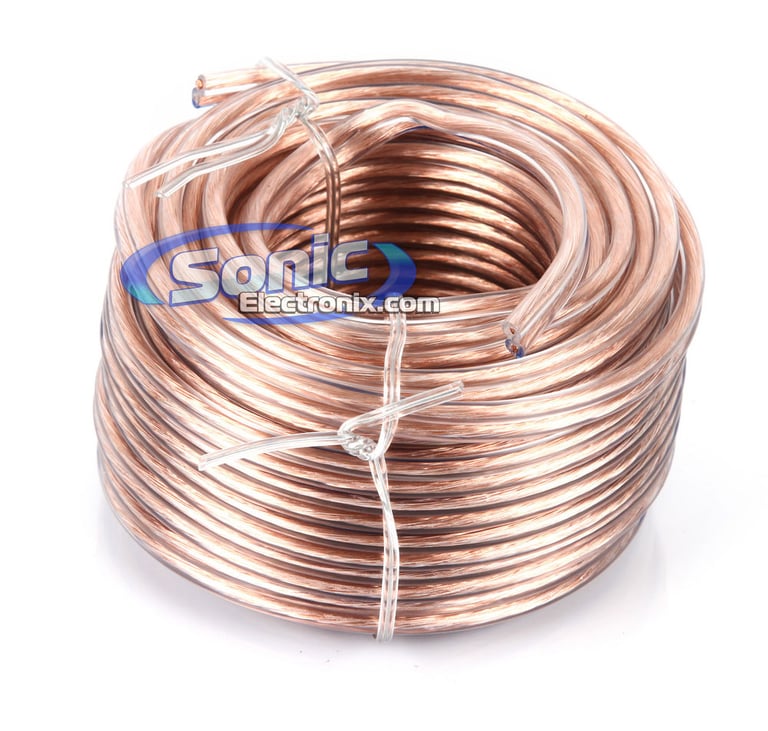

  4. 25 ft. Speaker wire
  5. 17 ft. of Clear blue remote turn-on wire

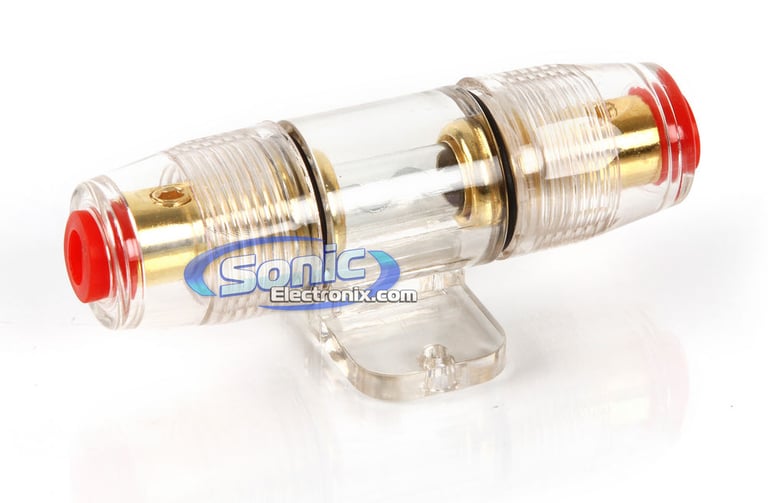

  6. 1 AGU fuse holder + 40AMP AGU fuse
  7. 5/16" Gold ring terminal
  8. 1/4" Gold ring terminal
  9. #10 Gold spade terminal
  10. 4 Gold speaker terminals
  11. 3 Grommets
  12. 20 4" cable ties

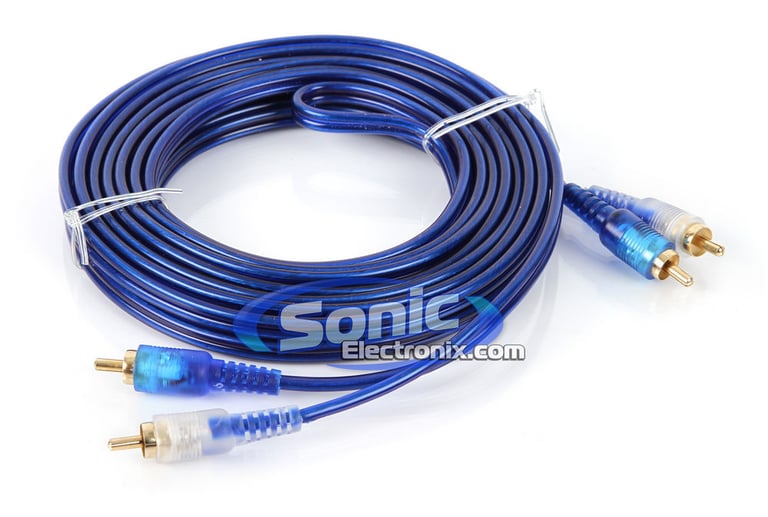

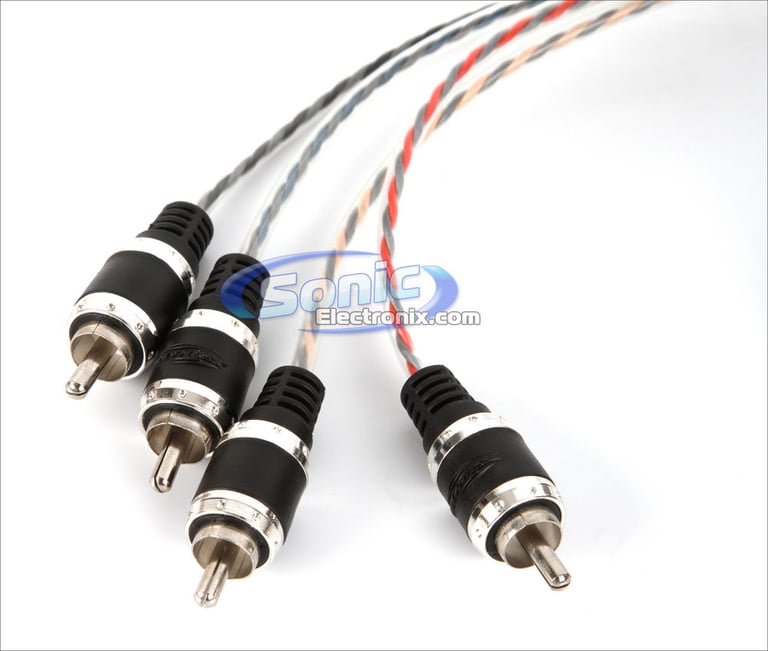

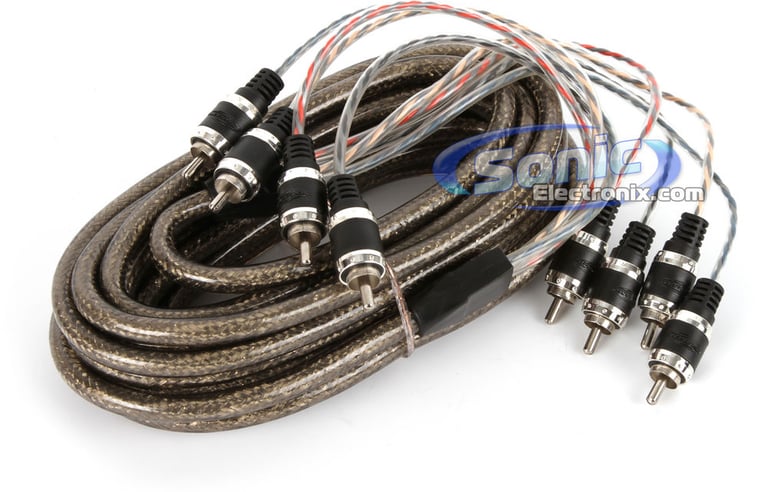

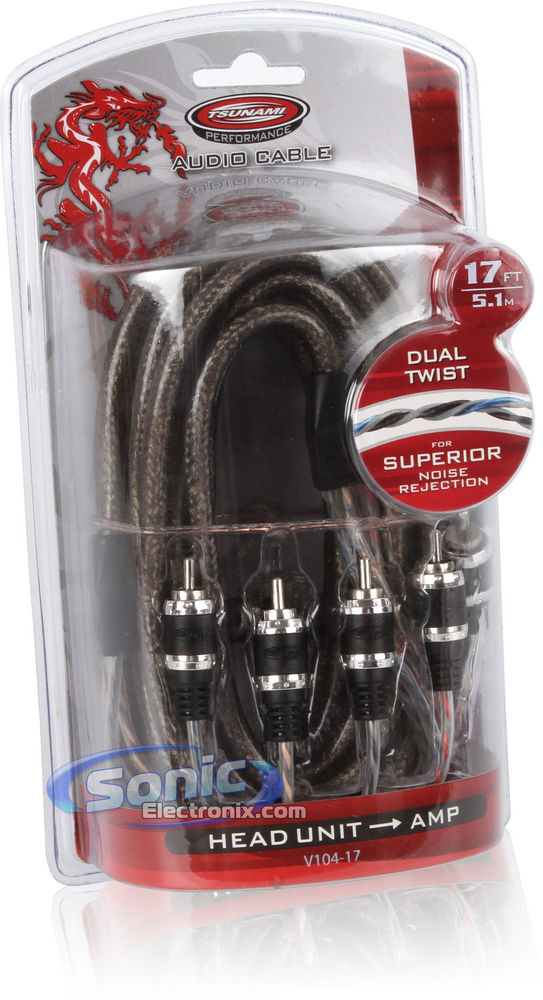

RCA Interconnect Cable Features:
  • 17 ft. 4-Channel RCA Interconnect Cables
  • Two cut nickel-plated connectors for a tight and secure connection
  • Short connector design for easy installation
  • Protective Jacket minimizes friction for easy install
  • Dual twist construction provides protection against interference and noise
  • Provides signal from the car stereo to the amplifier
  • Color coded wires for channel identification
  • Audio RCA interconnect cable use
  • Cable Length: 17ft. (5.1 meters)
  • Color: Smoke Black
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

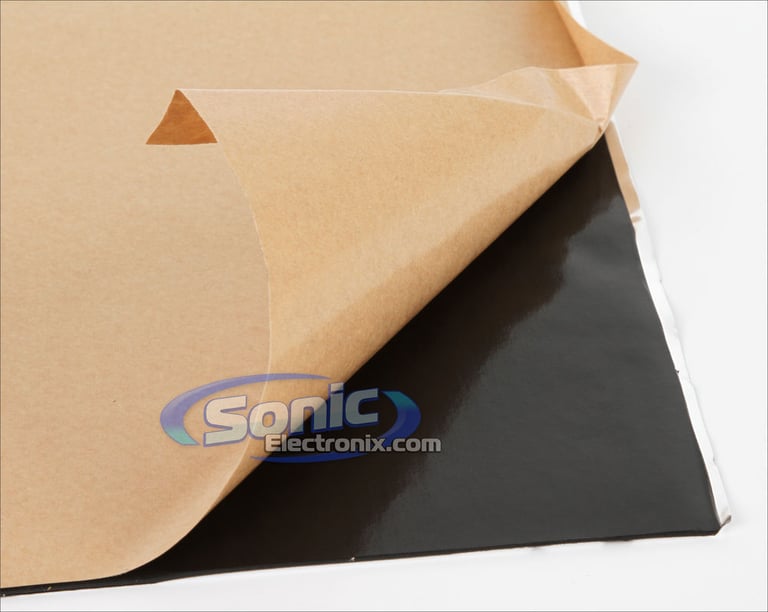

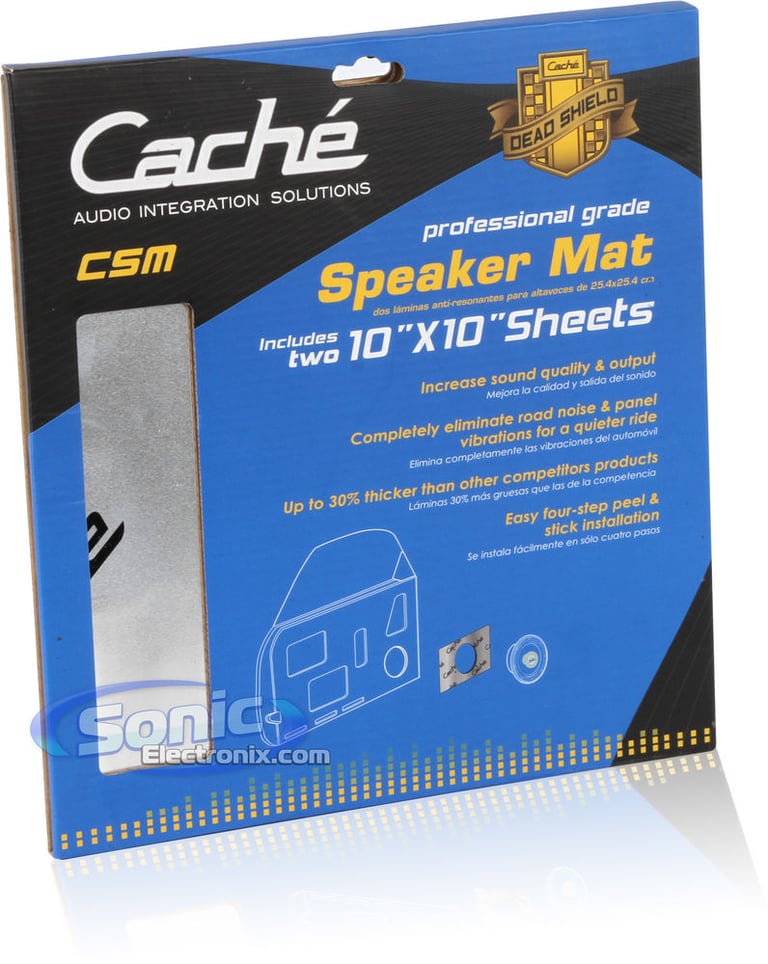

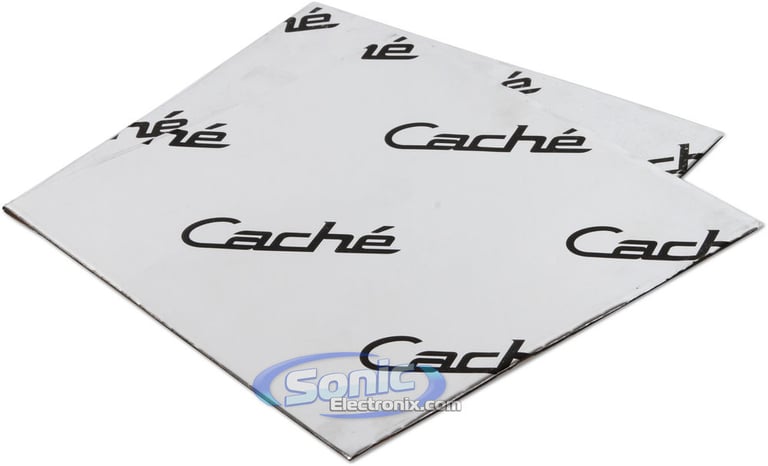

Sound Deadener Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Quantity: 2
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Add to cart
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Add to cart
Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Add to cart
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

Add to cart

Specifications & Details

Front Speaker Specifications
Speaker Size
5-1/4"
Design
2-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon Mica
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
200 watts
RMS Power Handling
27 watts
Impedance (Per Voice Coil)
4 ohm
Top-Mount Depth (Mounting Depth)
1-3/4"
Cutout Dimensions
4-9/16\" x 4-9/16\"
Speaker Grilles
Yes
Rear Speaker Specifications
Speaker Size (Rear)
5-1/4"
Design
2-way Coaxial
Shallow Mount Installation
Yes
Tweeter Design
Balanced Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Carbon Mica
Woofer Surround
Rubber-Coated Cloth
Peak Power Handling
200 watts
RMS Power Handling
27 watts
Impedance (per voice coil)
4 ohm
Top Mount Depth
1-3/4"
Speaker Grilles
Yes
Amplifier Power Specifications
RMS Power @ 4 ohms
25 watts x 4 channel
RMS Power @ 2 ohms
50 watts x 4 channel
Bridged RMS Power
100 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total RMS Power Output
200 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
2 pairs
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
100 Hz
Low-Pass Crossover Frequency
80 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 or +9 dB
Remote bass/level controller
No
Fan Cooled
No
CEA-2031 Compliant
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

JVC

Model Number:

11DX200.4_2-CS-V527

Weight:

19.25lbs

Internal SKU:

11dx2004_2-csv527

Internal Product ID:

37129

Product and How-to Videos

  • JVC Bluetooth Stereo Control Receivers | CES 2014
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews

JVC Speakers + Kicker Amplifier Bundle thumbnail image
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:
Loading...
Sorry, no reviews found
XKIT84 main

NVX XKIT84 4-Channel 8-Gauge Wiring Kit

In case you didn't know, NVX has top notch wire and this kit has everything you need!

(39)

$79.99

List price $107.99

Add to cart
BAK84 main

Belva BAK84

Complete 8 Gauge Amplifier Wiring Kit with 4-Channel RCA Interconnects

(37)

$34.99

List price $59.99

Add to cart
BTK105 main

Five Piece Installer's Panel Removal Tool Kit

Helps with removing dash and trim panels during installation.

(73)

$11.99

List price $18.99

Add to cart
BOBAZT main

18 Butt Connectors, 2 Ring Terminals, and Zip Ties

Great for connecting your car stereo wires to the harness

(27)

$9.95

List price $9.95

Add to cart
BMW-124-BLUE small

Nitro BMW-124 (BLUE)

1.5 Farad Digital Capacitor

(7)

$44.99

List price $199.99

ELA500.1 small

Bazooke ELA500.1

(1)

$149.99

List price $299.99

PROZXI10MBASS_2 small

DS18 PRO-ZXI10MBASS (Pair)

2000W Peak (1000W RMS) 10" ZXi Series 8-Ohm Midbass Car Speakers (Pair)

$299.90

List price $299.90

GTO628_S2-1224_GTO-3EZ_BAK42BK small

JBL Amplified 3-Channel Full Range Bundle

List price $789.88: GTO628 6-1/2" GTO Series Speakers + S2-1224 12" Series II Subwoofer + GTO-3EZ 3-Channel GTO Series Amplifier + Amp Kit

$255.70

List price $769.84

NSH-4565 small

NVX NSH-4565

Install New Speakers in select 1973-2017 vehicles from GMC, Dodge, Chrysler

$7.99

List price $12.99

TREMOR-X12 D4 small

Earthquake Sound TREMOR-X12 D4

1250W Peak (400W RMS) 12" TremorX Series Dual 4-ohm Subwoofer

$225.00

List price $225.00

ST-ADP-SQ 1.0 small

Wet Sounds ST-ADP-SQ 1.0

Mounting Clamps for STEALTH Soundbars (1" Round Tubing)

$37.99

List price $37.99

EXL-P800X4 small

DS18 EXL-P800X4

800W RMS EXL Power Series 4-Channel Class A/B Amplifier

(2)

$249.95

List price $249.95

HCP 4DK small

Hertz HCP 4DK

2000W Peak (880W RMS) Class D Hertz Compact Power (HCP) Series 4-Channel Full Range Car Amplifier

(1)

$549.99

List price $600.00

Related Searches

› JVC › JVC Amp + Speakers Combo › Amp + Speakers Combo under $300
Save up to 10 different vehicles in your garage
Vehicle
Store Delete

2008 Suzuki SX4

2019 Mazda 3

1998 Mitsubishi Eclipse

2013 Mazda CX-5

2014 Ford Explorer

2003 Mazda B3000

2016 Nissan Versa Note

2011 Saab 9-5

2000 Dodge Stratus

2018 Audi A4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm

Cancel

This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue

Cancel

Shop your 2024 Canyon
Why Use a Vehicle Fit Guide?
Change vehicle | Shop without vehicle
Whoa! Slow down. Add your details below!
additional information required
Add vehicle details to confirm fitment
Ignore fitment details
Find stereos and more that work -- fast.

Additional information:

Remove

Can't find your vehicle? Click here and we'll help.

Where to find vehicle info

Go to Fitment

Didn't find your car?

Submit your details and we'll help!
Please enter the letters as they are shown in the image above. Letters are not case-sensitive.
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
Back

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.

Back
Track your order
Call our experts
Support Center
Return & Exchanges
Follow on Instagram Instagram logo
Subscribe on YouTube YouTube logo
