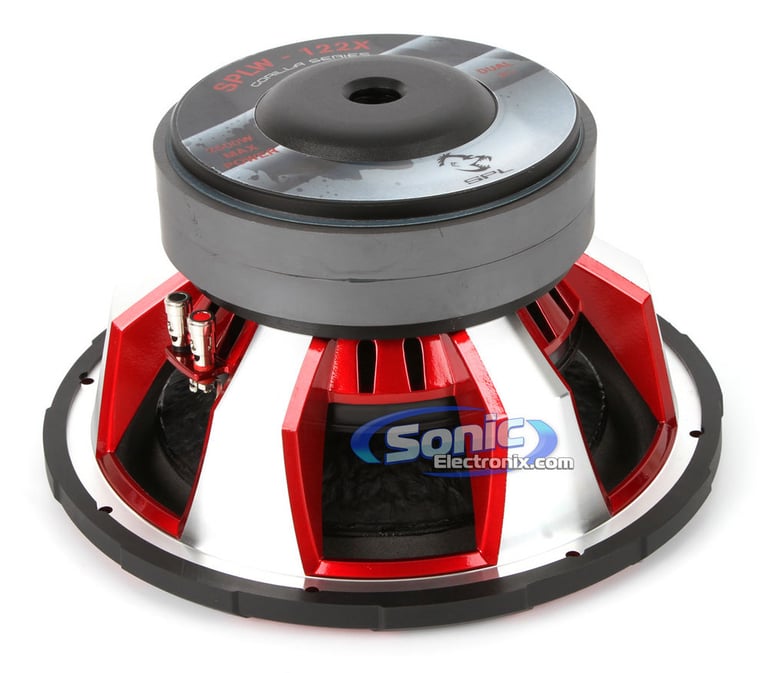

SPL SPLW-122X

12" Dual 2 Ohm SPLW Series Car Subwoofer

SPL
Shop all SPL
Product videos
highlight-star-icon

12" Dual 2 Ohm SPLW Series Car Subwoofer • 2500W Peak • 600W RMS • Non-Pressed Pulp Cone • Polyether Foam Surround • Candy Apple Red Finish • Diamond Cut Accents • Die-Cast Aluminum Frame • 2-1/2” Dual 4-Layer Voice Coil

Learn more about the splw122x

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


12" Dual 2 Ohm SPLW Series Car Subwoofer • 2500W Peak • 600W RMS • Non-Pressed Pulp Cone • Polyether Foam Surround • Candy Apple Red Finish • Diamond Cut Accents • Die-Cast Aluminum Frame • 2-1/2” Dual 4-Layer Voice Coil

Description


SPL brand icon

Authorized dealer

12" SPLW Series Car Subwoofer

Sonic Electronix is now carrying the brand new 2011 line of SPL SPLW Series Car Audio Subwoofers. The SPLW-122X SPLW Series 12" Subwoofer has a peak power rating of 2500 watts and a RMS rating of 600 watts. This sub will produce some ground shaking bass and is constructed with a composite sandwich cone with a polypropylene surface for durability and spruce pulp backing for smooth low bass. This woofer is also equipped with a 2-1/2” dual 2 ohm 4-layer voice coil and a 340 oz magnet structure. Add some bumps in your trunk and enhance your cars stereo system with this SPL SPLW Series Subwoofer.

Product Features
  • 12" Dual 2 Ohm SPLW Series Car Subwoofer
  • Power Handling:
    • Peak: 2500 watts
    • RMS: 600 watts
  • Impedance: 2 ohm
  • Non-Pressed pulp polypropylene cone provides superior durability
  • Polyether foam surround for enhanced excursion
  • Candy apple red finish with diamond cut accents

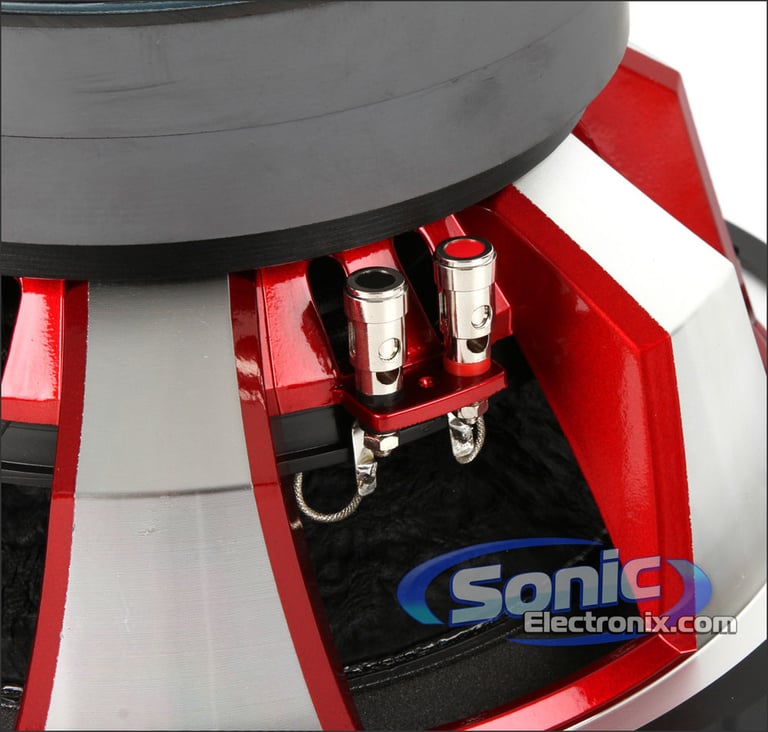

  • Nickel-Plated 8 gauge compression wire terminals
  • Dual poly-cotton spiders
  • Die-Cast aluminum frame for an increase bottom octave output
  • Vented pole piece
  • 2-1/2” Dual 4-layer voice coil
  • Die cast aluminum voice coil heatsink
  • One piece rubber gasket with color matched inserts
  • Magnet Weight: 340 oz
  • Sensitivity: 86 dB
  • Xmax: 12mm
  • Mounting Depth: 6-7/8"
  • Cutout Diameter: 11-1/4"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 SPL SPLW-122X Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 SPL SPLW-122X Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 SPL SPLW-122X Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 SPL SPLW-122X Subwoofers

2 Channel Amp

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(1)

$599.99

List price $719.99

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
SPLW Series
Subwoofer Size
12"
Peak Power Handling
2500 watts
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Frequency Response
Not specified by manufacturer
Sensitivity
86 dB
Xmax (millimeters)
12 mm
Subwoofer Design
Round / Circle
Main Cone Color
Red
Woofer Composition
Polypropylene
Woofer Surround
Polyether Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.00 cubic feet
Maximum Sealed Box Volume
1.00 cubic feet
Minimum Ported Box Volume
2.00 cubic feet
Maximum Ported Box Volume
2.00 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
29.91 Hz
Total Speaker Q Value (Qts)
0.367
Electrical Q Value (Qes)
0.393
Electrical Resistance of Voice Coil (Re)
3.946 ohm
Mechanical Q Value (Qms)
5.687
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

SPL

Model Number:

SPLW-122X

Weight:

29.00lbs

Internal SKU:
