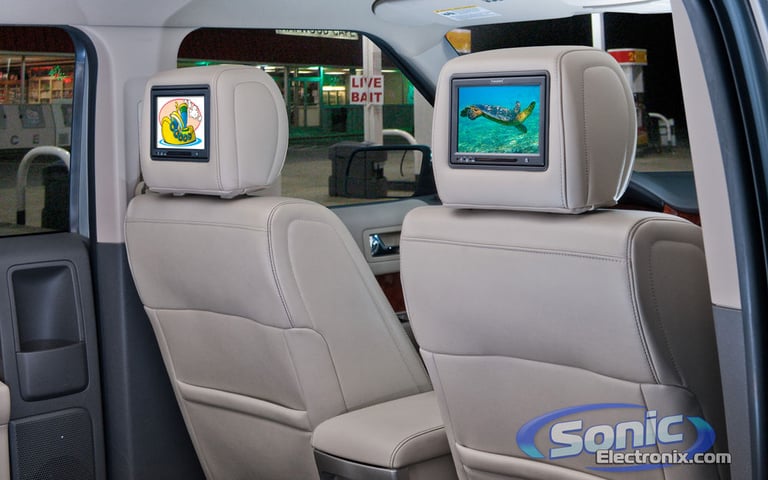

Vizualogic A-1285 (Active Headrest Restraint)

7" Dual DVD Active Headrest Restraint System (Custom Built Headrest)

Vizualogic
Shop all Vizualogic
highlight-star-icon

Vizualogic RoadTrip RT Series Headrest Monitors (Active Headrest Restraint System) • Full Function Remote Control • USB and SD Card Input • Wireless FM Modulator • Wireless IR Headphones

Learn more about the a1285-768

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
P1V2-675 main

Rockford Fosgate Punch P1V2-675

300W Peak (150W RMS) 6.75" Punch P1 Series 3 Way Coaxial 4-ohm Speakers

-25.00%

$179.99

List price $239.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

DMDX675 main

Diamond Audio DMDX675

300W Peak (100W RMS) 6.75" DMD Series 2-Way Cocentric Coaxial 4-ohm Speakers

H672 main

Cerwin-Vega H672

540W Peak (180W RMS) 6.75" HED Series 2 Way Coaxial 4-ohm Speakers

-16.67%

$159.99

List price $191.99

P1675 main

Rockford Fosgate Punch P1 P1675

240W Peak (120W RMS) 6.75” Punch Series 3 Way Coaxial 4-ohm Speakers

48
H675C main

Cerwin-Vega H675C

720W Peak (240W RMS) 6.75" HED Series 4-ohm 2-Way Component Speaker System

-16.67%

$189.99

List price $227.99

R1675X2 main

Rockford Fosgate Prime R1675X2

180W Peak (90W RMS) 6.75" Prime Series 2 Way Coaxial 4-ohm Speakers

59
Limited time!
46CSS674 main

Kicker CSS67 (46CSS674)

600W Peak (200W RMS) 6.75" CS Series 2 Way Component 4-ohm Speaker System

5
-28.02%

$143.96

List price $199.99

T1675 main

Rockford Fosgate Power T1 T1675

300W Peak (150W RMS) 6.75” Power Series 2 Way Coaxial 4-ohm Speakers

17

Description


Vizualogic brand icon

Authorized dealer

You Will Want To Road Trip

Vizualogic RoadTrip RT Series with Active Headrest Restraint System. This sophisticated product provides video entertainment to rear seat passengers without altering the appearance of your vehicle’s original interior. High grade components assure this system will last a long time and provide unmatched video and audio quality. Using the Vizualogic Application guide you can material match these monitors for your vehicles unique interior giving a factory look. The built-in top loading DVD player can playback most DVDs on the high quality monitors or other sources. Integrated FM modulator and IR receiver allows the DVD audio to be played back through headphones or your vehicles radio system. To top it off an integrated USB and SD card reader allows playback of music, videos, and pictures. Do it right, do it once, do it quality.

General Features:
  • Vizualogic RoadTrip RT Series Headrest Monitors
  • Designed with active headrest restraint systems
  • A/V control module with multi-source capability
  • Full function remote control. Controls monitor functions, DVD player functions, and A/V source input selection
  • Built-in top slot loading DVD player
  • Wireless dual channel infrared headphones
  • Integrated wireless FM modulator
  • Integrated USB and SD card reader
  • Uses the NTSC/PAL color systems
  • Region code 1 plays North America DVD's
  • Parental password protection for DVD's with rating systems (Kid safe, General audiences, PG, PG-13, PG-R, NC-17, Adult)
  • Color Setting Adjustments (Sharpness, Brightness, Contrast, Gamma, Hue, Saturation, Luminance Delay)
  • HDCD Preferred filter modes (Off, 1x, 2x)
  • Pro Logic II 3D processing with reverb modes (Off, Concert, Living Room, Hall, Bathroom, Cave, Arena, Church)
  • Available Bass/Treble Boost and Super Base modes
  • Switchable sound modes (Off, Rock, Pop, Live, Dance, Techno, Classic, Soft)
  • Last played memory will resume a DVD from its play point before the unit was turned off
  • Compatible with multiple angle DVDs
  • Three screen ratio modes available: 16:9 WIDE, 4:3LB (Letter Box) and 4:3PS (Pan Scan)
  • Multiple Play Modes: single, repeat one, repeat folder, folder, shuffle/random
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Media Specifications:
  • Multimedia player supports: DVD, DVD-R, DVD-RW, DVD+R, DVD+RW, CD, CD-R, CD-RW, VCD, SVCD, MP3 and JPG picture disks
  • MPEG4 support: DivX 3.11/4.02/5.02/5.03/5.05 DivX Pro/Subtitles .srt .sub
  • Electronic Shock Protection (ESP) and Mechanical Shock Protection
  • PAL/NTSC compatible
  • Multi Lingual On Screen Display (OSD)
  • Integrated Dome Lights with Door Sensor Connections
  • A/V input via RCA connectors
  • USB Connector
  • Multi-Language Menu Selection
Technical Specifications:
  • Power Consumption 12V DC (1 1-15V) /1.4A (Max 1.6A)
  • FM Stereo Transmitter: 88.5MHz / 88.7MHz / 88.9MHz / 89.1MHz / 89.3MHz / 89.5MHz / 89.7MHz / 89.9MHz
  • IR Carrier Frequency: 2.3 / 2.8 MHz
  • TV Signal System: PAL/NTSC/MULTI
  • Laser Semi-conductor: laser, Wave Length: 600nm, Frequency Range: 780nm
  • 48 KHz pulse modulation: 20 Hz ~ 22 KHz
  • 96 KHz pulse modulation: 20 Hz ~ 22 KHz
  • S/N: ≥ 65 dB
  • Audio Dynamic Range: > 85 dB
  • Harmonic Distortion: 0,01%
  • Input Sensitivity: 500 mv
  • Operation Temperature: 0 ˚C ~ 40 ˚C
  • Storage Temperature: -15 ˚C ~ 50 ˚C
Package Includes:
  • Two Headrests w/ DVD Monitor
  • Remote Control
  • Owners Manual
  • Installation Manual
  • Connect Cable
  • AV Box
  • AV Box Power Harness
  • Headphones
  • AUX Cable
  • USB Cable

Specifications & Details


Headrest Monitor Specifications
Screen Type
LCD
Touchscreen
Yes
OSD (On Screen Display)
Yes
OSD Languages
English
Number of Screens
2
Wireless Remote
Yes
DVD Player Included
Yes
Headrest Pillow(s) Included
No
USB Input
Rear
Built-in IR Transmitter
Yes
Headphone Input
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

A-1285-3

Weight:

18.59lbs
