See all parts that fit your 2002 SW2

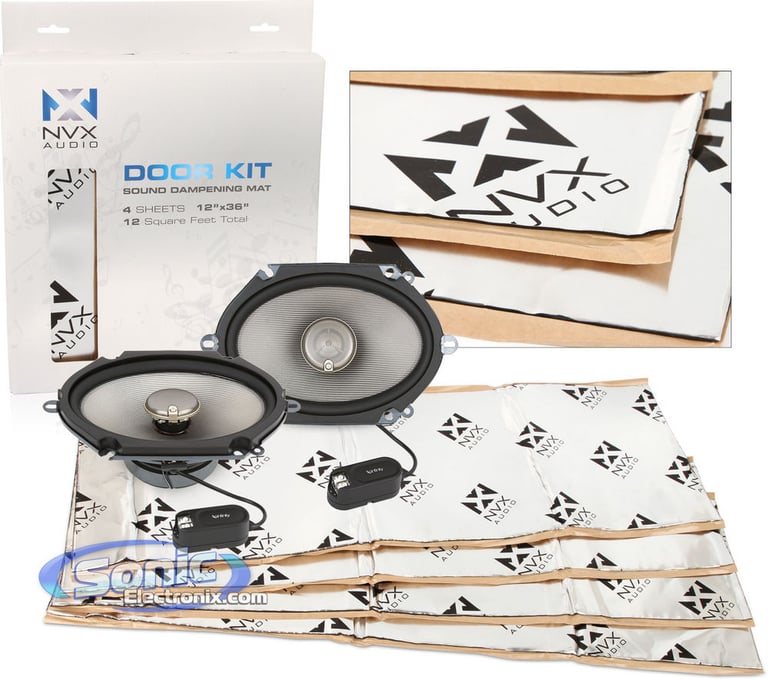

Infinity Kappa 682.9cf + Sound Dampening

6" x 8" 2-way Kappa Speakers (KAPPA682.9CF) with Four 12" x 36" Pieces of Sound Dampening Material

Infinity
Shop all Infinity
EXCLUSIVE
Product videos
highlight-star-icon

6" x 8" (5" x 7") Kappa Series 2-way Speakers • 300W Max • 100W RMS • Woven glass fiber Cone Woofer • Rubber Surround • Edge Driven MMD Dome Tweeter • Direct Connect Computer-Optimized, Voice-Matched Outboard Passive Crossover • Sound Dampening Material Included

Learn more about the 6829cf_sddk12

We apologize

This item has been discontinued


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth (SiriusXM Ready)

44
-16.69%

$149.95

List price $180.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

Product Highlights


6" x 8" (5" x 7") Kappa Series 2-way Speakers • 300W Max • 100W RMS • Woven glass fiber Cone Woofer • Rubber Surround • Edge Driven MMD Dome Tweeter • Direct Connect Computer-Optimized, Voice-Matched Outboard Passive Crossover • Sound Dampening Material Included

Description


Infinity brand icon

Authorized dealer

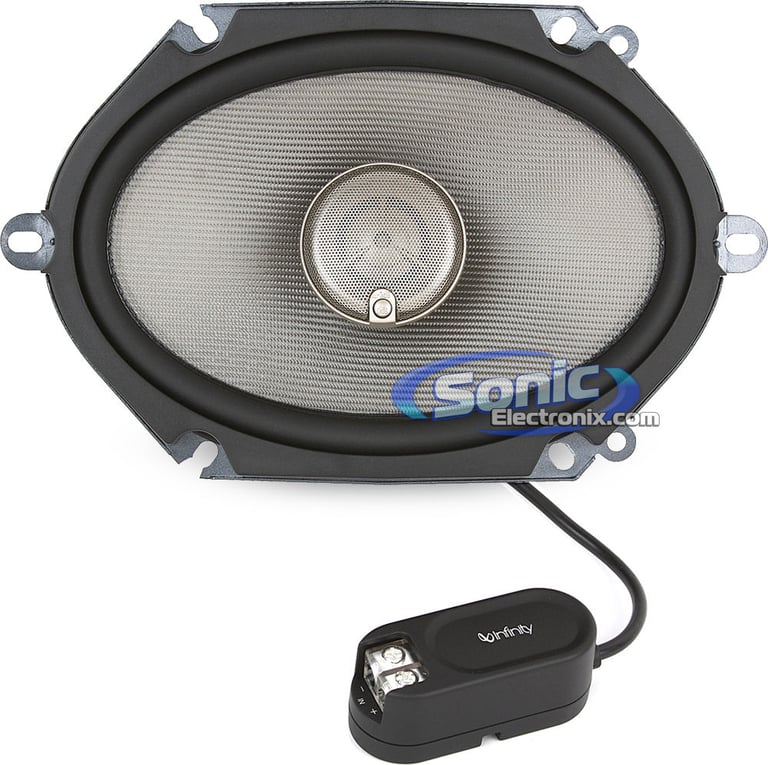

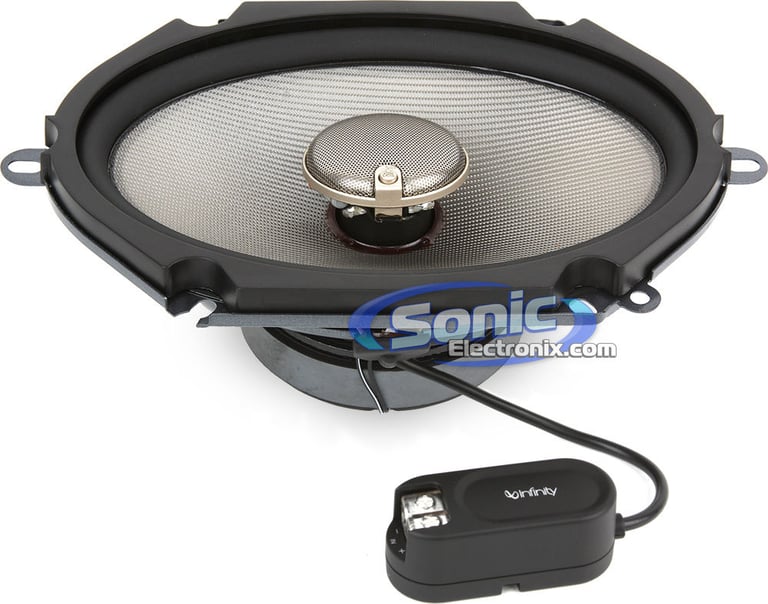

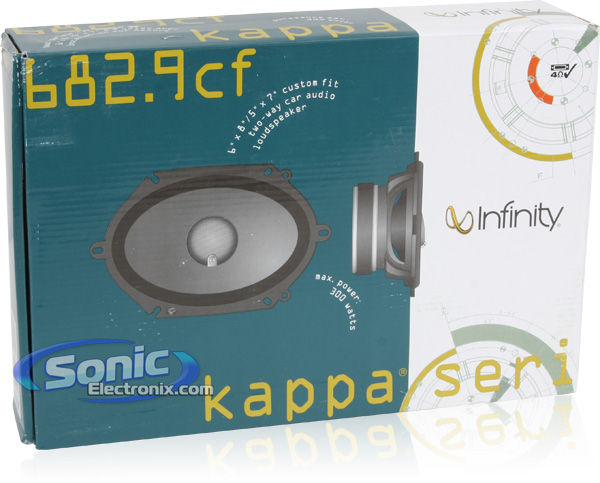

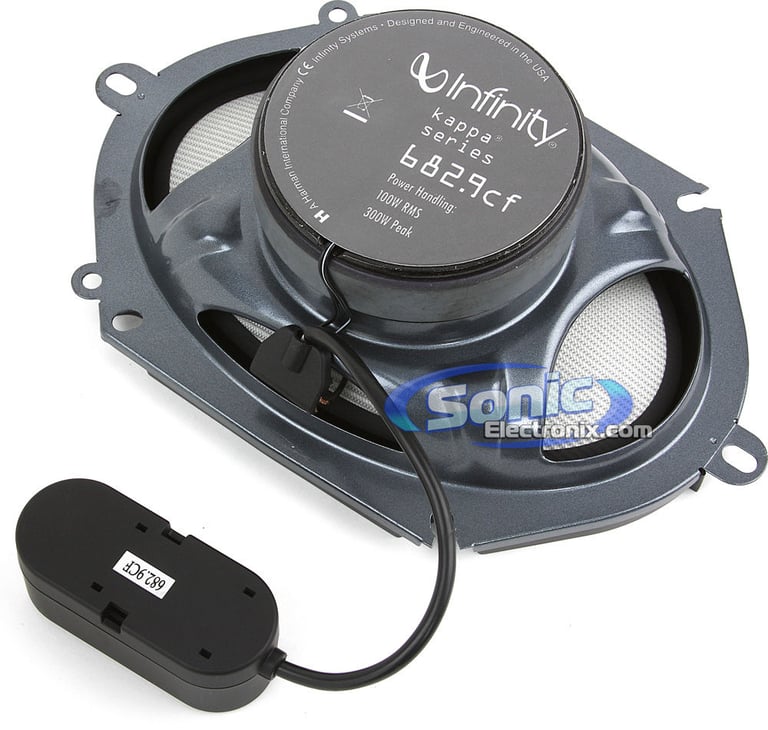

Speaker Features:
  • 6" x 8" (5" x 7") Kappa Series 2-way Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Woven glass fiber cone woofer
  • Rubber surround
  • Edge driven MMD dome tweeter
  • Unipivot patented rotating tweeter allows tweeter to be directed at the listener's location
  • Direct connect computer-optimized, voice-matched outboard passive crossover for superb detail and accuracy
  • Tweeter level adjustment on tweeter by simply rotating the tweeter to add or subtract 3 dB output
  • 2 ohm impedance
  • Top-mount depth: 2-7/8"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

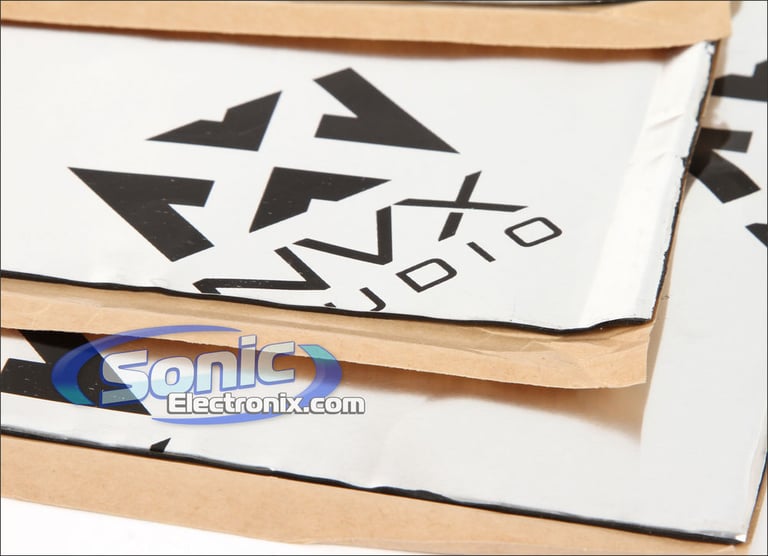

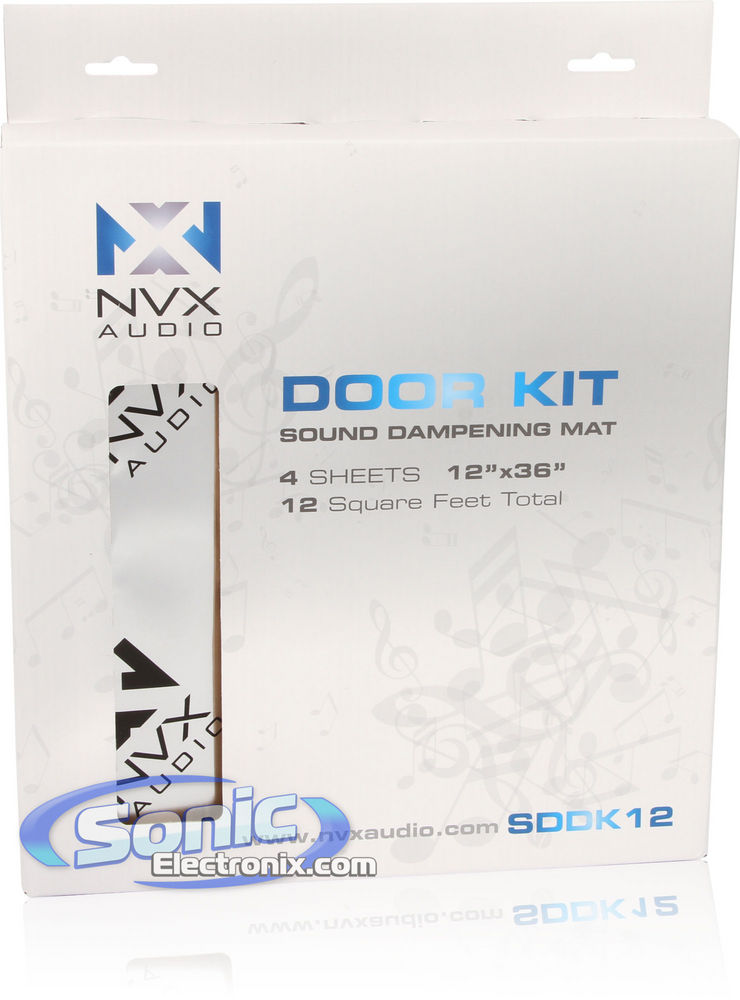

Sound Dampening Material Features:

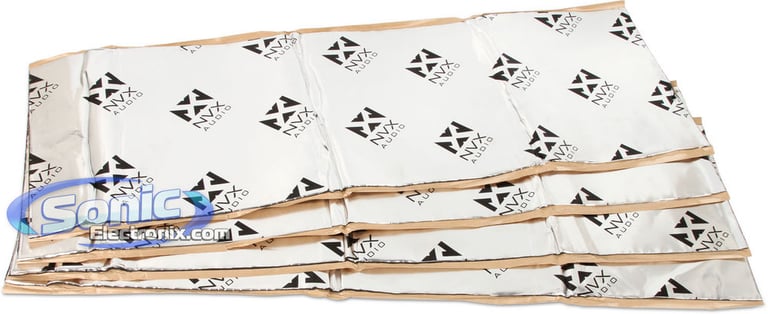

  • Four 12" x 36" Pieces of Series 3 Sound Dampening Material
  • Eliminates road noise
  • Quiets vibrations
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease
  • Four step peel and stick design for easy installation
  • Increases sound quality and output of car audio system
  • 12 Square feet total
  • Dimensions (each piece): 12"L x 36"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amount
12 ft.2
12 ft.2
12 ft.2
12 ft.2
12 ft.2
Application
Door
Door
Door
Door
Door
Thickness
1.7 mm
2.0 mm
2.3 mm
2.1 mm
2.2 mm

Best selling similar products

C1-570x small

JL Audio C1-570x

• 50 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

(4)

$129.99

List price $129.99

REF687F small

Infinity REF687F (INFSPKRF687FUS)

• 180 watts Peak Each, 60 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 93 dB

(1)

$129.95

List price $159.95

JS68K small

Jensen JS68K

• 250 watts Peak Each, 60 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB

$139.99

List price $139.99

P1683 small

Rockford Fosgate Punch P1 P1683

• 130 watts Peak Each, 65 watts RMS Each
• 3/4" tweeter and 1/2" super tweeter PEI (Polyetherimide) Dome tweeters
• Injection-molded Mineral-filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(85)

$109.99

List price $109.99

PK1-168 small

MB Quart PK1-168

• 110 watts Peak Each, 55 watts RMS Each
• 1" Magnesium Dome tweeters
• Tunable waveguide tweeter housing
• Pop Paper-Mica Blend cone material
• Curvilinear cone design geometry
• Impedance: 4 ohm
• Sensitivity: 88.5 dB

$129.99

List price $189.99

VTEK-57Xi small

Earthquake Sound VTEK-57Xi

• 400 watts RMS Each
• 3/4" Silk Dome swiveling tweeters
• Glass Fiber cone material
• Impedance: 2 ohm
• Sensitivity: 90 dB

$129.99

List price $169.00

NSP68 small

NVX NSP68

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 88 dB
• Mounting Depth: 2.63"

(59)

$79.99

List price $95.99

VSP68 small

NVX VSP68

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.59"

(46)

$89.99

List price $107.99

46CSC684 small

Kicker CSC68 (46CSC684)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material with EVC™ (Extended Voice Coil) technology
• Impedance: 4 ohm
• Sensitivity: 90 dB

(11)

$79.96

List price $119.99

H7683 small

Cerwin Vega H7683

• 360 watts Peak Each, 60 watts RMS Each
• 1" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

(50)

$79.99

List price $95.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 8" (also mounts in most 5" x 7" locations)
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Metal Matrix Diaphragm
Woofer Composition
Woven Glass Fiber
Woofer Surround
Rubber
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Sensitivity
94 dB
Frequency Response
40 - 25000 Hz
Impedance (Per Voice Coil)
2 ohm
Top-Mount Depth (Mounting Depth)
2-7/16"
Bottom-Mount Depth
3"
Cutout Dimensions
7-1/8" x 4-5/8"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

682.9cf_SDDK12

Weight:

15.60lbs

Internal SKU:

6829cf_sddk12

Internal Product ID:

37332

Product and How-to Videos


Customer Ratings & Reviews


Infinity Kappa 682.9cf + Sound Dampening thumbnail image

5 star
77%
4 star
22%
3 star
1%
2 star
0%
1 star
0%



Durability
4.7
Value
4.8
Features
4.7
Design
4.8
Usability
4.8

Customer Photos & Videos


Customer Reviews

Sort by:

Loading...

A lot of materual

The following review is for SDDK12, which is a part of the bundle you are viewing.

Ordered this for my F Super Cab. I just wanted some material to apply to the inside of the door skins. It is a lot more material than I needed. Ford already has a small amount of sound dampening material. It did quiet the interior as expected. Great product. Came with no instructions. I just used some alcohol to clean the surface first.

By James on January 19, 2014

122 found this helpful


love it!!!

The following review is for SDDK12, which is a part of the bundle you are viewing.

Love this product. Great price and easy to work with.

By vincent on February 18, 2014

114 found this helpful


Great!

The following review is for SDDK12, which is a part of the bundle you are viewing.

put on my trunk to stop rattles. worked great, doesnt sound like a tin can from outside. thick stuff definitely a good deal. as good, if not better, as the bigger sound deadener brands but at a lower price. i highly recomend

By jacob on August 16, 2013

106 found this helpful


Impressive product

The following review is for SDDK12, which is a part of the bundle you are viewing.

This is a very stout, impressive product. It feels thicker than the famous competition and there is no smell to it. The sheets you get are sort of a long/narrow size, so they are great for running vertically up the doors and on the outer door skin. You'll definitely want a source of heat when working with these and really, there isn't a better value for the kind of product you are getting here.

By Corey on January 6, 2014

104 found this helpful


NVX 12ft.

The following review is for SDDK12, which is a part of the bundle you are viewing.

This is great material for a great price. Ive bought multiple nvx dampening products and have been pleased with everyone. This this easily applied with a nix roller and contains the perfect amount plus some to use on your doors.

By Trent Streichert on September 5, 2013

103 found this helpful


Seems fine

The following review is for SDDK12, which is a part of the bundle you are viewing.

Used on rear door skins. No smell, easy to manipulate.

By Matt on October 6, 2013

101 found this helpful


Great for Rattles

The following review is for SDDK12, which is a part of the bundle you are viewing.

Installed this stuff in my front doors and enough for the speaker area in the rear doors. It only slightly reduced the road noise in my car, but tightened up the bass and reduce rattles by a huge degree. This stuff is easy to install and can often be bought on sale.

By Jared on April 21, 2013

103 found this helpful


Good product

The following review is for SDDK12, which is a part of the bundle you are viewing.

Easy to work with and in my opinion it performs better than dynamat!

By Joel on September 17, 2013

103 found this helpful


Decent Dampening

The following review is for SDDK12, which is a part of the bundle you are viewing.

I have had this for almost three months on my trunk lid and it has made a big difference. The rattling is not as bad as it used to be and it made a difference inside the car.

DON'T buy this if you live in arizona because the heat is too much for it.

By Miguel on June 10, 2012

100 found this helpful


NVX SDDK12

The following review is for SDDK12, which is a part of the bundle you are viewing.

Excellent sound deadener for the money, very thick, no smell once applied, super tacky and sticks even to dirty surfaces. Applied in my doors it made a big difference inside the car, applied in the trunk the bass sounds much better inside but it didn't stop my trunk from flexing and sounding like it's about to explode. All in all excellent product and would definitely recommend!

By Darius on June 11, 2014

100 found this helpful
