2000W RE Audio + Sound Dampening Material Bass Bundle

15" RE Audio XXX15D4 XXX Series Subwoofer + NVX Sound Dampening Material

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

15" Dual 4 ohm XXX Series Subwoofer • 2000W RMS • Kevlar Reinforced Kraft Pulp Cone • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Learn more about the xxx15d4_sdbp40

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

PRO-1.5KP10.4 main

DS18 PRO-1.5KP10.4 (Sold Individually)

3000W Peak (1500W RMS) 10" PANCADÃO Series 4-ohm Mid-bass Speaker

US2-C65A-175 main

SSV Works US2-C65A-175

120W Peak (60W RMS) Cage Mount Speaker Pods with 1.75" Clamp

US2-C65A-200 main

SSV Works US2-C65A-200

120W Peak (60W RMS) Cage Mount Speaker Pods with 2" Clamp

49ST9MR4 main

Kicker ST9MR4 (49ST9MR4)

1200W Peak (600W RMS) 9" Street Series Pro Midrange 4-ohm Speakers

-9.09%

$199.99

List price $219.99

220-US2-C65U-150 main

SSV Works US2-C8U-150

Unloaded 8" Cage-Mount Speaker-Pods Enclosure

Product Highlights


15" Dual 4 ohm XXX Series Subwoofer • 2000W RMS • Kevlar Reinforced Kraft Pulp Cone • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Description


RE Audio brand icon

Authorized dealer

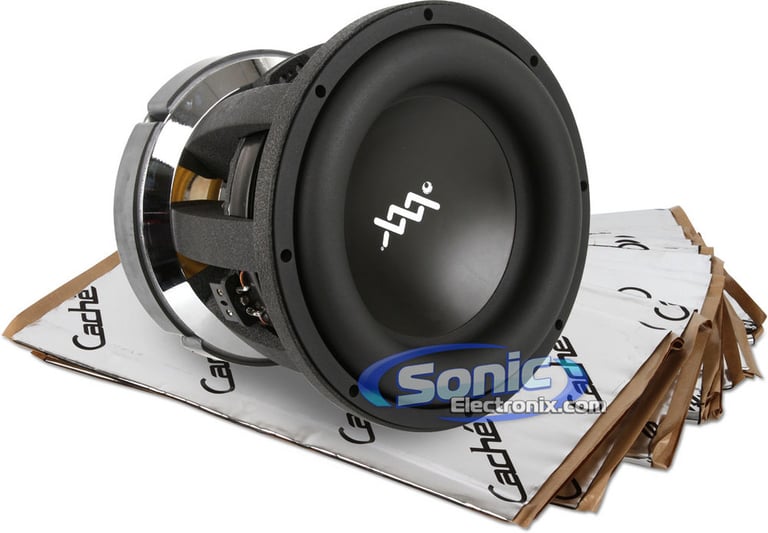

RE Audio plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 15" Dual 4 Ohm RE Audio XXX Series Subwoofer. This subwoofer is rated at 2000 watts RMS of continues power. The subwoofer is equipped with a Kevlar reinforced kraft pulp dual composite 2-piece cone and a rubber surround for rigidity and performance. It is also equipped with tork-tite terminals, and dual progressive spiders for increased excursion. With an VMS vented magnet system that reduces heat excursion, this RE Audio XXX series subwoofer is sure to provide efficient sound and bass for long periods of time. In order to improve the all around sound of your audio car system, this bundle also includes ten 18" x 32" pieces of sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.

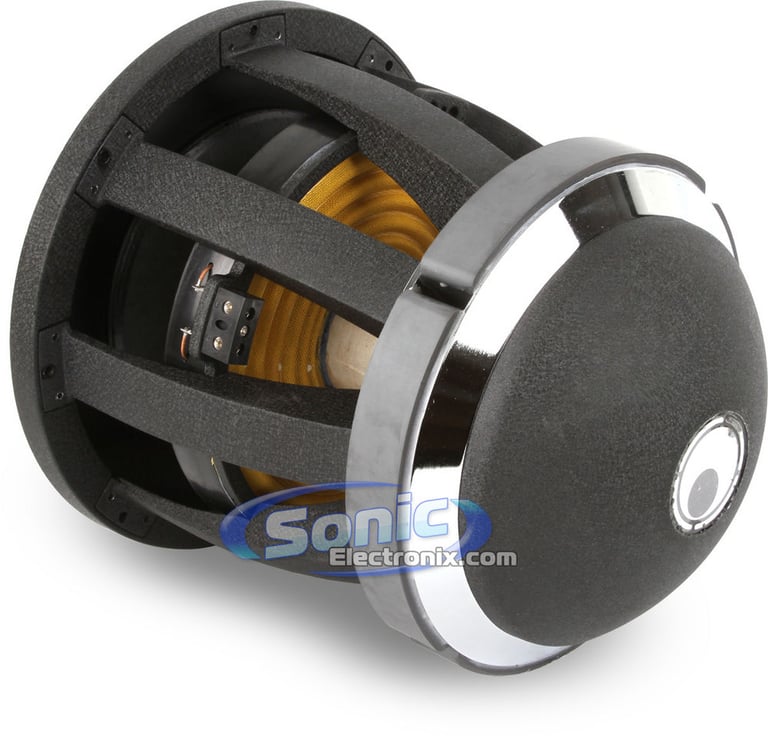

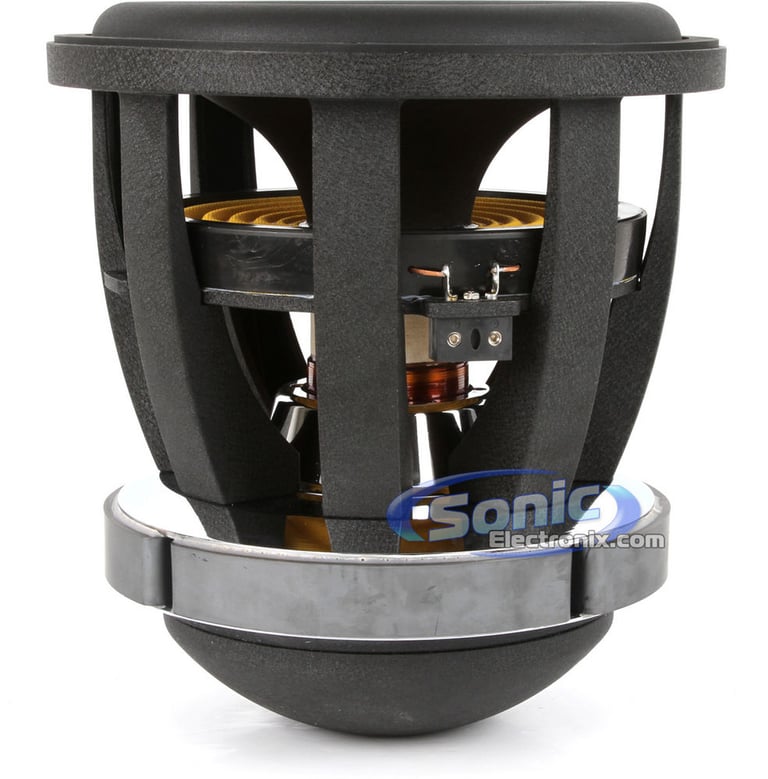

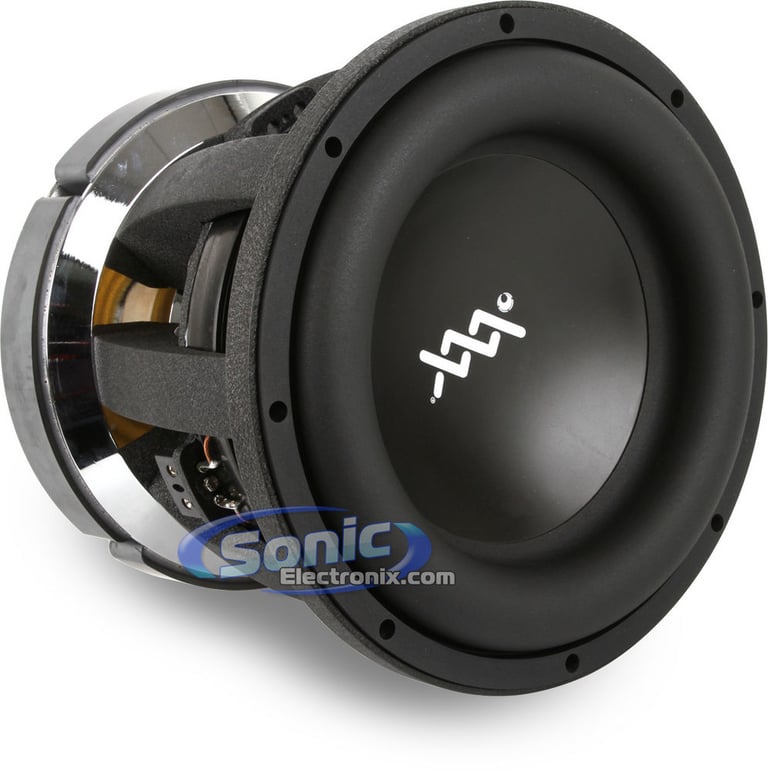

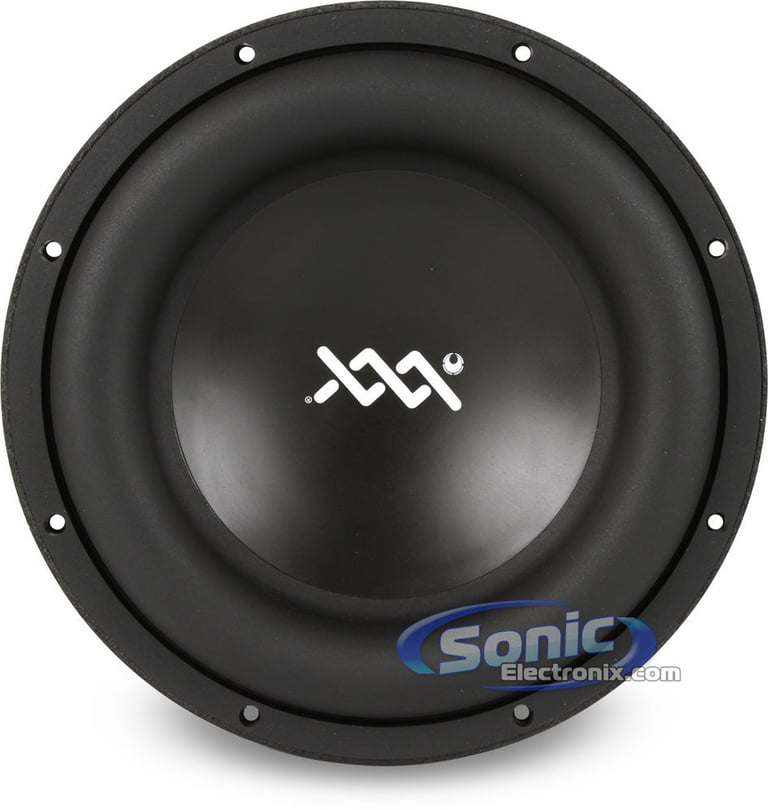

RE Audio XXX15D4 Features:
  • 15" Dual 4 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 4 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone

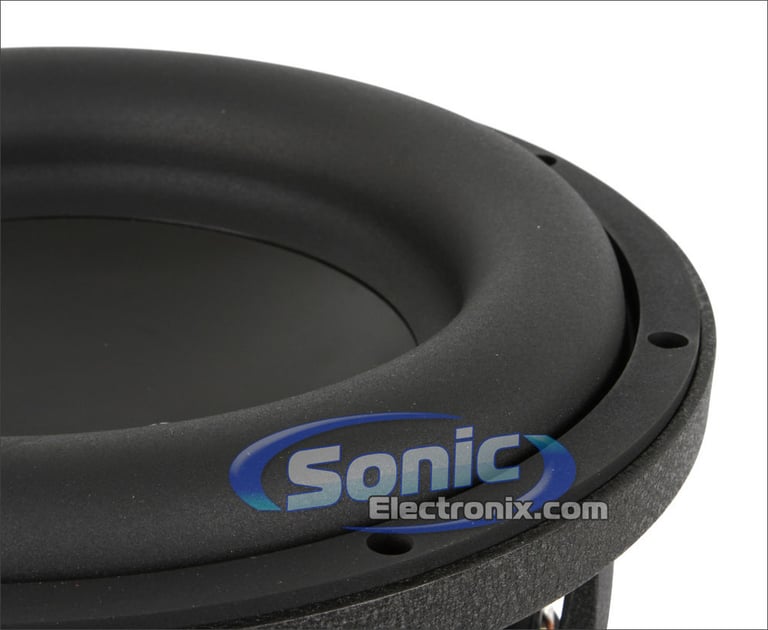

  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system
  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.58
  • Mechanical Q Value (Qms): 3.62
  • Total Speaker Q Value (Qts): 0.501
  • Free Air Resonance (Fs): 19.10 Hz
  • Equivalent Compliance (Vas): 207 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 85.81 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

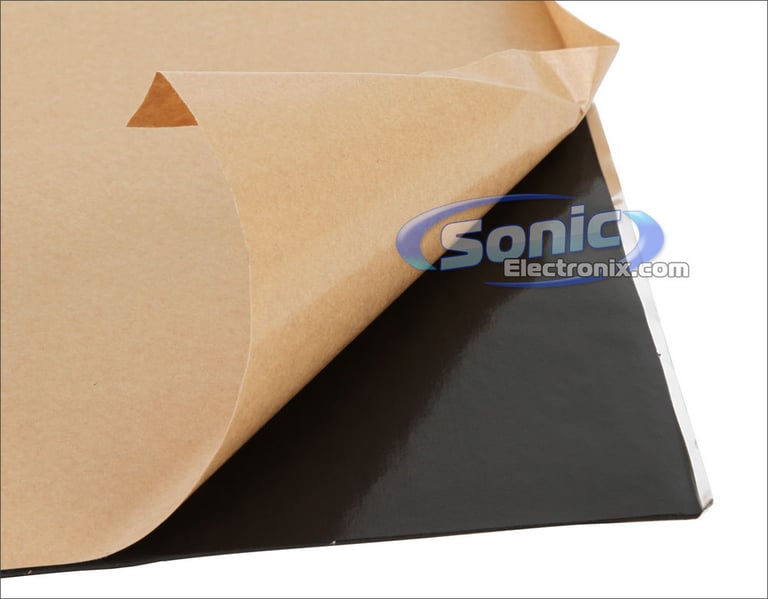

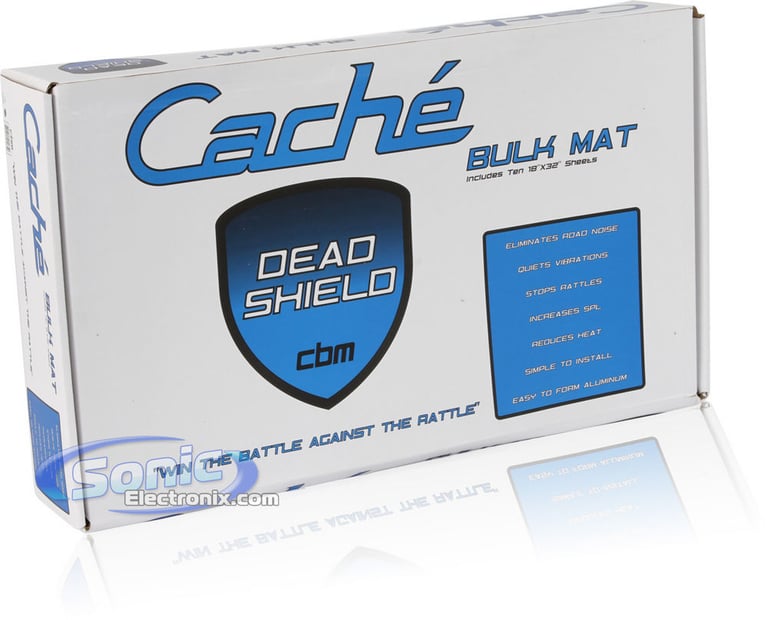

NVX SDBP40 Features:

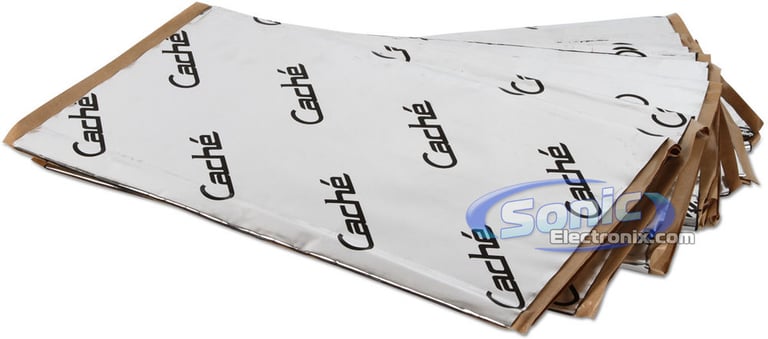

  • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates road noise
  • Quiets vibrations
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease
  • Four step peel and stick design for easy installation
  • Increases sound quality and output of car audio system
  • Up to 30% thicker than the leading competitors
  • 40 Square feet total
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Dimensions (each piece): 18"L x 32"W
  • Subwoofer Wiring Guide


    Wiring Guide to Wire 1 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofer

    Mono Amp

    2 Channel Amp - Bridged

    Wiring Guide to Wire 2 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

    Mono Amp

    Mono Amp - Option 1

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp - Bridged

    Wiring Guide to Wire 3 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

    Mono Amp

    4 Channel Amp

    Wiring Guide to Wire 4 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

    Mono Amp

    2 Channel Amp

    2 Channel Amp - Bridged

    4 Channel Amp


    Best selling similar products

    DAX800XR_MRR_S8FO1 small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (40)

    $1383.97

    List price $2029.97

    KWZ1000AW_MRR_FLFO1_S small

    JVC KW-Z1000AW Direct-Fit Digital Receiver Package

    • Bluetooth Digital Multimedia Receiver for select Ford vehicles
    • 10.1" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (38)

    $1883.96

    List price $2282.96

    DAX1050XR_MRR_FLCH2_D small

    Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 10.1" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (38)

    $1883.97

    List price $2479.97

    DAX800XR_MRR_S8GM1_8 small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1456.96

    List price $2074.96

    DAX800XR_MRR2_S8FO1_S small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (9)

    $1473.96

    List price $2143.96

    KWZ800AW_MRR_S8FO1 small

    JVC KW-Z800AW Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
    • 8" Capacitive Touchscreen Display
    • Supports wireless Apple CarPlay and wireless Android Auto
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM and iDataLink Ready

    (39)

    $1383.97

    List price $1778.97

    DAX800XR_MRR_S8GM3_CI small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1605.96

    List price $2254.96

    DAX800XR_MRR_S8FO2_s small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (39)

    $1348.96

    List price $1973.96

    DAX800XR_MRR_S8FO1_S small

    Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
    • 8" Capacitive Touchscreen Display
    • Wireless Apple CarPlay and Android Auto Compatible
    • 3 sets of 5 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM Satellite Radio Ready
    • iDatalink Maestro Compatible
    • Built-in Bluetooth, HD Radio, and Wi-Fi
    • 4 Camera Inputs Function

    (40)

    $1403.96

    List price $2053.96

    KWZ1000AW_MRR2_FLFO1 small

    JVC KW-Z1000AW Direct Fit Digital Receiver Package

    • Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
    • 10.1" Capacitive Touchscreen Display
    • Supports wireless Apple CarPlay and wireless Android Auto
    • 3 sets of 4 volts preamp outputs
    • 13-Band Graphic EQ
    • SiriusXM and iDataLink Ready

    (7)

    $1601.82

    List price $2348.97

    Specifications & Details


    Subwoofer Specifications
    Series
    XXX Series
    Subwoofer Size
    15"
    RMS Power Handling
    2000 watts
    Voice Coil(s)
    Dual
    Impedance (Per Voice Coil)
    4 ohm
    Xmax (millimeters)
    54 mm
    Subwoofer Design
    Round / Circle
    Main Cone Color
    Black
    Woofer Composition
    Kevlar reinforced kraft pulp, dual composite 2-piece cone
    Woofer Surround
    Rubber
    Subwoofer Grille
    No
    Re-Cone Kit Available
    No
    Recommended Enclosure Specifications
    Recommended Enclosure Type
    Ported / Vented
    Sealed
    Minimum Sealed Box Volume
    1.6 cubic feet
    Maximum Sealed Box Volume
    2.1 cubic feet
    Minimum Ported Box Volume
    3.2 cubic feet
    Maximum Ported Box Volume
    4.0 cubic feet
    Top-Mount Depth (Mounting Depth)
    13-1/2"
    Cutout Diameter
    14-1/2"
    Shallow Mount Installation
    No
    Warranty and Return Policy
    Parts Warranty Duration
    1 year
    Labor Warranty Duration
    1 year
    Warranty Provider
    Manufacturer

    Item Details


    Manufacturer:

    Model Number:

    XXX15D4_SDBP40

    Weight:

    134.00lbs

    Internal SKU:

    xxx15d4_sdbp40

    Internal Product ID:

    37362

    Product and How-to Videos


    • RE Audio New Product Line Overview | CES 2015
    • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

    Customer Ratings & Reviews


    2000W RE Audio + Sound Dampening Material Bass Bundle thumbnail image

    5 star
    100%
    4 star
    0%
    3 star
    0%
    2 star
    0%
    1 star
    0%



    Durability
    5
    Value
    4.5
    Features
    5
    Design
    5
    Usability
    5

    Customer Reviews

    Sort by:

    Loading...

    best value

    Seem to be the best price for this product.

    By jack56 on August 15, 2011

    2 found this helpful


    ridiculos

    Ridiculous. One word only. Look it up... can you say deaf ears in 2 seconds of playtime!

    By bradley on April 9, 2012




    XTR-695 small

    Whistler XTR-695

    Radar and Laser Detector with RSID and LSID, 3 Filter Modes and 7-Color Backlit Display

    $144.99

    List price $249.99

    KEH-P4020 small

    Pioneer KEH-P4020

    In-Dash Flip-down AM/FM Cassette Receiver

    $129.99

    List price $159.99

    9004-DB-6K-VE small

    Vision Extreme 9004-DB-6K-VE HID Xenon Headlights

    6000K 9004/HB1 Dual Beam Bi-Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

    $59.99

    List price $159.99

    9004-12K-BI-VE small

    Vision Extreme 9004-12K-BI-VE HID Xenon Headlights

    12,000K 9004/HB1 Dual Beam Bi-Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

    $79.99

    List price $159.99

    9004-DB-8K-VE small

    Vision Extreme 9004-DB-8K-VE HID Xenon Headlights

    8000K 9004/HB1 Dual Beam Bi-Xenon Headlamp Bulbs HID Headlight Conversion Kit w/ DC Ballasts

    $59.99

    List price $159.99

    6832cf small

    Infinity 6832cf

    6" x 8" Reference Series 2-way Car Speakers (also mounts in most 5" x 7" locations)

    (20)

    $69.95

    List price $149.95

    FORDAH small

    Peripheral FORDAH

    Radio Replacement Interface for Select Ford, Lincoln and Mercury Vehicles with Factory Systems

    $89.99

    List price $129.95

    RA10 small

    DLS Reference RA10

    780W RMS, Class A/B Monoblock Amplifier (Reference RA 10 -- 10-32010)

    $449.99

    List price $749.99

    CSP14 small

    Coby CSP14BLK (CS-P14) Personal Mini Portable Speaker

    Personal Mini Stereo Speaker System

    $3.99

    List price $13.99

    Related Searches


    Save up to 10 different vehicles in your garage
    Vehicle
    Store
    Delete

    2014 BMW X6 M

    2005 Jaguar Super V8

    2022 Nissan Rogue

    1988 Mazda B2600

    2002 Dodge Intrepid

    2004 Buick Park Avenue

    1998 Volvo S90

    1973 Jeep CJ5

    2021 Nissan Rogue Sport

    1951 GMC 250

    Vehicle
    Store
    Delete

    1950 Harley Davidson EL

    2003 Harley Davidson FLHTC/I Electra Glide Classic

    Add vehicle Clear all vehicles
    Where to find vehicle info
    Are you sure you want to clear your garage?
    This action cannot be undone. Confirm
    This page was not designed for products.
    If you continue, you will be redirected to a category customized for your vehicle. Continue
    Loading...
    Identify your vehicle and submodel details
    • Owner's manual
    • Vehicle's insurance card
    • Vehicle registration
    • Vehicle produced after 2005: Inside driver's side door
    • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
    Car Info Side Door Icon
    Vehicle Registration Icon
    Vehicle Insurance Icon

    Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

    • You see only parts engineered for your exact vehicle
    • You avoid incompatible radios, speakers, or wiring
    • Installation is smoother, faster, and frustration-free
    • You get the correct accessories the first time

    Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
