2000W RE Audio + Sound Dampening Material Bass Bundle

15" RE Audio XXX15D2 XXX Series Subwoofer + NVX Sound Dampening Material

RE Audio
Shop all RE Audio
EXCLUSIVE
Product videos
highlight-star-icon

15" Dual 2 ohm XXX Series Subwoofer • 2000W RMS • Kevlar Reinforced Kraft Pulp Cone • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Learn more about the xxx15d2_sdbp40

We apologize

This item has been discontinued


Loading...
iLX-407 main

Alpine iLX-407

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

7
-16.93%

$539.95

List price $650.00

Product Highlights


15" Dual 2 ohm XXX Series Subwoofer • 2000W RMS • Kevlar Reinforced Kraft Pulp Cone • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material • Eliminates Road Noise • Simple To Install • Increases sound quality and output

Description


RE Audio brand icon

Authorized dealer

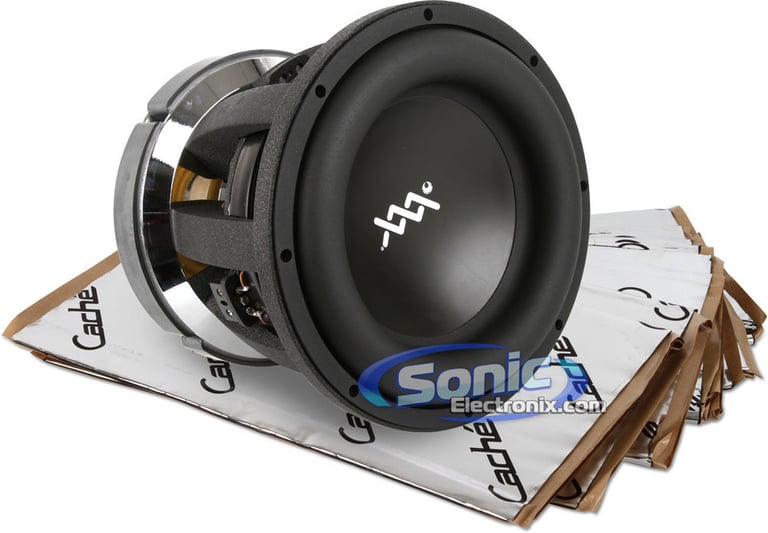

RE Audio plus Sound Dampening Material Bass Bundle

This Sonic Electronix Exclusive Bundle showcases a 15" Dual 2 Ohm RE Audio XXX Series Subwoofer. This subwoofer is rated at 2000 watts RMS of continues power. The subwoofer is equipped with a Kevlar reinforced kraft pulp dual composite 2-piece cone and a rubber surround for rigidity and performance. It is also equipped with tork-tite terminals, and dual progressive spiders for increased excursion. With an VMS vented magnet system that reduces heat excursion, this RE Audio XXX series subwoofer is sure to provide efficient sound and bass for long periods of time. In order to improve the all around sound of your audio car system, this bundle also includes ten 18" x 32" pieces of Dead Shield sound dampening material. This dampening material will help reduce engine noise, vibrations, road noise and rattling to give you a higher sound quality. Four step peel and stick application makes installation simple and efficient. This sound dampening material is sure to improve the over all quality and output of your system.



RE Audio XXX15D2 Features:

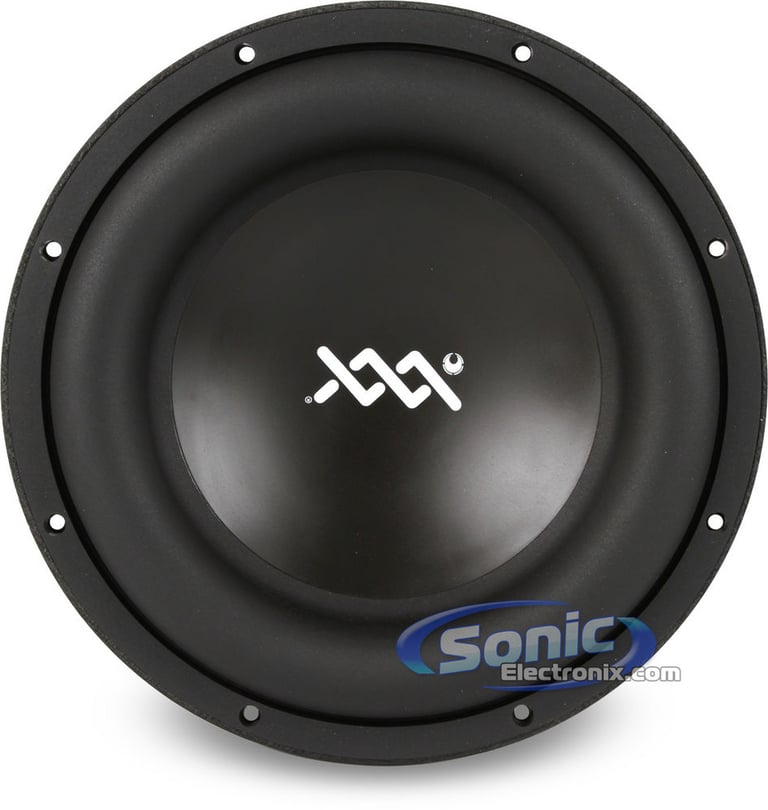

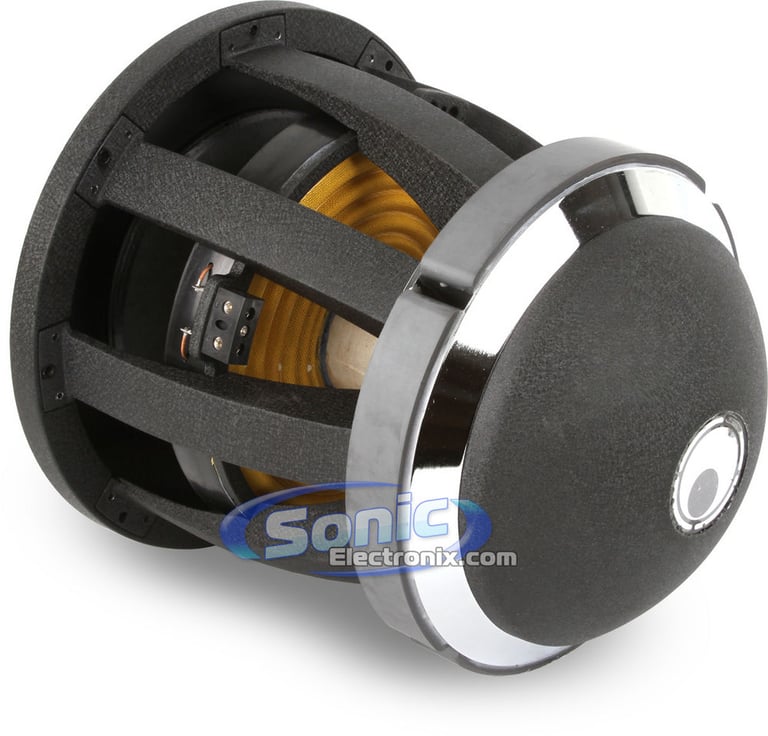

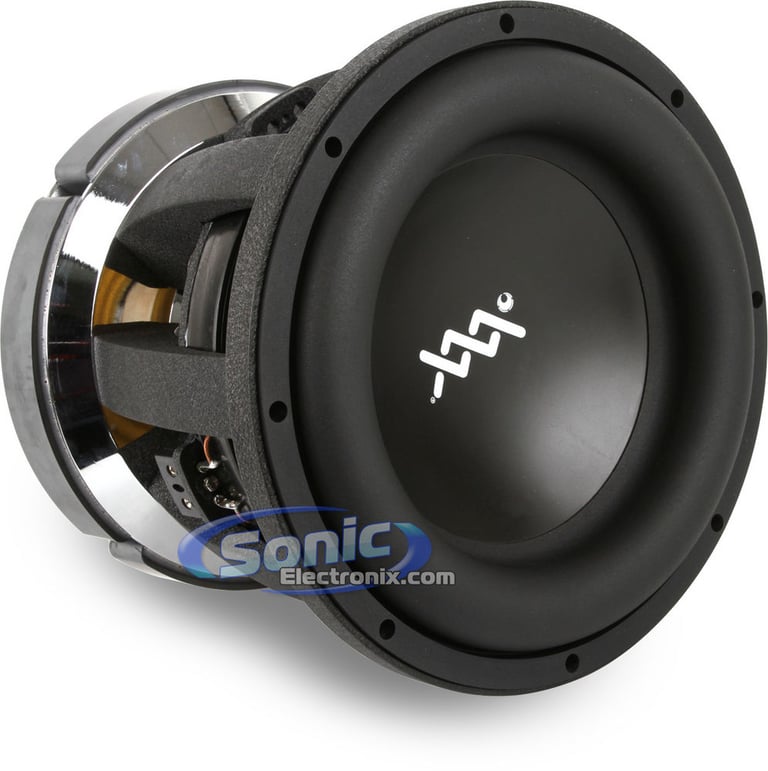

  • 15" Dual 2 ohm XXX Series Car Subwoofer
  • Power Handling:
    • RMS: 2000 watts
  • Impedance: Dual 2 ohm
  • Kevlar reinforced kraft pulp, dual composite 2-piece cone

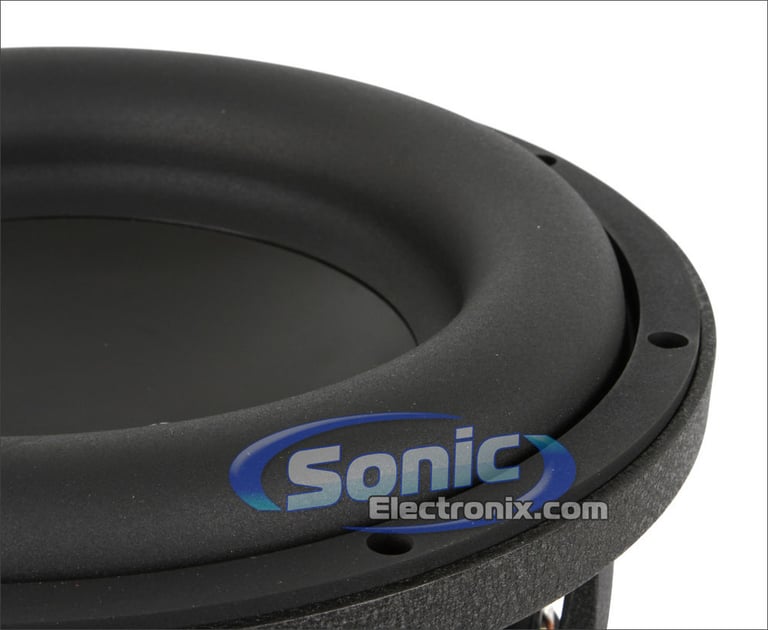

  • Rubber surround
  • Integrated tinsel leads
  • FEA Optimized motor structure
  • Dual progressive spiders
  • Integrated gasket
  • Tork-Tite terminals
  • 3" 4-Layer aluminum flat wire voice coil
  • Split coil design
  • VMS Vented magnet system

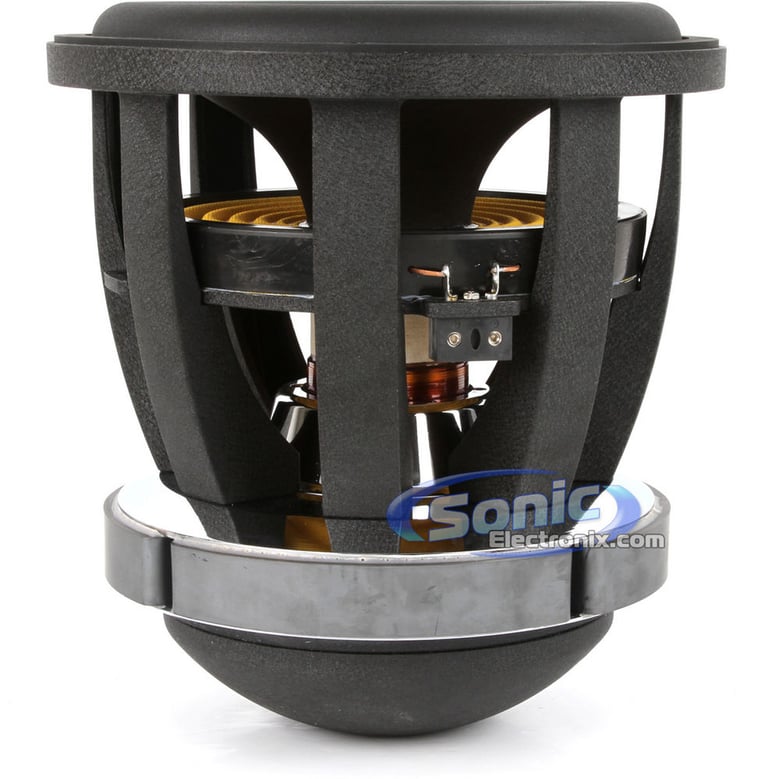

  • Cast aluminum basket
  • Triple stacked magnets
  • Designed specifically for sealed or ported enclosures
  • Proudly made in the USA
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
XXX 15" T/S Parameters:
  • Electrical Q Value (Qes): 0.58
  • Mechanical Q Value (Qms): 3.62
  • Total Speaker Q Value (Qts): 0.501
  • Free Air Resonance (Fs): 19.10 Hz
  • Equivalent Compliance (Vas): 207 liters
  • One-Way, Linear Excursion (Xmax): 54 mm
  • Efficiency (SPL 1W/1m): 85.81 dB SPL
  • Effective Piston Area (Sd): 810 cm2
  • DC Resistance (Re): 4.2 ohm
  • Nominal Impedance (Znom): Dual 2 ohm
  • Thermal Power Handling (Pe): 2000 W
  • Force Factor (Bl): 18.16

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

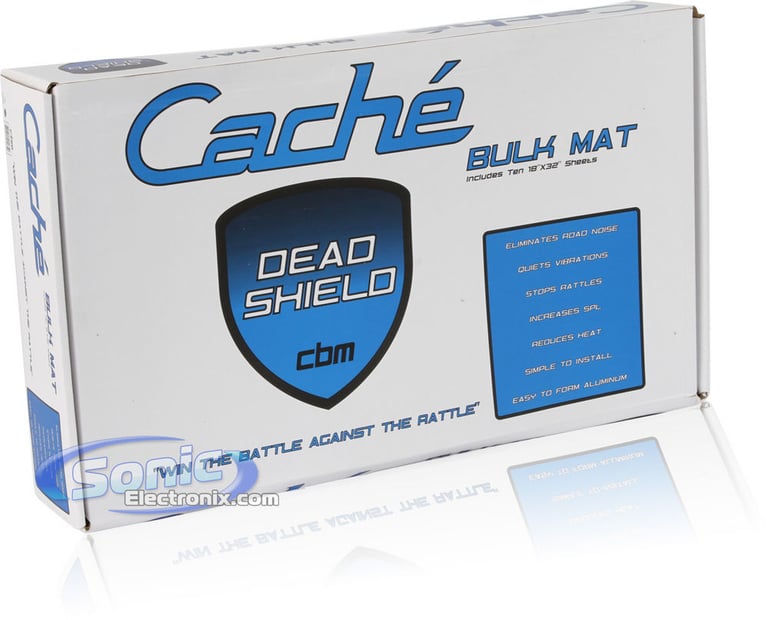

NVX SDBP40 Features:

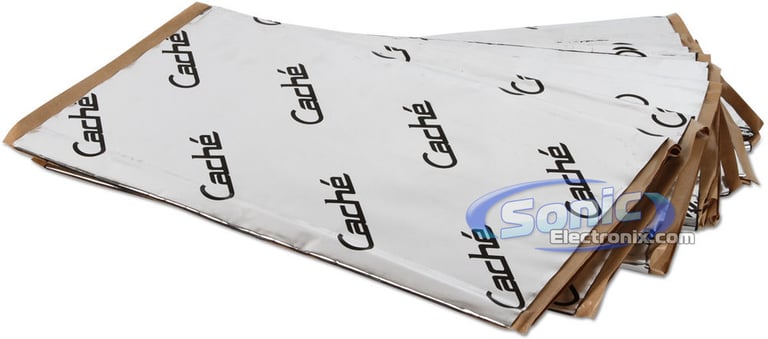

  • Ten 18" x 32" Pieces of Dead Shield Sound Dampening Material
  • Eliminates road noise
  • Quiets vibrations
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease

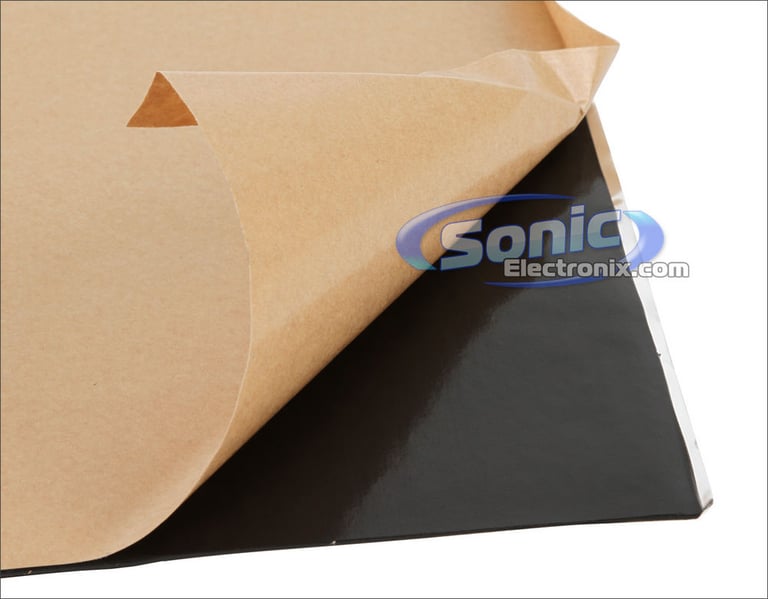

  • Four step peel and stick design for easy installation
  • Increases sound quality and output of car audio system
  • Up to 30% thicker than the leading competitors
  • 40 Square feet total
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Dimensions (each piece): 18"L x 32"W

Subwoofer Wiring Guide


Wiring Guide to Wire 1 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 2000W RE Audio + Sound Dampening Material Bass Bundle Subwoofers

2 Channel Amp

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Reference 5030cx main

Infinity Reference 5030cx (REF5030CX)

390W Peak (130W RMS) 5.25" Reference Series 2-Way 3-ohm Component Speaker System

2
-60.01%

$99.95

List price $249.95

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
CAR723W main

Jensen CAR723W

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, Android Auto

15
-11.11%

$239.99

List price $269.99

MVH-S622BS main

Pioneer MVH-S622BS

Double DIN Digital Media Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

4
-10.00%

$179.99

List price $200.00

Limited time!
iLX-W670-M main

Alpine iLX-W670-M

6.75" Double DIN Touchscreen Digital Multimedia Receiver with iDataLink Maestro Support, Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

2
-30.01%

$349.95

List price $500.00

BE7ACP.XC main

Boss Elite BE7ACP.XC

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and Backup Camera (SiriusXM Ready)

-16.67%

$329.99

List price $395.99


Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.96

List price $2282.96

KWZ1000AW_MRR2_FLFO1 small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2023 vehicles from Ford
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(7)

$1601.82

List price $2348.97

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1456.96

List price $2074.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(37)

$1883.97

List price $2479.97

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1348.96

List price $1973.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1605.96

List price $2254.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(38)

$1383.97

List price $1778.97

KWZ1000AW_MRR_FLCH2_D small

JVC KW-Z1000AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2013-2022 vehicles from Ram, Jeep, Dodge
• 10.1" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(37)

$1883.97

List price $2228.97

Specifications & Details


Subwoofer Specifications
Series
XXX Series
Subwoofer Size
15"
RMS Power Handling
2000 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Xmax (millimeters)
54 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar reinforced kraft pulp, dual composite 2-piece cone
Woofer Surround
Rubber
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.6 cubic feet
Maximum Sealed Box Volume
2.1 cubic feet
Minimum Ported Box Volume
3.2 cubic feet
Maximum Ported Box Volume
4.0 cubic feet
Top-Mount Depth (Mounting Depth)
13-1/2"
Cutout Diameter
14-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

XXX15D2_SDBP40

Weight:

132.00lbs

Internal SKU:

xxx15d2_sdbp40

Internal Product ID:

37363

Product and How-to Videos


  • RE Audio New Product Line Overview | CES 2015
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


2000W RE Audio + Sound Dampening Material Bass Bundle thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


MP725-16G small

Coby MP725-16G

16GB Video MP3 Player with 2.4" LCD Screen and FM Radio

$79.99

List price $119.99

UHF-BP1-S small

VocoPro UHF-BP1-S (619.12 MHz)

Optional Bodypack for UHF-3200 / UHF-5800 Wireless Microphone System

$59.00

List price $69.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1998 Lexus LX470

2011 Dodge Durango

1987 Lincoln Continental

1980 Ford Mustang

1974 Ford Thunderbird

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
