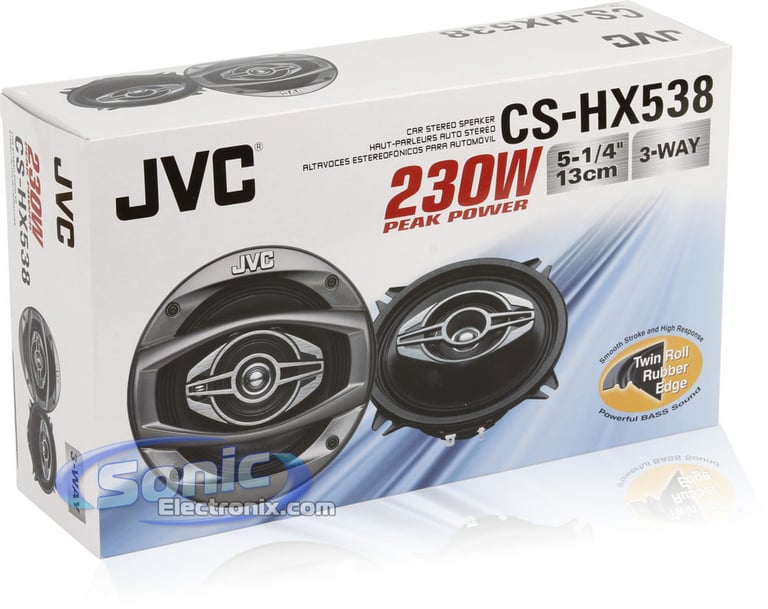

JVC CS-HX538 + Sound Dampening

5-1/4" 3-Way HX Series Coaxial Speakers with Two 10" x 10" Pieces of Sound Dampening Material

JVC
Shop all JVC
EXCLUSIVE
Product videos
highlight-star-icon

5-1/4" 3-Way Coaxial Speakers • HX Series • 230 Watts Max • 40 Watts RMS • Mica Aramid Fiber Cone Woofer • 4 Ohm • Twin Roll Rubber Surround • 85 dB Sensitivity • Heat-Resistant Voice Coil • Includes Sound Dampening Features

Learn more about the cshx538_csm

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KMM-X705 main

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

28
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

16
-11.77%

$149.99

List price $170.00

Product Highlights


5-1/4" 3-Way Coaxial Speakers • HX Series • 230 Watts Max • 40 Watts RMS • Mica Aramid Fiber Cone Woofer • 4 Ohm • Twin Roll Rubber Surround • 85 dB Sensitivity • Heat-Resistant Voice Coil • Includes Sound Dampening Features

Description


JVC brand icon

Authorized dealer

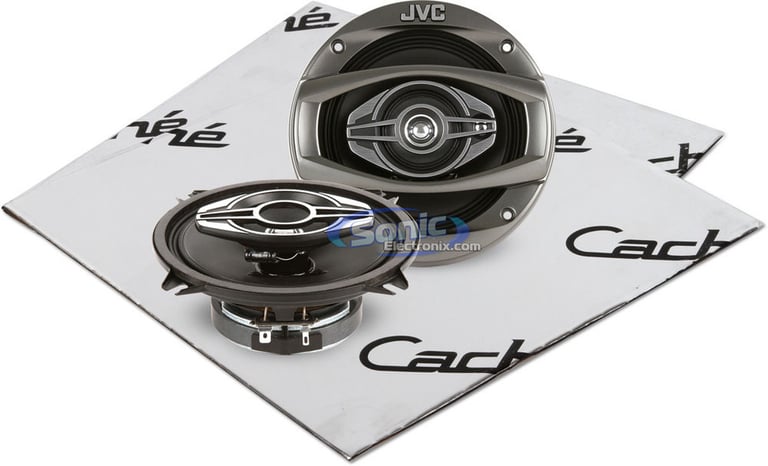

Why Sound Dampening?

The JVC CS-HX538 speakers along with the Cache CSM Sound Dampening is a great package that can help improve the sound quality from the speakers as well as overall output. Not only will the Dampening benefit your speakers, but you can also benefit your entire vehicle and it's overall road noise isolation. Adding Sound Dampening can help make your car quieter and more comfortable while improving the sound quality.

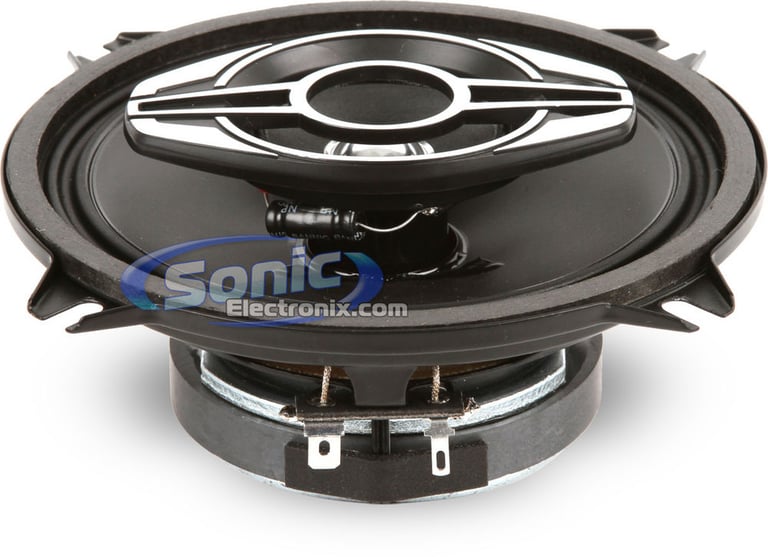

Speakers Features:

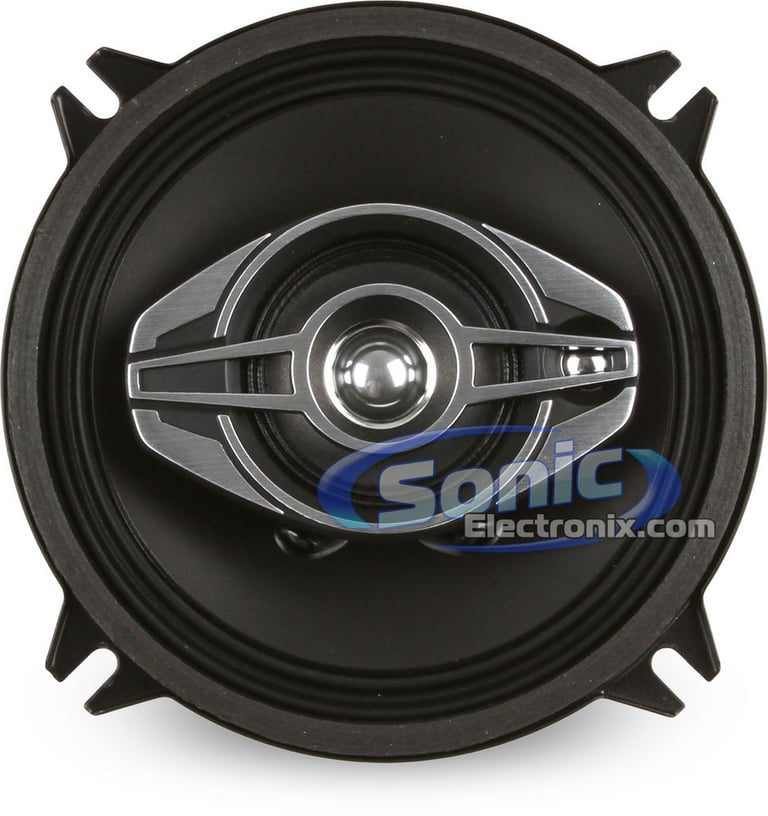

  • 5-1/4" 3-Way HX Series Coaxial Speakers
  • Power Handling:
    • Peak: 460 watts per pair / 230 watts each
    • RMS: 80 watts per pair / 40 watts each
  • Mica aramid fiber with carbon fiber composite olefin cone woofer
  • Twin roll rubber surround
  • 1-31/32" (5 cm) midrange tweeter with HHC cone and neodymium magnet
  • 1/2" (1.2 cm) tweeter
  • Large magnets handle greater power for lower frequency response
  • Twin rubber edge enhances sound quality and response with smooth and linear movement
  • Mica reinforced cone provides strength and stability for deeper bass response
  • 4 ohm impedance
  • Frequency response: 30-25,000 Hz
  • Sensitivity: 85 dB
  • Heat-resistant voice coil

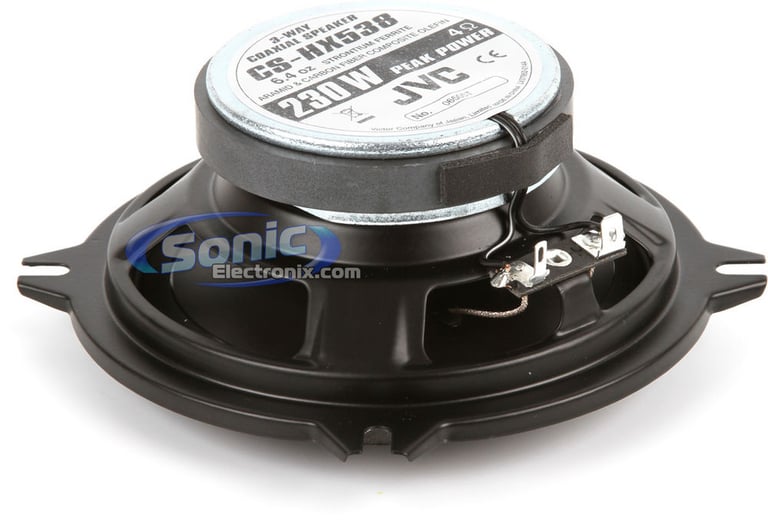

  • 6.4 oz strontium magnet

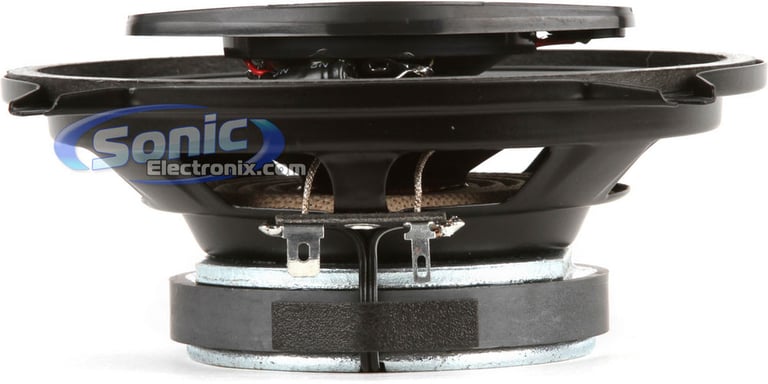

  • Top-mount depth: 1-3/4" (44 mm)
  • Includes speaker grilles
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

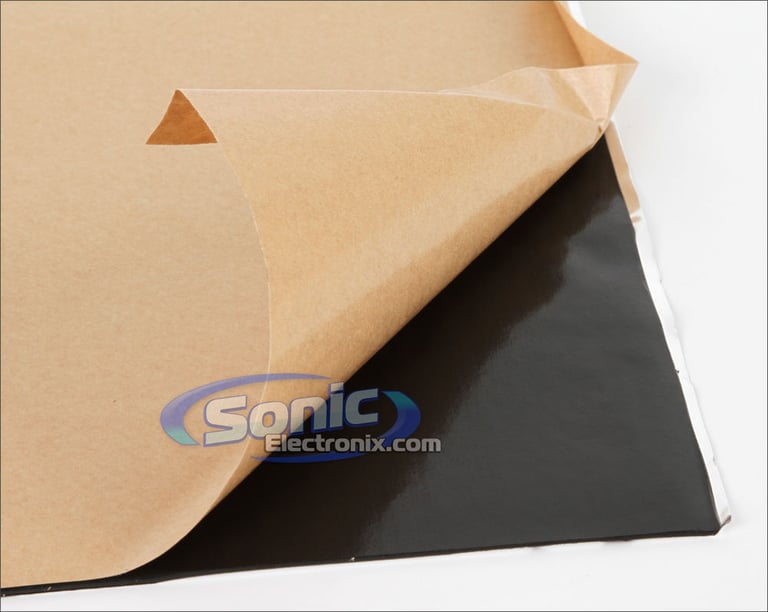

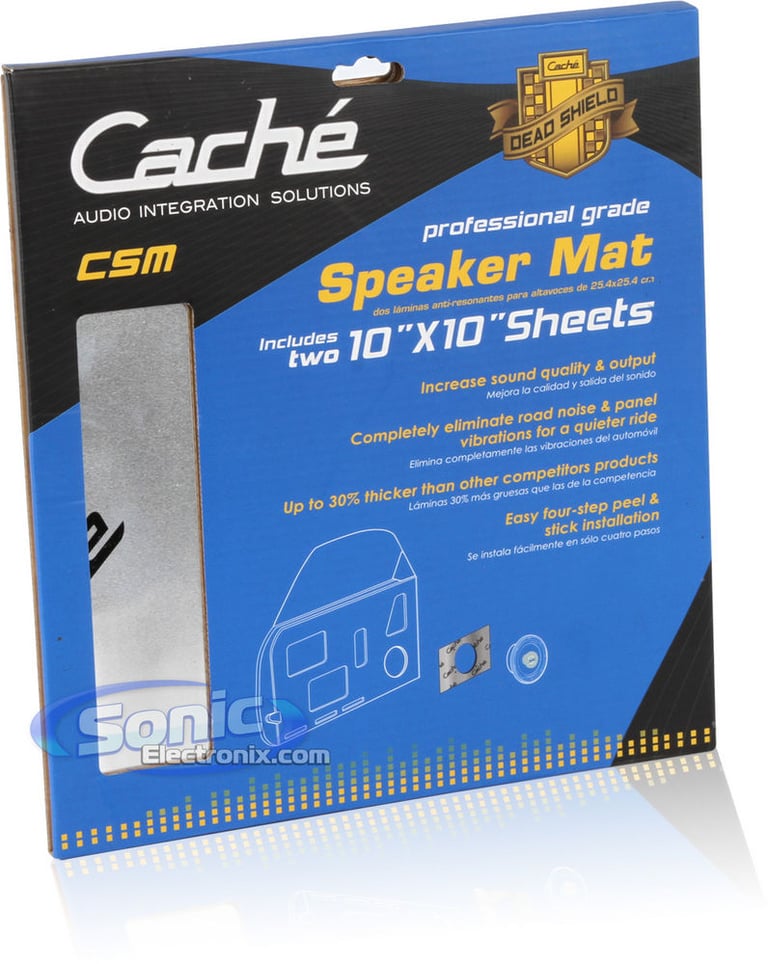

Sound Dampening Features:

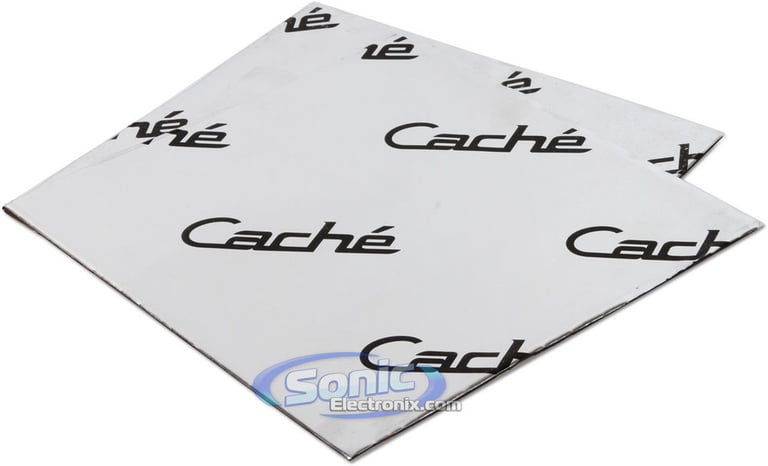

  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Speakers Priced Per Pair


Best selling similar products

Club 522F small

JBL Club 522F (SPKCB522FAM)

• 135 watts Peak Each, 45 watts RMS Each
• Silk Edge Driven Dome tweeters
• UV-Resistant Polypropylene cone material
• Plus One woofer architecture
• Impedance: 3 ohm
• Sensitivity: 91 dB

(1)

$74.99

List price $129.95

PNW-525 small

AudioControl PNW-525

• 75 watts Peak Each, 50 watts RMS Each
• Hybrid Silk Dome tweeters
• Rigid Poly Mica cone material
• Impedance: 3 ohm
• Sensitivity: 88.41 dB

(1)

$239.00

List price $259.00

46CSC54 small

Kicker CSC5 (46CSC54)

• 225 watts Peak Each, 75 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters with neodymium magnets
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(15)

$79.96

List price $119.99

Specifications & Details


Speaker Specifications
Speaker Size
5-1/4"
Design
3-way Coaxial
Tweeter Design
Dome
Tweeter Composition
PEI (Polyetherimide)
Woofer Composition
Aramid-Carbon Fiber Olefine
Woofer Surround
Rubber
Peak Power Handling
230 watts
RMS Power Handling
40 watts
Sensitivity
85 dB
Frequency Response
30 - 25,000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-3/4"
General specifications
Speaker Grilles
Yes
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

JVC

Model Number:

CS-HX538_CSM

Weight:

4.48lbs

Internal SKU:

cshx538_csm

Internal Product ID:

37401
