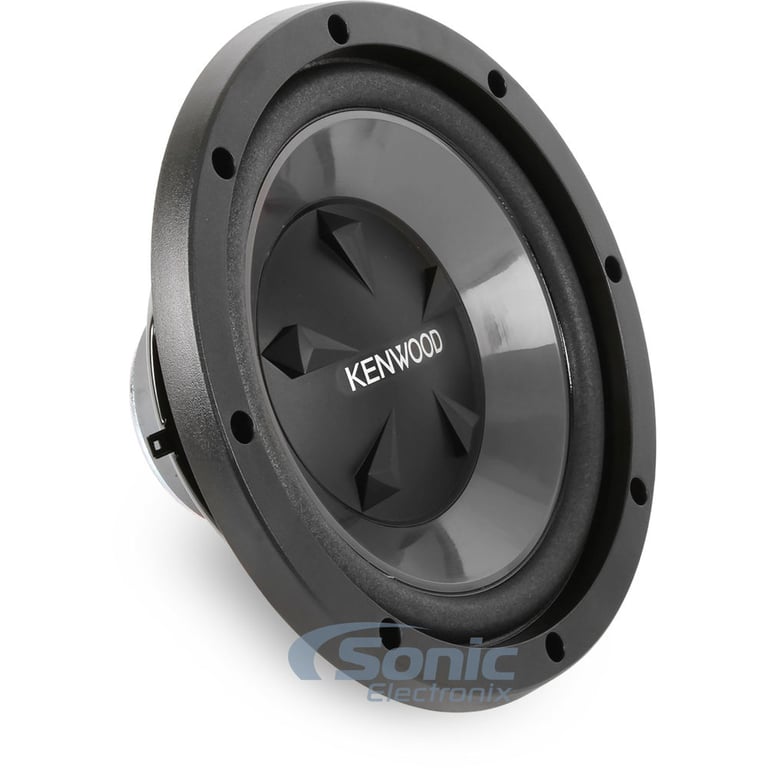

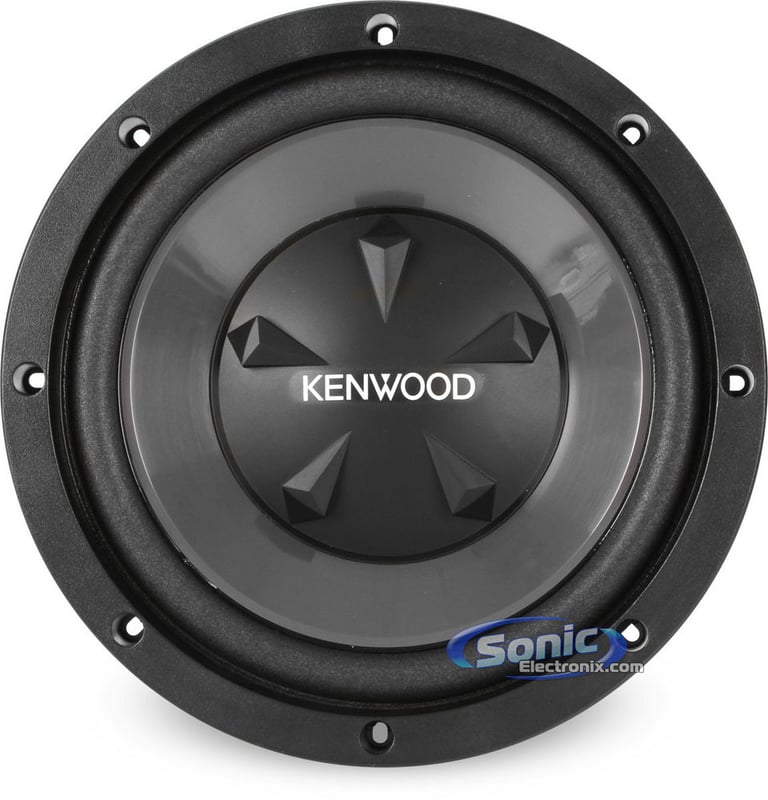

Kenwood KFC-W112S

200W 12" Performance Series Single 8 ohm Subwoofer

Kenwood
Shop all Kenwood
Product videos
highlight-star-icon

• 800W Peak
• 200W RMS

Learn more about the kfcw112s

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
DEH-S4220BT main

Pioneer DEH-S4220BT

Single DIN CD Receiver with Bluetooth and Amazon Alexa

9
-11.77%

$149.99

List price $170.00

Pioneer AVH-241EX

6.2" Double DIN Touchscreen DVD Receiver with Bluetooth and Built-in Alexa

4
-13.16%

$329.99

List price $380.00

Product Highlights


• 800W Peak
• 200W RMS

Description


Kenwood brand icon

Authorized dealer




Good Quality Bass
with the Kenwood KFC-W112S

Not everyone is looking for window shattering bass, some of us just want enough bass to enhance the all around sound of our car audio systems. Kenwood's KFC-W112S 12" Single 8-ohm subwoofer allows you to do just that. This subwoofer is meant to be paired up with a second KFC-W112S subwoofer, and wired in parallel to a final impedance of 4 ohms. The advantage here is that you are able to run two subs at a 4 ohm impedance which is more stable and produces a cleaner output with less thermal discharge from the amplifier. Also by having this subwoofer paired with a second you increase the amount of air that is being moved which in turn creates a deeper sounding bass. The polypropylene injection molded woofer cone and urethane surround provide rigidity and stability. So if you are looking to add some bass at a stable impedance, without spending a bundle, then two of these subwoofers are the perfect match for you.



General Features:

  • 12" Single 8-Ohm KFC Series Subwoofers
  • Power Handling:
    • Peak: 800 watts each
    • RMS: 200 watts each
  • Recommended power range: 100 - 250 watts RMS
  • Impedance: Single 8-Ohm

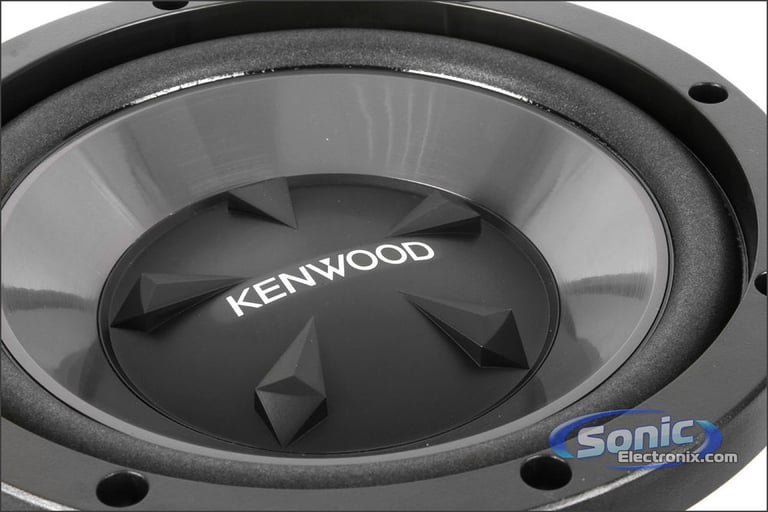

  • Polypropylene injection-molded woofer cone
  • High-roll urethane surround
  • Silver-plated terminals

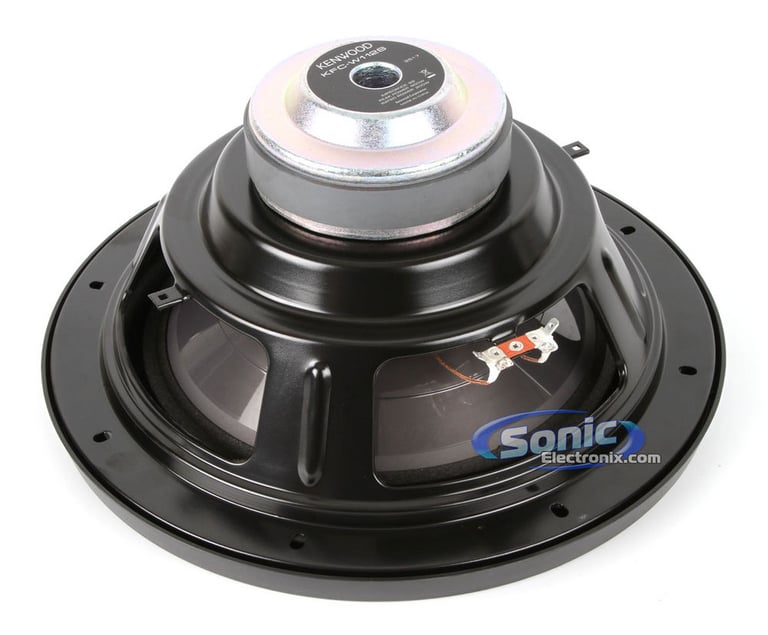

  • Steel frame basket
  • Ferrite magnet
  • 2" high temperature voice coil
  • 28.9 oz. ferrite magnet structure
  • Frequency response: 28 - 800 Hz
  • Sensitivity: 90 dB
  • Mounting depth: 5-9/16"
  • Cutout dimensions: 10-13/16"
  • 1-year Sonic Electronix Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood KFC-W112S Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood KFC-W112S Subwoofers

Mono Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood KFC-W112S Subwoofers

Mono Amp

Wiring Guide to Wire 4 Kenwood KFC-W112S Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Specifications & Details


Subwoofer Specifications
Series
Performance Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
200 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Frequency Response
28 - 800 Hz
Sensitivity
90 dB
Xmax (millimeters)
7.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Urethane
Magnet Structure
Ferrite
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.8 cubic feet
Maximum Sealed Box Volume
1.75 cubic feet
Minimum Ported Box Volume
1.0 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
5-9/16"
Cutout Diameter
10-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
28 Hz
Equivalent Compliance (Vas)
95.4 liters
Total Speaker Q Value (Qts)
0.457
Electrical Q Value (Qes)
0.48
Electrical Resistance of Voice Coil (Re)
3.7 ohm
Mechanical Q Value (Qms)
9.49
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-W112S

Weight:

10.50lbs

Internal SKU:

kfcw112s

Internal Product ID:

37588

Product and How-to Videos


Customer Ratings & Reviews


Kenwood KFC-W112S thumbnail image

5 star
77%
4 star
21%
3 star
0%
2 star
0%
1 star
2%



Durability
4.7
Value
4.8
Features
4.6
Design
4.7
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great sound

Put a pair of these in a ported box driven by a JL Audio amp for car rattling base! Very impressive sound for the price.

By Gary on September 21, 2014

61 found this helpful


Buy These.

Durable.
Reliable.
Nice Looking.
Cheap.
BEATS HARD!
Good Sound Quality.

By Alan on January 10, 2014 Checkmark Icon Verified purchase

59 found this helpful


Value!

For 800 watts I cannot complain! Great price as well. They hit hard especially when you have a 2000 watt amp to push them. Love em

By Andrew on March 11, 2013

52 found this helpful


Wicked subs for the price

I bought these subs about a week ago and have em wired to a 1600w amp and let me tell ya i've never been so surprised. These are the best your gonna get for the price. Especially if you're ballin on a budget like me.

By Kuzinx on January 26, 2012

53 found this helpful


Great

This is a great subwoofer. I have 2 powered by a 1600W amp. It's fairly cheap for the brand too. It hits really hard and people hear me coming down the street. If you're looking for a woofer with deep, thick bass than this is the right thing to buy.

By Chad on January 25, 2012

51 found this helpful


Nice Sound

These subwoofers are good for people who don't want to spend a lot of money. They are nice looking and they give off nice bass, especially when running them with a Kenwood Amp.

By Caroline on April 28, 2012

50 found this helpful


beast subs

i have 2 of the kfc 10s on a jl jx500 and let me tell you what these bitches bang hard id recommend them

By reputedhawk219 on July 15, 2014

47 found this helpful


awsome sound

They go thump thump thump, and rattle every thing in the car, just like you would want them to. Great sound, great value.

By steven on September 10, 2012

47 found this helpful


Great

This is a great subwoofer. I have 2 powered by a 1600W amp. It's fairly cheap for the brand too. It's hits really hard and people hear me coming down the street. If you're looking for a woofer with deep, thick bass than this is the right thing to buy.

By Chad on January 25, 2012

47 found this helpful


great kenwood kfc w112s

They are perfect i got 2 for $100 put it into a dual box hooked it up to a oldschool fosgate amp and they are beasts, i can clear snow with this thing.

By A. Manan C. on February 24, 2014

46 found this helpful




12ANTCM main

Single 12" Subwoofer Angled Truck or Hatchback Box Enclosure

• 5/8" MDF (Medium Density Fiberboard)
• Perfect for Tight Spaces (trucks/hatchbacks)
• Fits Most 12" Subwoofers
• fully carpeted
• Fully Caulked and Sealed Tight

(65)

$54.99

List price $95.99


8500-X50-BLUE small

Escort Passport 8500 X50 (Blue)

Radar and Laser / LIDAR Detector w/ Traffic Signal Rejection & Audible Voice Alerts

(1)

$269.95

List price $299.95

SPORT Sound Disc Beanie (Red) small

AERIAL7 Sport Sound Disk Beanie (Red)

Wicking Fabric Beanie w/ Sound Disk Speaker and Inline Microphone

(1)

$29.95

List price $45.00

P2D2-12 small

Rockford Fosgate Punch P2 P2D2-12

800W Peak (400W RMS) 12" Punch Series Dual 2-ohm Car Subwoofer

(45)

$179.99

List price $199.99

LA1490 small

Legacy LA1490 American Legacy II Series

$129.99

List price $279.99

DB462, FRING46, SDSK2, SDRLR1, BTK106 small

Polk Audio DB462 with Installation Accessories

100W RMS 4"x6” 2-way Car & Marine Coaxial Speakers with Speaker Baffles, Sound Damping, Roller, and Panel Removal Kit

(148)

$125.83

List price $172.70

SPORT Sound Disc Beanie (Blue) small

AERIAL7 Sport Sound Disk Beanie (Blue)

Wicking Fabric Beanie w/ Sound Disk Speaker and Inline Microphone

$29.95

List price $45.00

SK-2500.1D small

SKAR Audio SK-2500.1D

2500W RMS Class D Monoblock SK Series Car Amplifier

(5)

$549.99

List price $1139.99

ACC16 small

Blue Quick Splice Adaptor 50 Pack 16 - 14 Gauge

(4)

$6.99

List price $14.99

SGR-12W7 small

JL Audio SGR-12W7 (P/N #90246)

3 Piece Aluminum Bars to Protect the 12W7 Subwoofer, Includes Mounting Template

(1)

$40.00

List price $60.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Mazda B3000

1997 Ford Windstar

2011 Volkswagen Eos

1983 Saab 900

2002 Saturn L100

1982 Buick Riviera

Vehicle
Store
Delete

1990 BMW K1

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
