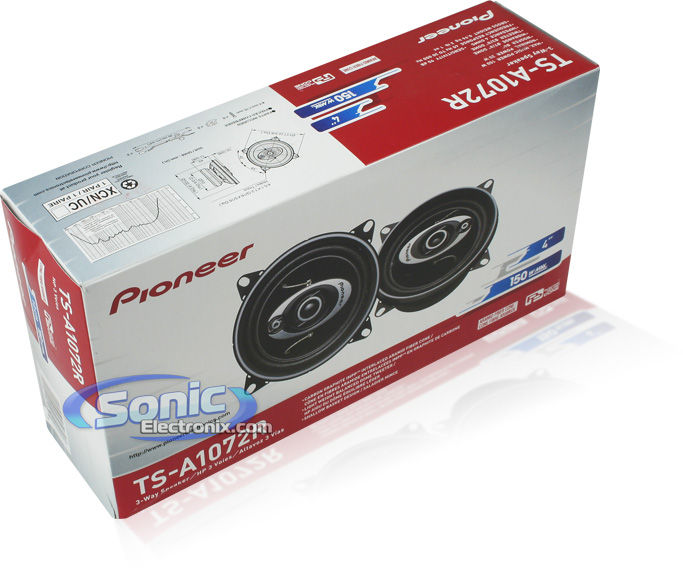

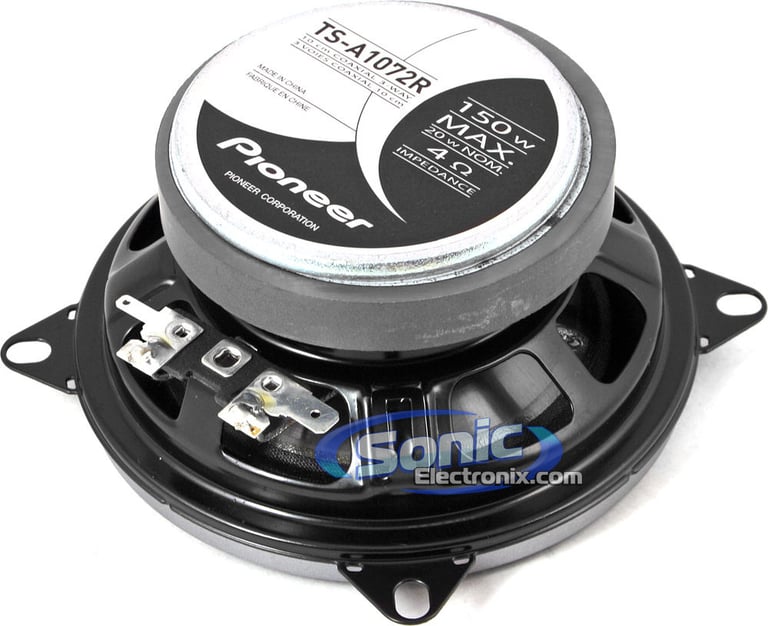

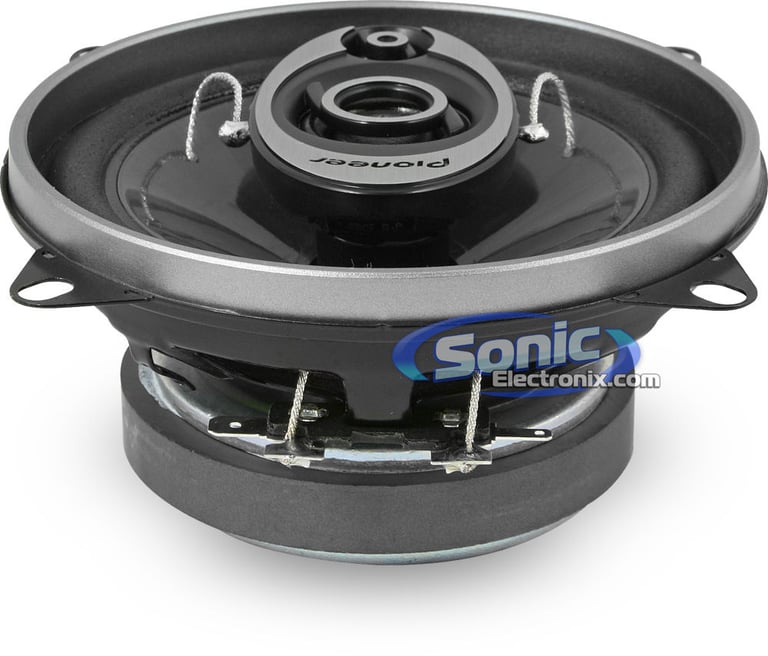

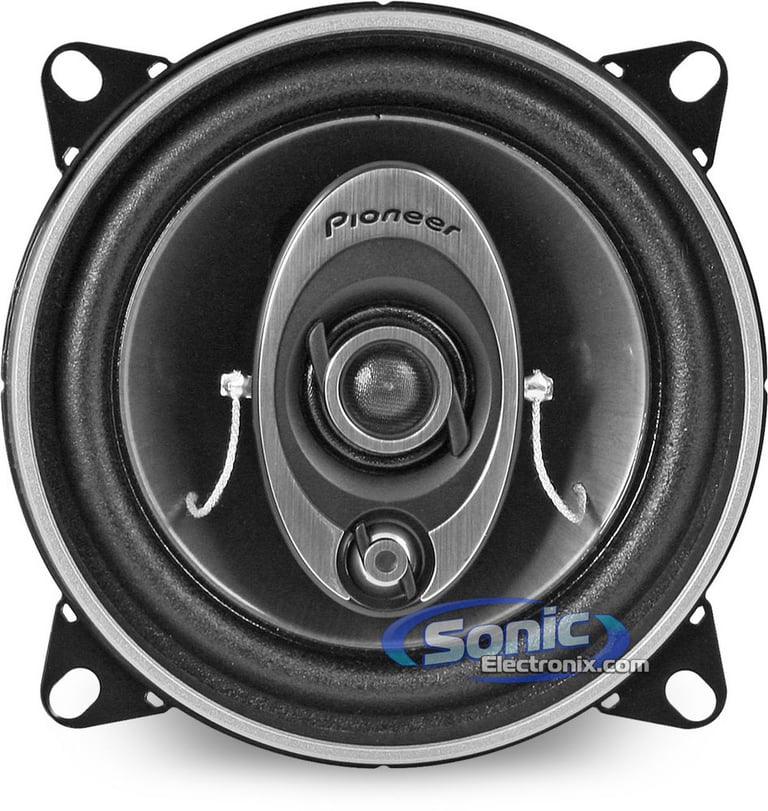

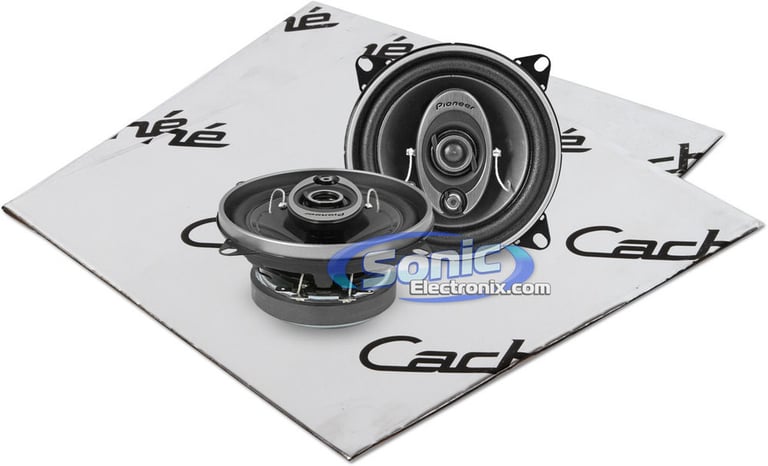

Pioneer TS-A1072R w/ Sound Dampening

4" 3-way A-Series Speakers with Two 10" x 10" Pieces of Sound Dampening Material

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

4" A Series Car Speakers • 150W Max • 20W RMS • Composite IMPP with interlaced Aramid Fiber Cone Woofer • Foam Rubber Coated Cloth Surround • 15/16" Light Weight Balanced Dome with Magnetic Fluid Midrange • 3/8" Soft Dome Tweeter • Included Sound Dampening Material!

Learn more about the tsa1072r_csm

We apologize

This item has been discontinued


Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

DEH-S7200BHS main

Pioneer DEH-S7200BHS

Single DIN CD Receiver with Bluetooth, HD Radio and SiriusXM Ready

2
-10.72%

$249.99

List price $280.00

MVH-S322BT main

Pioneer MVH-S322BT

Single DIN Digital Media Receiver with Bluetooth and Amazon Alexa

7
-13.34%

$129.99

List price $150.00

KDC-BT782HD main

Kenwood KDC-BT782HD

Single DIN CD Receiver with Bluetooth, Built-in Alexa, and HD Radio Tuner (SiriusXM Ready)

5
-18.89%

$219.00

List price $270.00

KDC-X705 main

Kenwood eXcelon KDC-X705

Single DIN CD Multimedia Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

4
-18.21%

$229.00

List price $280.00

KDC-BT382U main

Kenwood KDC-BT382U

Single DIN CD Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

12
-10.50%

$179.00

List price $200.00

Description


Pioneer brand icon

Authorized dealer

Speaker Features:
  • 4" 3-Way A Series Car Speakers
  • Power Handling:
    • Peak: 300 watts per pair / 150 watts each
    • RMS: 40 watts per pair / 20 watts each
  • Composite IMPP with interlaced aramid fiber cone woofer
  • Foam rubber coated cloth surround
  • 15/16" Light weight balanced dome with magnetic fluid midrange
  • 3/8" Soft dome tweeter
  • Glass-imide voice coil bobbin
  • Nomex damper
  • "Open and Smooth" Sound Design
  • 4- & 2-Hole mounting capability
  • 4 ohm impedance
  • Top-mount depth: 1-11/16"
  • 1-year SonicElectronix.com warranty

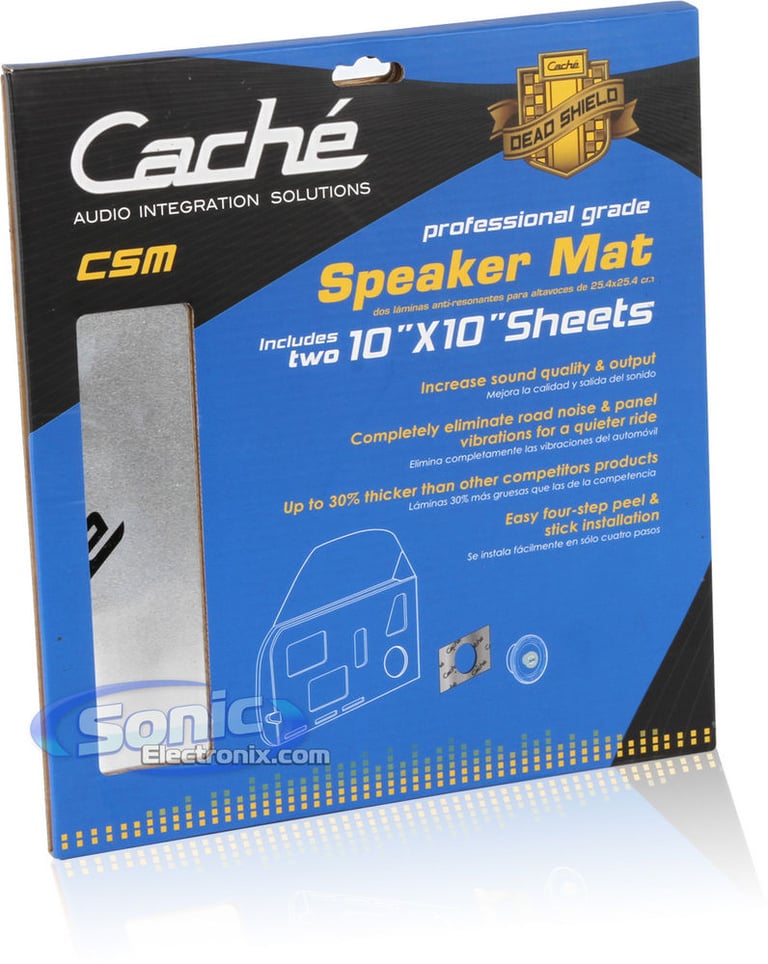

Sound Dampening Features:
  • Two 10" x 10" Pieces of Dead Shield Sound Dampening Material
  • Eliminates Road Noise
  • Quiets Vibrations
  • Stops Rattles
  • Increases SPL
  • Reduces Heat
  • Simple To Install
  • Easy To Form Aluminum
  • Four step peel and stick installation
  • Increases sound quality and output
  • Up to 30% thicker than the leading competitors
  • Dimensions (each piece): 10"L x 10"W

Speakers Priced Per Pair


Best selling similar products

TS-A1081F small

Pioneer TS-A1081F

• 230 watts Peak Each, 50 watts RMS Each
• 1" PEI (Polyetherimide) Hard Dome tweeters
• Carbon and Mica Reinforced Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(3)

$90.00

List price $110.00

DB402 small

Polk Audio DB402 (DB 402)

• 135 watts Peak Each, 45 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(4)

$90.00

List price $99.99

C1-400x small

JL Audio C1-400x

• 35 watts RMS Each
• 3/4" Silk-Suspended Aluminum Edge Driven Dome tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 84.5 dB

(8)

$94.99

List price $94.99

Specifications & Details


Speaker Specifications
Speaker Size
4"
Design
2-way Coaxial
Tweeter Design
Dome
Woofer Composition
Injection Molded Polypropylene with Aramid Fiber Composite
Woofer Surround
Foamed Rubber
Peak Power Handling
150 watts
RMS Power Handling
20 watts
Sensitivity
90 dB
Frequency Response
45 - 30000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
Yes
Top-Mount Depth (Mounting Depth)
1-11/16"
Cutout Dimensions
3-1/2" x 3-1/2"
General specifications
Speaker Grilles
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-A1072R_CSM

Weight:

2.40lbs

Internal SKU:

tsa1072r_csm

Internal Product ID:

37693

Customer Ratings & Reviews


Pioneer TS-A1072R w/ Sound Dampening thumbnail image

5 star
70%
4 star
30%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
4.8
Features
4.6
Design
4.6
Usability
4.7

Customer Reviews

Sort by:

Loading...

Great for the money

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

I can't really say anything bad about these speakers. For the money you pay, you can't really argue with the value. They sound great at loud volumes, run straight from my Pioneer cd player. I have them installed in the front dash of my 90 Corolla GTS. After doing some modifying to each speaker housing just to make it sound better. I took the insulation out, added butyl rubber to make the speaker seal better, and cut some of the stock metal cage out of the way of the speaker. It made those little 4 in speakers so much louder and clearer sounding. I still have yet to hear much distortion at all from them at high volumes, with any kind of music. Definitely recommended.

By Ryan on December 30, 2013

65 found this helpful


Pretty Good Speakers for the Money

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

As most have said, these speakers are relatively inexpensive, and still provide a good sound. Currently, I have them powered solely off my JVC head unit, and they sound pretty good. However, I'm only running around 17 watts RMS to each speaker. A half-way decent amp would make these puppies really come out and shine for a budget set up. FYI, I currently have them installed in the front dash of a 1987 Ford Ranger. They required a decent amount of fabrication to make them fit perfectly; however, I had researched and knew this fully prior to purchasing.

By Big E on January 13, 2015

60 found this helpful


Solid

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

Bought these as well as some 6.5" of a similar model, also pioneers. Great stock replacement speakers, not designed for anything high end, but definitely a noticeable improvement over stock.

By jason on September 12, 2010

57 found this helpful


Great replacement for the money

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

Bought these for a 1990 nissan truck. The fit was perfect and the sound is very good for a small speaker.

By toddssjones on January 26, 2011

57 found this helpful


Great Sound at a great price

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

These are a great sounding speaker for the size. You will not be dissapointed with these speakers.

By Donald on February 16, 2011

56 found this helpful


Great Small Speaker

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

Great sound for a small speaker, plus a decent bass for it's size. They compliment the other speakers in my vehicle (VW Vanagon).

By Steve on December 19, 2009

55 found this helpful


RECOMENDED

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

This Seller its just PERFECT

By Andoniades on March 13, 2009

55 found this helpful


Good speakers

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

I purchased these speakers 6 months ago, i ran new wires to them and they are performing very well. good highs and mids, but struggles with the lows, which is to be expected with speakers of these size. Overall a great replacement for stock speakers and due to their small depth they fit in most cars.

By Austin on February 23, 2010

56 found this helpful


Slim speaker, yet great sound

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

Low profile for cars which need slimmer speakers in order to fit in the dash and keep the OEM look.

By NetBizMobile on December 16, 2011

51 found this helpful


1996 corolla

The following review is for TS-A1072R, which is a part of the bundle you are viewing.

i bought these for my corolla and a eay install and sounded great

By simmsd on April 11, 2011

50 found this helpful
