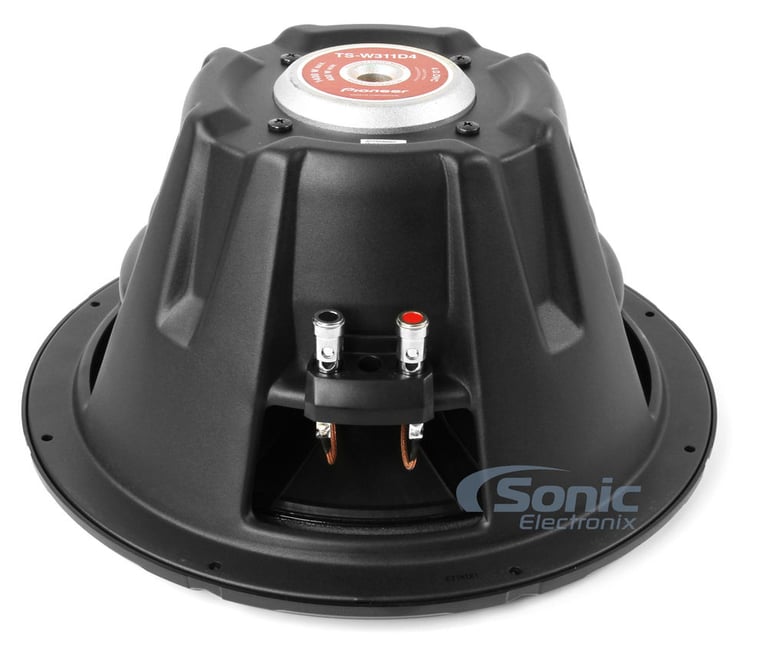

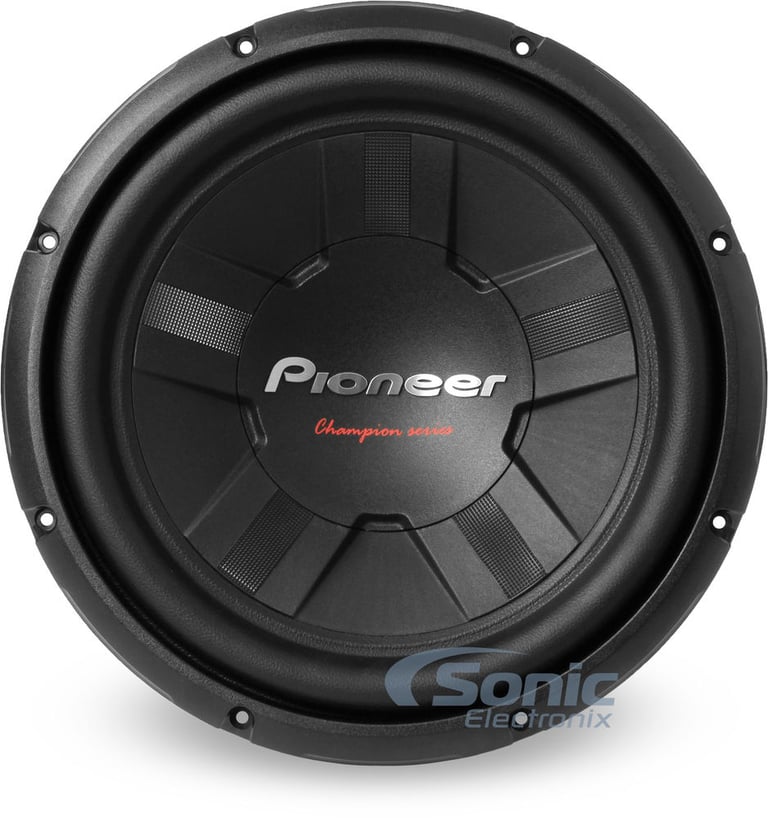

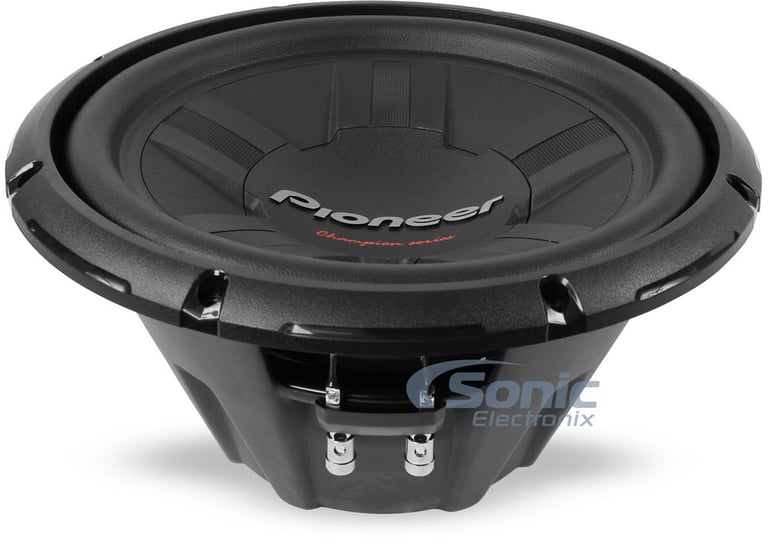

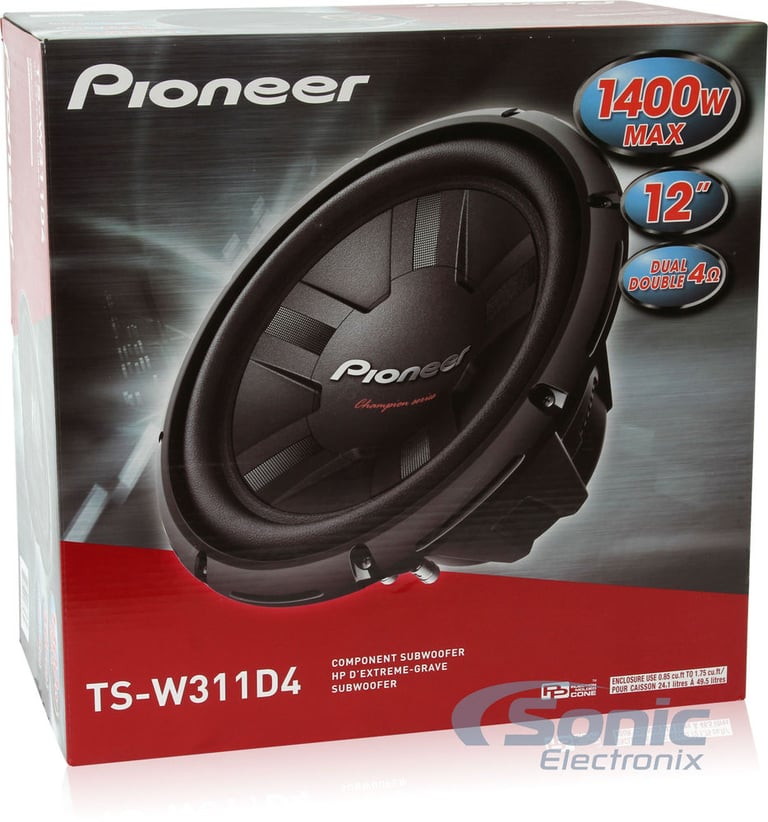

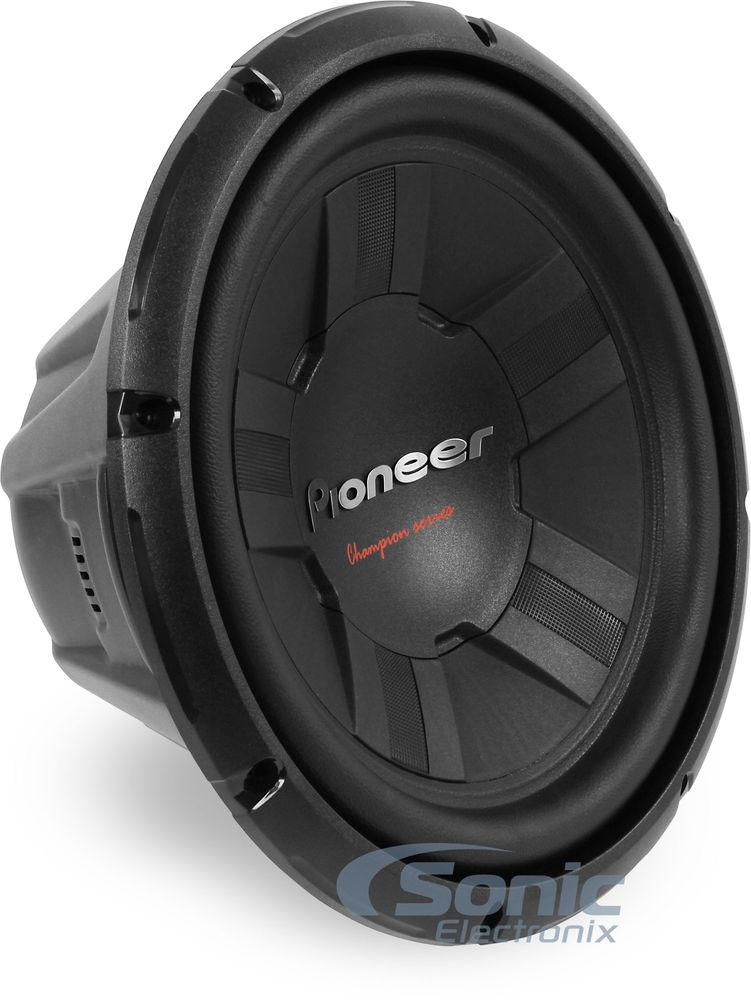

Pioneer TS-W311D4 (Open Box, Complete)

1400W 12" Champion Series Dual 4 ohm Car Subwoofer

Pioneer
Shop all Pioneer
highlight-star-icon

• Peak Power: 1400W
• RMS Power: 400W
• IMPP Composite Cone
• Dual Layer Fiber Reinforced Elastic Polymer Surround

Learn more about the ls-tsw311d4-obc8

We apologize

This item has been discontinued

Description


Pioneer brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

General Features:

  • 12" Dual 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1400 watts
    • RMS: 400 watts
  • Recommended power range: 200 - 400 watts RMS
  • Newly redesigned injection molded polypropylene composite cone
    • Delivers a durable cone structure for accurate powerful bass
  • Dual layer fiber reinforced elastic polymer surround
  • Highly rigid, fully enclosed single piece basket
  • Resigned spider assembly allows the subwoofer to produce more accurate, rich bass
  • Top-mount depth: 5.9"
  • Frequency Response: 20 - 125 Hz
  • Sensitivity: 95dB
  • 1-year Sonic Electronix Warranty

Product history:

Pioneer TS-W311D4-4 thumbnail
(newest, current model)
Pioneer TS-W310D4 thumbnail
(previous model, replaced by Pioneer TS-W311D4 (Open Box, Complete))
Pioneer TS-W309D4 thumbnail
(previous model, replaced by Pioneer TS-W310D4)
Pioneer TS-W308D4 thumbnail
(previous model, replaced by Pioneer TS-W309D4)
Pioneer TS-W307D4 thumbnail
(previous model, replaced by Pioneer TS-W308D4)
Pioneer TS-W306DVC thumbnail
(previous model, replaced by Pioneer TS-W307D4)
Pioneer TS-W305DVC thumbnail
(previous model, replaced by Pioneer TS-W306DVC)
Pioneer TS-W304DVC thumbnail
(previous model, replaced by Pioneer TS-W305DVC 12" DVC)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Pioneer TS-W311D4 (Open Box, Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Pioneer TS-W311D4 (Open Box, Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Pioneer TS-W311D4 (Open Box, Complete) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Pioneer TS-W311D4 (Open Box, Complete) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Champion Series
Subwoofer Size
12"
Peak Power Handling
1400 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 125 Hz
Sensitivity
95 dB
Xmax (millimeters)
10.8 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Elastic Polymer
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.25 cubic feet
Optimum Ported Box Volume
1.5 cubic feet
Top-Mount Depth (Mounting Depth)
5.9"
Cutout Diameter
11.1"
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
43 Hz
Equivalent Compliance (Vas)
32.7 liters
Total Speaker Q Value (Qts)
1.05
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W311D4-4

Weight:

15.00lbs

Internal SKU:

ls-tsw311d4-obc8

Internal Product ID:

182479
