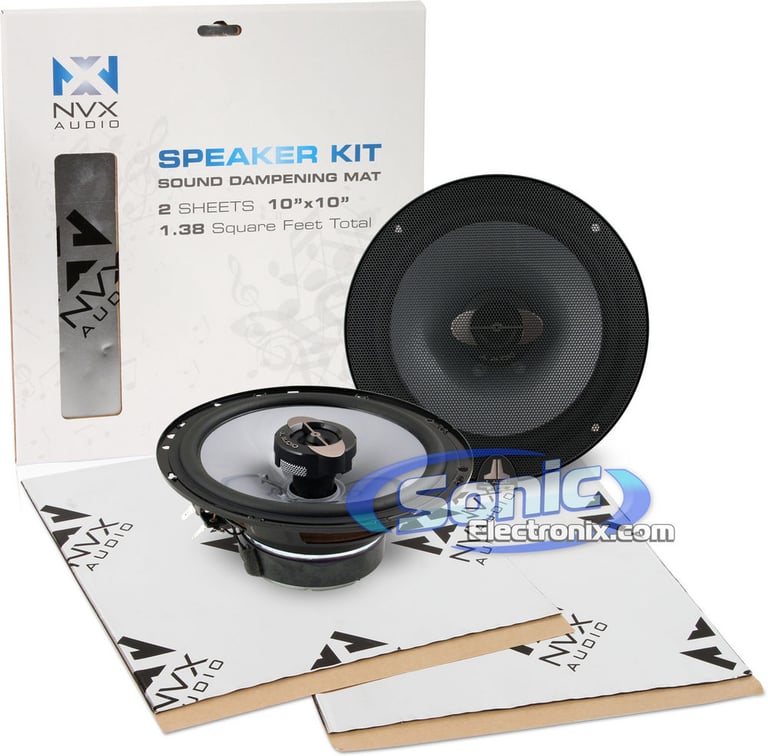

JL Audio TR650-CXi w/ NVX Sound Dampening

6-1/2" TR Series 2-way Speakers (TR650CXi) with Included Sound Dampening!

JL Audio
Shop all JL Audio
EXCLUSIVE
Product videos
highlight-star-icon

6.5" TR Series 2-way Car Speakers • 100W Max • 50W RMS • Injection Molded, Mica-Filled Polypropylene Cone • 1/2" Textile dome Tweeter with Integral Phase Plug • Mounting Hardware Included • Includes Sound Dampening Material!

Learn more about the tr650cxi_sdvk4

We apologize

This item has been discontinued


Loading...

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28

Crunch CS653

600W Peak (120W RMS) 6.5" CS Series 3-Way Coaxial 4-ohm Car Speakers

21
-9.09%

$29.99

List price $32.99

Pioneer AVH-240EX

6.2" Double DIN DVD Touchscreen Multimedia Receiver Built-in Alexa

8
-13.16%

$329.99

List price $380.00

Product Highlights


6.5" TR Series 2-way Car Speakers • 100W Max • 50W RMS • Injection Molded, Mica-Filled Polypropylene Cone • 1/2" Textile dome Tweeter with Integral Phase Plug • Mounting Hardware Included • Includes Sound Dampening Material!

Description


JL Audio brand icon

Authorized dealer

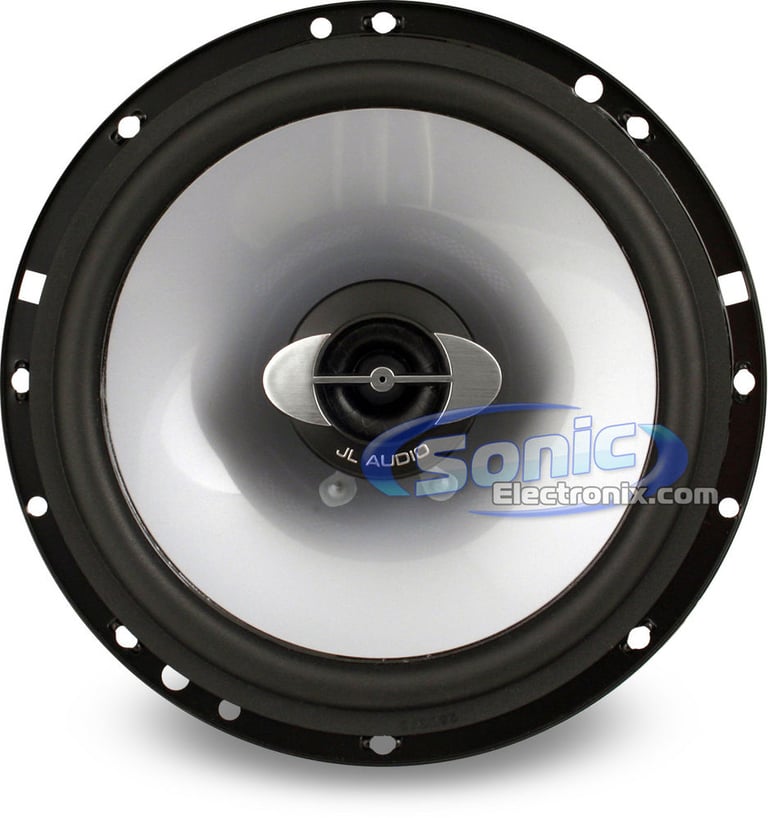

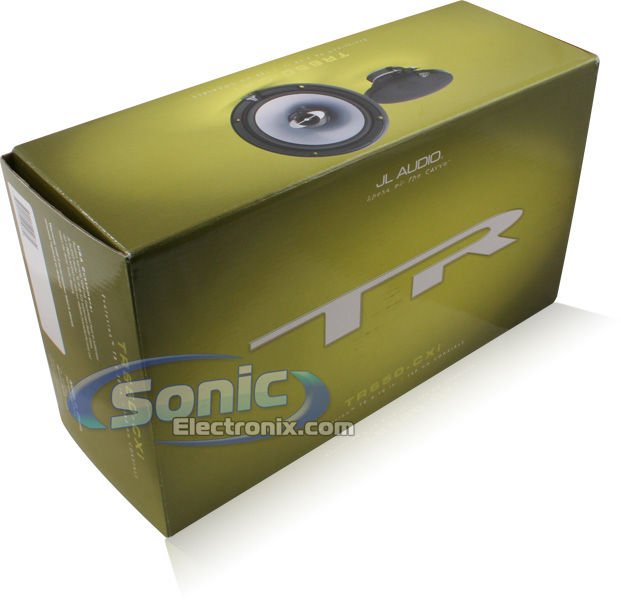

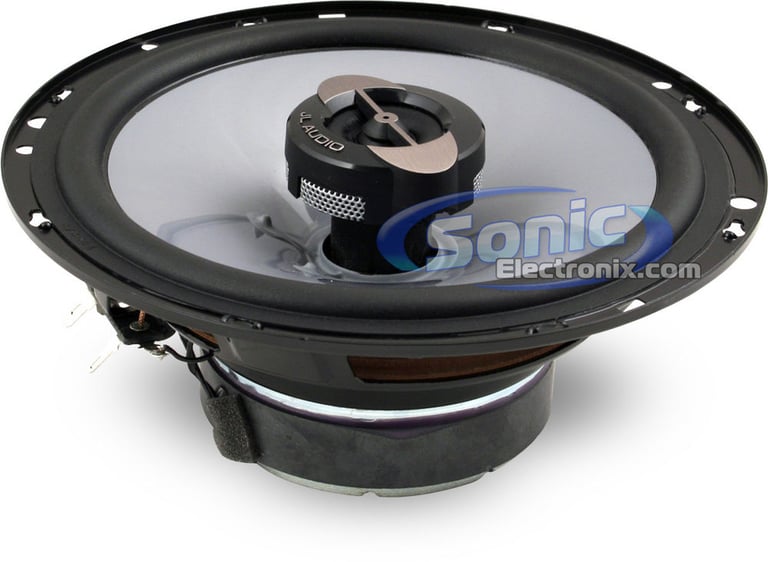

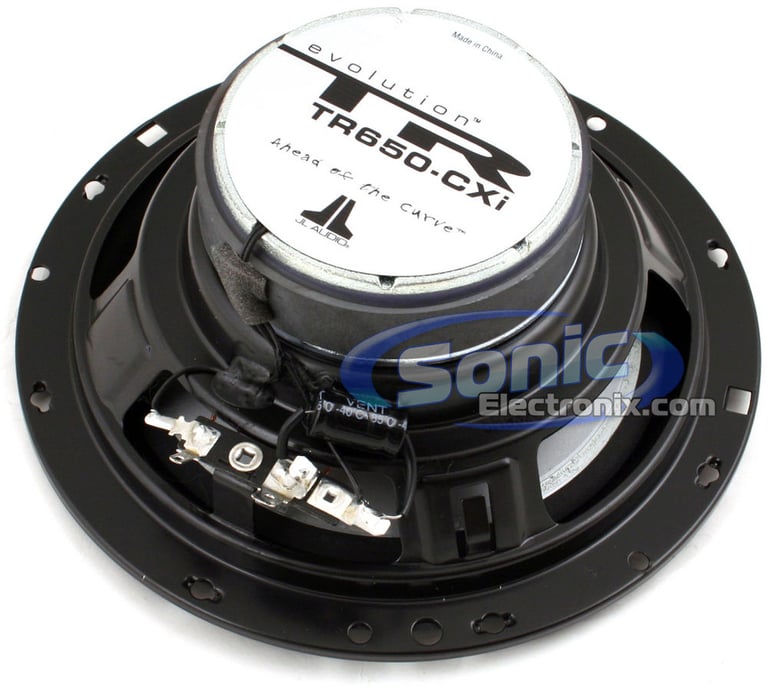

JL Audio TR650-CXi

450W 6.5" Evolution TR Series 2-Way Coaxial Speaker System
Quantity: 1

Product Features:



  • 6.5" Evolution TR Series 2-Way Coaxial Speaker System
  • Power Handling:
    • Peak: 450 watts per pair / 225 watts each
    • RMS: 100 watts per pair / 50 watts each
  • Recommended Power Range: 10 - 75 watts per channel
  • Injection-molded, mica-filled, polypropylene cone woofer
  • Butyl rubber surround
  • Flat-profile, symmetrical-roll spider
  • 1.00" (25mm) Voice Coil
  • 0.50" Textile dome tweeter
  • Integral phase plug
  • Tweeter ferrite/ceramic magnet
  • Ferrofluid cooled and damped

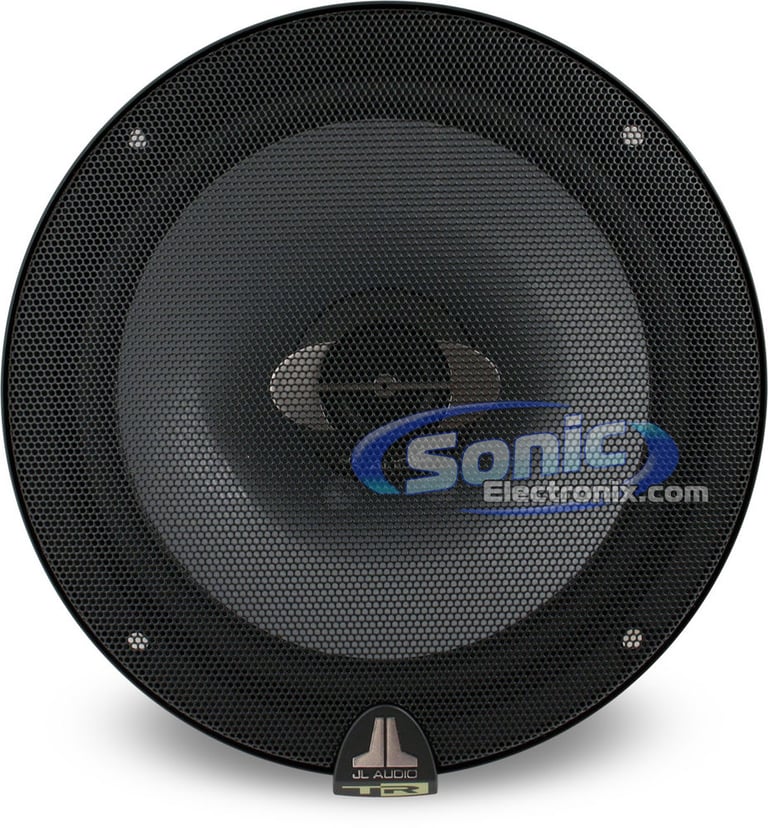

  • Black Steel Mesh Grille with An Electroformed JL Audio Logo Included
  • Top-mount depth: 2.44"
  • Cutout Dimensions: 5.56"
  • Nominal Impedance: 4 ohm
  • Efficiency: 91.0 dB @ 1 watt / 1 meter
  • Frequency Response: 59 Hz - 22 KHz ± 3 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty
  • Priced Per Pair.

Check out the JL Audio TR650-CXi Owner's Manual

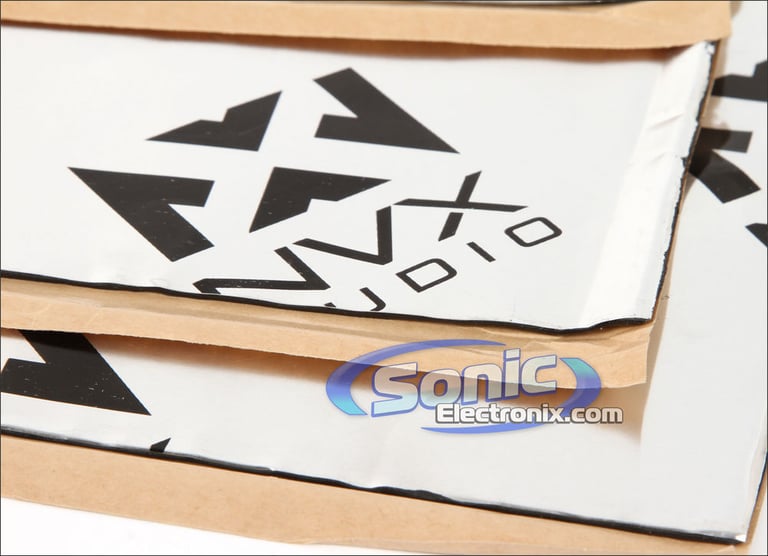

NVX SDVK4 - 90mil 2.3mm THICK

4 Square Feet of Sound Dampening Material (One 18" x 32" Piece)
Quantity: 1

Product Features

  • One 18" x 32" Piece of Sound Dampening Material
    • 90.55mil thick (2.3mm)! There are cheaper, inferior solutions at 50-80mil, but we do not recommend that thin of a solution as it will not perform as well.
  • 4 Square feet total
  • Made from 100% Butyl Rubber
  • Eliminates road noise
  • Quiets vibrations
  • Increases sound quality and output of car audio system
  • Stops rattles
  • Increases SPL
  • Reduces heat
  • Easy to form aluminum conforms to desired area of vehicle with ease
  • Four step peel and stick design for easy installation
  • Up to 30% thicker than the leading competitors
  • Dimensions: 18"L x 32"W
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty




Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

KW-M560BT main

JVC KW-M560BT

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

10
AVH-3500NEX main

Pioneer AVH-3500NEX

7" Single DIN Flip-Out Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

9
-10.75%

$829.99

List price $930.00

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!
XAV-AX8500 main

Sony XAV-AX8500

10.1" Single DIN Floating Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Wired Android Auto (SiriusXM Ready)

2
-20.20%

$798.00

List price $999.99

Kenwood eXcelon KMM-X705

Single DIN Digital Media Receiver with Bluetooth, Built-in Alexa (Sirius XM Ready)

6
-20.40%

$199.00

List price $250.00

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00


Best selling similar products

46CSC654 small

Kicker CSC65 (46CSC654)

• 300 watts Peak Each, 100 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(122)

$79.96

List price $119.99

Club 622 small

JBL Club 622

• 180 watts Peak Each, 60 watts RMS Each
• Silk Edge Driven Dome tweeters with 0dB or -3dB adjustable output levels
• UV-Resistant Polypropylene cone material with Plus One woofer cone architecture
• Impedance: 3 ohm
• Sensitivity: 93 dB

(5)

$99.95

List price $139.95

43DSC6504 small

Kicker DSC650 (43DSC6504)

• 240 watts Peak Each, 60 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome zero-protrusion tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 90 dB

(28)

$84.99

List price $94.99

DB652 small

Polk Audio DB652 (DB 652)

• 300 watts Peak Each, 100 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(12)

$109.00

List price $119.99

NSP65 small

NVX NSP65

• 270 watts Peak Each, 90 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.40"

(93)

$69.99

List price $107.99

XED62 small

Cerwin-Vega XED62

• 300 watts Peak Each, 35 watts RMS Each
• 3/4" Piezo Metal Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(15)

$49.99

List price $59.99

SXE-1726S small

Alpine SXE-1726S

• 220 watts Peak Each, 40 watts RMS Each
• 1" Carbon Graphite Dome tweeters
• Nano Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$42.99

List price $54.99

R165X3 small

Rockford Fosgate Prime R165X3

• 90 watts Peak Each, 45 watts RMS Each
• 1/2" Piezo pole-mounted Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(154)

$79.99

List price $79.99

VSP65 small

NVX VSP65

• 300 watts Peak Each, 100 watts RMS Each
• 1" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 2.51"

(64)

$109.99

List price $129.99

KFC-X175 small

Kenwood eXcelon KFC-X175

• 240 watts Peak Each, 80 watts RMS Each
• 1" Soft Dome Tweeters
• Injection Molded Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87 dB

$111.50

List price $180.00

Specifications & Details


Speaker Specifications
Speaker Size
6-1/2"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Composition
Textile
Woofer Composition
Injection molded, mica-filled polypropylene
Peak Power Handling
100 watts
RMS Power Handling
50 watts
Sensitivity
91 dB
Frequency Response
59 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TR650-CXI_SDVK4

Weight:

8.73lbs

Internal SKU:

tr650cxi_sdvk4

Internal Product ID:

37852

Product and How-to Videos


  • How To Test Speaker Polarity | Tips & Demo | Car Audio 101
  • Replace your Car Speakers and Upgrade to Better Sound | Sonic Electronix

Customer Ratings & Reviews


JL Audio TR650-CXi w/ NVX Sound Dampening thumbnail image

5 star
80%
4 star
12%
3 star
5%
2 star
3%
1 star
0%



Durability
4.9
Value
4.7
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Everybit as good as the more well known products

The following review is for SDVK4, which is a part of the bundle you are viewing.

This came free with a bundled purchase,.. and I also purchased some Rattletrap Extreme as this wasn't enough for the car. I was expecting this to be mostly unusable due to the Name.

I was wrong.. it was every bit as good in thickness and adhesion as the more expensive brand I had bought. So if you can get this cheaper than other Sound material,.. go for it.

By Jared on February 8, 2014

112 found this helpful


NVX SDVK4

The following review is for SDVK4, which is a part of the bundle you are viewing.

Works great at a great price. I have it under my trunk lid and it keeps it from rattling too bad.

By Smuck on January 9, 2014

109 found this helpful


Good product, not the easiest

The following review is for SDVK4, which is a part of the bundle you are viewing.

Used a few sqft of this material, along with the equivalent from Streetwires (PartsExpress) and a ton of Peal 'n Seal (Lowe's) for the rest.

I would say that Peal 'n Seal was the easiest to apply, but also the thinnest (an cheapest). So if you are doing some serious job you may want to double or triple the layers.

The NVX material was the thicker of the three I used, and once it's glued it stays soft which is very good. But beware, you will never get it off again. The only thing I would reproach is that the aluminum is quite thick, which makes it hard sometimes to comply with shapes. But it is good to fill in big gaps or openings and add some rigidity.

My preferred material is the Streetwire stuff, which is a bit cheaper. It was thick enough and compliant enough to make it really easy to install and it sticks like crazy while being forgivable if you make a mistake.

Have fun!!!

By Adrien on November 10, 2014

102 found this helpful


awesome

The following review is for SDVK4, which is a part of the bundle you are viewing.

simply amazing before i installed it i could not hear a clean bass at all by trunk was rattling so much but now my trunk is solid and i'm enjoying the bass it's cheap and awesome NVX for the win

By hassan on October 21, 2014

104 found this helpful


NVX better than the Rest

The following review is for SDVK4, which is a part of the bundle you are viewing.

Great price, great quality. Plus delievery came fast. Will buy again for rear door.

By OMAR on July 6, 2014

107 found this helpful


NVX SDVK4

The following review is for SDVK4, which is a part of the bundle you are viewing.

I USED THIS PRODUCT TO INSULATE THE SHEETMENT AT THE KICKPANELS AND THE FLOOR AREA BEHIND MY REAR SEAT IN MY1972 VW SUPER BEETLE. THIS PRODUCT WORKED OUT GREAT FOR ME, NO VIBRATION, REALLY QUIETED THE ROAD NOISE ALSO. OVERALL A GREAT PRODUCT.

By REED on September 2, 2013

101 found this helpful


Great product!

The following review is for SDVK4, which is a part of the bundle you are viewing.

This is the first sound dampening material that I've used so far and I have to say that I am quite impressed with the product. I used it to reduce the vibrations generated from my sub at the back of my car. Since then, sound quality has improved considerably. For the price, I strongly recommend this product.

By JBlanch on January 28, 2013

98 found this helpful


awesome

The following review is for SDVK4, which is a part of the bundle you are viewing.

this is the best stuff for the best price now

By Joseph on March 14, 2014

102 found this helpful


works great

The following review is for SDVK4, which is a part of the bundle you are viewing.

Less weight than other sound proofing I have used, cuts easy and with a hair dryer it will mold to any contour .

By Timothy on April 25, 2014

98 found this helpful


Perfect kit foe speaker installs or a single door.

The following review is for SDVK4, which is a part of the bundle you are viewing.

This deadener works wonders for vibration and outside noise. It is thicker than Dynamat and will eliminate that horrible resonance caused by lower frequency notes transferred through sheet metal and rattles in plastic. It also improves sound quality and SPL.

By DonnieE on December 5, 2012

94 found this helpful




SE-CL331-Y small

Pioneer SE-CL331-Y (SECL331Y) Yellow Water Resistant In-Ear Earbud Headphones

Water-Resistant Noise-Isolating Earbuds (Yellow)

$59.99

List price $59.99

SE-CL331-H small

Pioneer SE-CL331-H (SECL331H) White Water Resistant In-Ear Earbud Headphones

Water-Resistant Noise-Isolating Earbuds (White)

$59.99

List price $59.99

05DS60 small

Kicker DS60

6-1/2" DS-Series 2-way Speakers 05DS60

(7)

$59.95

List price $89.99

2T12-1.2-GRAY small

Sonic Sub Box: 2T12-1.2 (Gray)

Dual 12" Angled Universal Truck MDF Enclosure

(9)

$31.99

List price $59.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2013 Suzuki SX4

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
