Description


Boss brand icon

Authorized dealer

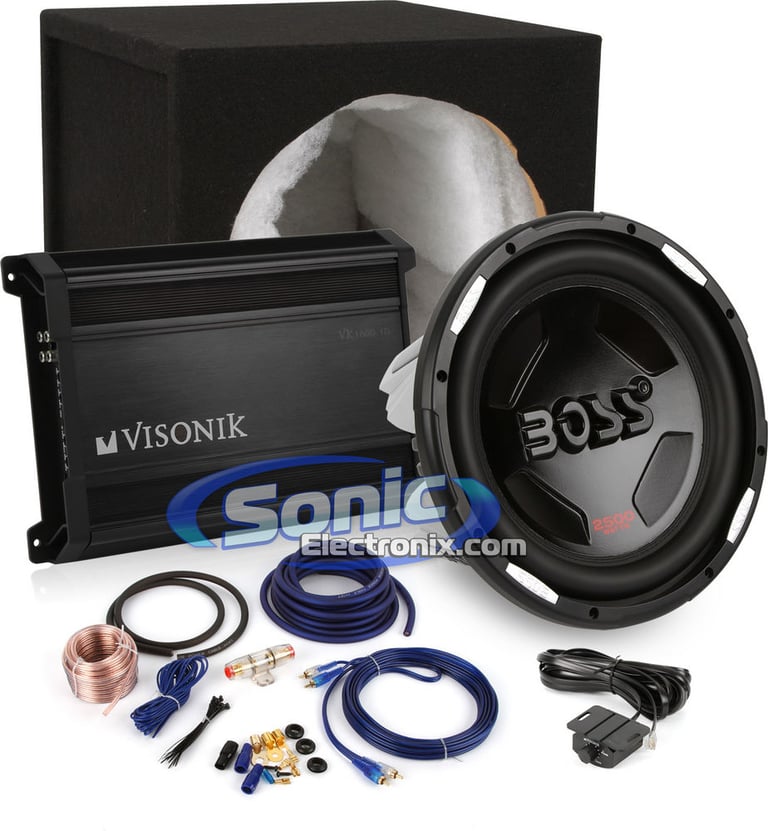

Boss and Visonik Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Visonik VK1600.1D amplifier along with a 12" ONYX Series, Boss Subwoofer. This excellent bass package pushes 1250 watts of clean, continuous RMS power. The Boss Subwoofer has Dual 4 Ohm Voice Coils; meant to be wired in parallel, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Boss NX12D 12" ONYX Series subwoofer requires 1250 watts of RMS power. The included Visonik VK1600.1D amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a single 12" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Boss subwoofer, Visonik amplifier, sealed enclosure, and The Install Bay amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

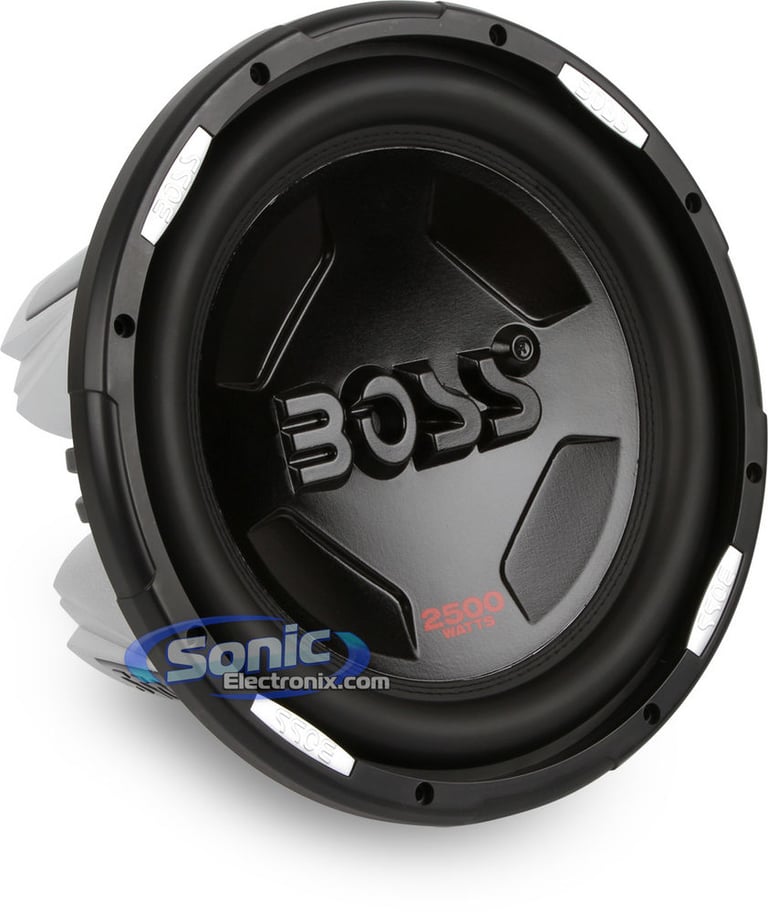

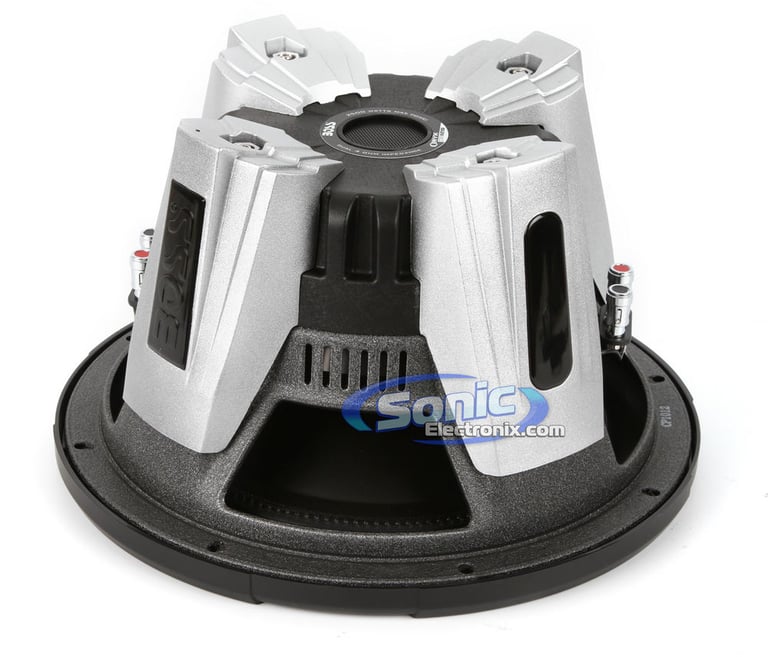

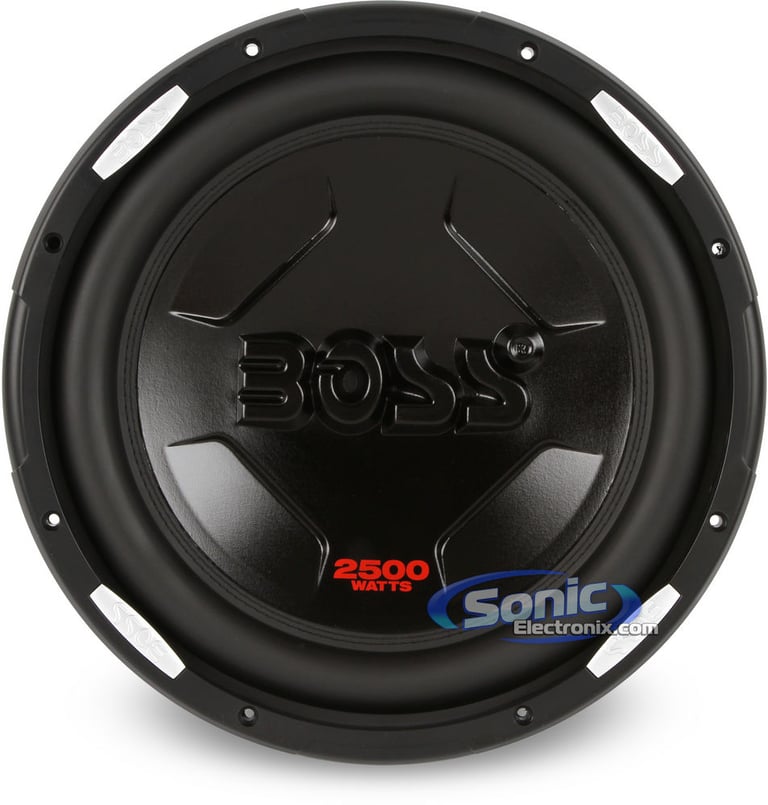

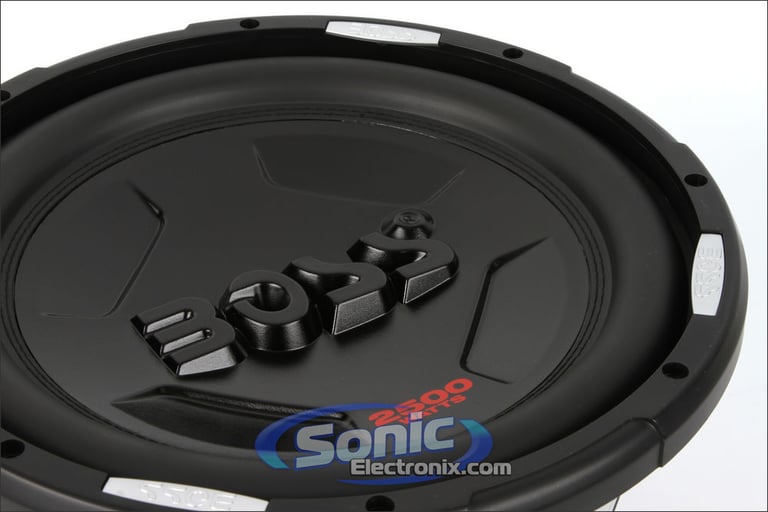

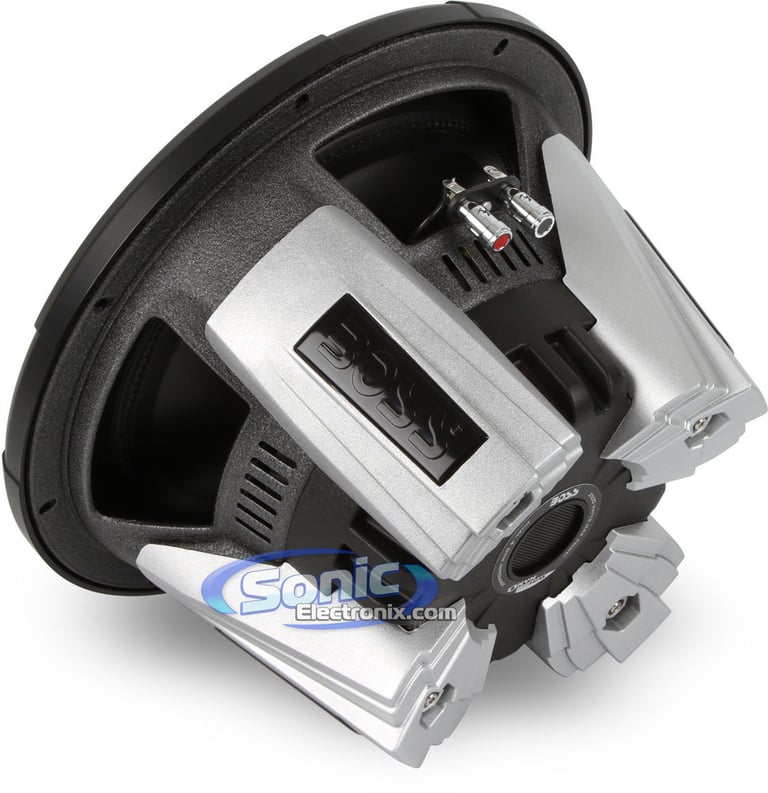

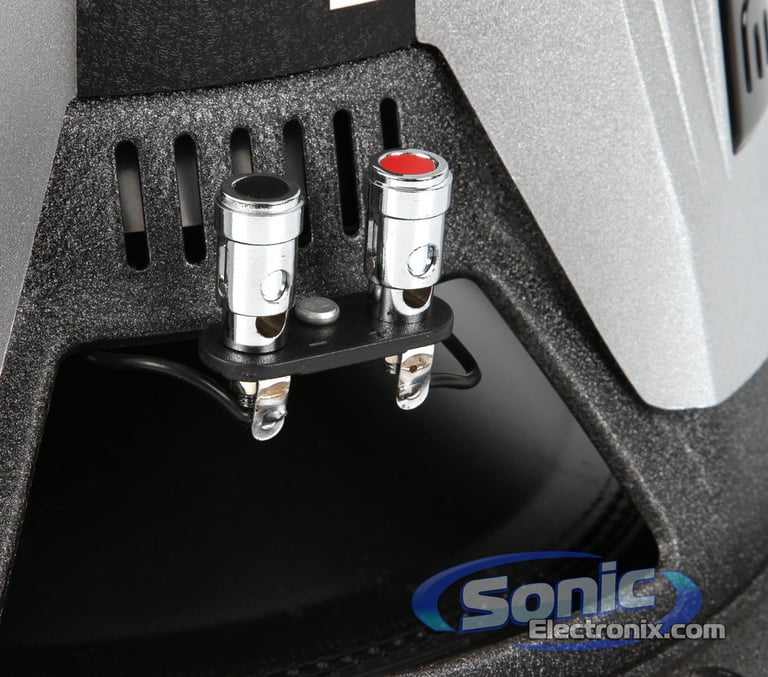

Boss NX12D Features:
  • 12" Dual 4 Ohm ONYX Series DVC Subwoofer
  • Power Handling:
    • Peak: 2500 watts
    • RMS: 1250 watts
  • Impedance: 4 ohm
  • Custom tooled high efficiency poly injection cone is durable against large amounts of excursion
  • Butyl rubber surround is durable and stable in operation
  • Black trim ring adds an attractive appearance
  • 2-1/2" Dual 4 ohm high temperature kapton voice coil
  • Frequency Response: 25-2000 Hz
  • Sensitivity: 96 dB
  • Mounting Depth: 6-13/16"
  • Cutout Diameter: 11"
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

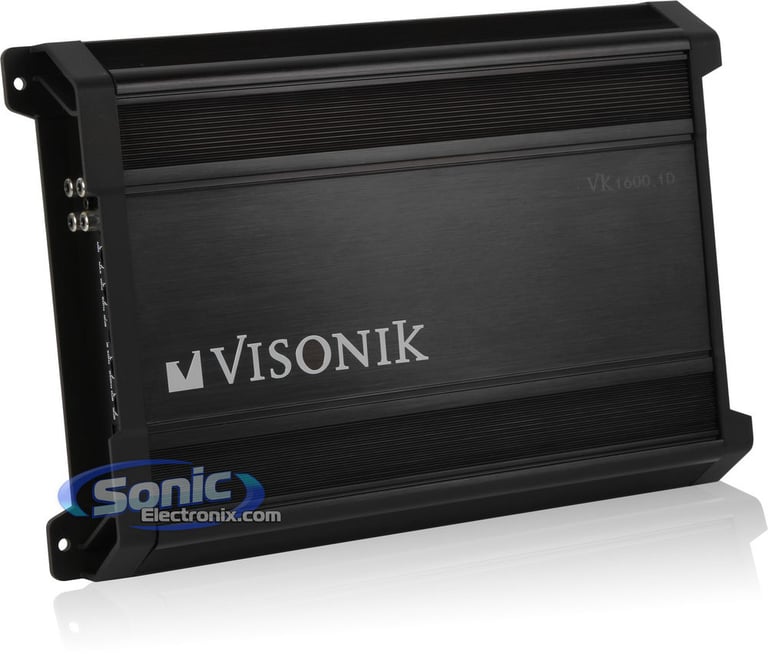

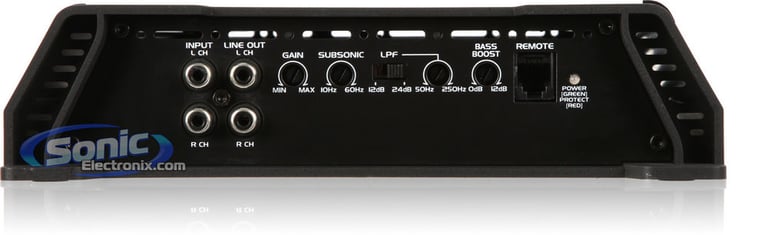

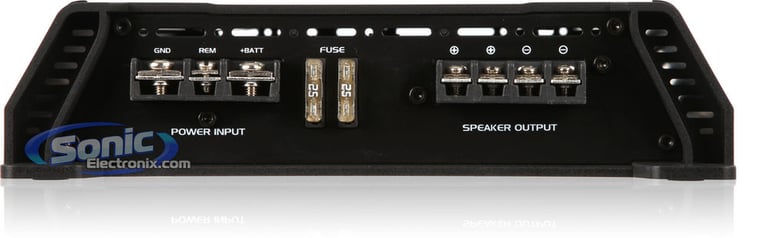

Visonik VK1600.1D Features:
  • Visonik Mono Block Power Amplifier
  • RMS Power Rating:
    • 4 ohm: 800 watts x 1 chan.
    • 2 ohm: 1600 watts x 1 chan.
  • Class D Mono Block amplifier
  • Low noise line level inputs
  • Single frequency adjustable bass boots EQ
  • Low-pass butterworth crossover designs
  • Internal differential drive Preamp inputs
  • Low noise, low distortion full signal path circuit topology
  • Complete differential feedback ground loop control
  • MOSFET P.W.M power supply
  • LED power and protect indicators
  • Fully regulated Preamp power supply
  • Four-way amplifier protection (thermal, short circuit, overload, and DC offset)
  • Delayed turn on / turn off circuitry
  • Isolated signal and power grounds
  • Fast acting power supply capacitor banks
  • Variable Bass Boost (0-12 dB)
  • Adjustable sensitivity range: 0.2-6v
  • Single channel operation
  • Variable Low-Pass Filter (50-250 Hz), (12dB, 24dB)
  • Subsonic Filter: 10Hz-60Hz
  • Frequency Response: 250,000 Hz
  • THD (Total Harmonic Distortion): 0.01%
  • Fuse: 25A x 2
  • Dimensions: 13"D x 8-13/16"W x 2-1/4"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

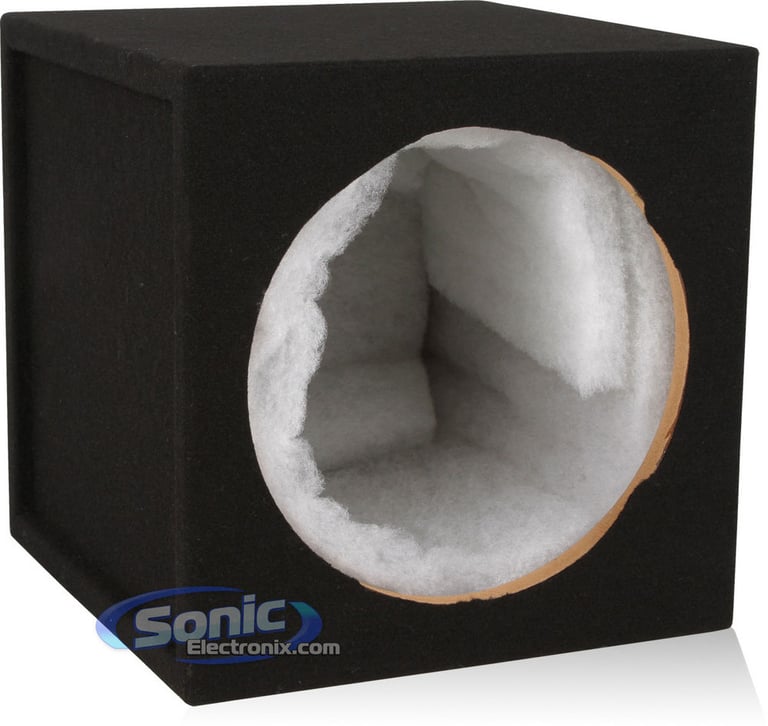

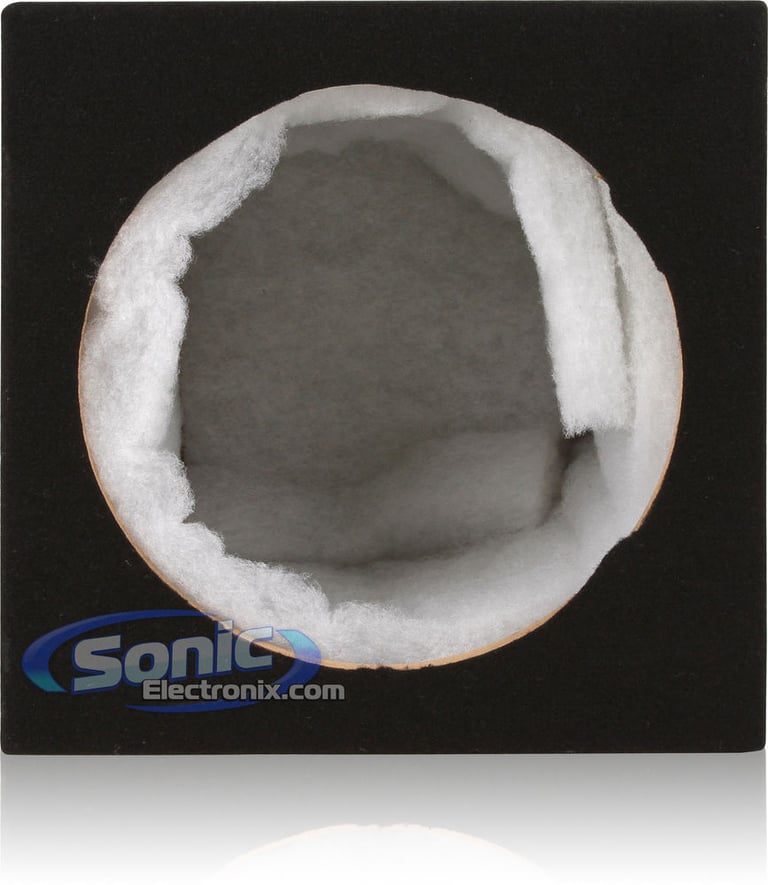

House Brand 12SSPF Features:
  • 12" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

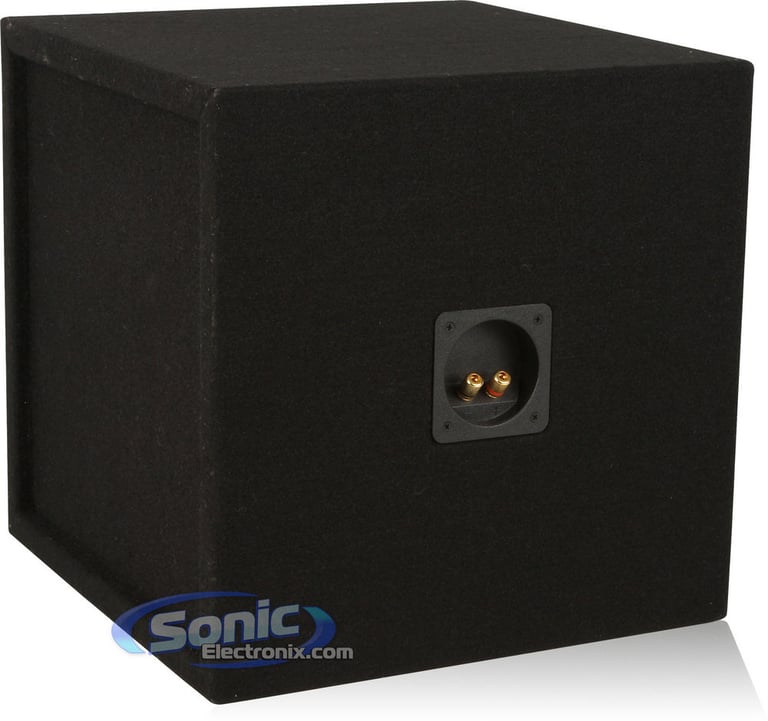

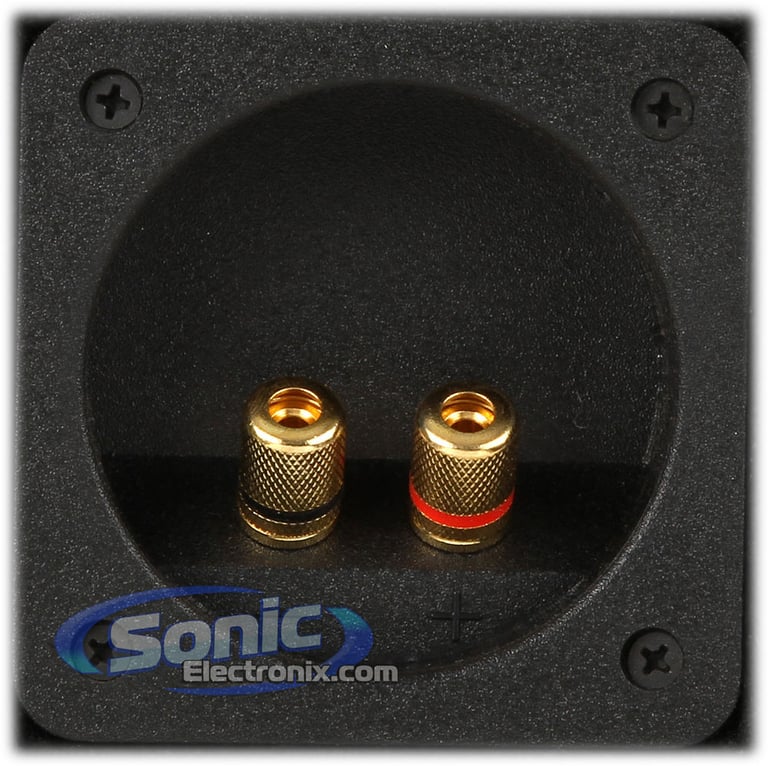

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 12-1/2"
  • Subwoofer cutout diameter: 11"
  • Box volume: 1.0 cubic feet (per chamber)
  • Total box volume: 1.0 cubic feet
  • Dimensions: 14"D x 14"W x 14"H

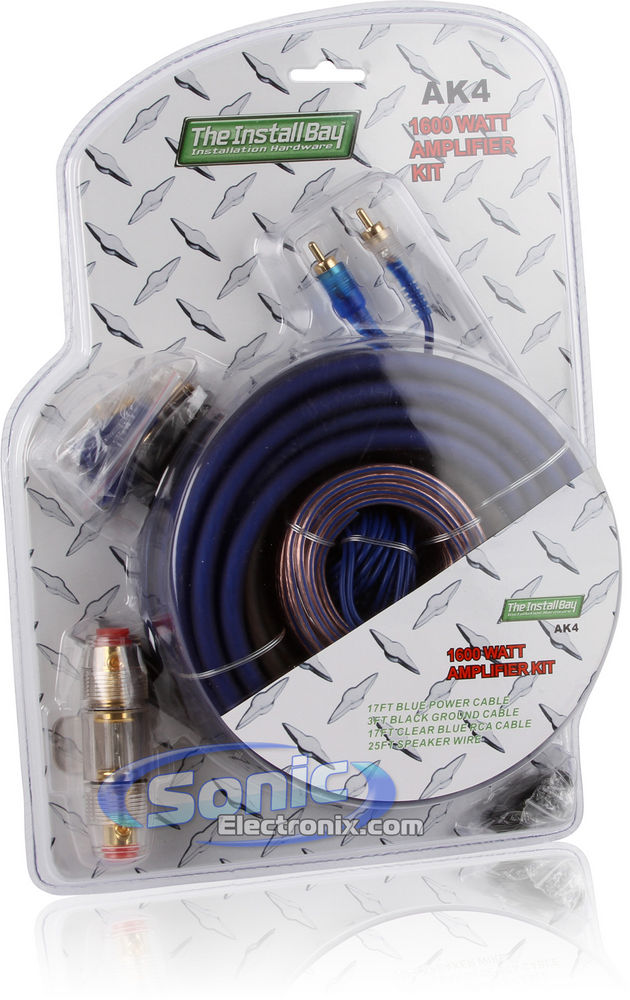

The Install Bay AK4 Features:
  • Complete 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
  • Perfect for 1600 watts amplifier setup
  • Includes everything that you need to install a single amplifier
  • Premium power and ground cable
  • 1-year Manufacturer's warranty
The Install Bay AK4 Includes:

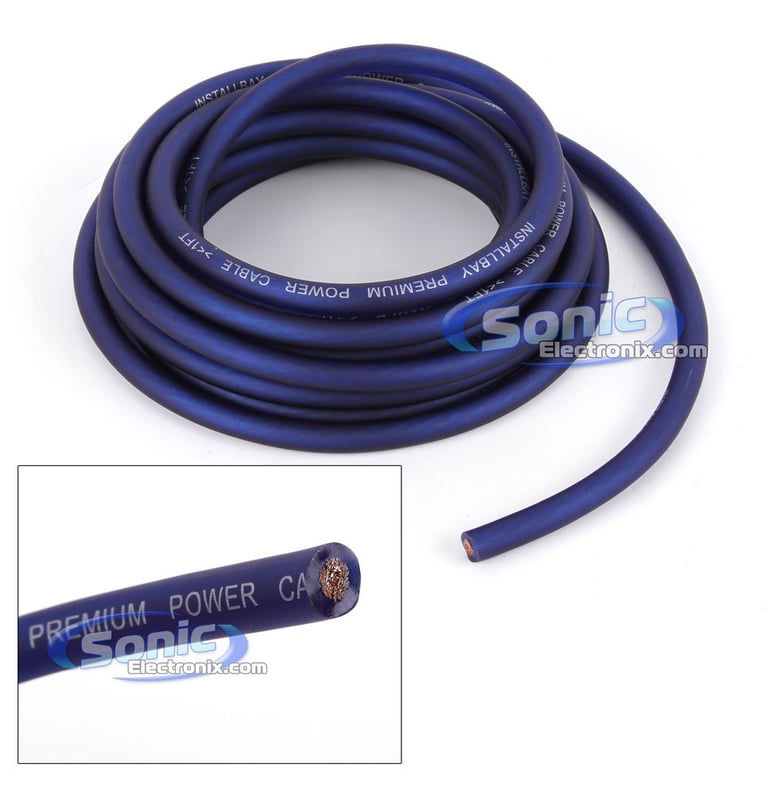

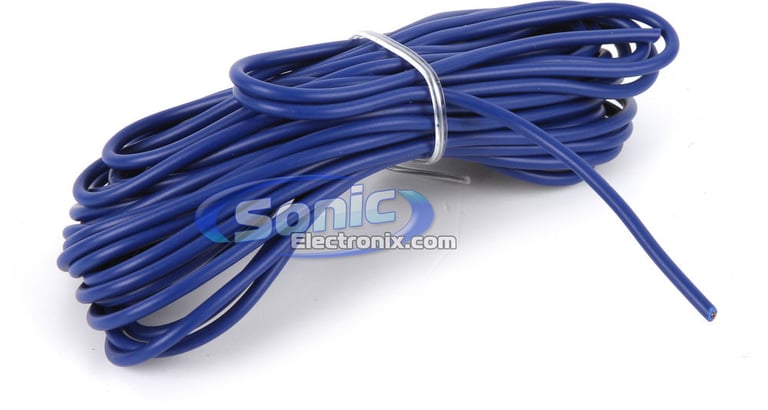

  1. 17 ft. of Blue power cable

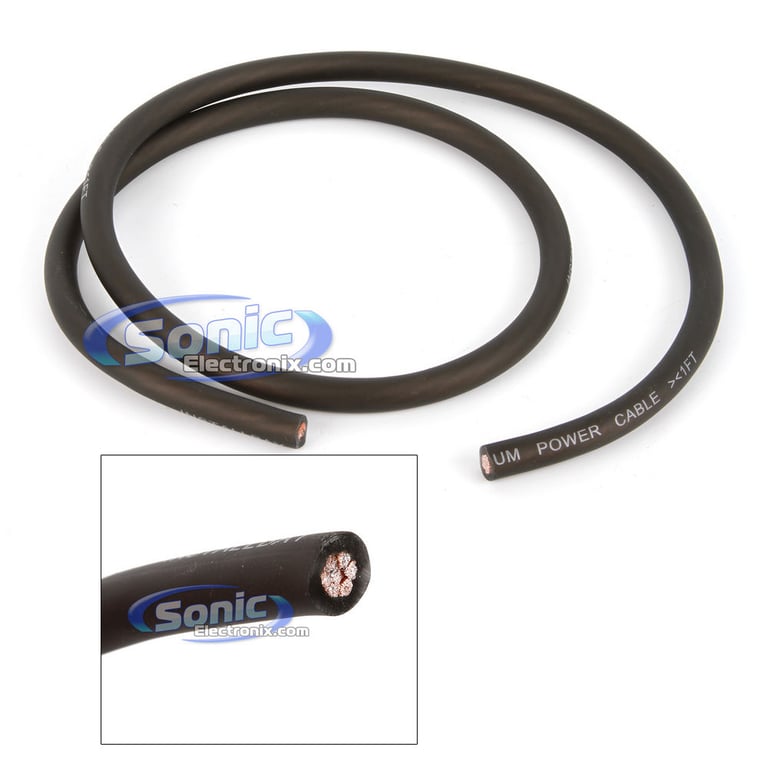

  2. 3 ft. of Black ground cable

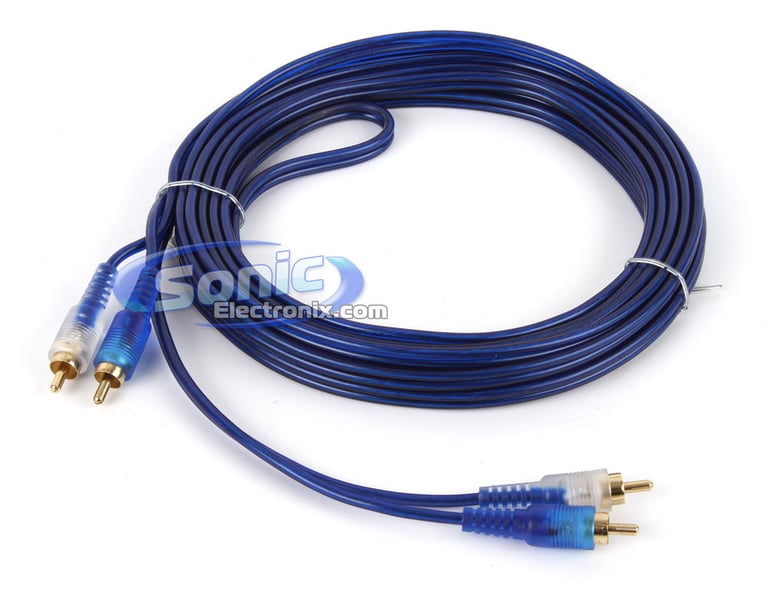

  3. 17 ft. of Clear/blue RCA cable

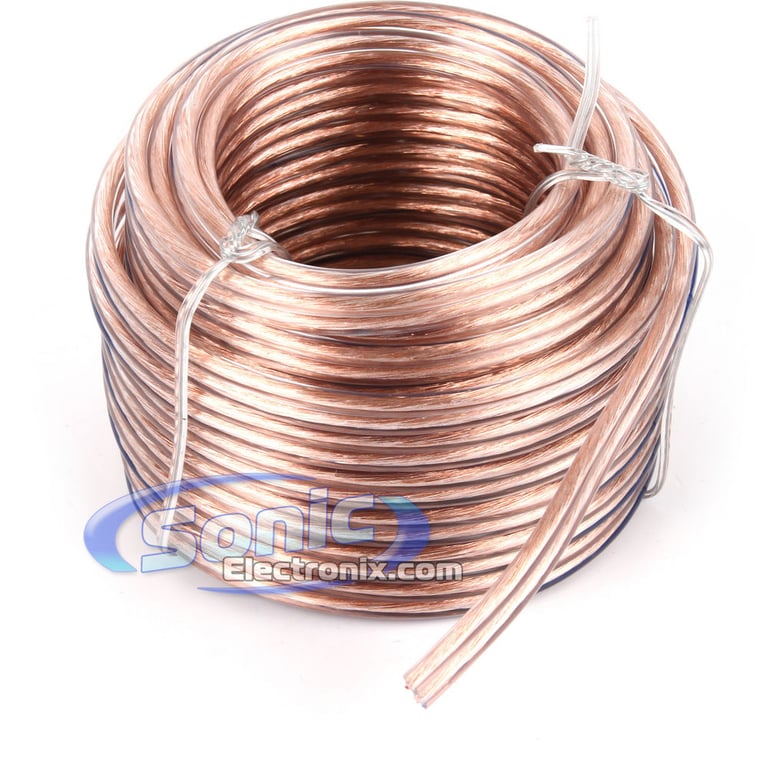

  4. 25 ft. of Speaker wire
  5. 17 ft. of Remote turn-on wire

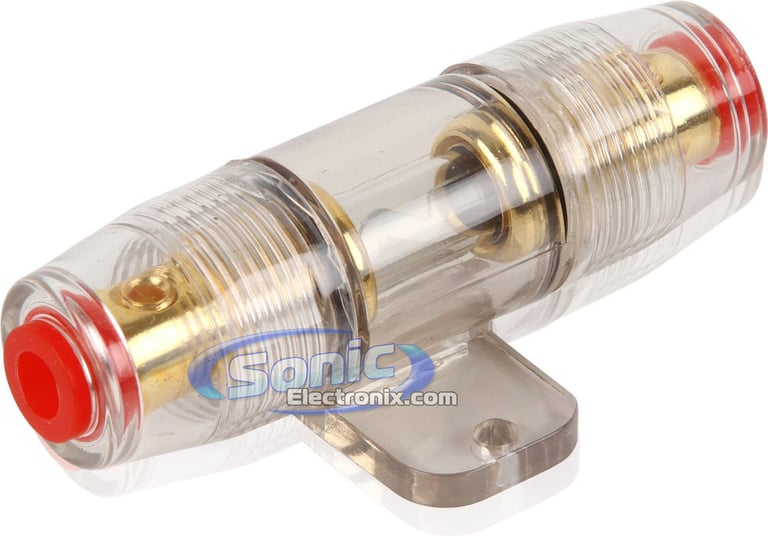

  6. In-line AGU fuse holder
  7. 60 Amp AGU fuse

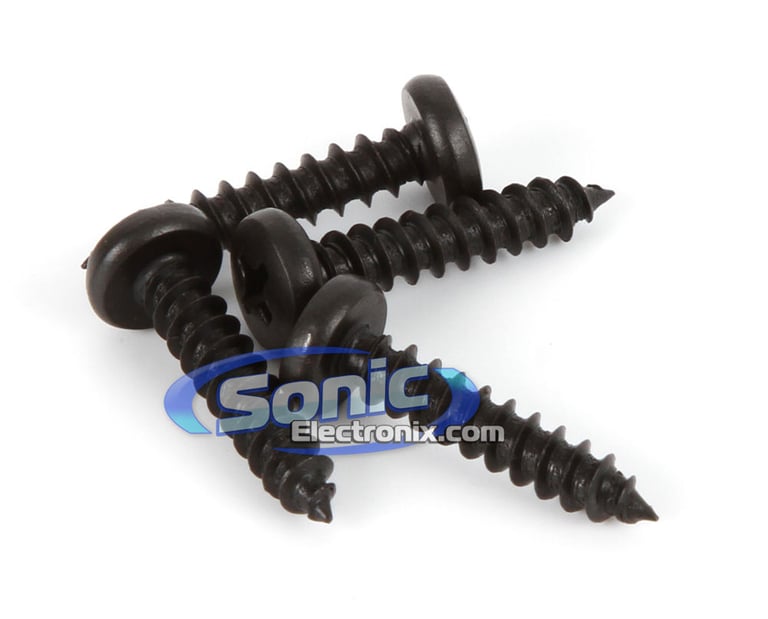

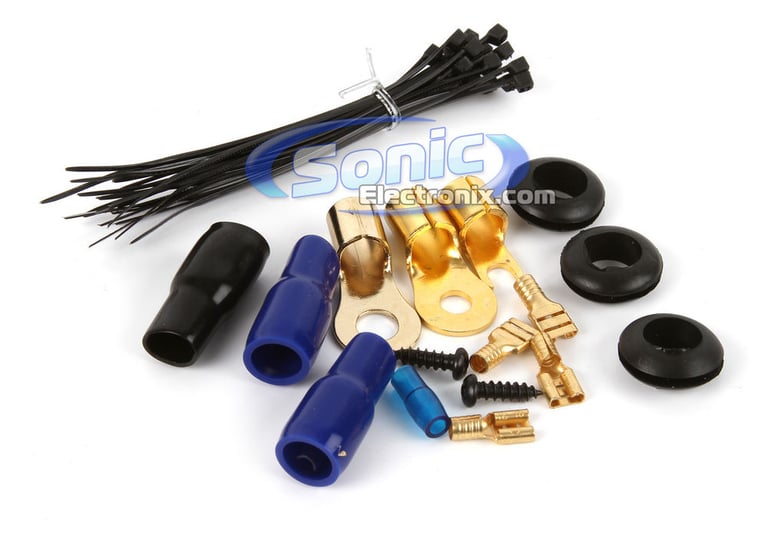

  8. Installation hardware

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
800 watts x 1 channel
RMS Power @ 2 ohms
1600 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
.01%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass Crossover Frequency
Not Specified
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
10 - 60 Hz
Signal-to-Noise Ratio
Not Specified
Channel Separation
Not Specified
Bass Boost
0 - 12 dB

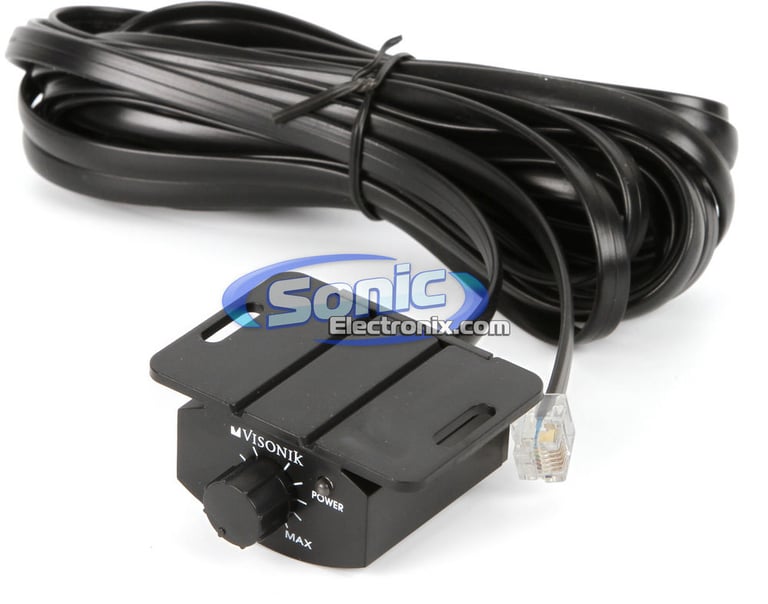

Remote bass/level controller
Yes
Fuse Rating
25A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
1250 watts
Total RMS Power Handling
1250 watts
Peak Power Handling
2500 watts
Total Peak Power Handling
2500 watts
Woofer Surround
Butyl Rubber
Woofer Composition
Poly Injection
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Sensitivity
96 dB
Frequency Response
25 - 2000 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
14"
Width
14"
Depth
14"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

VK1600.1D_NX12D

Weight:

42.55lbs

Internal SKU:

vk16001d_nx12d

Internal Product ID:

37934

Customer Ratings & Reviews


2500W Boss + Visonik Complete Bass Package thumbnail image

5 star
56%
4 star
30%
3 star
11%
2 star
2%
1 star
2%



Durability
4.4
Value
4.6
Features
4.3
Design
4.5
Usability
4.6

Customer Reviews

Sort by:

Loading...

has it all

The following review is for AK4, which is a part of the bundle you are viewing.

Kit has everything you need for a hassle free installation, I was thinking I wasn't going to need it, but was glad I had it after things got going.

By steven on September 10, 2012

110 found this helpful


Great Value!!!

The following review is for AK4, which is a part of the bundle you are viewing.

If your looking for an amp install kit with all of the necessities that doesn't cost and arm and a leg this is it. The kit came with everything needed to get power to my amp the length was perfect for a extended cab pickup. The RCA's lack a little but I just used these single channel RCA's to run my sub amp and I bought some Streetwire 4 ch RCA's for the 4 ch amp and it's turned out great. I've always had good luck with Install Bay products!!! I would recommend to any one in search of a good Amp Install Kit!!!

By Dalton on October 5, 2013

106 found this helpful


Love

The following review is for AK4, which is a part of the bundle you are viewing.

I bought this my my 2007 jetta. It work really good the it was easy to put on. I would buy this again.

By Kiera on February 1, 2013

109 found this helpful


2nd time with this install bay kit

The following review is for AK4, which is a part of the bundle you are viewing.

its a great kit for the price. I bought it once for a buddys Suby and then for my father in laws econoline van. never had a problem with either. sonic can be slow at shipping. but if on a budget this kit kicks butt for the price....not much online can compare for a 4 gauge and price. never a problem with feed back or crappy rca. might have to get a few better connectors but hey its a given. anyways great kit. also great for a basic systems. I wouldn't run more then 100 amps of power max.

By marklar on September 17, 2013

104 found this helpful


Does what its suppose to do!

The following review is for AK4, which is a part of the bundle you are viewing.

This product is exactly what it is, a kit! I LOVE IT, everything i needed was included and durable! the 4ga wire is true to size! (not just labeled 4ga IT REALLY IS!) if needed, id purchase again!

By Alex on August 14, 2012

103 found this helpful


New amp kit

The following review is for AK4, which is a part of the bundle you are viewing.

Not much to review, It works fine. The only issue is that the power cable doesn't fit into the fuse holder. The fuse glass and holder plastic actually cracked when trying to close it. I'm sure I'll have to replace them soon. Other then that, it's good enough to power my amp with no issues. Yes, I would recommend it to others, just be careful when connecting the fuse holder and power wire. Don't use force!

By Rey on November 12, 2013

103 found this helpful


Decent Install Kit

The following review is for AK4, which is a part of the bundle you are viewing.

This kit isn't too bad it does the job. The fuse holder seems a little bit cheap on the plastic material but it works. The power cable held up to my abuse when I ran it through my tight space trims in my vehicle and I had to really pull them hard to get through. The RCA cable is a bit thin but I used it for my subs anyways so no problems there.

By Michael on September 10, 2012

99 found this helpful


Decent for the money

The following review is for AK4, which is a part of the bundle you are viewing.

I originally bought and 8 gauge cuz that's what my amp called for, it was a joke so I returned it and got this 4. Easy return/ exchange. Sounds like it happens a lot...
I think these kits are measured on the outside including plastic diameter not the inside wire.

Anyways buy the next size down from what you need. Kit came with lots of little parts to make the install ez. Would buy again for a 200-400 watt amp

By Land rover on November 7, 2013

98 found this helpful


AK4

The following review is for AK4, which is a part of the bundle you are viewing.

Bought the Installbay AK4, pretty decent pricing although its wire is very brittle and falls apart when splicing it so be careful. Also remember your going to need a crimping tool so look for one before getting too excited. Overall good product, no problems encountered

By image on March 3, 2011

97 found this helpful


Great product!

The following review is for AK4, which is a part of the bundle you are viewing.

Now my 1993 honda accord sounds better than ever! Exellent product 100% recomended!

By Andres L. San Miguel on October 31, 2014

100 found this helpful




AK4 main

Install Bay 4 Gauge Amplifier Power Wiring Kit (AK4)

• 4 Gauge Amplifier Installation Kit with RCA Interconnect Cables
• Perfect for 1600 Watts Amplifier Setup
• 17ft. Blue Power Cable
• 3ft. Black Ground Cable
• 17ft. Blue RCA Cable

(119)

$57.99

List price $64.99


No picture

NVX BE-JP-WUTLD-VSW104v2 BOOST Box (Open Box, Good)

Custom Fit 500W RMS 10" Loaded BOOST Subwoofer Enclosure for 2007-2018 JEEP Wrangler Unlimited (JK/JL)

$139.99

List price $319.99

740-0340-001 small

Vizualogic RoadTrip Elite (Grey)

Pair of Universal Active Restraint Headrests w/ 9" LCD Monitors & DVD Player

$599.99

List price $999.00

740-0340-000 small

Vizualogic RoadTrip Elite (Black)

Pair of Universal Active Restraint Headrests w/ 9" LCD Monitors & DVD Player

$799.99

List price $999.00

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2003 Honda S2000

2005 Audi TT Quattro

2007 Audi A3

2010 Toyota Corolla

2020 Kia Stinger

2002 Honda Civic

2009 Nissan Cube

2001 GMC Sierra C3

2017 Audi A3 Quattro

2002 Mazda Millenia

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
