  5. Pioneer 10ZXSUM8_XTX800.4_2-TS-D1602R_11PECVR12

See all parts that fit your 2025 CX-5

Kicker Loaded Enclosure + RE Audio & Pioneer Amp and Speaker Combo

Kicker PECVR12 Loaded Enclosure + RE Audio XTX-800.4 4-Channel Amp + Pioneer TS-D1602R Speakers

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

12" CompVR (CVR) Series Subwoofer Loaded into a Kicker Enclosure • 800W Max • 400W RMS • Vented Enclosure Specially Designed for CVR Woofer • XTX Series 4-Channel Full Range Digital Car Amplifier • 6-1/2" D Series Car Speakers • Amp Kit • RCA Interconnect Cables • Line Out Converter

Learn more about the 10zxsum8_xtx8004_2-tsd1602r_11pecvr12

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Add to cart
Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart
PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

Add to cart
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Add to cart
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Add to cart
PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

Add to cart
Reference 6530CX main

Infinity Reference REF-6530cx (REF6530CXAM)

540W Peak (180W RMS) 6.5" Reference Series 2 Way 3-ohm Component Speaker System

2
-56.40%

$108.99

List price $249.95

Add to cart

Description

Pioneer brand icon

Authorized dealer

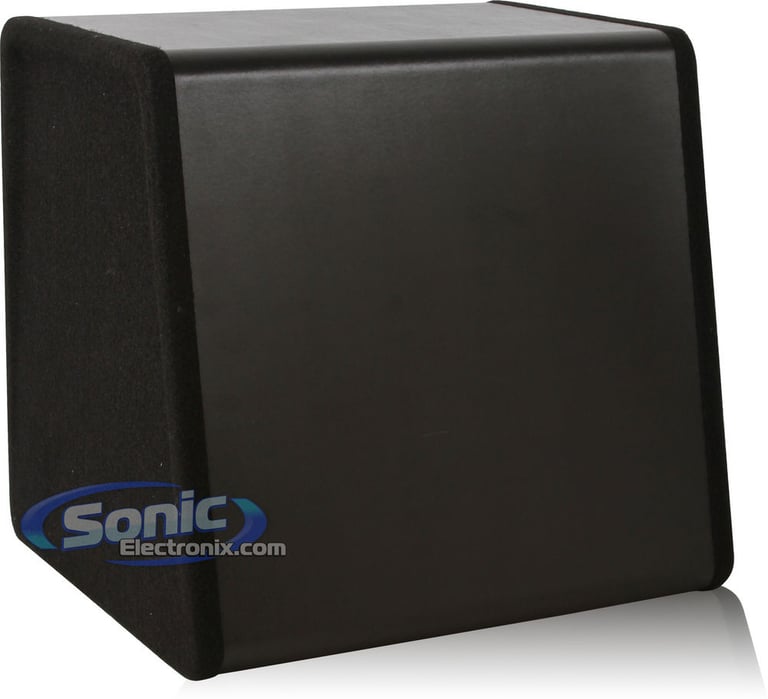

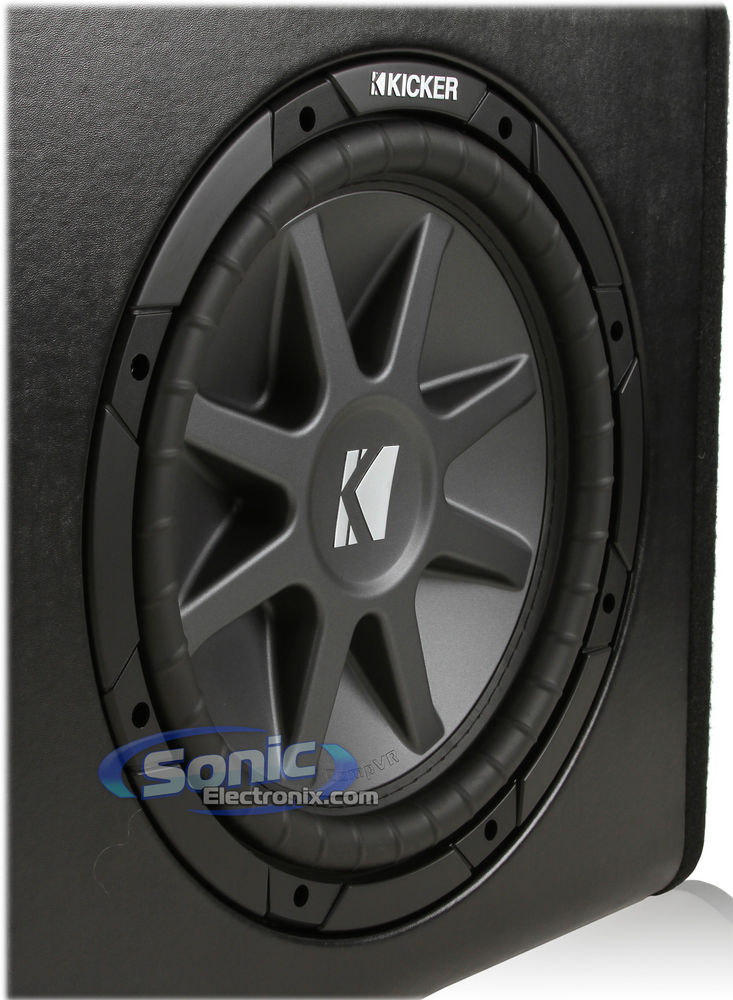

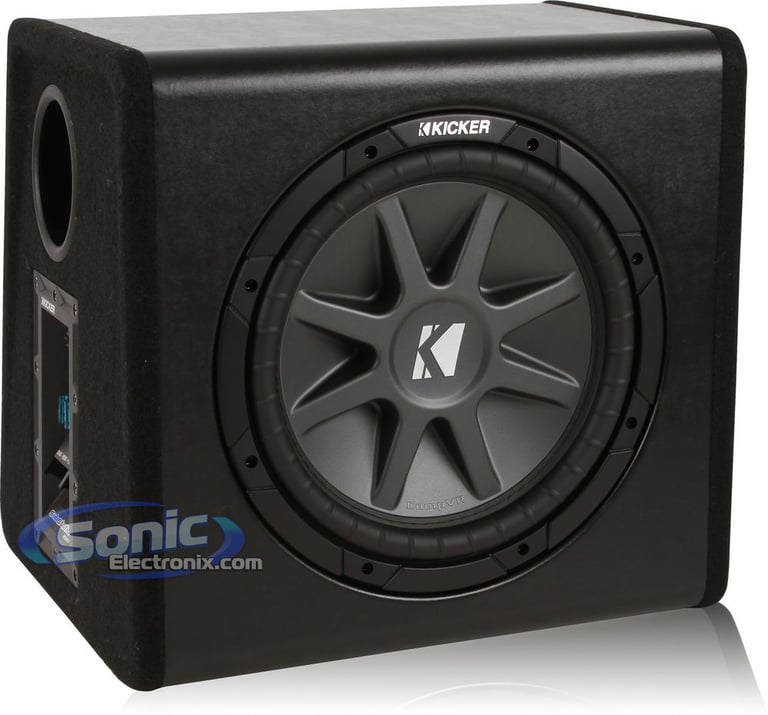

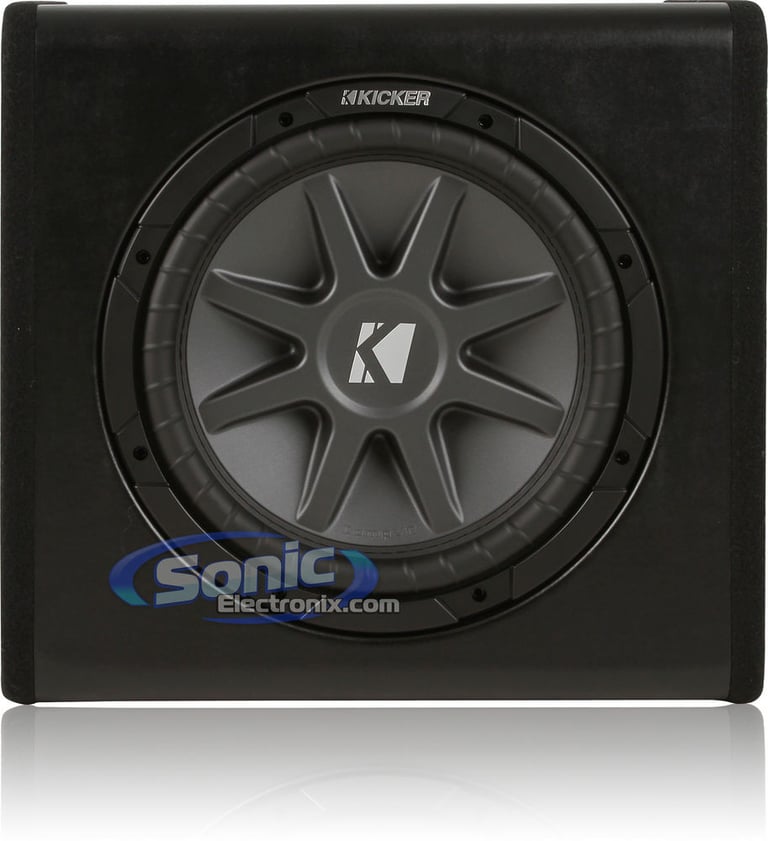

Kicker PECVR12

Single 12" CompVR (CVR) Subwoofer Loaded Into Amplified Ported Enclosure
Quantity: 1

  • 12" CompVR (CVR) Series Subwoofer Loaded into a Kicker Enclosure
  • Built-In Amplifier Makes Installation Simple
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Impedance: Dual 4 Ohm
  • Injection molded SoloKon cone
  • Ribbed Santoprene surround
  • Double stitched surround for enhanced cone-to-surround strength
  • Extra strong adhesive and stitching prevents the cone from detaching from the surround
  • Spiralead tinsel lead technology weaves the tinsel leads into the spider
  • Progressive-roll polycotton spider
  • Super rigid cone and 360-degree back bracing eliminate distortion
  • Sturdy steel basket holds the subwoofer mounted firmly
  • Steel basket features perimeter venting around the dual voice coils
  • Large, high-mass pole piece for dissipating potentially damaging heat
  • Strong spring-loaded terminals
  • High-Temperature voice coil
  • Powerful rear magnet
  • Frequency response: 25-500 Hz
  • Sensitivity: 86.9 dB
  • Mounting depth: 6-1/4
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

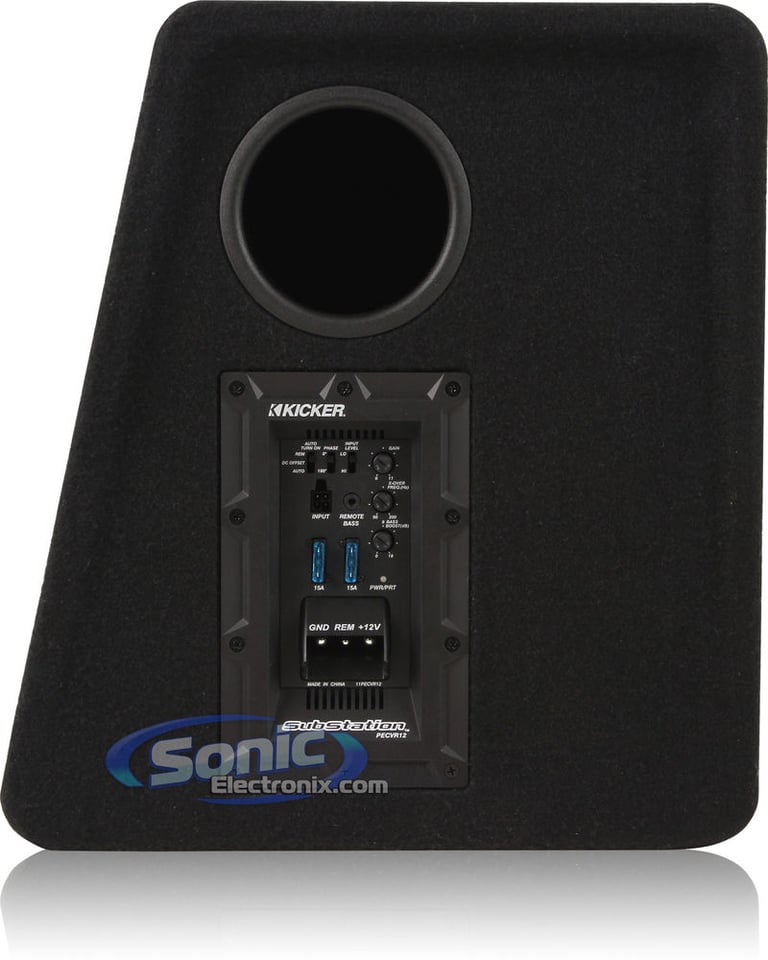

Enclosure Features:
  • Vented enclosure designed specifically to match with the CompVR's technologies

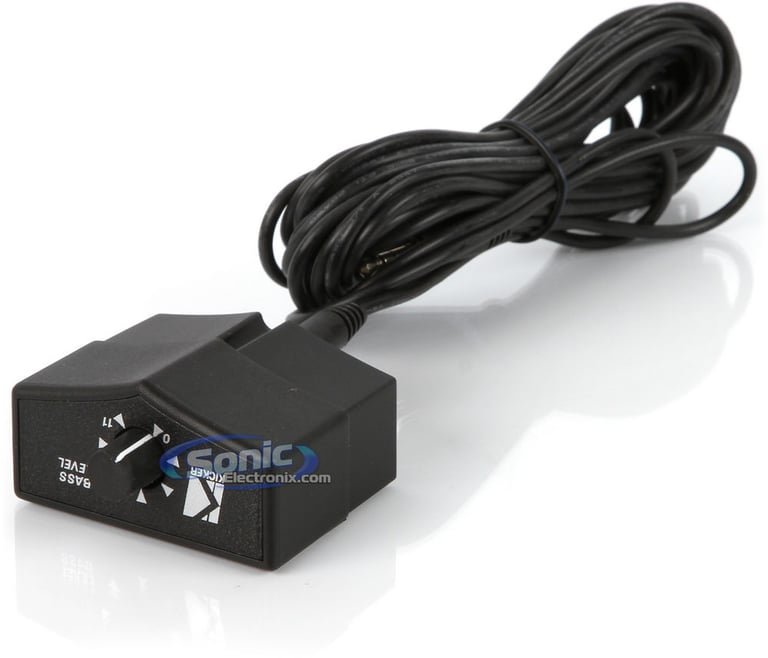

  • Remote Bass Knob Included
  • Built-in 400-watt Class-D digital amplifier

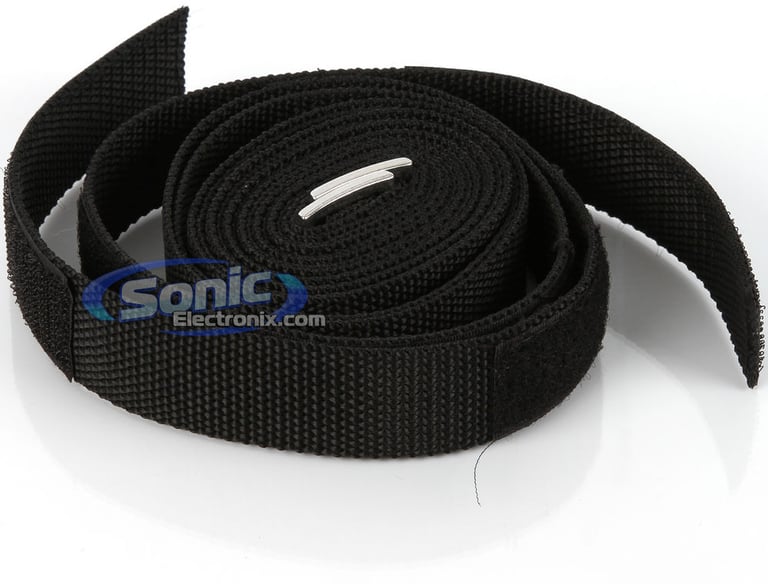

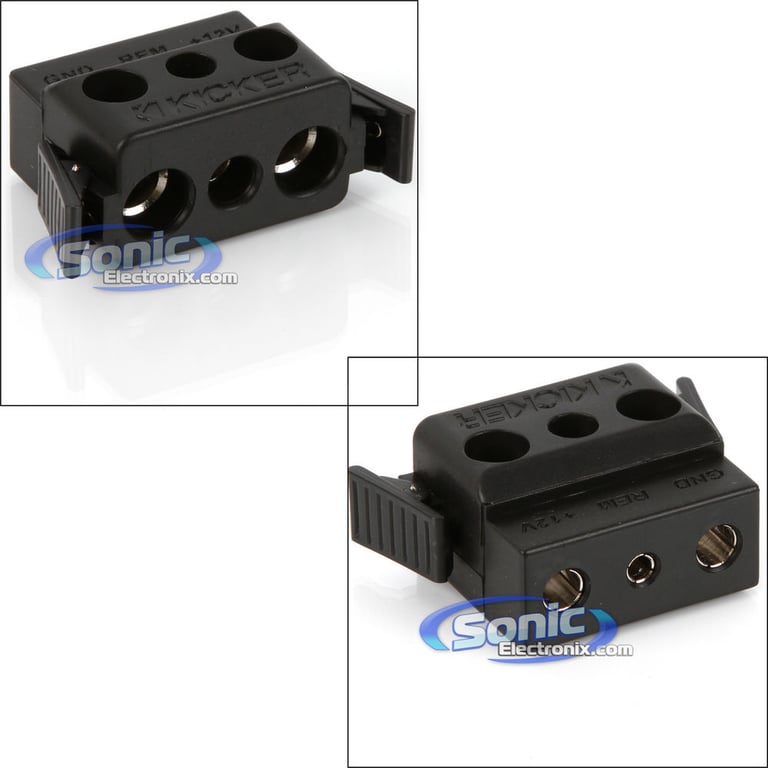

  • Velcro straps easily secures enclosure, and quick-connect wire harness lets you remove it when needing hauling space
  • Amplifier features selectable automatic turn-on modes
  • KickEQ Boost: variable to +12dB @ 40Hz
  • Crossover: 12dB/octave low pass at 50-120Hz
  • Input sensitivity:
    • Low level: 125mV-5V
    • High level: 250mV-10V
  • Signal To Noise Ratio: >95dB
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier
  • Dimensions: 11-1/4"TD x 14-1/2"BD x 17-1/16"W x 16"H

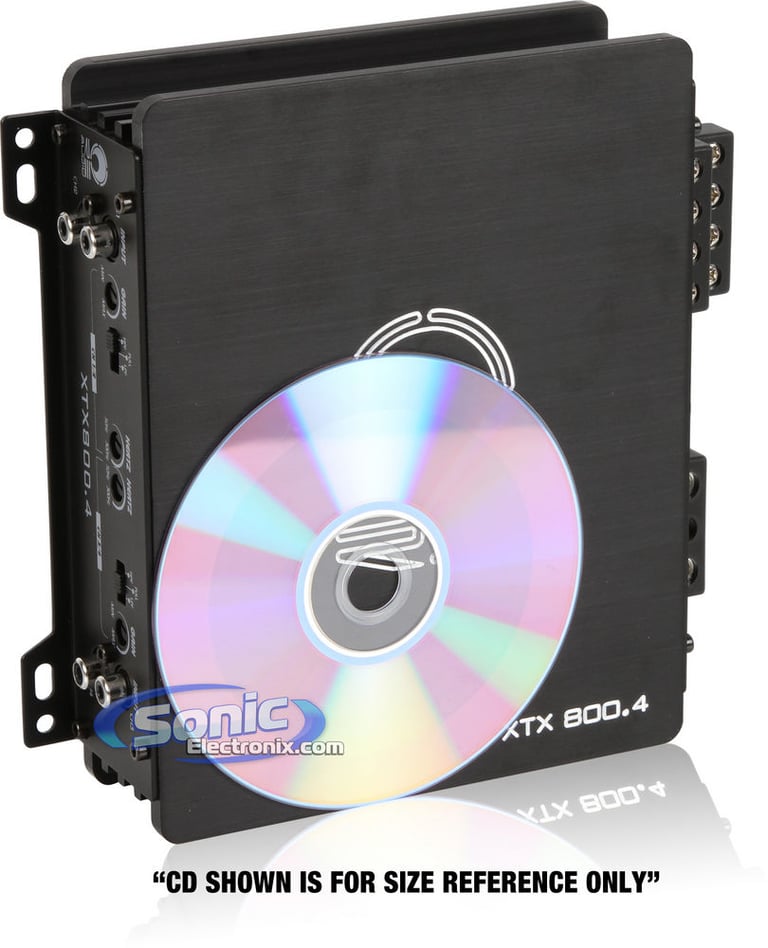

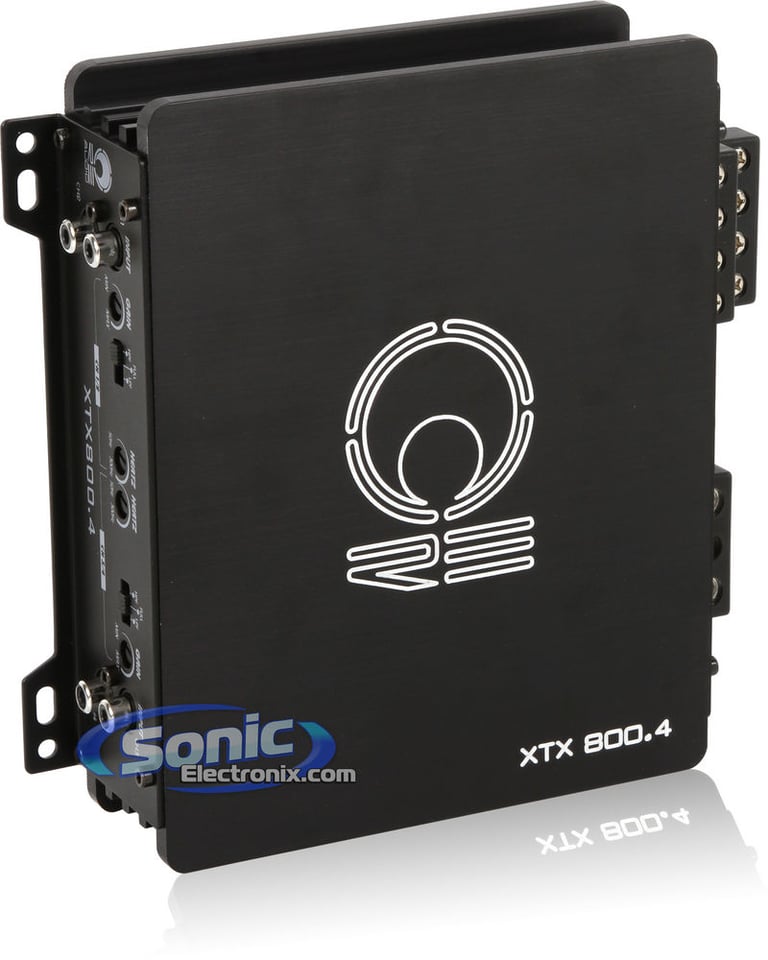

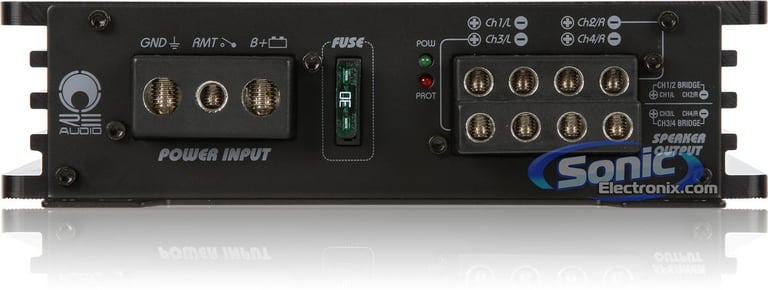

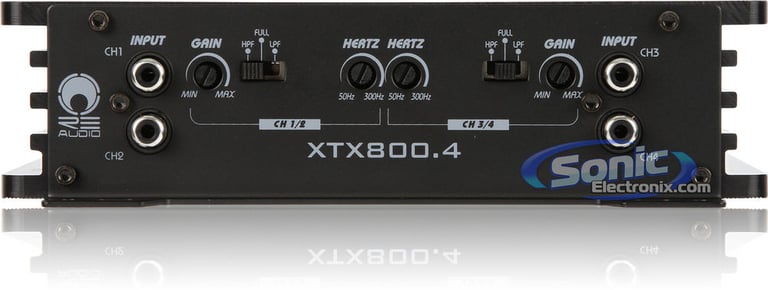

RE Audio XTX-800.4

4-Channel Full Range Digital XTX Series Car Amplifier
Quantity: 1

  • XTX Series 4-Channel Full Range Digital Car Amplifier
  • RMS Power Rating (14.4V):
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 90 watts x 4 chan.
    • Bridged, 4 ohm: 180 watts x 2 chan.
  • Dynamic power output: 800 watts
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • 4/3/2 channel operation
  • 2-Way System Protection circuitry (thermal and short circuit)
  • Heavy duty brushed aluminum alloy convection cooled heatsink for efficient heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated 12AWG screw terminals
  • Input sensitivity:
    • Low level: 200mV-6V
  • Variable high-pass filter (50-300 Hz, 24 dB/octave)
  • Variable low-pass filter (50-300 Hz, 24 dB/octave)
  • Signal to noise ration: 90dB
  • Frequency response: 10-30,000 Hz
  • Dimensions: 5-15/16"L x 7-1/2"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation./li>
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

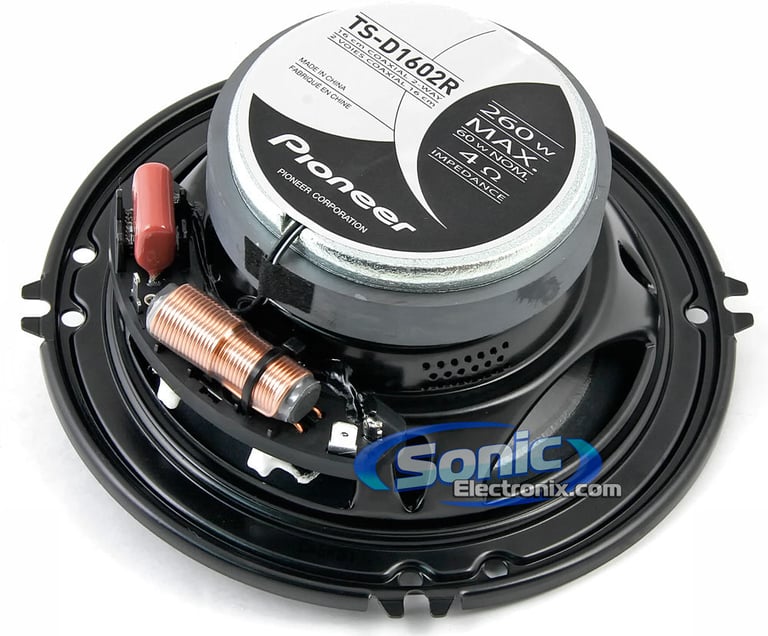

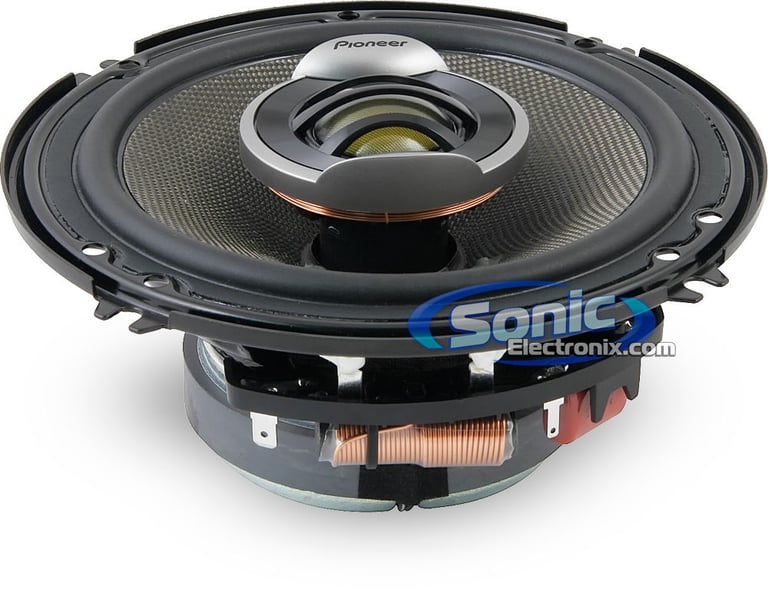

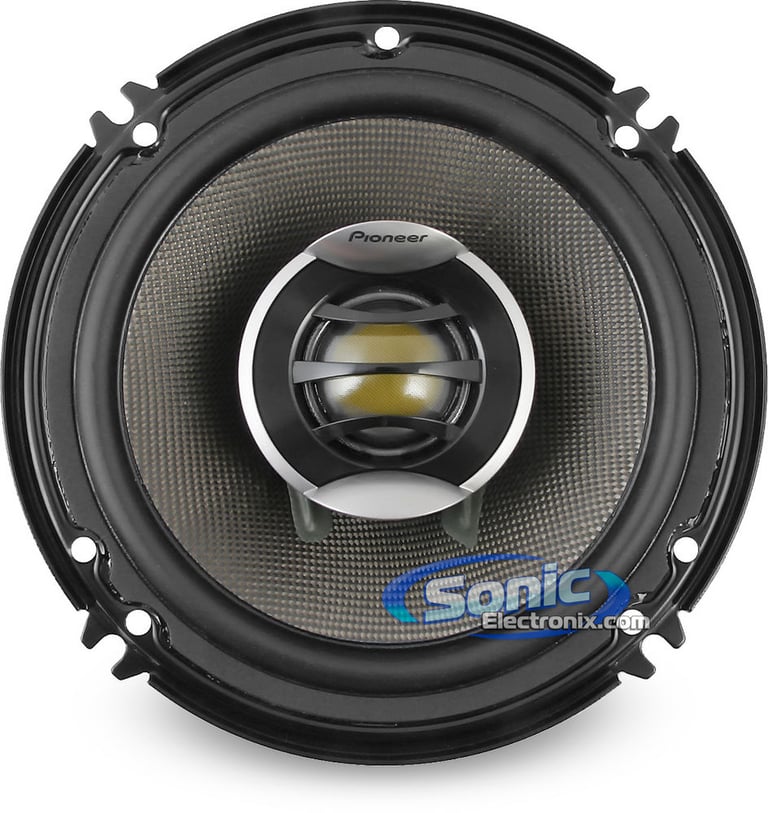

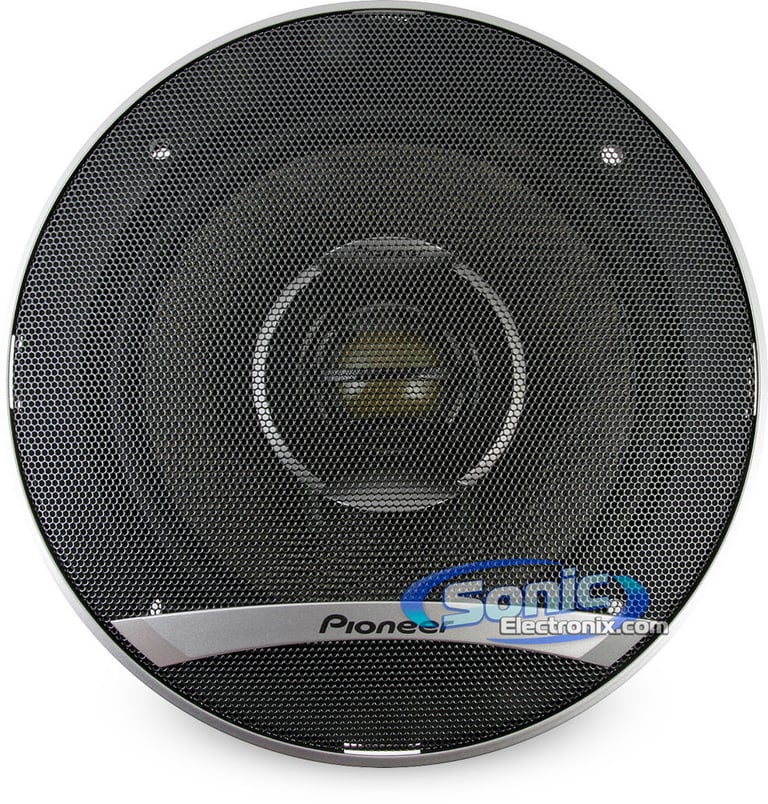

Pioneer TS-D1602R6

6-1/2" 2-way D-Series Speakers
Quantity: 2 Pairs

  • 6-1/2" D Series Car Speakers
  • Power Handling:
    • Peak: 520 watts per pair / 260 watts each
    • RMS: 120 watts per pair /60 watts each
  • Injection molded matrix aramid-basalt fiber composite cone woofer
  • Butyl rubber surround
  • 1-1/8" Soft dome with magnetic fluid and neodymium magnet
  • Rear chamber tweeter structure
  • Full depth basket design for fuller bass response
  • Dispersion control wave guides
  • Compatible for mounting on GM 6-1/2" installation
  • Built-in 12 dB/octave low/high pass crossover
  • Glass-imide voice coil bobbin
  • Conex damper
  • Includes speaker grilles
  • 4 ohm impedance
  • Voice coil size and type (if listed)
  • Top-mount depth: 2-3/8"
  • 1-year SonicElectronix.com warranty

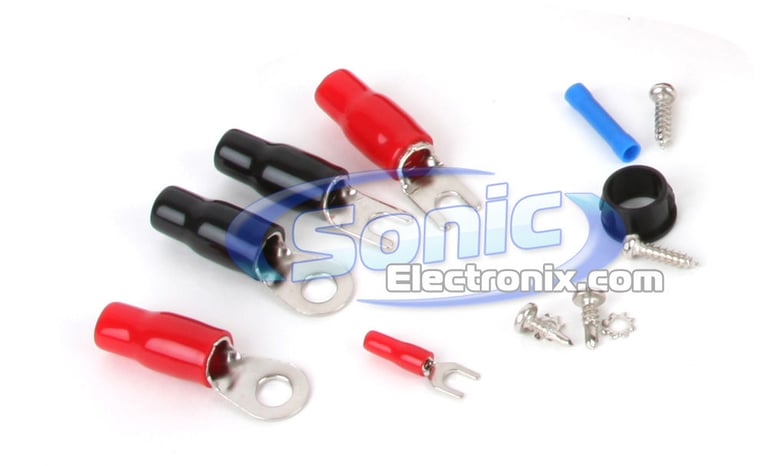

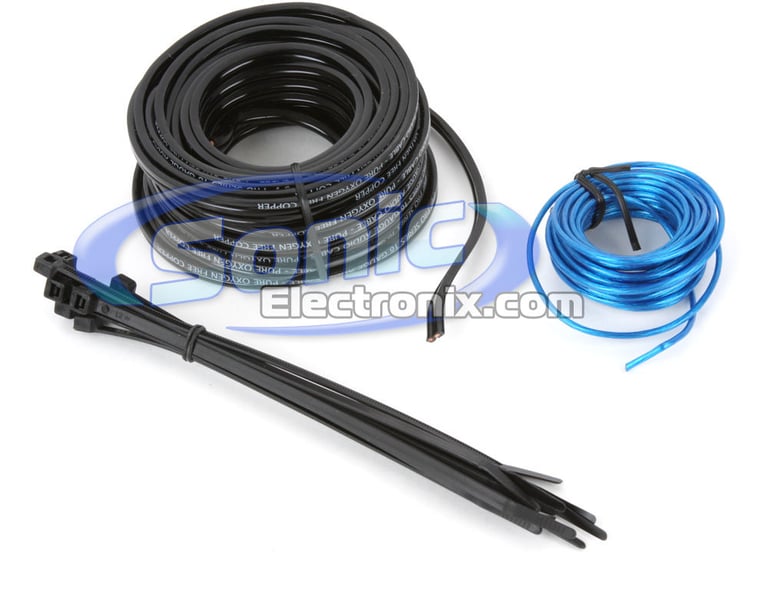

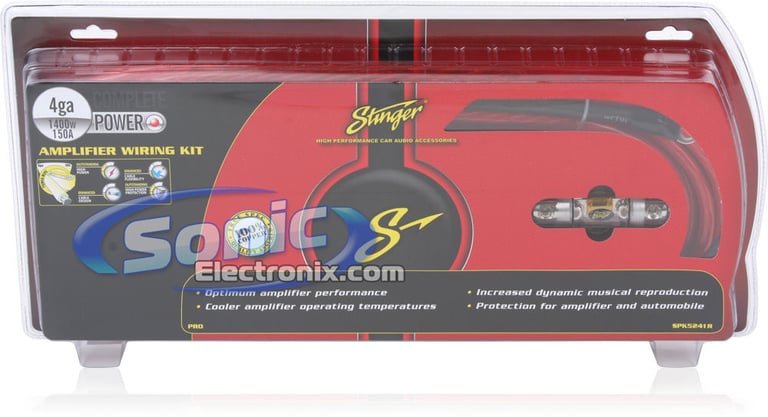

Stinger SPK5241R

4 Gauge PRO Series Power Amplifier Installation Kit
Quantity: 1

  • 4 Gauge PRO Series Power Amplifier Wiring Kit
  • Designed specifically for car audio systems up to 1400 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Polished ShocKrome finish MIDI fuse holder
  • Color matched cables
  • Pre-assembled ring terminals for easier installation
  • True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size

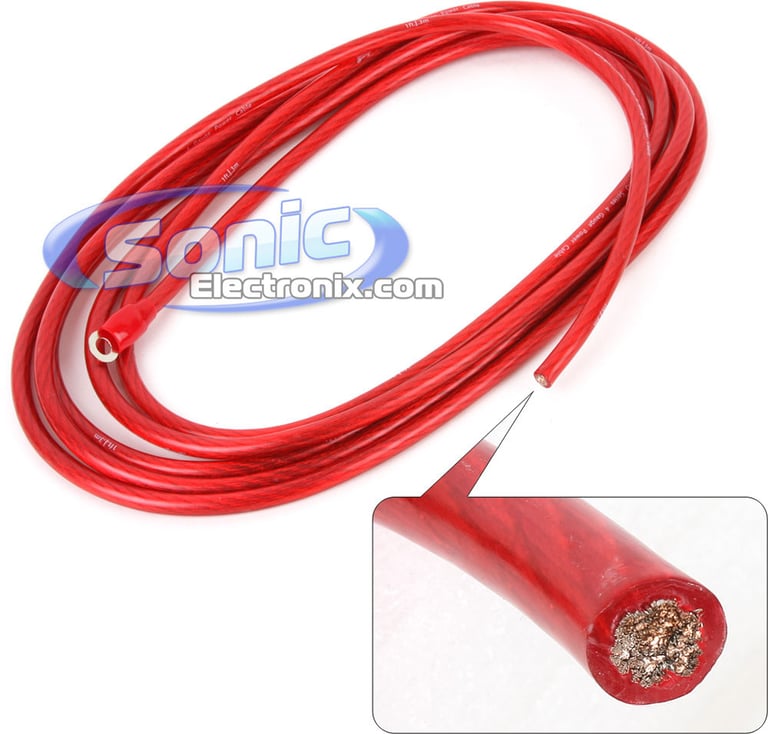

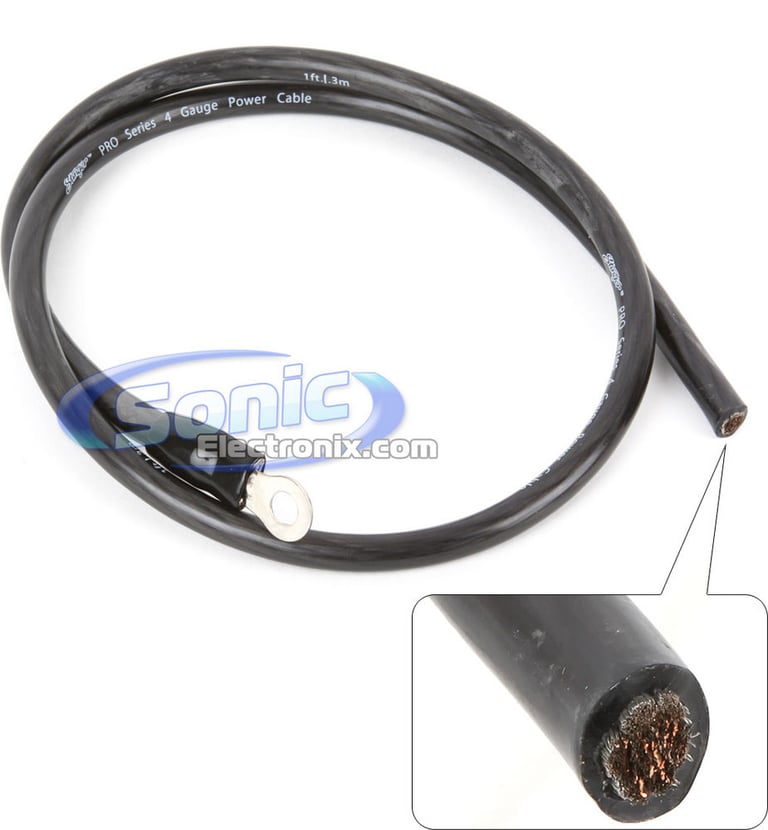

  • 18 ft. of 4 Gauge translucent red power wire
  • 3 ft. of 4 Gauge translucent black ground wire
  • 17 ft. of 18 Gauge blue turn-on wire

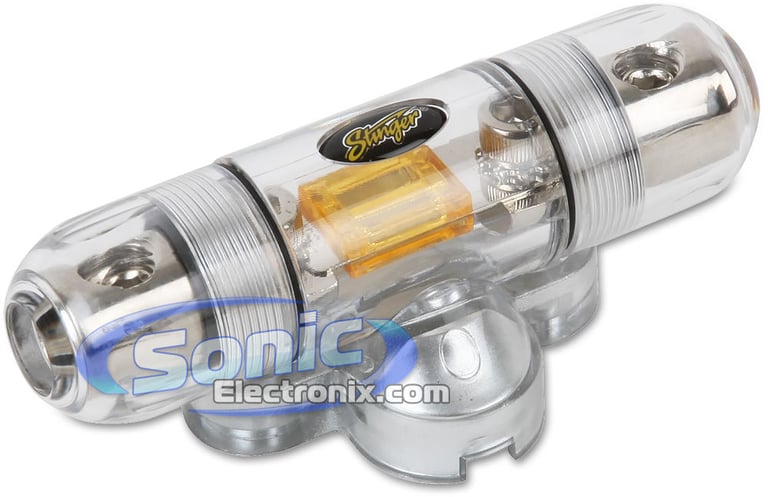

  • MIDI Style (SHD201) Fuse Holder
  • 150A MIDI Style Fuse
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

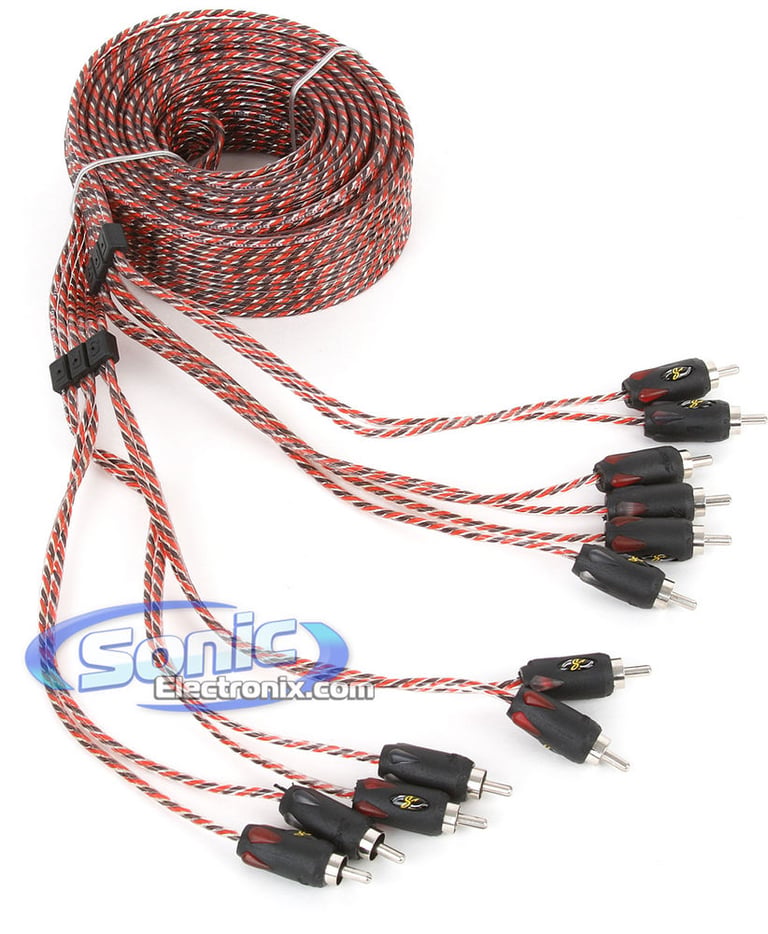

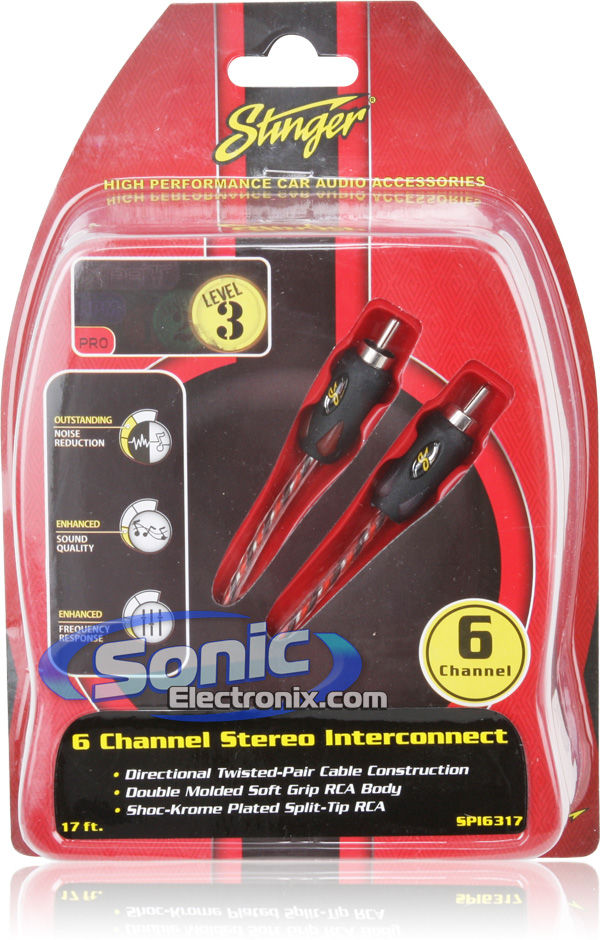

Stinger SI4617

17 ft. (5.1 meters) of 6-Channel 4000 Series RCA Interconnect Cables
Quantity: 1

  • 17 ft. 6-Channels 4000 Series RCA Interconnect Cables
  • Oversized OFC conductors provide excellent sound quality
  • Continuous Connection Construction (C3 Tech) provides unmatched signal transfer
  • Split-Tip connector allows better signal transfer
  • Color coded channel identification
  • Nickel-plated connectors for excellent signal transfer
  • Stinger audiophile grade design improves sound quality, noise rejection, and offers easy installation
  • Compact connector design for easy installation
  • Twisted pair winding patterns improve clarity and ensure consistent timing
  • Clear protective jacket looks great and minimizes friction for easy install
  • Molded strain reliefs for extra durability
  • Directional twisted-pair construction provides protection against interference
  • 6-Channel cables are perfect for complete audio systems
  • Improved frequency response
  • RCA interconnect cable for audio use
  • Cable Length: 17 ft. (5.1 meters)
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

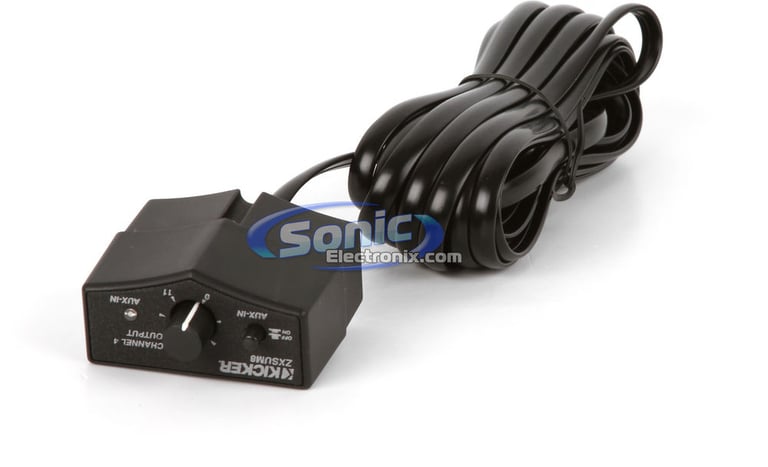

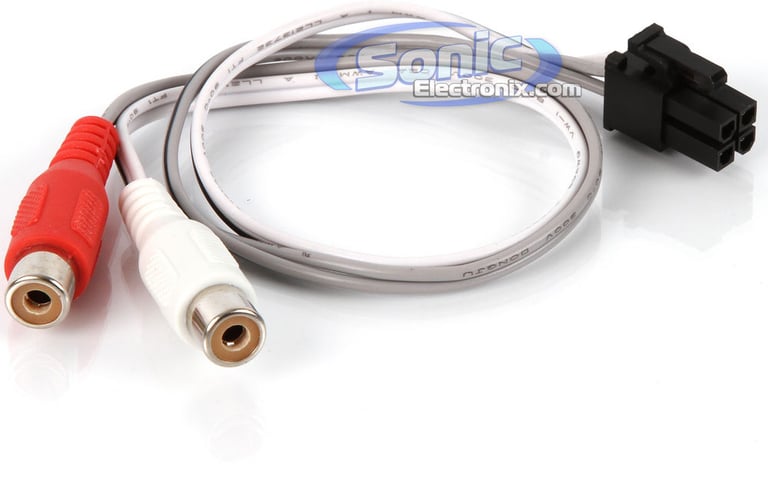

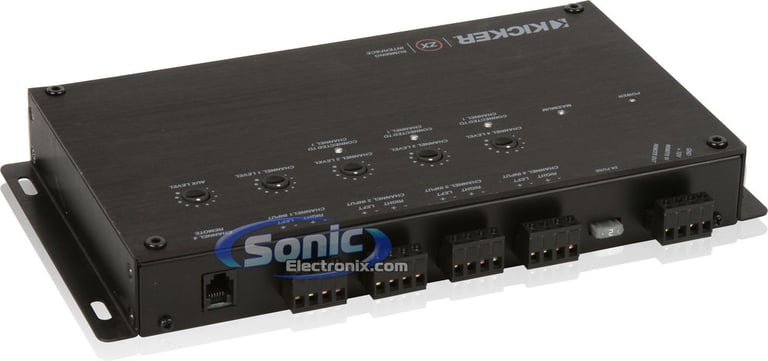

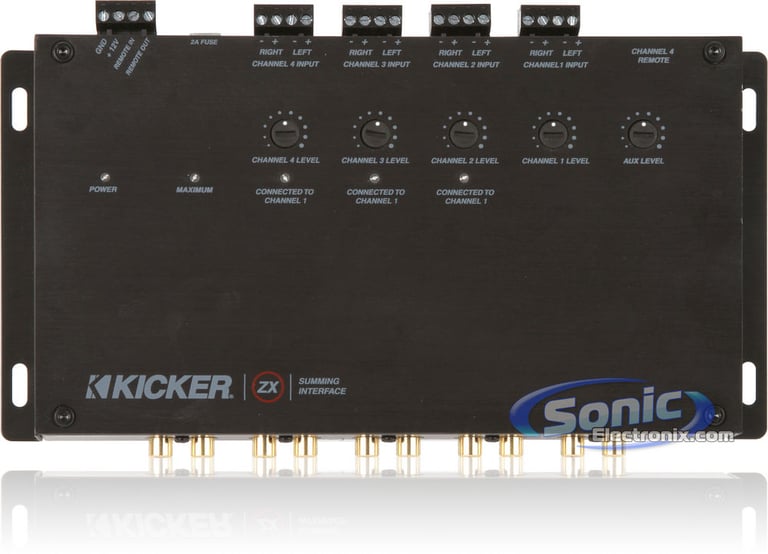

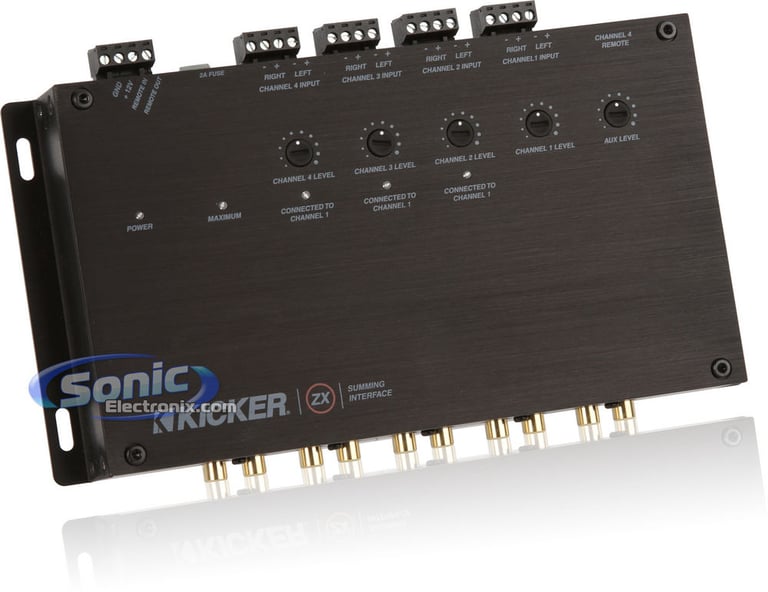

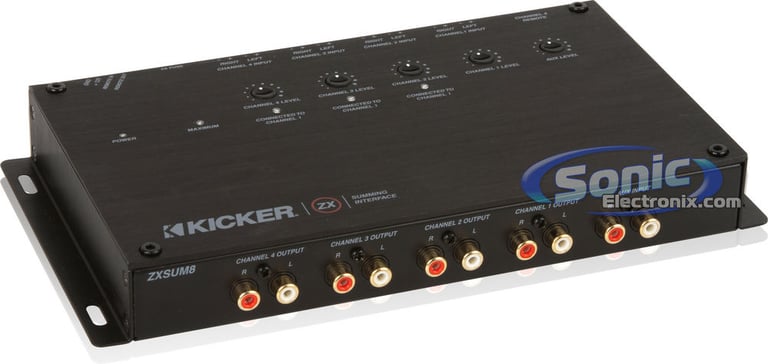

Kicker ZX10SUM8

Line Out Converter
Quantity: 1

  • Line Out Converter For OEM Integration
  • Complete integration of aftermarket audio products into a vehicles OEM system
  • Makes it simple to install aftermarket car audio components in a factory system
  • Installed between the factory stereo and the aftermarket amplifier
  • Sums and balances multiple signals coming from the factory stereo
  • Produces a full-bandwidth, line-level output signal
  • Full range RCA outputs allow the amplifier to play across the entire musical spectrum
  • Built-in auxiliary input allows the connection of a portable device
  • Four stereo speaker-level inputs connect the factory speaker leads
  • Four line-level stereo RCA outputs connect to the aftermarket amplifier
  • One single stereo RCA aux-input on the Sum8
  • Balance levels from multiple speaker-level sources
  • Sums up to four speaker-level stereo pairs down to a single stereo RCA low-level output
  • Each stereo channel is capable of both summing and line-output conversion
  • Integrates portable media direct to your amp using aux-in and level control
  • Max Voltage In: 40V RMS
  • Max Aux-In Voltage: 40V RMS
  • Max Voltage Out (Chan. 1–3): 9V RMS
  • Max Voltage Out (Chan. 4): 6V RMS
  • Signal-to-Noise Ratio (Chan. 1–3): 90dB
  • Signal-to-Noise Ratio (Chan. 4): 90dB
  • Remote Attenuation Range: 0dB to -27dB
  • Frequency Response: 20–22,000 Hz
  • Gain Range (Chan. 1-4): -30dB to +4dB
  • Gain Range (Aux-In): -65dB to +18dB
  • Fuse: 2 Amps
  • Dimensions: 5-3/4"D x 10-1/2"W x 1-3/8"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Best selling similar products

DAX800XR_MRR_S8FO1 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1383.97

List price $2029.97

KWZ1000AW_MRR_FLFO1_S small

JVC KW-Z1000AW Direct-Fit Digital Receiver Package

• Bluetooth Digital Multimedia Receiver for select Ford vehicles
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.96

List price $2282.96

DAX800XR_MRR_S8GM1_8 small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1456.96

List price $2074.96

DAX800XR_MRR2_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(9)

$1473.96

List price $2143.96

DAX1050XR_MRR_FLCH2_D small

Kenwood eXcelon DAX1050XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 10.1" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(38)

$1883.97

List price $2479.97

DAX800XR_MRR_S8GM3_CI small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1605.96

List price $2254.96

DAX800XR_MRR_S8FO1_S small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(40)

$1403.96

List price $2053.96

DAX800XR_MRR_S8FO2_s small

Kenwood eXcelon DAX800XR Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for
• 8" Capacitive Touchscreen Display
• Wireless Apple CarPlay and Android Auto Compatible
• 3 sets of 5 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM Satellite Radio Ready
• iDatalink Maestro Compatible
• Built-in Bluetooth, HD Radio, and Wi-Fi
• 4 Camera Inputs Function

(39)

$1348.96

List price $1973.96

KWZ800AW_MRR_S8FO1 small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(39)

$1383.97

List price $1778.97

KWZ800AW_MRR2_S8FO1_S small

JVC KW-Z800AW Direct Fit Digital Receiver Package

• Direct OEM Replacement Bluetooth Digital Multimedia Receiver for select 2011-2022 vehicles from Ford, Lincoln
• 8" Capacitive Touchscreen Display
• Supports wireless Apple CarPlay and wireless Android Auto
• 3 sets of 4 volts preamp outputs
• 13-Band Graphic EQ
• SiriusXM and iDataLink Ready

(8)

$1473.96

List price $1892.96

Item Details

Manufacturer:

Pioneer

Model Number:

10ZXSUM8_XTX800.4_2-TS-D1602R_11PECVR12

Weight:

72.39lbs

Internal SKU:

10zxsum8_xtx8004_2-tsd1602r_11pecvr12

Internal Product ID:

38270

Customer Ratings & Reviews

Kicker Loaded Enclosure + RE Audio & Pioneer Amp and Speaker Combo thumbnail image
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:
Loading...
Sorry, no reviews found
SI4617 main

Stinger SI4617

• 6-Channel 4000 Series RCA Interconnect Cables
• 17 ft. (5.1 meter) Cables
• Stinger Audiophile Grade
• Twisted Pair Construction
• Perfect for 5-Channel Amplifiers
• Durable

(14)

$41.99

List price $49.00

Related Searches

› Pioneer › Pioneer Car Stereo Packages & Bundles › Car Stereo Packages & Bundles under $700
Save up to 10 different vehicles in your garage
Vehicle
Store Delete

2025 Mazda CX-5

2023 MINI Countryman

2011 Buick Lucerne

1996 Mercury Cougar

1990 Geo Tracker

1997 Geo Tracker

2000 Dodge Ram Van

2020 Cadillac CT6

2000 Infiniti I30

1972 BMW 2000tii

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm

Cancel

This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue

Cancel

Shop your 2025 CX-5
Why Use a Vehicle Fit Guide?
Change vehicle | Shop without vehicle
Whoa! Slow down. Add your details below!
additional information required
Add vehicle details to confirm fitment
Ignore fitment details
Find stereos and more that work -- fast.

Additional information:

Remove

Can't find your vehicle? Click here and we'll help.

Where to find vehicle info

Go to Fitment

Didn't find your car?

Submit your details and we'll help!
Please enter the letters as they are shown in the image above. Letters are not case-sensitive.
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
Back

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.

Back
Track your order
Call our experts
Support Center
Return & Exchanges
Follow on Instagram Instagram logo
Subscribe on YouTube YouTube logo
