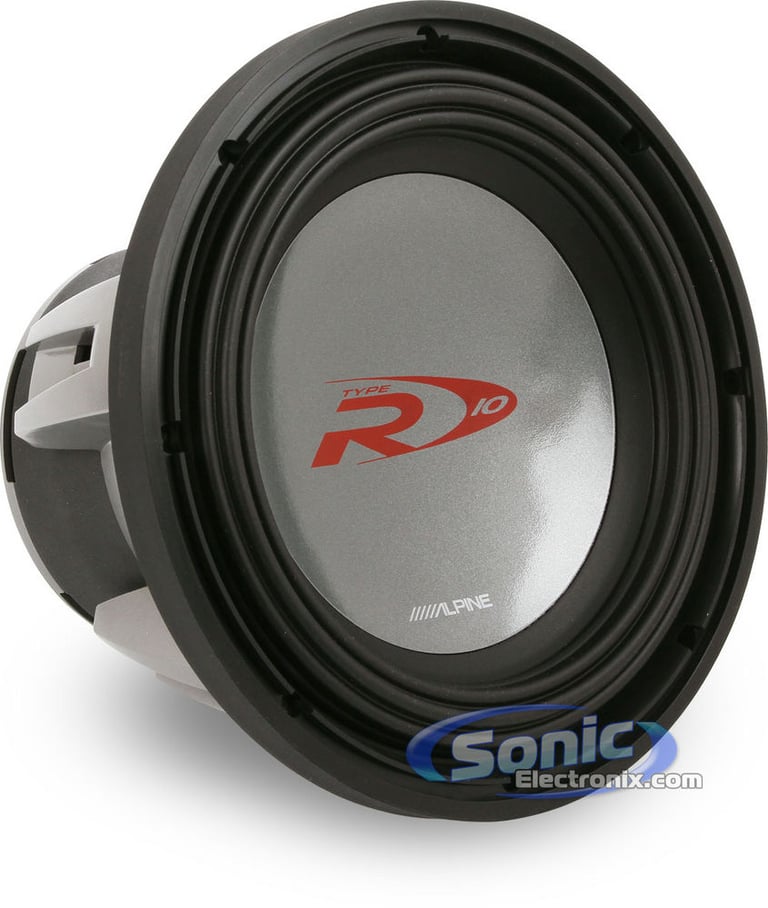

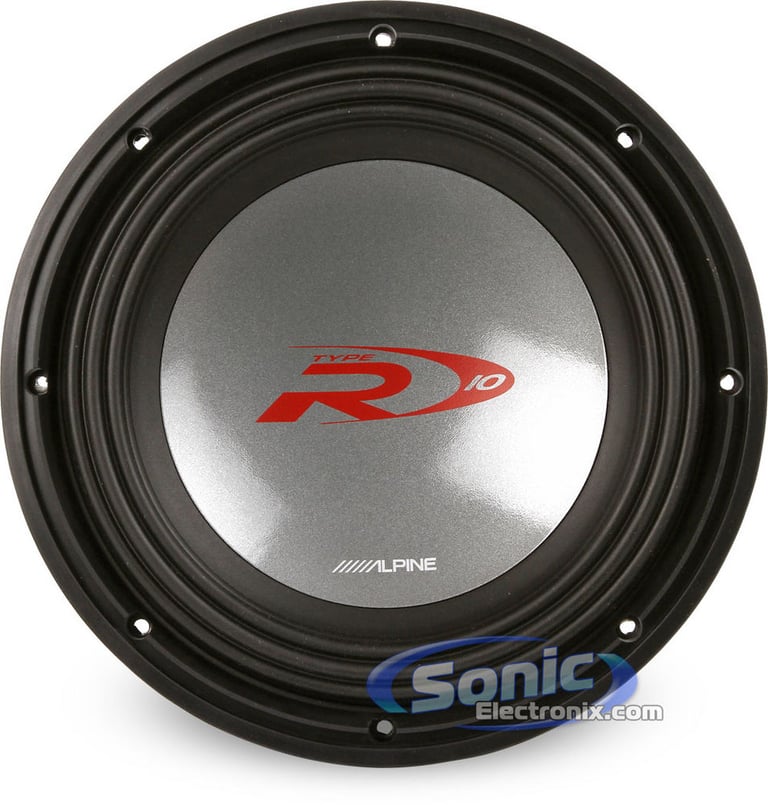

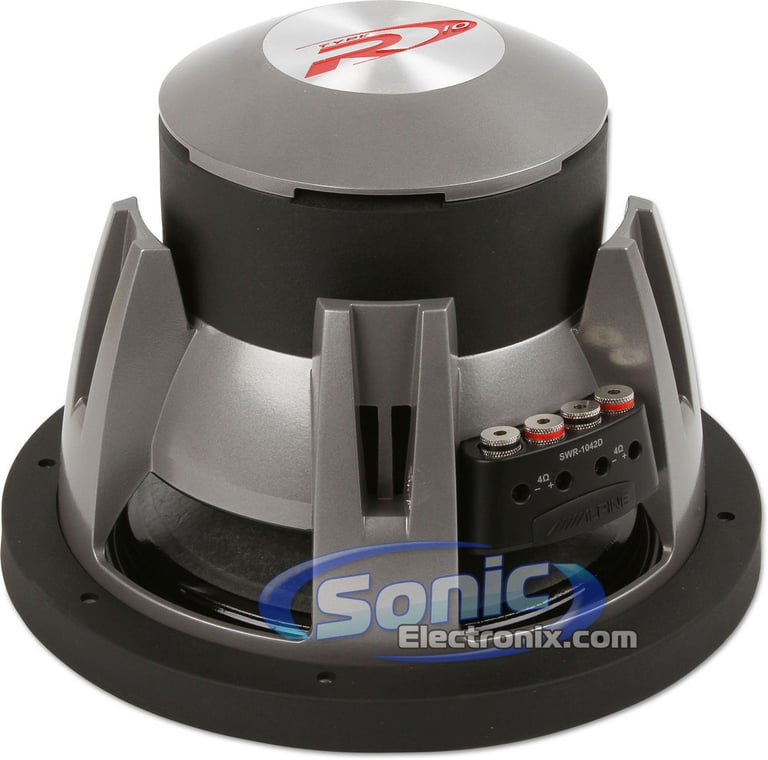

Alpine SWR-1042D

10" Dual 4 ohm Type-R Series Car Subwoofer

Alpine
Shop all Alpine
Product videos
highlight-star-icon

10" Dual 4 Ohm Type-R Series Subwoofer • 1500W Peak • 500W RMS • Dual 4 Ohm • Custom Cast Aluminum Frame • Dual Stacked Magnets • Kevlar Reinforced Pulp Cone •Multi-Stage Thermal Management System

Learn more about the swr1042d

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

rw10d4 thumbnail

Alpine R-W10D4

OUR PRICE: $299.95

View item

Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

72-5605 main

Metra 72-5605

Install a New Tweeter in select 2011-2024 vehicles from Ford, Lincoln

-22.23%

$13.99

List price $17.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

C1-650 main

JL Audio C1-650

100W RMS 6.5" C1 Series 2 Way Component 4-ohm Car Speakers

30

Product Highlights


10" Dual 4 Ohm Type-R Series Subwoofer • 1500W Peak • 500W RMS • Dual 4 Ohm • Custom Cast Aluminum Frame • Dual Stacked Magnets • Kevlar Reinforced Pulp Cone •Multi-Stage Thermal Management System

Description


Alpine brand icon

Authorized dealer

Alpine Type R Subwoofers

These incredible subwoofers from Alpine have withstood the test of time and proven themselves to be one of the top subwoofer choices for car audio enthusiasts. The Type R subwoofers are designed and engineered for big bass, as well as a durable sub that will last for many years to come. These woofers use a pulp cone that is reinforced with Kelvar for an incredibly durable and rigid structure. The ribbed multi-roll santoprene surround is designed for excellent response, while assisting in smoother cone movement and excursion. The subwoofer will stay cool under extended hard playing with the unique thermal management system that Alpine designed into the Type R Subwoofer. The tinsel leads are hidden and woven into the dual Nomex spiders for a strong and unbreakable connection. For those looking for an industry standard subwoofer with break-taking bass, consider the Alpine Type-R subwoofer.

  • 10" Dual 4 Ohm Type-R Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Dual 4 ohm
  • Kevlar reinforced pulp cone
  • Custom Cast Aluminum Frame with Integrated Perimeter Venting and Heat Transfer Plate
  • Mirrored Progressive Nomex ® Spiders with Reinforced Layer Integrated Tinsel Leads
  • Compound Radius Curve (CRC) Motor Structure
  • Multi-Stage Thermal Management System
  • HAMR Surround and Concealed Mount Gasket
  • Aluminum Airflow Motor Cover

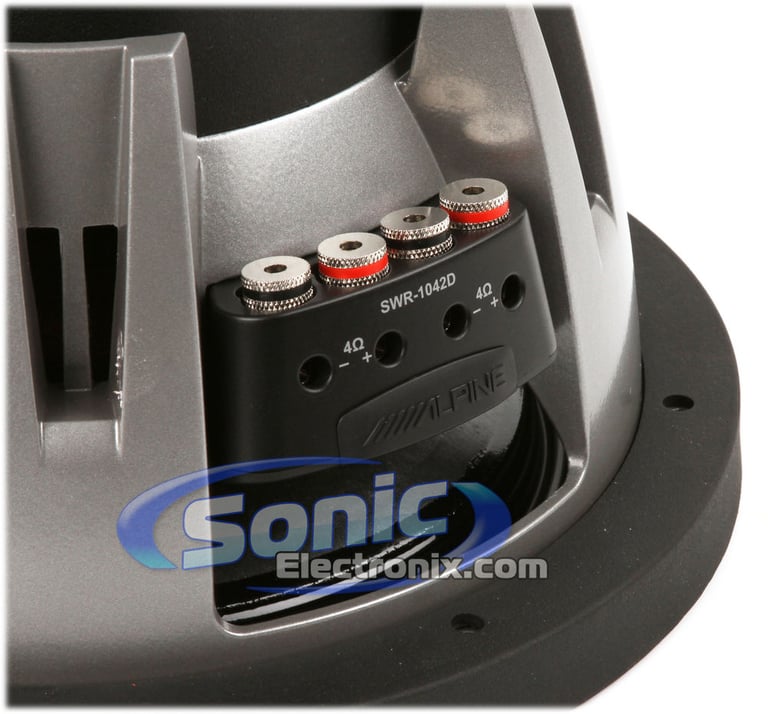

  • Insert Push Terminals with One-sided Layout
  • Bumped Backplate
  • Compound Radius Curve Pole Geometry
  • Dual Stacked Magnets
  • Extra Length Extended Pole
  • Flared Pole Vent
  • High Strength Brass Voice Coil Bobbin
  • Magnetically Optimized Motor Structure (Pat. Pend.)
  • Oversized Parabolic Dustcap
  • Frequency Response: 26Hz – 500Hz
  • Designed and Engineered in the USA
  • 1-year SonicElectronix.com warranty

Alpine products are warranted solely by Sonic Electronix, Inc. under the same period and terms as the original Alpine warranty. Sonic Electronix is not an Authorized Alpine Dealer and Alpine requires all merchandise purchased by Sonic Electronix customers to be returned solely to Sonic Electronix. Alpine products are also covered by our Standard Return Policy for returns on exchanges or refunds within 30 days from the date of purchase.

Product history:

Alpine R-W10D4 thumbnail
(newest, current model)
Alpine SWR-10D4 thumbnail
(previous model, replaced by Alpine R-W10D4)
Alpine SWR-1043D thumbnail
(previous model, replaced by Alpine Type-R SWR-10D4)
Alpine SWR-1042D thumbnail
(previous model, replaced by Alpine SWR-1043D)
Alpine SWR-1041D thumbnail
(previous model, replaced by Alpine SWR-1042D)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Alpine SWR-1042D Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Alpine SWR-1042D Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Alpine SWR-1042D Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Alpine SWR-1042D Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

124
-5.72%

$329.95

List price $349.95

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

BMV62W main

Belva BMV62W

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto and Phone Mirroring

28
-66.67%

$89.99

List price $269.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Type-R Series
Subwoofer Size
10"
Peak Power Handling
1500 watts
RMS Power Handling
500 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
26 - 600 Hz
Sensitivity
83 dB
Xmax (millimeters)
18.2 mm
Subwoofer Design
Round / Circle
Main Cone Color
Dark Gray
Woofer Composition
Kevlar Reinforced Pulp Paper
Woofer Surround
HAMR Rubber Surround
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.5 cubic feet
Maximum Sealed Box Volume
0.8 cubic feet
Minimum Ported Box Volume
0.6 cubic feet
Maximum Ported Box Volume
1.3 cubic feet
Top-Mount Depth (Mounting Depth)
6-7/8"
Cutout Diameter
9-1/8"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SWR-1042D

Weight:

23.00lbs

Internal SKU:

swr1042d

Internal Product ID:

4045

Product and How-to Videos


Customer Ratings & Reviews


Alpine SWR-1042D thumbnail image

5 star
88%
4 star
9%
3 star
2%
2 star
1%
1 star
0%



Durability
4.8
Value
4.9
Features
4.9
Design
4.9
Usability
4.9

Customer Reviews

Sort by:

Loading...

Nice

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

This Alpine Type R is nice i have it with a kole audio amp 980w but it gives me 800w rms. I also have it with a epicenter and a equalizer and a capacitor and i have an amp for the speaker doors. This thing is loud Oh and i have a custom box for it and that box is a beast..it it louder than 2 12 cvrs and 2 15 memphis. this 10 makes my whole dash move

By CJ on August 9, 2011

38 found this helpful


Very nice...

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

Once I pulled this out of the box I was very impressed with the build quality, not surprised, but impressed none the less. Sub definitely needs to broken in, cone is very stiff when new. Sound is incredible, very clean, tight bass. Wouldn't recommend for those looking for wide, boomy bass. Although with the right equipment and box probably could fulfill those needs as well. Make sure not to under power, fairly power hungry. However, when powered right, very nice.

By Dennis on January 10, 2012

37 found this helpful


pretty good

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

These subs pound pretty good for the price, but you get what you pay for. if your on a budget then these would be a good choice. I would recommend these to anybody who is looking for a good sub at a decent price

By spuds on February 16, 2011

37 found this helpful


Decent

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

For the money I have few complaints. I am used to larger subs(12-15) and this is not like those. The audible bass is loud and clean but its not shaking the car next to me. Which is what I was looking for when I bought only one of these. I installed it in a .6^2ft box and am happy to have most of my trunk back to being useable.

By Jonathan on November 2, 2011

34 found this helpful


Underpowered and still kills

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

I have one of these in a sealed box at 2 ohms hooked up to an Alpine MRP-M500. The sub is a little bit underpowered but it still hits ridiculously hard. I am definitely going to get a second one of these. The value is amazing.... Similar Kicker and RF's are more expensive and don't have as good of specs. In my experience with Alpine, you'll get what you expect plus much much more.

By KNIZ on November 30, 2010

35 found this helpful


Alpine SWR-1043D

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

I replaced my 12" Sony Xplod in a sealed box with this Alpine SWR 1043D in a new ported box and this sub hits twice as hard as my Sony! Looking forward to purchasing another soon. Pros: Great sound for a awesome price! Cons: None

By Connor on December 21, 2011

34 found this helpful


Alpine SWR-1043D

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

Great speakers. I absolutely love them! Great deal! Thanks again!

By Kristen on March 25, 2012

33 found this helpful


good buy

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

thing pounds. make sure you have very durable box cause this thing will tear it up its almost ridiculous if you are pushing 600 true rms into it. i bought two but am only able to use one cause otherwise i cant hear anything for rest of day

By king on May 5, 2010

32 found this helpful


BUY THIS SUB

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

I am SQ guy and had a 8" RE & then Infinity. Could not get exactly what I was looking for with the 8". Read a lot on 1042d and it got great reviews. The new upgrade interested me. Bought sub and Alpine mono amp to run DVC @ 2 ohms. It sounds awesome and will run you out of car if you wanted it to.
Pro: Great sub. Great in a .75cu' sealed box. Running -2 on Pioneer 4200dvd.
Con: Trying to find one.

By Michael on March 20, 2011

32 found this helpful


Alpine SWR-1043D

The following review is for SWR-1043D, which is a part of the bundle you are viewing.

I would recommend this sub to anybody. I had it in a crew cab Chevy Colorado in a sealed box. The sub hit all the notes well and deep. There's more than enough power there for me And I listen to mainly rock and some rap. The design of the subwoofer is great as well, very well built and the mounting depth was perfect for what i was looking for. I love it and will buy another if this one ever gives out!!!

By Danner on January 22, 2012

30 found this helpful




PD-271 small

Phoenix Digital PD-271

7" TFT-LCD Monitor (4 Mounting Options)

(1)

$104.99

List price $249.99

479V small

Viper 479V (Requires Programming)

2-way LCD Replacement Remote Transmitter for Select Viper Alarms

(38)

$145.99

List price $129.99

Power-W6 small

Beyma Power W6

Competition Series 6-1/2" Subwoofer Driver

$89.99

List price $169.99

AC5000.1D small

Planet Audio AC5000.1D

5000W Max Anarchy Series Class D Monoblock Power Amplifier

(85)

$229.99

List price $369.99

PRO-65ND small

Beyma PRO 65ND

Competition Series 6-1/2" Midwoofers

$349.99

List price $399.99

SK4000 small

Parrot SK4000 Open Box

(Open Box) Bluetooth Hands-Free Kit for Motorcycles and Scooters (SK-4000)

$39.99

List price $199.99

ELW1214.2 small

Bazooka ELW1214.2

12" 4 ohms Subwoofer ELW1214

(3)

$39.99

List price $129.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2017 Ford Escape

1986 Ford EXP

2021 Volvo V60

1998 Ford Windstar

2000 Mazda 626

2001 Dodge Durango

2003 Dodge Viper

2004 Mazda B3000

2012 Audi A5

2011 Ford Expedition

Vehicle
Store
Delete

1997 Honda VFR750F Interceptor

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
