Description


Alpine brand icon

Authorized dealer

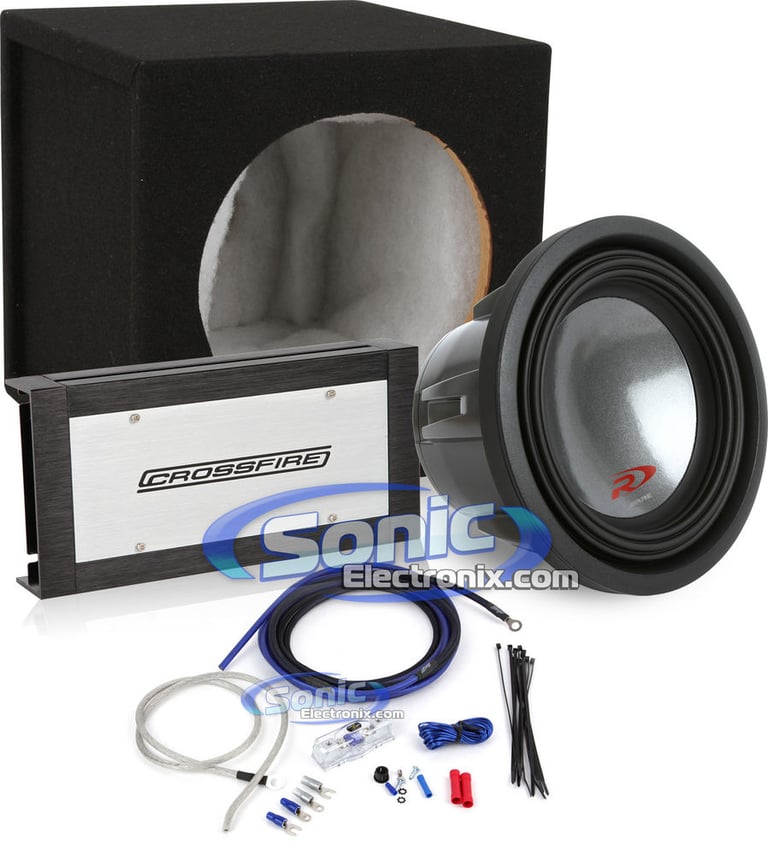

Alpine and Crossfire Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Crossfire C3 501 Amplifier along with a 10" Type R series Alpine subwoofer. This excellent bass package pushes 600 watts of clean, continuous RMS power. The Alpine subwoofer has a Dual 2 ohm voice coil; meant to be wired in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Alpine SWR-1023D Type R series subwoofer requires 600 watts of RMS power. The included Crossfire C3 501 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes an 8 gauge amplifier kit which is perfect to supply power to the amplifier. In order to makes this the complete bass package a 10" single sealed subwoofer enclosure has also been included. The enclosure is made from durable MDF wood and has been pre-lined with Poly-Fil to really enhance the performance of your subwoofer. With the Alpine subwoofer, Crossfire amplifier, sealed enclosure, and Stinger amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

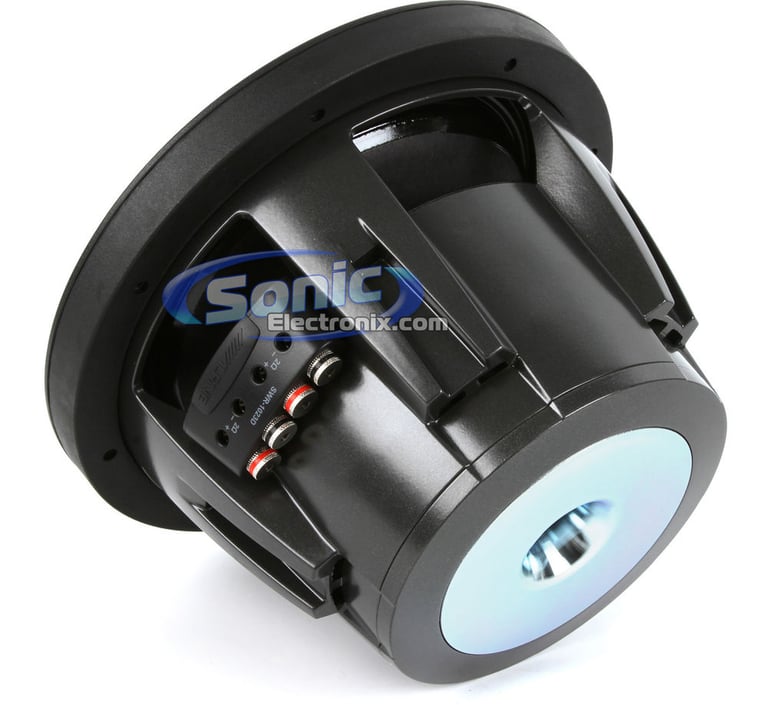

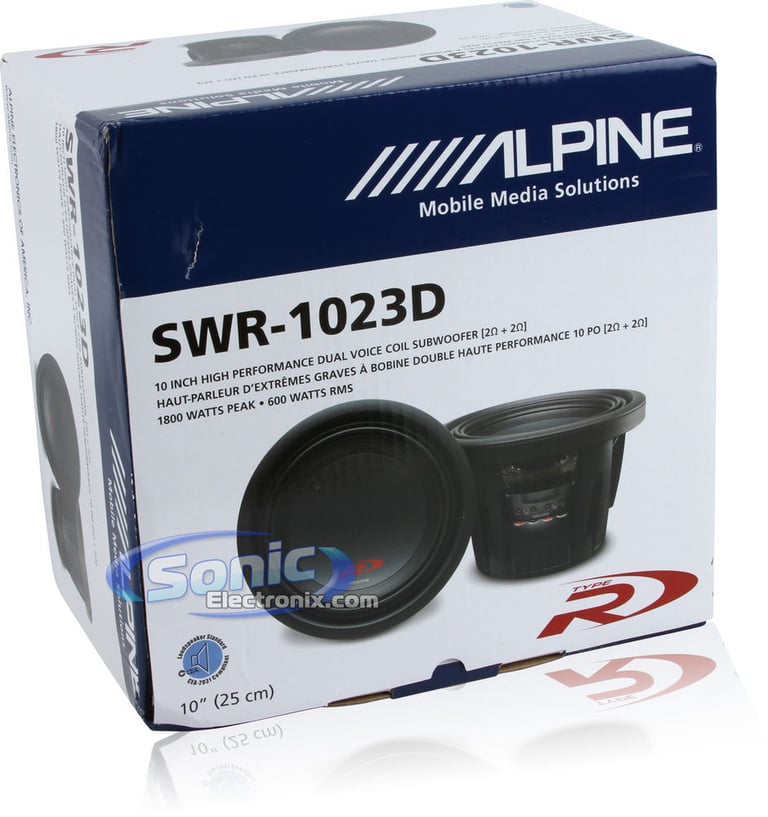

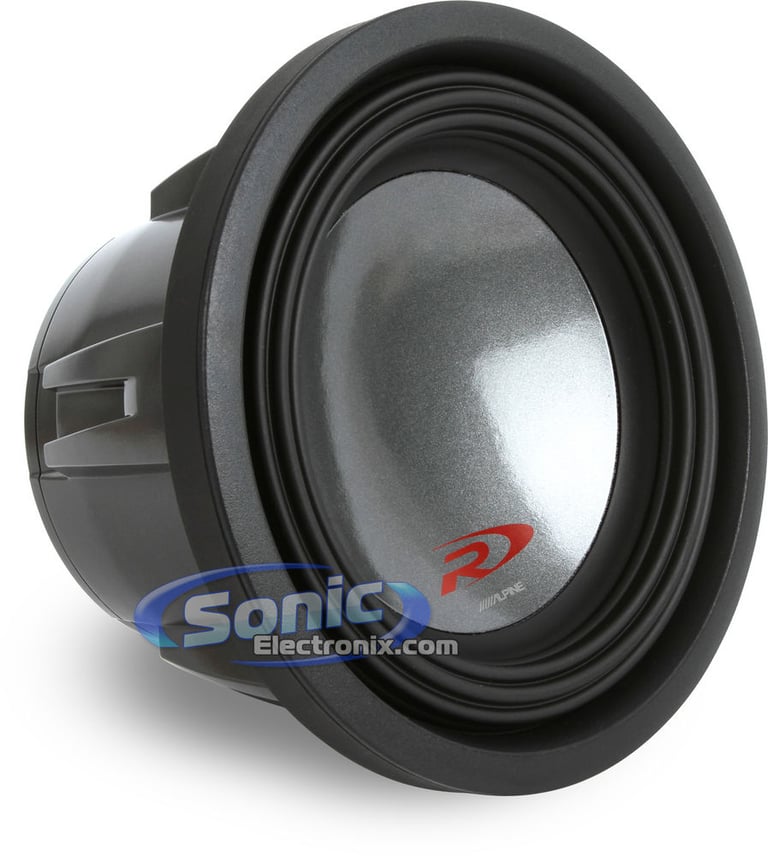

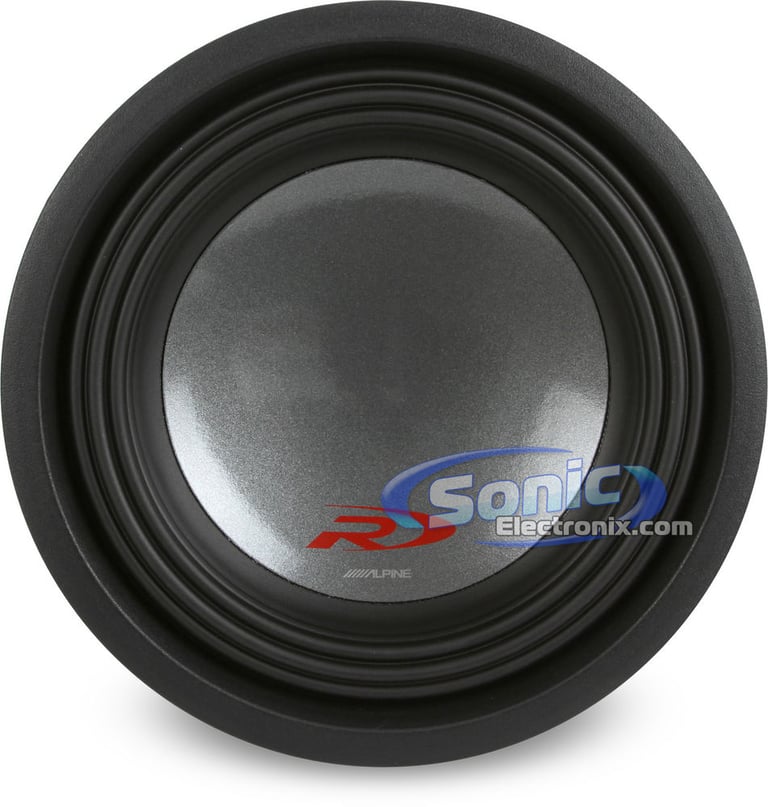

Alpine SWR-1023D Features:
  • 10" Dual 2 ohm Type R Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 300-600 watts
  • Kevlar reinforced pulp cone woofer
  • 2-Piece Structural Parabolic diaphragm design
  • Injection molded Santoprene rubber surround
  • Alpine exclusive High Amplitude Multi-Roll (H.A.M.R) surround for impressive excusrion and clean, accurate bass
  • FEA Optimized progressive NOMEX spider
  • Radial vented VC head sink
  • Concealed mount gasket system
  • Reinforced layer spider integration tinsel leads
  • Oversized 2-1/2" Voice coil
  • 4-Layer dual voice coil design
  • Voice coil made from 180°C high temperature wire on spiral cut aluminum former
  • Single-piece cast aluminum frame with Alpine Patent Pending Airflow Management System for efficient cooling
  • Airflow Management system controls the temperature of the voice coil by directing the air across the heatsink

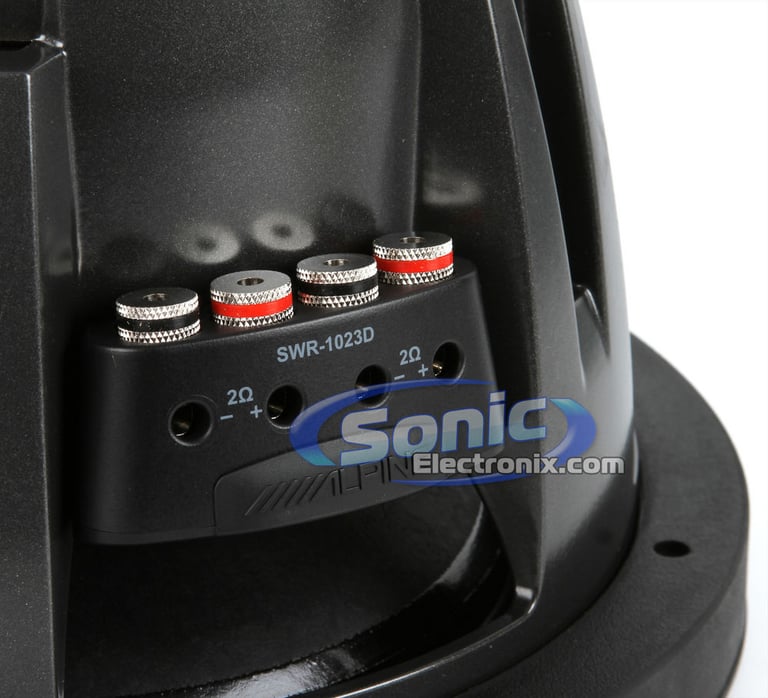

  • One sided push terminals make installation and wiring fast and simple
  • Each terminal accepts up to 8 AWG wire for high power signal transfer
  • Concealed gasket mounting system hides the screw holes and makes for a clean install
  • Integrated grill technology allows for a seamless installation of a grill
  • US Patented Compound Radius Curve (CRC) design with integrated short sleeve configuration
  • CRC Machined motor structure creates a symmetrical magnetic field for less distortion and improves power handling
  • High-power, double-stacked strontium magnet structure
  • Newly redesigned for a 20% depth reduction
  • Frequency response: 26-500 Hz
  • Sensitivity: 83 dB
  • 1-year Sonic Electronix warranty

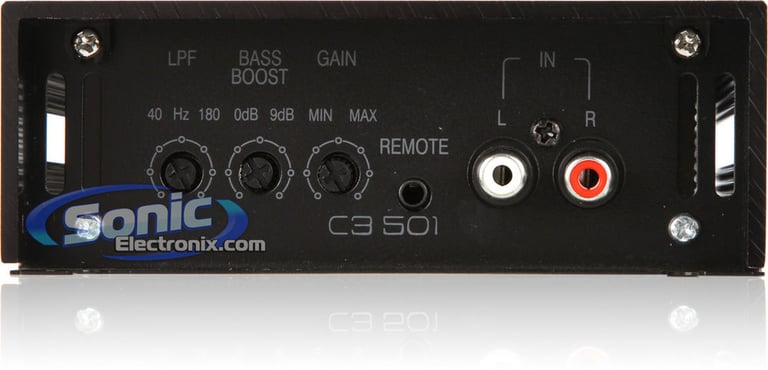

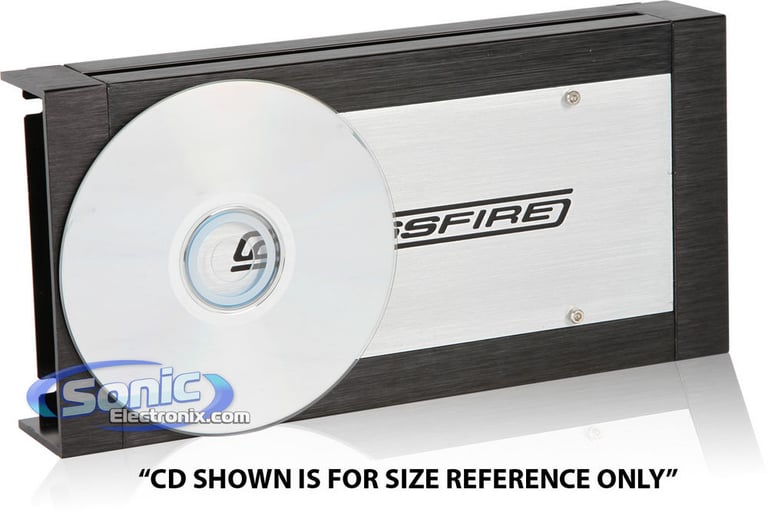

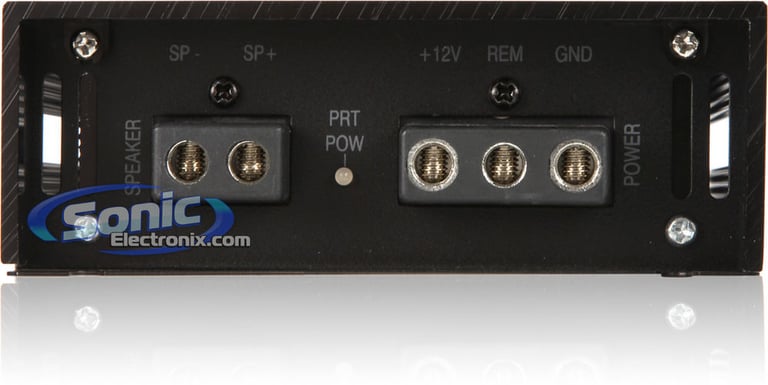

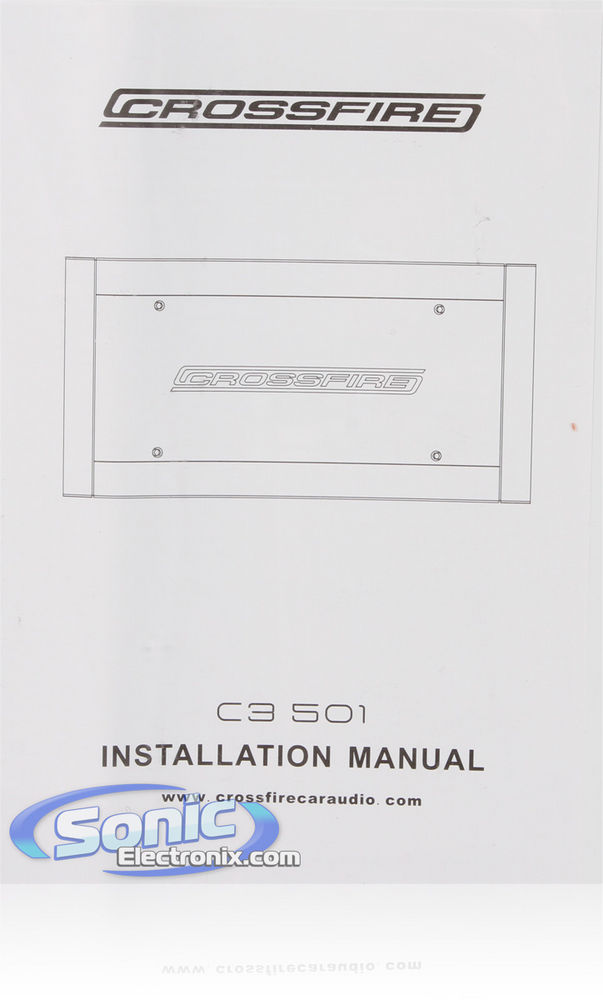

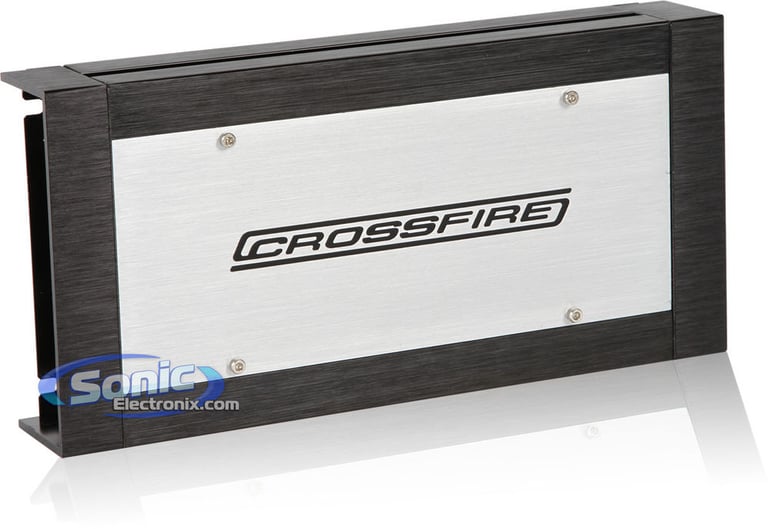

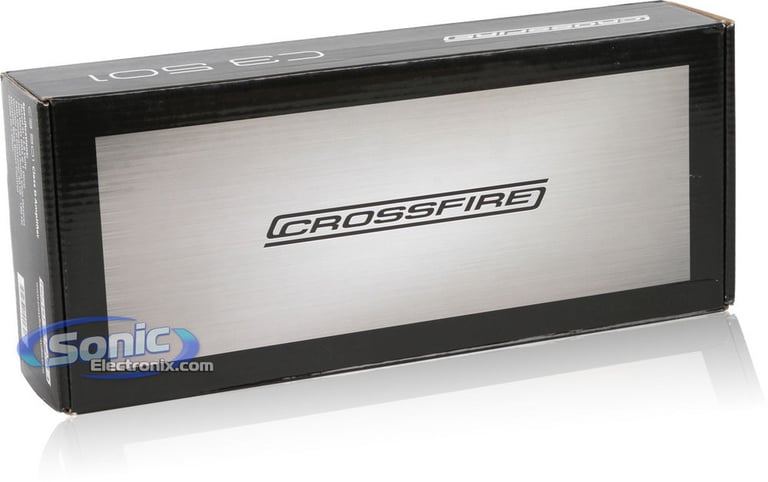

Crossfire C3 501 Features:
  • C3 Series Monoblock Class D Car Amplifier
  • RMS Power Rating(13.8V):
    • 4 ohm: 200 watts x 1 chan.
    • 2 ohm: 340 watts x 1 chan.
    • 1 ohm: 500 watts x 1 chan.
  • MOSFET power supply
  • SMD dedicated audio chip devices
  • Variable Bass Boost (0 to +9 dB)
  • Mono channel operation
  • 2-Way System Protection circuitry
  • Heavy duty heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 0.1V-2V
  • Variable low-pass filter (40-180 Hz)
  • Dimensions: 10"L x 4-13/16"W x 1-13/16"H
  • 8 gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

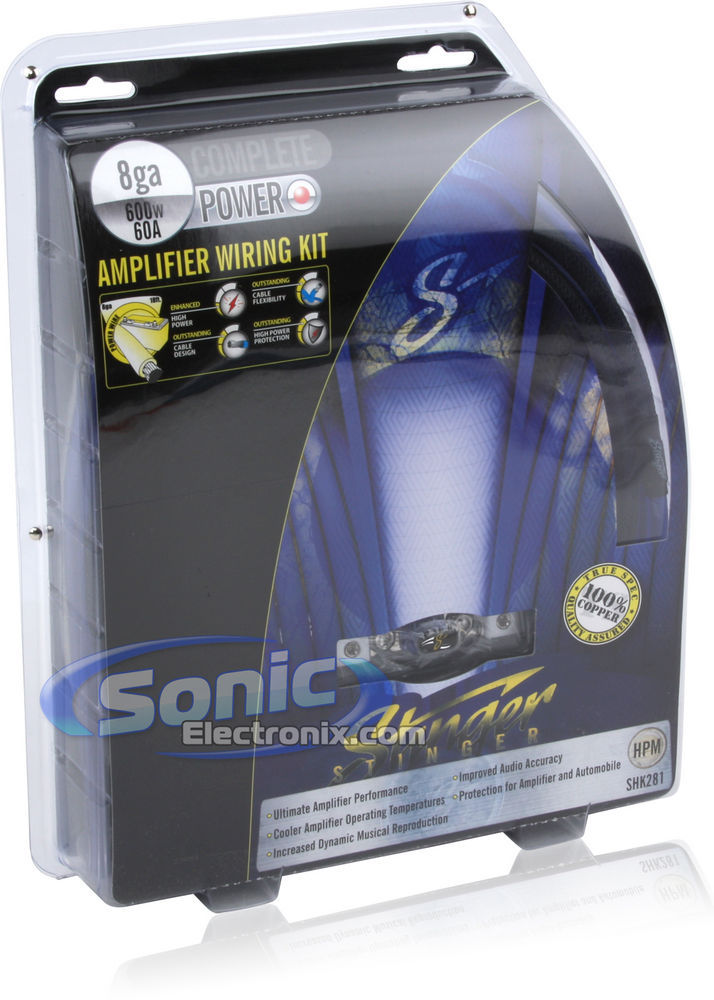

Stinger SHK281 Features:
  • 8 Gauge HPM Series Power Amplifier Wiring Kit
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

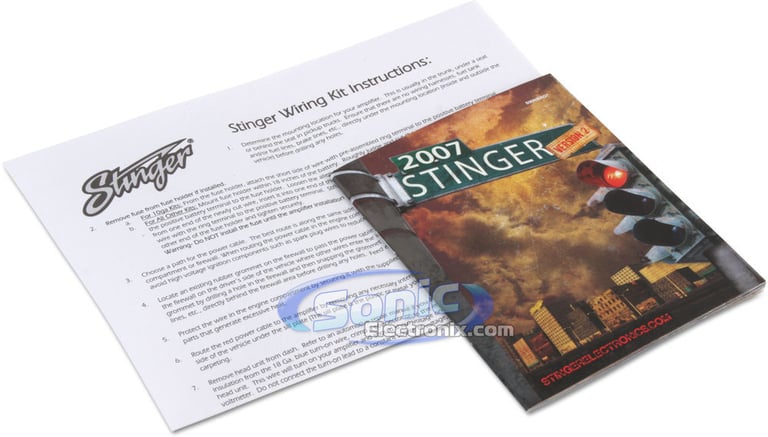

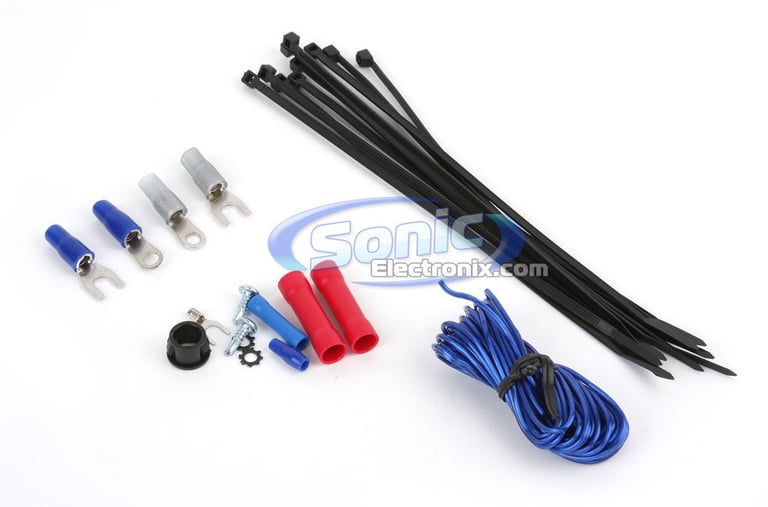

Stinger SHK281 Includes:

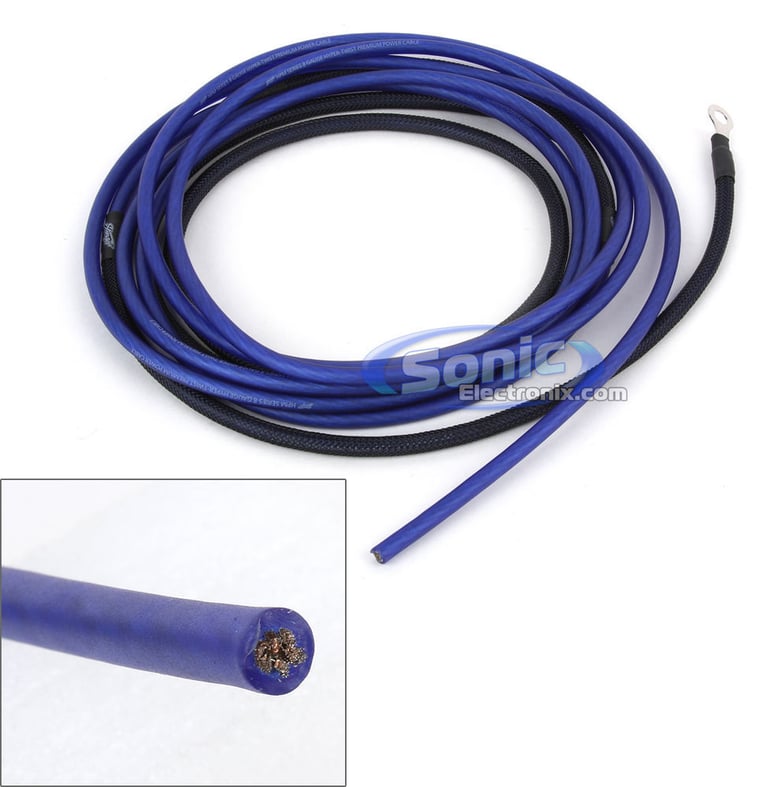

  1. 18 ft. 8 Gauge matte blue hyper-twist power wire

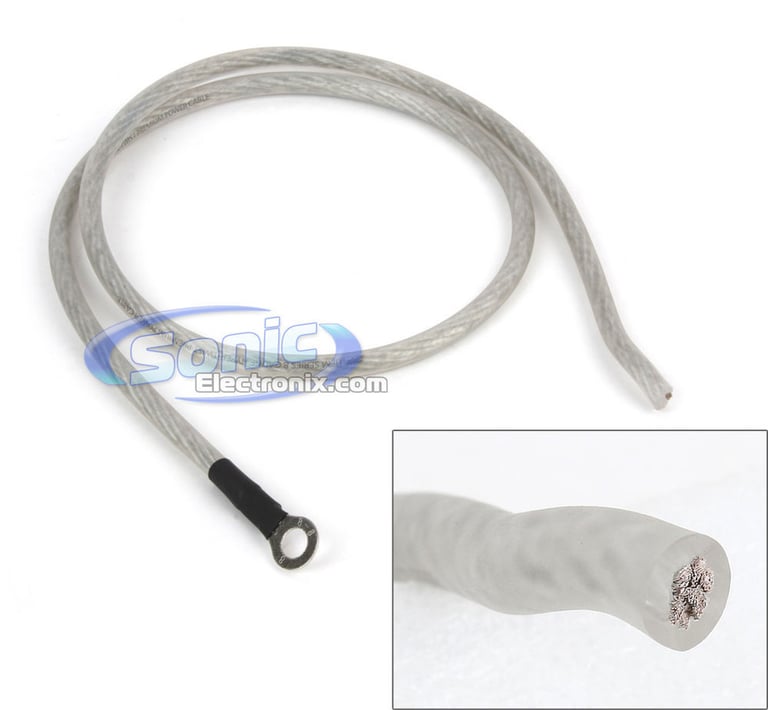

  2. 3 ft. 8 Gauge matte silver hyper-twist ground wire
  3. 17 ft. 18 Gauge blue remote wire
  4. Black nylon wire covering braid

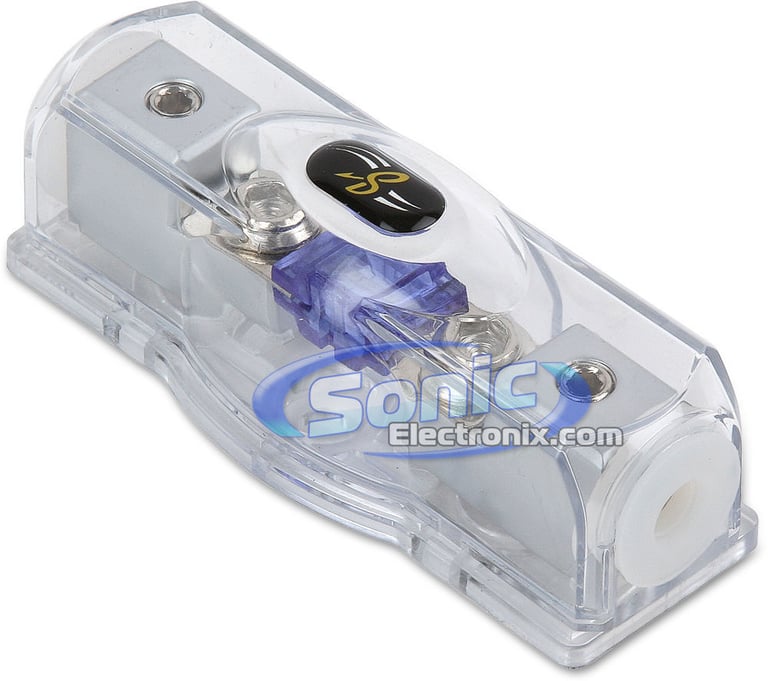

  5. MIDI Style (SHD801) Fuse holder
  6. 60A MIDI Style fuse

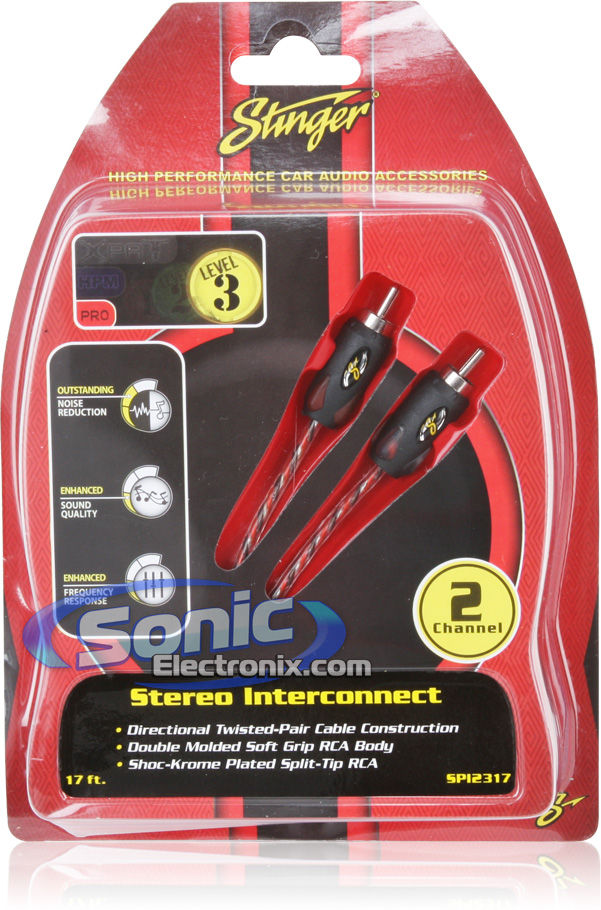

Stinger SPI2317 Features:
  • 17 ft. 2-Channel PRO3 Series Interconnect Cable
  • Directional twisted-pair conductors sheds unwanted interference
  • Directional, high-twist construction retains signal integrity
  • ShocKrome end with split top delivers performance while preventing corrosion
  • Ultra-compact design for easy installation
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

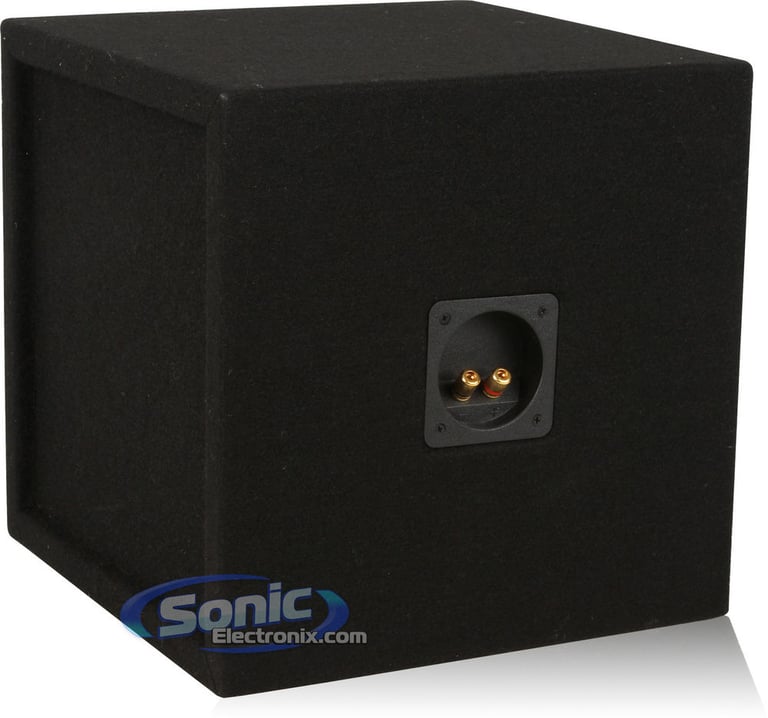

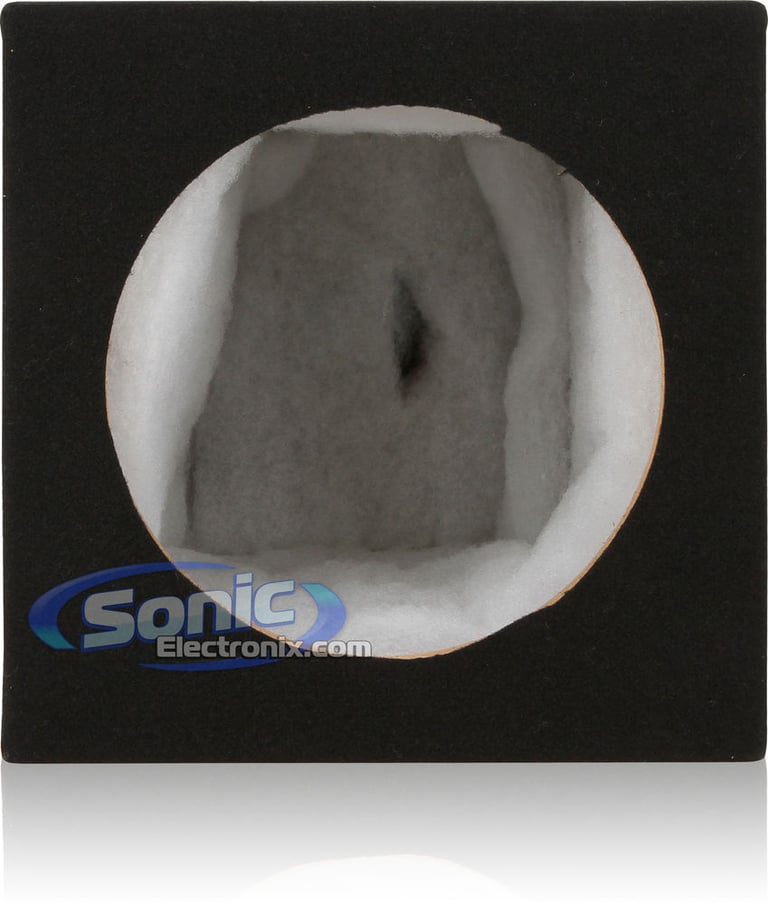

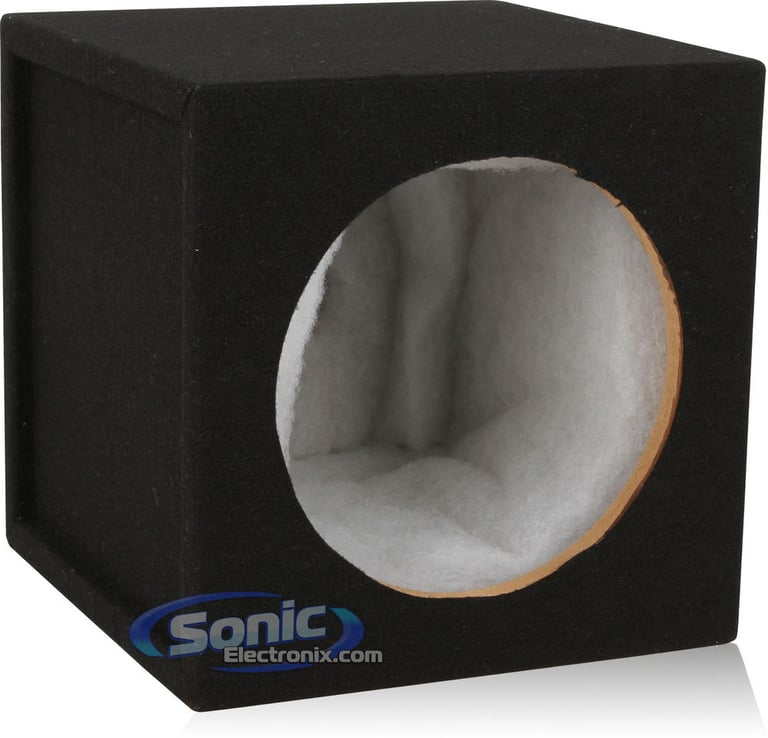

Enclosure Features:
  • 10" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

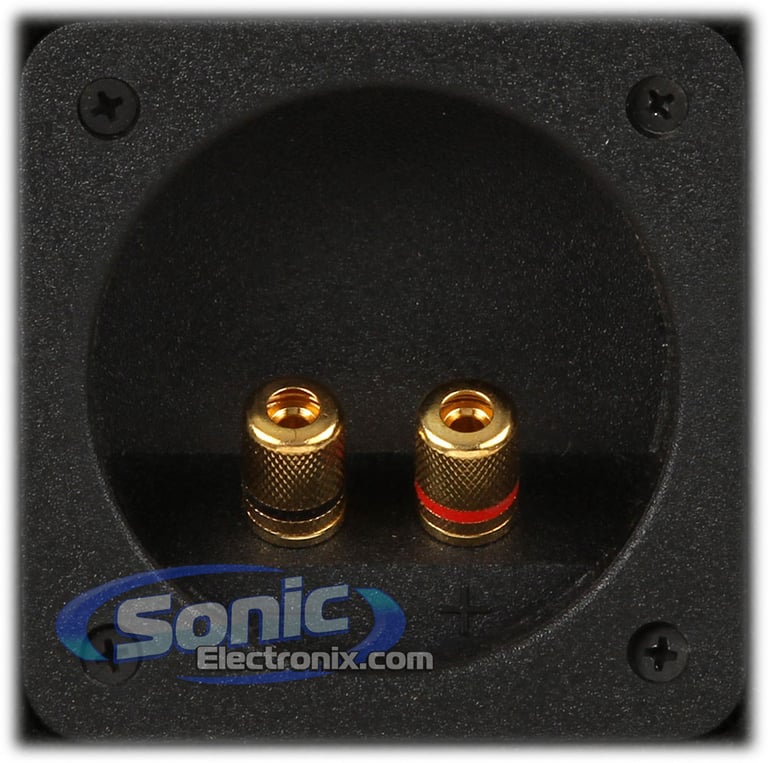

  • Gold-plated speakers terminals

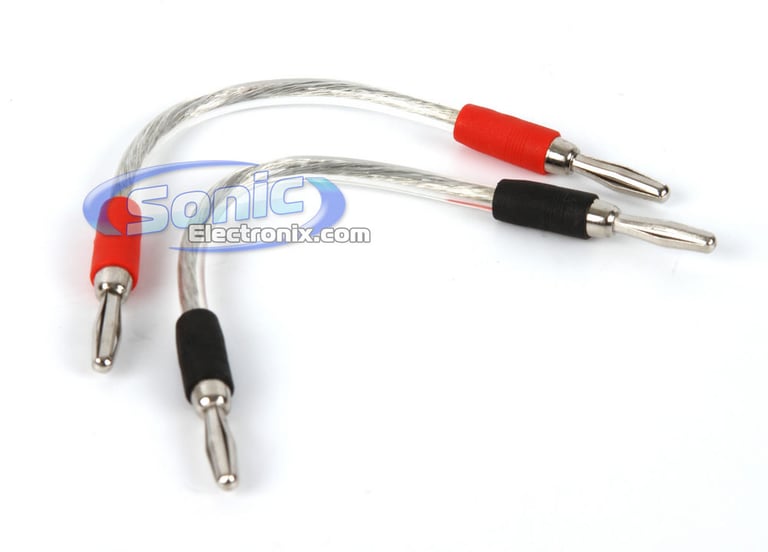

  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.7 cubic feet (per chamber)
  • Total box volume: 0.7 cubic feet
  • Dimensions: 12-1/2"D x 12-1/2"W x 12-1/2"H

Loading...
JWTJ97C20-TN main

MTX Audio Thunderform JWTJ97C20-TN (Charcoal, Loaded)

Dual 10" Loaded Thunderform Subwoofer Enclosure for select 1997-2006 Wrangler and Wrangler Unlimited

1
JWTJ97C20A-TN main

MTX Audio Thunderform JWTJ97C20A-TN (Charcoal, Amplified)

1997-2006 Jeep Wrangler, Wrangler Unlimited, Amplified 2 10" 4 ohms Loaded Vehicle Specific Thunderform Sub Enclosure

1
21576KA main

Select Increments Intra-Pod (21576KA)

Custom-fit center console with 8" Kicker subwoofer and Amplifier for select 1976-2006 vehicles from Jeep

108
-13.10%

$729.90

List price $839.92

40473KA main

Select Increments Stealth-Pod (40473KL)

Custom-fit subwoofer stealth pod with 10" Kicker subwoofer and Kicker Amplifier for select 1987-2018 vehicles from Jeep

108
-16.34%

$593.90

List price $709.92

21576K main

Select Increments Intra-Pod (21576K)

Custom-fit center console subwoofer enclosure with 8" Kicker Subwoofer for select 1976-1995 CJ7 and Wrangler and Scrambler

1
-7.02%

$529.91

List price $569.94

63092KA main

Select Increments Sono-Pod (63092KA)

Custom-fit subwoofer enclosure with 10" Kicker Subwoofer and 400W Monoblock

109
-17.58%

$543.90

List price $659.92

40473K main

Select Increments Stealth-Pod (40473K)

Custom-fit subwoofer stealth pod with 10" Kicker subwoofer for select 1987-2018 vehicles from Jeep

1
-10.46%

$393.91

List price $439.94

63092K main

Select Increments Sono-Pod (63092k)

Custom-fit enclosure with 10" Kicker subwoofer for

2
-11.80%

$343.91

List price $389.94

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 1 channel
RMS Power @ 2 ohms
340 watts x 1 channel
RMS Power @ 1 ohm
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Maximum Input Gauge Size
8 AWG
THD at Rated RMS Power
0.1%
Speaker Level Inputs
No
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 180 Hz
Signal-to-Noise Ratio
85 dB
Bass Boost
0 - 9 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
600 watts
Total RMS Power Handling
600 watts
Peak Power Handling
1200 watts
Total Peak Power Handling
1200 watts
Woofer Surround
Santoprene Rubber
Woofer Composition
Kevlar Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
83 dB
Frequency Response
26 - 500 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
12-1/2"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SWR-1023D_C3 501

Weight:

45.46lbs

Internal SKU:

swr1023d_c3501

Internal Product ID:

38591

Customer Ratings & Reviews


1800W Alpine + Crossfire Complete Bass Package thumbnail image

5 star
83%
4 star
14%
3 star
3%
2 star
0%
1 star
0%



Durability
4.7
Value
4.7
Features
4.6
Design
4.7
Usability
4.8

Customer Reviews

Sort by:

Loading...

Good Wires

The following review is for SHK281, which is a part of the bundle you are viewing.

Pros : Flexible, decent starter kit. Perfect for 500w RMS systems
Cons : No RCA cables, included terminals don't really work, but other than that, they are very decent wires.

By ruhe29 on March 22, 2011

26 found this helpful


Decent Kit

The following review is for SHK281, which is a part of the bundle you are viewing.

Good: Very flexible cable, accurate gauge. Quality finished terminals. Nice fuse holder.

Quibble: The black jacket at the beginning of the power run is not as practical as it might seem. It runs about 4-5' from battery side with a gap at 18" for the fuse. The jacket is braided nylon and held in place with shrink wrap, all good. But cutting jacket results in messy ends. In the end I removed it for my application.

Generally, learned 18 ft. of cable isn't enough to connect an amp located in the back on the passenger side of a station wagon.

By 40Hz DaN on February 18, 2010

25 found this helpful


Good product!

The following review is for SHK281, which is a part of the bundle you are viewing.

Great company and product. No problems with transaction.

By Richard on February 2, 2012

24 found this helpful


ALPINE SWR-1023D AND SWR-1223D

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

I purchased 1 Alpine SWR-1023D and 2 SWR-1223D sub woofers.
The SWR-1023d is the latest 10 inch, 2 ohm, dual voice coil modle of the alpine type "r" sub. The srw-1223 is the 12 inch modle with the same voice coil setup.
I have been installing high preformance car audio and home theater systems for 30 years. I have built many award winning systems and i can say at this price you cant touch these subs. The only thing that comes close to this level of preformance is the jl audio w7 series subs. Which will out preform these subs by a very small margin, for $450 each. Dollar for dollar these speakers kick but, I drive the 10" with a class d 1024 watt mono amp and drive the 2-12" with a 1800 watt per ch stereo amp. These amps run the speakers very hard but can not seem to hurt them. Other speaker systems that I have run with these amps ran out of x-max (forward or rearward cone movement) but these have handeled everything i have thrown at them. I am sure if you get stupid with these speakers you can break anything but if you use them properly they will last and kick your but with incrediably loud and low bass.

By SUPERIOR SOUND LABS on June 17, 2011

19 found this helpful


GREAT SUB!

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

I got this sub when it first came out for 170-180 about half a year ago. It was my first sub and i had it hooked up to an old Rockford amp that put out 550 rms in to 2 and it was ok alot of people hate on tens when the only big diff. is that 12's and 15's and others just push more air. And just a couple weeks ago i baught a Alpine Mrp-m1000 amp and hook it up to the type r i had it at 4 ohms so ithe amp was pushing 600W into the sub and thats what it Rms is anyways and let me tell you this thing was LOUD .........I HIGHLY Recommend this sub and if you do get it then deff. look in to getting an mrp-m1000 it costs alot but it is a really good amp and if you upgrade to type x ( which i am and just ordered ) you will already have an amp

By Justin on March 19, 2011

18 found this helpful


BOOOOOMMMM!

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

if there were a 6th star it would be selected in all of the catagories this sub is amazingly easy to install and kicks like none other. Not saying that you Should but i have 2 of these into a monoblock that pushes 1500 watts RMS through the subs and these subs have never thought about blowing. Extremely well made. You will not be disapointed in the purchase of these subs cleanest bass you will find.

By Bass Master on October 17, 2011

17 found this helpful


very well built

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

Way better than what i had before. I replaced Phoenix Gold with these. It's like day, and night. Good quality, good sound. they barely move, and produce nice bass. Very tight, they also fit in a small box. I had to make a ring spacer out of 3/4" particle board, but managed to get them under the rear seats of my 2004 dodge ram. I recommend these if you have limited space. reasonable price too!

By David on May 7, 2010

18 found this helpful


Alpine type R subwoofers!

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

I would recomend this sub to any one who has very little mounting depths. The ease of use and the fact that they handle alot of power. These subs are very clean sounding, rich and deep base. I love these subs.

By Eddie on June 7, 2011

17 found this helpful


Excellent Subwoofer, great price

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

This particular subwoofer, the 10" Alpine Type R (SWR-1023), is a 500 watt RMS sub that is great for someone who is looking for some high quality sound, with a really good amount of thump, and at a low price.

The sub is installed in a custom fiberglass enclosure (0.7 CuFt) built into the right cubby behind the wheel well. It looks great and sounds even better.

For the price, you simply won't find a comparable subwoofer. You may find ones that claim more power handling capability, and you'll certainly be able find some that cost less. But this one will have better sound, better quality, and better reliability.

By Ronny on October 29, 2010

17 found this helpful


these hit hard!

The following review is for SWR-1023D, which is a part of the bundle you are viewing.

def some good subs, played em low for a while then turned them up. they are in a sealed .7 cu box powered by a alpine 1000watt amp.

By psp4ever on December 30, 2010

15 found this helpful




No picture

On-Stage Stands SM7222LB

Tubular Tripod Base Sheet Music Stand (Light Blue)

$21.99

List price $37.99

SM7222B small

On-Stage Stands SM7222B

Tubular Tripod Base Sheet Music Stand

$19.99

List price $33.99

CS2.46 small

Momentum by Cadence CS2.46

4" x 6" 2-Way CS Series Coaxial Car Speakers

$12.76

List price $23.95

AVH-X2500BT small

Pioneer AVH-X2500BT Open Box

In-Dash 6.1" Touchscreen DVD/USB/MP3 Car Stereo Receiver with Bluetooth, iPod Controls & MIXTRAX

$249.99

List price $420.00

SM7611B small

On-Stage Stands SM7611B

Hex-Base Conductor Stand w/ Adjustable Height

$49.99

List price $84.99

692.7i small

Infinity Kappa 692.7i

6" x 9" Kappa Series 2-Way Car Speakers (KAPPA692.7I)

(9)

$99.99

List price $199.99

SM7222GR small

On-Stage Stands SM7222GR

Tubular Tripod Base Sheet Music Stand (Green)

$21.99

List price $37.99

No picture

On-Stage Stands SM7222RD

Tubular Tripod Base Sheet Music Stand (Red)

$21.99

List price $37.99

FRDNX1200BKRED small

Odyssey FRDNX1200BKRED (Red on Black)

Designer DJ Series DJ Mixer Case with Black Powder Coated & Anodized Hardware

$229.99

List price $319.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Mazda MPV

2006 Jeep Wrangler

2018 Hyundai Accent

1985 Porsche 911

2010 Kia Rio

1996 Mitsubishi Eclipse

2009 Honda Ridgeline

2004 Chrysler Crossfire

1989 Dodge Omni

1986 Pontiac Firebird

Vehicle
Store
Delete

2006 Harley Davidson FXSTS/I Springer Softail

2001 Harley Davidson FLSTF/I Fat Boy

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
