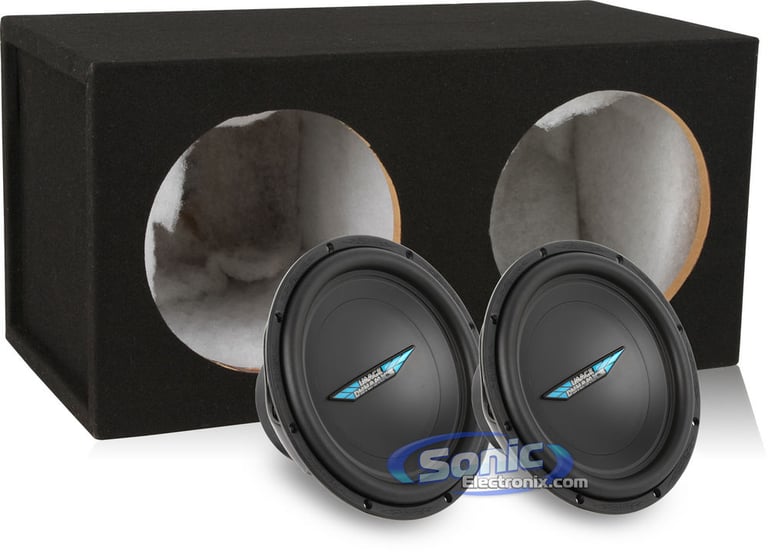

700W Image Dynamics CTX108 + Enclosure Bass Package

Pair of Image Dynamics CTX108 10" CTX Series Subwoofers + MDFD10 10" Sealed Subwoofer Enclosure

EXCLUSIVE
highlight-star-icon

Pair of 10" Single 8 ohm CTX Series Subwoofers • 350W RMS • Poly-Mica Cone Woofer • Butyl Rubber Surround • 10" Dual Sealed Subwoofer Enclosure • Internal Box Volume: 0.8 cubic ft. Per Chamber

Learn more about the ctx108_mdfd10

We apologize

This item has been discontinued

Description


Image Dynamics brand icon

Authorized dealer

Sonic Electronix Exclusive Bass Package

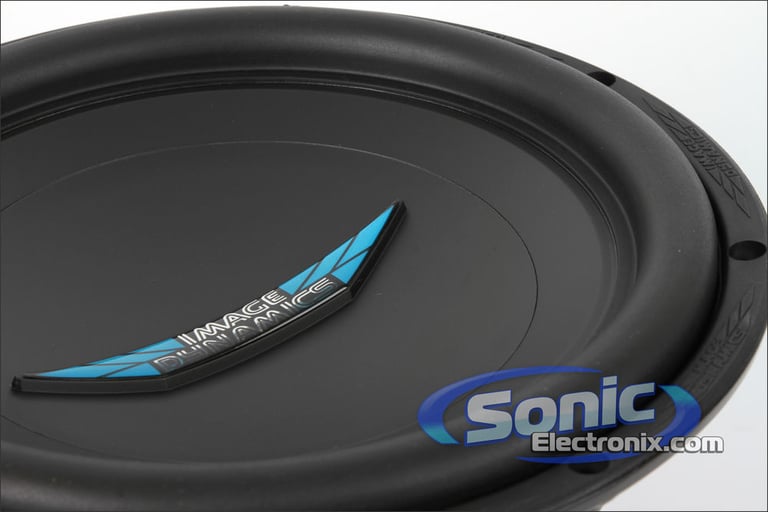

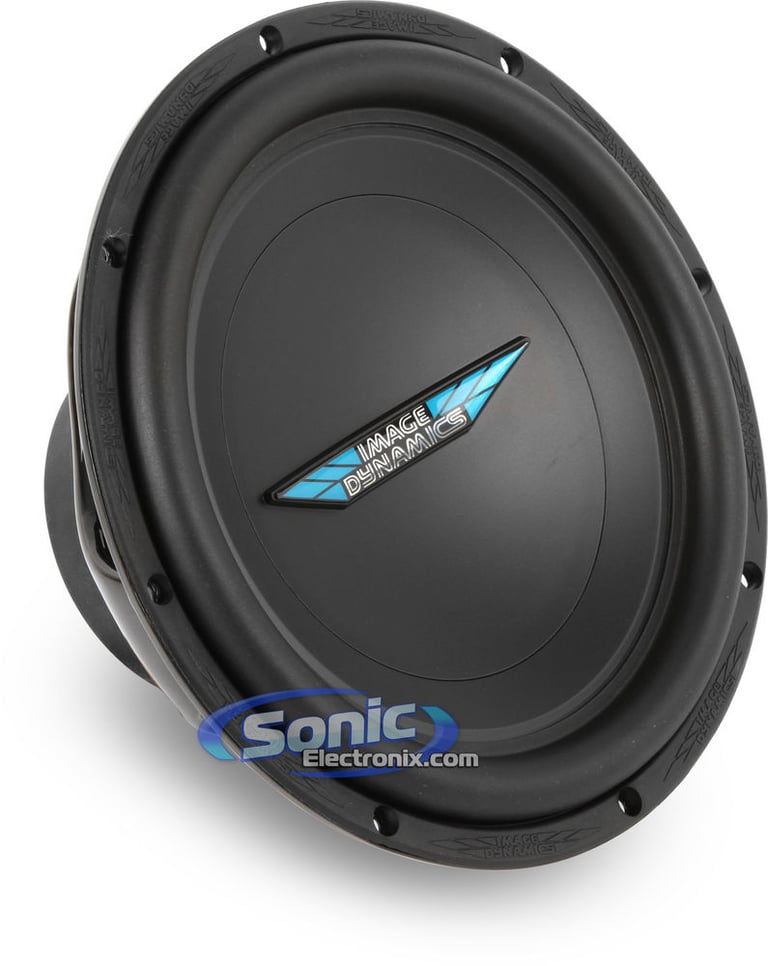

This combo package includes two Image Dynamics 10" Single 8 ohm CTX series subwoofers and a dual 10" Sealed subwoofer enclosure. This subwoofer enclosure is a perfect match for the 10" subwoofers. The Image Dynamics subwoofers feature a poly-mica cone woofer and a butyl rubber surround for rigidity and enhanced performance. These woofers are also equipped with spring loaded terminals for quick and easy installation, and a conex spider with integrated tinsel leads for increased power handling. These subwoofers also feature anodized high temperature aluminum voice coils for extreme heat dissipation. The subwoofer enclosure is equipped with PolyFil for deeper bass and is constructed from durable 3/4" Medium Density Fiberboard covered in black carpet. Sonic Electronix is the only place you will find this perfectly matched combo.

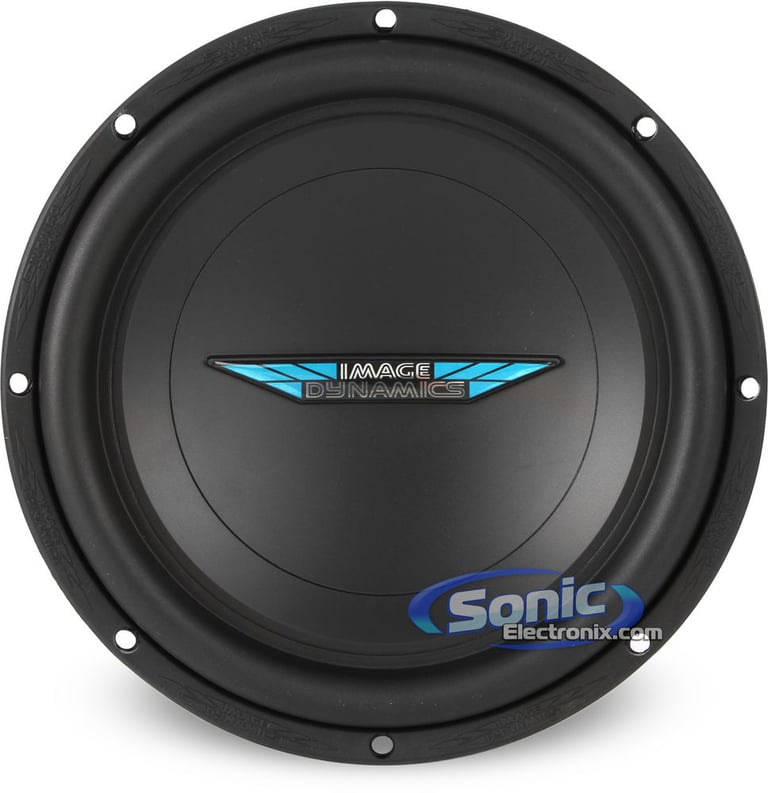

Image Dynamics CTX108 Features:
  • Pair of 10" Single 8 ohm CTX Series Subwoofers
  • Power Handling:
    • Peak: 700 watts total / 350 watts each
    • RMS: 350 watts total / 175 watts each
  • Poly-mica cone woofer
  • Butyl rubber surround

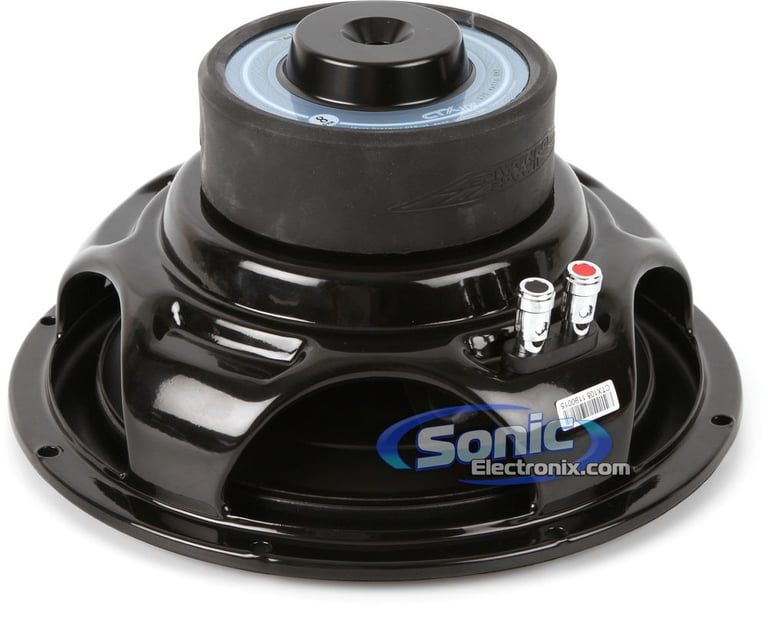

  • Spring loaded push terminals for easy installation
  • Conex spider with integrated tinsel leads
  • Black anodized aluminum voice coil former
  • Frequency response: 16-180 Hz
  • Sensitivity: 86 dB
  • Mounting Depth: 5-1/4"
  • Cutout Dimensions: 9-1/8"
  • 1-year Manufacturer's Warranty

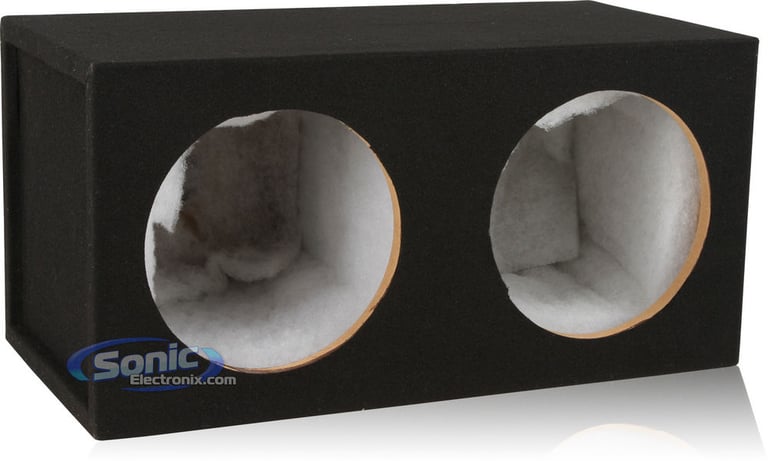

MDFD10 Enclosure Features:
  • Dual Sealed 10" Enclosure
  • Internal box volume: 1.6 cubic ft. total air space - 0.8 cubic ft. per chamber
  • High Quality 3/4" MDF Construction
  • Durable black carpeting

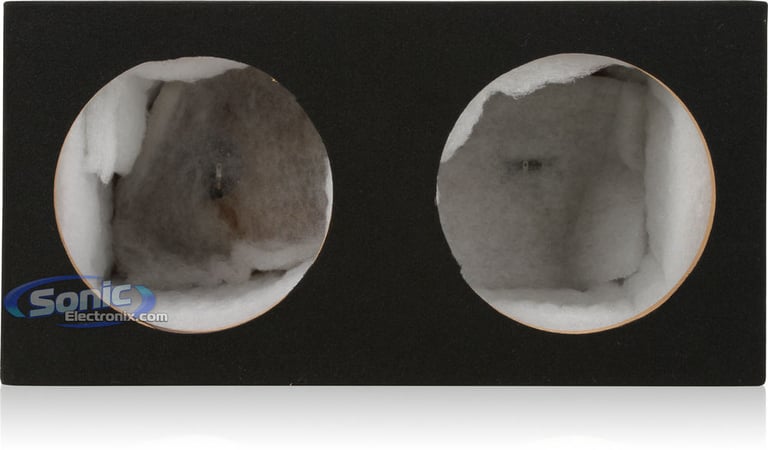

  • Pre-lined with Poly-Fil
  • Seams are fully caulked for better efficiency
  • 2 Separate chambers allowing each subwoofer its own air space

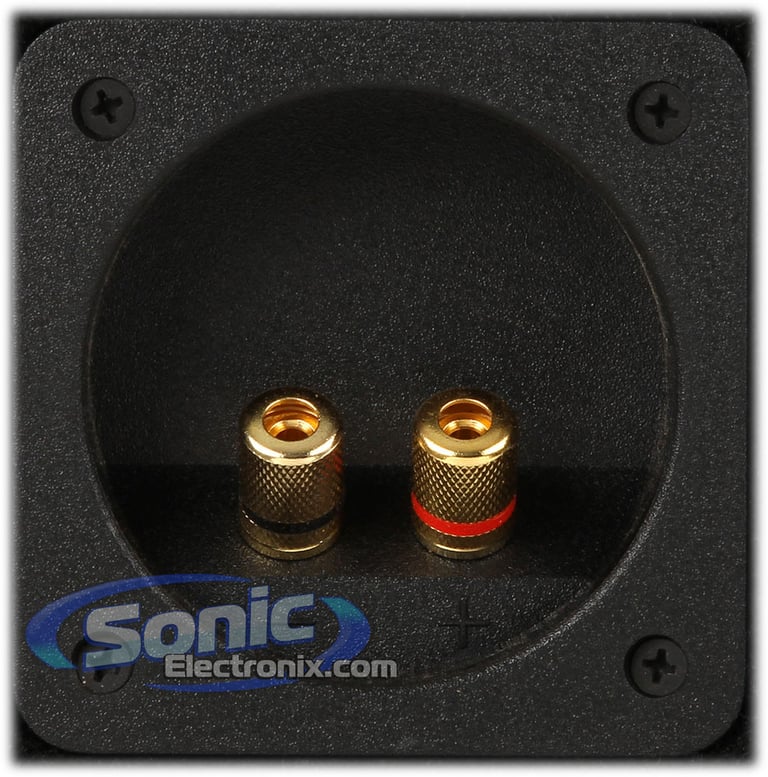

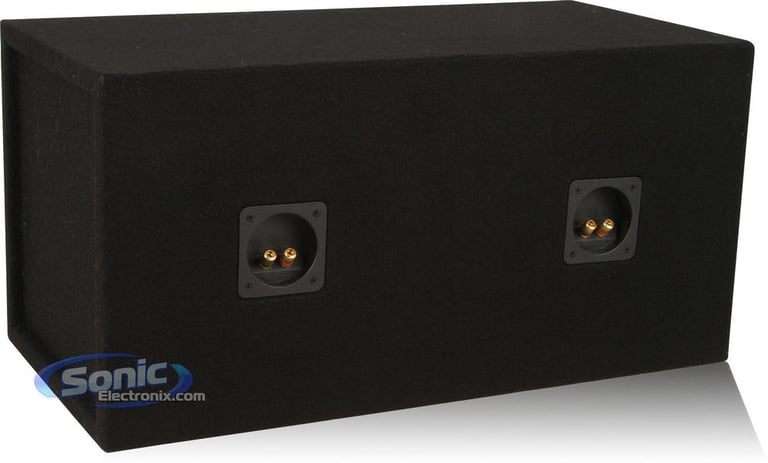

  • Gold post terminals for clean and easy wiring access
  • Box Dimensions: 25"L x 12-1/2"D x 12-1/2"H

Best selling similar products

P3-2X12 small

Rockford Fosgate Punch P3 P3-2X12

• Dual Punch P3 12" Loaded Subwoofer Enclosure
• 2400W Peak
• 1200W RMS
• Constructed with Durable 5/8" MDF
• High Current Binding Posts
• Durable Black Carpet Covering
• Computer Optimized Design
• 1 Ohm Final Impedance

(40)

$709.99

List price $947.99

DL7R122 small

Kicker DL7R122 (45DL7R122)

• Ported enclosure with 2 12" Solo-Baric L7R Series Subwoofer
• 1200 watts RMS (2400 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 15-7/8" H x 15-1/4" W x 20-3/8" W2

(8)

$519.96

List price $699.99

CP112-W0v3 small

JL Audio BassWedge CP112-W0v3

• 600W Peak
• 300W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(12)

$279.99

List price $279.99

CP210-W0v3 small

JL Audio BassWedge CP210-W0v3

•Dual 10" 10W0v3-4 Loaded Ported Enclosure
• 1200W Peak
• 600W RMS
• Top-Quality MDF Construction
• Durable Dark Gray Carpet Finish
• Five-Way Binding Post Connectors
• Embroidered JL Audio Logo

(9)

$349.99

List price $349.99

47QL7R122 small

Kicker 47QL7R122

• Ported enclosure with 4 12" Solo-Baric L7R Series Subwoofer
• 2400 watts RMS (4800 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 28" L x 20-1/4" H x 35-7/8" W

(2)

$1199.96

List price $1599.99

BE-GM-SLVDC-G4 small

NVX Loaded BOOST Box - 2019-2024 Chevrolet Silverado/GMC Sierra - BE-GM-SLVDC-G4

• Sealed BOOST truck enclosure with 2 12" S Series Subwoofer
• Fits select 2019-2024 Sierra and Silverado 1500 / 3500 HD / 2500 HD / 1500 LD
• 400 watts each RMS (800 watts each Peak)
• Final Impedance: 1-ohm

(1)

$499.99

List price $719.99

F250X00C20A-TN small

MTX Audio Thunderform F250X00C20A-TN

• 10" Amplified Loaded Subwoofer System
• 200 watts RMS
• Built-In Class Amplifier
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Compatible with select 2000-2014 F-250 Super Duty

$929.95

List price $747.95

DL7S122 small

Kicker DL7S122 (44DL7S122)

• Ported enclosure with 2 12" Solo-Baric L7S Series Subwoofer
• 1500 watts RMS (3000 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 33-3/4" L x 16" H x 16-1/4" W x 19-1/2" W2

(14)

$849.99

List price $949.99

BE-LEX-IS0613-VCW104 small

NVX Loaded BOOST Box - 2006-2013 Lexus IS250/IS350/ISF - BE-LEX-IS0613-VCW104

• Custom-Fit Sealed BOOST enclosure with 1 10" VC Series Subwoofer
• Fits select 2006-2013 vehicles from Lexus
• 1000 watts RMS (2000 watts Peak)
• Final Impedance: 2-ohm

(4)

$499.99

List price $624.99

VL7S122 small

Kicker VL7S122 (44VL7S122)

• Ported enclosure with 1 12" Solo-Baric L7S Series Subwoofer
• 750 watts RMS (1500 watts Peak)
• Final Impedance: 2-ohm
• Dimensions: 18-3/4" L x 16" H x 14-3/4" W x 17-7/8" W2

(10)

$499.99

List price $549.99

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
175 watts
Peak Power Handling
350 watts
Woofer Composition
Polypropylene-Mica
Woofer Surround
Butyl Rubber
Sensitivity
86 dB
Frequency Response
18 - 180 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CTX108_MDFD10

Weight:

48.00lbs

Internal SKU:

ctx108_mdfd10

Internal Product ID:

38617
