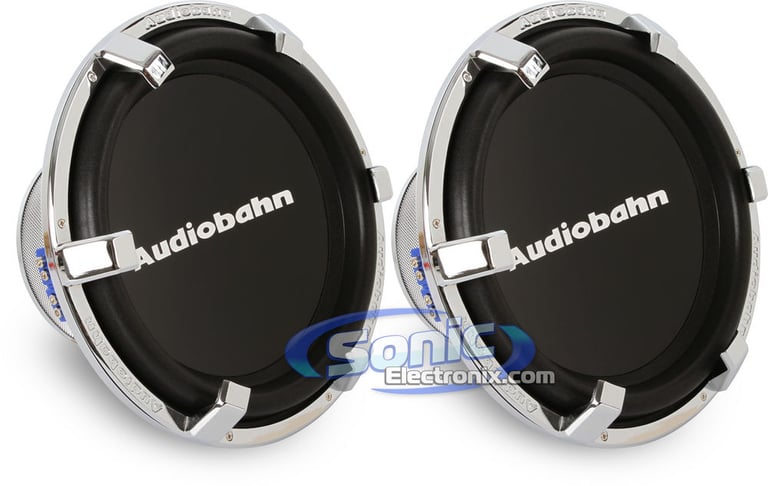

Audiobahn AW1200J Subwoofer Pair Combo

12" Dual 4 ohm High Excursion Series Car Subwoofers

Audiobahn
Shop all Audiobahn
EXCLUSIVE
Product videos
highlight-star-icon

Pair of 12" High Excursion Series Subwoofers • 1400W RMS • High Gloss High-Strength Carbon Composite Cone • Tall Narrow Foam Surround • Flame Design Basket • Extended Pole Piece • Multi-Connect Lug Lock Terminals • 3" Dual 4 Ohm Voice Coil

Learn more about the aw1200j-pair

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
46CSS654 main

Kicker CSS65 (46CSS654)

600W Peak (200W RMS) 6.5" CS Series 2 Way Component 4-ohm Speaker System

9
-28.02%

$143.96

List price $199.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

JBL Stage2 634 (STAGE2634)

500W Peak (80W RMS) 6.5" Stage2 Series 3 Way Coaxial 4-ohm Speakers

15
-26.00%

$73.99

List price $99.99

JBL Stage1 621 (STAGE1621)

350W Peak (70W RMS) 6.5" Stage1 Series 2 Way Coaxial 4-ohm Speakers

5
-50.05%

$49.95

List price $99.99

Product Highlights


Pair of 12" High Excursion Series Subwoofers • 1400W RMS • High Gloss High-Strength Carbon Composite Cone • Tall Narrow Foam Surround • Flame Design Basket • Extended Pole Piece • Multi-Connect Lug Lock Terminals • 3" Dual 4 Ohm Voice Coil

Description


When One Is Just Not Enough

This combo features two 12" Audiobahn AW1200J Dual 4 ohm High Excursion series subwoofers. The subwoofers feature a combined RMS of 1400 watts, giving you some real strong bass. The woofers are equipped with a high-gloss, high-strength carbon composite woofer cone and tall narrow foam woofer surround. The cone and surround materials will offer increased performance, rigidity, and strong power handling capabilities. The woofers also feature a flat spider design for increased liner motion, vented oversized back plate for high excursion and multi-connect lug lock terminals for easy and quick installation.

Here at Sonic we understand that sometimes one subwoofer is just not enough bass. So we are happy to introduce our subwoofer pair combos. With these combos you can purchase two subwoofers to get the bass you are really seeking for. The best part of these combos is that we are able to offer some savings by buying the pair together instead of one at a time. So take a look and find the best pair for you.

Audiobahn AW1200J Features
  • Pair of 12" High Excursion Series Subwoofers
  • Power Handling
    • RMS: 1400 watts total / 700 watts each
  • Impedance: Dual 4 Ohm
  • High gloss high-strength carbon composite cone with laminated pulp reinforcement
  • Tall narrow foam surround increases cone surface area which means more air displacement
  • Can be installed in a sealed, ported or band pass enclosure
  • Cast aluminum flame design basket
  • Aluminum black anodized voice coil former for highly efficient thermal transfer
  • Extended pole piece provides a more linear magnetic field
  • Vented oversized back plate for high excursion
  • Flat spider design
  • 3" Dual 4 Ohm voice coil
  • 120 oz magnet
  • Multi-Connect lug lock terminals offer increased versatility in wiring multiple subwoofers
  • Operates in 2 or 8 ohm configurations
  • Frequency Response: 20-500 Hz
  • Efficiency: 94.65 dB
  • Mounting Depth: 5-5/8"
  • Hole Cut Out: 11-1/2"
  • Outer Diameter: 12-3/4"
  • 1-year Manufacturer's warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Audiobahn AW1200J Subwoofer Pair Combo Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Audiobahn AW1200J Subwoofer Pair Combo Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Audiobahn AW1200J Subwoofer Pair Combo Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Audiobahn AW1200J Subwoofer Pair Combo Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

R169X2 main

Rockford Fosgate Prime R169X2

260W Peak (130W RMS) 6x9" Prime Series 2 Way Coaxial 4-ohm Speakers

49

Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

CWRT124 small

Kicker CWRT124 (48CWRT124)

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• UV-Treated Polypropylene Cone
• UV-resistant Santoprene Surround
• Mount depth: 3-3/4"
• Sensitivity: 85.5 dB

(3)

$199.96

List price $279.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(95)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

YSW122 small

NVX YSW122

• Peak Power: 1600 watts
• RMS Power: 800 watts
• Impedance: Dual 2 ohm
• Enhanced Pressed Paper Cone
• High Roll Foam Surround
• Mount depth: 6.5"
• Sensitivity: 85 dB

(3)

$149.99

List price $227.99

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

Specifications & Details


Subwoofer Specifications
Series
High Excursion Series
Subwoofer Size
12"
RMS Power Handling
700 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Frequency Response
20 - 500 Hz
Sensitivity
94.65 dB
Xmax (millimeters)
13.5 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Carbon Composite
Woofer Surround
Foam
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Bandpass
Ported / Vented
Sealed
Minimum Sealed Box Volume
.5 cubic feet
Maximum Sealed Box Volume
1.5 cubic feet
Minimum Ported Box Volume
1.3 cubic feet
Maximum Ported Box Volume
3.3 cubic feet
Top-Mount Depth (Mounting Depth)
5-5/8"
Cutout Diameter
11-1/2"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

AW1200J-PAIR

Weight:

39.00lbs

Internal SKU:

aw1200j-pair

Internal Product ID:

39268

Product and How-to Videos


Customer Ratings & Reviews


Audiobahn AW1200J Subwoofer Pair Combo thumbnail image

5 star
40%
4 star
40%
3 star
0%
2 star
20%
1 star
0%



Durability
3.8
Value
4.4
Features
4.4
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

Audiobahn AW1200J

The following review is for AW1200J, which is a part of the bundle you are viewing.

good beats hard as 2 15

By q2 on April 3, 2011

7 found this helpful


SLAMMMMMSSS

The following review is for AW1200J, which is a part of the bundle you are viewing.

I'm givin this sub 300W RMS @2 ohms, in a custom built ported box....and it hits the lows like crazY! makes my SUV sound hella good. I would definitely recommend this sub if you want loudddd

By Muck on June 1, 2011

6 found this helpful


so so

The following review is for AW1200J, which is a part of the bundle you are viewing.

sounded real good for a day, i mean it beat hard and sounded good , but didnt hold up

By william on May 21, 2011

6 found this helpful


there loudd

The following review is for AW1200J, which is a part of the bundle you are viewing.

They can handle their power and are very loud, just only last about a year then they fry. But hey, they aren't too expensive and are louddd while they last. I've owned 4 now.

By cody on April 15, 2012

4 found this helpful


Audiobahn Aw1200j

The following review is for AW1200J, which is a part of the bundle you are viewing.

These are one of the best subs I've ever owned. I have two of these in my 2011 camaro and they hit really hard. I really like these subs.

By B on August 4, 2011

3 found this helpful




HX-P130YL small

HMDX Burst HX-P130 - Yellow (HX-P130YL)

Rechargeable Portable iPhone/iPod/Android Smartphone Speaker Case w/ 3.5mm "Mini" Auxiliary Input

(1)

$10.00

List price $24.99

S12L52 small

Kicker S12L52 12" L5 Solo-Baric 02S12L52

(5)

$149.99

List price $299.99

No picture

Absolute 100 ft. 12 Gauge Speaker Wire (Blue) AS12G100GR

$24.99

List price $49.99

10-18-RAM2500-3500-EFSPKG small

NVX E-Series Front Speaker Upgrade Kit (w/o Alpine)

Fits select 2011-2018 3500 and 2500 ; Includes Speakers Harness

(6)

$62.98

List price $78.98

DMH2000NEX_XCADJ1 small

Pioneer DMH-2000NEX with XCADJ1

6.8" Double-DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, Alexa (Sirius XM Ready) with Universal Metal Car Rearview Backup Camera

(39)

$469.98

List price $539.99

ICF-S79W small

Sony ICF-S79W (ICFS79W) Digital AM/FM Shower Radio Weather Band Tuner

Portable AM/FM Shower Radio and Weather Band w/ Easy to Grip Design

$59.95

List price $69.95

TSA693CH_2 small

Pioneer TS-A693CH (2-Pairs, 4-Total)

1840W Peak (420W RMS) 6"x9" A-Series 2-way Component Speaker System (2-Pairs)

$299.98

List price $360.00

10-18-RAM2500-3500-XFSPKG small

NVX X-Series Front Speaker Upgrade Kit (w/o Alpine)

Fits select 2011-2018 2500 and 3500 ; Includes Speakers Harness

(15)

$137.98

List price $204.98

MAS1FT-14C small

MA Audio MAS1FT-14C -- 14 Gauge, 1 ft. CLEAR

$0.19

List price $0.49

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1990 Acura Integra

2005 Acura RL

2003 Chevrolet TrailBlazer

1994 Jeep Wrangler

2000 Lexus RX300

2013 Volvo XC90

1996 Ford F-150

2007 Ford Edge

2010 Nissan Maxima

2022 Mitsubishi Mirage

Vehicle
Store
Delete

2017 Harley Davidson FLHX Street Glide

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
