Description


Pioneer brand icon

Authorized dealer

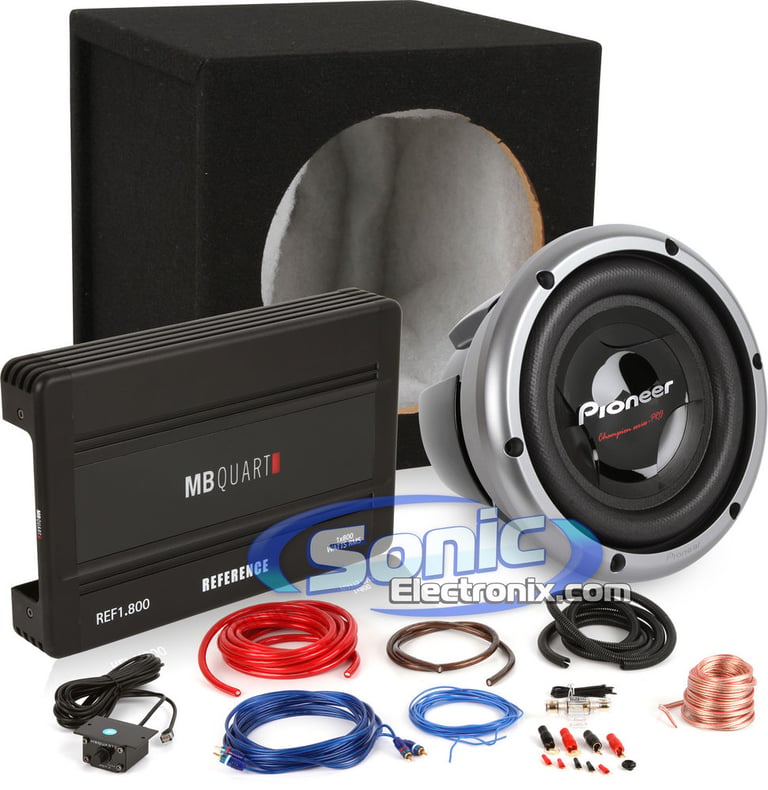

Pioneer and MB Quart Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a MB Quart REF1.800 amplifier along with a 10" Champion PRO series Pioneer Subwoofer. This excellent bass package pushes 800 watts of clean, continuous RMS power. The Pioneer Subwoofer has a Dual 2 ohm Voice Coil; meant to be wired in parallel, to a final impedance of 1 Ohm. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Pioneer TS-W250D2 Champion PRO series subwoofer requires 800 watts of RMS power. The included MB Quart REF1.800 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a complete 4 gauge amplifier kit, which is perfect to supply power to the amplifier. Also included will be a single 10" sealed enclosure, this enclosure will come with pre-line Poly-Fil and will be made with durable MDF wood. The sealed design will provide a tighter and quicker responsive bass. With the Pioneer subwoofer, MB Quart amplifier, sealed enclosure, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

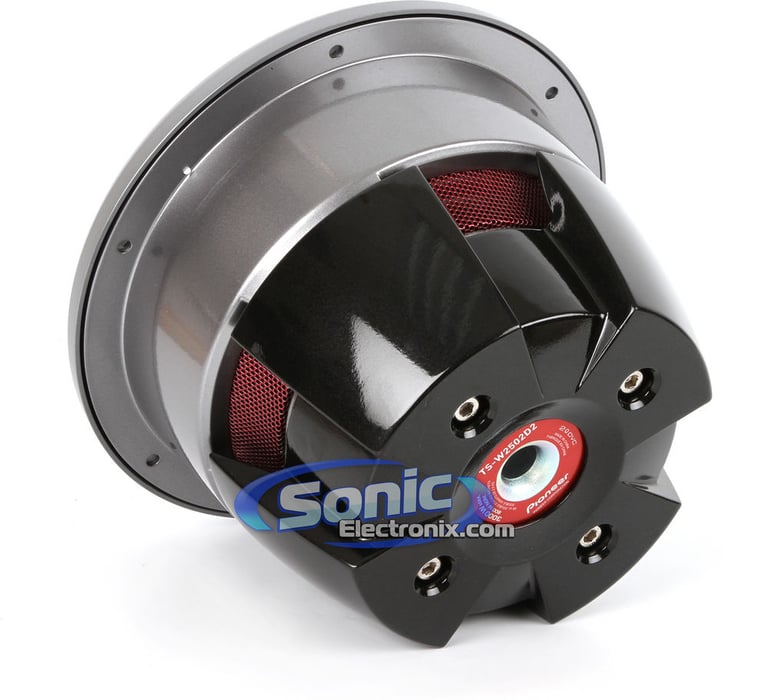

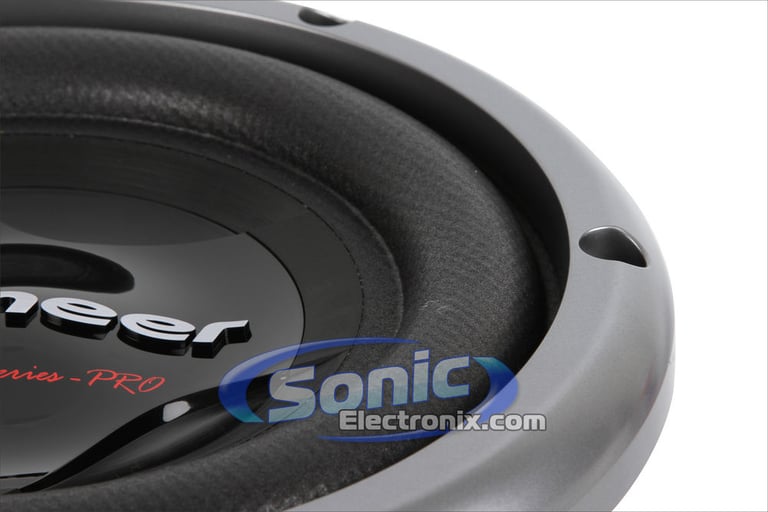

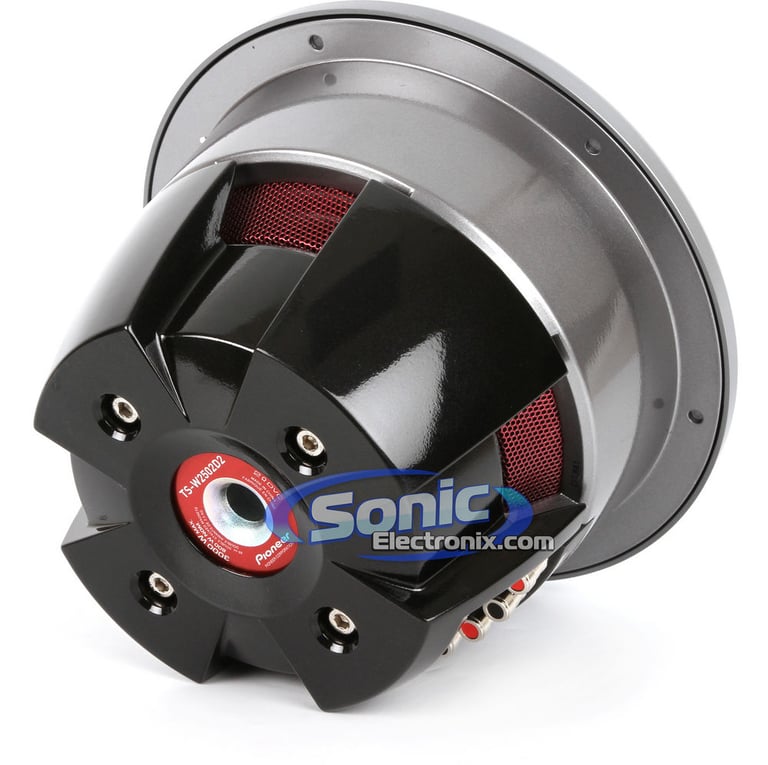

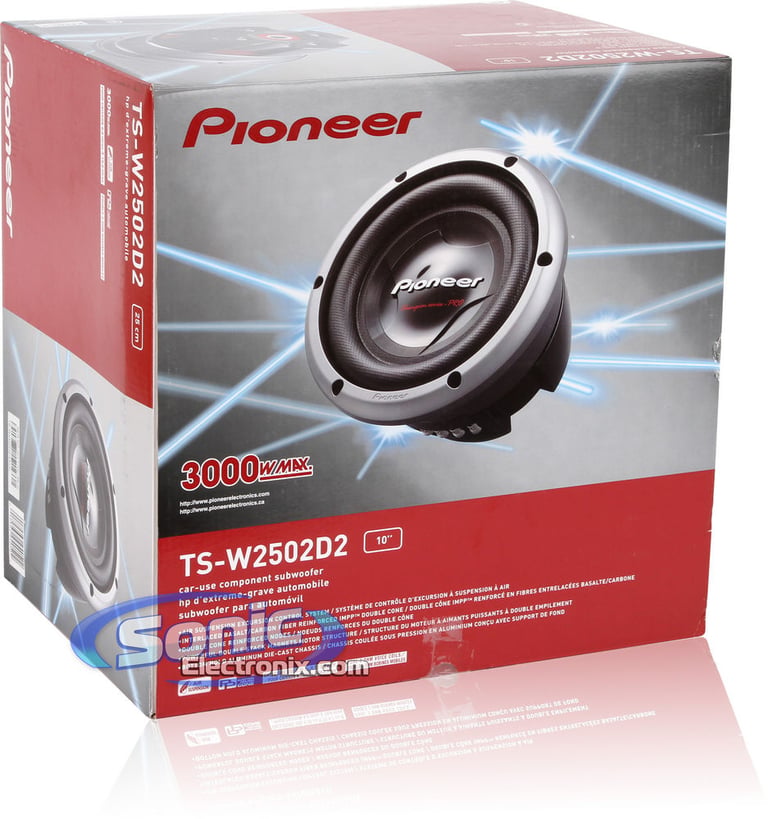

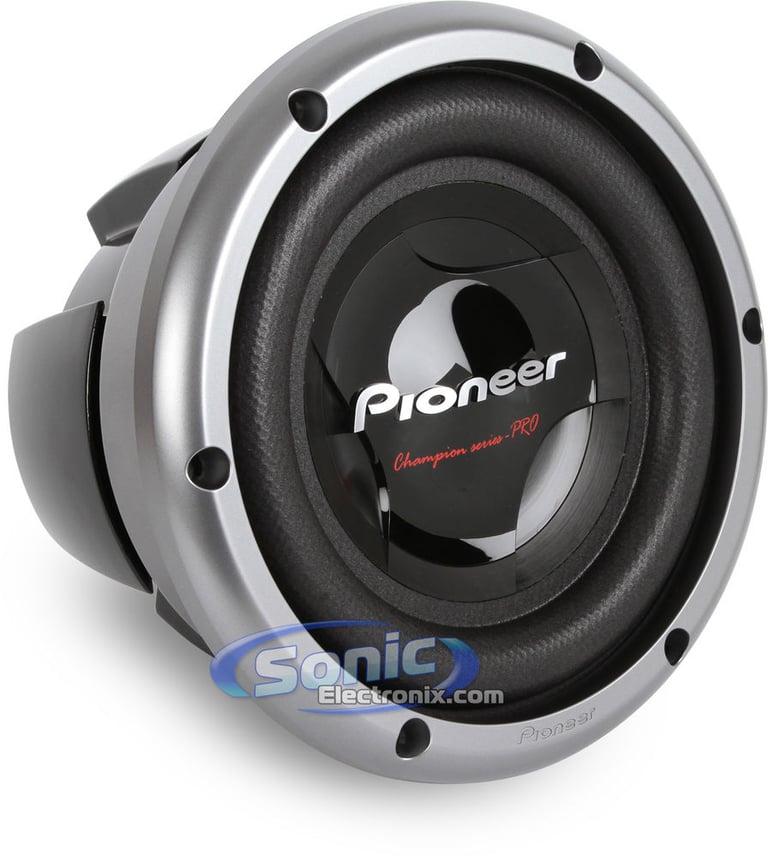

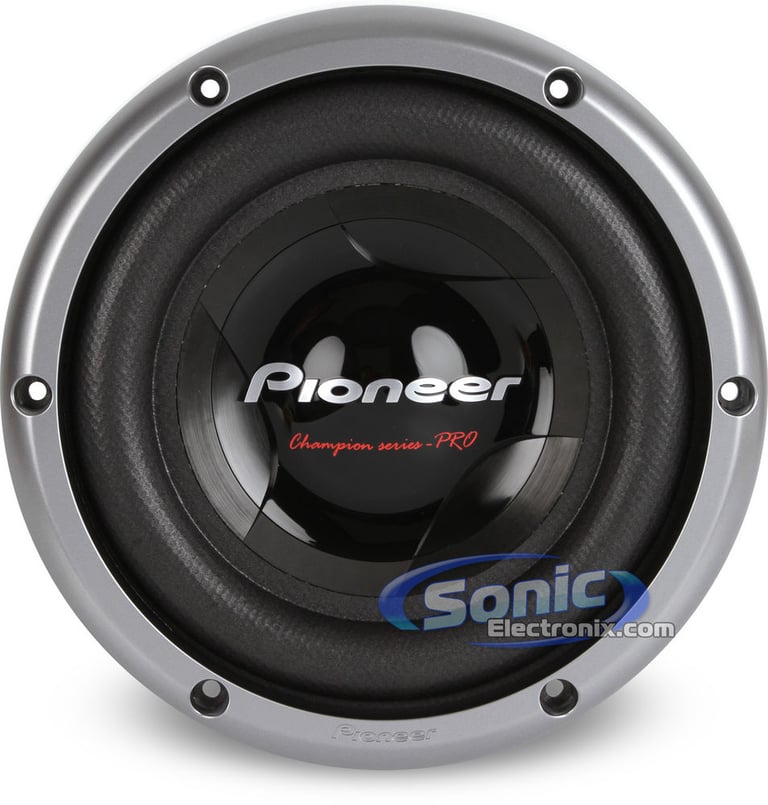

Pioneer Premier TS-W2502D2 Features:
  • 10" Dual 2 ohm Champion PRO Series Subwoofer
  • Power Handling:
    • Peak: 3000 watts
    • RMS: 800 watts
  • Impedance: Dual 2 ohm
  • Interlaced basalt/carbon fiber reinforced IMPP cone
  • Wide-roll, 3-layer fiber woven radial with honeycomb cloth surround
  • Copper voice coil wire
  • Phenol resin coated glass cloth voice coil bobbin
  • Dual 4-layer, long voice coil
  • Double stacked (85oz) magnet
  • Frequency response: 20-150 Hz
  • Sensitivity: 89 dB
  • Aluminum die-cast rigid chassis basket design

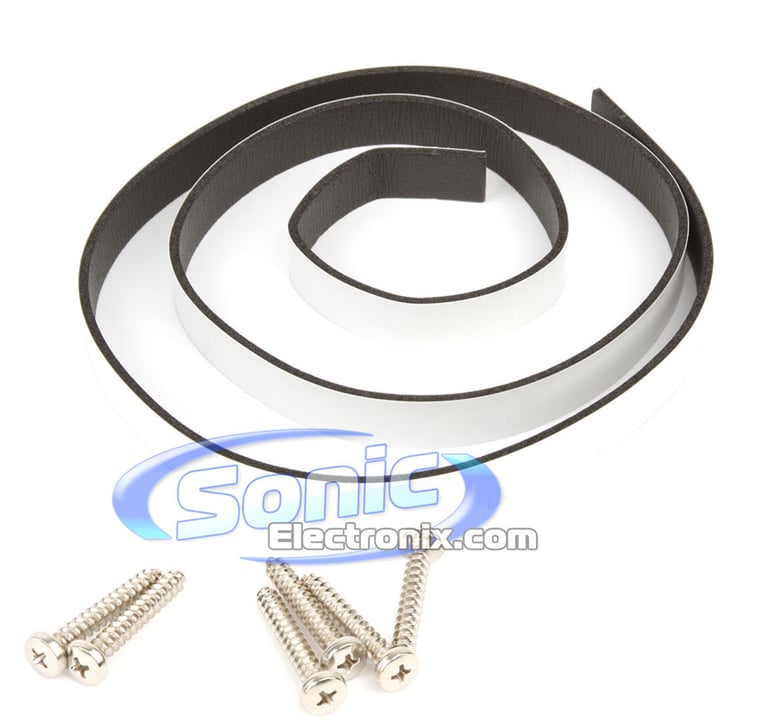

  • 1-Piece rubber gasket

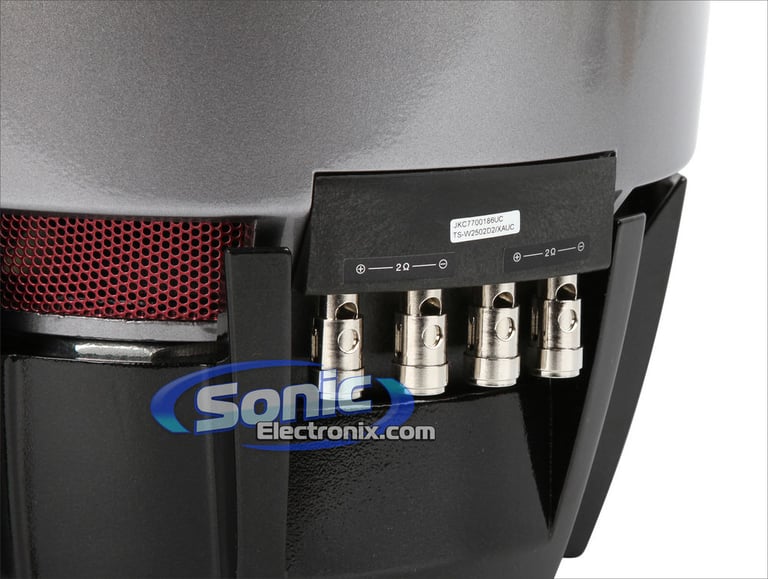

  • Integrated single-sided silver compression terminals wire terminals
  • Mounting Depth: 6-5/8"
  • 1-year SonicElectronix.com warranty

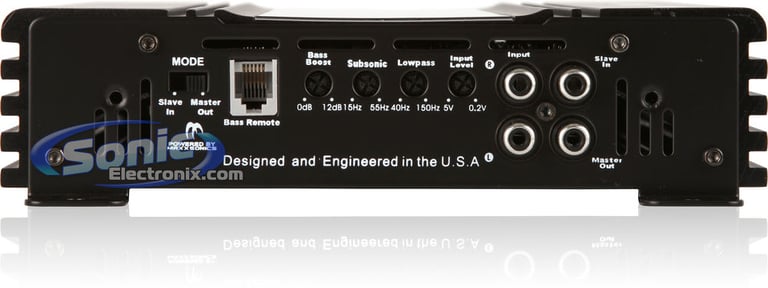

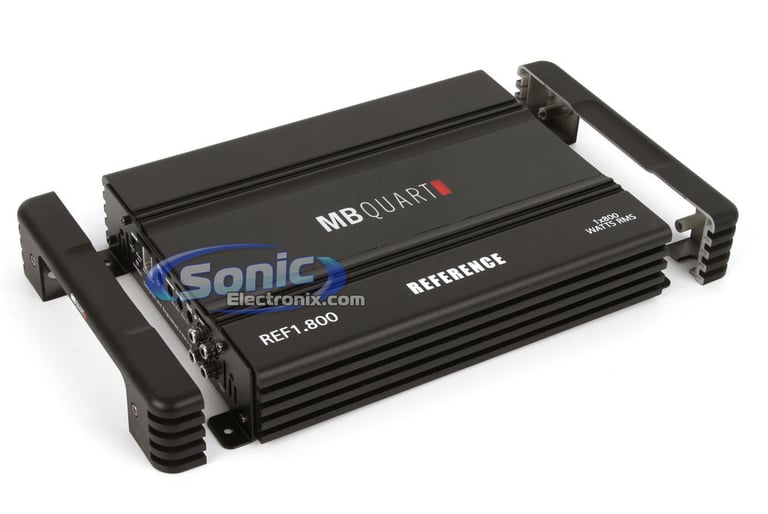

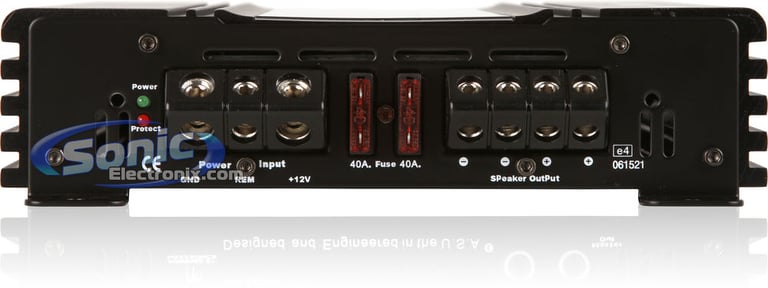

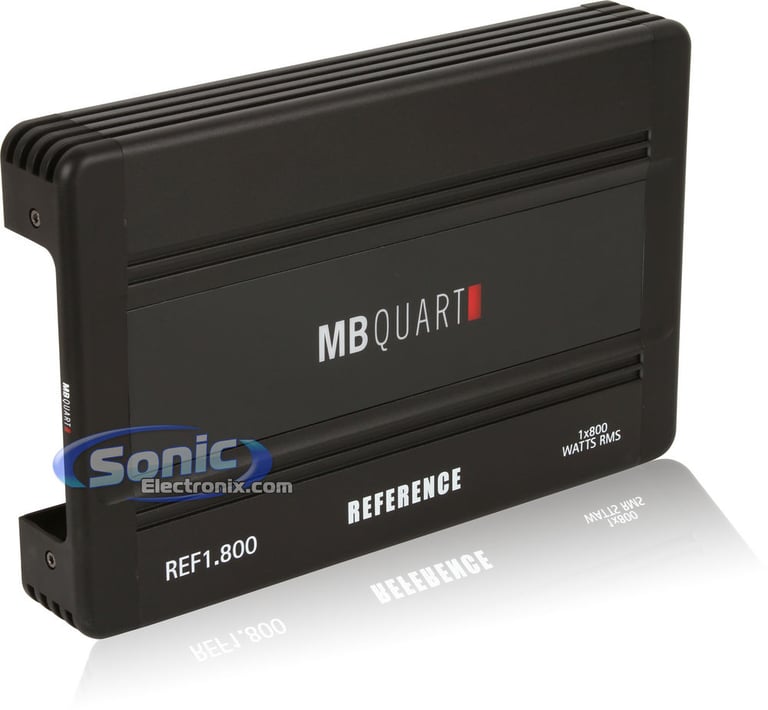

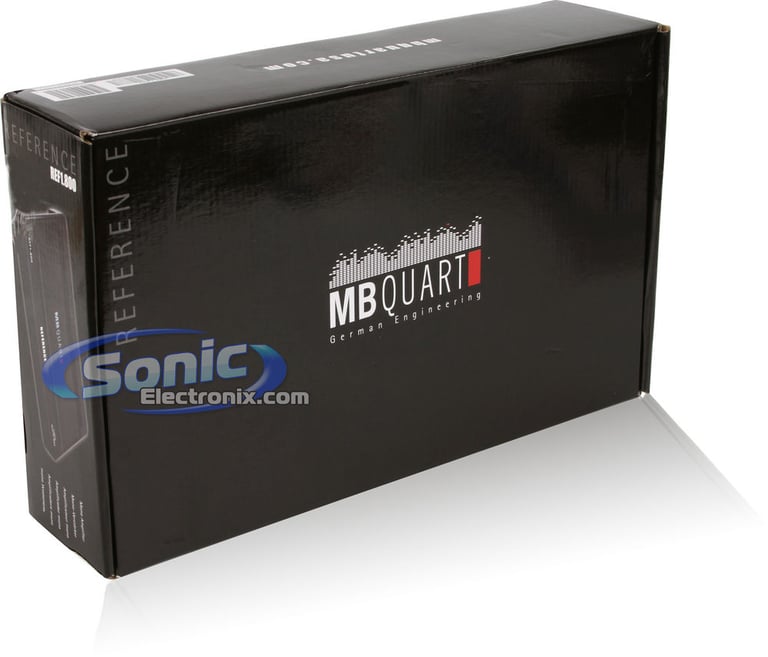

MB Quart REF1.800 Features:
  • 800W RMS Reference Series Monoblock Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 650 watts x 1 chan.
    • 1 ohm: 800 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

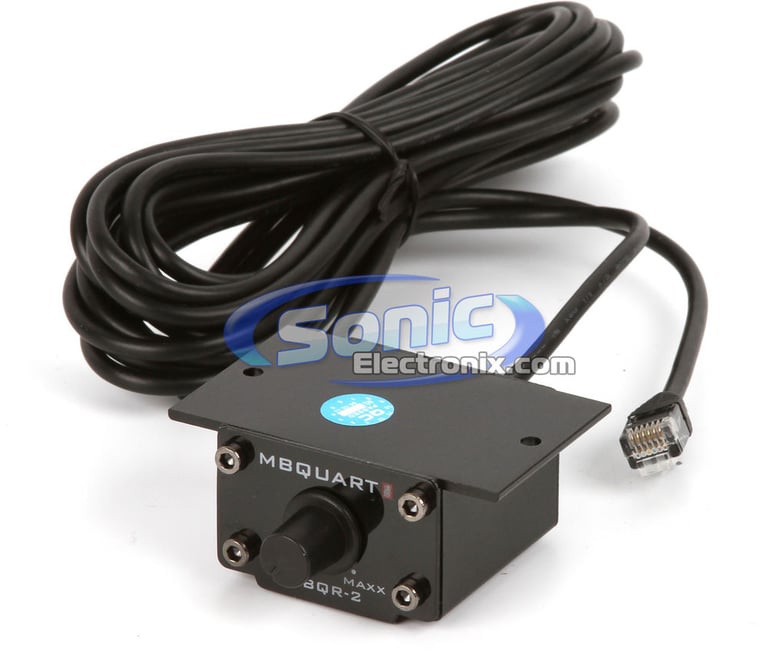

  • Wired remote bass level control included
  • LED power (blue) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs

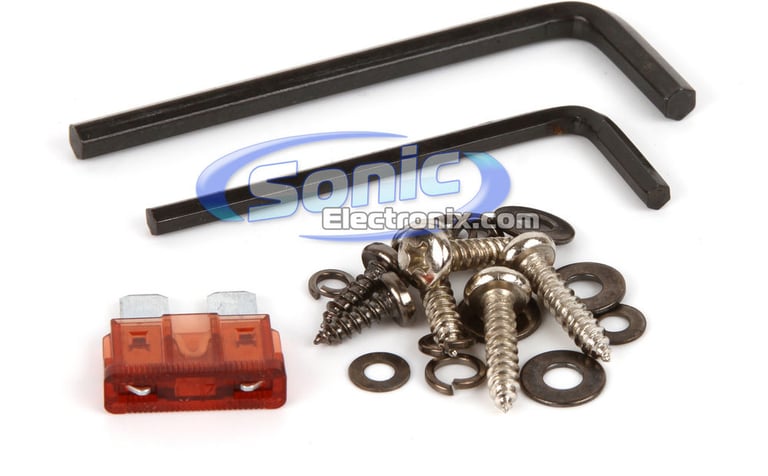

  • Nickel-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-5V
  • Variable low-pass filter (40-150 Hz, 24 dB/octave)
  • Subsonic filter (15-55 Hz)
  • Damping factor: >200
  • Frequency response: 15-250 Hz
  • Dimensions: 12-3/16"L x 7-3/4"W x 1-7/8"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

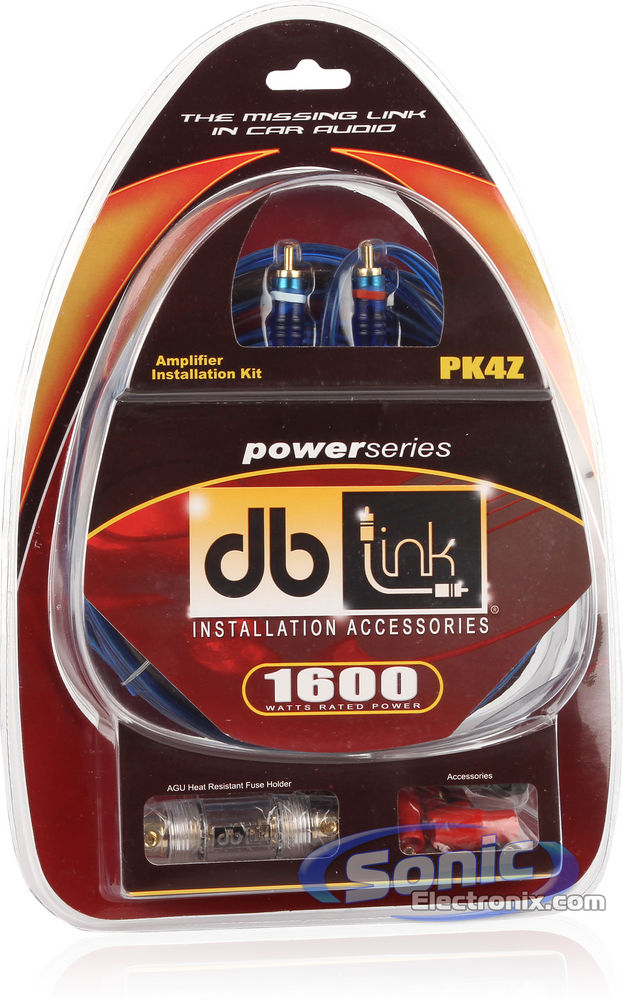

db Link PK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

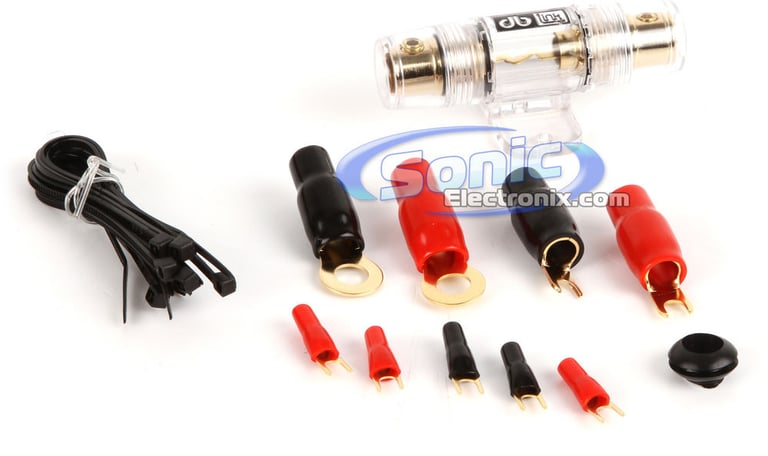

Amp Kit Includes:

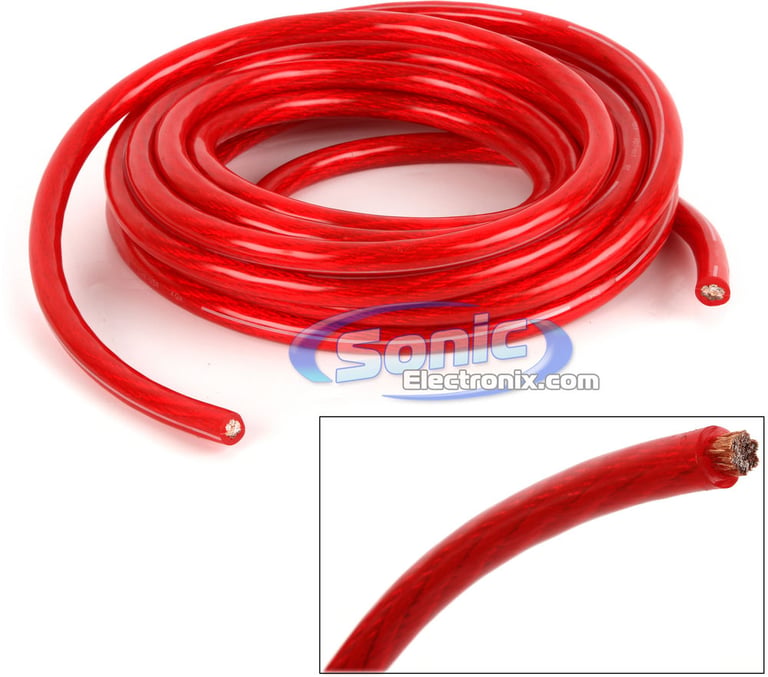

  1. 17 ft. of 4 AWG Red power cable

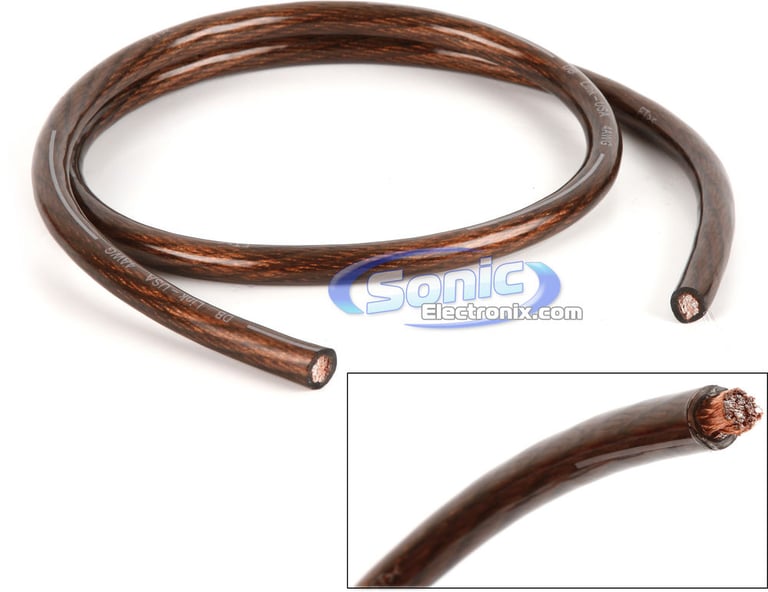

  2. 3 ft. of 4 AWG Black ground cable

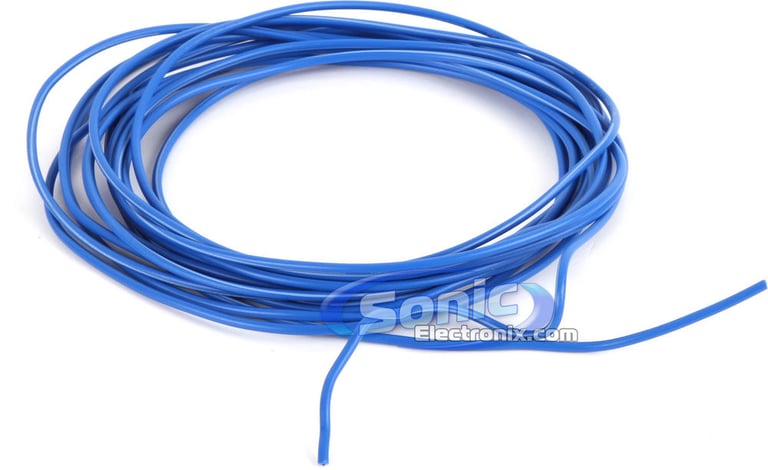

  3. 17 ft. of 18 AWG Blue remote turn-on wire

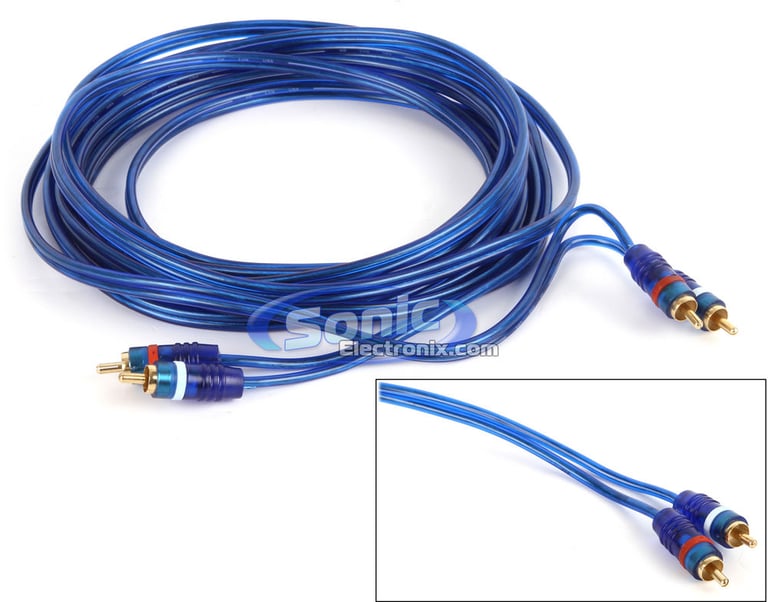

  4. 17 ft. of Blue shielded RCA cable

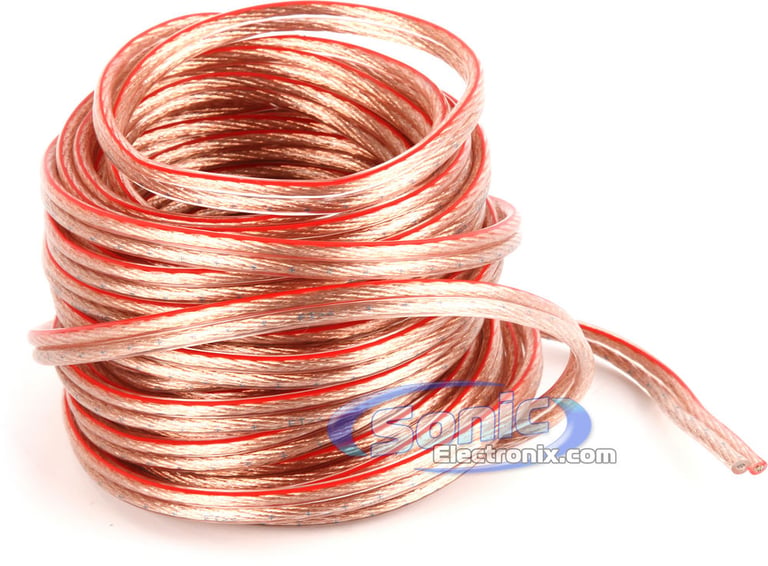

  5. 25 ft. of 16 AWG speaker wire
  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse

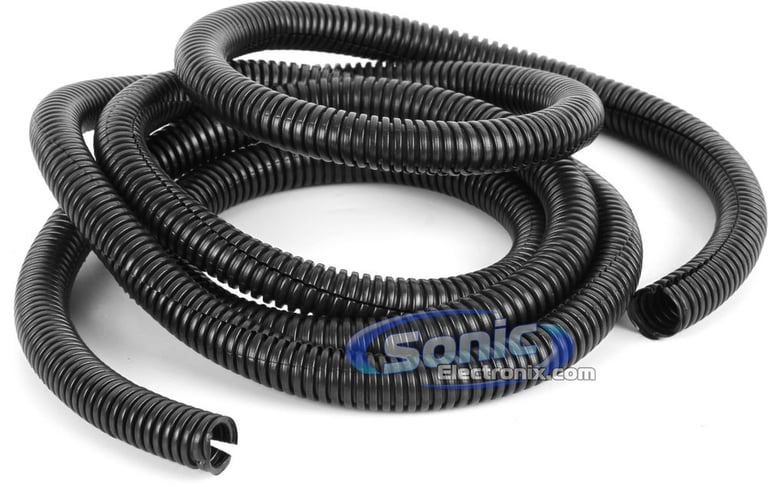

  8. 5 ft. of Black split loom tubing
  9. Other installation accessories

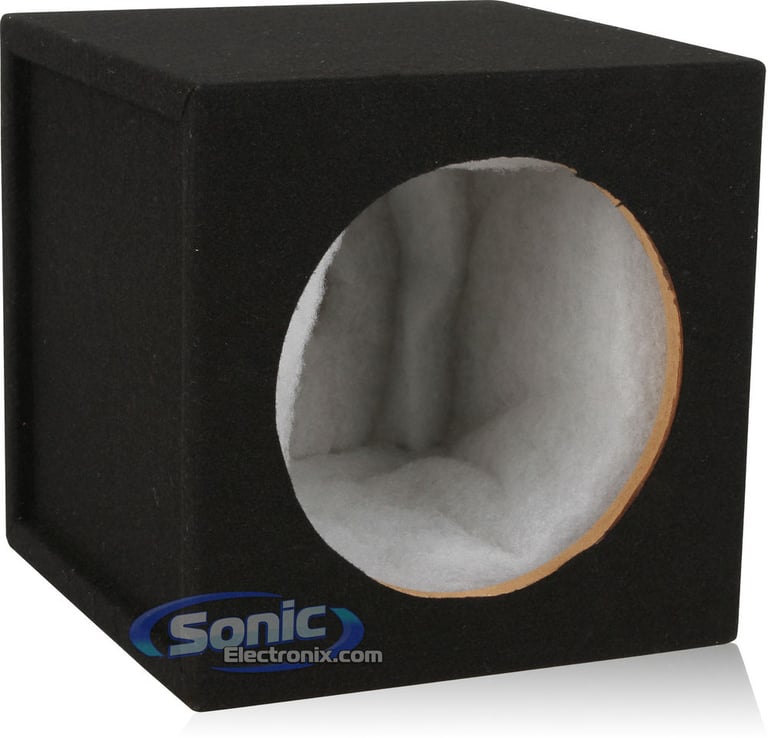

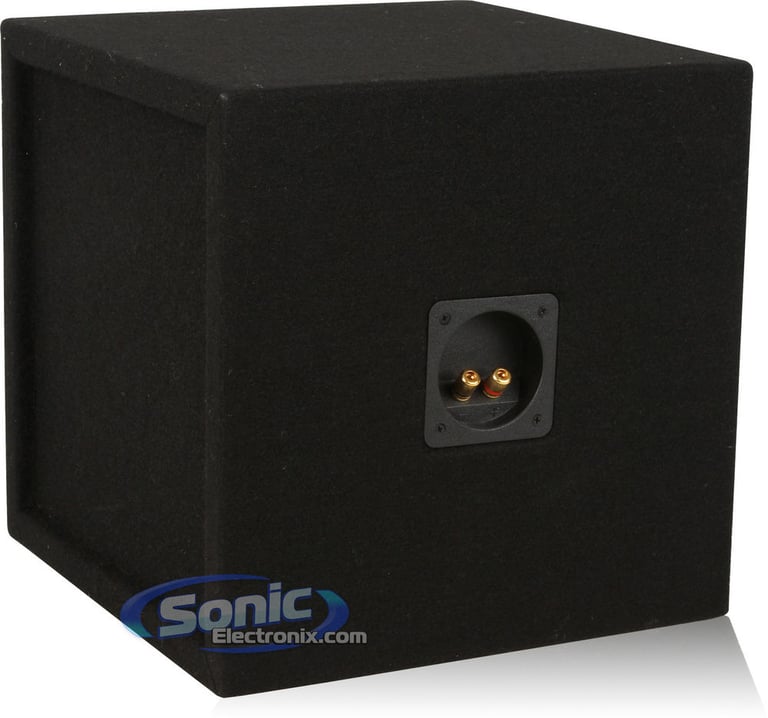

10SSPF Features:
  • 10" Single Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet

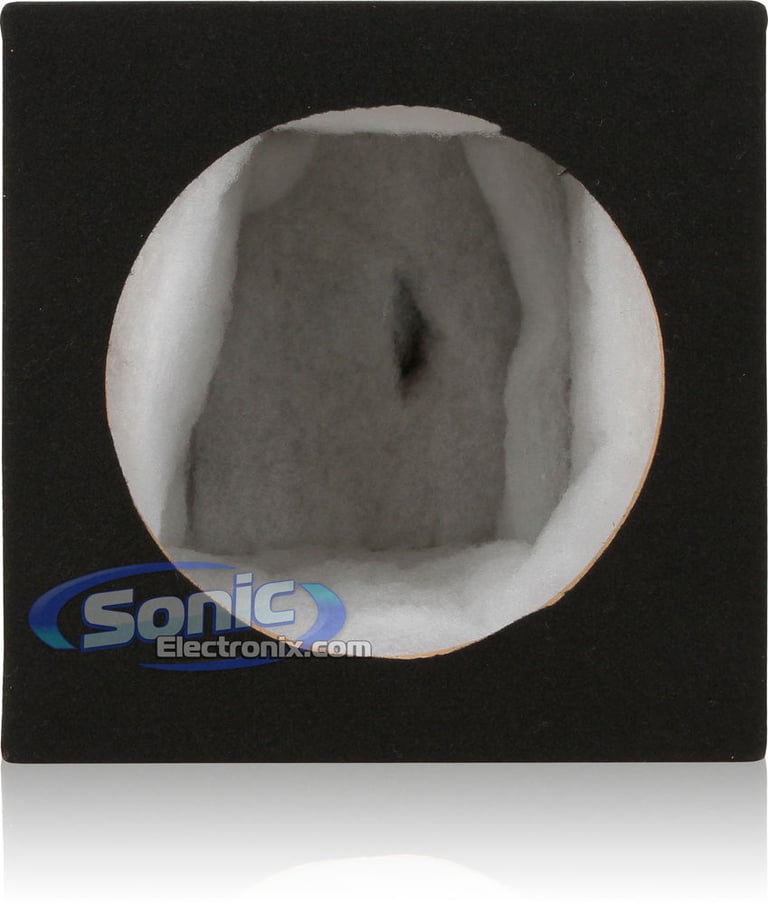

  • Pre-lined with Poly-Fil

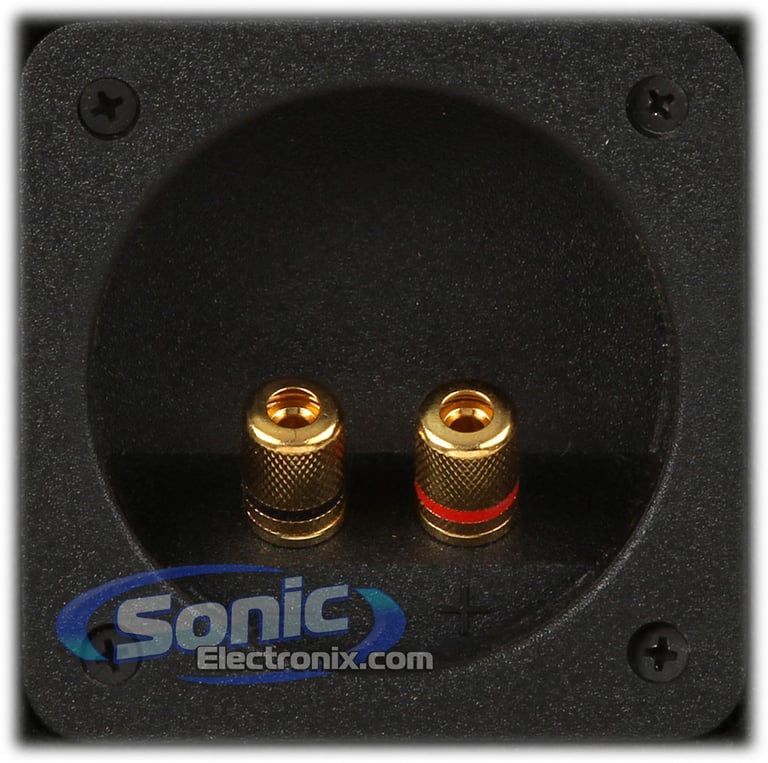

  • Gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.7 cubic feet (per chamber)
  • Total box volume: 0.7 cubic feet
  • Dimensions: 12-1/2"D x 12-1/2"W x 12-1/2"H

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
650 watts x 1 channel
RMS Power @ 1 ohm
800 watts x 1 channel
Peak Power Output
Not Specified
Amplifier Specifications
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<0.1%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 150 Hz
Subsonic Filter
15 - 55 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
40A x 2
CEA-2031 Compliant
Yes
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
800 watts
Total RMS Power Handling
800 watts
Peak Power Handling
3000 watts
Total Peak Power Handling
3000 watts
Woofer Surround
Wide-Roll 3-Layer Fiber Radial
Woofer Composition
Carbon Fiber
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Sensitivity
89 dB
Frequency Response
20 - 150 Hz
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
1
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
12-1/2"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
1
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

TS-W2502D2_REF1.800

Weight:

48.52lbs

Internal SKU:

tsw2502d2_ref1800

Internal Product ID:

39311

Customer Ratings & Reviews


3000W Pioneer + MB Quart Bass Bundle thumbnail image

5 star
72%
4 star
20%
3 star
6%
2 star
0%
1 star
1%



Durability
4.6
Value
4.8
Features
4.7
Design
4.7
Usability
4.7

Customer Reviews

Sort by:

Loading...

Big Boom Big Bang for buck

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

I was looking to replace two old school (mix and match) 10"s with one 10" but it needed to handle plenty of power. After looking at so many subs and factoring the cost I decided to go with Pioneer 800rms sub.
I initially had this hooked up to an RE Audio dts 1001.1 which supposedly dishes out 800rms at 1ohm. Well, that wasn't the case with my experience.
So now I have a Pioneer amp that does 1200rms at 1ohm load hooked up to this sub and holy sh///t. This things hits hard for only 1 10" sub.
I have it in a 1cft ported box. My cars weak electrical system coudln't handle the demand of the amp and sub so I did the big 3 and bought an extra battery.
I definitely do not regret investing in this sub. My coworker has two 12'" kicker cvrs and after he heard my Pioneer, he admitted that my setup was almost louder than his.
Anyway, my biggest advice if you plan on buying this sub is: do not skimp on the amp. Make sure it can deliver TRUE 800rms or more watts. This sub is the biggest bang for your buck you'll find anywhere on the internet. Local shops don't even come close to Sonics prices.

By JM on March 30, 2013

19 found this helpful


Great Sub

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

I bought one 10" put it in a ported box. Sounds great! Great sub would recommend to all.

By jp on November 8, 2011

19 found this helpful


Great Subs

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

These subs hit pretty hard inside my soft top wrangler. They sound great in a sealed box but definitely more deep bass in a vented box. You cant for wrong with pioneer.

By Richard on February 13, 2013

18 found this helpful


amazing for the money

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

I had 2 of these on a 3500 watt boss amp with a 3.5 farad boss cap. an 5.2 cubic foot box. needed a 6 cubic foot box bad. these subs are off the chain. never had any problems for 9 or 10 months besides blowin the box apart twice. dont get a pre-fab box with these. get somethin made good

By rich$ on September 1, 2012

18 found this helpful


Awesome

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

These subs pound hard for the price. I highly recommend if your'e on a budget to invest in these subs.

By Benjamin on January 5, 2014

15 found this helpful


pioneer ts-w2502d2 kicking bass

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

i have two 10 inch pioneer premiers in a ported box and a JL audio 1000.1 j2 amp and it kicks so bass out i owned one JL w7 13 1/2 but it poped so i need some bass

By matt on January 7, 2013

15 found this helpful


pioneer ts-w2502d2 kicking bass

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

i have two 10 inch pioneer premiers in a ported box and a JL audio 1000.1 j2 amp and it kicks so bass out i owned one JL w7 13 1/2 but it poped so i need some bass

By matt on January 7, 2013

17 found this helpful


Solid, Quality build

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

This Pioneer sub was not my first choice. I also own RE subs which I have broken in yet for give a comparison. I am running these, 2x Pioneers and they do very well powered by Rockford Fosgate T1500bdcp wired for 2 ohms.

By Marc on November 10, 2013

14 found this helpful


Sub is okay

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

Sub has a clean sound, never put it in a ported box ;(
handles power like a champ!
I would recommend!
CHECK wire diagrams or it will smell horrible fast

By blake on October 14, 2013

15 found this helpful


This Sub slaps Bass

The following review is for TS-W2502D2, which is a part of the bundle you are viewing.

Great Sub for the Price Hits hard . Sounds like a 12 inch sub but really its a 10 its great thanks Sonic Electronix

By Elijah on April 22, 2013

15 found this helpful




AVH-X3600BHS small

Pioneer AVH-X3600BHS OPEN BOX COMPLETE

Built-in HD Radio In-Dash 6.1" Touchscreen DVD Receiver w/ App Mode, MirrorLink, and GPS Ready

$269.99

List price $479.99

DTX350P-WHITE small

*** WAS $70 *** Beyerdynamic DTX 350 P - WHITE On-Ear Closed-Back Headphones

On-Ear Closed-Back Headphones

(6)

$39.99

List price $139.00

P400-2-RB_KFC-W2512 small

1200W Complete Rockford Fosgate + Kenwood Bass Package

Rockford Fosgate P400-2 Amplifier + Kenwood KFC-W3012 Sub + 8 Gauge Amp Kit + 12" Sealed Box

(125)

$248.00

List price $599.96

D2GN small

D2GN Lime Green iPad Protection Case/Cover for Current/New iPad Generation 4, Generation 3 and iPad 2

Wake/Sleep Smart Cover Function and Cutout for Apple Logo. Works with Current New iPad Generation 4, Generation 3 and iPad 2

$4.99

List price $19.99

XR653-CS small

JL Audio XR653-CS ( XR653-CSi )

XR-Series 6-1/2" + 4", 3-way Component System

(3)

$339.99

List price $599.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Honda S2000

2016 Audi A3

2004 Oldsmobile Silhouette

2009 Cadillac STS

2002 Ford Explorer

2008 Nissan Versa

2018 Dodge Journey

2015 Kia K900

2007 Subaru Outback

2012 Smart Fortwo

Vehicle
Store
Delete

2004 Harley Davidson FXSTSI Springer Softail

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
