2000W 10" Pioneer + Jensen Bass Bundle

Two 10" Pioneer TS-W253R Champion Series Subwoofers + Jensen Power 900.1 Monoblock Amplifier

Pioneer
Shop all Pioneer
EXCLUSIVE
highlight-star-icon

Two 10" Single 4 ohm Champion Series Subwoofer • 2000W Max • 400W RMS • Jensen Power Monoblock Class A/B Car Amplifier • MOSFET Power Supply • Variable Bass Boost • db Link 4 Gauge Amplifier Kit

Learn more about the 2-tsw253r_power9001

We apologize

This item has been discontinued


Loading...
72-7800 main

Metra 72-7800

Install New Speakers in select 1990-2024 vehicles from Honda, Acura, Isuzu

90
-33.36%

$9.99

List price $14.99

BTS-HN1 main

Crux BTS-HN1

Add Bluetooth Streaming, USB, and AUX Support in select 1998-2005 vehicles from Honda

-38.01%

$92.95

List price $149.95

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

115
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

FRING65 main

NVX FRING65

Universal 6.5" or 6.75" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

43
-10.01%

$17.99

List price $19.99

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

C1-650x main

JL Audio C1-650x

100W RMS 6.5" C1 Series 2 Way Coaxial 4-ohm Car Speakers

42
PRO-X6.4BMPK main

DS18 PRO-X6.4BMPK

1000W Peak (500W RMS) 6.5” PRO-X Series 4-ohm Pro Audio Component Speakers Set

4
GTO629 main

JBL GTO629

360W Peak (120W RMS) 6.5" GTO Series 2-Way Full Range Coaxial 3-ohm Car Speakers

35
-34.45%

$117.99

List price $180.00

Description


Pioneer brand icon

Authorized dealer

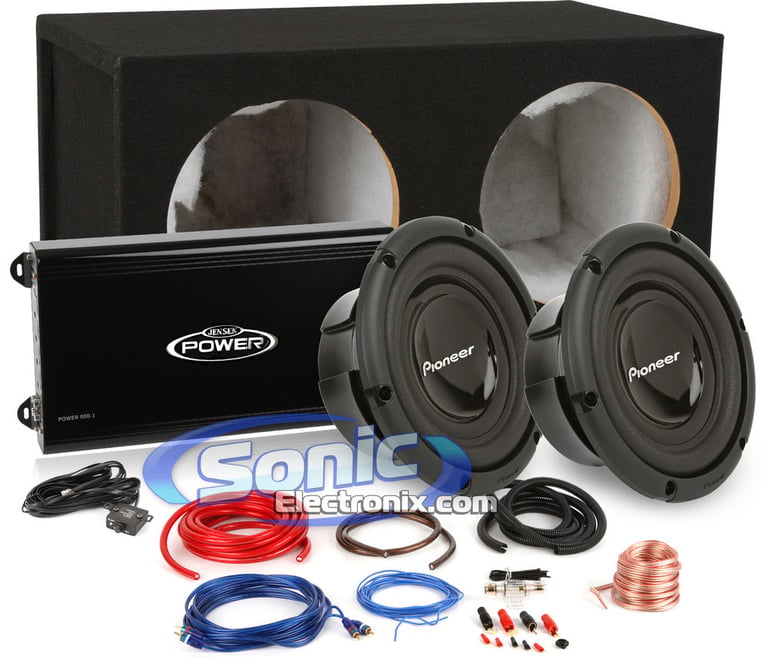

Pioneer and Jensen Bundle

This Sonic Electronix Exclusive Bass package showcases a Jensen Power 900.1 Amplifier along with two 10" Champion series Pioneer subwoofers. This excellent bass package pushes 400 watts of clean, continuous RMS power. The Pioneer subwoofers have Single 4 ohm voice coils; meant to be wired together and then directly to the amplifier, to a final impedance of 2 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Pioneer TS-WS253R Champion series subwoofer requires 200 watts of RMS power. The included Jensen Power 900.1 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Pioneer subwoofer, Jensen amplifier, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

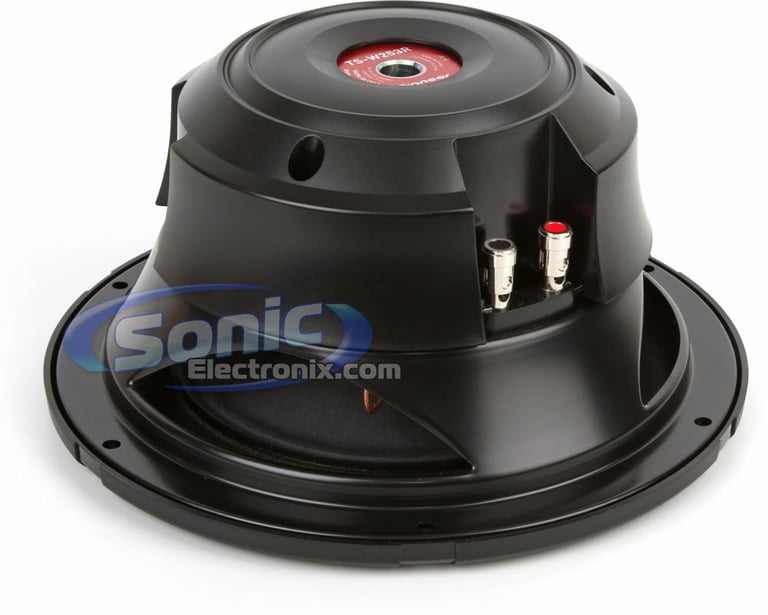

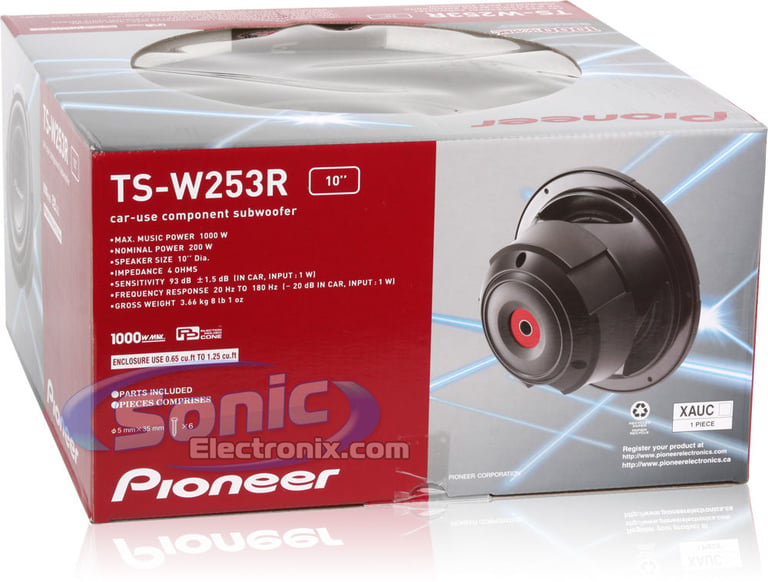

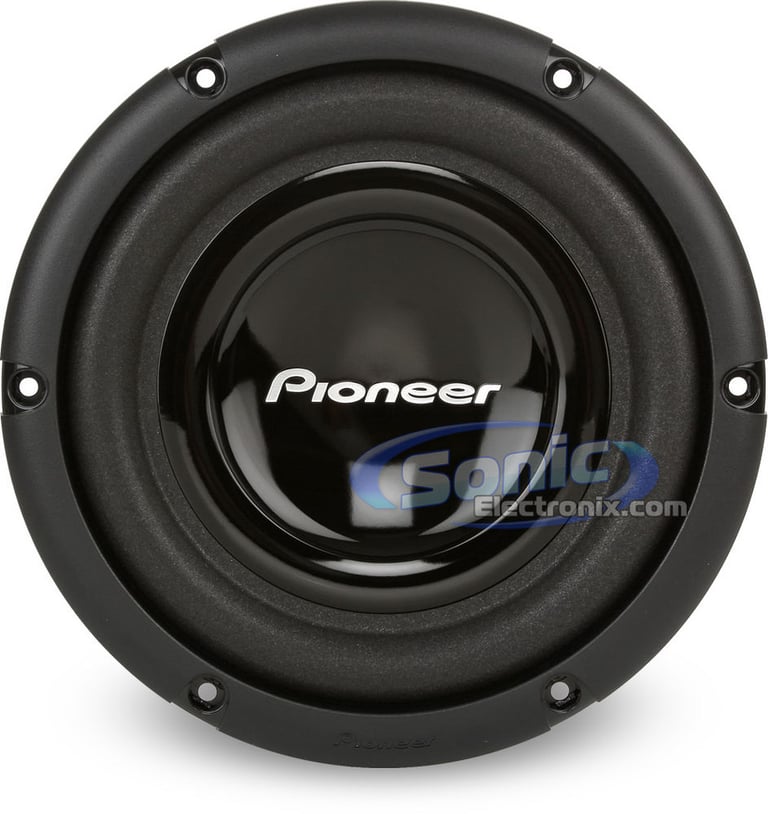

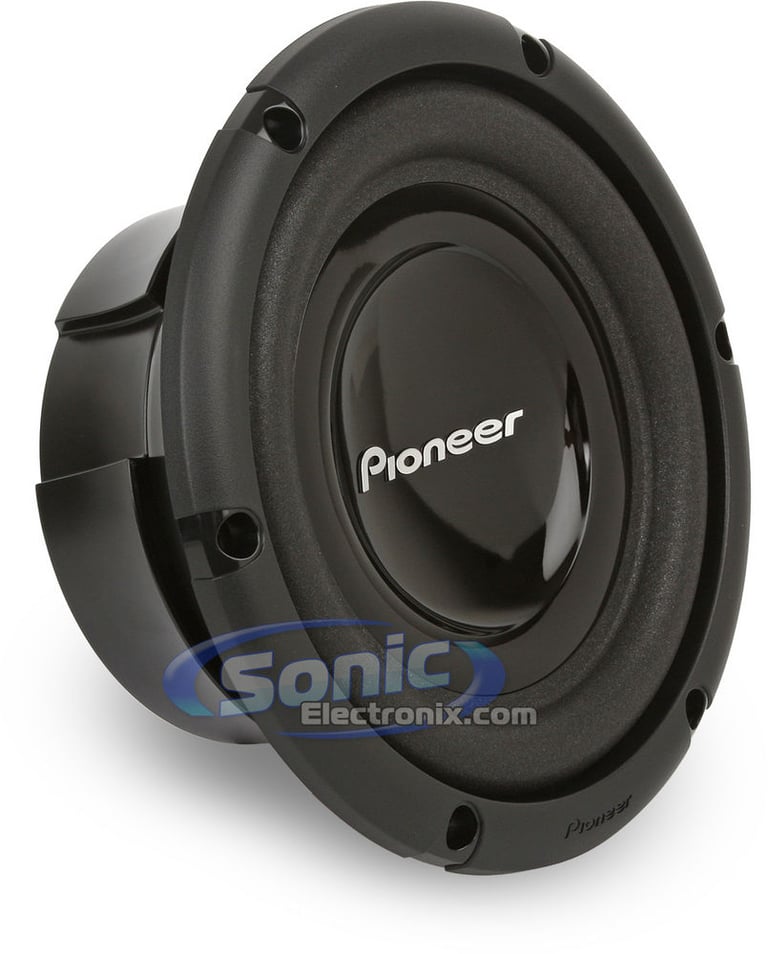

Pioneer TS-W253R Features:
  • 10" Single 4 ohm Champion Series Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 200 watts
  • IMPP Composite and paper cone woofer
  • Double cone design with reinforcement nodes
  • Urethane surround
  • Nomex spider
  • Projected pole yoke with vented pole
  • 6 Layer, long copper voice coil
  • 32oz. Strontium magnet structure
  • Stamped basket with magnet cover
  • Integrated single-sided spring compression terminals
  • 1-year Sonic Electronix warranty

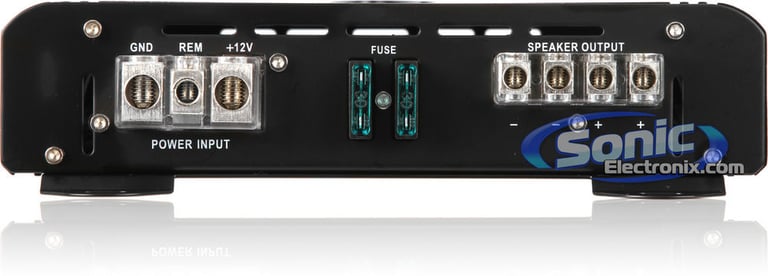

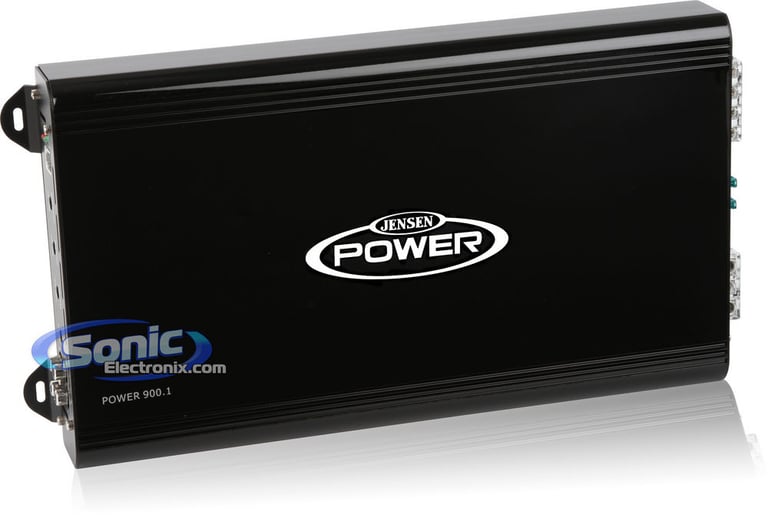

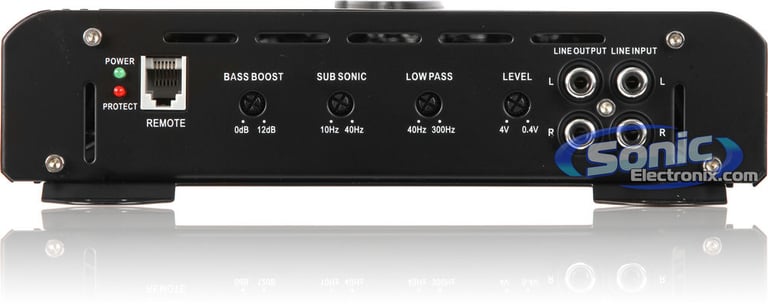

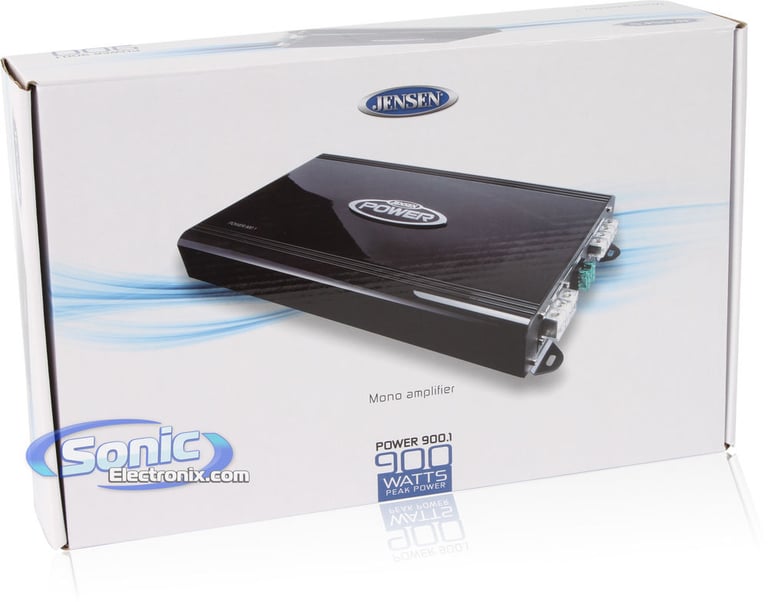

Jensen Power 900.1 Features:
  • Monoblock Power Series Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 450 watts x 1 chan.
  • Max power output: 900 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply

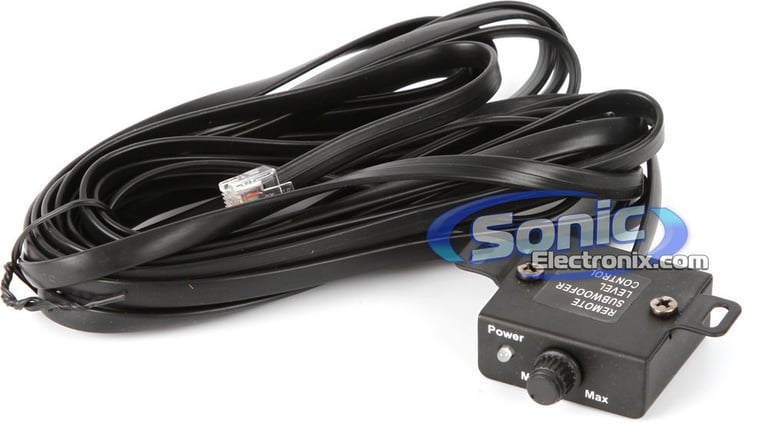

  • Remote input level control with 5m cable
  • LED power (green) and standby/fault (red) indicators
  • Variable bass EQ (0-12 dB @ 45 Hz)
  • Soft Start Turn-on
  • Monoblock operation
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, DC-Offset, and speaker short protection)
  • Heavy duty extruded heatsink for extreme heat dissipation
  • High current bi-polar output transistors
  • Optimized class AB design minimizes distortion and reduces idle current
  • Chrome-plated RCA level inputs
  • Chrome-plated screw terminals
  • Variable Low-Pass Filter (40-300 Hz, 12 dB/octave)
  • Subsonic Filter (10-40 Hz @ 12 dB)
  • Signal-to-Noise Ratio: >100 dB
  • Frequency Response: 5-300 Hz
  • Variable Input Level: 400mV - 5V
  • THD (Total Harmonic Distortion): 0.02%
  • Fuse Rating: 2 x 30 amps
  • Dimensions: 9"D x 15-3/4"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

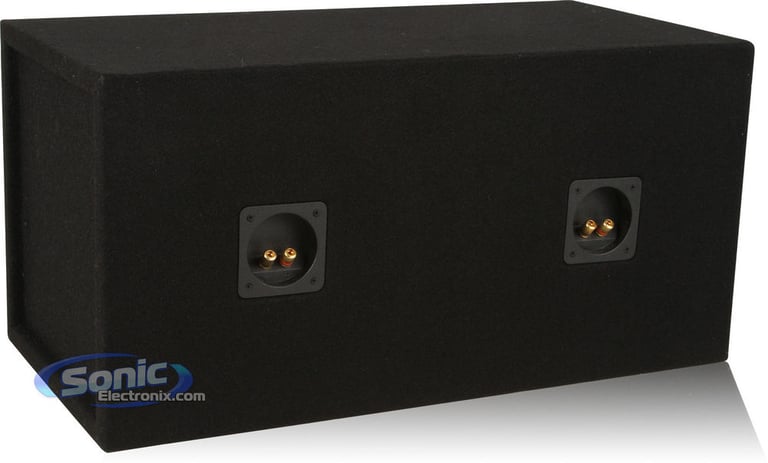

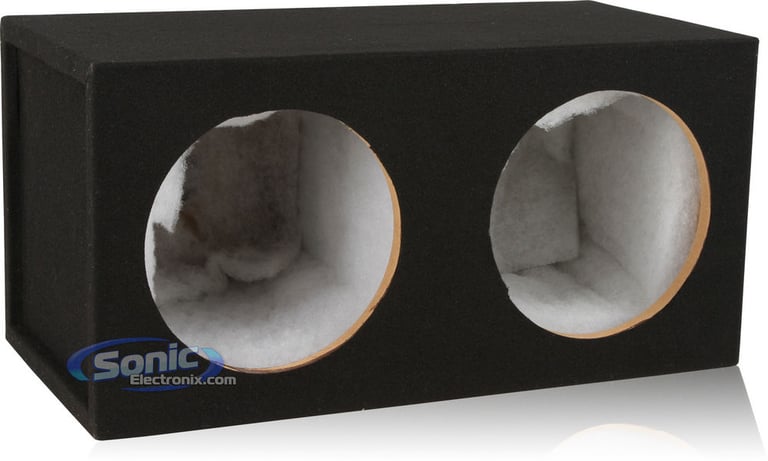

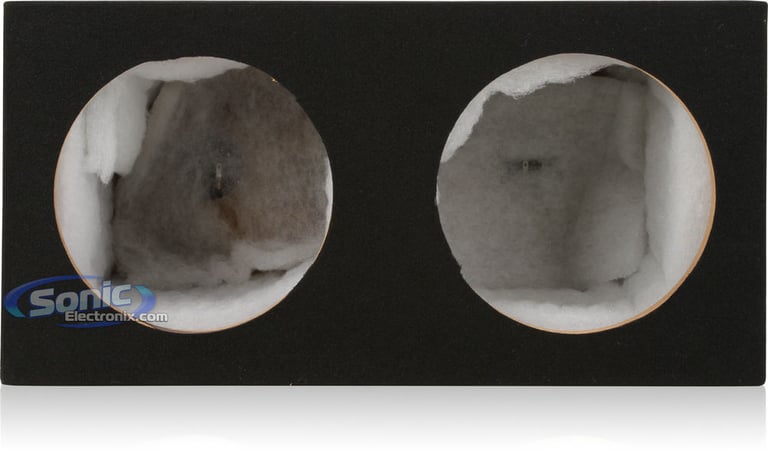

House Brand 10DSPF Features:
  • 10" Dual Sealed Subwoofer Enclosure
  • Durable MDF enclosure for car subwoofers
  • Covered in a black carpet
  • Pre-lined with Poly-Fil

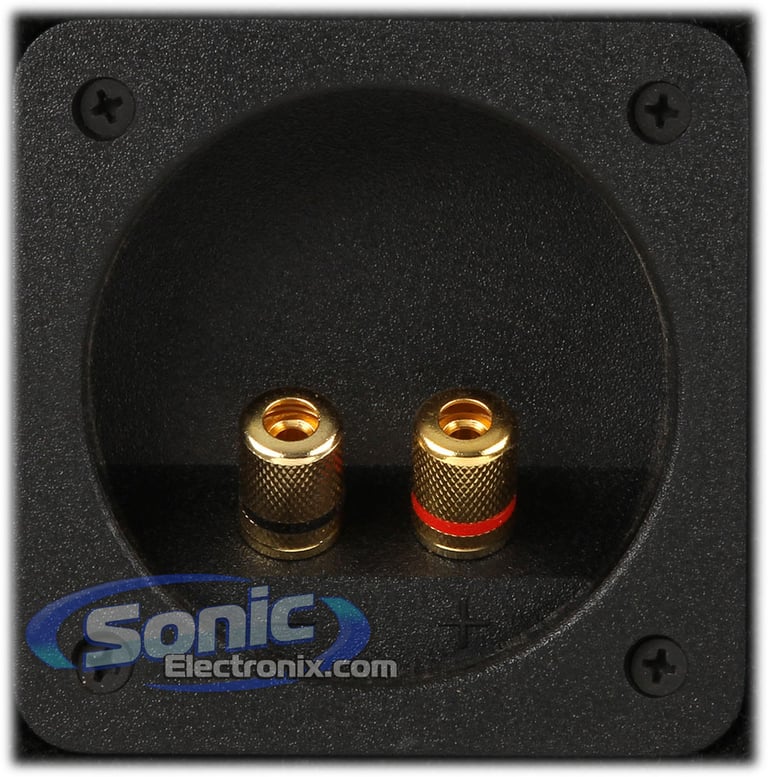

  • Two sets of gold-plated speakers terminals
  • Banana-clip ready
  • Subwoofer mounting depth: 11"
  • Subwoofer cutout diameter: 9-1/8"
  • Box volume: 0.76 cubic feet (per chamber)
  • Total box volume: 1.52 cubic feet
  • Dimensions: 12-1/2"D x 25"W x 12-1/2"H

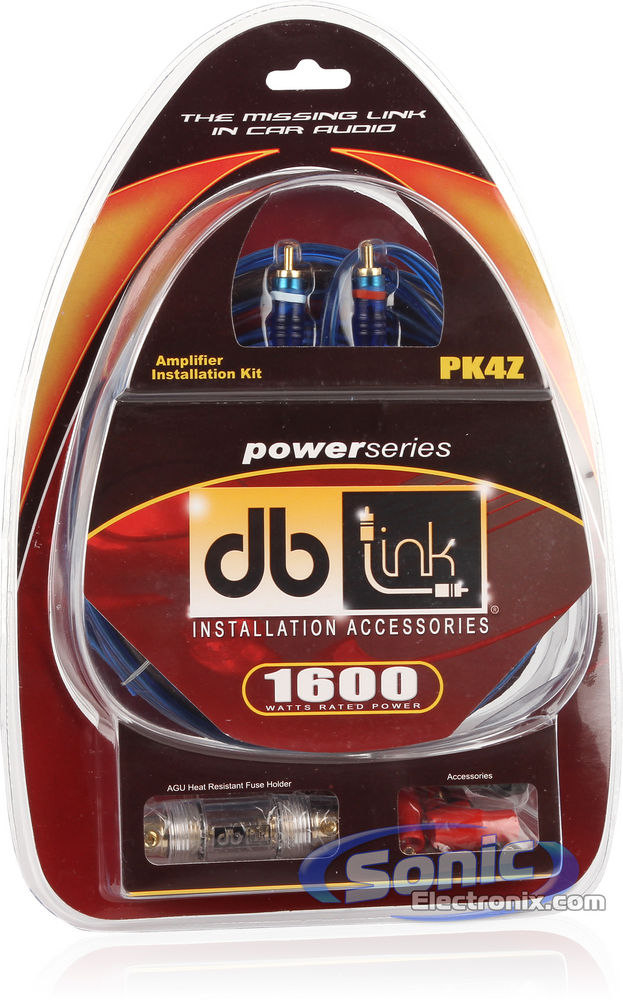

db Link PK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

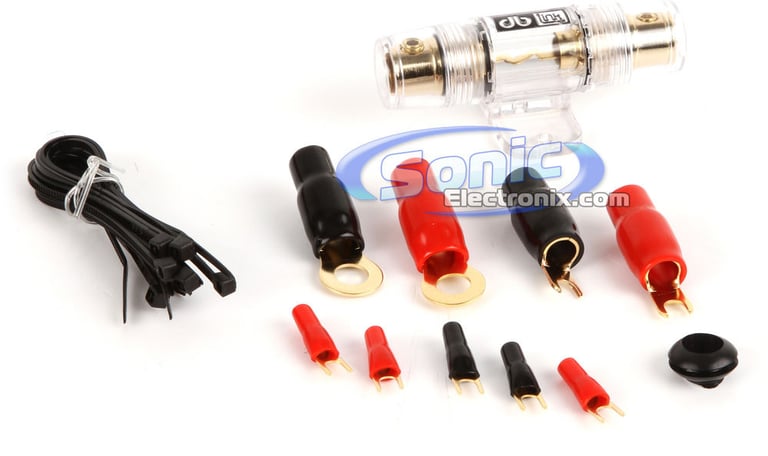

Amp Kit Includes:

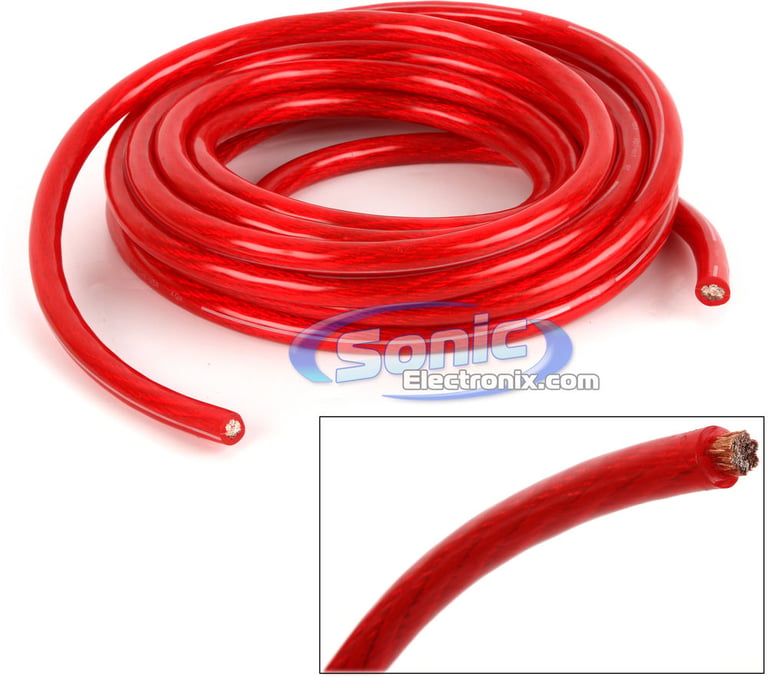

  1. 17 ft. of 4 AWG Red power cable

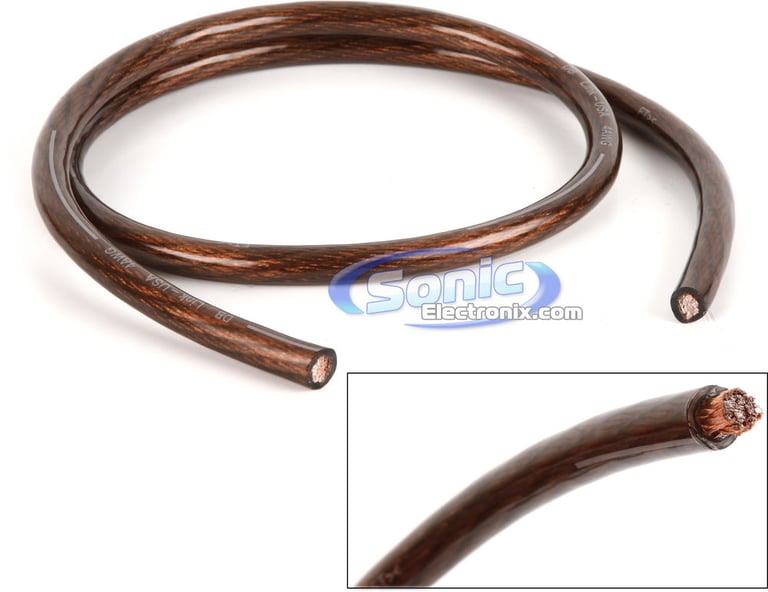

  2. 3 ft. of 4 AWG Black ground cable

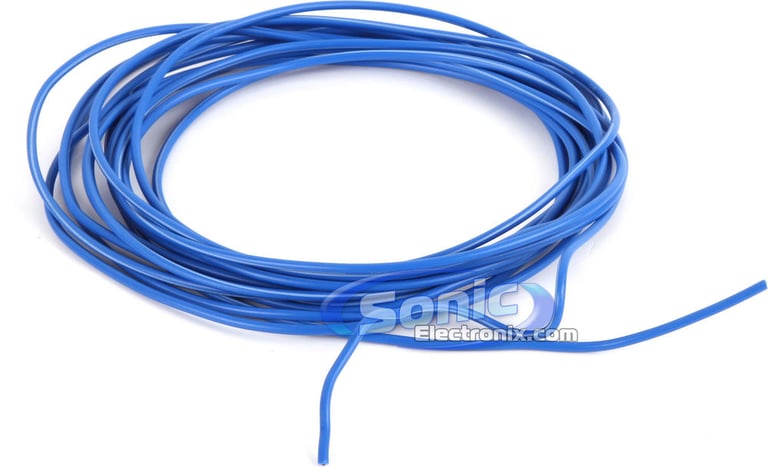

  3. 17 ft. of 18 AWG Blue remote turn-on wire

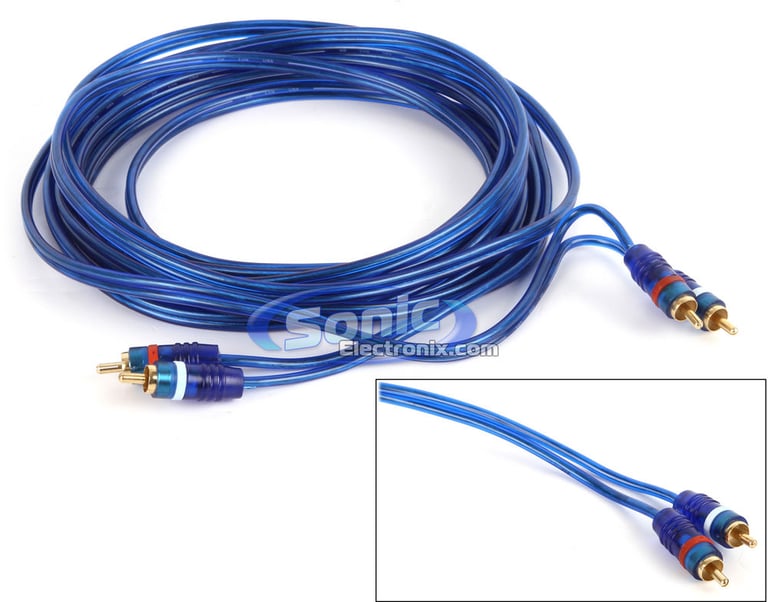

  4. 17 ft. of Blue shielded RCA cable

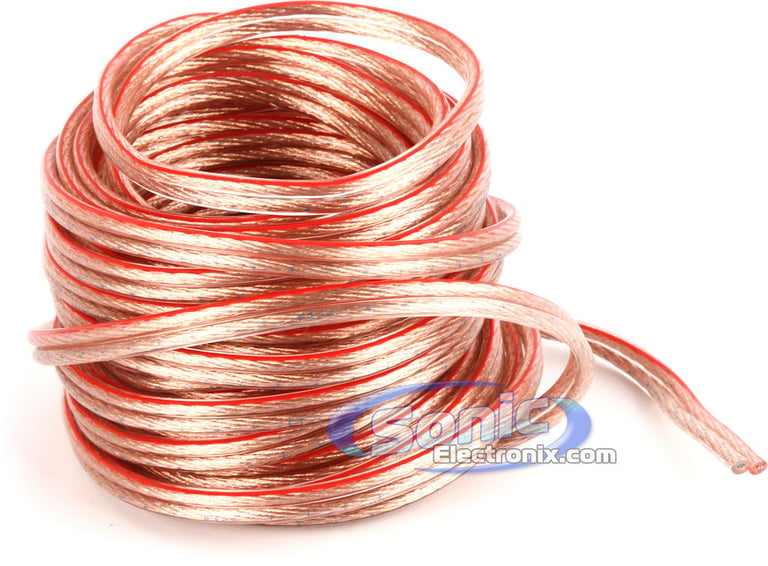

  5. 25 ft. of 16 AWG speaker wire
  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse

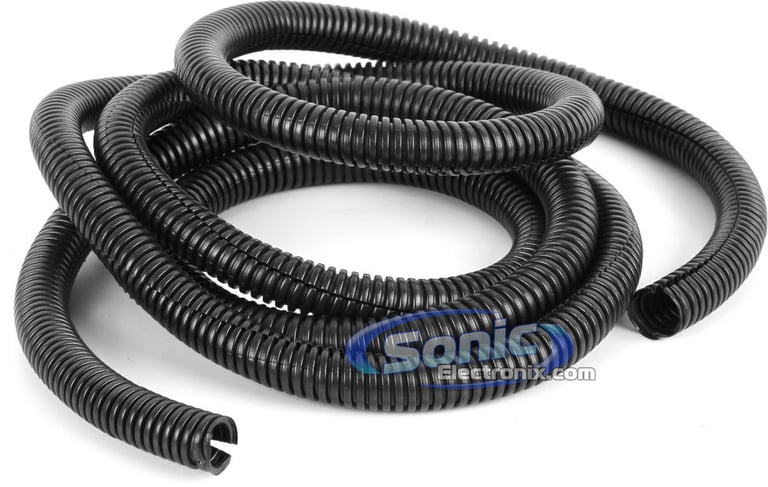

  8. 5 ft. of Black split loom tubing
  9. Other installation accessories

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99

T2652-S main

Rockford Fosgate Power T2 T2652-S

400W Peak (200W RMS) 6.5" Power Series 2 Way Component 4-ohm Speaker System

42

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(148)

$506.68

List price $593.98

Specifications & Details


Subwoofer Amplifier Power Specifications
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
450 watts x 1 channel
Peak Power Output
900 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
0.02%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
40 - 300 Hz
Subsonic Filter
10 - 40 Hz
Signal-to-Noise Ratio
>100 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
30A x 2
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
RMS Power Handling
200 watts
Total RMS Power Handling
400 watts
Peak Power Handling
1000 watts
Total Peak Power Handling
2000 watts
Woofer Surround
Urethane
Woofer Composition
Injection Molded Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Enclosure Specifications
Box Type
Sealed
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
12-1/2"
Width
25"
Depth
12-1/2"
Wood Thickness
3/4"
Number of Terminals
2
Terminal Type
Binding posts (banana clip ready)
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

2-TS-W253R_Power 900.1

Weight:

58.00lbs

Internal SKU:

2-tsw253r_power9001

Internal Product ID:

39463

Customer Ratings & Reviews


2000W 10

5 star
59%
4 star
34%
3 star
5%
2 star
2%
1 star
0%



Durability
4.3
Value
4.8
Features
4.5
Design
4.4
Usability
4.8

Customer Reviews

Sort by:

Loading...

Not used to a 10 that will hit a decent low!

The following review is for TS-W253R, which is a part of the bundle you are viewing.

Im running it solo in a custom fiberglass box around 0.75-0.82 and it hits a clean 25hz! I think its getting somewhere around 250rms 900w max its hard to judge a class D @ 2 ohms. Im just happy when it knocks the congestion outta my chest and does it without a load of cone distortion. I'd buy another one if I had the money free'd up!

By Ken on March 6, 2010

25 found this helpful


Beautiful Amp

The following review is for Power 900.1, which is a part of the bundle you are viewing.

It's awesome, exactly what i wanted, great quality in terms of the product build and terminals. Manual had the answer to all my questions and all the specs are what they were listed as.

By Dre on April 29, 2014

25 found this helpful


Great mono amp for Price

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This is one of the cheaper amps, but does rated or close to rated power. 60 amps of fuses for 450rms @2ohms. For people who complain about fuses popping and this amp not working, YOU ARE WIRING YOUR SUBWOOFER INCORRECTLY. Clearly not one ohm stable and some reviews I read people blame the amp. Know how to use your stuff. Great amp, gets any sub in the right enclosure loud.

By Ears on March 25, 2014

24 found this helpful


great value

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This amp is a great amp to buy. And its for a low price deffenlly recommend!!!

By A-aron on June 17, 2014

22 found this helpful


Works great!

The following review is for Power 900.1, which is a part of the bundle you are viewing.

I installed this amp over a month ago into an inclosed compartment in the back of a SUV. It has worked flawlessly without over-heating since. I really like the remote power control that comes with the unit too. It makes for easy volume control to the sub.

By Gregar on March 12, 2014

19 found this helpful


awesome amp

The following review is for Power 900.1, which is a part of the bundle you are viewing.

Great amp for the price. Love the bass control knob. I have it powering a 12" alpine type r. It is a liitle too big for concealment.

By dave on January 14, 2013

17 found this helpful


Wouldn't Recommend

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This amp has had so many problems. When i first got it in October it worked great, it pushed my 12s hard. But after ten minutes of not even full power it heats up and goes into protect mode. And i have only heard it a few times since november because it doesnt work in the cold. This amp is terrible. Do not buy if you live anywhere where the temperature drops below 50 degress.

By Owen on March 10, 2012

19 found this helpful


N/A

The following review is for Power 900.1, which is a part of the bundle you are viewing.

This amp is not so bad pushes my 12" I've had no problems with even if its all the way up. only gone into protection mode once because it was a very hot day 100 degrees. and no air conditioning in the car.

By Jaime on February 26, 2015

16 found this helpful


Good enough to power smaller subs

The following review is for Power 900.1, which is a part of the bundle you are viewing.

I bought this to match up to my 12 inch Kicker CVR dual 4 ohm sub, wired to 2 ohm impedance. It was a decent sounding combination but after the amp began to overheat (despite the fact air is able to be around and go underneath the amp) I decided to upgrade to JL Audio

By David on July 30, 2013

15 found this helpful


It's a keeper

The following review is for Power 900.1, which is a part of the bundle you are viewing.

Bought this amp and still using it.. Couldn't ask for more really.. Great sound quality.. Great amplifier..

By Timmy on May 1, 2013

15 found this helpful




K350AMA small

AKG K350AMA - Arctic Mauve

Inner-Ear Earbuds/Earphones Headset with 3-Button In Line Microphone & Remote for iPod/iPhone/iPad

$39.99

List price $99.95

K323XS A White small

AKG K323 XS A White

In-Ear Headphone Stereo Headset with In-Line Microphone/Remote Cable

(2)

$39.95

List price $59.95

SXXv2-10D2 small

RE Audio SXXv2-10D2 (SXX v2 10D2)

1200W 10" SXXv2 Series Dual 2 Ohm Subwoofer

(5)

$232.99

List price $589.99

No picture

Crunch DRA1150.2 Open Box Complete

1100W Max V-Drive Series 2-Channel Class AB Car Audio Amplifier

$52.99

List price $179.99

No picture

Rockford Fosgate TMS69 - New (Damaged Packaging, Product A+)

200W Peak (100W RMS) 6”x9” Full-Range Speakers for Harley-Davidson Motorcycle Bag Lids

(1)

$395.99

List price $439.99

H-88BG small

Farenheit H-88BG (Beige)

Two Universal Leather Headrests Loaded with 8.8" LCD Monitors, 2 Headphones and 2 Remote Controls

$209.99

List price $699.99

K350ABL small

AKG K350ABL (K 350 ABL) High Performance In-Ear Headphones/Headset - Arctic Blue

Inner-Ear Earbuds/Earphones Headset with 3-Button In Line Microphone & Remote for iPod/iPhone/iPad

$79.95

List price $99.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2001 Honda S2000

2002 GMC Sierra 2500 HD

2015 Audi A4 Quattro

2009 Saab 9-7X

1997 Pontiac Sunfire

2004 Oldsmobile Silhouette

2024 Nissan Leaf

2015 Toyota RAV4

2003 Dodge Durango

1963 Buick LeSabre

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
