Description


Dual brand icon

Authorized dealer

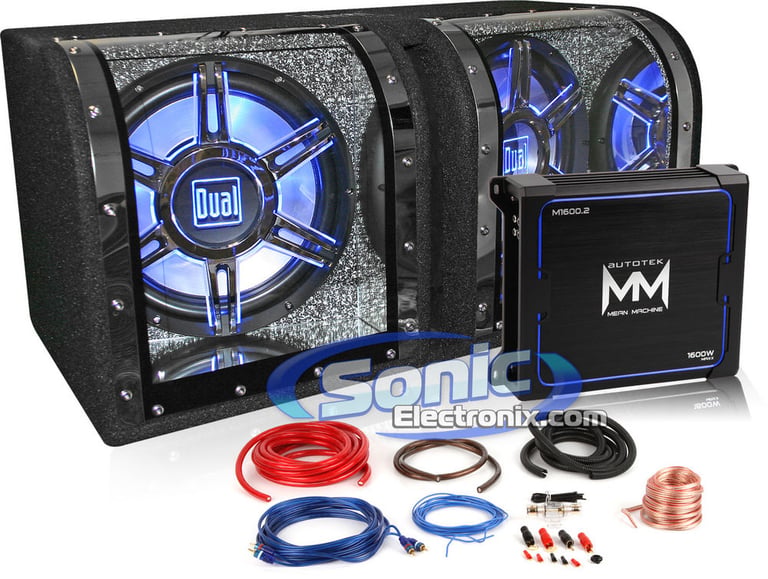

Dual and Autotek Complete Bass Bundle

This Sonic Electronix Exclusive Bass package showcases an Autotek M1600.2 Amplifier along with a loaded dual 12" Dual subwoofer enclosure. This excellent bass package pushes 600 watts of clean, continuous RMS power. The loaded Dual subwoofers each have a Single 8 ohm voice coil. Each sub has its own terminal that should be wired together in parallel, to a final impedance of 4 Ohms Bridged. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Dual BP1204 dual 12" loaded subwoofer enclosure requires 600 watts of RMS power. The included Autotek M1600.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Dual loaded enclosure, Autotek amplifier, and db Link amplifier kit, this complete bass bundle is great for anyone looking to upgrade their vehicle's audio system

Dual BP1204 Subwoofer Features:
  • 12" DS Series Subwoofer
  • Power Handling:
    • Peak: 1100 watts total (550 watts per sub)
    • RMS: 600 watts total (300 watts per sub)
  • Polypropylene cone woofer
  • Foam surround
  • Stamped steel basket
  • Single 8 ohm voice coil
  • 45oz. Strontium-ferrite magnet
  • Frequency response: 30-200 Hz
  • Sensitivity: 87 dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty (Subwoofers only)

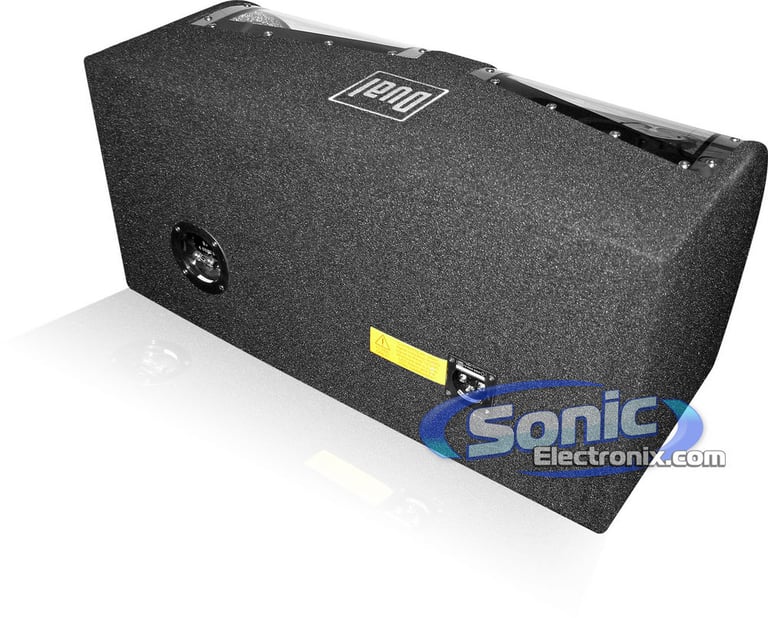

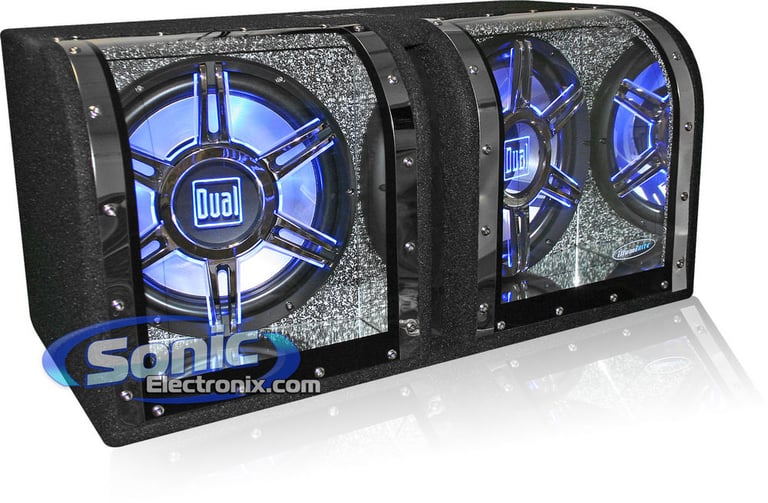

Dual BP1204 Enclosure Features:
  • Loaded Dual 12" Illuminated "illumiNite" Bandpass Subwoofer Box
  • Low-Q optimized drivers
  • Carpeted enclosure
  • Plexi subwoofer viewing windows
  • Built-in crossovers
  • Mirrored and diamond plated chambers
  • Dual chamber design
  • Blue illumiNITE illumination
  • Easy add-on to existing systems
  • Dimensions: 30-5/8"L x 16-1/4"W x 15-13/16"H

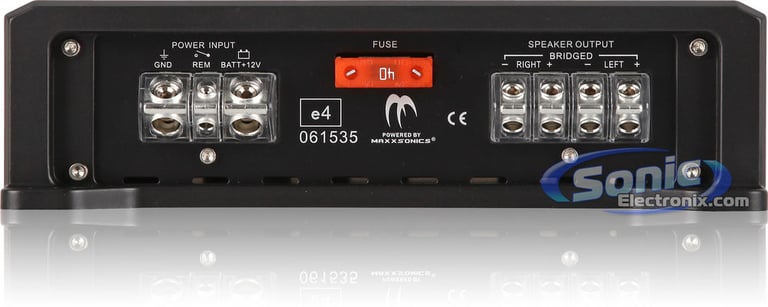

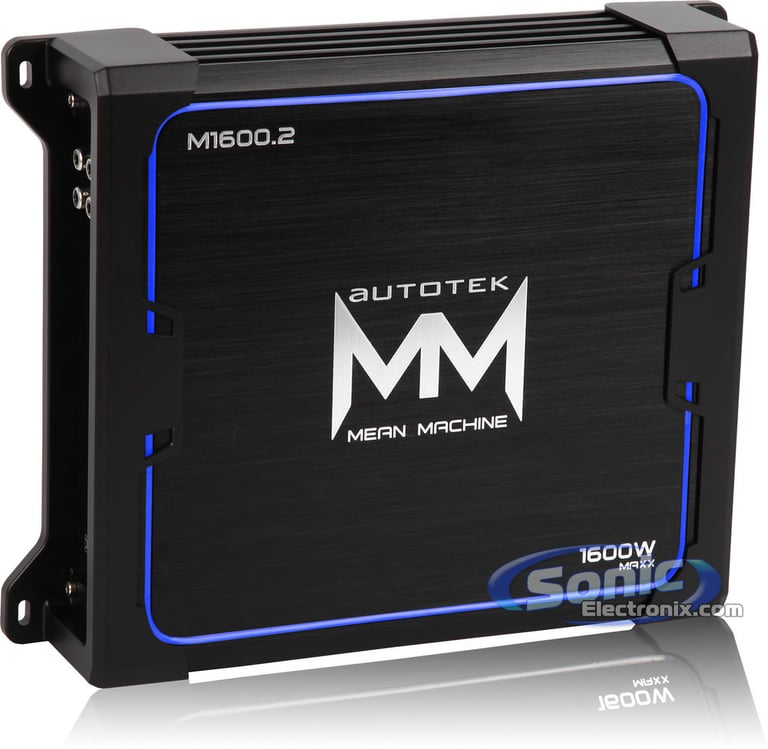

Autotek M1600.2 Features
  • Mean Machine Series 2-Channel Class A/B Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 200 watts x 2 chan.
    • 2 ohm: 400 watts x 2 chan.
    • Bridged, 4 ohm: 800 watts x 1 chan.
  • Dynamic Power Rating:
    • 4 ohm: 400 watts x 2 chan.
    • 2 ohm: 800 watts x 2 chan.
    • Bridged, 4 ohm: 1600 watts x 1 chan.
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Variable Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation
  • Illuminated badge and heatsink
  • Preamp RCA outputs to daisy chain multiple amps
  • 4-Way System Protection circuitry (DC, thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Input sensitivity:
    • Level: 200mV-6V

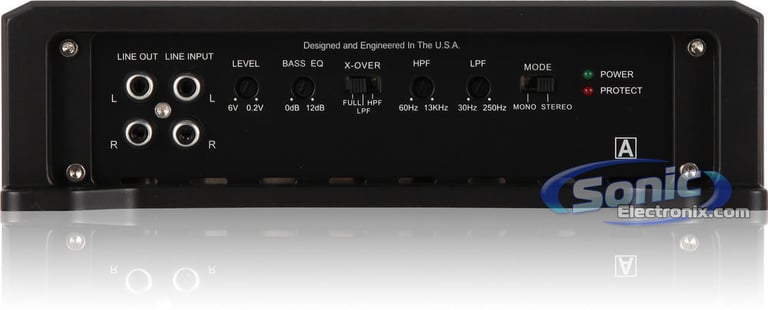

  • Variable high-pass filter (60-13,000 Hz, 24 dB/octave)
  • Variable low-pass filter (30-250 Hz, 24 dB/octave)
  • Damping factor: >180
  • Frequency response: 30-13,000 Hz
  • Dimensions: 11-5/16"L x 9-1/16"W x 2-1/2"H
  • 4-gauge power and ground wiring is required for installation.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

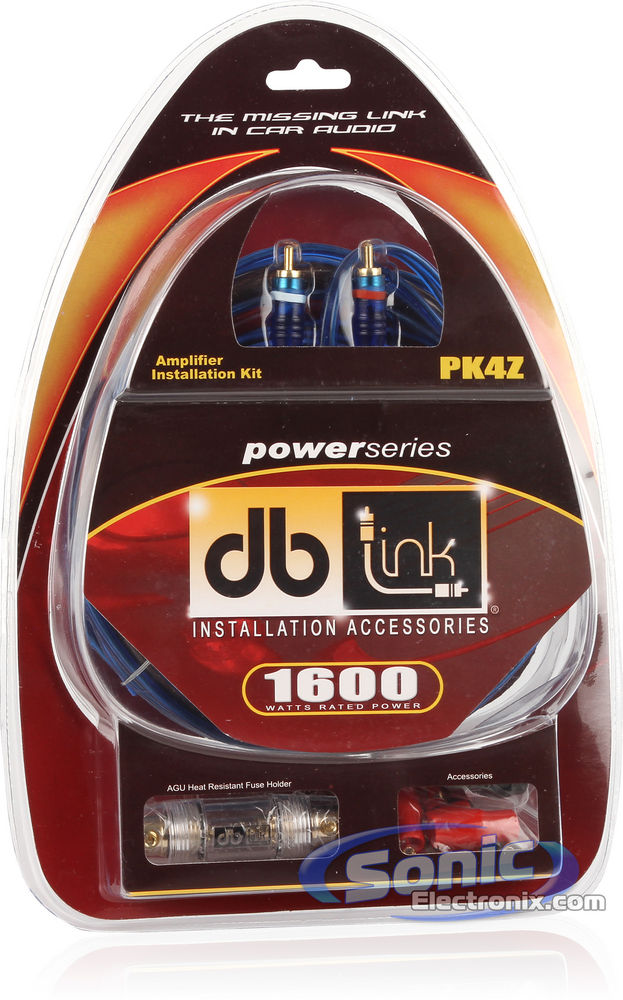

db Link PK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

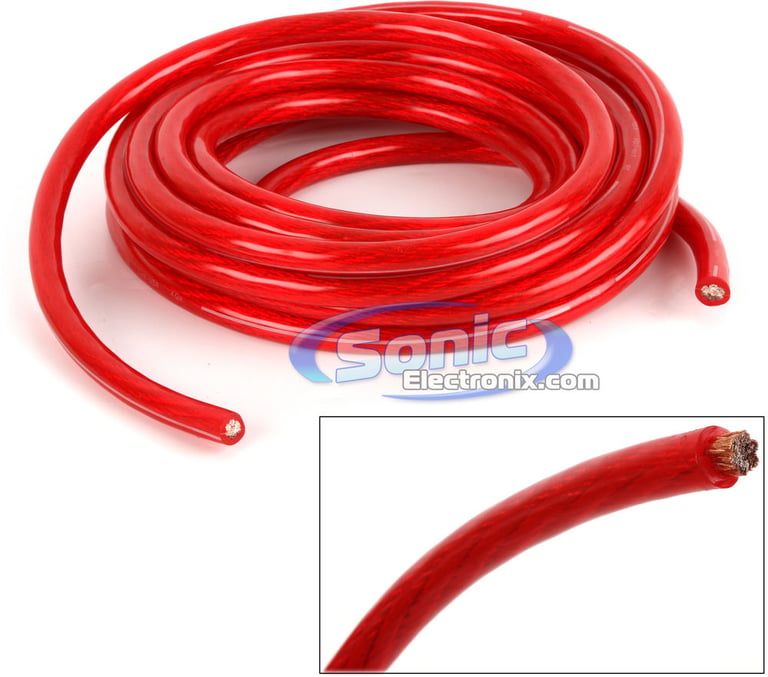

  1. 17 ft. of 4 AWG Red power cable
  2. 3 ft. of 4 AWG Black ground cable

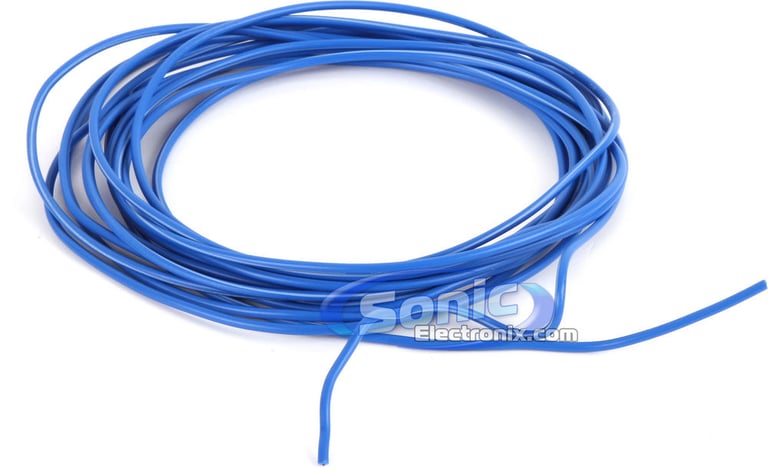

  3. 17 ft. of 18 AWG Blue remote turn-on wire

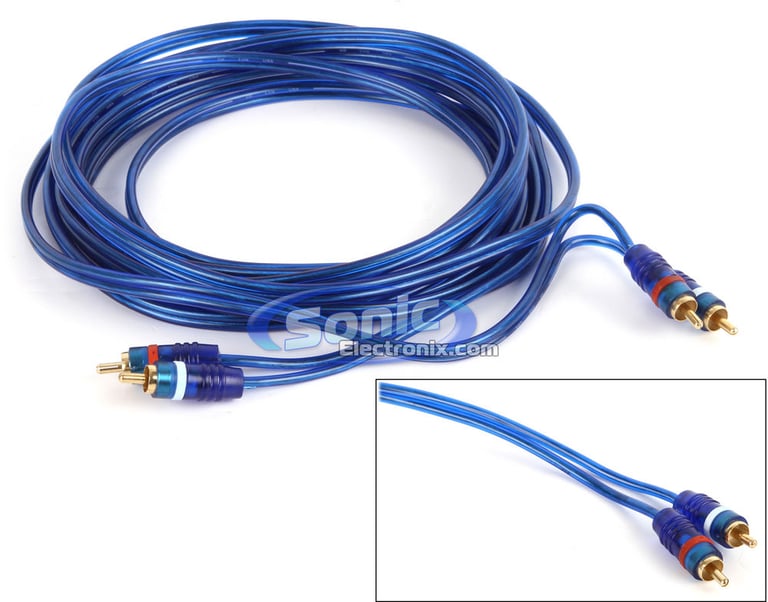

  4. 17 ft. of Blue shielded RCA cable

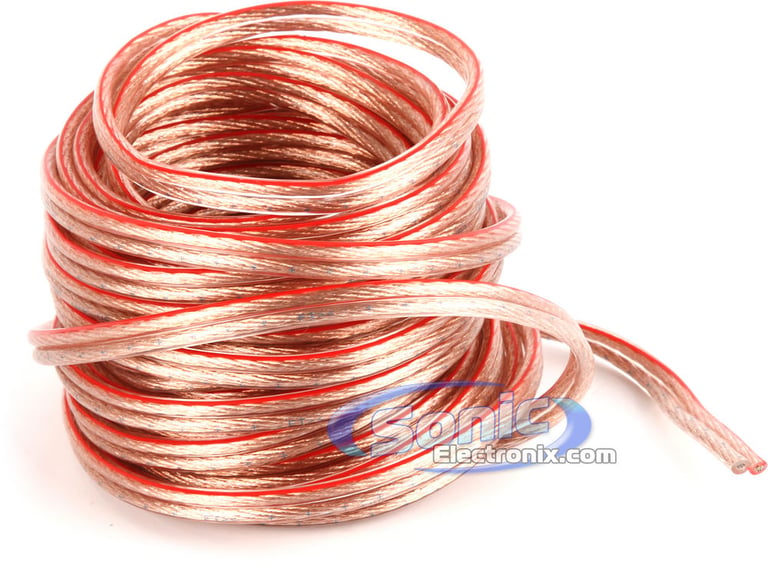

  5. 25 ft. of 16 AWG speaker wire

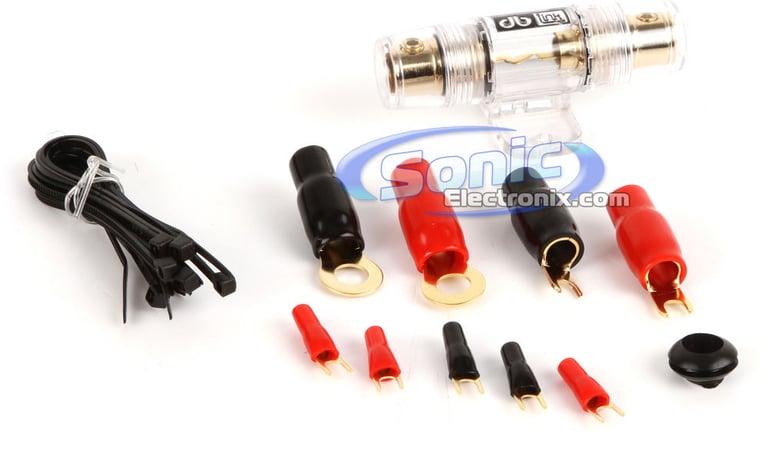

  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse

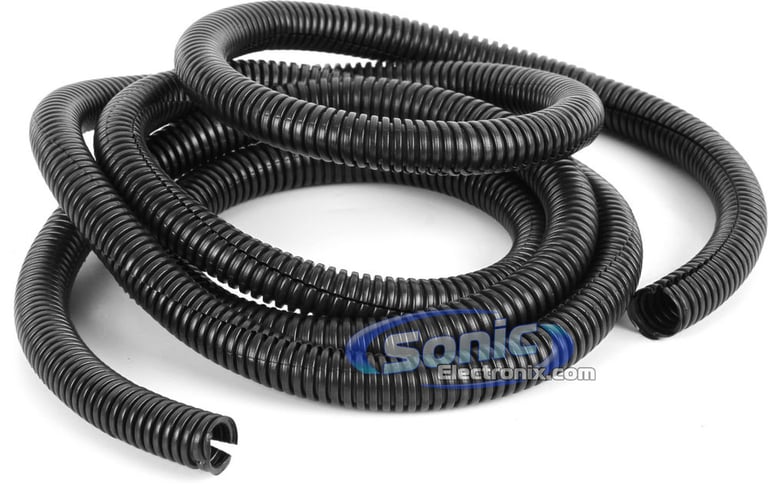

  8. 5 ft. of Black split loom tubing

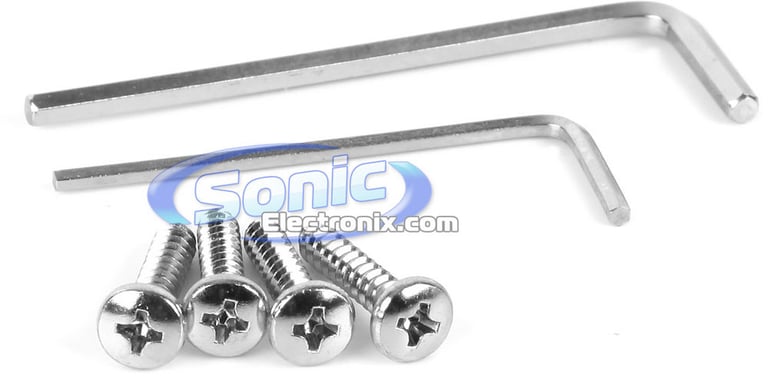

  9. Other installation accessories

Best selling similar products

MBQBRO-STG6-OEM-1 small

MB Quart MBQBRO-STG6-OEM-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM Base model audio systems or aftermarket source units
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1444.99

List price $1899.99

MBQBRO-STG6A-1 small

MB Quart MBQBRO-STG6A-1

• Six Speaker Audio Upgrade System
• Includes 6.5" component front speakers, 6.5" coaxial rear speakers, pair of 2-channel amplifier
• Includes PAC module for OEM B&O audio systems
• Direct fit for a hassle-free installation, fitting perfectly into the select 2021-2024 Bronco
• Designed for OEM B&O audio systems
• System is designed to withstand harsh outdoor environments
• Plug and Play design for easy installation
• Comes with all necessary mounting and installation hardware

$1869.99

List price $2399.99

R2-1200X1, XKIT42 small

Rockford Fosgate R2-1200X1 with Amplifier Wiring Kit

• 400 Watts RMS x 1 @ 4 ohm
• 800 Watts RMS x 1 @ 2 ohm
• 1200 Watts RMS x 1 @ 1 ohm
• CEA-2006 Compliant
• R.L.C. Remote Level Control
• Includes Amplifier Wiring Kit

(149)

$530.20

List price $593.98

NPKG212_65_69_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 6x9" & 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 and 6x9 Coaxial Speakers and Damping Kits

(267)

$495.93

List price $688.43

NPKG212_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – NPKG212 Bass Package with 2 Pair 6.5" Speakers

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5 Co-axial Speaker and Damping Kits

(261)

$486.93

List price $677.43

VCW84_NDA12001_XKIT42 small

NVX VCW84v3 + NDA12001 + XKIT42

• Two 8" VCW84v3 VC-Series v3 1300W RMS Subwoofers
• 2400W Peak (1200W RMS) Class D NDA12001 Monoblock Amplifier
• XKIT42 Complete 4 AWG Amplifier Wiring Kit
• 1-year Warranty from the Original Purchase Date

(153)

$619.96

List price $791.96

51HS10_BAK82_2NK small

Kicker HS10 (51HS10) w/ Free Amp Install Kit

  • Kicker HS10 180W RMS Single Loaded 10-Inch Hideaway Series Powered Subwoofer Enclosure
  • Convenient wired remote for independent bass level control
  • 8 Gauge Premium CCA complete 2-channel amplifier wiring kit with RCA
  • Premium polyurethane foam can insulator sleeve koozie with black logo
  • Complete bass solution includes compact powered subwoofer and installation hardware

(99)

$319.99

List price $489.96

QB10SPA_65_X2_STG1VKIT small

NVX Audio Upgrade Kit – QB10SPA with 2 Pair 6.5" Speakers

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control
• Includes 6.5(2) Co-axial Speaker and Damping Kits

(250)

$311.43

List price $533.42

BAK42BK,R500X1D small

Rockford Fosgate R500X1D Amplifier + Free Belva BAK42BK 4 Gauge Amp Kit

• R500X1D 500W RMS Prime Series Class D Monoblock Amplifier
• BAK42 Complete 4 Gauge Amplifier Wiring Kit with 2-Channel RCA Interconnects (CCA Wiring)

(80)

$309.99

List price $369.98

BAK42,R500X1D small

Rockford Fosgate R500X1D 500W RMS + 4 Gauge Amp Kit

• RMS: 300W x 1 @ 4 ohm, 500W x 1 @ 2 ohm
• Total RMS Power: 500W
• CEA-2006 Compliant
• Remote PLC (Punch Level Control) Included
• Efficient Class-D circuit topology
• 4 Gauge Power Amplifier Installation Kit
• Ideal for Systems Up to 650 Watts
• Premium Power and Ground Wire Provides Optimal Power Transfer
• 2-Channel Twisted RCA Cables

(73)

$309.99

List price $369.98

Specifications & Details


Full Range Amplifier Power Specifications
RMS Power @ 4 ohms
200 watts x 2 channel
RMS Power @ 2 ohms
400 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
800 watts x 1 channel
Peak Power Output
800 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Maximum Input Gauge Size
4 AWG
THD at Rated RMS Power
<0.05%
Speaker Level Inputs
No
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 13,000 Hz
Low-Pass Crossover Frequency
30 - 250 Hz
Signal-to-Noise Ratio
>90 dB
Channel Separation
>80 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
40A x 1
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
12"
RMS Power Handling
300 watts
Total RMS Power Handling
600 watts
Peak Power Handling
550 watts
Total Peak Power Handling
1100 watts
Woofer Surround
Foam
Woofer Composition
Polypropylene
Voice Coil(s)
Single
Impedance (Per Voice Coil)
8 ohm
Sensitivity
89 dB
Frequency Response
30 - 200 Hz
Enclosure Specifications
Box Type
Bandpass
Number of Subwoofers
2
Box Style/Shape
Square/Rectangle
Height
15.8"
Width
30.6"
Depth
16.2"
Number of Terminals
2
Terminal Type
Spring posts
Box Exterior Color
Black
Box Finish
Carpet
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BP1204_M1600.2

Weight:

76.00lbs

Internal SKU:

bp1204_m16002

Internal Product ID:

39470

Customer Ratings & Reviews


1600W Dual + Autotek Complete Bass Bundle thumbnail image

5 star
58%
4 star
35%
3 star
6%
2 star
2%
1 star
0%



Durability
4.5
Value
4.7
Features
4.5
Design
4.8
Usability
4.7

Customer Reviews

Sort by:

Loading...

My first system

The following review is for BP1204, which is a part of the bundle you are viewing.

Ordered these back in 08, and they outplayed my friend's setup which was 2 CVRs and a p2. The bandpass box makes these subs kings compared to most subs in normal boxes. I would highly recommend these for anyone on a budget or just looking for a starter system. I never had a problem with these babies.

By Kamaran on June 17, 2011

28 found this helpful


Love Em

The following review is for BP1204, which is a part of the bundle you are viewing.

They look amazing!!! Everyone thinks that they are like $700 subs. They sound awesome too. Great for beginners. I'm using a Pioneer Premier Amp which is a $215 amp, that is probably why they sound so much better

By DJ on November 4, 2009

28 found this helpful


Great Buy

The following review is for BP1204, which is a part of the bundle you are viewing.

I bought this box on thursday got it on tuesday it took 3 days to arrive which is fast. I replaced the dual woofers with 2 1200 watt Titanium Power woofers as soon as I received the box, so I don't know how the dual woofers sounded. Hooked them up to a crunch powerzone 2000 watt amp and it sounds great. The inside of the box does look like its made from cheap wood, I didn't like that. If you are looking to replace the dual woofers same as me its a pain but it can be done. And for those wondering about the wires you need to make the lights work you need the ground and the 12 volt wires which don't come with the box, it also has a on and off switch for the lights which I found really helpful. Overall great buy you wont be disappointed, definitely recommend to anyone.

By Eddy on September 1, 2010

27 found this helpful


great sound and looks

The following review is for BP1204, which is a part of the bundle you are viewing.

I got these subs from b*** *** for a lot more money, but thats ok. i originally just got it for the box but after i heard the subs hit with my 1000 watt amp, i was hooked. and i have a lot of blue neon in the cab of my truck so it looks great. definitely the best bang for ur buck.

By John on July 11, 2008

27 found this helpful


Dual Enclosure

The following review is for BP1204, which is a part of the bundle you are viewing.

This enclosure will hit hard, with the right amplifier, but it will not sound the greatest. There will be some rattle, but overall there will be great sound coming from this enclosure.

By Tyler on December 13, 2007

27 found this helpful


Great Starter Product!!

The following review is for BP1204, which is a part of the bundle you are viewing.

I own the previous model. Its a great speaker, but it is not the best. Everyone who rode with me really loved the lights, which is its key selling point. The only problem with this sub is when you get to higher levels of volume it will bottom out. The plexiglass also sounds bad at high levels. But this speaker will shake your car. I upgraded to the mtx terminator. But this was an awesome subwoofer!

By Twins on December 10, 2011

24 found this helpful


Really Good!!!

The following review is for BP1204, which is a part of the bundle you are viewing.

If you get this I HIGHLY recommend you use it with a Dual XIA series amp! Dual makes 3 different models in the XIA series. 580 watt 2-channel, 800 watt 2-channel and a 1000 watt 2-channel. These are there high-end amps and were built just for this enclosure as they offer direct hook-ups for the illuminate lights...
Many people read and hear alot of garbage about the Dual BP1204 and Dual in general... They say its W****** brand trash, well for starters, the Dual amps that you see in your local w****** are made for "Component Speakers" NOT subwoofers!! ALL of Duals products are CEA-2006 compliant so you can trust their max and rms ratings... Brands such as Pyramid, Legacy, Boss, Crunch, Power Acoustik and Pyle are NOT CEA-2006 compliant .. As a word of advice, Stay away from anything that isn't CEA-2006 compliant! I love this enclosure with subs!! but you really need to match it with a DUAL XIA series amp for best performance and quality!

By Justin on January 8, 2011

24 found this helpful


pretty sweet I wont lie

The following review is for BP1204, which is a part of the bundle you are viewing.

I just installed the BP1204 in my 04 taurus. I must say it kicks pretty hard. I have it amplified by the Hifonics ZXI 6010 pushing out 600 watts RMS bridged at 4 ohms. I am impressed and pleased with it.

By Firehawk87 on March 8, 2010

24 found this helpful


YO YO YO

The following review is for BP1204, which is a part of the bundle you are viewing.

In all honesty these subs blow!!!! They are a cheap set up for every average beginner they will not last a beginner due to the fact that when you get your first subs you always want more bass!! In doing so they will cause the subs not saying they are over powered but will cause them to blow due to clipping the signal to the amp which will blow them do your self a favor buy some subs and a amp with a good set up and save your self the trouble of blowing a cheap set. Unless your 50 with grand kids then go for it!! :)

By ~~Rockford Fosgate KING KONG~~ on October 4, 2009

24 found this helpful


great for low price

The following review is for BP1204, which is a part of the bundle you are viewing.

i have had this product in booth ways with the dual bandpass box in a full size van and in two small angled boxes behind a truck seat and they have don well in booth

By Desmond on August 9, 2009

24 found this helpful




15-C312D4 small

Memphis 15-C312D4

12" Dual 4 ohm C3 Series Cast Subwoofer

(4)

$229.99

List price $299.99

IDR657MBKB small

Scosche IDR657M Black (Bulk Packaging)

Increased Dynamic Range Android Headset Earbuds with slideLINE Remote & Mic

$19.99

List price $79.99

No picture

Audio Technica ATH-RE700BW Open Box Complete

Dynamic On-Ear Stereo Headphones w/1.2 Meter Smartphone Controller

$29.00

List price $149.95

15-MC124 small

Memphis 15-MC124 12"

$99.99

List price $149.99

SM50 small

RoadGear Mobile SM50

5" TFT LCD Backup Camera Monitor

$89.99

List price $89.99

KMWRGB150 small

Kicker KMWRGB150 (46KMWRGB150)

Marine 16 Gauge Speaker Wire &18 Gauge RGB Wire, 150ft.

$299.99

List price $299.99

Piano Forte IX G small

Final Audio Design Piano Forte IX G (Stainless Steel)

The Ultimate In-Ear Headphones w/ Dynamic Drivers

$999.00

List price $1399.00

15-MC124D small

Memphis 15-MC124D 12"

(4)

$99.99

List price $149.99

BT IN UB CW RED small

Beats urBeats 2.0 - Red

Beats by Dre High Quality Ear Buds w/ Built-In Microphone

$69.99

List price $99.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

1961 Cadillac Eldorado

1981 Dodge Aries

2003 Chevrolet SSR

1982 Buick LeSabre

2025 Lexus ES350

2015 Acura ILX

2008 Chrysler Aspen

1997 Dodge Dakota

2007 Subaru Outback

2011 Volkswagen CC

Vehicle
Store
Delete

2019 Can-Am Defender MAX HD8 DPS

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
