400W 10" Kicker + JVC Bass Bundle

10" Kicker C104 Comp Series Subwoofer + JVC KS-AX3102 2-Channel Amplifier + 10 AWG Audiobahn Amp Kit

Kicker
Shop all Kicker
EXCLUSIVE
Product videos
highlight-star-icon

10" Single 4 ohm Comp Series Subwoofer • 300W Max • 150W RMS • JVC DRVN 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • High/Low Pass Filters • 10 Gauge Amplifier Installation Kit

Learn more about the 10c104_ksax3102

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

Product Highlights


10" Single 4 ohm Comp Series Subwoofer • 300W Max • 150W RMS • JVC DRVN 2-Channel Class A/B Car Amplifier • MOSFET Power Supply • High/Low Pass Filters • 10 Gauge Amplifier Installation Kit

Description


Kicker brand icon

Authorized dealer

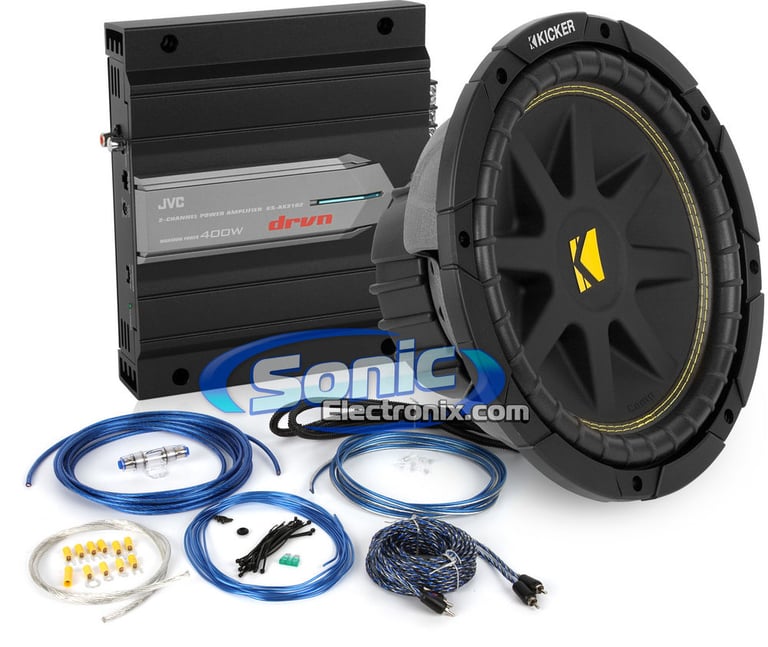

Kicker and JVC Bundle

This Sonic Electronix Exclusive Bass package showcases a JVC KS-AX3102 2-Channel Amplifier along with one 10" Comp series Kicker subwoofer. This excellent bass package pushes 150 watts of clean, continuous RMS power. The Kicker subwoofer has a Single 4 ohm voice coil; meant to be wired directly to the amplifier, to a final impedance of 4 Ohms. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

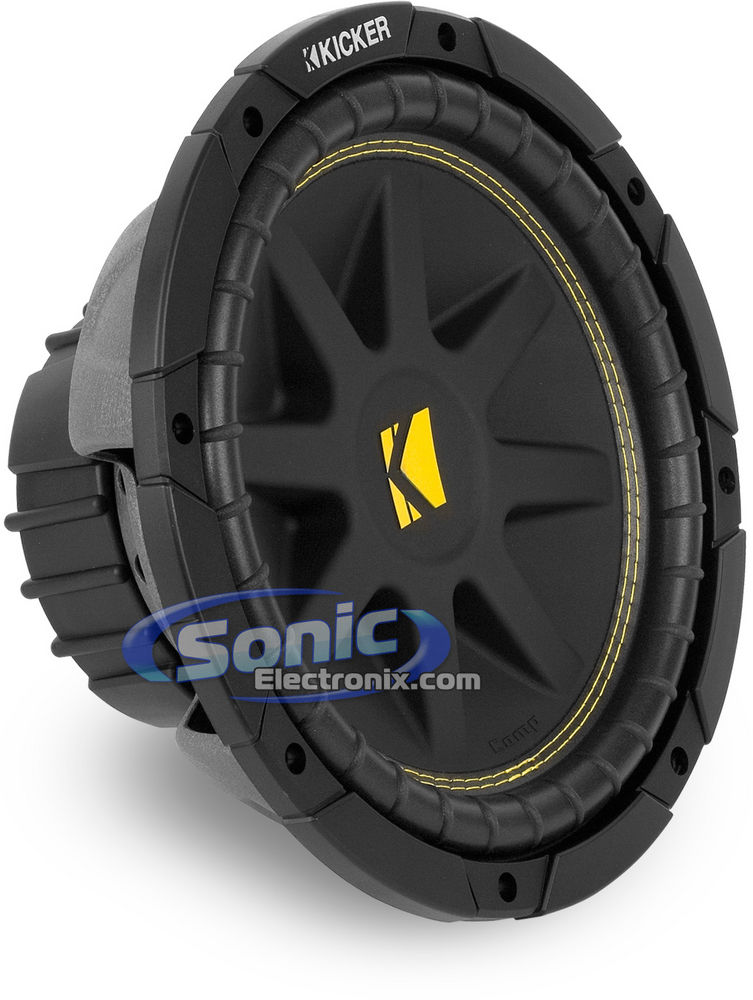

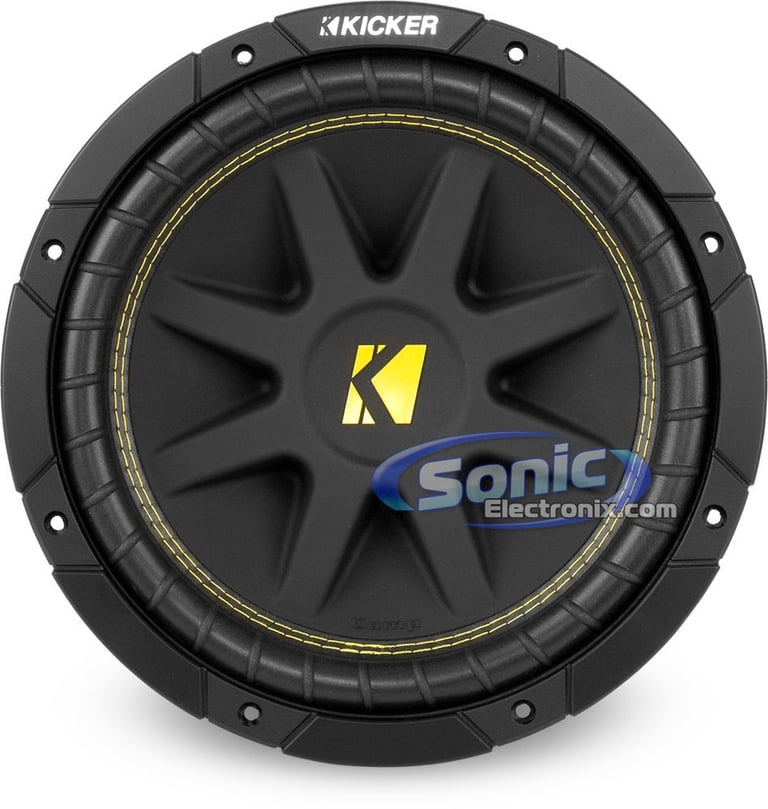

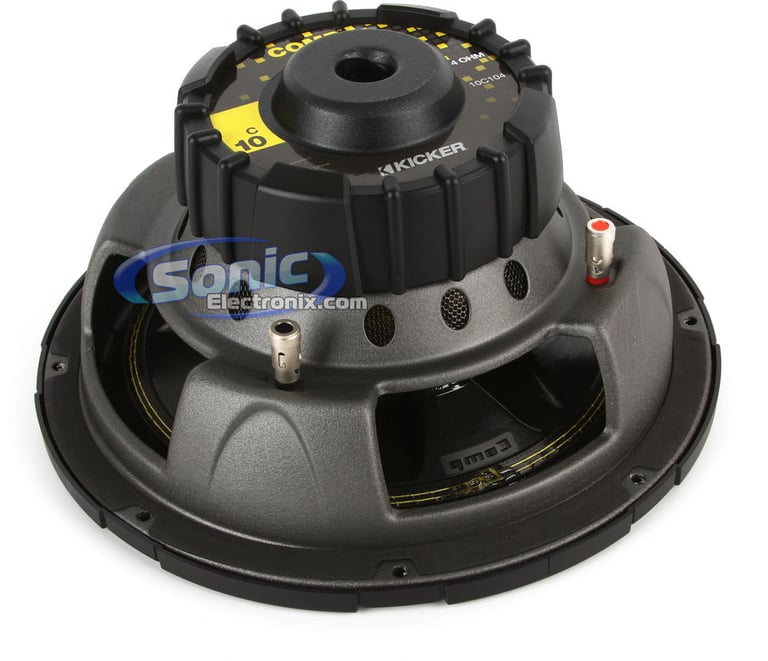

This Kicker C104 Comp series subwoofer requires 150 watts of RMS power. The included JVC KS-AX3102 amplifier will compliment this required power by supplying a near perfect match-up of certified RMS continuous power. This package also includes a 10 gauge amplifier kit which is perfect to supply power to the amplifier. With the Kicker subwoofer, JVC amplifier, and Audiobahn amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

Kicker C104 Features:
  • 10" Single 4 Ohm Competition (Comp) Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: Single 4 ohm
  • Injection molded SoloKon cone
  • Optimized Polyfoam Ribbed Surround
  • Extremely rigid cone, along with 360 degree back bracing eliminates distortion
  • Double stitched surround for enhanced durability
  • Tinsel leads woven into the spider with Kicker's Spiralead technology
  • Single high-temperature voice coil
  • 45oz. Magnet structure
  • Frequency response: 30-500 Hz
  • Sensitivity: 86.2 dB
  • Mounting depth: 5-1/16"
  • Also found as: 10C10-4 ohm, C-104, Comp 104, Comp 10" 4 ohm, 2010 C104
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

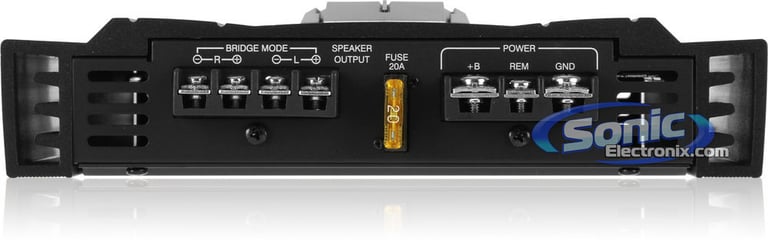

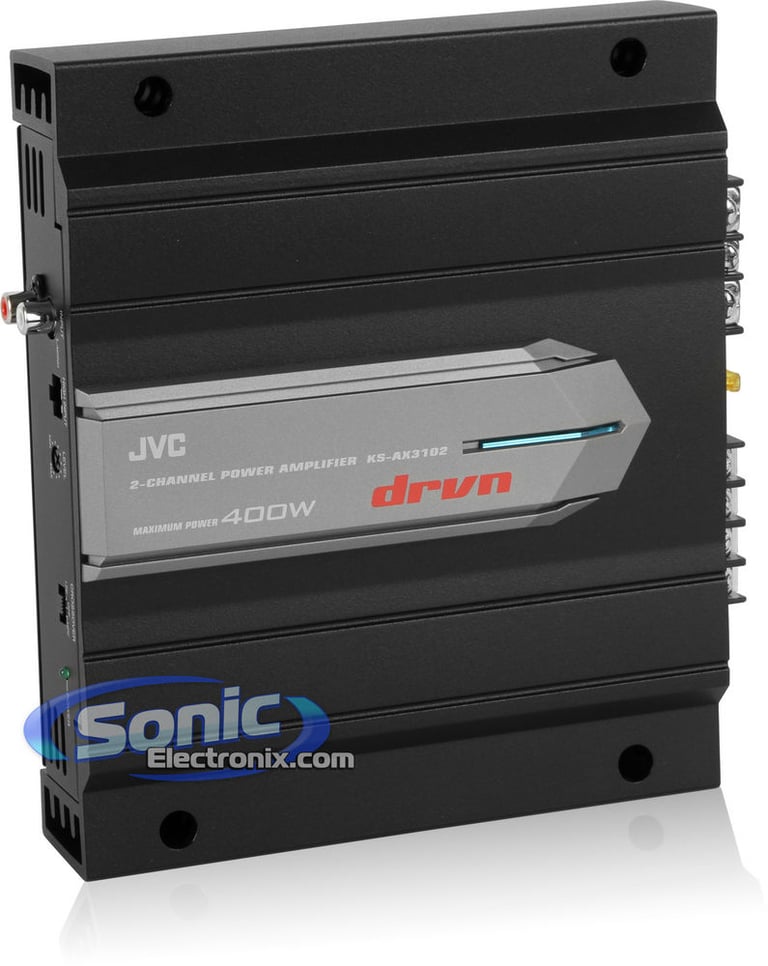

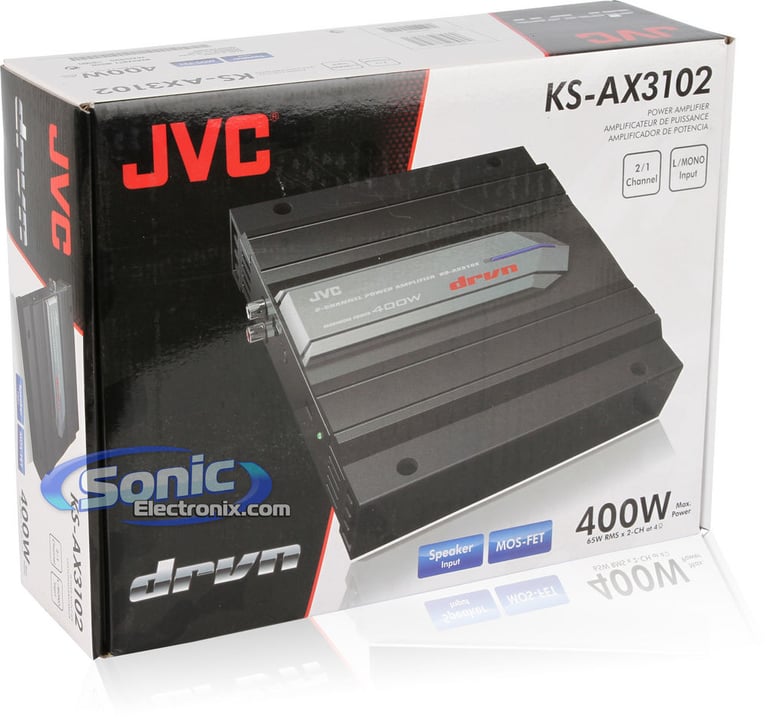

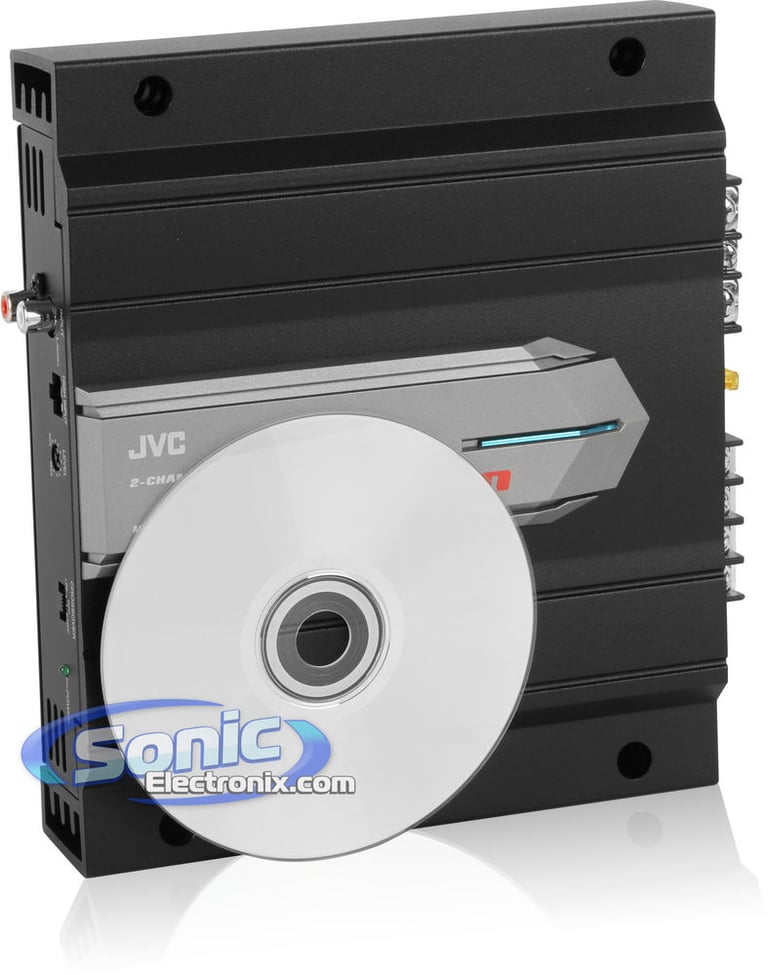

JVC KS-AX3102 Features:
  • 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 65 watts x 2 chan.
    • 2 ohm: 90 watts x 2 chan.
    • Bridged, 4 ohm: 150 watts x 1 chan.
  • Max power output: 400 watts x 2 chan.
  • 2 or 1 Channel operation
  • Class-AB circuit
  • MOS-FET power supply
  • MOS-FET Output Stage
  • Frequency response: 5 - 50,000Hz
  • Signal to Noise Ratio: 76dB
  • THD: Less than 0.04% at 4 ohm, 1kHz

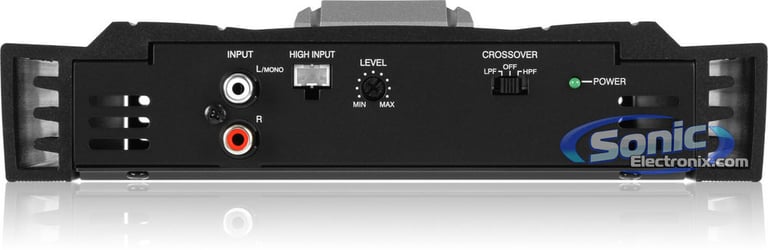

  • Fixed high pass filter (150Hz, -12dB/oct)
  • Fixed low pass filter (80Hz, -12dB/oct)
  • Variable input RCA level control (0.3 - 6V)
  • Variable speaker input control (1.2 - 12V)
  • Nickel-plated RCA terminals
  • Nickel-plated power supply terminals
  • Nickel-plated speaker out terminals
  • Protection circuitry (thermal/short circuit/overload/DC offset)
  • Anti-Pop circuit
  • 10-gauge power and ground leads recommended. Contact us for information regarding a discount on a select amplifier kit when purchased together.
  • Dimensions: 8-1/4”D x 8”W x 2-1/16”H
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

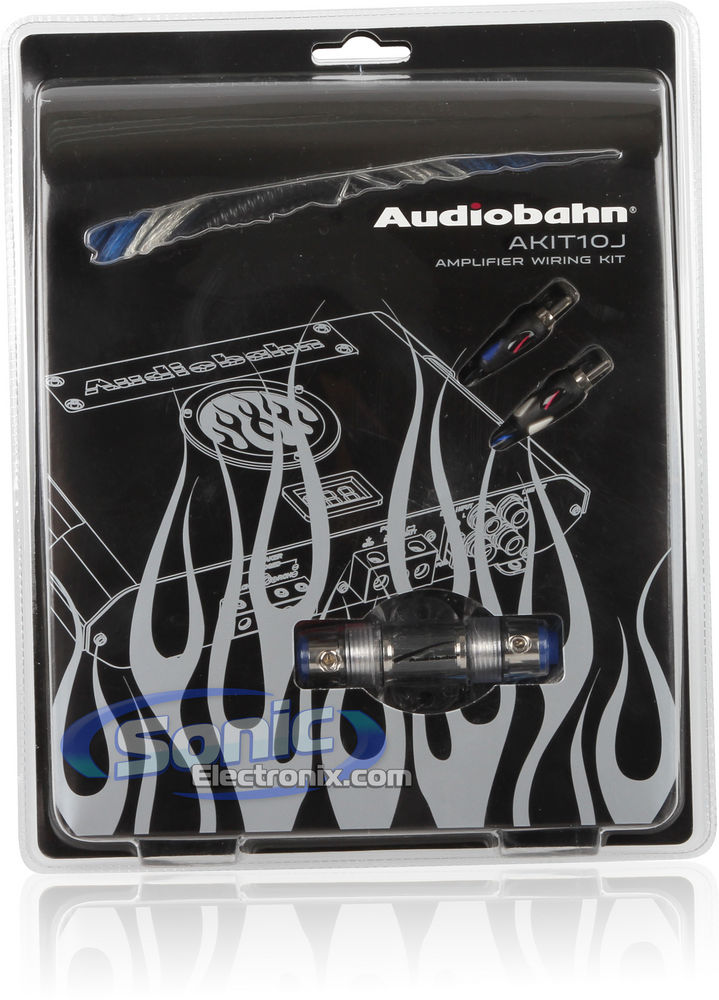

Audiobahn AKIT10J Features
  • 10 Gauge Amplifier Installation Kit
  • Premium power and ground wire provides optimal power transfer
  • AGU Fuse Holder with 60 amp AGU Fuse
  • Everything you need to hook up your system
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Audiobahn AKIT10J Package Includes:

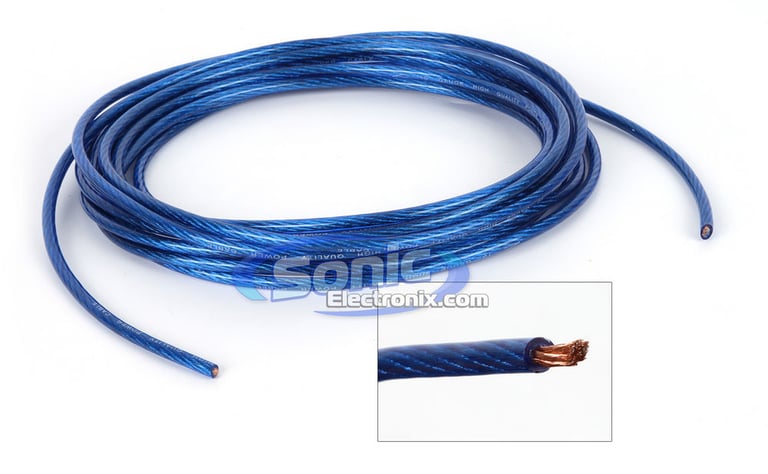

  1. 20 Ft. Transparent blue 10 AWG power wire

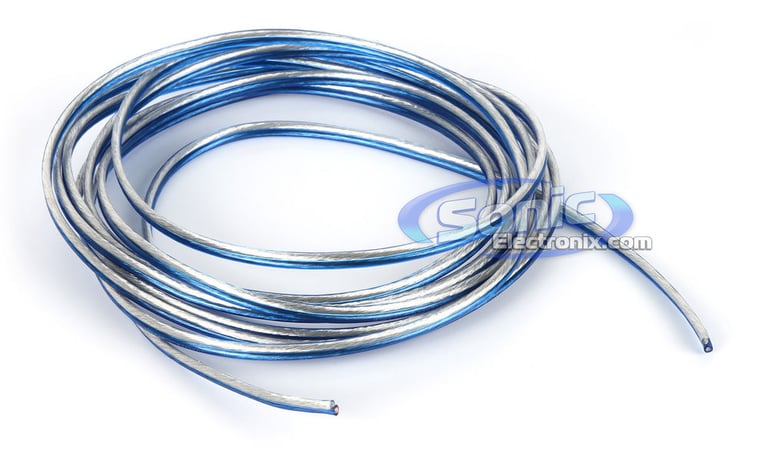

  2. 12 Ft. Transparent 16 AWG speaker wire

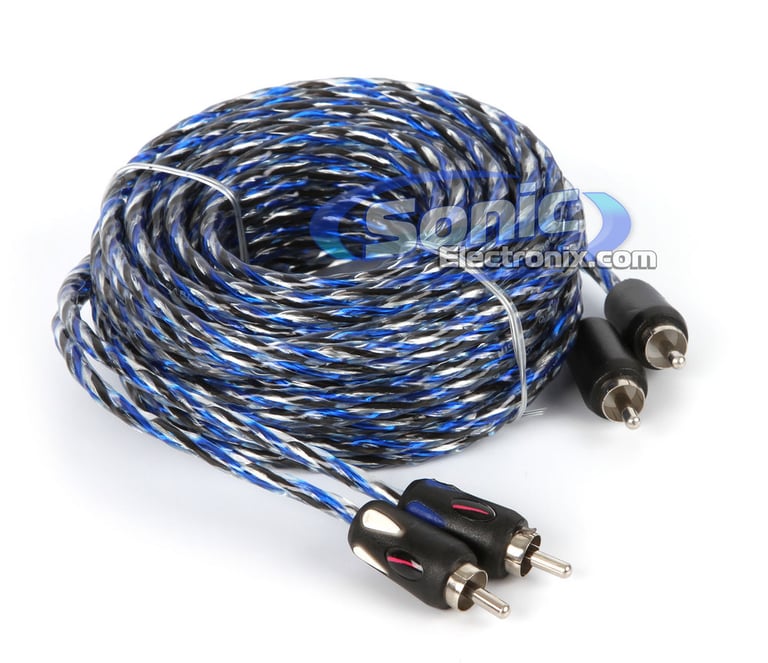

  3. 18 Ft. Transparent twisted signal cable

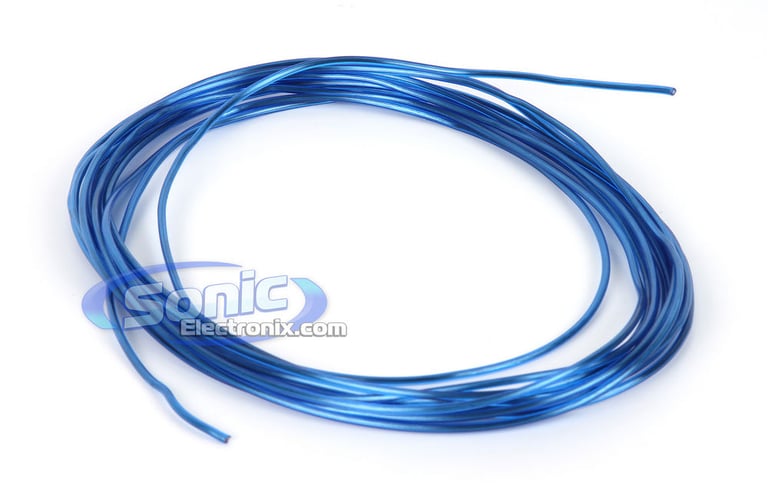

  4. 16 Ft. Blue 18 AWG remote turn-on wire

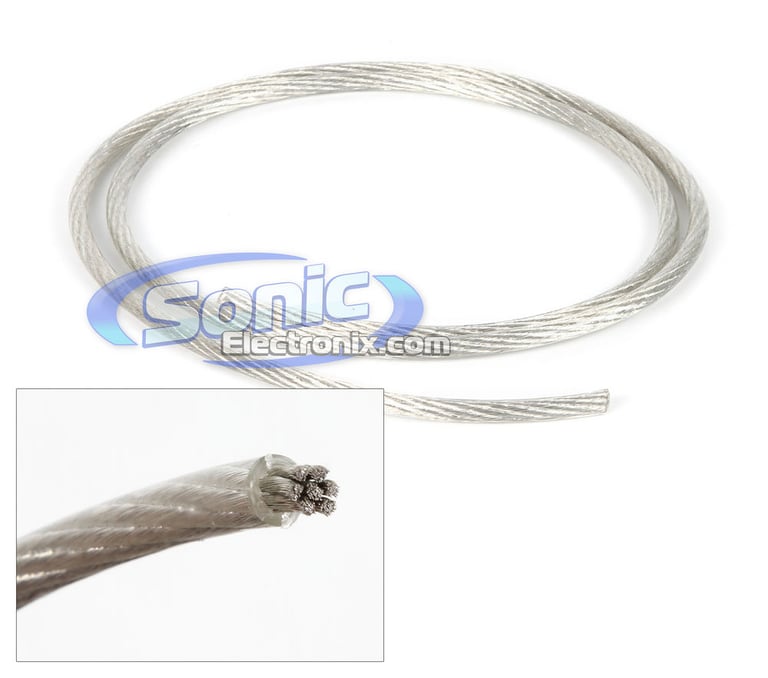

  5. 3 Ft. Transparent silver 10 AWG ground wire

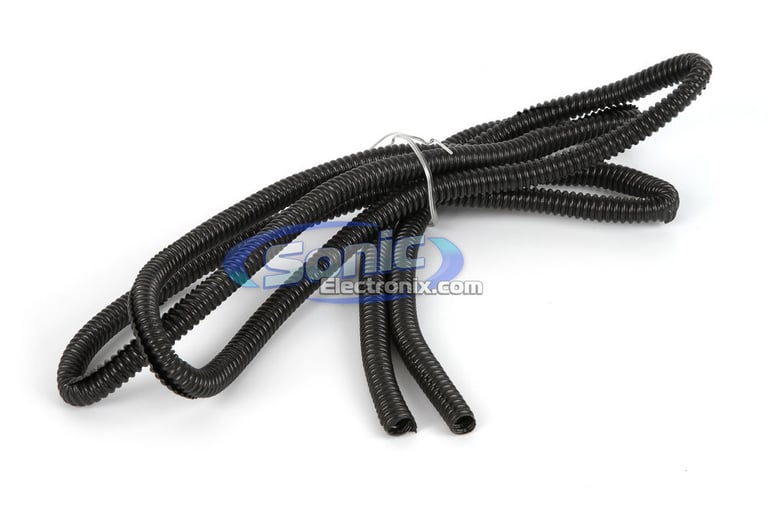

  6. 6 Ft. Black split loom
  7. 100 Amp AGU fuse

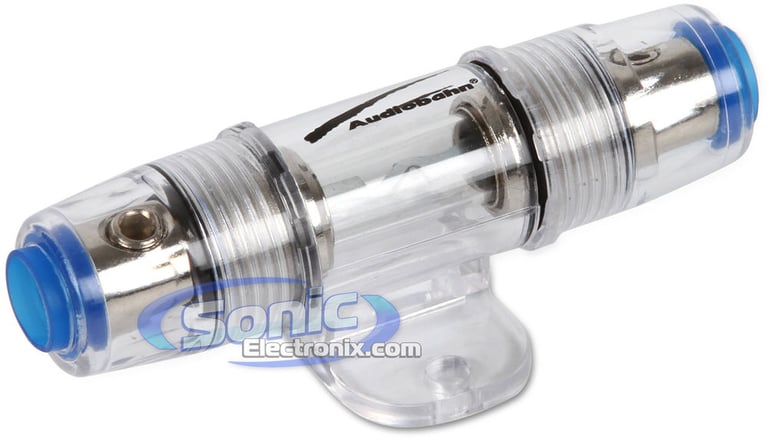

  8. AGU Fuse holder

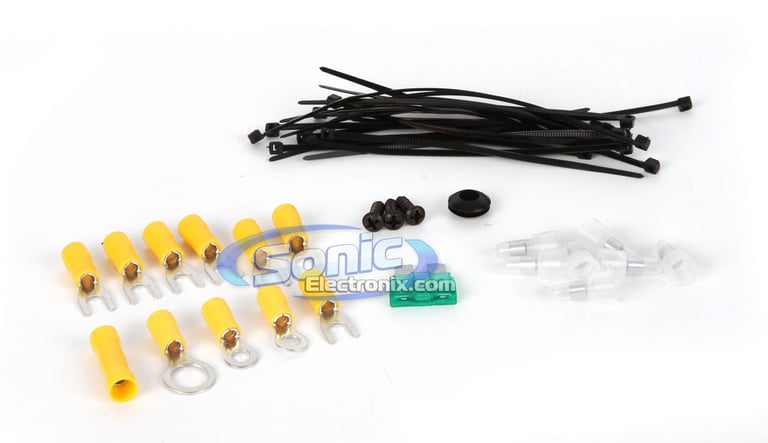

  9. Terminals, Screws, Connectors and Cable Ties

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
65 watts x 2 channel
RMS Power @ 2 ohms
90 watts x 2 channel
RMS Power @ 1 ohm
Not Stable
Bridged RMS Power
150 watts x 1 channel
Peak Power Output
400 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total Peak Power Output
400 watts
Total RMS Power Output
150 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
4 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
.04%
Speaker Level Inputs
Yes
Preamp Outputs
No
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
150 Hz
Low-Pass Crossover Frequency
80 Hz
Subsonic Filter
Not Specified
Signal-to-Noise Ratio
76 dB
Channel Separation
Not Specified
Bass Boost
Not Specified
Remote bass/level controller
No
Fan Cooled
Not Specified
CEA-2031 Compliant
No
Subwoofer Specifications
Subwoofer Size
10"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
150 watts
Total RMS Power Handling
150 watts
Peak Power Handling
300 watts
Total Peak Power Handling
300 watts
Woofer Surround
Ribbed Poly-Foam
Woofer Composition
SoloKon Polypropylene
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
2.4 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Sensitivity
86.2 dB
Frequency Response
30 - 500 Hz
Top-Mount Depth (Mounting Depth)
7-7/16"
Cutout Diameter
9-1/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

10C104_KSAX3102

Weight:

16.50lbs

Internal SKU:

10c104_ksax3102

Internal Product ID:

39477

Product and How-to Videos


  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How To Install an Amplifier: Car Amplifier Basics Part 2

Customer Ratings & Reviews


400W 10

5 star
88%
4 star
13%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.9
Features
4.9
Design
5
Usability
5

Customer Reviews

Sort by:

Loading...

Surprised

The following review is for Comp 10, which is a part of the bundle you are viewing.

I put 2 of the 43c104 10 inch subs in my avalanche and was not sure if they would sound good for such a low price. Well I'm glad I did these sub's sound really good and they are running free air mounted in the mid gate. I have always had a box but wanted to try a free air setup and was quite surprised they put out more bass than a lot of my sealed box's have. If you try a free air setup you have to separate the front bass wave from the rear wave not just under the seat.

so pros: great sub,low price,handles power well
cons: none yet

By David on April 2, 2017 Checkmark Icon Verified purchase

42 found this helpful


Great

The following review is for Comp 10, which is a part of the bundle you are viewing.

these speaker were installed in my 93 Chevy and they sound great in the atrend box i purchase for these.

By Anonymous on June 27, 2019 Checkmark Icon Verified purchase

39 found this helpful


Kicker 10 inch Subs

The following review is for Comp 10, which is a part of the bundle you are viewing.

Kicker subs have never let me down. For the price these are the best subs out there.

By Jamin on April 20, 2018

41 found this helpful


Sounds great

The following review is for Comp 10, which is a part of the bundle you are viewing.

The bass sounds great and kicks! This is a really good sounding speaker.

By ken on June 14, 2020 Checkmark Icon Verified purchase

38 found this helpful


Better than expected

The following review is for Comp 10, which is a part of the bundle you are viewing.

My friends and I are blown away by the abilities of these speakers. I would recommend to anyone. I blast metal and rap, great for all!

By Spencer on May 21, 2017

38 found this helpful


Unbelievable!

The following review is for Comp 10, which is a part of the bundle you are viewing.

I’ve had them: Alpine, Pioneer, Kenwood, JBL, CV, MTX, L7’s, and RF P3’s and P2’s...THIS little 10” mappatappa is the real deal! No joke. Built solidly and looks the part without being “cheesy” or “gadgety”, you know? I’ve not yet completely broken it in but it is quite impressive. I don’t miss the P3SD4-12 or 12” L7. And for $45? GET OUT!
It’s loud but not overbearing (as long as you adjust it properly). I’ve pushed it with an JL XD600/6 and an RF600X5. Shockingly, the RF sounds better. I think it as an appetite for power.
I’m sure it can get deep. I cross it over @160hz. I’ve not heard it drop hard and low LOW yet (not trying to kill it) but I’m sure it has the capability.
I think I’m a Kicker sub fan now!

Thanks for the hook-up, SonicElectronix. THEE premier source for mobile audio gear. Great prices, solid tech support (although hold times are ridiculous), and fast shipping. It’s ALL good.

By Sozo on January 11, 2018 Checkmark Icon Verified purchase

30 found this helpful


produces clean tight bass !! i highly recommend.

The following review is for KSAX3102, which is a part of the bundle you are viewing.

I have it hooked up to 2 6x9 r1693 Rockford Fosgate speakers in their own boxes.
Filled with fiber stuffing and this amp delivers clean punchy bass. It feels like I have a subwooofer at the back of my regular cab ford ranger. This amp feels solid and somewhat heavy. Thats a good sign that it is not cheap. You will be happy with this amp. tip... when installing the screws to secure it use a magnetic screwdriver because if u drop screw in the hole it will get stuck and it will be difficult to remove mounting screw. This will definitely wake up a pair of 6x9 Rockford Fosgate you will not need a sub on a reg cab pickup trust me on this one. I can feel the clean tight bass this amp produces... very high quality amp and so far it only gets warm and not hot.

By Puro corrido chacaloso compa!! on May 28, 2011

5 found this helpful


The following review is for Comp 10, which is a part of the bundle you are viewing.
By Andrew on September 15, 2024 Checkmark Icon Verified purchase

2 found this helpful




MDR-ZX300iP/W small

Sony MDR-ZX300iP - White

Noise Isolating Collapsible Swivel Earcup Stereo Headphones w/ iPhone/iPod/iPad Remote Control & Mic

$36.99

List price $49.99

NEO CHINO small

Aerial7 NEO - Chino

Micro-Sized In-Ear NEO Series Multi-Device Stereo Earbuds with In-Line Microphone (06190)

$8.99

List price $60.00

A-RMH33500 small

Warrantech RepairMaster A-RMH33500

Home Audio Equipment $2501-$3500: 3-years Extended Warranty Plan DOP (from the Date of Purchase)

$139.99

List price $159.99

15-PRCS5 small

Memphis 15-PRCS5 (15-PRCS53)

Power Reference 5" Component System

$79.99

List price $149.99

AMP-GM32A small

PAC AMP-GM32A

Cable to Connect Aftermarket Stereos to Factory Amplifiers in Select 1998-2001 Oldsmobile Bravada Vehicles

$7.99

List price $13.99

06KM613-Pair-Pkg small

Kicker KM613 (Priced Per Pair Package)

Marine 6-1/2" Water-Resistant Replacement Speakers (06KM613 Silver)

(1)

$59.98

List price $109.98

DRAGON-900 small

Mr DJ DRAGON 900

900W Fog Machine with Wired Remote Control and Strawberry Scented FOG JUICE, Holds .5L of Smoke Fluid

(1)

$59.99

List price $99.99

BH-FDVD18.4-BLACK small

TKO Audio BH-FDVD18.4 (Black)

18.4" Overhead Flip-Down TFT-LCD Monitor with Built-in DVD Player and Remote

$259.99

List price $599.99

70-7552 small

Metra 70-7552 Wiring Harness

Install a new car stereo in select 2007-2024 vehicles from Nissan, Subaru, Suzuki

(34)

$10.99

List price $12.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2005 Maserati Spyder

1994 Saturn SC2

1986 Isuzu Pickup

1989 Ford Tempo

2013 Scion FR-S

2009 Audi S4

2015 Toyota RAV4

2004 Porsche Boxster

2007 Lincoln Navigator

1988 Pontiac Sunbird

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
