1500W Earthquake Sound Subwoofer + Kicker Bass Bundle

Earthquake Sound DBXi-12 12" DBXi Series Subwoofer + Kicker ZX450.2 2-Channel Amplifier + Amp Kit

Earthquake Sound
Shop all Earthquake Sound
EXCLUSIVE
highlight-star-icon

12" Single 4 ohm DBXi Series Subwoofer • 1500W Max • 500W RMS • ZX Series 2-Channel Class AB Car Amplifier • MOSFET Power Supply • Tuned Bass EQ • Variable Low-Pass Filter • CEA-2006 Compliant Amplifier • db Link 4 Gauge Amplifier Kit

Learn more about the dbxi12_10zx4502

We apologize

This item has been discontinued


Loading...
VSP69 main

NVX VSP69

900W Peak (300W RMS) 6x9" V-Series 2 Way Coaxial Car Speakers

54
-16.67%

$109.99

List price $131.99

PRO-ZT69 main

DS18 PRO-ZT69 (Sold Individually)

550W Peak (275W RMS) 6x9" PRO Series Hybrid Coaxial Midrange 4-ohm Motorcycle and Powersports Loudspeaker

3

Description


Earthquake Sound brand icon

Authorized dealer

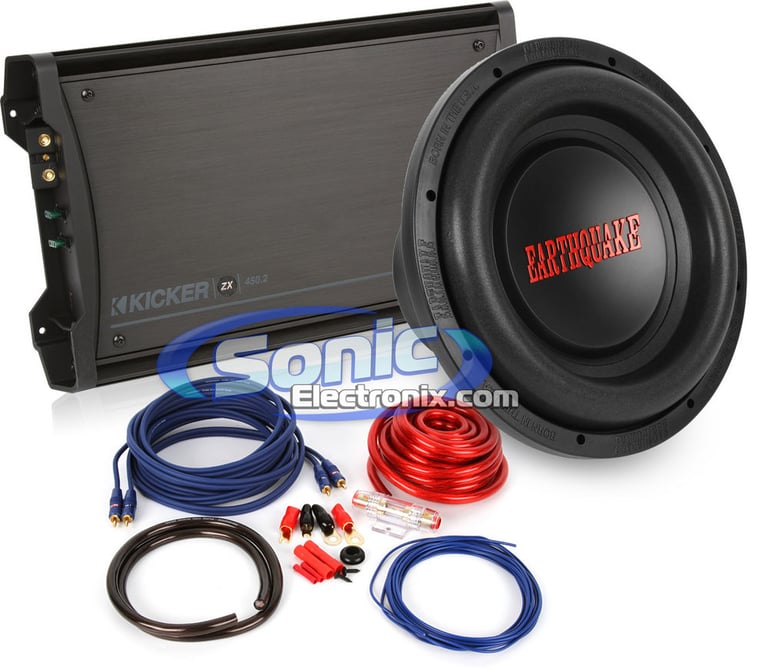

Earthquake and Kicker Bass Bundle

This Sonic Electronix Exclusive Bass package showcases a Kicker 10ZX450.2 Amplifier along with 12" DBXi Series, Earthquake Sound Subwoofer. This excellent bass package pushes 500 watts of clean, continuous RMS power. The Earthquake Subwoofer has Single 4 Ohm Voice Coil; meant to be wired directly to the amplifier, to a final impedance of 4 Ohms at the bridged impedance. For more information regarding subwoofer wiring, please check out our Subwoofer Wiring Diagram.

This Earthquake Sound DBXi-12, DBXi Series subwoofer requires 500 watts of RMS power. The included Kicker 10ZX450.2 amplifier will compliment this required power by supplying a perfect match-up of certified RMS continuous power. This package also includes a 4 gauge amplifier kit which is perfect to supply power to the amplifier. With the Earhtquake Sound subwoofer, Kicker amplifier, and db Link amplifier kit, this bass bundle is great for anyone looking to upgrade their vehicle's audio system

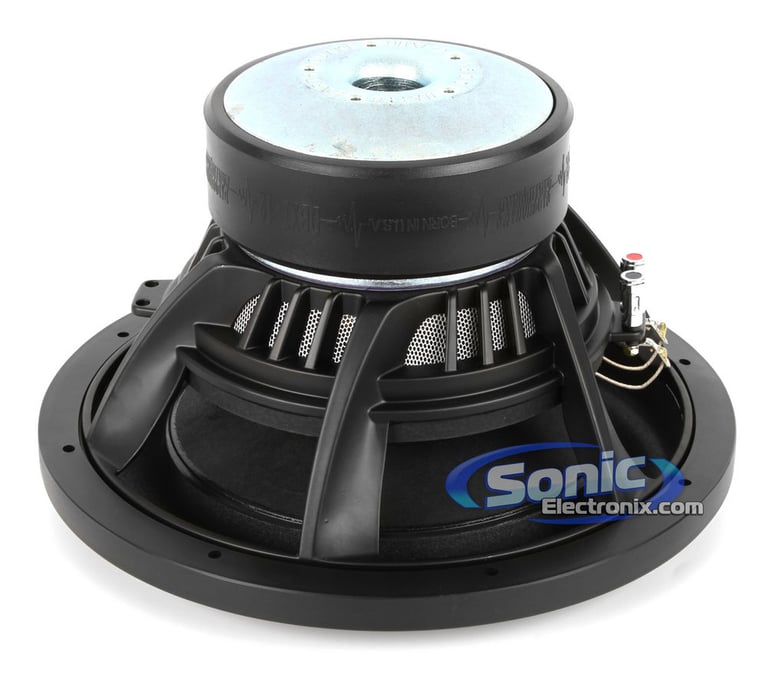

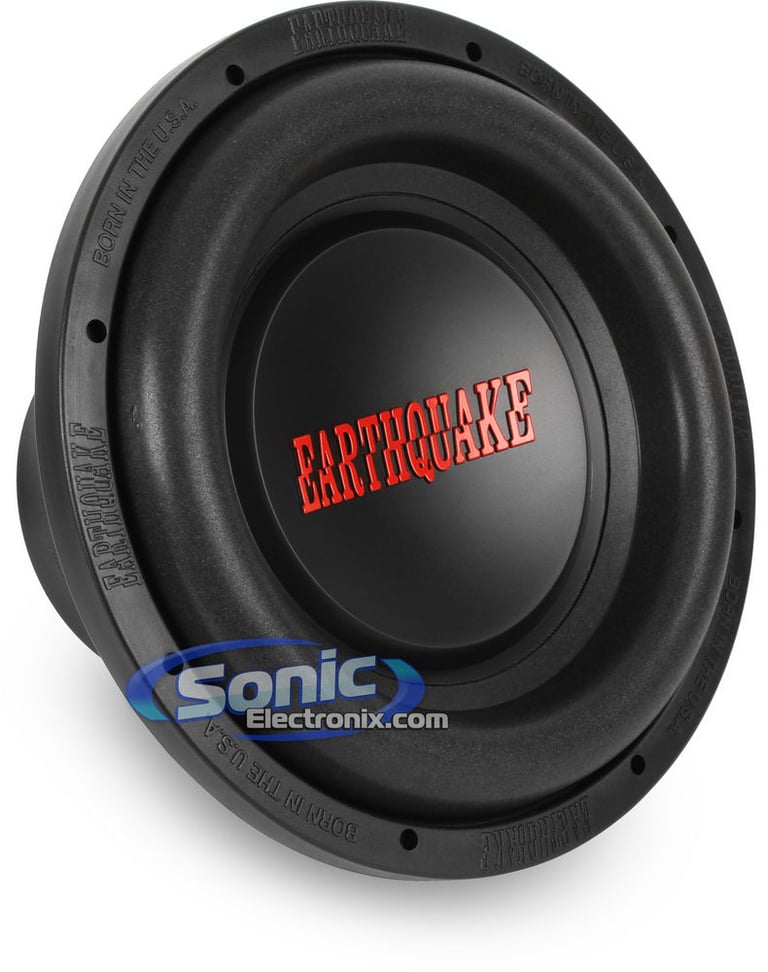

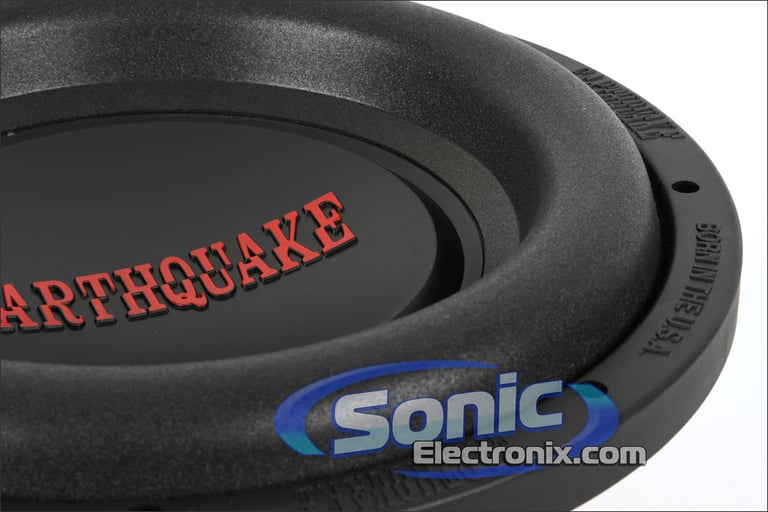

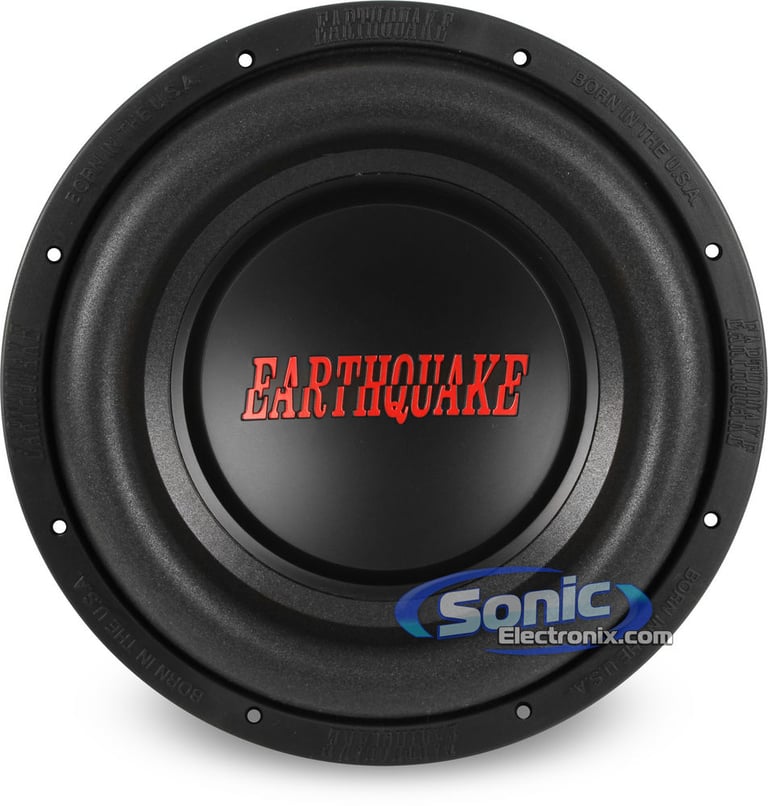

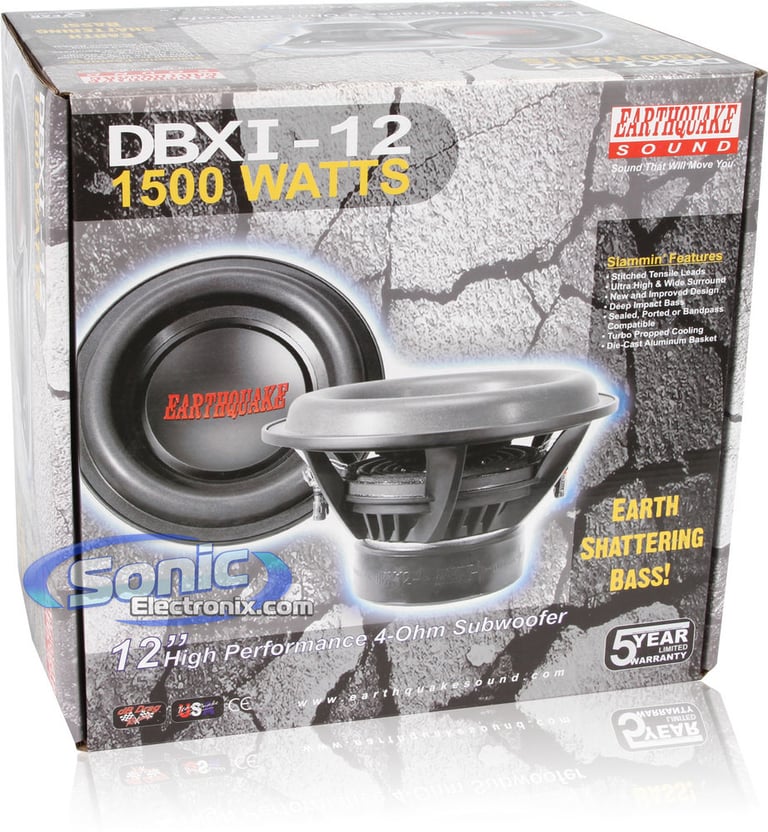

Earthquake Sound DBXI-12 Features:
  • 12" Single 4 ohm DBXi Series Subwoofer
  • Power Handling:
    • Peak: 1500 watts
    • RMS: 500 watts
  • Impedance: Single 4 ohm
  • Pressed pulp fiber woofer cone material
  • High-roll rubber woofer surround
  • New and improved design

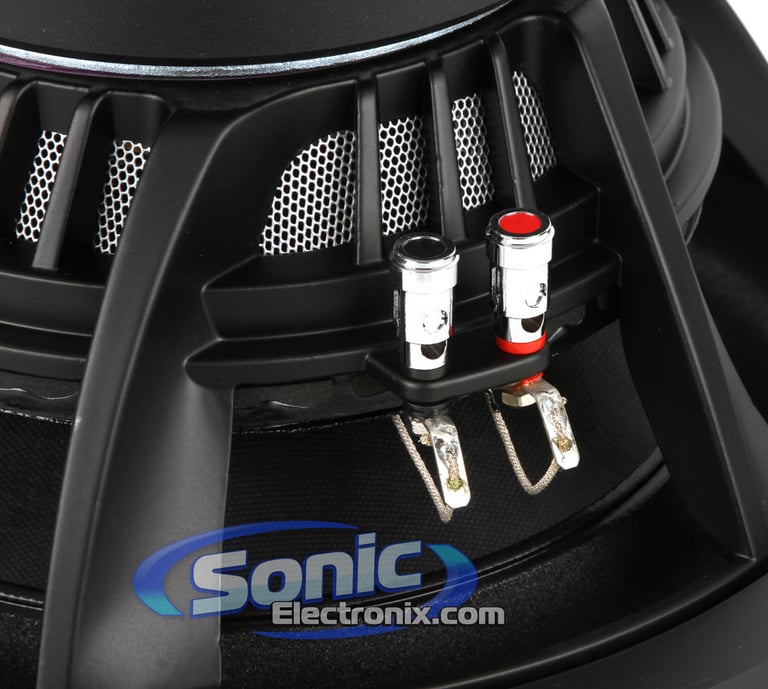

  • Stitched tensile leads
  • Deep impact bass
  • Turbo propped cooling
  • Die-cast aluminum basket
  • 2" Aluminum bobbin voice coil
  • 140 oz. Double stacked magnet structure
  • Sealed, ported, or bandpass compatible
  • Sensitivity: 87 dB
  • Xmax: 27.94mm
  • Mounting Depth: 6-3/4"
  • Cutout dimensions: 11-7/8"
  • Authorized Internet Dealer
  • 5-year Manufacturer's warranty

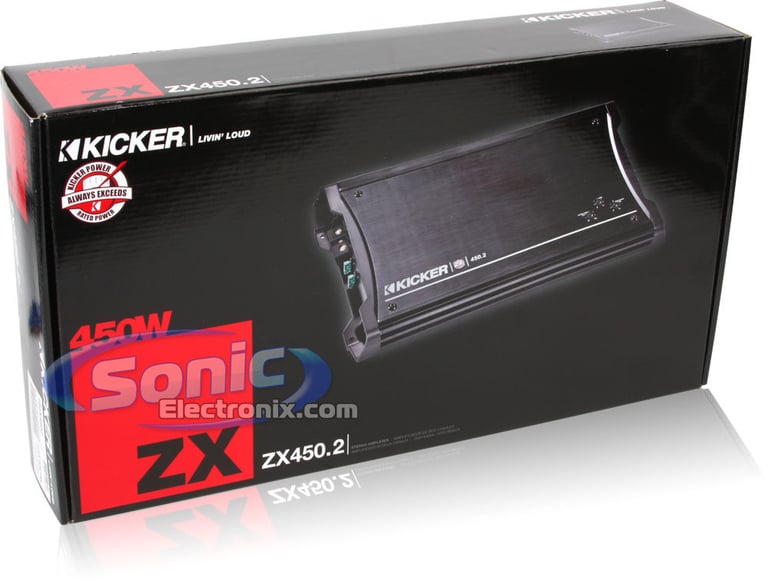

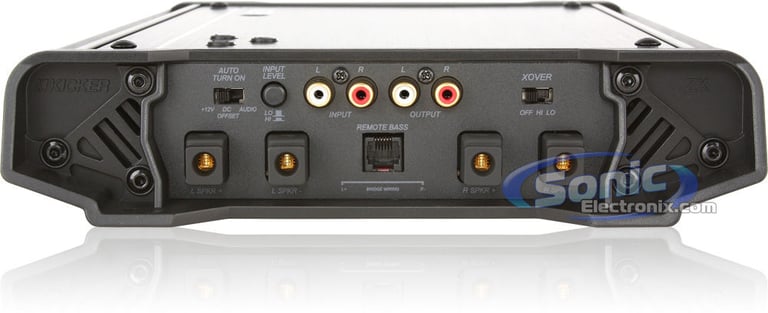

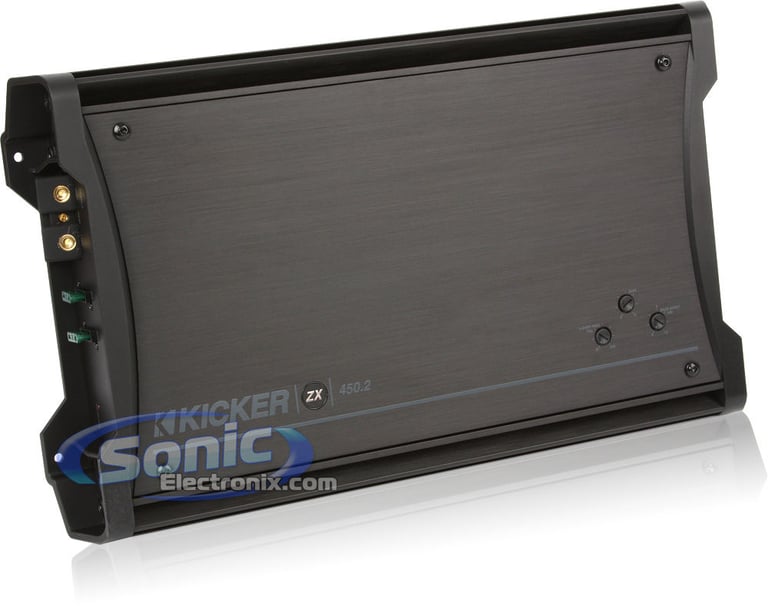

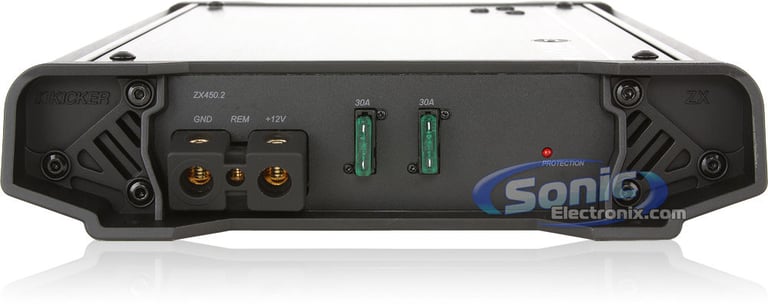

Kicker 10ZX450.2 Features:
  • ZX Series 2-Channel Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 2 chan.
    • 2 ohm: 225 watts x 2 chan.
    • Bridged, 4 ohm: 450 watts x 1 chan.
  • Total RMS power output: 450 watts
  • MOSFET power supply
  • Wired remote bass level control optional (Kicker 10ZXRC)
  • LED power and protection indicators
  • Tuned Bass EQ (0-18 dB bass boost at 40 Hz)
  • Balanced differential inputs make KICKER ZX Amplifiers compatible with any factory radios
  • Eliminates unwanted noise in a system

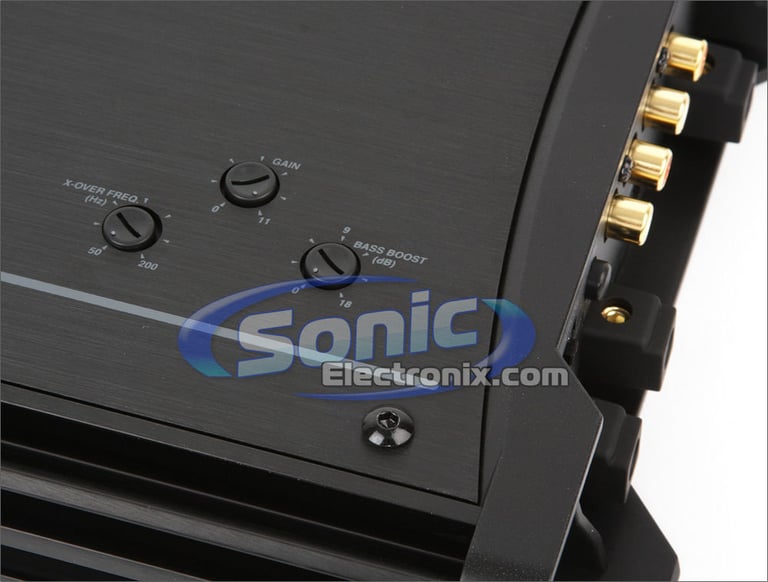

  • Boost, gain, and crossover frequencies are top-mounted for easy access, and a handy protection indicator featuring a new flashing yellow low-voltage light enhances the end panel
  • Bridgeable operation
  • Speaker-level inputs compatible (switchable) through RCA connection, Kicker 09ZISL required and sold separately
  • Automatic turn on modes: remote, DC offset, or signal sense
  • Thermal, voltage, and short circuit protection circuitry
  • Variable high-pass filter (50-200 Hz, 12 dB/octave)
  • Variable low-pass filter (50-200 Hz, 12 dB/octave)
  • Frequency response: 20-20,000 Hz
  • New front panel allows customization with decals
  • CEA-2006 compliant amplifier
  • Dimensions: 16-3/4"L x 9-5/8"W x 2-1/8"H
  • 4-gauge power and ground leads recommended.
  • Authorized Internet Dealer
  • 2-year Manufacturer's warranty
db Link PK4Z Features:
  • 4 Gauge Complete Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Terminals and contacts are gold-plated for excellent signal transfer
  • AGU Fuse holder offers ideal protection for Mid-level systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Amp Kit Includes:

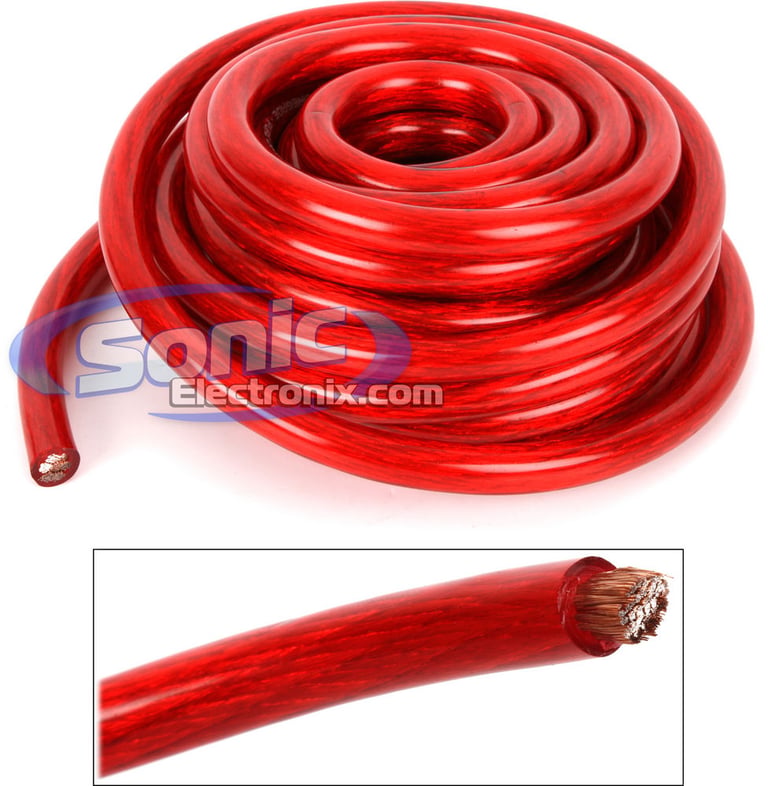

  1. 17 ft. of 4 AWG Red power cable

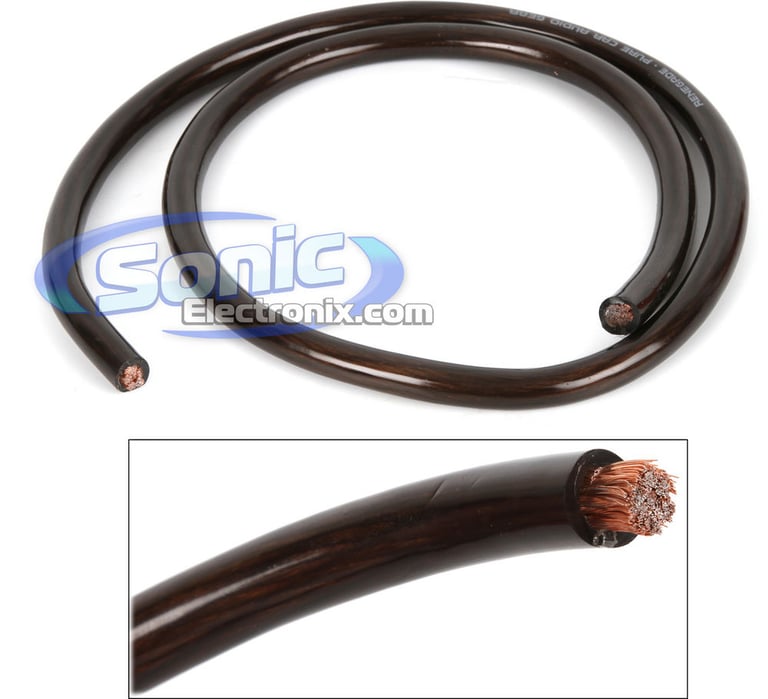

  2. 3 ft. of 4 AWG Black ground cable

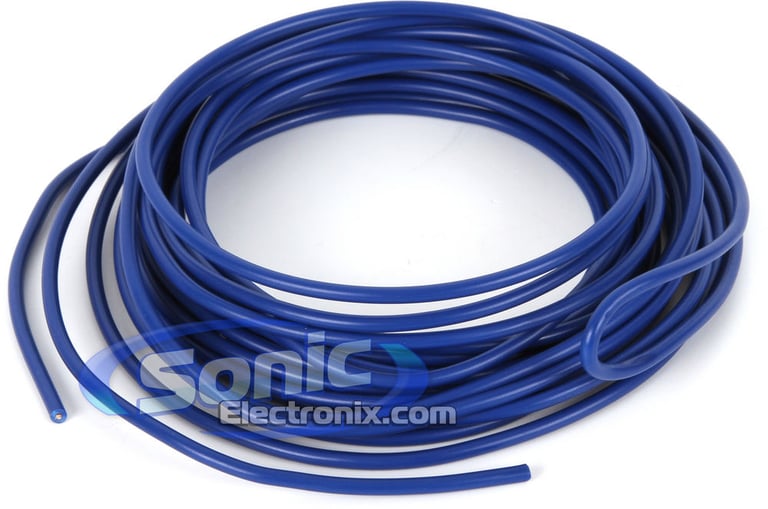

  3. 17 ft. of 18 AWG Blue remote turn-on wire

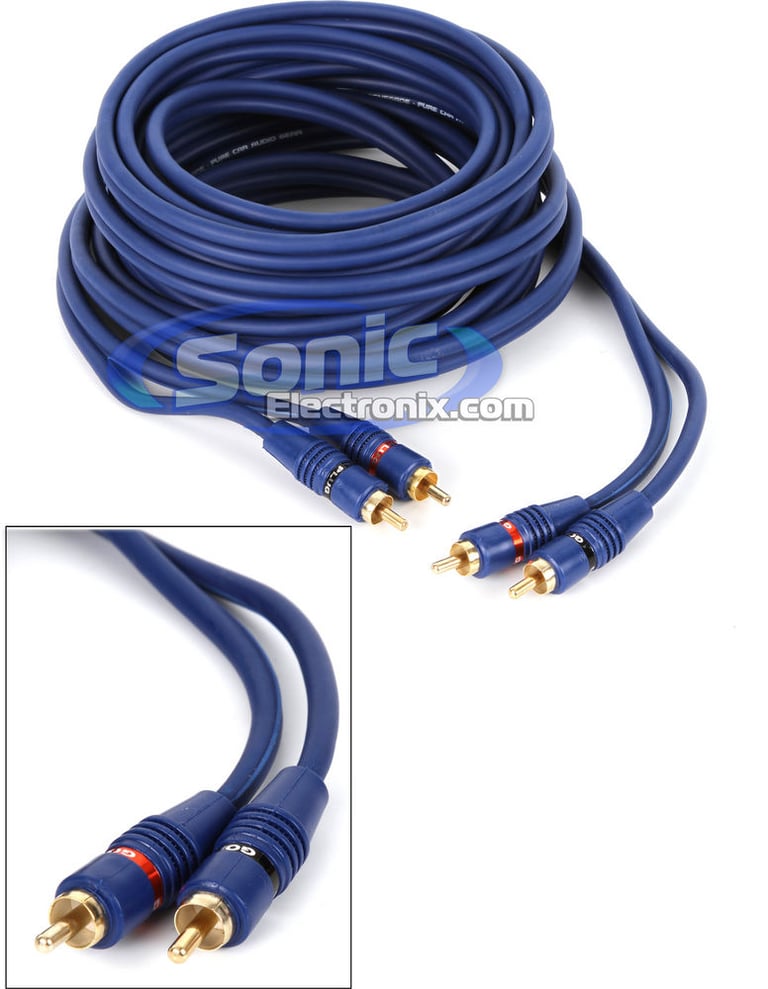

  4. 17 ft. of Blue shielded RCA cable
  5. 25 ft. of 16 AWG speaker wire

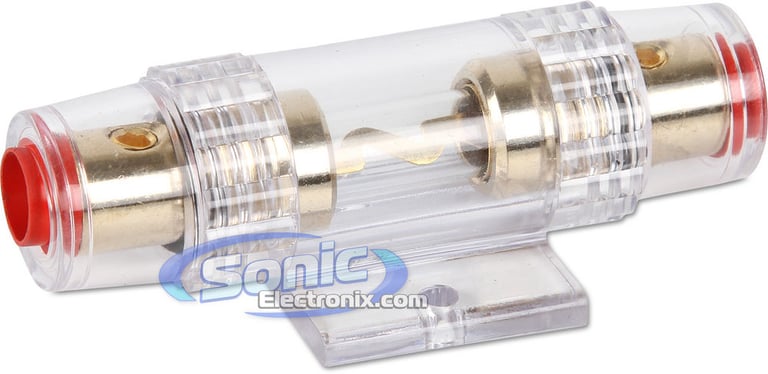

  6. 4 AWG In-line AGU fuseholder
  7. 60 Amp AGU fuse
  8. 5 ft. of Black split loom tubing

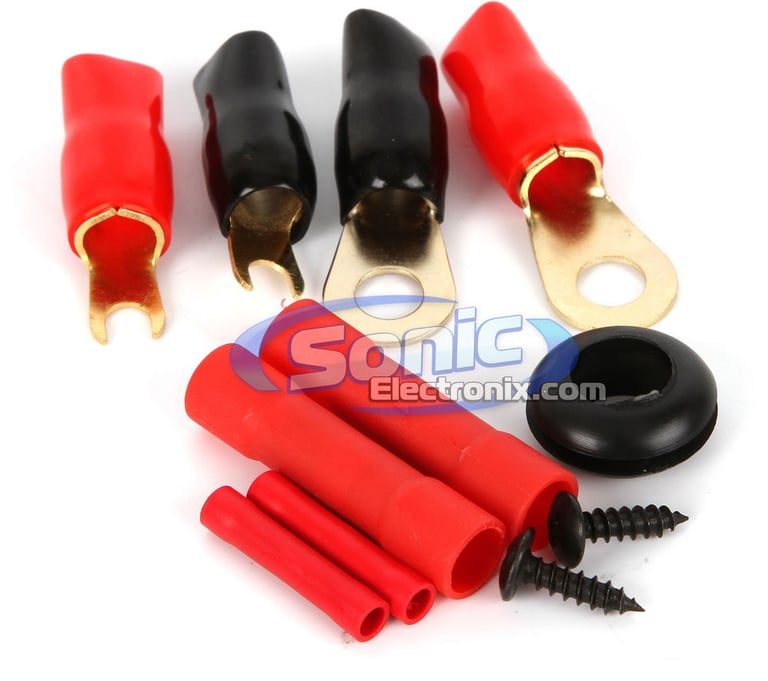

  9. Other installation accessories

Loading...
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-19.05%

$339.99

List price $420.00

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00


Best selling similar products

NPKG212 small

NVX NPKG212 Dual 12" Bass Package

• 12" Loaded Dual Subwoofer Enclosure with Amplifier
• 500 watts RMS
• Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

(11)

$374.99

List price $419.99

MB210SP small

MTX Audio Magnum MB210SP

• 10" Amplified Loaded Subwoofer System
• 400 watts RMS
• Built-In Class D amplifier
• Variable bass boost
• Speaker-level inputs

(65)

$269.95

List price $299.95

F-150EX-09A small

MTX F-150EX-09A

• 10" Amplified Loaded Subwoofer System
• 250 watts RMS
• Built-In Class D amplifier
• Speaker-level inputs
• External bass control

$719.95

List price $637.95

JBLBassPro 12 small

JBL BassPro 12

• 12" Amplified Loaded Subwoofer System
• 150 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs

(1)

$364.95

List price $419.95

MBQBRO-302 small

MB Quart MBQBRO-302

• 12" Amplified Loaded Subwoofer System
• 400 watts peak
• Built-In class D amplifier
• Variable bass boost
• Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

$679.99

List price $899.99

RTP8A small

MTX Audio RTP8A

• 8" Amplified Loaded Subwoofer System
• 120 watts RMS (360 watts Peak)
• Built-In amplifier
• Variable bass boost
• Speaker-Level Inputs
• EBC wired remote bass level control

(8)

$199.95

List price $219.95

TNP212D2 small

MTX Audio TNP212D2

• 12" Amplified Loaded Subwoofer System
• 400 watts RMS
MTX TN250/1 amplifier included
• Selectable bass boost
• Speaker-level (high-level) inputs (adapter included)
• Wired remote bass level control

(156)

$369.95

List price $399.95

W10S4_2, BXD3K, BAK42BK small

(2) Alpine W10S4 10" Bass Subwoofers + Belva 3000W Amplifier + 4 Gauge Amp Kit

• 750W Max
• 250W RMS
• Polypropylene-Mica cone
• High-excursion poly-foam surround
• High-strength custom steel frame
• Progressive Wavelit Ribs (P.W.R.) cone design

(82)

$364.88

List price $489.98

QB10SPA small

NVX QB10SPA

• 10" Amplified Loaded Subwoofer System
• 350 watts RMS
• Built-In Class D Amplifier
• Variable Bass Boost
• Speaker-Level Inputs
• Wired Remote Bass Level Control

$179.99

List price $275.98

Specifications & Details


Amplifier Power Specifications
RMS Power @ 4 ohms
150 watts x 2 channel
RMS Power @ 2 ohms
225 watts x 2 channel
Bridged RMS Power
450 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
2-Channel
Total RMS Power Output
450 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
50 - 200 Hz
Low-Pass Crossover Frequency
50 - 200 Hz
Signal-to-Noise Ratio
95 dB
Bass Boost
0 - 18 dB
Remote bass/level controller
Optional (Accessory required and sold separately)
Fan Cooled
No
Fuse Rating
60A x 1
CEA-2031 Compliant
Yes
Subwoofer Specifications
Number of Subwoofers
1
Subwoofer Size
12"
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
RMS Power Handling
500 watts
Total RMS Power Handling
500 watts
Peak Power Handling
1500 watts
Total Peak Power Handling
1500 watts
Woofer Surround
High-Roll Rubber
Woofer Composition
Pressed Pulp Fiber
Minimum Sealed Box Volume
0.90 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.50 cubic feet
Maximum Ported Box Volume
2.5 cubic feet
Sensitivity
87 dB
Xmax (millimeters)
27.94 mm
Top-Mount Depth (Mounting Depth)
6-3/4"
Cutout Diameter
11-7/8"
Recommended Enclosure Type
Ported / Vented
Sealed
Warranty and Return Policy
Parts Warranty Duration
5 years
Labor Warranty Duration
5 years
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

DBXI-12_10ZX450.2

Weight:

37.00lbs

Internal SKU:

dbxi12_10zx4502

Internal Product ID:

39555

Customer Ratings & Reviews


1500W Earthquake Sound Subwoofer + Kicker Bass Bundle thumbnail image

5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:

Loading...
Sorry, no reviews found


BXi608-RB_2-KFC-W2512 small

2000W Complete Hifonics + Kenwood Bass Package

Hifonics BXi 608 R/B Amplifier + 2 Kenwood KFC-W2512 Subs + 4 Gauge Amp Kit + Dual 10" Sealed Box

$277.95

List price $729.95

LED PAR 56-24-C small

Chauvet LED PAR 56-24-C (Chrome)

3 Or 7-Channel DMX-512 LED Par Can Light with Built-In Sound Activated Programs

$179.99

List price $359.99

No picture

JL Audio MicroSub+ ACP108LG-W3v3 (Open Box, Good)

250 Watt RMS Single 8" 8W3v3 Amplified Subwoofer Loaded in a Slot-Ported MicroSub Enclosure

$377.99

List price $629.99

UV PANEL small

American DJ UV PANEL

High Powered 160W UV Panel in a Compact Low Profile Case

(1)

$199.99

List price $279.99

IODock_IODockbag small

Alesis iODock w/ Free iODock Carrying Bag

Portable iPad Recording Studio w/ Free iODock Carrying Bag

(1)

$223.99

List price $459.98

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2020 Chevrolet Impala

2007 Jeep Compass

2018 Chrysler Pacifica

1979 Chevrolet Chevette

2023 GMC Acadia

2001 Honda Passport

2009 Toyota Avalon

2001 Honda Odyssey

2005 Mazda 6

1957 Chevrolet Nomad

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
