See all parts that fit your 2003 Celica

JL Audio 15W0v3-4 (Like New (Open Box))

500W RMS 15" W0v3 Series Single 4-ohm Car Subwoofer

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 7.15"
• Sensitivity: 88.20 dB

Learn more about the ls-15w0v34-u9

We apologize

This item has been discontinued

Product Highlights


• RMS Power: 500 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Foam Surround
• Mount depth: 7.15"
• Sensitivity: 88.20 dB

Description


JL Audio brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

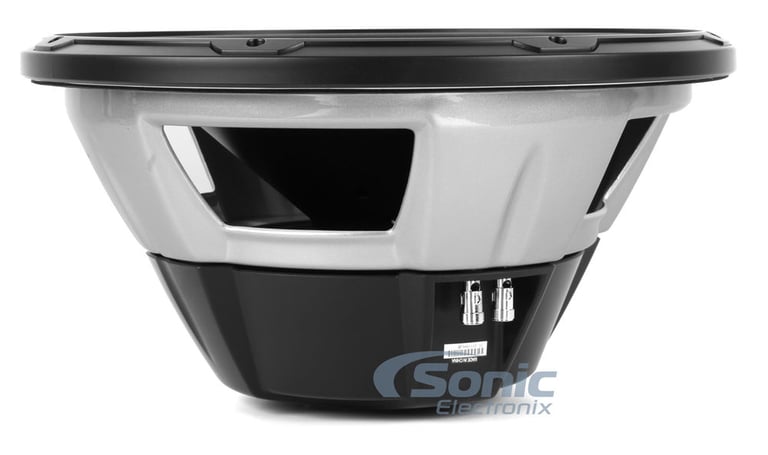

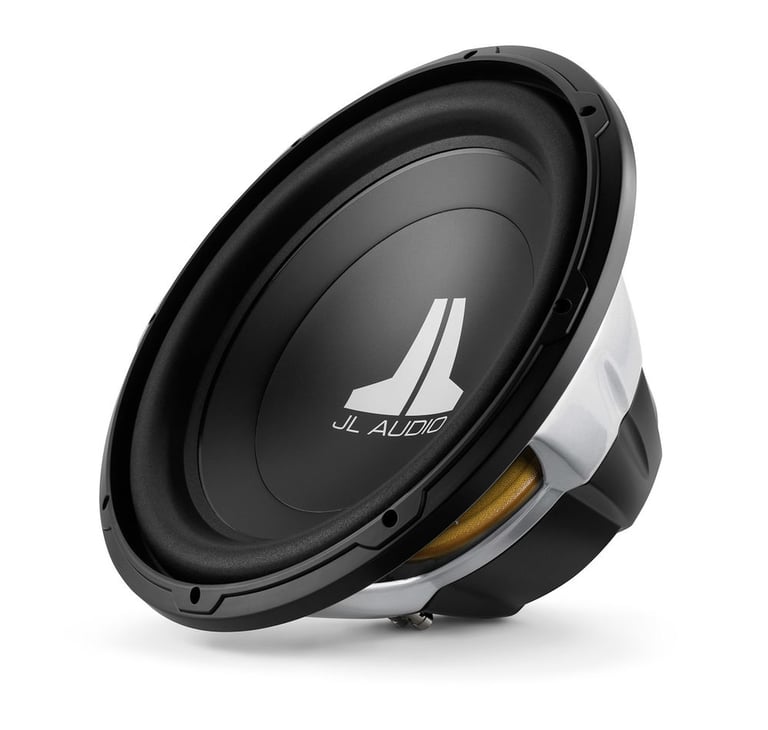

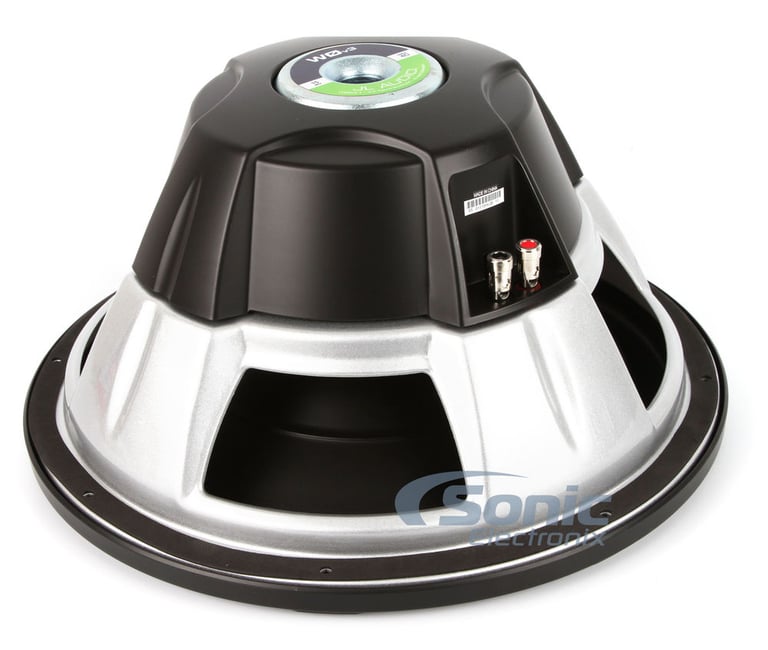

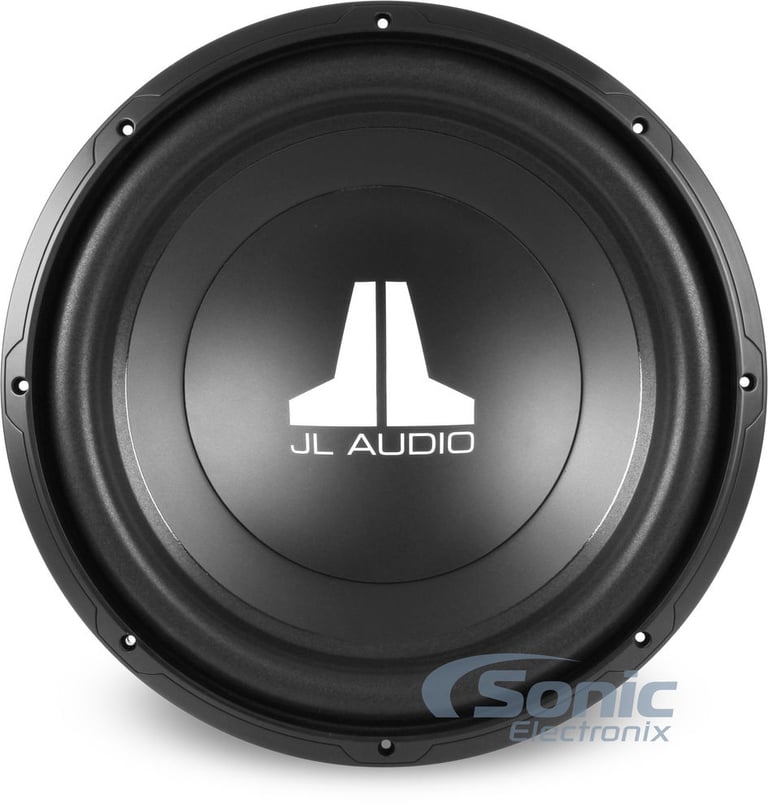

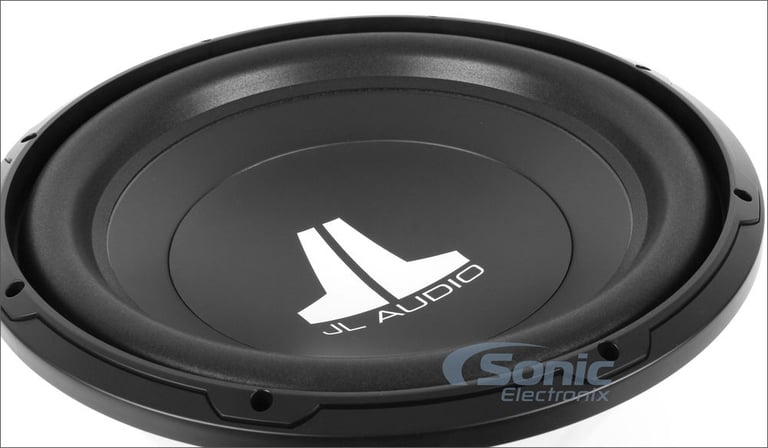

JL Audio 15W0v3-4

The 15W0v3 offers excellent excursion capability, linearity and an overall performance envelope that puts it right at the top of its price class. It features a very beefy 2.5 in. diameter voice coil and our Elevated Frame Cooling design for enhanced power handling and reliability. The 15W0v3 is best used with amplifier power in the 150W - 500W range and is optimized to operate in a moderately sized 1.875 cu. ft. (53.1 liters) sealed enclosure, or a 2.75 cu. ft. (77.88 liters) ported enclosure.


Product Details:

  • 15" Single 4 ohm W0 v3 Series Subwoofer
  • Power Handling:
    • RMS: 500 watts
  • Polypropylene Cone
  • Foam Surround
  • Elevated Frame Cooling design
  • 2.5" Voice coil
  • 12.7 mm Xmax
  • Single Stacked magnet motor structure
  • Resonance Frequency (Fs): 24.43 Hz
  • Sensitivity: 88.20 dB
  • Recommended sealed box volume:1.875 cubic feet
  • Recommended ported box volume: 2.75 cubic feet
  • Top-mount depth: 7.15"
  • Cutout diameter: 13.75"
  • Authorized Internet Dealer
  • JL Audio SGRU-15 optional protective subwoofer grille (sold separately)
  • 1-year Manufacturer's Warranty

  • Priced Individually

Product history:

JL Audio 15W0v3-4-5 thumbnail
(newest, current model)
JL Audio 15W0v2-4 thumbnail
(previous model, replaced by JL Audio 15W0v3-4 (Like New (Open Box)))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 15W0v3-4 (Like New (Open Box)) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 15W0v3-4 (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 15W0v3-4 (Like New (Open Box)) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 15W0v3-4 (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
W0 v3 Series
Subwoofer Size
15"
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Sensitivity
88.20 dB
Xmax (millimeters)
12.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.875 cubic feet
Optimum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
7.15"
Cutout Diameter
13.75"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
24.43 Hz
Equivalent Compliance (Vas)
144.60 liters
Total Speaker Q Value (Qts)
0.482
Electrical Q Value (Qes)
0.508
Electrical Resistance of Voice Coil (Re)
3.555 ohm
Mechanical Q Value (Qms)
9.474
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

15W0v3-4-5

Weight:

19.95lbs

Internal SKU:

ls-15w0v34-u9

Internal Product ID:

227549
