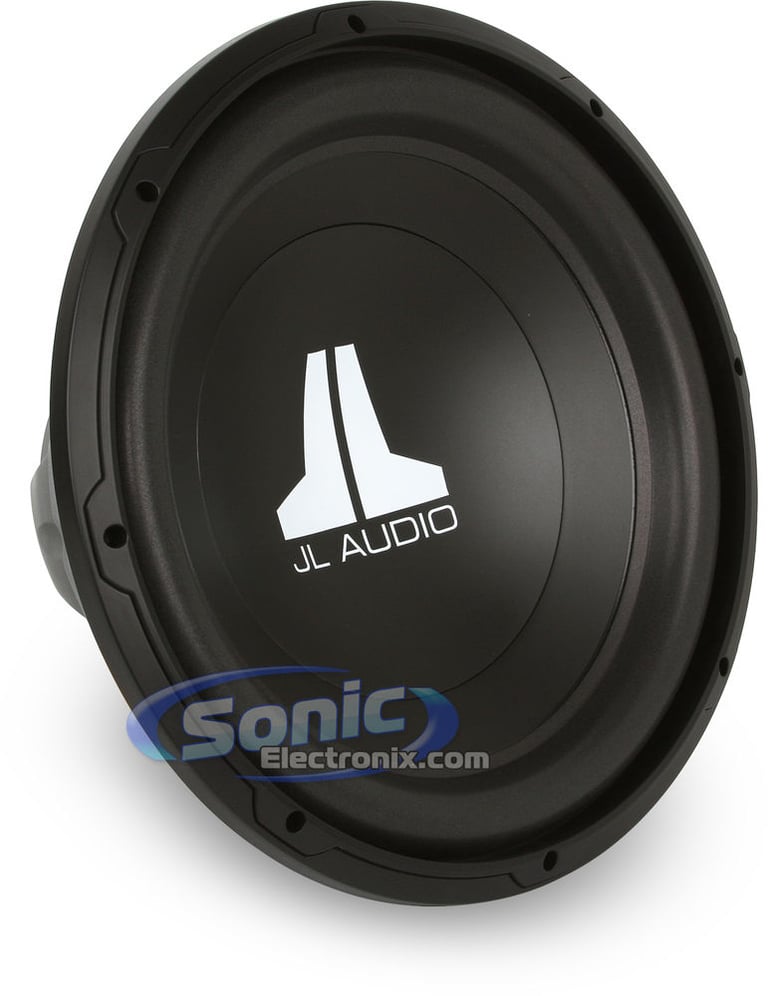

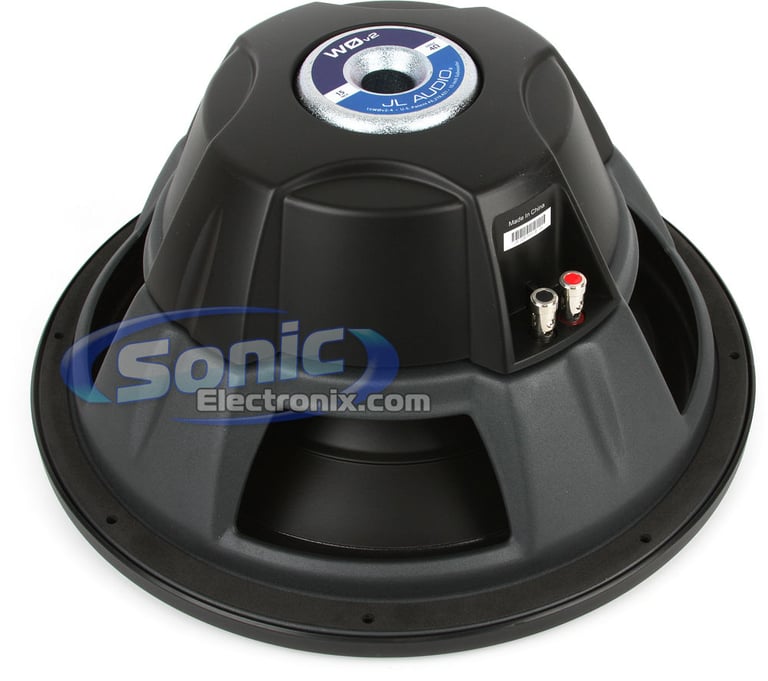

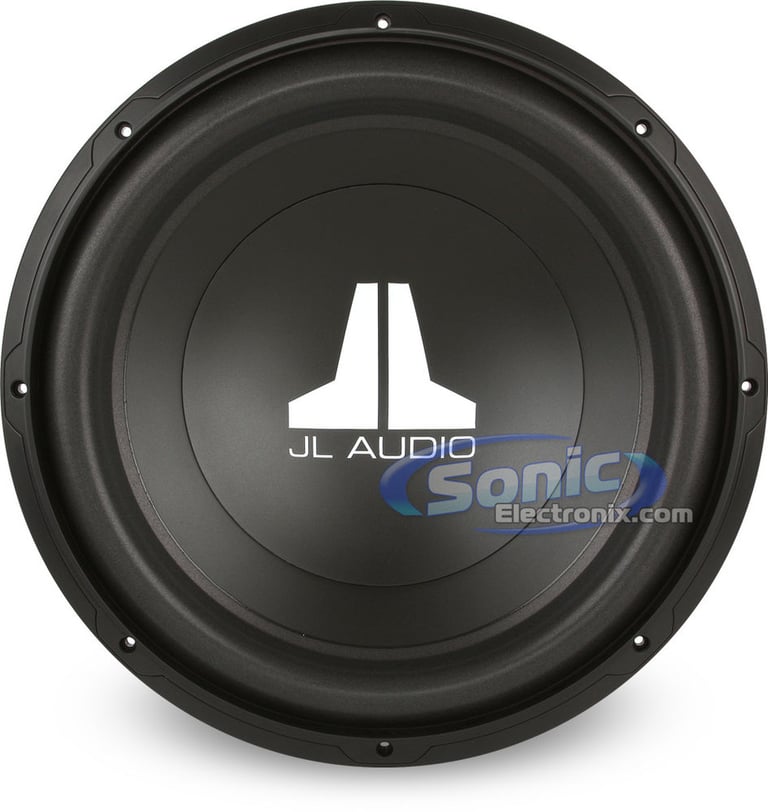

JL Audio 15W0v2-4

15" Single 4 ohm W0v2 Series Subwoofer (92163)

JL Audio
Shop all JL Audio
Product videos
highlight-star-icon

15" Single 4 ohm W0v2 Subwoofer • 500W Max • 250W RMS • Polypropylene cone woofer • Foam surround • Elevated frame design • Linear excursion • Sensitivity: 88 dB

Learn more about the 15w0v24

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

15w0v34 thumbnail

JL Audio 15W0v3-4

OUR PRICE: $299.99

View item

Product Highlights


15" Single 4 ohm W0v2 Subwoofer • 500W Max • 250W RMS • Polypropylene cone woofer • Foam surround • Elevated frame design • Linear excursion • Sensitivity: 88 dB

Description


JL Audio

Authorized dealer

  • 15" Single 4 ohm W0v2 Subwoofer
  • Power Handling:
    • Peak: 850 watts
    • RMS: 500 watts
    • Recommended Power Range: 100-500 watts
  • Polypropylene cone woofer
  • Foam surround

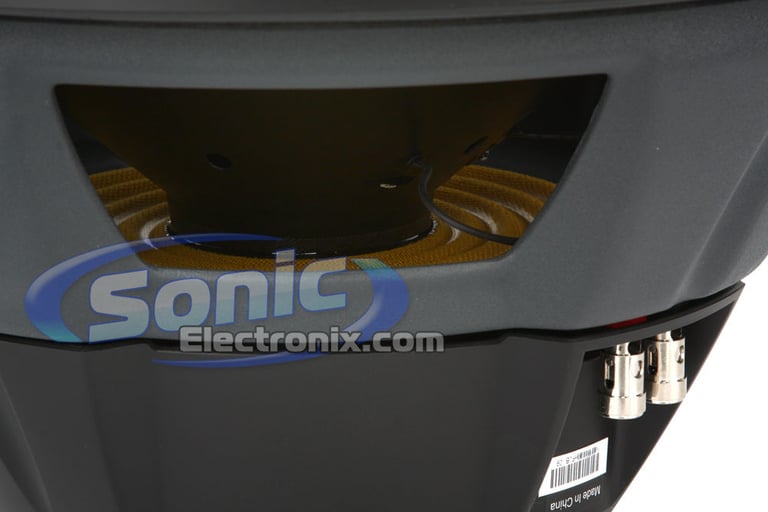

  • Elevated frame design allows air to flow through slots directly above the voice coil
  • Rear gasket provides an optimal seal when installing into an enclosure
  • Linear excursion provides louder bass with less distortion
  • Frequency response: 20-200 Hz
  • Sensitivity: 88 dB
  • Black Steel-Mesh Grille Insert Available: JL Audio SGRU-15
  • 1-year Sonic Electronix warranty
JL Audio 15W0v24 Recommended Power Range

Product history:

JL Audio 15W0v3-4 thumbnail
(newest, current model)
JL Audio 15W0v2-4 thumbnail
(previous model, replaced by JL Audio 15W0v3-4)

Subwoofer Wiring Guide


Wiring Guide to Wire 1 JL Audio 15W0v2-4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 JL Audio 15W0v2-4 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 JL Audio 15W0v2-4 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 JL Audio 15W0v2-4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Subwoofer Size
15"
Peak Power Handling
850 watts
RMS Power Handling
500 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohms
Voice Coil Material
Frequency Response
20 - 200 Hz
Sensitivity
88 dB
Xmax (millimeters)
12.7 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Polypropylene
Woofer Surround
Foam
Magnet weight
Magnet Type
Subwoofer Grille
Optional (Accessory required and sold separately)
Re-Cone Kit Available
No
CTA-2031 Compliant
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.875 cubic feet
Maximum Sealed Box Volume
1.875 cubic feet
Minimum Ported Box Volume
2.75 cubic feet
Maximum Ported Box Volume
2.75 cubic feet
Top-Mount Depth (Mounting Depth)
7-1/8"
Cutout Diameter
13-3/4"
Shallow Mount Installation
No
What is in the box?
Paperwork
WITB: Subwoofers
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Other Accessory #6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

15W0v2-4

Weight:

21.00lbs

Internal SKU:

15w0v24

Internal Product ID:

20991

Product and How-to Videos


Customer Ratings & Reviews



5 star
67%
4 star
33%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
5
Features
4.7
Design
4.9
Usability
5
Sort by:

Loading...

JL Audio 15wov2-4

These are the best sounding subs iv'e heard in a long time
and i'm running six 15's .

By MOJO68 on February 25, 2011

13

found this helpful.

JL Audio 15 subs 139.9 db first run

For the money i would find this sub hard to beat. I have owned and competed with several brands of 15's and for a little over 300 dollars i hit 139.9 first run on JL Audio 500/1 on each sub in a wedge ported enclosure. pros to the sub: Great construction, excellent materials used to build it and it accepts 6 AWG stinger power wire for speaker wire with no mods or reducer pins. Also, they play well with all kinds of music. cons. i need a larger cab for another set so i can run 4 15's but 2 will do for what i want. Look at these subs close before you buy anything else and do yourself a favor and listen to a set if you can. On the overall i put 4 stars because lets face it there are better subs out there. 5 stars on everything else I'm completely satisfied with he subs.

By DJ Cadillac BOb on August 5, 2010

12

found this helpful.

awesome subs

i bought a box from a guy and he showed me his subs. he had a pair of these and they were the loudest subs iv ever heard. they shake his truck so hard it sounded like it was going to fall apart. when the truck was open it vibrated my cloths and i wasn't even close to them. i could hear his coming from a block away.

By Whitee on December 3, 2009

11

found this helpful.

jl wo v2 15s

i have 2 of these and i think they are a little under rated but thats a good thing i bought these cause 1 of my friends in high school had 2 wo 15s and they were loud that was 7 years ago and he says they sound just the same jl is avery good long lasting brand

By Dacas on July 26, 2011

9

found this helpful.

Just another example

Hey its me again DJ Cadillac Bob.(1st review) small note before my next review my JL 15" and JL speakers and amps sold the escalade for me.Build your cars with this product it works. Today just finished my second go at these subs 2-4-2 this time in a car club friends impala outstanding beat,lowend and all around good sound. Used a sealed enclosure this time for the limited space available. I think for the money there priced at now they can't be beat. A little history there built on the JLw6 platform if you know JL products you know this is there upper level subs. this time ran off a Hifonics Brutus series mono 600. off the stock chevy impala radio for signal so no tricks here just plain stock. my meter may be off a bit but did 136.7db so the numbers are consistent with my trucks build first go round. he needs dynamat and i think he might get up to the 139.9. . shop if you want to if its the same price go JL they took my abuse.

By DJ Cadillac Bob on October 5, 2010

9

found this helpful.

Wow

I have 4 of these in an s10 ext cab, loaded in an 11 cubic foot box ported to 38 hrz on 2 1000/1 wired to 2ohms each! It is the loudest system I have ever built and I am very Impressed with it! I haven't metered it yet but I would say it's pushing the 150 db mark!

By Xtrm281 on April 27, 2012

7

found this helpful.
