JL Audio CS113TG-TW5

One 13.5" JL Audio 13TW5-3 Loaded in a Sealed Truck PowerWedge Enclosure

JL Audio
Shop all JL Audio
highlight-star-icon

• 13.5" Loaded PowerWedge Truck Enclosure
• 1200W Peak
• 600W RMS
• Comes Equipped with One JL Audio 13TW5-3 TW5 Thin-Line Subwoofer
• High Grade Black Carpet Finish
• Five-Way Binding Post Connectors

Learn more about the cs113tgtw5

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

cs113tgtw5v2 thumbnail

JL Audio PowerWedge TW5 CS113TG-TW5v2

OUR PRICE: $1149.99

View item
NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

124
-33.36%

$79.96

List price $119.99

UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

REF6532IXAM main

Infinity Reference REF6532IXAM

360W Peak (120W RMS) 6.5" Reference Series 2 Way Coaxial 3-ohm Speakers

3
-20.01%

$119.95

List price $149.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Description


JL Audio brand icon

Authorized dealer

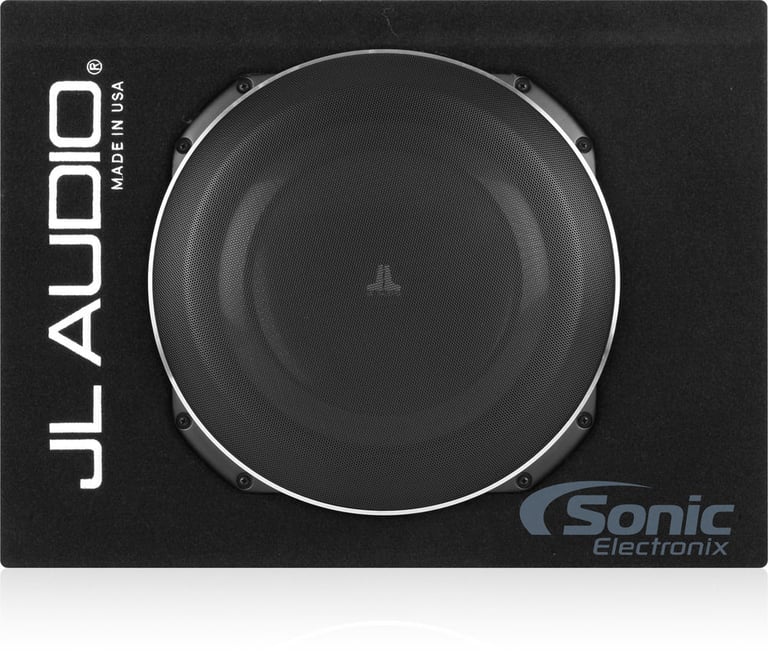

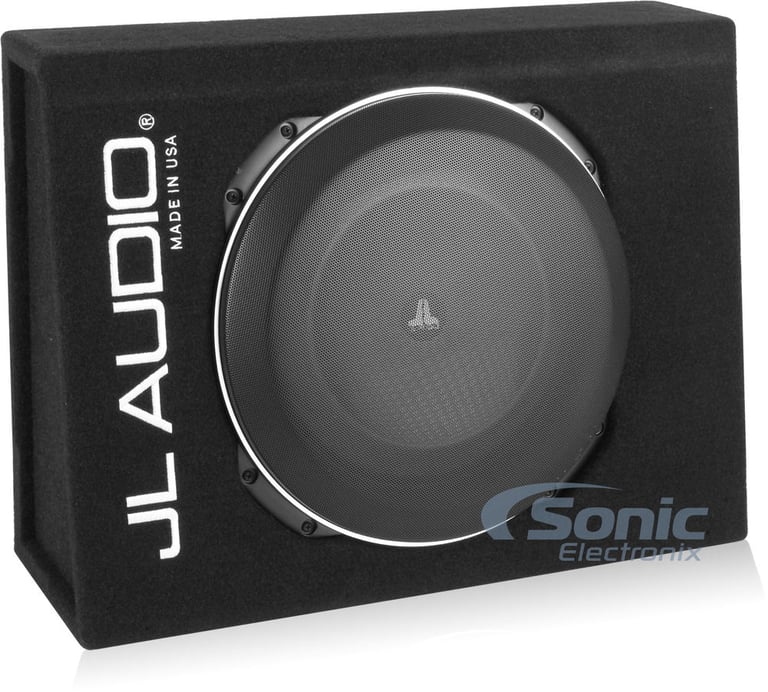

JL Audio 13.5" Loaded PowerWedge Truck Enclosure

JL Audio's sealed PowerWedge subwoofer enclosure is loaded with the 13.5" 13TW5-3 TW5 Thin-Line Subwoofer. The JL woofer features a peak power rating of 1200 watts and a continuous RMS rating of 600 watts. This sub will produce some earth shaking bass and is constructed with a mica-filled polypropylene cone for ultimate durability and a santoprene rubber surround that provides excellent excursion and superior accuracy. It's unique thin design allows for small airspace requirements.

The subwoofer is loaded into high quality MDF sealed enclosure that is covered with high grade black carpeting. This enclosure features a thin & compact design that will fit perfectly behind the seats of most pick-up trucks. It also comes equipped with five-way binding post connectors and a steel mesh grill that provides excellent woofer protection. This top of the line loaded enclosure will enhance any vehicles sound system.

Subwoofer Features:

  • 13.5" Single 3 ohm TW5 Thin-Line Subwoofer
  • Power Handling:
    • Peak: 1200 watts
    • RMS: 600 watts
    • Recommended Power Range: 100-600 watts
  • Impedance: 3 Ohm
  • Mica-filled polypropylene cone for ultimate durability
  • Santoprene surround for generous amounts of excursion and excellent accuracy
  • Unique design allows for small airspace requirements
  • Requires only 0.8 cubic feet of airspace
  • Cast alloy basket
  • Frequency response: 20-500 Hz
  • Sensitivity: 85.87 dB
  • Xmax: 9.7mm
  • Mounting Depth: 2-1/2"
  • Cutout Diameter: 12-1/2"
  • 2 Year Manufacturer's Warranty

General Enclosure Features:

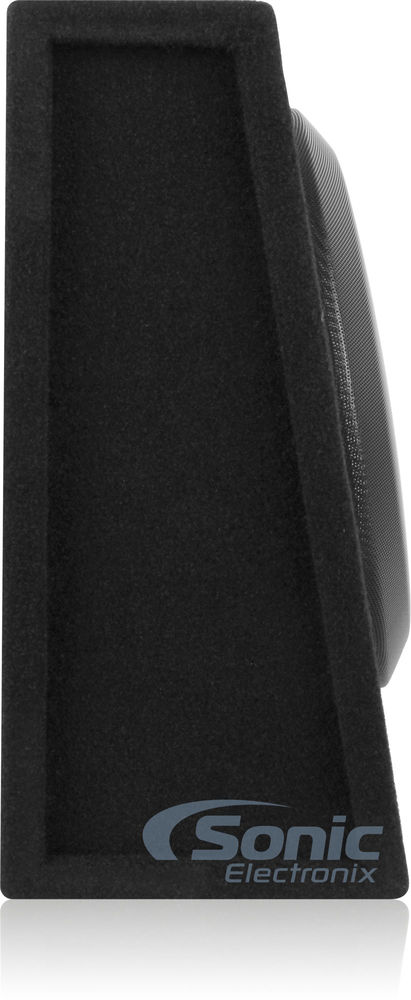

  • PowerWedge Sealed Truck Enclosure
  • High quality MDF construction
  • Delivers world-class sub-bass fidelity
  • Provides a detailed and smooth response
  • High grade black carpet finish

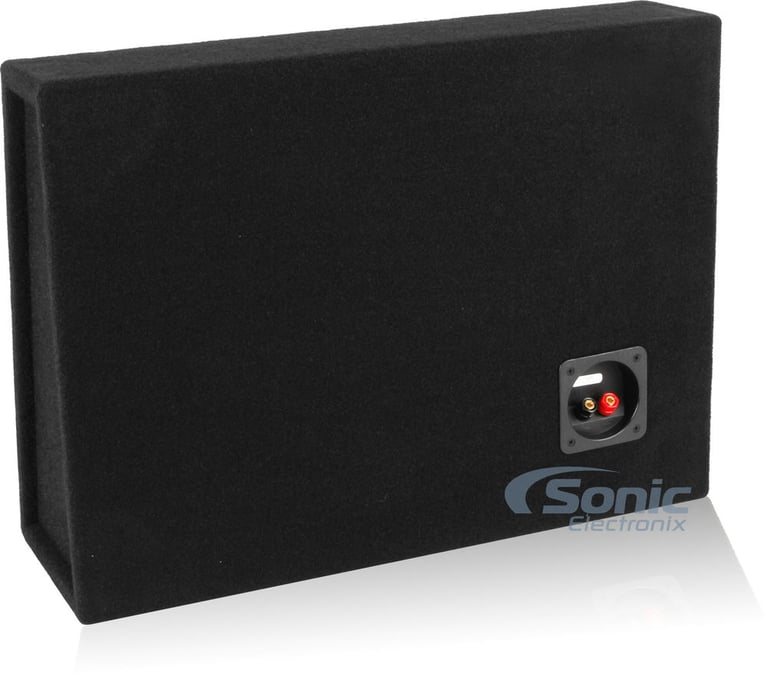

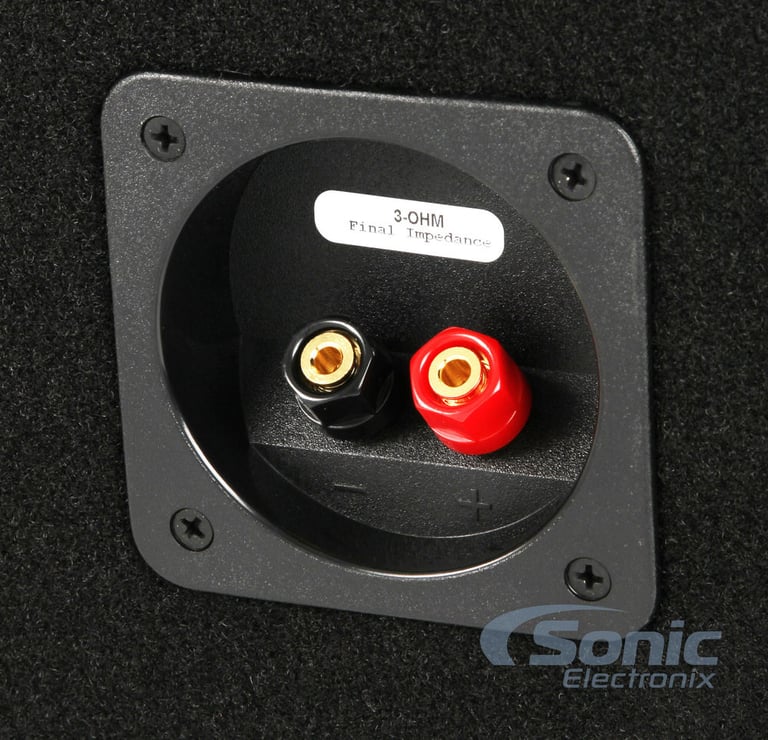

  • Five-Way binding post connectors
  • Embroidered JL Audio logo
  • JL Audio ECS internal wiring
  • Steel mesh grille provides excellent woofer protection
  • Final Impedance: 3 ohm
  • Weight: 34 lbs
  • Dimensions: 4-1/2"TD x 7-1/4"BD x 21-1/4"W x 15-3/4"H

Product history:
