Crimestopper SV-5340 Bar Mount License Plate CMOS Backup Camera

Crimestopper SV-5340

Top Bar Mount License Plate Camera w/ Mini Size CMOS Camera with Concealed Bracket

Top Bar Mount License Plate Camera w/ Mini Size CMOS Camera with Concealed Bracket

License Plate Bar Mount Style CMOS Color Camera • Distance Guard Grid • Waterproof Design • Durable Die-Cast Metal Design • Easy To Install On Vehicles

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

sv5340ii thumbnail

Crimestopper SV-5340.II Universal Back-Up Camera

OUR PRICE: $49.99

View item
DESCRIPTION
Crimestopper

Authorized dealer

Secure Your View!

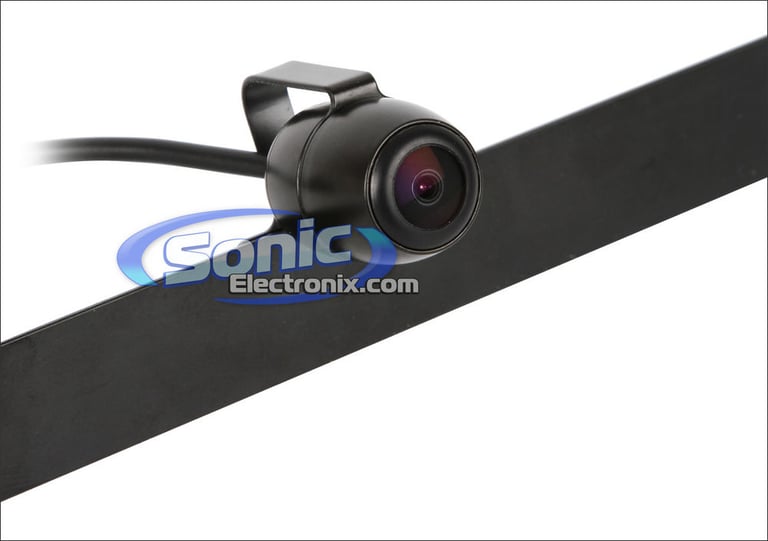

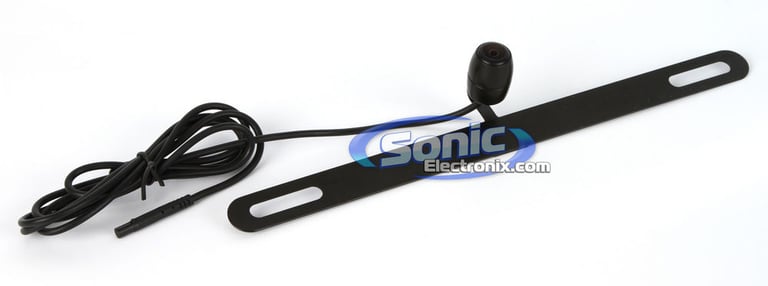

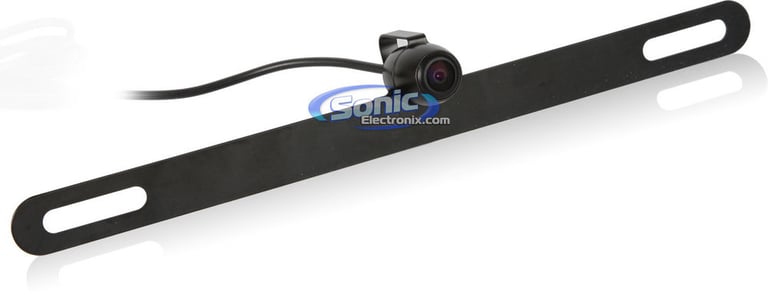

The SecurView™ SV-5340 is a bar type camera with a "hide-away" bracket designed to be mounted on the vehicle license plate using the existing license plate holes. It has an ultra-wide 170° viewing angle to give the driver the absolute best view behind the vehicle.

The SV-5340 is not only easy to install, but it also maintains a very low-profile on the vehicle. The entire mounting bracket is made to be hidden behind the license plate so that only the camera lens is visible. Once the camera is installed you can't even tell that it is a plate mount camera. This makes it a very good choice for users who want a clean looking install but do not want any holes drilled on the vehicle.

Crimestopper SV-5340 Features:
  • License Plate Bar Mount Style CMOS Color Camera
  • Bar mount design allows for quicker and easier installation with no drilling required
  • Easy to fit over most vehicle license plates
  • Mounting bracket is designed to be hidden behind the license plate so only the camera can be seen
  • Built-in distance meter to help the driver accurately judge distance behind the vehicle when reversing
  • Durable die-cast metal design
  • Waterproof design (IP68)
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Crimestopper SV-5340 Specifications:
  • Image Sensor: CMOS
  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 90°
  • TV System: NTSC / PAL
  • Normal / Reverse Image: Reverse Image Only
  • Night Vision: No
  • Distance Meter: Yes
  • Audio: No
  • Resolution: 420 TV Lines
  • Illumination: 0.5 Lux / F 1.2
  • Power Source: 12 Volt
  • Camera Dimensions (mm): 34L x 251W x 35D

Product history:

Crimestopper SV-5340.II thumbnail
(newest, current model)
Crimestopper SV-5340 thumbnail
(previous model, replaced by Crimestopper SV-5340.II Universal Back-Up Camera)
FEATURES & SPECS
General Features
Color Type
Color
Night Vision
No
Sensor Type
CMOS
Video Output
RCA Composite Cable
Mounting Type
Top of License Plate Frame
Adjustable Tilt
No
Weatherproof
Yes
Reverse Image
Yes
Parking Guidelines
Yes
Built-in Microphone
No
Primary Color
Black
Frame Material
Metal - Not Specified by Manufacturer
Camera Housing Material
Minimum Illuminance
.5 lx
Screen Size
What is in the box?
WITB: Backup Cameras
Other Accessory #1
Other Accessory #2
Other Accessory #3
Other Accessory #4
Other Accessory #5
Paperwork
Specials with this Item
Deals
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer
REVIEWS
Crimestopper SV-5340

Crimestopper SV-5340

4.8

(4)

Write a review

Overall rating distribution

5 star
75%
4 star
25%
3 star
0%
2 star
0%
1 star
0%

By feature average rating

Durability
4.8
Value
5
Features
4.8
Design
4.8
Usability
4.8

Josh

November 29, 2012

Awesome product!

I had bought other backup cameras before this one and none of them work as good as this one. It's easy to install and works flawlessly! I would recommend this to anyone needing one.

2

found this helpful.

KnoKname

July 1, 2012

Good low priced camera

I've owned this camera for about 6 months now and it is pretty good for the most part. I have it connected to a pioneer avic 930bt. Very easy to connect, has great daytime and pretty good low light picture. I have it mounted to a 2007 Nissan pathfinder, the only issue is whenever I take the truck for a wash when they are drying the truck the workers tend to bend the camera out of place if you don't tell them to watch out for it. And it partially covers the liftgate release handle- its fine for me but when others open it they can bend it out of place. So for an suv I would go with another style but for a car this would be great. So I would recommend the brand but watch what style you choose for your application.

2

found this helpful.

Patrick

January 26, 2013

Nice Camera

I have this hookup up to my 2004 Dodge Ram 2500 along with a Kenwood KIV-BT901. This combination works out great. I can see how close i'm getting to somthing without the hassel of either hitting it or getting in and out of the truck. I can back right to my trialer hitch on my owh without any assistance.The picture is very clear and even works great at night and in the rain. The value for what it is, has me thinking how did Sonic do this at this price. Thank you Sonic Electronix.

1

found this helpful.

alexandr

September 14, 2012

good camera

easy install.good picture.very good camera for low price.

1

found this helpful.
