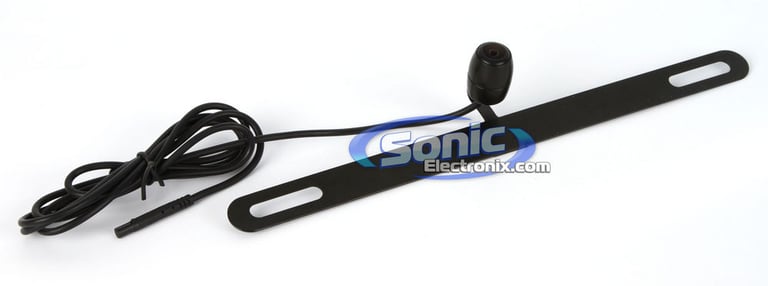

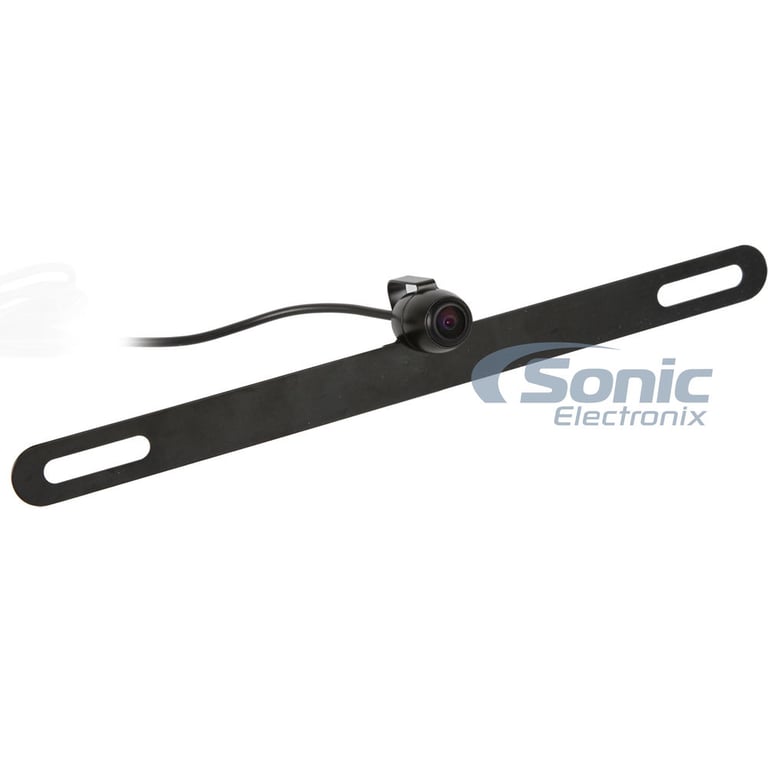

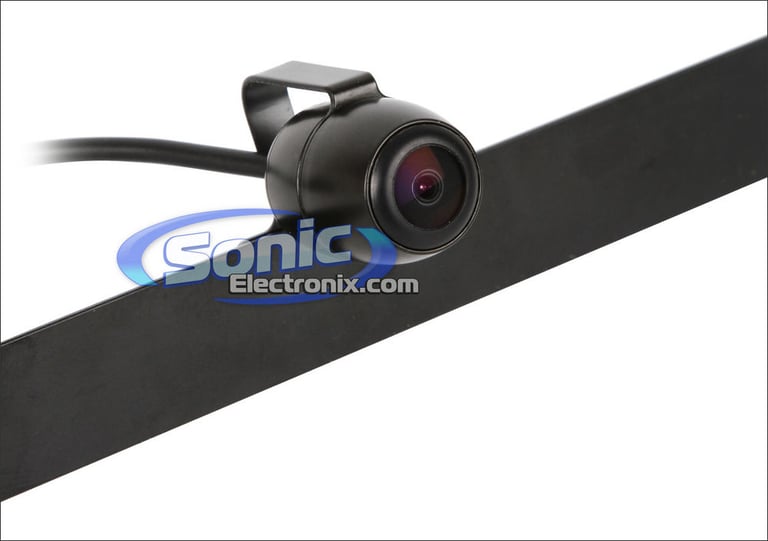

Crimestopper SV-5340.II Universal Back-Up Camera

170-degree Rearview CMOS Color Reverse Camera w/ Hidden Mounting Bracket and Distance Meter

Product videos
highlight-star-icon

• 170 Degree Wide Angle Lens
• Water Proof Design
• Hidden Mounting Bracket Design
• Easy Installation
• Die Cast Metal Design
• Distance Meter
• 0.5 Lux at F 1.2

Learn more about the sv5340ii

We apologize

This item has been discontinued

Product Highlights


• 170 Degree Wide Angle Lens
• Water Proof Design
• Hidden Mounting Bracket Design
• Easy Installation
• Die Cast Metal Design
• Distance Meter
• 0.5 Lux at F 1.2

Description


Crimestopper brand icon

Authorized dealer

Crimestopper SV-5340.II Features:

  • CMOS color camera
  • Water proof design
  • Bar mount design for easy installation fits over most license plates
  • Mounting bracket hides behind license plate frame for a clean install
  • Reverse image
  • Distance meter for improved driver safety
  • Tough die cast metal design
  • 170° horizontal viewing angle
  • 90° vertical viewing angle
  • 0.5 Lux / F 1.2
  • TV system: NTSC/PAL
  • Dimensions: 251mmW x 35mmD x 34mmL
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Product history:

Crimestopper SV-5340.II thumbnail
(newest, current model)
Crimestopper SV-5340 thumbnail
(previous model, replaced by Crimestopper SV-5340.II Universal Back-Up Camera)

Specifications & Details


General Features
Color Type
Color
Night Vision
No
Sensor Type
CMOS
Resolution (pixels)
512 x 492
Video Output

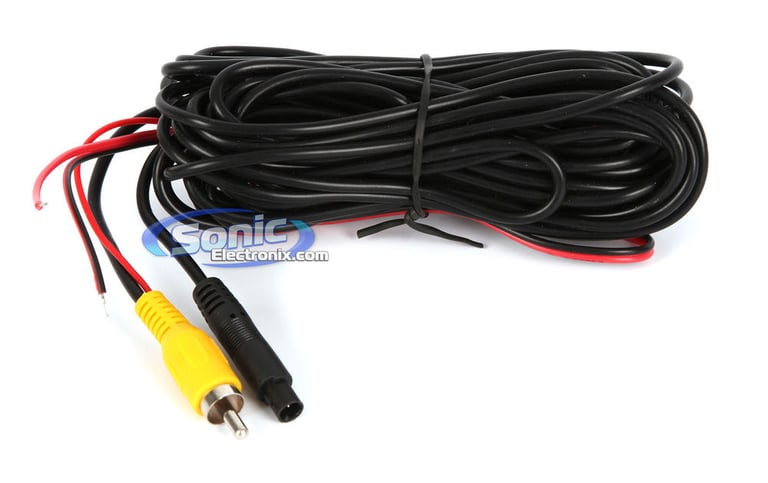

RCA Composite Cable
Mounting Type
Top of License Plate Frame
Adjustable Tilt
Yes
Weatherproof
Yes
Reverse Image
Yes
Parking Guidelines
Yes
Built-in Microphone
No
Primary Color
Black
Frame Material
Metal - Not Specified by Manufacturer
Minimum Illuminance
0.5 lx
Lens Distortion Correction
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SV-5340.II

Weight:

0.52lbs

Internal SKU:

sv5340ii

Internal Product ID:

68744

Product and How-to Videos


Customer Ratings & Reviews



5 star
56%
4 star
33%
3 star
11%
2 star
0%
1 star
0%



Durability
4.1
Value
4.8
Features
4.4
Design
4.8
Usability
4.8

Customer Reviews

Sort by:

Loading...

great buy

I love my unit yes I would reconmined to my friends

By used car guy on January 3, 2014

60

found this helpful.

Excellent Camera

I've had this camera installed for a few months now. It works excellent. I really like the hidden bracket install. The large, external license mounts are an eyesore, and definitely look like an "add-in". This one looks great. It also works great in all conditions: night, day, etc.

By kkreit on December 24, 2014

52

found this helpful.

Crimestopper SV-5340.II

Works great, just had a problem hooking it up so that it turn on automatically when I put it in reverse, definitely can't use it at night, overall a great product.

By disducibus on January 26, 2014

52

found this helpful.

Seems like a fair design

This bolted to my truck easily, and the wires seems like they're long enough. But the junction "boxes" where the wiring meets are too big. When wiring through a car or truck, they'll have to be fit through tight spaces. These little junction boxes are way to big to easy install.

I shorted out the wiring in my during install because of the size of the wire junctions. I need to order a new one just to harvest the wire. At least it's cheap.

By Stephen on February 16, 2015

49

found this helpful.

Happy so far

Bought a 2014 Grand Caravan this winter. I chose low miles over in-dash GPS and back up camera. Tax money is in and so is the fun stuff. This camera works well. It is not a night vision unit but we are getting plenty of light between the reverse lights and the license plate lamp. Picture quality is more than adequate.

Instructions were not too detailed but not much to really say. Pull wire, make connections, enjoy you work. I did have to extend the wires used to connect to the reverse light wire and the ground. I also had to extend the wire running to the video input on the stereo harness. Meh, what are you going to do?

The only thing to do now is hope that this is a durable piece. Only time will tell. Not gonna sweat it. It's gonna be what it's gonna be.

By James on March 7, 2016 Checkmark Icon Verified purchase

4

found this helpful.

This camera Rocks!!!

I love this little camera....it works very well, has distance lines and does an amazing job at night even though it is not specifically an IR unit!

By Better call Paul on November 29, 2015

3

found this helpful.

Crimestopper SV-5340.II Universal Back-Up Camera

Very nice camera, I instlled this on the back licence plate of a FJ Cruiser and the camera mountcan be bent to get a good viewing angle and since the camera itself is so small you can barely see it once its mounted, id highly recommend this camera and you cant beat the price.

By Anonymous on June 20, 2018

1

found this helpful.

Great Camera

This camera is fantastic. Very clear and has great lane assist features.

By Dianne on January 22, 2017 Checkmark Icon Verified purchase

1

found this helpful.

Good camera

Using this camera on the back of my truck. installation was simple enough, AND the RCA feed cable includes a power wire that can be used as a trigger wire for the REVERSE sense wire on your HU. Wire the cam power wires to the reverse lamp and every time you switch into reverse the cam powers up and sends the sense signal to the HU. LIMITATION of this setup: If you tow and want to view your hitch while driving (not sure why, but I've heard some folks talk of this)this will not be possible.
But if you don't need to see behind you while driving, this simplifies the installation.
We'll see in a few months how it holds up to the weather.

By mtyler11 on January 4, 2017 Checkmark Icon Verified purchase

1

found this helpful.
