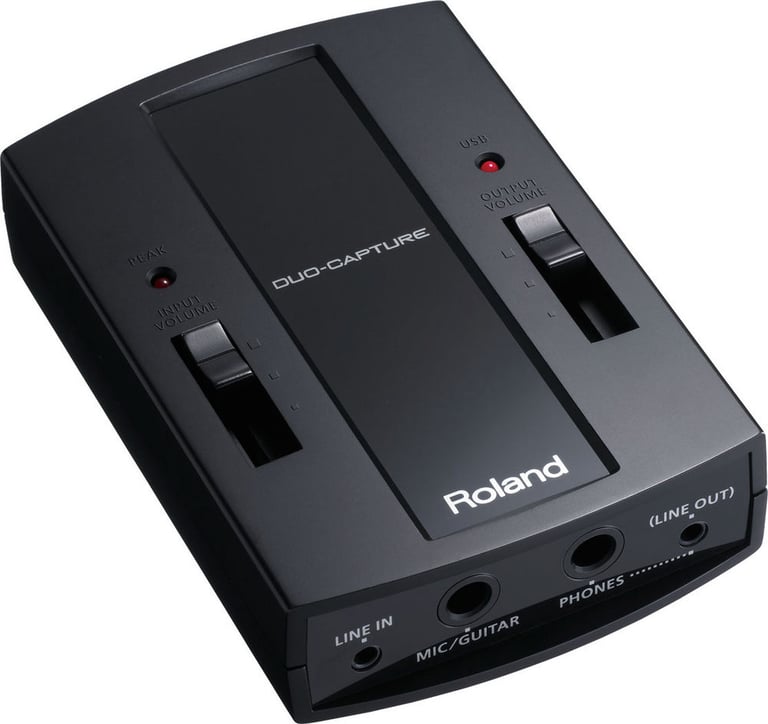

Roland UA-11

Product Features:

• DUO-CAPTURE USB Audio Interface
• Small, convenient audio interface for musicians on the go
• 1/4" Mic/Guitar input w/ Hi-Z switch for connecting a guitar
• 1/8" stereo input, 1/8" and 1/4" dual headphone outputs
• Dedicated controls for input and output volume
• Low latency ASIO driver
• Direct monitor function
• USB bus powered
• Cakewalk SONAR X1 LE included (Windows Only)
• Also found as: UA11, DUOCAPTURE
• Authorized Internet Dealer
• 1-year Manufacturer's warranty

Cakewalk SONAR X1 LE Features:

• Skylight Interface – the stunning new face of SONAR X1 includes redesigned Browser, Inspector, Screensets and MultiDock
• New Smart Tools intelligently edits audio and MIDI with no interruption to your creative flow
• Simpler, better installer and product activation process
• New template choices for popular project types like “Record Voice” and genres like “Rock”
• Hardware auto-detecting simplifies USB audio devices like USB Microphones setup
• Consolidated preferences puts everything together in one centralized place making it easier to find and change options
• Drag and Drop everything – audio files, MIDI files and video content, project and track templates and track effects
• Simplified track controls and a fully customizable Control Bar
• Matrix View - experience a whole new approach to creating music by loading audio or MIDI tracks, loops, and one-shots to improvise compositions on the fly
• Intuitive Shortcuts - designed to help new and power users to get around the new interface quickly
• All New Content: Over 1 GB in total, including 350+ WAV/REX audio files, 1000+ MIDI groove clips, tutorial projects, track templates and project templates
• Premium Cakewalk instruments including Studio Instruments Drums and Cakewalk Sound Center

DUO-CAPTURE Specifications:

• Number of Audio Record/Playback Channels:
• Record: 1 pair of stereo
• Playback: 1 pair of stereo
• Signal Processing: 24-bit
• Sampling Frequency:
• 48 kHz
• 44.1 kHz
• Nominal Input Level:
• Line input: -10 dBu
• Guitar input: -25 dBu
• Microphone input: -45 dBu
• Interface: USB

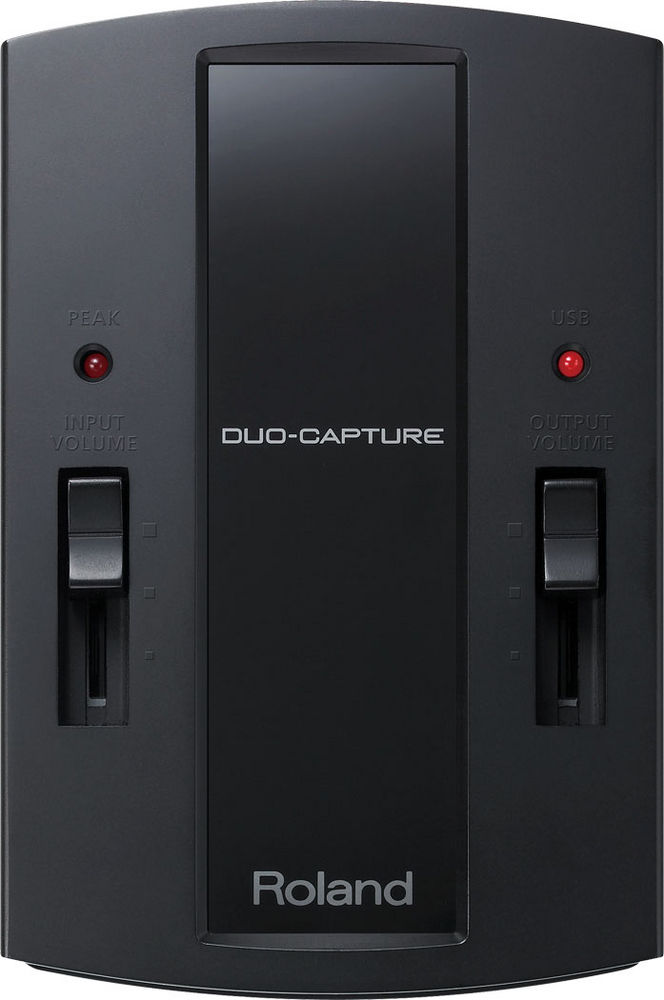

• Controllers:
• INPUT VOLUME slider
• OUTPUT VOLUME slider
• INPUT GAIN button
• Hi-Z button
• INPUT MONITOR button
• SAMPLE RATE switch
• Indicators:
• USB
• PEAK

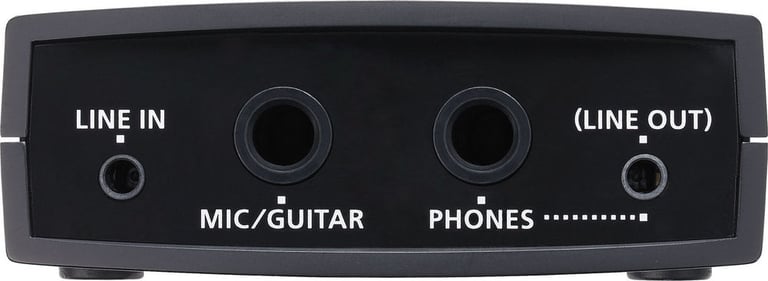

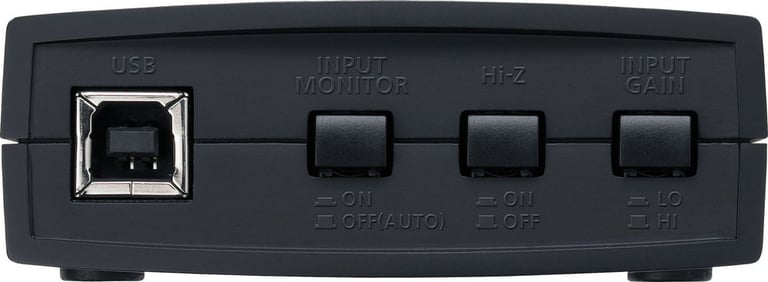

• Connectors:
• LINE IN jack (Stereo miniature phone type)
• MIC/GUITAR jack (1/4" phone type)
• PHONES jack (Stereo 1/4" phone type)
• PHONES (LINE OUT) jack (Stereo miniature phone type)
• USB connector (USB Type-B)
• Power Supply: Supplied from the computer via USB
• Current Draw: 96 mA
• Size & Weight:
• Weight: 5 oz. (0.13 kg)
• Width: 3-3/16" (81 mm)
• Depth: 4-11/16" (119 mm)
• Height: 1-1/4" (31 mm)

System Requirements for Cakewalk SONAR X1 LE:

• Operating System:
• Microsoft Windows XP SP3
• Windows Vista SP2
• Windows 7
• Processor: Intel P4 1.3 GHz or Core Solo 1.5 GHz
• RAM: 1 GB
• HDD Space: 3 GB
• Video Resolution: 1024 x 768, 16-bit
• Audio Hardware: Audio interface (WDM, ASIO)

If you're using Windows Vista, we recommend you use an external audio interface.
* Does not support Windows 95, 98, NT, ME, 2000, or XP Media Center Edition
* Internet connection is required for registration
