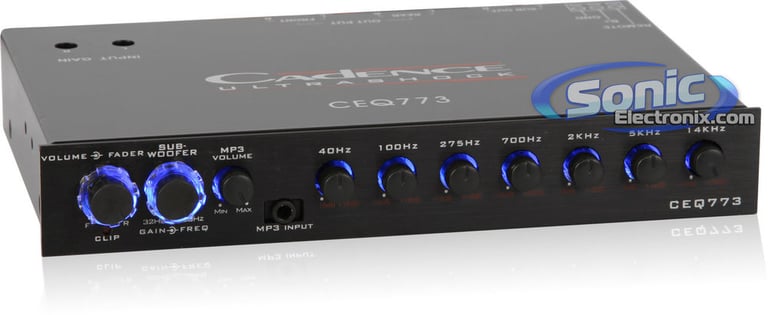

Cadence CEQ-773

7-Band Paragraphic Equalizer & Subwoofer Crossover

Cadence
Shop all Cadence
Product videos
highlight-star-icon

7-Band Paragraphic Equalizer • Full Aircraft-Style Night Illumination • 105dB Signal-To-Noise Ratio • 7 Volt Output

Learn more about the ceq773

We apologize

This item has been discontinued


Loading...
DKGM-15 main

Crux DKGM-15

Stereo Replacement Interface with Steering Wheel Control Retention, Video Switcher, and Double DIN Dash Kit for select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

19
-35.71%

$162.00

List price $252.00

95-2001 main

Metra 95-2001 Dash Kit

Install a new Double-DIN car stereo in select 1994-2012 vehicles from Chevrolet, GMC, Buick

13
-50.02%

$12.99

List price $25.99

AXDI-CL2 main

Axxess AXDI-CL2

Install a New Car Stereo and Retain Steering Wheel Controls, Factory Chimes, and Other Factory Features in select 2000-2013 vehicles from Chevrolet, GMC, Pontiac

7
-10.75%

$82.99

List price $92.99

GMK421 main

American International GMK421

Single DIN or Double DIN Stereo Dash Kit for select 1992-2012 vehicles from Chevrolet, GMC, Buick

15
-66.69%

$12.99

List price $39.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Limited time!
DMX709S main

Kenwood eXcelon DMX709S

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

20
-33.50%

$399.00

List price $600.00

Limited time!

Rockford Fosgate Prime R165X3

180W Peak (90W RMS) 6.5" Prime Series 3 Way Coaxial 4-ohm Speakers

154
-12.50%

$69.99

List price $79.99

XED650C main

Cerwin-Vega XED650C

600W Peak (70W RMS) 6.5" XED Series 2-Way 4-ohm Component Speaker System

28
-16.67%

$64.99

List price $77.99

DPX305MBT main

Kenwood DPX305MBT

Double DIN Digital Media Receiver with Bluetooth and Built-in Alexa (SiriusXM Ready)

15
-20.50%

$159.00

List price $200.00

H7653 main

Cerwin-Vega H7653

680W Peak (120W RMS) 6.5" HED Series 3-Way Coaxial 4-ohm Speakers

43
-16.67%

$79.99

List price $95.99

Product Highlights


7-Band Paragraphic Equalizer • Full Aircraft-Style Night Illumination • 105dB Signal-To-Noise Ratio • 7 Volt Output

Description


Cadence brand icon

Authorized dealer

The Champion of Equalizers

This series of Cadence parametric and paragraphic equalizers integrates signal line drivers with equalization and crossover functions, combining them all into one unit. Cadence signal processors create clean, noise-free, high voltage signals while conserving valuable interior space and installation time. The MP3 mini jack front panel input with independent volume control integrates the signal driver with subwoofer crossover and equalization functions into one unit. The subwoofer control features a double shaft design; the outer knob controls the frequency while the inner knob controls the gain. The 7-Volt Line Driver operates for all channels via fully isolated PWM Power Supply.

Product Features:

  • 7-Band Paragraphic Equalizer

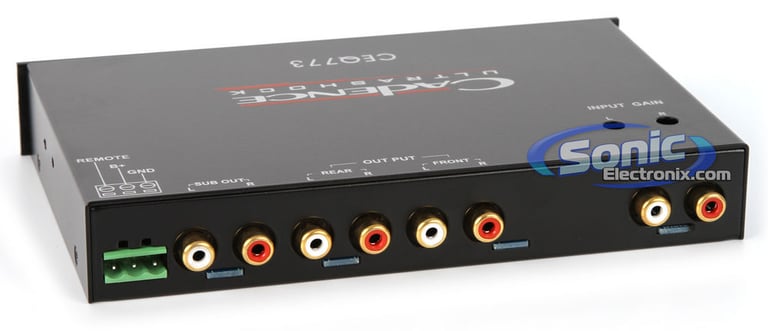

  • 3-Way Output: Front, Rear and Subwoofer
  • MP3 Mini Jack Front Panel Input with Independent Volume Control
  • Separate gain control with inner knobs
  • Full aircraft-style night illumination
  • Band 1 Center: 40Hz Bass
  • Band 2 Center: 100Hz Mid Bass
  • Band 3 Center: 275Hz Upper Bass
  • Band 4 Center: 700Hz Midrange
  • Band 5 Center: 2 kHz Mid / High
  • Band 6 Center: 5 kHz Tweeter
  • Band 7 Center: 14 kHz Super Tweeter
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Product Specifications:

  • THD: < 0.05%
  • Number of Bands: 7
  • Signal-to-noise ratio: 105dB
  • Output level: 7V
  • Cut/Boost: +/-18dB
  • Frequency response: 10-50,000Hz
  • Dimensions: 4-1/2" L x 7" W x 1" H

Product history:

(newest, current model)
Cadence CEQ-773 thumbnail
(previous model, replaced by NVX XEQ7 - Open Box, Good Condition Used)

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00


Best selling similar products

XEQ7 small

NVX XEQ7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 7 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(51)

$49.99

List price $89.99

EQX7PRO small

DS18 EQX7PRO

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear, and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$119.95

List price $143.99

HFEQ-2 small

Hifonics HFEQ-2

• 4 band-Band Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

(1)

$59.99

List price $99.99

EQL7 small

Memphis EQL7

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 8 volts max preamp outputs
• Subwoofer frequency and level control

(1)

$99.99

List price $159.95

EQP850 small

Cerwin-Vega EQP850

• 5-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Nickel-plated RCA level inputs

$139.99

List price $139.99

EQ-4000BT v2 small

Earthquake Sound EQ-4000BT v2

• 4 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 9 volts max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$179.99

List price $199.99

EQ-770 small

Cerwin-Vega EQ-770

• 7 band-Band Parametric Equalizer
• 3 sets of preamp outputs (front, rear and subwoofer)
• 7 volts max preamp outputs
• Subwoofer frequency and level control

(2)

$99.99

List price $115.99

ACX-3.2 small

AudioControl ACX-3.2

• 4 band-Band Graphic Equalizer
• 3 setsof preamp outputs (front, rear and subwoofer)
• 9.5 volts max preamp outputs
• Subwoofer frequency and level control

$529.00

List price $709.00

EQX7 small

DS18 EQX7

• 7 band-Band Graphic Equalizer
• 3 Sets of preamp outputs (front, rear and subwoofer)
• 8 volts Max preamp outputs
• Subwoofer frequency and level control
• Gold-plated RCA level inputs

$95.95

List price $95.95

Specifications & Details


Equalizer Specifications
Equalizer Bands
7 band
Equalizer Frequencies
10 - 50000 Hz
Built-in Crossover
Full (AP)
Built-in Bass Reconstruction
No
Line Driver
Yes
Signal Boost/Cut
18 dB
Max Output Level
7 volts
Frequency Response
10 - 50000 Hz
THD (Total Harmonic Distortion)
0.05%
Signal-to-Noise Ratio
105 dB
Width
7"
Height
1"
Depth
4-1/2"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

CEQ-773

Weight:

1.80lbs

Internal SKU:

ceq773

Internal Product ID:

41255

Product and How-to Videos


Customer Ratings & Reviews


Cadence CEQ-773 thumbnail image

5 star
67%
4 star
29%
3 star
0%
2 star
5%
1 star
0%



Durability
4.6
Value
4.8
Features
4.7
Design
4.6
Usability
4.8

Customer Reviews

Sort by:

Loading...

cant be beat!!

I have this cadence connected to my kicker kx1200 with 2 l7 12s and a rockford fosgate t400-4 for my mids and highs ....... my system came to life sounds crystal clear and can be turned up real high without distortion .... dont know about cadence google it , its quality stuff and for 35$ cant be beat .... you wont regret this piece of equipment definately best bang for the buck.

By Cal! on March 22, 2012

14 found this helpful


Excellent EQ!

This is a great eq, specially for the price. its cheap for just a line driver, let alone an eq with 7 volt preamp outputs. plus you have 18db worth of attenuation on each band, so its a really powerful tuning tool. If you know what youre doing and want the best sound, a high quality EQ like this is a must!!!

By RockaFlocka on October 13, 2011

14 found this helpful


WOW!!!!!!!!!!!!!!!

I used to constantly mess with my radio to adjust the sound but i was never really satisfied so i saw this EQ and i thought i would try it out to see what it could do and WOW this thing is amazing it lets you adjust so many different things to get your sound just like you want. I love it and im going to buy another one soon just in case..it looks cool and it doesnt look cheap.

By the way when i installed mine my speakers started that annoying alternator whine but all i had to do was get some wire and strip about 5 inches of the insulation off and ground it and it went away.

By alex on November 8, 2011

13 found this helpful


its well worth it

I bought this to replace my last one it started going out. I was thinking about getting a zappco that's what i had. I went with this because it was cheap looked clean n had good reviews on other sites as well. Over all im extremely pleased with cadence it has smooth response when twisting the knobs no scratching noise. I did a short ground and didn't get any engine noise all of the adjustment sound clear. I'll recommend this to anyone looking for a simple equalizer that controls not only just the volume but pitches of mids highs n lows as well as sub woofer frequency and volume

By r on October 3, 2012

11 found this helpful


Excellent!

Bought this after first trying the HiFonics HFEQ. I wanted the line driver and sub controls that both offered, but originally went with the HFEQ because it had crossovers for the sub and front/rear channels while the Cadence CEQ only has one for the sub.
The HFEQ was pretty good, other than it introduced a hiss that was difficult to eliminate without turning the levels down so much that I couldn't hear the music anymore. Was worried it was my wiring, even though I followed all the rules of avoiding noise that I knew. Also, the HFEQ was only 4 bands and I was having to many issues with frequencies in the middle, which the HFEQ only has one adjustment for.
Decided to go for the Cadence CEQ773 for the extra adjustments in the midrange. Was hesitant because I thought with such a low price it might not be very good. Glad I went for it because it is GREAT! The extra bands allow enough adjustments to get the sound I want. Also, the hiss that I had with the HFEQ is completely GONE!
The unit looks well built and feels solid. Would look fine in the dash, but I am keeping the stock look in the dash so I mounted mine in the center armrest storage and it fits great. Sub control includes a level control and variable crossover level which is really great so I can set the crossover high on my amp and lower on the EQ from the drivers seat if needed.
All in all, I would highly recommend if you are looking for a great buy on an EQ w/line driver.

By Erick on December 27, 2012

10 found this helpful


Good for the price but sends a distorted signal

PROS: Separate volume for bass and speakers.
CONS: Hooked the eq up to a DD-1 and the eq sends out a distorted signal to the bass when the gain on the eq is 1/8 of the way turned up. Pretty cheap processor, you get what you pay for, also the buttons take a little to get used to.

By David on April 9, 2012

10 found this helpful


For Sure.

You most certainly cant beat the price for what it does. I was gonna get the powerbass eq and im glad I didnt because the powerbass has no line driver. 7volt line driver is huge SQ and DB increase. Many don't realize how dramatic a simple 0.3 Voltage increase can be! Let alone going from 2.0 Volts to 7 Volts. is way big and will increase DB and SQ quite a bit. Although this is a line driver if you have a voltage Drop preamp and pre-Eq than there is for sure something wrong and should find the problem.

By Jeffrey on October 18, 2011

9 found this helpful


Super EQ & Line driver

I was looking for an eq with a line driver for a good price. Sonic had this on special and it was special, the Cadence eq is loaded with features and it is very clean and crisp.
2 things I really like was the fact that the 7 band equalizer does not affect the subwoofer at any time so I can tune my highs without affecting my lows. Thanks Sonic.

By Rohan Mc on August 21, 2012

8 found this helpful


good bang for the buck!

Great unit! You can't argue with 7 bands of EQ. I love the illumination, nice and bright. The feature I like most are the separate volume and subwoofer controls. I like making adjustments more with physical knobs rather than scrolling through the options in the head unit. Crossover on the sub control and a bonus on mp3/line input. If you're looking for an EQ at a low price, this one cant be beat.

By t-bone on August 19, 2012

8 found this helpful


Great

I have had many EQs. This is the best by far and dollar for dollar you can't beat it.

By Chance on June 7, 2012

8 found this helpful




PTID-5300 small

Power Acoustik PTID-5300

In-Dash 5.3" Wide Touchscreen TFT-LCD Monitor with DVD, CD, MP3, WMA Player and Remote

(4)

$189.99

List price $449.99

GT-RSL small

Boston Acoustics GT-RSL

Remote Level Control

(1)

$16.99

List price $49.95

70-6507 small

Metra 70-6507

Amplifier Bypass Harness for 1999-2004 Jeep Grand Cherokee

$37.99

List price $72.99

99-3042 small

Metra 99-3042 Dash Kit

Install a new Single-DIN car stereo in select 1982-1994 vehicles from Chevrolet, Pontiac, Saturn

(3)

$17.99

List price $33.99

SI129 small

Stinger SI129

9 Ft 1000 Series 2-Channel Audiophile Grade RCA Stereo Interconnect Cable

(4)

$10.95

List price $19.00

473L small

Avital 473L

3-Button Replacement Remote for the Select Avital Car Alarm System

(2)

$26.99

List price $79.99

GT-4100 small

Boston Acoustics GT-4100

900W RMS, GT Reference Series 4-Channel Amplifier

(4)

$289.95

List price $449.95

PTID-5800 small

Power Acoustik PTID-5800

In-Dash Double DIN 5.8" TFT-LCD Widescreen with DVD Player and Remote

(4)

$249.99

List price $499.99

JAD1200.1 small

NVX JAD1200.1 Open Box

True 1200W RMS, Class D Monoblock Amplifier with Bass Remote (JAD-1200.1)

$199.99

List price $389.99

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2000 Kia Sephia

2004 GMC Envoy

2012 Chrysler 200

2015 BMW X5

2009 Honda Element

1998 Dodge Neon

2010 Ford Transit Connect

2009 GMC Acadia

2024 BMW M2

1975 Mercury Comet

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
