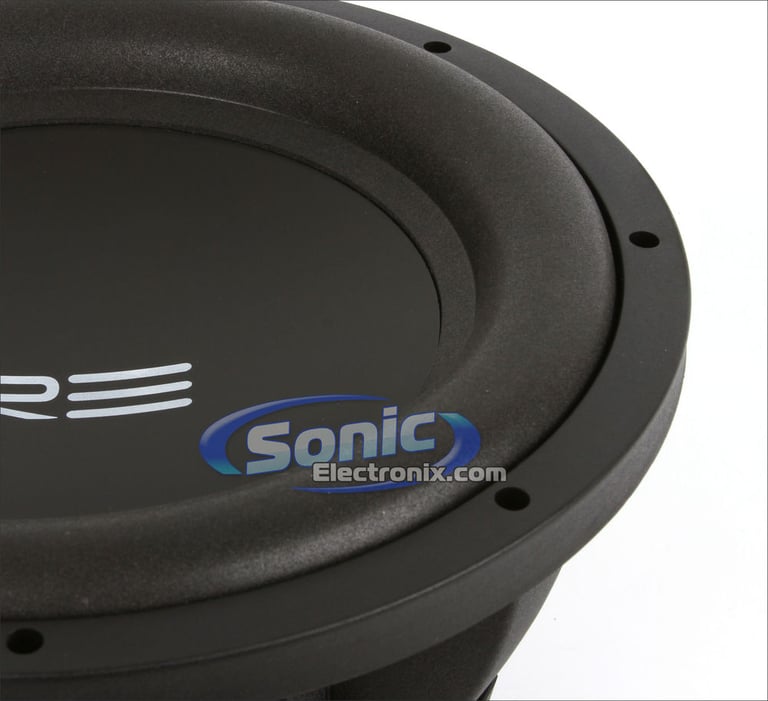

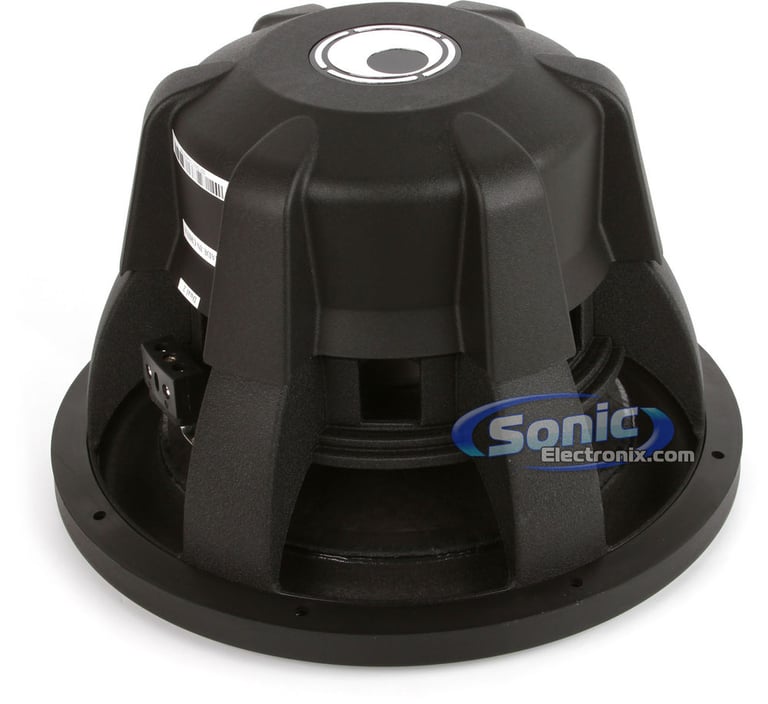

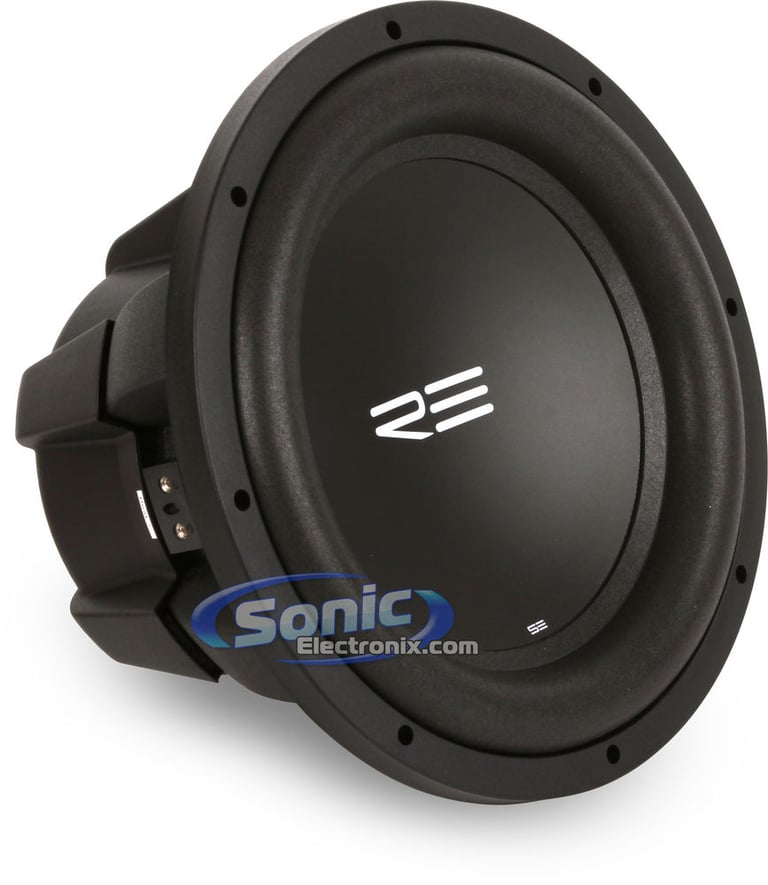

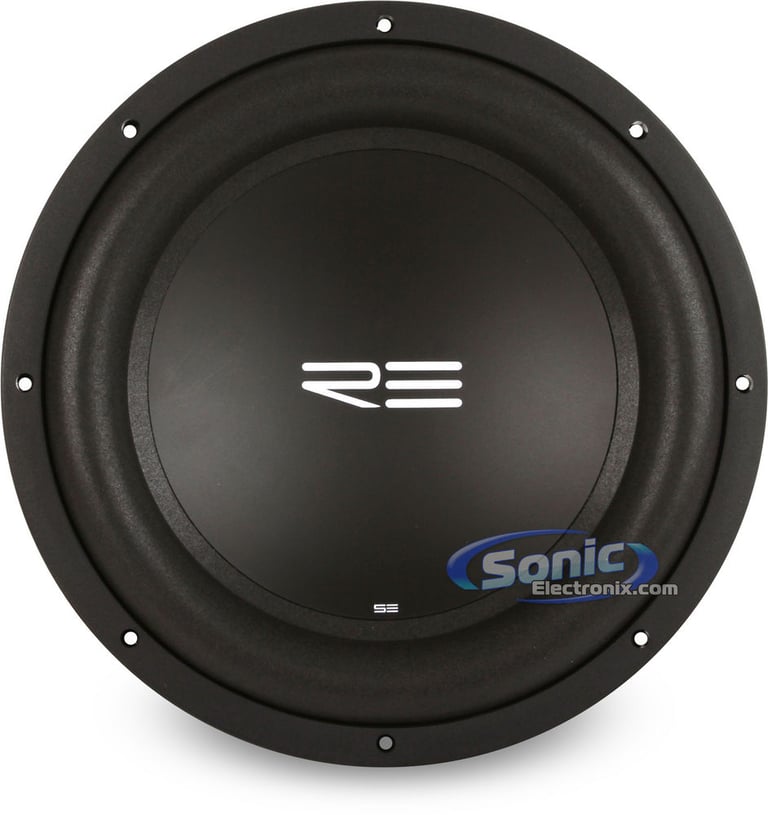

RE Audio SEX12D4

12" Dual 4 ohm SE-X Series Car Subwoofer

RE Audio
Shop all RE Audio
Product videos
highlight-star-icon

12" SEX Series Car Subwoofer • 600 Watts RMS • Dual 4 ohm • Rubatek Foam Surround • Dual Composite 2-Piece Cone • Tork-Tite Terminals • Progressive Spiders • Triple Stacked Magnets

Learn more about the LS-sex12d4-OB

We apologize

This item has been discontinued


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Product Highlights


12" SEX Series Car Subwoofer • 600 Watts RMS • Dual 4 ohm • Rubatek Foam Surround • Dual Composite 2-Piece Cone • Tork-Tite Terminals • Progressive Spiders • Triple Stacked Magnets

Description


RE Audio brand icon

Authorized dealer

Save BIG With This Open Box Model!

Limited Time Offer While Supplies Last!


RE Audio SEX Subwoofers

RE Audio’s SEX Line of subwoofers redefines high performance and value. These subwoofers are placed in the middle of RE Audio’s full line-up, and can handle high power output around 600 watts RMS! These SEX Subwoofers are the perfect addition to any trunk!

These impressive subwoofers are built into a cast aluminum basket, and their triple stacked magnet drivers work off of a 3” 4-layer aluminum voice coil. This allows for quick bass response, and clearly outputs for deep bass in the lower frequency range. With an FEA optimized motor structure, the SEX subwoofer lineup maintains tight bass response and allows the subwoofer full control over all types of music.

Each one of these RE Audio SEX Subwoofer can handle 600 watts RMS of continuous power, no matter the size! These competitively priced subwoofers are an excellent complement to any audio system, and will provide you with that clean, hard hitting bass you’re looking for.

Subwoofer Features:
  • 12" Dual 4 ohm SEX Series Car Subwoofer
  • Power Handling:
    • RMS: 600 watts
  • Impedance: Dual 4 ohm
  • Dual composite 2-piece cone
  • Rubatek foam surround
  • FEA Optimized motor structure
  • Progressive spiders
  • Wrap around rubber gasket

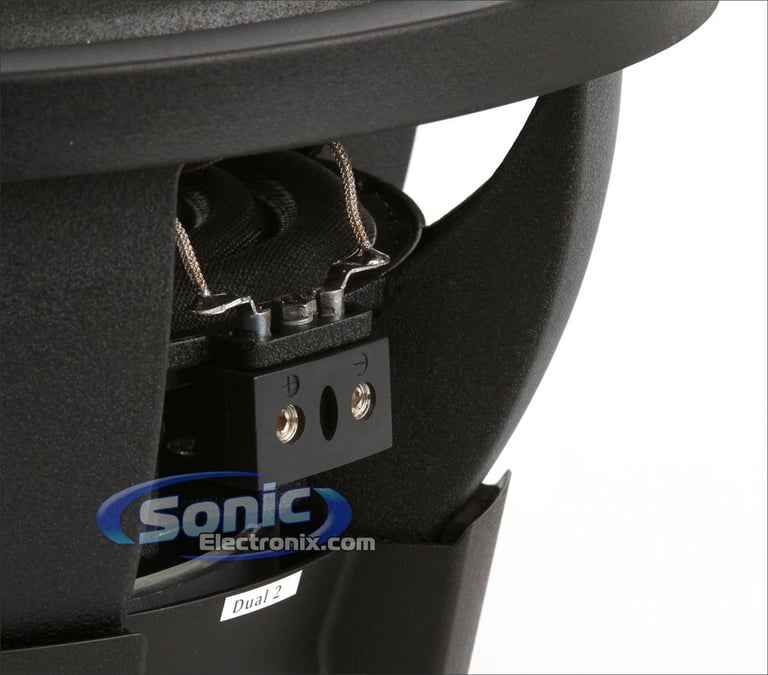

  • Tork-Tite terminals
  • 3" 4-Layer voice coil
  • Triple stacked magnets
  • Also available in a Dual 2 ohm: RE Audio SEX12D2
  • Authorized Internet Dealer
  • 90-Day Manufacturer's warranty
SEX 12" T/S Parameters:
  • Electrical Q Value (Qes): 0.49
  • Mechanical Q Value (Qms): 4.5
  • Total Speaker Q Value (Qts): 0.44
  • Free Air Resonance (Fs): 25.1 Hz
  • Equivalent Compliance (Vas): 72.9 liters
  • One-Way, Linear Excursion (Xmax): 18 mm
  • Efficiency (SPL 1W/1m): 86.1 dB SPL
  • Effective Piston Area (Sd): 480 cm2
  • DC Resistance (Re): 2.8 ohm
  • Nominal Impedance (Znom): Dual 4 ohm
  • Thermal Power Handling (Pe): 600 W
  • Force Factor (Bl): 17.7

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article

Subwoofer Wiring Guide


Wiring Guide to Wire 1 RE Audio SEX12D4 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 RE Audio SEX12D4 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 RE Audio SEX12D4 Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 RE Audio SEX12D4 Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

SQW124 small

NVX SQW124

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.51"
• Sensitivity: 84 dB

$299.99

List price $359.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

VCW122v3 small

NVX VCW122 Version 3 (VCW122v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 2 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(94)

$239.99

List price $287.99

SRX1240 small

Memphis SRX1240

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4.92"
• Sensitivity: 85 dB

$79.99

List price $139.95

SW-M12D2 small

Sundown Audio M-12 D2 12" (M12D2)

• Peak Power: 4000 watts
• RMS Power: 2000 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• High Roll Foam Surround
• Mount depth: 10.88"
• Sensitivity: 80.6 dB

(2)

$599.99

List price $719.99

Stage 122 small

JBL Stage 122 (JBLSUBST122AM)

• Peak Power: 1000 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 6"
• Sensitivity: 91 dB

$109.95

List price $129.95

12TW3-D4 small

JL Audio 12TW3-D4

• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Rubber Surround
• Mount depth: 3.5"
• Sensitivity: 84.11 dB

(20)

$569.99

List price $569.99

52L7XS121 small

Kicker L7XS121 (52L7XS121)

• RMS Power: 1500 - 3000 watts
• Impedance: Dual 1 ohm
• Double-pressed pulp Cone
• Nitrile Butadiene Rubber NBR Surround
• Mount depth: 10-1/8"

$1399.99

List price $1499.99

Specifications & Details


Subwoofer Specifications
Series
SEX Series
Subwoofer Size
12"
RMS Power Handling
600 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
3"
Sensitivity
86.1 dB
Xmax (millimeters)
18 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Dual Composite 2-Piece Cone
Woofer Surround
Rubatek Foam
Magnet Structure
Triple Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.75 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
2.0 cubic feet
Top-Mount Depth (Mounting Depth)
7"
Cutout Diameter
11-1/4"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
25.1 Hz
Equivalent Compliance (Vas)
72.9 liters
Total Speaker Q Value (Qts)
0.44
Electrical Q Value (Qes)
0.49
Electrical Resistance of Voice Coil (Re)
2.8 ohm
Mechanical Q Value (Qms)
4.5
Efficiency Bandwidth Product (EBP)
51.22
Warranty and Return Policy
Parts Warranty Duration
90 days
Labor Warranty Duration
90 days
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

SEX12D4-OB

Weight:

24.00lbs

Internal SKU:

LS-sex12d4-OB

Internal Product ID:

41259
