Phoenix Gold Xenon 12" Package: X200.2 + X12D4 + 12" Sealed Box

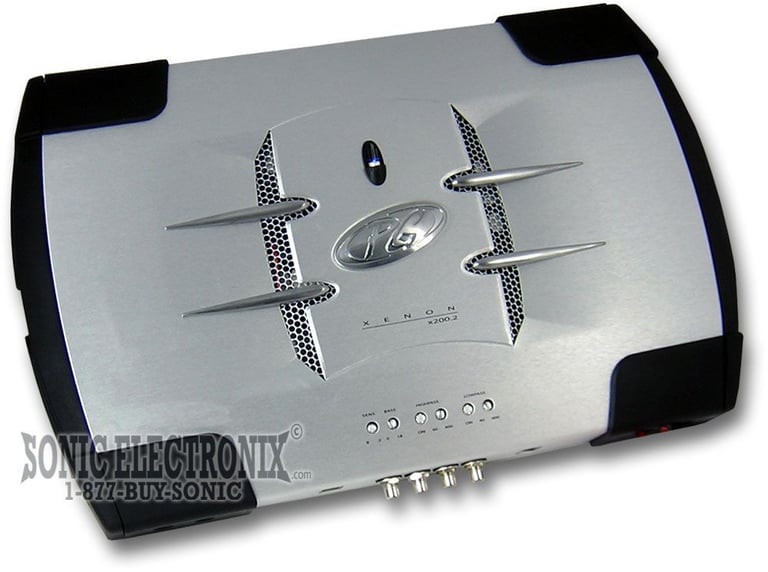

X200.2 Amplifier Description:

• 400 Watt Power Amplifier
• Xe.load™: optimized for any impedance load
• Xe.tune™: 24dB Linkwitz-Riley high and low pass crossovers
• Xe.flow™: variable thermal feedback controlled fans
• Tried and true triple Darlington output stage
• Buffered RCA full range thru output
• Remote Monitoring Display (RMD) port
• Low Pass Level control ready (LPL-44)
• 200W x 2 (4-1 ohm stereo)
• 400W x 1 (8-2 ohm bridged)
• Built-in Crossovers
• Optional Remote Voltage Display
• Optional Remote Low-Pass Level Control
• Variable input sensitivty
• 0 - 18dB Bass Boost at 45Hz
• CEA-2006 Compliant
• Dimensions: 14" L x 10.6" W x 2.5" H
• 1-year SonicElectronix.com warranty

X200.2 Amp Specifications:

• Number of Channels   2
• RMS Power (4 ohm)   200 watts x 2 chan.
• RMS Power (2 ohm)   200 watts x 2 chan.
• RMS Power (1 ohm)   200 watts x 2 chan.
• Bridged RMS Power   400 watts x 1 chan.
• Peak Power Output   800 watts approx.
• Min. Impedance Unbridged   1 ohm
• Min. Impedance Bridged   2 ohm
• THD @ Rated RMS Power   <1.0%
• Speaker Level Inputs   No
• Amp Preamp Outputs   Yes - 1 pair
• Built-in Crossover   HP (40 - 400Hz), LP (40 - 400Hz)
• Bass Boost   0 - 18dB(45Hz)
• Signal-to-Noise Ratio   100 dB
• Fan Cooled   Yes
• Fuse Rating   60A
• Warranty   90 Day Mfr / 1-year SE Extended

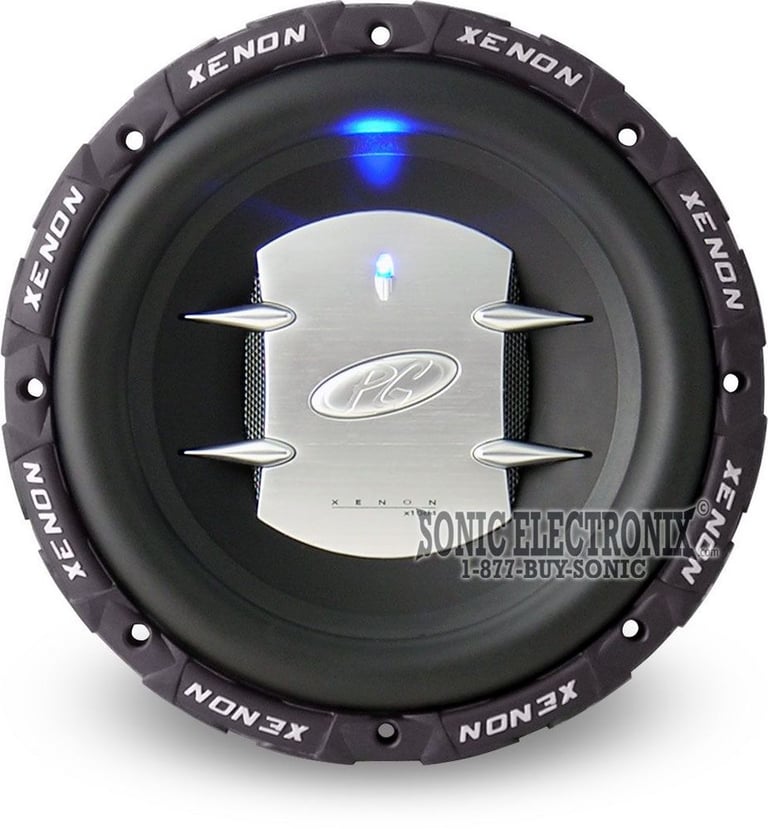

X12D4 Sub Description:

• 12" Dual Voice Coil (4 ohm) Subwoofer
• Ultra-Low Distortion
• 2.5" High Temperature Voice Coil
• Oversized Magnet Assembly
• Removable Magnet Boot
• Large Roll Butyl Rubber Surround
• Computer-Optimized Dual Spiders
• Custom-Tooled Spider Spacing Ring with Integrated Input Terminals
• True 38mm (1 1/3") Peak-To-Peak Excursion
• Injection Molded Grained Polypropylene Cone
• 8-Piece Injection Molded Polypropylene Dust Cap
• Expanded Metal Vent Inlays
• Black Powder Coated Cast Aluminum Basket
• Dual 8mm Superbright Blue LEDs
• 175 oz. Y33-Grade Magnet Structure
• Hex Screw Wire Terminals
• Mounting Depth: 6 7/8"
• Click here for the Phoenix Gold Enclosure guide (Adobe Acrobat Reader required)

X12D4 Sub Specifications:

• Subwoofer Size   12"
• Impedance   4 ohm
• Dual Voice Coil   Yes
• Peak Power Handling   900 watts
• RMS Power Handling   500 watts
• Surround Material   Large Roll Butyl Rubber
• Sealed Box Volume   1.0 - 2.0 cu. ft.
• Ported Box Volume   2.75 - 3.20 cu. ft
• Sensitivity   83 dB
• Frequency Response   N/A
• Top Mount Depth   6-7/8"
• Cutout Diameter   11-1/4"
• Warranty   1-year SE

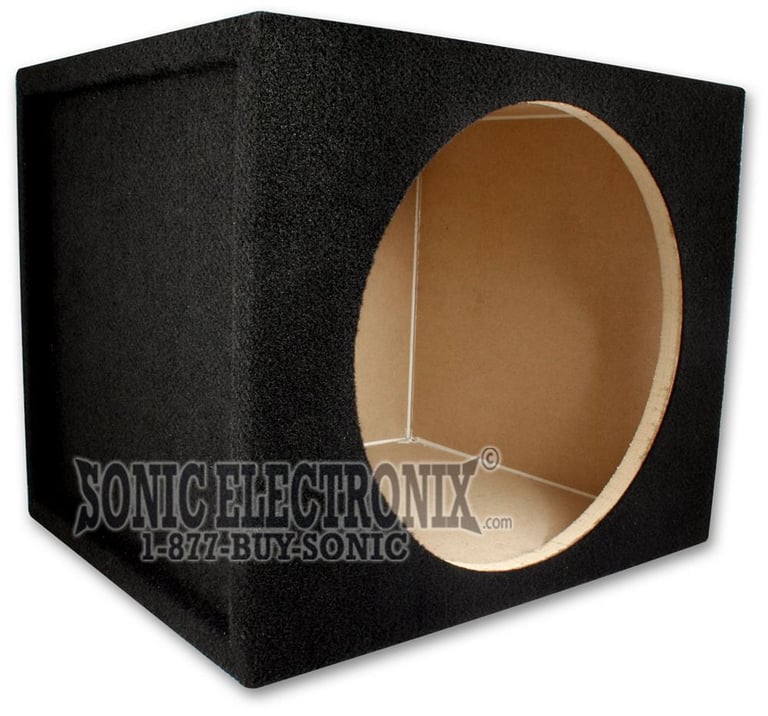

12" Box Specifications:

• Single Sealed 12" Enclosure
• 3/4" High Quality MDF Material machine-cut to perfection
• Professionally Sealed, caulked, and carpeted
• Internal Volume: 1.21 cubic feet
• Dimensions: 16-1/2"W x 13-1/2"H x 13-1/2"D
• Durable black carpeting
• Terminal cup installed with gold posts
