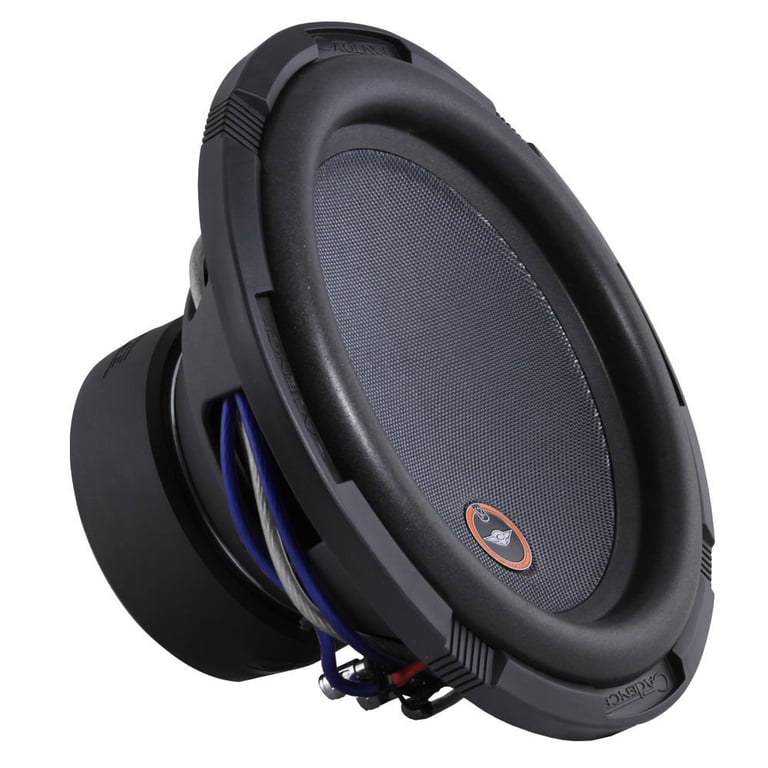

Cadence S2-W12-D4

General Features:

• 12" S2 Series Dual 4-ohm Car Subwoofer
• Power Handling:
• Peak: 1200 watts
• RMS: 600 watts
• Kevlar Reinforced Ultra-Stiff Paper Composite Cone
• High Excursion Double Laminated Foam Surround
• 2" Dual ASV Voice Coil
• Black Aluminum 4-Layer Voice Coil Former
• Expanded and Rolled Steel Basket
• Magnet Motor with Heat Pump Cooling Technology
• Aero Style Oversize Magnet Motor Vent
• Quad Layer Linear Progressive Conex Spiders
• Integrated High-Current Tinsel Leads
• Ultra Saturated, High “BL” Magnetic Motor Gap
• Extended Pole Technology
• Woven Fiberglass Dustcap
• Molded Rubber Trim Gasket
• Stylized Magnet Protection Rubber Boot
• Dual Nickel Plated Spring Loaded Push Terminals
• Top-mount depth: 6.50"
• Cutout Diameter: 11.00"
• Frequency Response: 20 - 500 Hz
• Sensitivity: 92 dB
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty

Priced Individually

TS Parameters

• FO: 45.188 Hz
• QMS: 9.722
• QES: 1.080
• QTS: 0.572
• ERM: 0.611
• CMS: 62.590 uM/N
• MMS: 210 gr
• MMD: 183.219 gr
• NO: 0.198%
• BL: 9.307 T/M
• SPL: 92 dB
• VAS: 22.463 L
• RE: 3.6 Ohm
• SD: 502.730 cm
• XMAX: 24.5

For more information on the Thiele and Small Parameters, visit our T/S Parameters Article
