Rockford Fosgate Punch P3SD2-10 (Open Box, Like New)

600W Peak (300W RMS) 10" Punch Series Dual 2-ohm Shallow Car Subwoofer

Lowest price in 30 days
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 2 ohm
• Anodized Aluminum Cone
• M-Roll Santoprene Surround
• Mount depth: 3.50"
• Sensitivity: 83 dB

Learn more about the p3sd210_obn

We apologize

This item has been discontinued

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)


Punch P3SD2-10

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.


Rockford Fosgate Punch P3 P3SD2-10

600W Peak (300W RMS) 10" Punch Series Dual 2-ohm Shallow Car Subwoofer
Quantity: 1

Product Details:

  • 10" Dual 2 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Anodized Aluminum Cone
  • M-Roll Santoprene Surround
  • Diamond cut cast aluminum trim ring
  • Dual linear spider with embedded 16 AWG tinsel leads
  • StampCast basket with integrated spider venting
  • Optimized for both sealed and vented enclosures
  • Shallow Motor Assembly
  • 2.5" High Temperature Voice coil
  • 8.4 mm Xmax
  • 1.32 oz. Double Stacked magnet motor structure
  • Frequency Response: 45 - 250 Hz
  • Resonance Frequency (Fs): 40 Hz
  • Sensitivity: 83 dB
  • Recommended sealed box volume: 0.50 cubic feet
  • Recommended ported box volume: 1.00 cubic feet
  • Top-mount depth: 3.50"
  • Cutout diameter: 9.06"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately) Rockford Fosgate P3SG-10
  • 1-year Manufacturer's Warranty

  • Priced Individually

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3SD2-10 (Open Box, Like New) Subwoofer

Mono Amp

Mono Amp - Option 1

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3SD2-10 (Open Box, Like New) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3SD2-10 (Open Box, Like New) Subwoofers

Mono Amp

Mono Amp - Option 1

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3SD2-10 (Open Box, Like New) Subwoofers

2 Channel Amp

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
2 ohm
Voice Coil Diameter
2.5"
Frequency Response
45 - 250 Hz
Sensitivity
83 dB
Xmax (millimeters)
8.4 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
M-Roll Santoprene
Magnet Structure
Double Stacked
Magnet weight
1.32 oz.
Subwoofer Grille
Optional (Accessory required and sold separately)
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.50 cubic feet
Optimum Ported Box Volume
1.00 cubic feet
Top-Mount Depth (Mounting Depth)
3.50"
Cutout Diameter
9.06"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
40 Hz
Equivalent Compliance (Vas)
14.3 liters
Total Speaker Q Value (Qts)
0.64
Electrical Q Value (Qes)
0.71
Electrical Resistance of Voice Coil (Re)
3.40 ohm
Mechanical Q Value (Qms)
6.20
What is in the box?
Paperwork

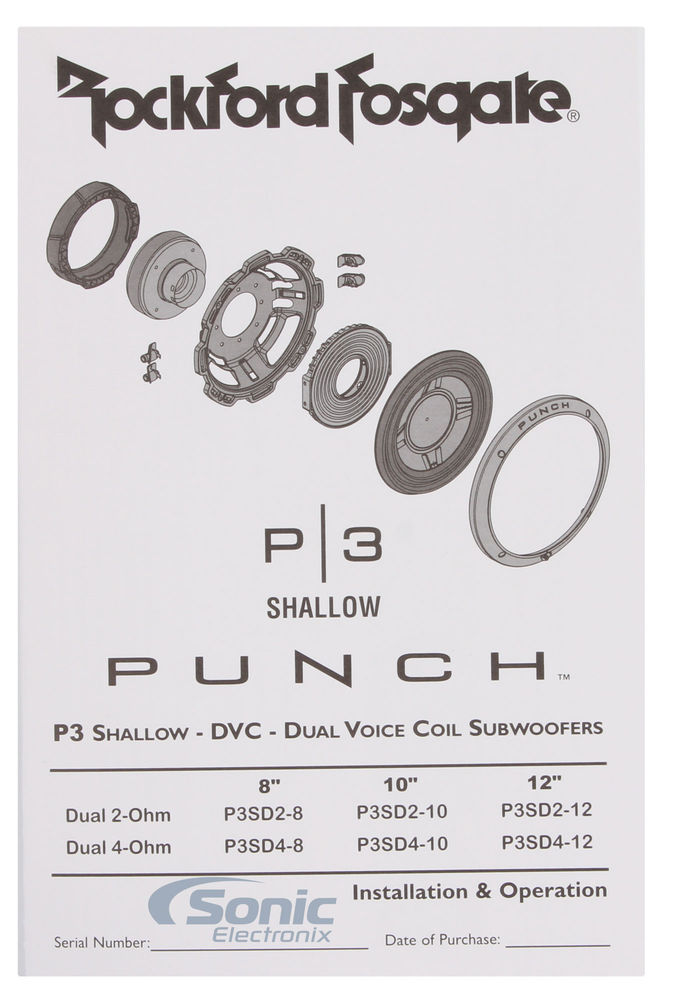

User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3SD210_OBN

Weight:

11.55lbs

Internal SKU:

p3sd210_obn

Internal Product ID:

223743

Customer Ratings & Reviews


Rockford Fosgate Punch P3SD2-10 (Open Box, Like New) thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
4.9
Value
4.8
Features
4.8
Design
4.8
Usability
4.9

Customer Reviews

Sort by:

Loading...

Great speakers love the sound

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I bought the speakers from my 2010 infiniti G 37S. As we all know the G 37 has a very small trunk apartment so I had to have a custom-built speaker box made. The box had .50 ft.³ per chamber so I bought the Rockford Fosgate shall amounts and they work great I cannot be happier.

By Saga on March 22, 2014

65 found this helpful


Great shallow mount sub

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I bought 2 of these for my ford f150 to go under the back seat bc I didn't have much room. I was very surprised to hear the quality and loudness of these shallow mount subs. Rockford fosgate does a great job with these shallow mount subs don't let the reputation of other shallow mounts scare you these sound great. And you can't find a better place to buy them from than sonic electronix. I have mine hooked to a Hifonics Zeus 1100 watt peak power amp. Good combo in my opinion

By Jason on September 16, 2014

60 found this helpful


great product

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

This is actually my second set after my first set was stolen from my truck. They sound real good with the right box, considering i have very limited space under the back seat of my crew cab.

By Edgar on May 29, 2013

61 found this helpful


Great product

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I have two behind my seat in my Chevy truck and they knock, totally worth the money. Make sure and get a great amp as well!

By Drew on January 30, 2014

57 found this helpful


Great subs for space limitation

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

Got this sub into sealed wedge box behind rear seat of Toyota Hilux at 0.72cuft and damn!!! it bumps and will sure gave good bass.

Tried to call public and made them guess how many subs and inch, all of them were wrong, with mostly said its a single 12", its that good. All in all great subs for those who have little space and need bass!

By Borneo Man on November 8, 2014

52 found this helpful


Great!

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I have two in my truck they are with out a doubt the best sub i have ever bought i didn't think that they would hit that hard but once i turned my favorite song on i was completely surprised that they hit that hard for a shallow mount i have had 2 12 deep mounts that don't hit as hard as they do, and its not just hard its nice and smooth beats too.

over all a 5 star from me!

By william on November 15, 2013

54 found this helpful


Best shallow sub I've listened too

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I just installed two of these in my Tacoma double cab behind the rear seats. Even with them tucked behind the seats you can easily feel the punch they bring out. With any shallow mount sub sitting in a 4 inch deep enclosure, like the one I've installed, the low notes IDE say 35 hertz and lower don't respond well. I listen to rap and rock and for both this sub is the way to go for sure for tight space applications! I recommend this sub absolutely.

By Justin on March 3, 2013

53 found this helpful


Puts in work for a slim 10"

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I wanted to keep as much cargo area as possible in my 2000 4runner, but couldn't live without some kind of bump. So i went with the p3sd2-10 in a slim box that I converted to a downfiring enclosure. It rounded out the sound and makes my commute livable once again.

By Frank on August 25, 2018 Checkmark Icon Verified purchase

38 found this helpful


Awesome product!

The following review is for P3SD2-10, which is a part of the bundle you are viewing.

I purchased two Rockford Fosgate P3SD210 subs as a birthday/Christmas present. I initially didn't expect much considering they were 10" shallow mount subs, but I must say they exceeded my expectations greatly! They produce nice sound while packing a pretty decent punch. They are installed in an 07 Chevy Avalanche and I am pleased with the choice I made in subwoofers. For the price and quality, I'd definitely recommend these to anyone who is looking for some quality 10" subs.

By Dwayne on January 15, 2017

36 found this helpful


The following review is for P3SD2-10, which is a part of the bundle you are viewing.
By Patrick on September 30, 2025 Checkmark Icon Verified purchase
2016 GMC Canyon

1 found this helpful
