Rockford Fosgate Punch P3SD4-10 (Open Box, Great)

600W Peak (300W RMS) 10" Punch Series Dual 4-ohm Shallow Car Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• M-Roll Santoprene Surround
• Mount depth: 3.50"
• Sensitivity: 83 dB

Learn more about the ls-p3sd410-u8

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 600 watts
• RMS Power: 300 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• M-Roll Santoprene Surround
• Mount depth: 3.50"
• Sensitivity: 83 dB

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

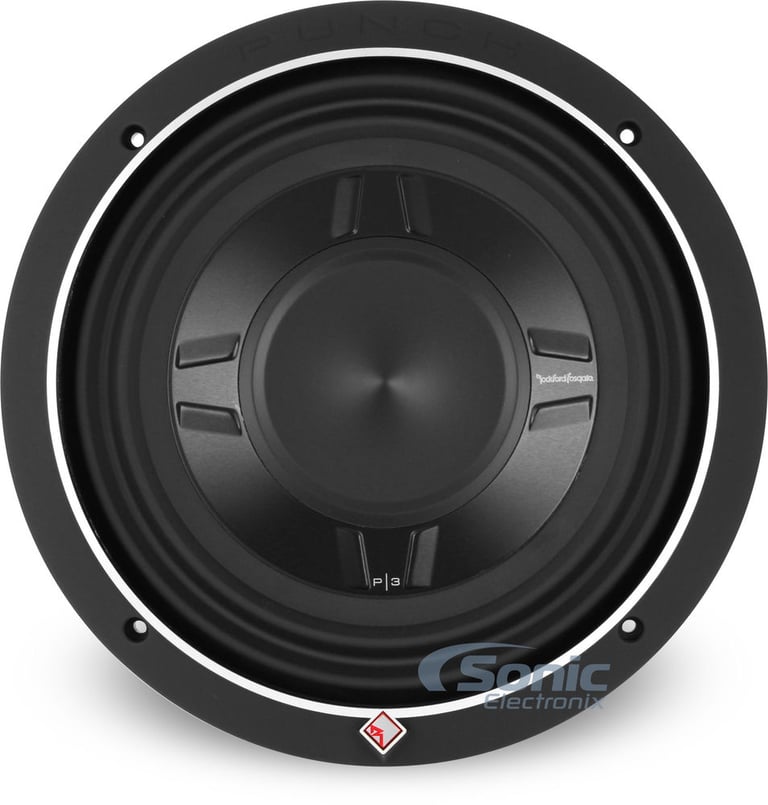

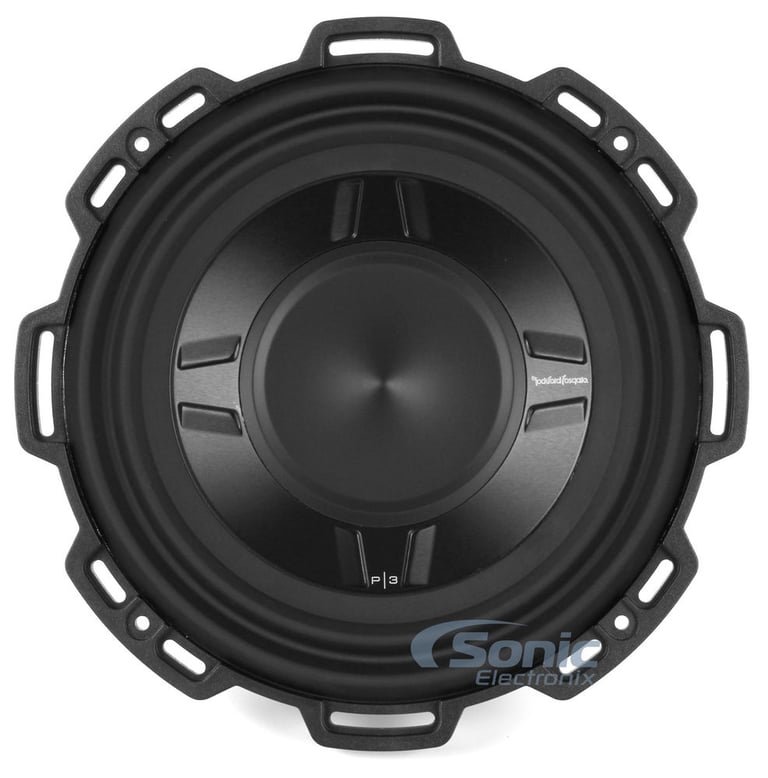

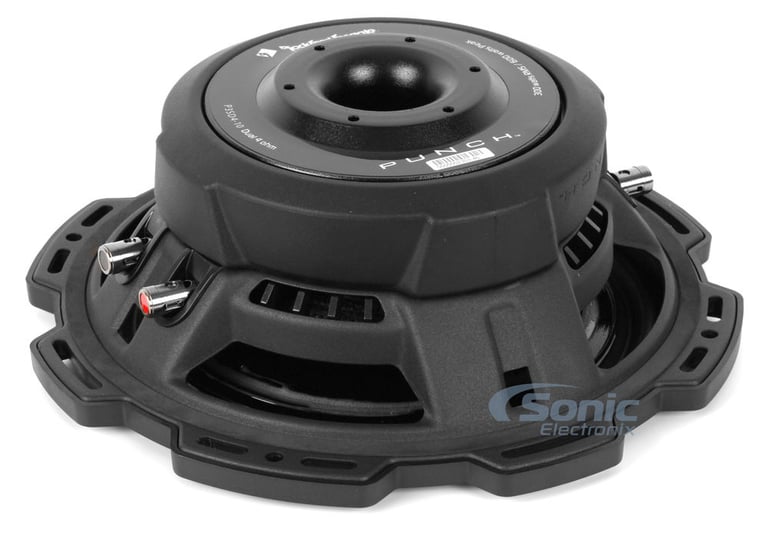

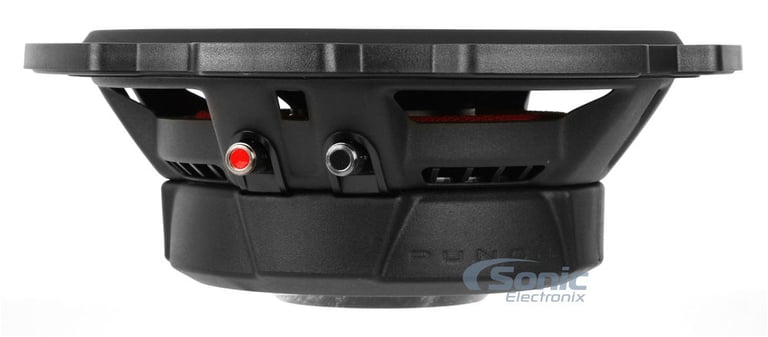

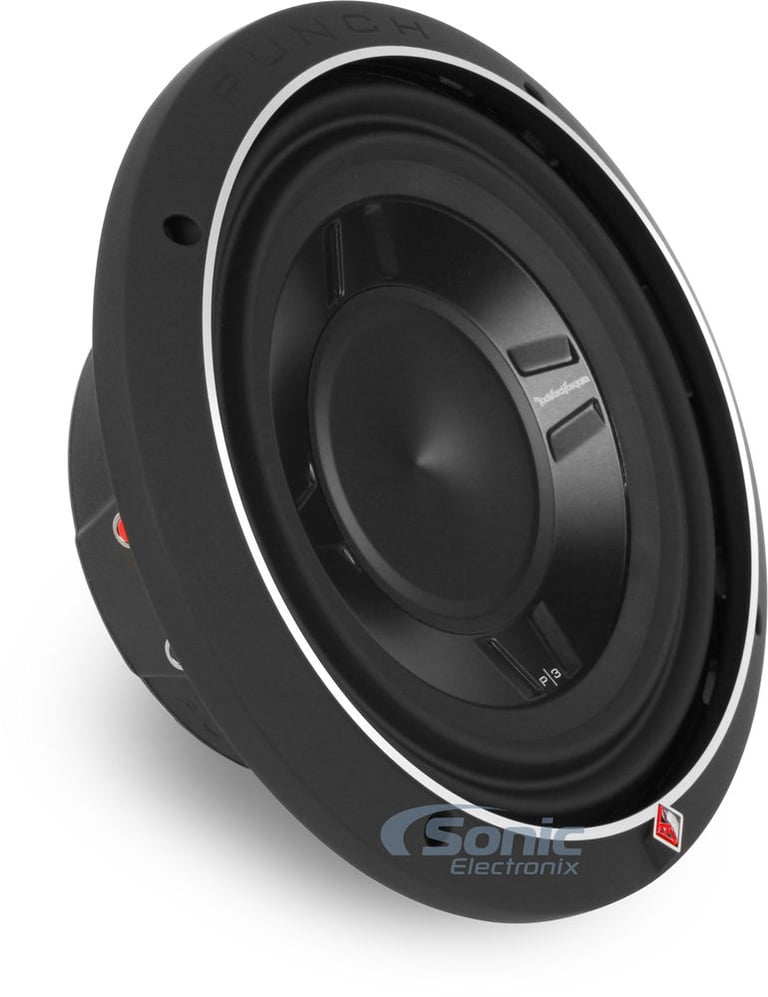

Punch P3SD4-10

The Rockford Fosgate P3S 10" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.


Product Details:

  • 10" Dual 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Anodized Aluminum Cone
  • M-Roll Santoprene Surround
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • StampCast basket with integrated spider venting
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring
  • 2.5" High Temperature Voice coil
  • 10-13/16 mm Xmax
  • 47 oz. Double Stacked magnet motor structure
  • Frequency Response: 45 - 250 Hz
  • Resonance Frequency (Fs): 42 Hz
  • Sensitivity: 83 dB
  • Recommended sealed box volume: 0.5 cubic feet
  • Recommended ported box volume: 1.0 cubic feet
  • Top-mount depth: 3.50"
  • Cutout diameter: 9.06"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately) Rockford Fosgate P3SG-10
  • 1-year Manufacturer's Warranty

  • Priced Individually

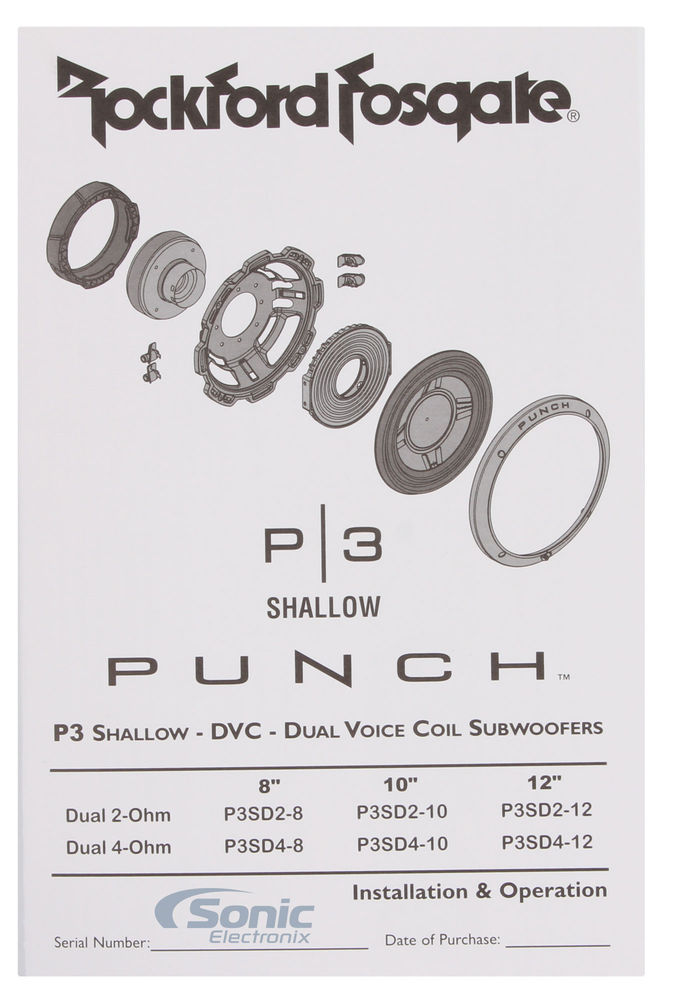

PDF IconRockford Fosgate P3SD410 owner’s manual

Product history:

Rockford Fosgate P3SD4-10-3 thumbnail
(newest, current model)
Rockford Fosgate P3SD410 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3SD4-10 (Open Box, Great))
(previous model, replaced by Rockford Fosgate Punch P3SD410 (09P3SD410))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3SD4-10 (Open Box, Great) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3SD4-10 (Open Box, Great) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3SD4-10 (Open Box, Great) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3SD4-10 (Open Box, Great) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
45 - 250 Hz
Sensitivity
83 dB
Xmax (millimeters)
10-13/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
M-Roll Santoprene
Magnet Structure
Double Stacked
Magnet weight
47 oz.
Subwoofer Grille
Optional (Accessory required and sold separately)
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
0.5 cubic feet
Optimum Ported Box Volume
1.0 cubic feet
Top-Mount Depth (Mounting Depth)
3.50"
Cutout Diameter
9.06"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
42 Hz
Equivalent Compliance (Vas)
14.3 liters
Total Speaker Q Value (Qts)
0.78
Electrical Q Value (Qes)
0.90
Electrical Resistance of Voice Coil (Re)
6.80 ohm
Mechanical Q Value (Qms)
6
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3SD4-10-3

Weight:

11.50lbs

Internal SKU:

ls-p3sd410-u8

Internal Product ID:

218416
