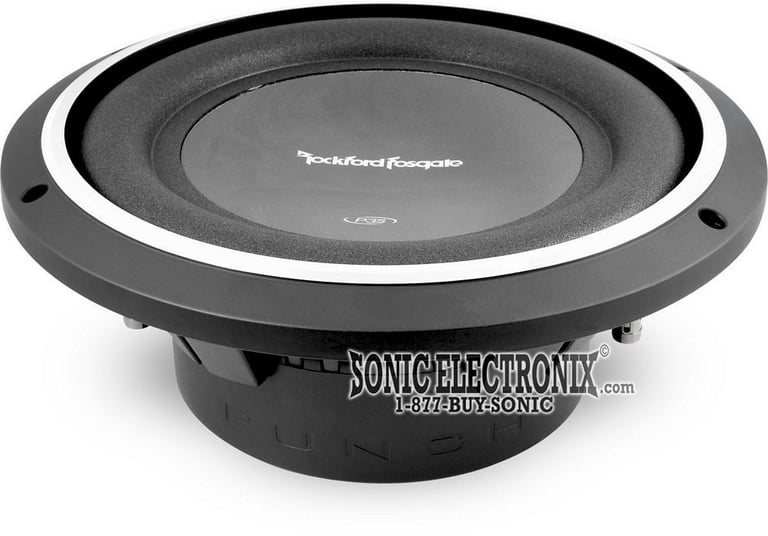

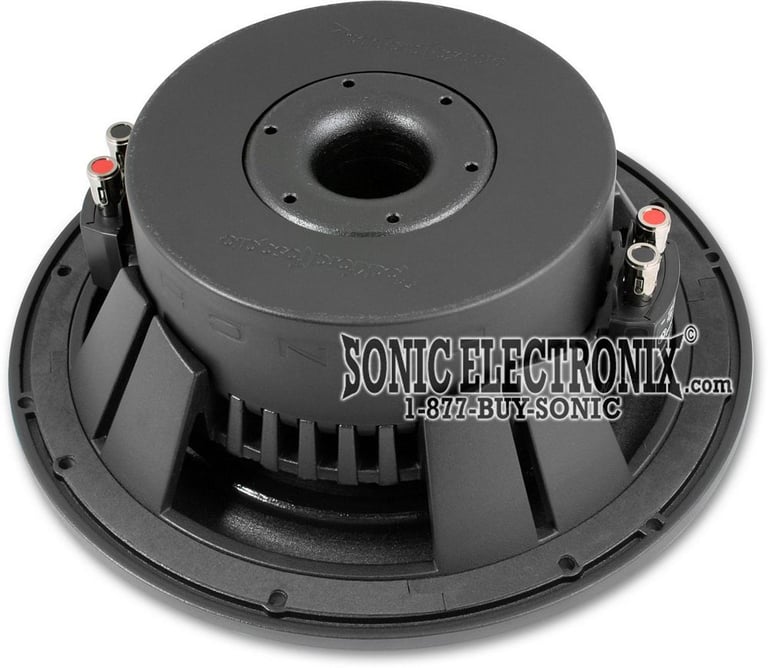

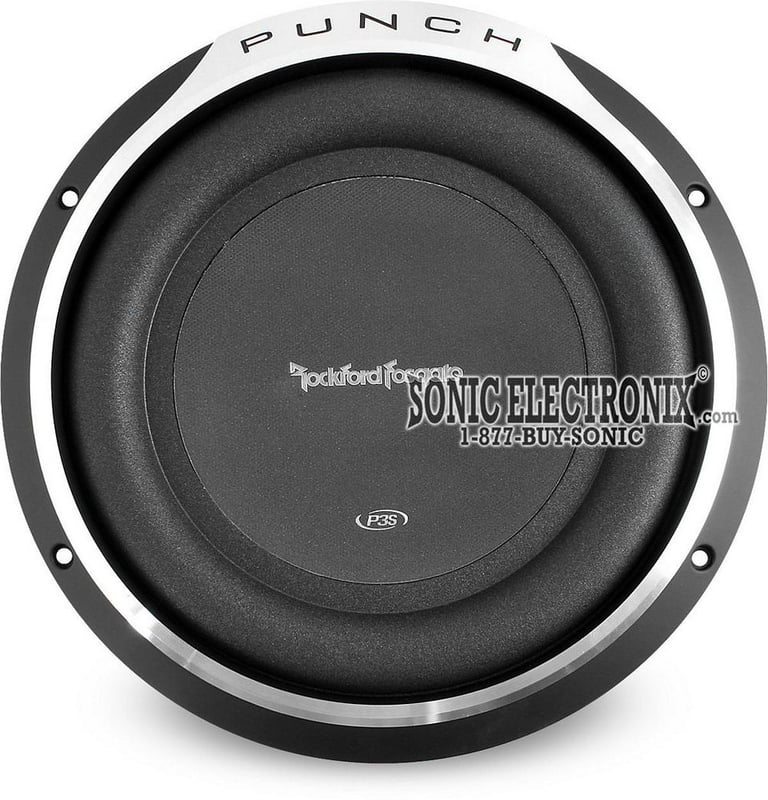

Rockford Fosgate Punch P3SD410 (09P3SD410)

10" Dual 4 ohm Shallow-Mount Punch Stage 3 Series Car Subwoofer

Product videos
highlight-star-icon

10" Dual 4 Ohm Rockford Fosgate Punch Series Shallow-mount Subwoofer • 300W RMS • 600W Peak • Kevlar reinforced semi-pressed paper cone • Poly-foam surround • Tear and fatigue resistant poly-cotton spider

Learn more about the 09-p3sd410

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p3sd410 thumbnail

Rockford Fosgate Punch P3 P3SD4-10

OUR PRICE: $209.99

View item

Loading...
AXABH-FD1 main

Axxess AXABH-FD1

Amplifier Bypass Harness for select 2011-2017 vehicles from Ford with Sony Amplified

1
-11.77%

$29.99

List price $33.99

72-5601 main

Metra 72-5601

Install New Speakers in select 1998-2024 vehicles from Ford, Lincoln, Mercury

6
-10.01%

$8.99

List price $9.99

SA68 main

Scosche SA68

Add 5-1/4" or 6-1/2" Speakers to Factory 6" x 8" Mounting Locations for select 1950-2025 vehicles from Ford, Mercury, Mazda

39
-46.70%

$7.99

List price $14.99

NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

VSP68 main

NVX VSP68

600W Peak (200W RMS) 6x8" V-Series 2 Way Coaxial Car Speakers

46
-16.67%

$89.99

List price $107.99

H7683 main

Cerwin Vega H7683

720W Peak (120W RMS) 6x8" HED Series 3-Way Coaxial 4-ohm Speakers

50
-16.67%

$79.99

List price $95.99

C2-650X main

JL Audio C2-650x

120W RMS 6.5" C2 Series 2-Way Coaxial 4-ohm Car Speakers

26
FRING68 main

NVX FRING68

Universal 6x8" or 5x7" Self-Adhesive Foam Speaker Baffle Ring Kit (Pack of 2)

12
-46.68%

$15.99

List price $29.99

S2-S68 main

Alpine S2-S68

460W Peak (150W RMS) 6x8" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

3
-16.69%

$149.95

List price $180.00

XBAF68 main

NVX XBAF68

Universal 6x8" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

12
-26.68%

$21.99

List price $29.99

Product Highlights


10" Dual 4 Ohm Rockford Fosgate Punch Series Shallow-mount Subwoofer • 300W RMS • 600W Peak • Kevlar reinforced semi-pressed paper cone • Poly-foam surround • Tear and fatigue resistant poly-cotton spider

Description


Rockford Fosgate brand icon

Authorized dealer

  • 10" Dual 4 Ohm Rockford Fosgate Punch Series Shallow-mount Subwoofer
  • Power Handling:
    • Peak: 600 watts
    • RMS: 300 watts
  • Impedance: Dual 4 ohm
  • Kevlar Fiber Semi-Pressed Paper Cone
  • Compressed Sealed Poly-foam Surround
  • ABS/Acrylic Dustcap Assembly
  • Tear and fatigue resistant poly-cotton spider
  • 2.5" Dual 4 ohm Voice Coil with spun-laced Nomex insulating collar
  • Frequency response: 45-250 Hz
  • Sensitivity: 83 dB
  • 1-year Sonic Electronix

Product history:

Rockford Fosgate P3SD4-10 thumbnail
(newest, current model)
Rockford Fosgate P3SD410 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3 P3SD4-10)
(previous model, replaced by Rockford Fosgate Punch P3SD410 (09P3SD410))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3SD410 (09P3SD410) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3SD410 (09P3SD410) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3SD410 (09P3SD410) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3SD410 (09P3SD410) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

SQW104 small

NVX SQW104

• Peak Power: 1200 watts
• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 3.23"
• Sensitivity: 83 dB

$249.99

List price $299.99

10TW3-D4 small

JL Audio 10TW3-D4

• RMS Power: 400 watts
• Polymer/Mica Composite Cone
• Rubber Surround
• Impedance: Dual 4 ohm
• Mount depth: 3.25"
• Sensitivity: 82.10 dB

(29)

$519.99

List price $519.99

HS102D small

Cerwin Vega HS102D

• Peak Power: 800 watts
• RMS Power: 200 watts
• Impedance: Dual 2 ohm
• Polypropylene Cone
• Treated Foam Surround
• Mount depth: 3.54"
• Sensitivity: 83.1 dB

(4)

$99.99

List price $119.99

SPK-10S2 small

AudioControl SPK-10S2

• Peak Power: 700 watts
• RMS Power: 500 watts
• Impedance: Single 2 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 82.2488 dB

$209.00

List price $229.00

TN10-04 small

MTX TN10-04

• Peak Power: 300 watts
• RMS Power: 150 watts
• Impedance: Single 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 4-11/16"
• Sensitivity: 84.9 dB

(15)

$79.95

List price $59.95

SPK-10S4 small

AudioControl SPK-10S4

• RMS Power: 700 watts
• Impedance: Single 4 ohm
• Paper Fiber with Mica Coating Cone
• Rubber Surround
• Mount depth: 5.32"
• Sensitivity: 83.7199 dB

$209.00

List price $229.00

TS-D10LS4 small

Pioneer TS-D10LS4

• Peak Power: 1300 watts
• RMS Power: 350 watts
• Impedance: Single 4 ohm
• IMPP - Aramid Fiber and Carbon Fiber Cone
• Rubber Surround
• Mount depth: 3-1/4"
• Sensitivity: 76 dB

$153.00

List price $260.00

5510-44 small

MTX 5510-44

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Polypropylene Cone
• Rubber Surround
• Mount depth: 5.625"
• Sensitivity: 83.5 dB

(1)

$189.95

List price $159.95

VCW104v3 small

NVX VCW104 Version 3 (VCW104v3)

• Peak Power: 2000 watts
• RMS Power: 1000 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 6.30"
• Sensitivity: 82 dB (1W/1m)

(71)

$169.99

List price $203.99

KAPPA103WDSSI small

Infinity Kappa 103WDSSI (INFSUBKA103WDSSIAM)

• Peak Power: 1350 watts
• RMS Power: 450 watts
• Impedance: Single 2 or 4 ohm
• Glass Fiber Cone
• Rubber Surround
• Mount depth: 6-1/4"
• Sensitivity: 91 dB

$129.95

List price $359.95

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Shallow Mount Series
Subwoofer Size
10"
Peak Power Handling
600 watts
RMS Power Handling
300 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
45 - 250 Hz
Sensitivity
83 dB
Xmax (millimeters)
10-13/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Fiber
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
0.4 cubic feet
Maximum Sealed Box Volume
1.0 cubic feet
Minimum Ported Box Volume
0.75 cubic feet
Maximum Ported Box Volume
0.75 cubic feet
Top-Mount Depth (Mounting Depth)
3-1/2"
Cutout Diameter
9.0"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
10.4 liters
Total Speaker Q Value (Qts)
0.73
Electrical Q Value (Qes)
0.87
Electrical Resistance of Voice Coil (Re)
6.80 ohm
Mechanical Q Value (Qms)
4.50
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3SD410

Weight:

14.00lbs

Internal SKU:

09-p3sd410

Internal Product ID:

9155

Product and How-to Videos


  • 3Sixty3 Aftermarket Setup Wizard Tutorial
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?

Customer Ratings & Reviews


Rockford Fosgate Punch P3SD410  (09P3SD410) thumbnail image

5 star
57%
4 star
36%
3 star
7%
2 star
0%
1 star
0%



Durability
4.7
Value
4.3
Features
4.6
Design
4.9
Usability
4.7

Customer Reviews

Sort by:

Loading...

Fosgate P3 10" Shallow-mount Subs

If you have ever owned Rockford Fosgate subs, then you know the quality and durability these subs have. I built a ported box using the recommended volume and port size/length with Rockford Fosgate 500.4 amp.The rear channel was bridged mono, into 4 ohm speaker load. I wired each sub in a series, then parelled the two subs together.
AND of course, they ROCK!!!

By Scott on May 30, 2011

30 found this helpful


Great Sub

I mounted this sub in a shallow box under the back seat of a Toyota tundra double cab, in an .50 cubic foot sealed box. I have a Alpine MRP M500 pushing it. I have it wired at 2 ohms, and it sounds amazing. You want break any records with it, but if you want good tight bass at all levels this is the sub for you. A lot of people say that it does not go that low but you really have to let it break in. I have had it for a couple of weeks now, and I listen to it alot and it is still breaking in but I can notice a difference in the way it performs as opposed to day one. I highly recommend this sub if you need a shallow sub. My box is only 4 1/2 inches deep and it fits great.

By tundra08 on March 26, 2009

30 found this helpful


Rockford Fosgate P3SD410

Solid sub for price and convenience of tight space applications.

By Philly77 on January 6, 2011

29 found this helpful


Great value

Outstanding product! Great sound.. I would highly recommend this product!

By Wade on November 11, 2010

29 found this helpful


Break in and Polyfill helped mine

I put two of these under the back seat of my F-150 Super Crew and this is my first experience with shallow mount subs as I have always had vehicles with plenty of space for "real" subwoofers and I usually go with Fosgate subs as they never disappoint. I agree that these are more of a midbass woofer than a true subwoofer although they can pick up some low notes, but they just don't have that "growl" of a true sub. I am running these with a Fosgate Power 500.1 at 2 ohms which gives each sub about 250 to 300 watts in a sealed box that allows .6 cubic feet per sub which is within the recommended size range. I didn't want to wait til I drove the truck 24 to 48 hours for the "break in" period so I just hooked up a battery charger to my truck and let it play at about 2/3 volume overnight for about a week to be safe and I could sense a slight difference from day to day. After about two months I decided to put some polyfill in the box to hopefullly add some depth to the bass and surprisingly it did, they are louder, deeper, and sound more like subwoofers now than midbass drivers. I also looked at but have not heard the Kicker shallow mounts, the Powerbass, and some other brands of shallow subs but they require about 1.0 cubic feet per sub and that is just not possible in the F-150 Super Crew so I would have to recommend these if that is your truck.

By Barry on January 8, 2012

27 found this helpful


Great Bass

I would recommend this shallow subwoofer any day. Like other people have said it does the job! So for you guys that don't have much space. Remember less space more bass!

By joseph on June 29, 2010

28 found this helpful


P3 Shallow Mount

It was a little bit pricey, but most shallow mounts are. It pounds pretty good, I have 200 RMS going to it just fine from a 300 RMS Alpine amp. It was ideal for behind my seat in my standard cab F-150. It's not gonna break your windows but it's a nice clean bass you can feel. Overall I would suggest it.

By Andy on May 24, 2010

28 found this helpful


great bang for your buck

The P3 puts out phenomenal and very crisp bass.

By VH on May 10, 2010

28 found this helpful


awesome subs

i have 2 of these under the back seat of my extended cab ram. theyre 2 days old and POUND. i have them running off a jackhammer 600. the specs for the rms power on these is underated. they eat up all the power from the amp. these are the best shallows ive had. ive ran pioneer and kenwood shallows and the p3's leave them in the dust.

By scott on December 2, 2009

28 found this helpful


great product

i had these in my crew cab until they were stolen and they sounded great. recently replAced them with the p3sd210 shallows.

By Edgar on December 14, 2012

27 found this helpful



Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2011 Ford Edge

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
