Rockford Fosgate Punch P3SD4-12 (Like New (Open Box))

800W Peak (400W RMS) 12" Punch Series Dual 4-ohm Shallow Car Subwoofer

Rockford Fosgate
Shop all Rockford Fosgate
Product videos
highlight-star-icon

• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• M-Roll Santoprene Surround
• Mount depth: 3.65"
• Sensitivity: 85 dB

Learn more about the ls-p3sd412-u9

We apologize

This item has been discontinued

Product Highlights


• Peak Power: 800 watts
• RMS Power: 400 watts
• Impedance: Dual 4 ohm
• Anodized Aluminum Cone
• M-Roll Santoprene Surround
• Mount depth: 3.65"
• Sensitivity: 85 dB

Description


Rockford Fosgate brand icon

Authorized dealer

Item Condition - Like New (Open Box):

This product works and looks like new. It may have been opened for a visual demo or product video. In some cases there may be signs of an attempt at installation like opened packaging or mounting screw holes used, but there is no real sign of use or wear. Includes all original parts, packaging and accessories (or suitable replacement)

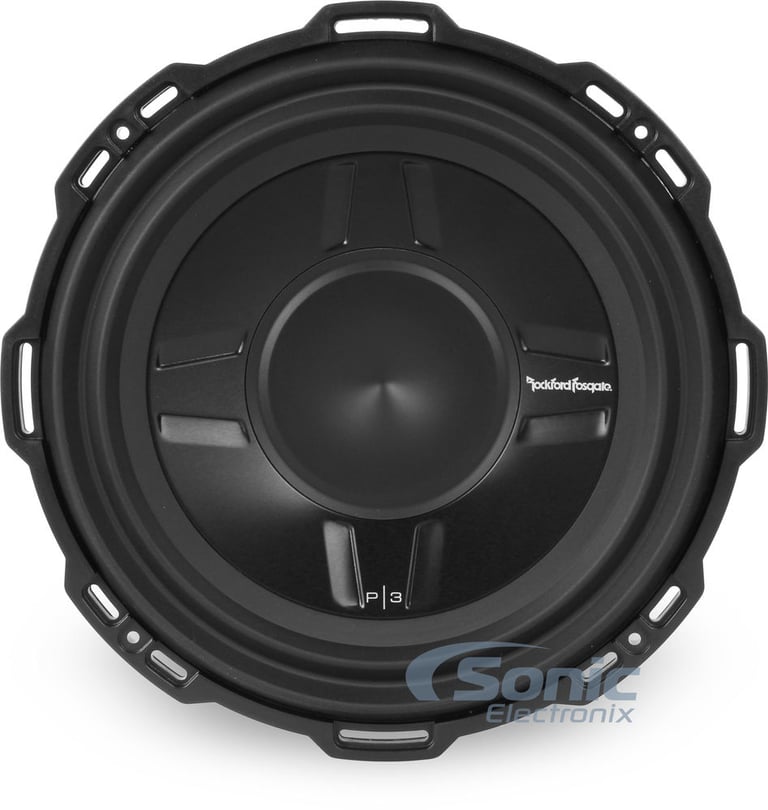

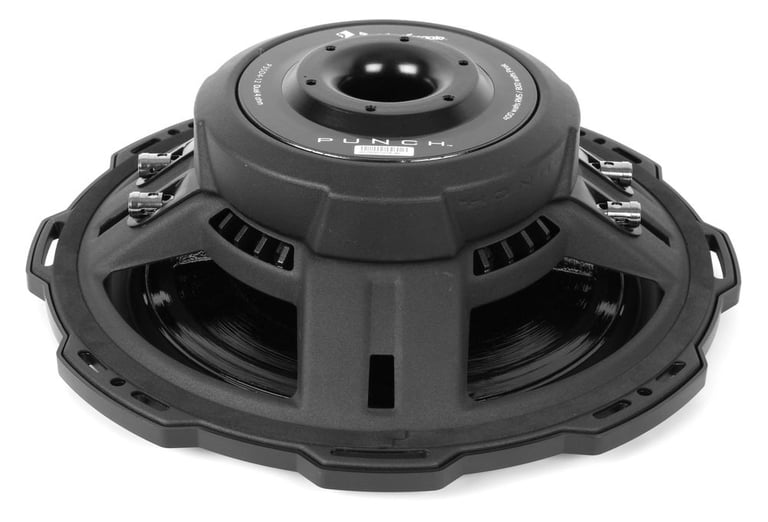

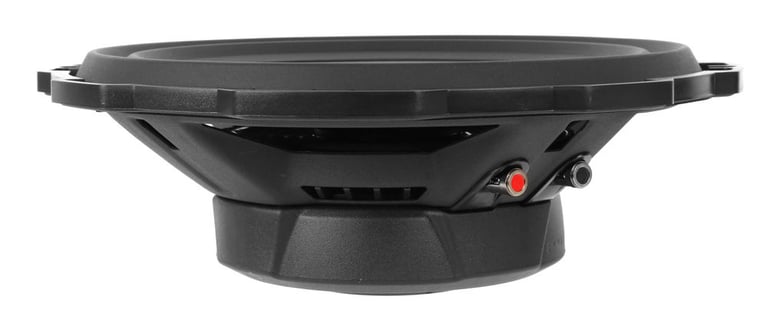

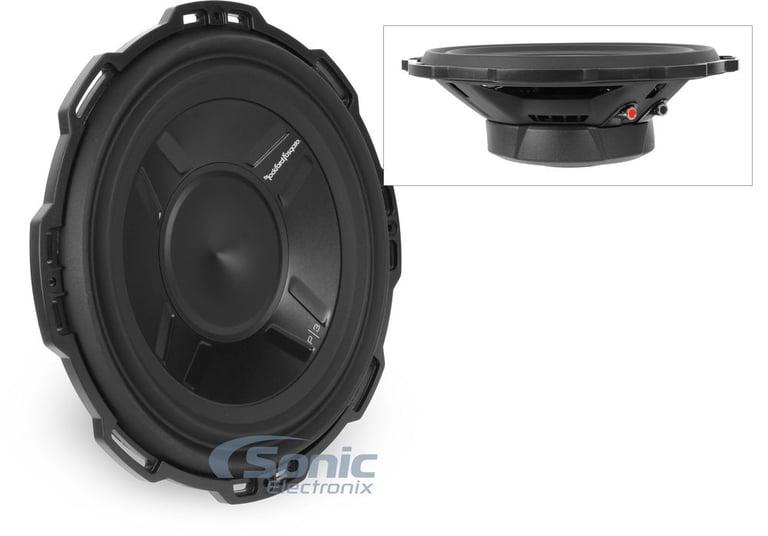

Punch P3SD4-12

The Rockford Fosgate P3S 12" shallow mount subwoofer delivers Punch, even in depth limited situations. Rockford Fosgate understands all vehicles are not the same, because some cannot accommodate deep subwoofers. In the past, that meant no Bass. Not anymore! Now even depth challenged vehicles can have REAL Bass and the Dual Voice Coil allow configurations for every application. Shallow woofers are specifically designed for spaces where a traditional woofer cannot be used.


Product Details:

  • 12" Dual 4 ohm Punch Series Subwoofer
  • Power Handling:
    • Peak: 800 watts
    • RMS: 400 watts
  • Anodized Aluminum Cone
  • M-Roll Santoprene Surround
  • Shallow Motor Assembly
  • Optimized for both sealed and vented enclosures
  • StampCast basket with integrated spider venting
  • Dual linear spider with embedded 16 AWG tinsel leads
  • Diamond cut cast aluminum trim ring
  • 2.5" High Temperature Voice coil
  • 8.1 mm Xmax
  • Double Stacked magnet motor structure
  • Frequency Response: 34 - 250 Hz
  • Resonance Frequency (Fs): 35.4 Hz
  • Sensitivity: 85 dB
  • Recommended sealed box volume: 1.00 cubic feet
  • Recommended ported box volume: 1.25 cubic feet
  • Top-mount depth: 3.65"
  • Cutout diameter: 11.22"
  • CTA-2031 Compliant
  • Authorized Internet Dealer
  • Optional protective subwoofer grille (sold separately) Rockford Fosgate P3SG-12
  • 1-year Manufacturer's Warranty

  • Priced Individually

PDF IconRockford Fosgate P3SD412 owner’s manual

Product history:

Rockford Fosgate P3SD4-12-6 thumbnail
(newest, current model)
Rockford Fosgate P3SD412 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3SD4-12 (Like New (Open Box)))
(previous model, replaced by Rockford Fosgate P3SD412 (09P3SD412))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate Punch P3SD4-12 (Like New (Open Box)) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate Punch P3SD4-12 (Like New (Open Box)) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate Punch P3SD4-12 (Like New (Open Box)) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate Punch P3SD4-12 (Like New (Open Box)) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Punch Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
34 - 250 Hz
Sensitivity
85 dB
Xmax (millimeters)
8.1 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Anodized Aluminum
Woofer Surround
M-Roll Santoprene
Magnet Structure
Double Stacked
Subwoofer Grille
Optional (Accessory required and sold separately)
CTA-2031 Compliant
Yes
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Optimum Sealed Box Volume
1.00 cubic feet
Optimum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
3.65"
Cutout Diameter
11.22"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
35.4 Hz
Equivalent Compliance (Vas)
35.3 liters
Total Speaker Q Value (Qts)
0.72
Electrical Q Value (Qes)
0.83
Electrical Resistance of Voice Coil (Re)
6.80 ohm
Mechanical Q Value (Qms)
5.70
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

P3SD4-12-6

Weight:

12.80lbs

Internal SKU:

ls-p3sd412-u9

Internal Product ID:

208509

Product and How-to Videos


  • Rockford Fosgate P3S Shallow Car Sub | Punch Stage 3 Subwoofer
  • Car Subwoofer Size Buying Guide | What Size of Sub Should I Get?
  • How to Install a Car Subwoofer in a Box
