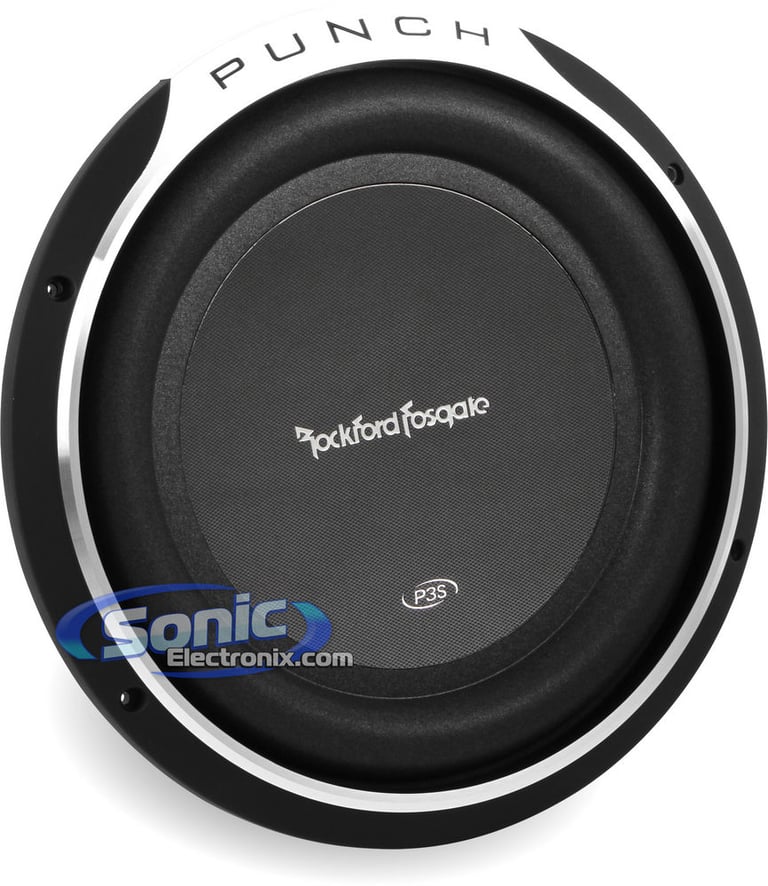

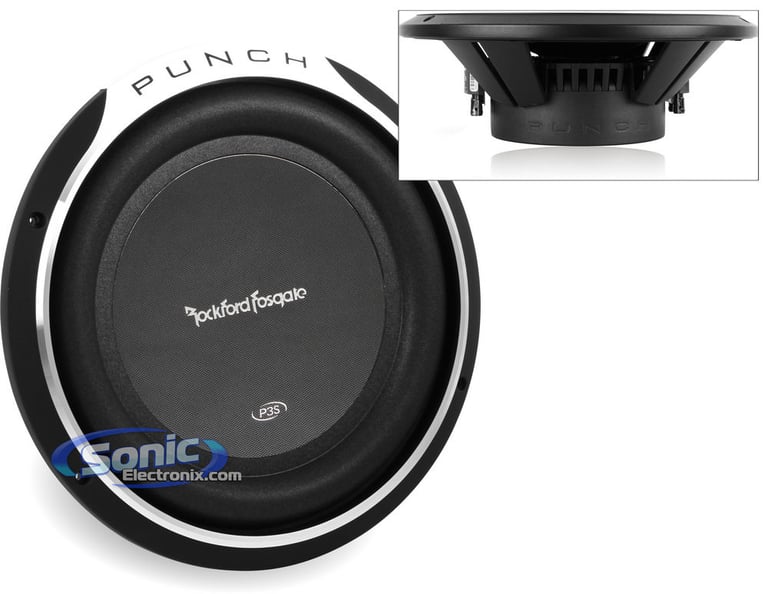

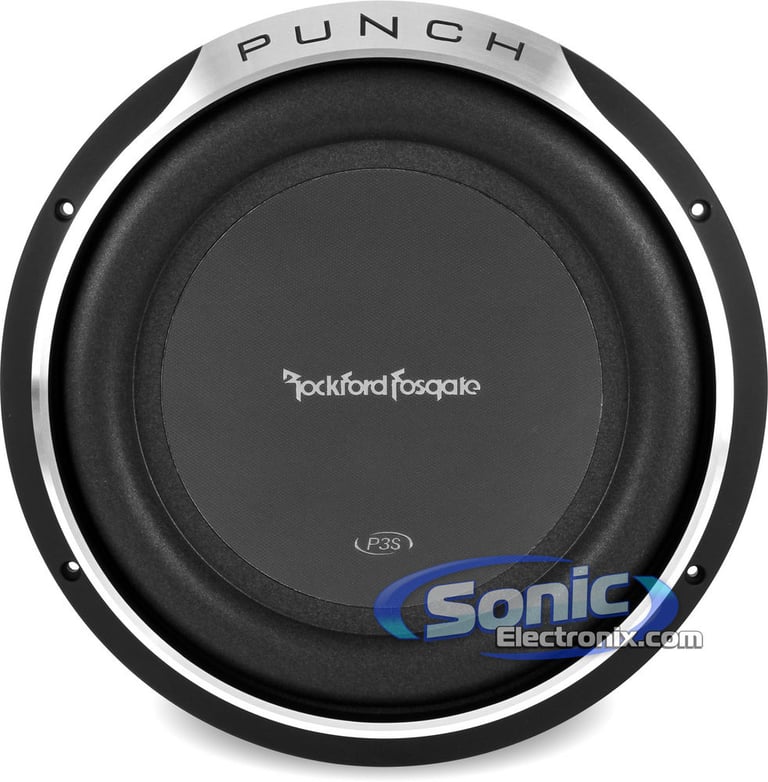

Rockford Fosgate P3SD412 (09P3SD412)

12" Dual 4 ohm Shallow-Mount Punch Stage 3 Series Car Subwoofer

Product videos
highlight-star-icon

12" Dual 4 ohm Punch Stage 3 Shallow Subwoofer • 400W RMS • 800W Peak • Kevlar reinforced semi-pressed paper cone • Poly-foam surround • Tear and fatigue resistant poly-cotton spider

Learn more about the 09-p3sd412

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

p3sd412 thumbnail

Rockford Fosgate Punch P3 P3SD4-12

OUR PRICE: $219.99

View item

Loading...
NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

VSP65KIT main

NVX VSP65KIT

750W Peak (250W RMS) 6.5" V-Series 2 Way Component Car Speakers

84
-15.39%

$109.99

List price $129.99

KDC-X305 main

Kenwood eXcelon KDC-X305

Single DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

23
-17.08%

$199.00

List price $240.00

Limited time!
KFC-1666S main

Kenwood KFC-1666S

600W Peak (60W RMS) 6.5" Sport Series 2 Way Coaxial 4-ohm Car Speakers

51
-38.75%

$49.00

List price $80.00

XSP652 main

NVX XSP652

600W Peak (200W RMS) 6.5" X-Series 2 Way Coaxial Car Speakers

19
-33.34%

$119.99

List price $179.99

XRM59BT main

Dual XRM59BT

Single DIN Digital Media Receiver with Bluetooth, USB and Aux

28
MPR2110 main

Jensen MPR2110

Single DIN Digital Media Receiver with Bluetooth

13
SXE-1751S main

Alpine SXE-1751S

440W Peak (80W RMS) 6.5" SXE-Series 2-way 4-ohm Component Speakers with Mylar-Titanium Tweeters

4
-16.67%

$64.99

List price $77.99

Limited time!
CS-DF620 main

JVC CS-DF620

600W Peak (50W RMS) 6.5" DRVN DF Series 2-Way 4-ohm Shallow-Mount Coaxial Car Speakers

4
-39.08%

$38.99

List price $64.00

Limited time!
R1T-S main

Rockford Fosgate PRIME R1T-S

160W Peak (80W RMS) 1" PRIME Series Mylar Balanced Dome Car Tweeters

34
-11.11%

$39.99

List price $44.99

Product Highlights


12" Dual 4 ohm Punch Stage 3 Shallow Subwoofer • 400W RMS • 800W Peak • Kevlar reinforced semi-pressed paper cone • Poly-foam surround • Tear and fatigue resistant poly-cotton spider

Description


Rockford Fosgate brand icon

Authorized dealer

  • 12" Dual 4 ohm Punch Stage 3 Shallow Subwoofer
  • Power Handling:
    • 800 watts Peak
    • 400 watts RMS
  • Impedance: Dual 4 ohm
  • Kevlar Fiber Semi-Pressed Paper Cone
  • Compressed Sealed Poly-foam Surround
  • ABS/Acrylic Dustcap Assembly
  • Tear and fatigue resistant poly-cotton spider
  • 2.5" Dual 4 ohm Voice Coil with spun-laced Nomex insulating collar
  • Frequency response: 43-250 Hz
  • Sensitivity: 86 dB
  • 1-year SonicElectronix.com Warranty

Product history:

Rockford Fosgate P3SD4-12 thumbnail
(newest, current model)
Rockford Fosgate P3SD412 thumbnail
(previous model, replaced by Rockford Fosgate Punch P3 P3SD4-12)
(previous model, replaced by Rockford Fosgate P3SD412 (09P3SD412))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Rockford Fosgate P3SD412 (09P3SD412) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Rockford Fosgate P3SD412 (09P3SD412) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Rockford Fosgate P3SD412 (09P3SD412) Subwoofers

Mono Amp

4 Channel Amp

Wiring Guide to Wire 4 Rockford Fosgate P3SD412 (09P3SD412) Subwoofers

Mono Amp

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

SXE-6926S main

Alpine SXE-6926S

280W Peak (90W RMS) 6x9” SXE Series 2-way 4-ohm Coaxial Speakers

13
-20.84%

$56.99

List price $71.99

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

VCW124v3 small

NVX VCW124 Version 3 (VCW124v3)

• Peak Power: 2400 watts
• RMS Power: 1200 watts
• Impedance: Dual 4 ohm
• Carbon Fiber Enhanced Non-Pressed Paper Cone
• Custom High Roll Foam Surround with black nylon stitching
• Mount depth: 7.02"
• Sensitivity: 85 dB (1W/1m)

(132)

$239.99

List price $287.99

12W6v3-D4 small

JL Audio 12W6v3-D4

• RMS Power: 600 watts
• Impedance: Dual 4 ohm
• Mineral-Filled Polypropylene Cone
• Butyl Rubber Surround
• Mount depth: 7.52"
• Sensitivity: 85.4 dB

(25)

$949.99

List price $949.99

Specifications & Details


Subwoofer Specifications
Series
Punch P3 Shallow Mount Series
Subwoofer Size
12"
Peak Power Handling
800 watts
RMS Power Handling
400 watts
Voice Coil(s)
Dual
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2.5"
Frequency Response
43 - 250 Hz
Sensitivity
86 dB
Xmax (millimeters)
10-13/16 mm
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Kevlar Fiber
Woofer Surround
Foam
Magnet Structure
Single Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
.60 cubic feet
Maximum Sealed Box Volume
1.20 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.25 cubic feet
Top-Mount Depth (Mounting Depth)
3-5/8"
Cutout Diameter
11-1/8"
Shallow Mount Installation
Yes
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
45 Hz
Equivalent Compliance (Vas)
21.00 liters
Total Speaker Q Value (Qts)
0.74
Electrical Q Value (Qes)
0.88
Electrical Resistance of Voice Coil (Re)
6.80 ohm
Mechanical Q Value (Qms)
4.60
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

P3SD412

Weight:

15.00lbs

Internal SKU:

09-p3sd412

Internal Product ID:

9157
