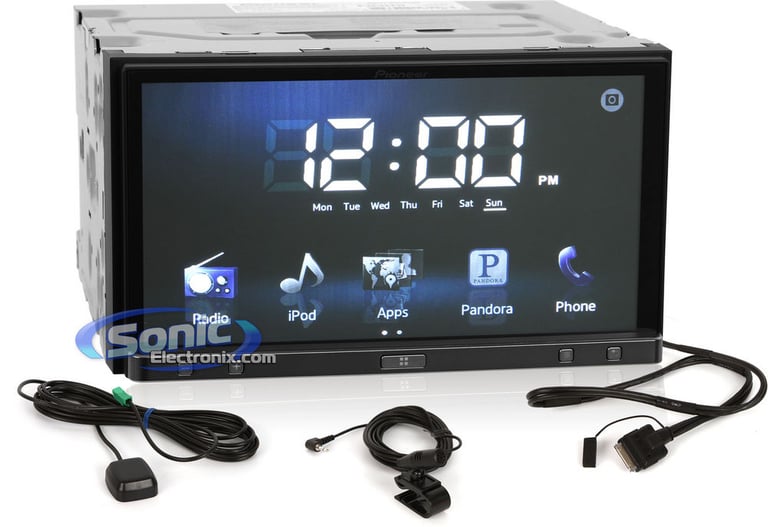

Pioneer AppRadio2 SPH-DA100

In-Dash 7" Smartphone Car Stereo Receiver with App Control for Apple iPhone or Android Devices (AppRadio 2)

Pioneer
Shop all Pioneer
Product videos
highlight-star-icon

• Double DIN 7" LCD Touchscreen Display
• 50W x 4 Chan. Max, 22W x 4 Chan. RMS
• 2 Sets of 2V Preamp Outputs
• Easy EQ 5-Band Graphic Equalizer
• Bluetooth Technology
• Password Pin Security
• Apple and Android Compatible

Learn more about the sphda100

We apologize

This item has been discontinued

Product Highlights


• Double DIN 7" LCD Touchscreen Display
• 50W x 4 Chan. Max, 22W x 4 Chan. RMS
• 2 Sets of 2V Preamp Outputs
• Easy EQ 5-Band Graphic Equalizer
• Bluetooth Technology
• Password Pin Security
• Apple and Android Compatible

Description


Pioneer brand icon

Authorized dealer












General Features:

  • In-dash AM/FM, iPhone Multimedia Receiver
  • Designed specifically for Android, iPhone and iPod
  • Full-color 7" LCD touchscreen display
  • GPS Navigation with attached iPhone and AppRadio application

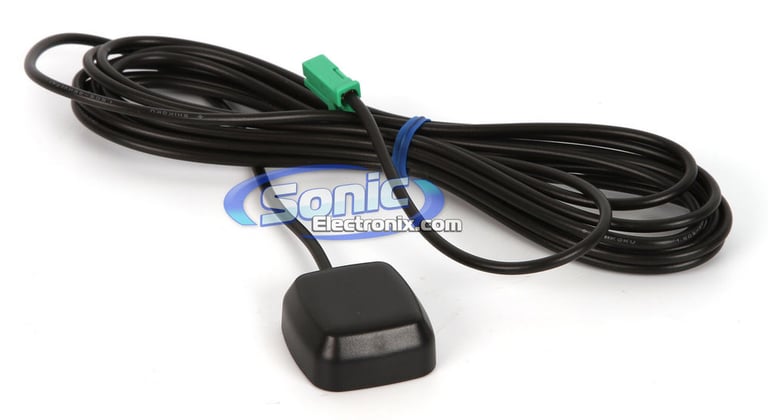

  • Includes external GPS antenna for improved position accuracy
  • Bluetooth technology supports hands-free calling and phone book access with iPhone
  • Advanced App Mode allows viewing and listening of downloaded app content
  • Capacitive touchscreen requires less pressure, responds faster, and recognizes multiple touch points simultaneously
  • Supports iTunes Genius playlists for consistent genre-specific playback from large music collections
  • CEA-2006 compliant amplifier
  • Power Output:
    • Peak: 50 watts x 4 channels
    • RMS: 22 watts x 4 channels (Pioneer Certified)
    • RMS: 14 watts x 4 channels (CEA Certified)
  • Solid state receiver has no moving parts
  • White illuminated button lighting
  • Compatible with Escort Live app on iOS
  • Password pin security built-in
  • 1-year Sonic Electronix Warranty

Playback and Audio Features:

  • Playback of iPod, iPhone and Android digital media

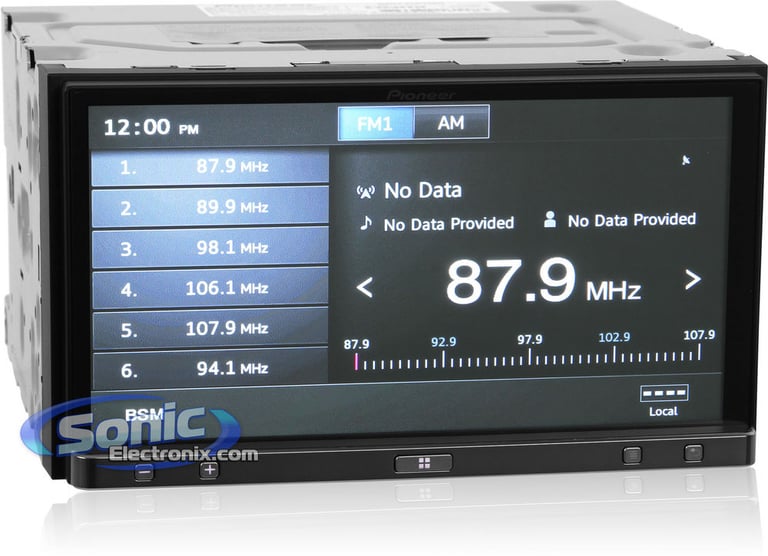

  • AM/FM tuner with 18FM/6AM presets
  • Easy EQ 5-band graphic equalizer with preset tone curves
  • Bass boost adjustment for extra subwoofer output

Expandability Options:

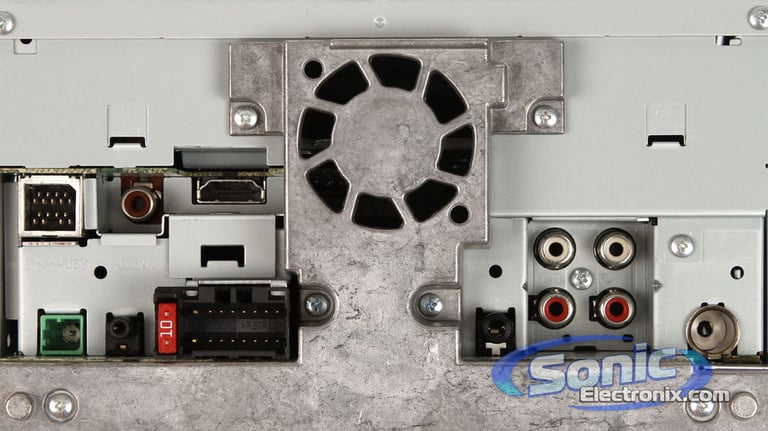

  • 2 Sets of 2V preamp outputs (front and switchable rear/subwoofer)
  • Integrated Bluetooth: Enables iPhone to be paired for hands free calling with included voice microphone

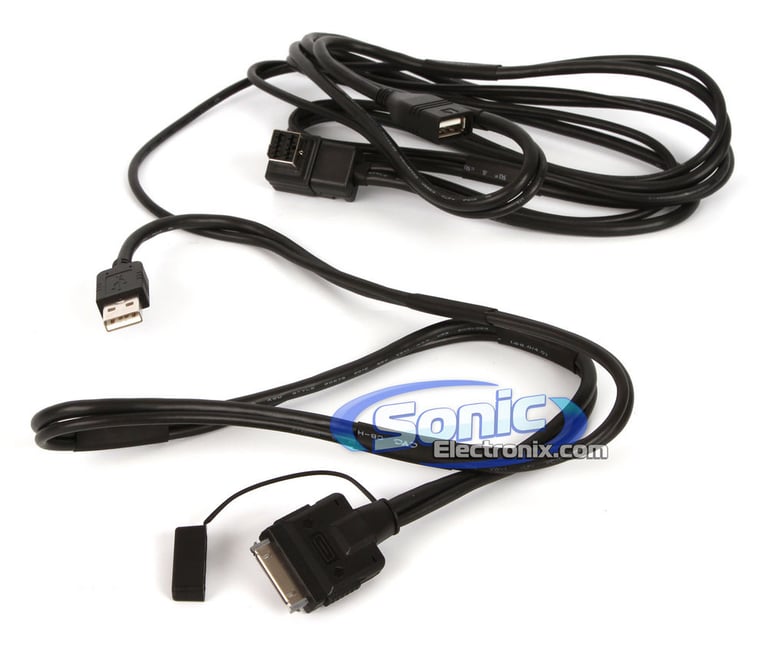

  • iPod and iPhone Ready: 30-pin Apple dock connector cable included
  • Android Ready: Pioneer CD-AH200C connection kit required and sold separately
  • Rear USB Input: USB port allows connection to iPod, iPhone and Android
  • Dedicated Backup Camera Input: Used for universal rear view cameras with an RCA composite input. The Pioneer ND-BC4 is recommended and sold separately
  • Steering wheel remote ready: PAC SWI-PSv1 or the Axxess ASWC-1 required and sold separately
  • Front MicroSD Card Input: allows AppRadi application updates

Bluetooth Features:

  • Built-in Bluetooth technology for hands-free talking
  • Bluetooth Profiles Supported:
    • HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
    • SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
  • Works with most Bluetooth enabled cell phones

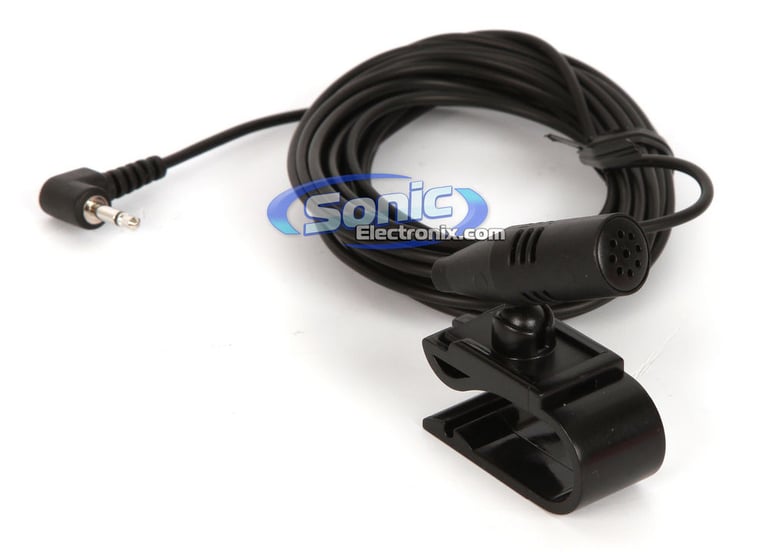

  • Includes a wired microphone for clear, distortion-free talking


Compatible Device List (as of 12/11/2013)

Pioneer AppRadio 3 SPH-DA210 Android compatibility

*Samsung adapter EPL-FU10BEBSTD is required (sold separately), in addition to the Pioneer CD-AH200C Android interface cable kit (sold separately).

AppRadio Compatibility Note: With the introduction of Apple’s new iOS 11 mobile operating system, Pioneer has discovered an incompatibility with AppRadio Mode on certain Pioneer Navigation, DVD, and AppRadio receivers. If you connect an iPhone® or 5th or 6th generation iPod touch® device that has been updated to iOS 11 and launch AppRadio Mode, you will experience a blank screen or other display malfunction that disables AppRadio Mode. To maintain compatibility with AppRadio Mode, please continue using iOS 10 or older with your iPhone or iPod touch. Pioneer is working to resolve the issue and will update this notice once firmware updates for the receivers are available. For further information, including affected receiver models, please visit https://www.pioneerelectronics.com/appradiomode If you have any questions, please contact Pioneer Customer Service toll free at 1-800-421-1404, Monday through Friday, 7:30 AM - 11:30 AM and 12:30 PM – 4:00 PM (Pacific Time), excluding holidays, or online through parts.pioneerelectronics.com/contact.

Product history:

Pioneer SPH-DA100 thumbnail
(newest, current model)
Pioneer SPH-DA01 thumbnail
(previous model, replaced by Pioneer AppRadio2 SPH-DA100)

Specifications & Details


In-Dash Receiver Specifications
Receiver Size
Double DIN
Anti-Theft Security
Security Code
Wireless Remote
No
Peak Power Output
50 watts x 4 channel
RMS Power Output
22 watts x 4 channel
Preamp RCA Outputs
2 Sets (4-Channel)
Dedicated Subwoofer Preamp RCA Output
Yes
Preamp Voltage
2 volts
Built-In Equalizer
Easy EQ 5-band graphic equalizer
Display Type
TFT-LCD Display
Touchscreen
Yes
Display Adjustment
Black Level
Brightness
Dimmer
Expandability Features
Inputs
Backup Camera
Steering Wheel Control Compatible
Yes (Accessory required and sold separately)
  • PAC SWI-PSv1: Pioneer Specific, Manual Programming Interface
  • Axxess ASWC: Universal, Automatic Programming Interface
Tuner
AM/FM Tuner
Yes
FM Presets
18
AM Presets
6
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

SPH-DA100

Weight:

5.40lbs

Internal SKU:

sphda100

Internal Product ID:

43554

Product and How-to Videos


Customer Ratings & Reviews



5 star
33%
4 star
33%
3 star
33%
2 star
0%
1 star
0%



Durability
4.7
Value
4
Features
3.7
Design
5
Usability
4.4

Customer Reviews

Sort by:

Loading...

Great Radio when Using Android and the ARliberator App

The radio sounds great and looks almost factory in my car and I really like that. I am running it on an android galaxy S3. After buying the radio, part way through the install, I found out that the pioneer android interface kit does not work with the S3. This is because the S3 changed the pin configuration to the MHL connector (charger) on the phone. My solution was buy the Samsung HDMI to MHL converter otherwise known as a smartphone to hdtv connector (the Samsung galaxy S3 specific one) and use that in conjunction with a standard hdmi cable. After figuring all that out which I think is Samsung's fault not Pioneer's, I found the ARliberator app for the Android. This app basically turns your Appradio into an extension of your phone. Once the phone is synced to the radio you are able to use every feature of your phone on the touchscreen of the Appradio. What you would normally see on the screen of your phone is what you see on the Appradio.

Now for the bad... There is only 2 preamp outputs, the rear is switchable from sub woofer to rear speaker. This mean if you were to run a 4-channel to power your speakers you would have to choose between having rear speakers or a subwoofer. There is no CD or DVD drive, doesn't bother me but still sucks... No remote

By THATGuy on March 8, 2013

12

found this helpful.

It's okay

This radio is OK.
Good things: touch screen, looks good, easy to use (for the most part), and it does what all other radios do, play music from whatever you plug into it.
Not so good things: the Appradio IOS app sucks, I can't figure out how to play videos through my iPhone onto the screen, no DVD or CD player so you're limited to your iPod or phone (or AM/FM), no Sirius/XM.
I previously owned an AVH-P4400BH and I like it better than my SPH-DA100. You can change the song without having to be in the "iPod" app, can turn the screen off without having to scroll across (which is kinda slow on the Appradio 2) and if course it plays DVD's.
The SPH-DA100 is a good radio, I just don't think it's one of the best

By Parker on November 30, 2012

12

found this helpful.

Happy Wife

This unit does everything my wife was looking for; great sounding radio with is very easy to use and tune/save stations. Nice old-school display, hold down the button and the station is saved. Plays music easily from her iPhone 4s as well as Pandora. The bluetooth phone feature works awesome and sounds great too. I installed this into her Ford F-150 truck and it looks incredible, fits like a glove. Only feature we wish it had is bluetooth audio streaming, but it's really no big deal to plug it in.

By Michael on June 20, 2012

10

found this helpful.
