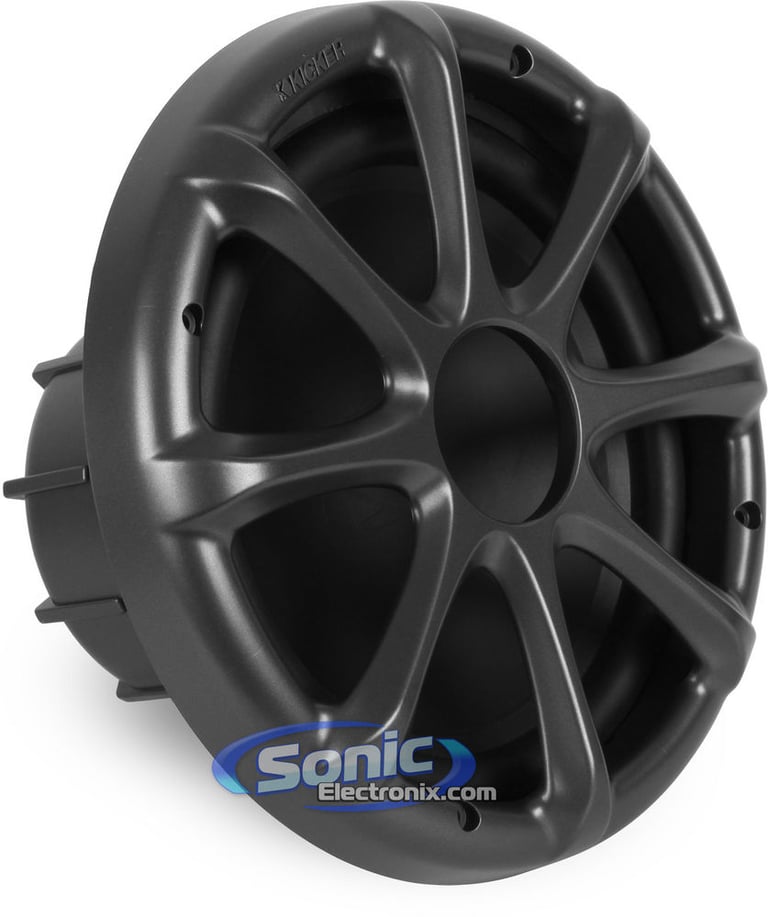

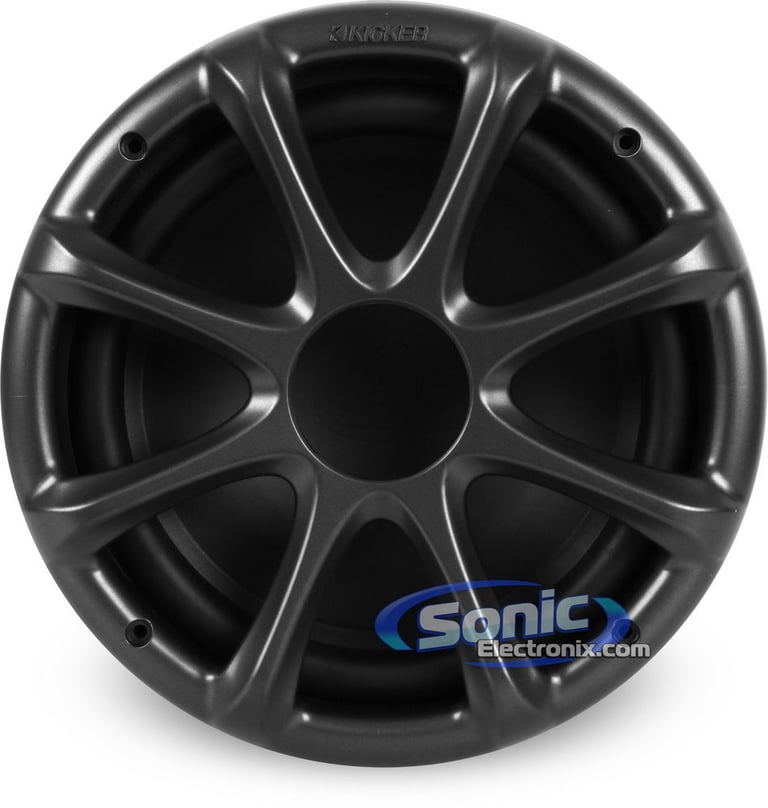

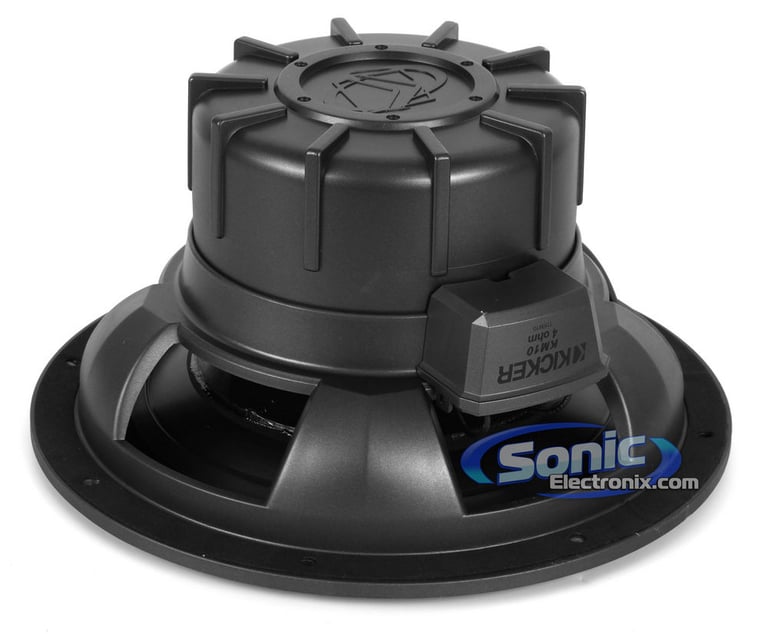

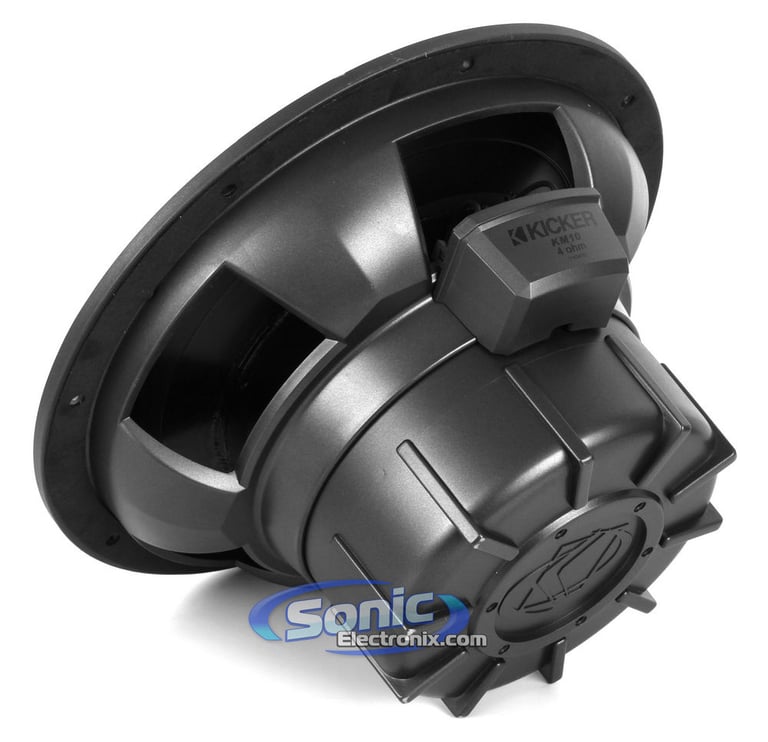

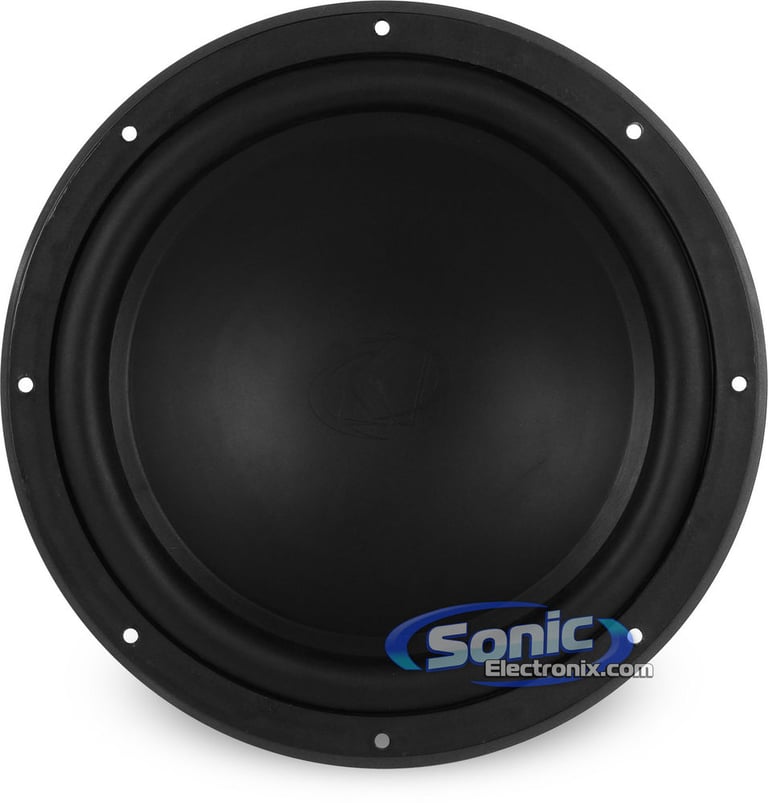

Kicker 11KM10

Charcoal, 10" Single 4-Ohm Marine Series Subwoofer

Kicker
Shop all Kicker
highlight-star-icon

• Single 4-Ohm Voice Coil
• 300W Max
• 150W RMS
• Injection-Molded Cone
• Santoprene Rubber Surround
• Magnetically Shielded
• Grill Included

Learn more about the 11km10

We apologize

This item has been discontinued


Loading...
70-1771 main

Metra 70-1771

Install a New Car Stereo in select 1998-2011 vehicles from Ford, Mazda, Mercury

51
95-5000B main

Metra 95-5000B Dash Kit

Install a new Double-DIN car stereo in select 2000-2006 LS and Thunderbird (Black)

1
-40.76%

$15.99

List price $26.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

Limited time!
DMH-241EX main

Pioneer DMH-241EX

6.2" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth and Built-in Alexa

20
-35.00%

$194.99

List price $300.00

INE-W970HD main

Alpine INE-W970HD

6.5" Double DIN Touchscreen DVD Receiver with Bluetooth, Apple CarPlay, Android Auto and Built-in Navigation (SiriusXM Ready)

6
-16.67%

$999.95

List price $1200.00

DDX57S main

Kenwood DDX57S

6.75" Double DIN Touchscreen CD/DVD Receiver with Bluetooth, Apple CarPlay, Android Auto (Sirius XM Ready)

5
-31.21%

$399.00

List price $580.00

TS-T110 main

Pioneer TS-T110

240W Peak (80W RMS) 7/8-Inch Hard-Dome Tweeters (Pair)

43
-9.09%

$50.00

List price $55.00

Description


Kicker brand icon

Authorized dealer

Kicker Marine

The KM10 rocks from either a sealed or vented box (150 watts RMS power handling), while remaining extremely durable in any outdoor climate. The sub’s sealed motor, cone, and locking terminal cover make it entirely splash- and spray-resistant. The water-tight terminal cover itself provides strain relief, insulation, corrosion prevention, and aids in ignition protection. The state-of-the-art, injection-molded cone, Santoprene™ surround, basket, and grille are UV-treated to combat the harsh marine environment. A water-resistant, bolt-thru grille offers further protection, and has a tough look and popular metallic color that matches well with all interiors. All hardware is made from corrosion-proof, 316L stainless-steel. The KM10 meets or exceeds industry standards for environmental humidity and corrosion* and for material degradation due to UV exposure.

Additionally, the KM10 is engineered with the highest level of magnetic shielding available, minimizing compass and gauge deviation in the boat’s dash and preventing navigational complications. KICKER is a member of the American Boat & Yacht Council (ABYC), a leader in education for the marine industry, and the National Marine Manufacturers Association (NMMA), which supports the U.S. recreational boating industry.

General Features:

  • 10" Single 4-Ohm Marine Series Subwoofer
  • Power Handling:
    • Peak: 300 watts
    • RMS: 150 watts
  • Impedance: 4 ohm
  • Injection-molded cone
  • Santoprene rubber surround
  • Nomex reinforced spider
  • Grill Included
  • UV treated
  • Magnetically shielded
  • Frequency response: 30-500 Hz
  • Top-mount depth: 5-1/4"
  • Sensitivity: 86.5dB
  • Also available in other variation:
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kicker 11KM10 Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kicker 11KM10 Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kicker 11KM10 Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kicker 11KM10 Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp


Loading...
REF507CF_2_MET-825601_2 main

2 Infinity REF507CF (INFSPKRF507CFUS) w/ Adapter Plates

390W Peak (130W RMS) 5.25" Reference Series 2-way 3-ohm Component Speaker System with Speaker Adapter Plates

3
-12.14%

$477.88

List price $543.88

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

123
-33.36%

$79.96

List price $119.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

3
-16.67%

$349.99

List price $420.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3
UTE-73BT main

Alpine UTE-73BT

Single DIN Digital Media Receiver with Bluetooth

44
-16.69%

$149.95

List price $180.00

Limited time!
DMH-W3050NEX main

Pioneer DMH-W3050NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay and Android Auto, and Built-in Alexa (Sirius XM Ready)

1
-24.20%

$469.99

List price $620.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00


Best selling similar products

Marine Club 12 small

JBL CB122 Club Marine 12

• Peak Power: 1200 watts
• RMS Power: 400 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 7-13/16"
• Sensitivity: 89 dB

(1)

$119.95

List price $379.95

JBLMARSUBSD102GAM small

JBL Stadium Marine 102 (JBLSUBMASD10AM)

• Peak Power: 900 watts
• RMS Power: 300 watts
• Impedance: 2 or 4 ohm
• Multi-color RGB LED lights
• Plus One Polypropylene Cone
• Rubber Surround
• Mount depth: 4-7/8"
• Sensitivity: 89 dB

$149.95

List price $449.95

M6-10IB-S-GwGw-4 small

JL Audio M6-10IB-S-GwGw-4

• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Mica Injected Polypropylene - MIPP Cone
• Synthetic Rubber Surround
• Mount depth: 5.9"
• Sensitivity: 86.1 dB

(3)

$479.99

List price $479.99

M6-8IB-S-GwGw-4 small

JL Audio M6-8IB-S-GwGw-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5.07"
• Sensitivity: 86.8 dB

$349.99

List price $349.99

MV104W small

NVX MV104W

• Peak Power: 500 watts
• RMS Power: 250 watts
• Impedance: Single 4 ohm
• Sports white grille included
• Polypropylene cone material
• Rubber surround material
• Mount depth: 4.78"
• Sensitivity: 86 dB

$159.99

List price $249.99

STADIUMMW1000AM small

JBL Stadium Marine MW1000 (MW1000AM)

• RMS: 300 Watts / Peak: 900 Watts
• Plus One cones provide more overall speaker-cone area than other cones in its class
• Unique and eye-catching RGB illumination
• Features SSI (Switch-Selectable Impedance), which allows you to choose either 2 or 4 ohm load impedance
• Durable One-piece Polymer basket

$149.95

List price $449.95

XM1041WL small

Kenwood eXcelon XM1041WL

• Peak Power: 1300 watts
• RMS Power: 300 watts
• Polypropylene Cone
• Rubber Surround
• Impedance: Single 4 ohm
• Mount depth: 5-1/2"
• Sensitivity: 84 dB

$199.00

List price $580.00

DB 1242 DVC small

Polk Audio DB 1242 DVC (DB1242DVC)

• Peak Power: 1110 watts
• RMS Power: 375 watts
• Impedance: Dual 4 ohm
• Polypropylene cone
• Santoprene Rubber surround
• Mount depth: 4.34"
• Sensitivity: 86 dB

(4)

$130.00

List price $149.99

M6-8IB-S-GmTi-i-4 small

JL Audio M6-8IB-S-GmTi-i-4

• RMS Power: 200 watts
• Impedance: Single 4 ohm
• Injection Molded Polypropylene Cone
• Synthetic Rubber Surround
• Mount depth: 5"
• Sensitivity: 86.7 dB

$429.99

List price $429.99

PSW10.4D small

DS18 PSW10.4D

• Peak Power: 1000 watts
• RMS Power: 500 watts
• Impedance: Dual 4 ohm
• Water Resistance Paper Cone
• Rubber Surround
• Mount depth: 3"
• Sensitivity: 84 dB

(1)

$179.95

List price $179.95

Specifications & Details


Subwoofer Specifications
Subwoofer Size
10"
Peak Power Handling
300 watts
RMS Power Handling
150 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Frequency Response
30 - 500 Hz
Sensitivity
86.5 dB
Subwoofer Design
Round / Circle
Main Cone Color
Black
Woofer Composition
Injection Molded Polypropylene
Woofer Surround
Santoprene Rubber
Subwoofer Grille
Yes - Included
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.0 cubic feet
Maximum Sealed Box Volume
2.4 cubic feet
Minimum Ported Box Volume
1.25 cubic feet
Maximum Ported Box Volume
1.75 cubic feet
Top-Mount Depth (Mounting Depth)
5-1/4"
Cutout Diameter
9-5/16"
Shallow Mount Installation
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

11KM10

Weight:

12.00lbs

Internal SKU:

11km10

Internal Product ID:

43600
