See all parts that fit your 1987 B Series

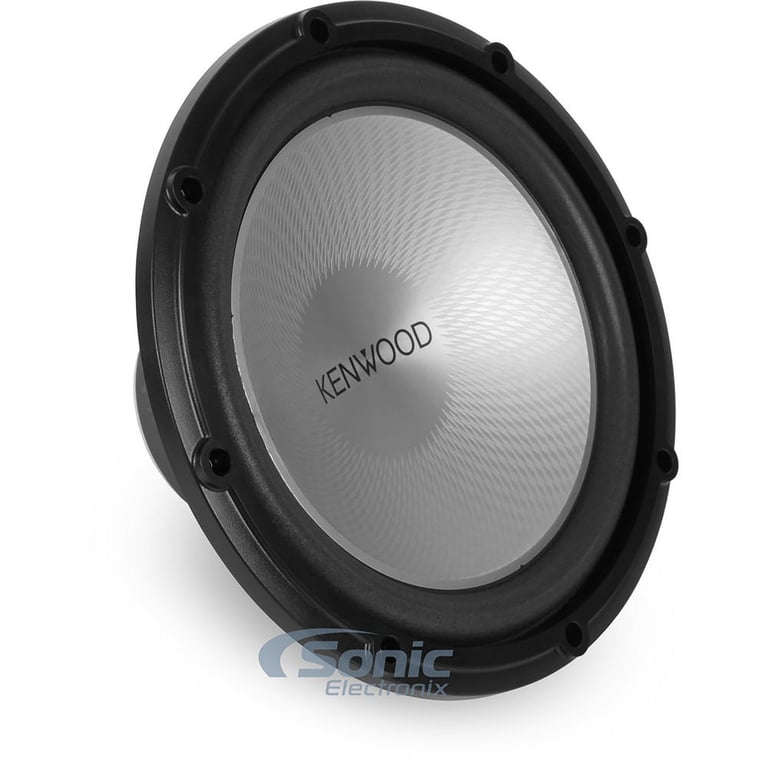

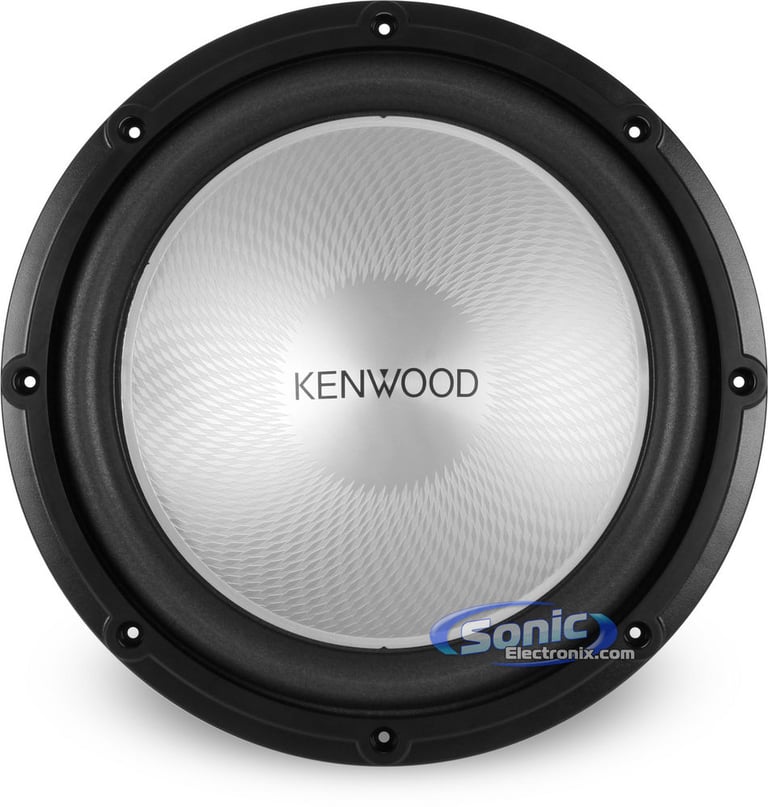

Kenwood KFC-W12PS (Open Box Complete)

250W 12" Performance Series Single 4 Ohm Subwoofer

Kenwood
Shop all Kenwood
highlight-star-icon

• 1000W Peak
• 250W RMS
• Diamond Array Pattern Polypropylene Cone
• Urethane Surround
• 2" Voice coil

Learn more about the ls-kfcw12ps-obc9

We apologize

This item has been discontinued

Description


Kenwood brand icon

Authorized dealer

Item Condition - Open Box, Great:

This product works like new, is well-cared-for and in great condition. May show limited signs of wear or use and may be missing non-essential parts, accessories or original packaging.

Item Condition - Damaged Packaging Only:
A Brand New with Damaged Packaging product is an untouched, unused product, but has damaged original packaging. While the product should be untouched and perfect condition, select packaging materials, such as original protective wrapping, if any, may be missing or damaged. The original manufacturer warranty, if any, still applies, with warranty details included in the listing description or comments. Instructions are included. Product is suitable for presenting as a gift so long as recipient appreciates a great item, not packaging.

Less Power, More Bass

Kenwood redesigned the KFC-W12PS Performance Series subwoofer to deliver tighter, more responsive bass all while requiring less power. You'll get strong bass from a sub that's nimble enough to keep up with the upper bass notes, yet efficient enough to run with moderate power and hit the lower notes. This subwoofer will handle up to 250 watts RMS, so it will definitely move some air when you want it to.

Kenwood's "Diamond Array" pattern is designed to strengthen the polypropylene cone, helping it to maintain its shape when you're listening to the bass loud. The lightweight urethane surround has been treated to resist damage from heat and humidity. Throw one or two of these Kenwoods into an enclosure, provide plenty of power, and you will have the bass that you need.

Best Bang for Your Buck!
Clarion WG3020
Clarion
WG3020
Kenwood KFC-W12PS
Kenwood
KFC-W12PS
12"
Subwoofer Size
Single 4-Ohm
Subwoofer
CEA-2031
Speaker Rating
RMS
Power Handling
300 Watts 250 Watts
Sensitivity
Rating
88 dB 85 dB
Frequency
Response
25 - 1,000 Hz 36 - 300 Hz
Magnet
Type
Strontium Ferrite Neodymium
Sale
Price
$49.99 $59.99


General Features:

  • 12" Single 4 Ohm Performance Series Car Subwoofer
  • Power Handling:
    • Peak: 1000 watts
    • RMS: 250 watts
  • Impedance: 4 ohm
  • Diamond Array Pattern Polypropylene Cone
  • Urethane Surround
  • 2" Voice coil
  • Sealed box volume: 1.25 cubic feet
  • Ported box volume: 1.5 cubic feet
  • 162oz. Magnet motor structure
  • Frequency response: 36-300 Hz
  • Resonance Frequency (Fs): 33Hz
  • Top-mount depth: 5-13/16"
  • Sensitivity: 85dB
  • 1-year SonicElectronix.com Warranty

Product history:

Kenwood KFC-W12PS Open Box thumbnail
(newest, current model)
Kenwood KFC-W12 thumbnail
(previous model, replaced by Kenwood KFC-W12PS (Open Box Complete))

Subwoofer Wiring Guide


Wiring Guide to Wire 1 Kenwood KFC-W12PS (Open Box Complete) Subwoofer

Mono Amp

2 Channel Amp - Bridged

Wiring Guide to Wire 2 Kenwood KFC-W12PS (Open Box Complete) Subwoofers

Mono Amp

2 Channel Amp

4 Channel Amp - Bridged

Wiring Guide to Wire 3 Kenwood KFC-W12PS (Open Box Complete) Subwoofers

4 Channel Amp

Wiring Guide to Wire 4 Kenwood KFC-W12PS (Open Box Complete) Subwoofers

Mono Amp

Mono Amp - Option 1

2 Channel Amp

2 Channel Amp - Bridged

4 Channel Amp

Specifications & Details


Subwoofer Specifications
Series
Performance Series
Subwoofer Size
12"
Peak Power Handling
1000 watts
RMS Power Handling
250 watts
Voice Coil(s)
Single
Impedance (Per Voice Coil)
4 ohm
Voice Coil Diameter
2"
Frequency Response
36 - 300 Hz
Sensitivity
85 dB
Xmax (millimeters)
7.35 mm
Subwoofer Design
Round / Circle
Main Cone Color
Silver
Woofer Composition
Polypropylene
Woofer Surround
Urethane
Magnet Structure
Double Stacked
Subwoofer Grille
No
Re-Cone Kit Available
No
Recommended Enclosure Specifications
Recommended Enclosure Type
Ported / Vented
Sealed
Minimum Sealed Box Volume
1.25 cubic feet
Maximum Sealed Box Volume
1.25 cubic feet
Minimum Ported Box Volume
1.5 cubic feet
Maximum Ported Box Volume
1.50 cubic feet
Top-Mount Depth (Mounting Depth)
5-13/16"
Shallow Mount Installation
No
T/S Parameters (Electromechanical)
Free-Air Resonance (Fs)
33 Hz
Equivalent Compliance (Vas)
51.3 liters
Total Speaker Q Value (Qts)
0.570
Electrical Q Value (Qes)
0.590
Electrical Resistance of Voice Coil (Re)
3.1 ohm
Mechanical Q Value (Qms)
14.850
What is in the box?
Paperwork
User manual
WITB: Subwoofers
Subwoofer
Warranty and Return Policy
Parts Warranty Duration
30 days
Labor Warranty Duration
30 days
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

KFC-W12PS Open Box

Weight:

14.00lbs

Internal SKU:

ls-kfcw12ps-obc9

Internal Product ID:

182693
