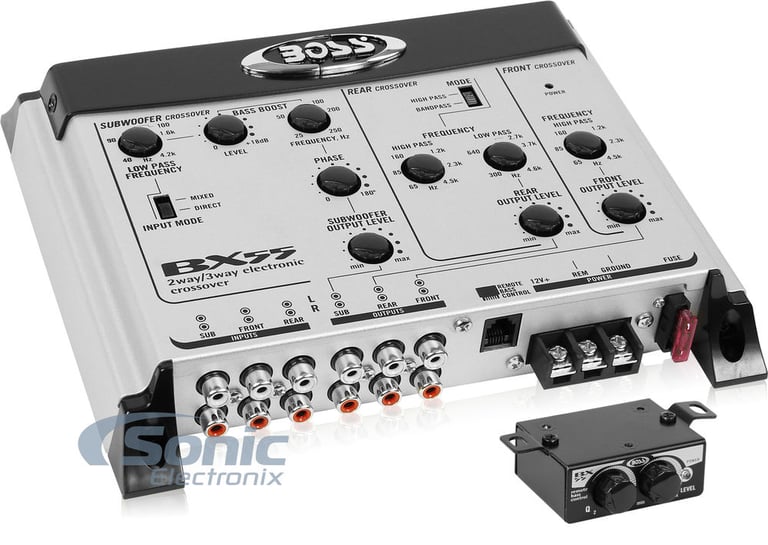

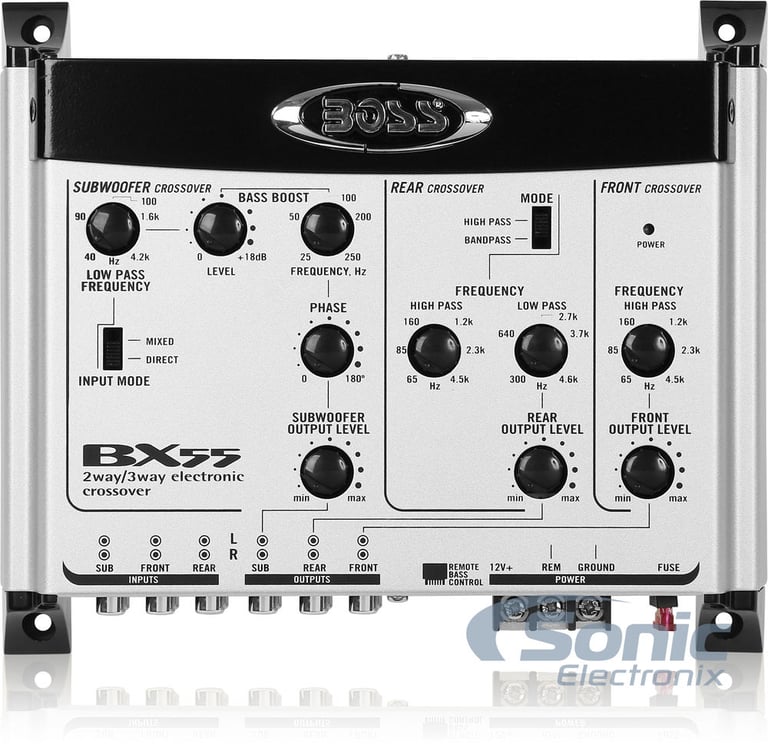

Boss BX55

2/3-Way Electronic Crossover

Boss
Shop all Boss
highlight-star-icon

• 2/3-Way Electronic Crossover, Remote Subwoofer Level Control
• Speaker Input Gain
• RCA Inputs: Front, Rear, Subwoofer

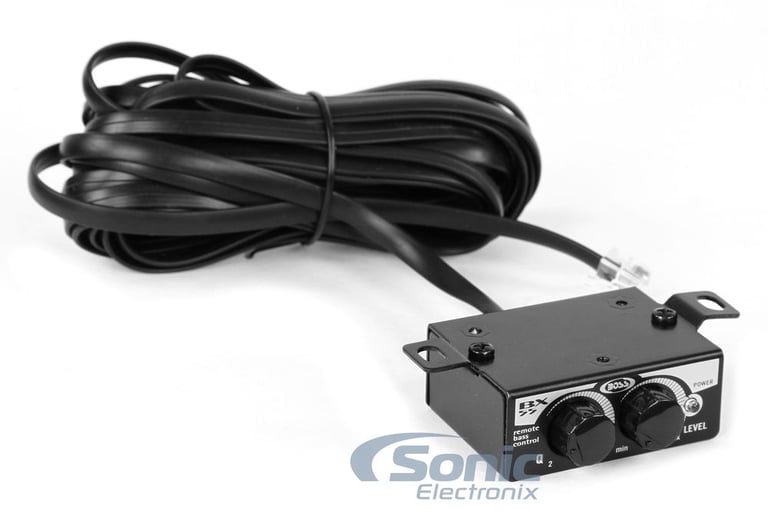

• Remote Subwoofer Level Control
• Number of Channels: 3

Learn more about the bx55

We apologize

This item has been discontinued


Loading...
72-5602 main

Metra 72-5602

Install New Front Kick Panel Speakers in select 2009-2024 vehicles from Ford, Mazda, Lincoln

43
-20.01%

$11.99

List price $14.99

82-5605 main

Metra 82-5605

6" to 6.75" Kick Panel Speaker Adapter Bracket for select 2009-2024 vehicles from Ford, Lincoln, Alfa Romeo

28
-28.13%

$22.99

List price $31.99

82-5606 main

Metra 82-5606

6x9" Front Door Speaker Bracket for select 2015-2025 vehicles from Ford, Lincoln

15
-48.62%

$16.95

List price $32.99

82-FD1 main

Metra 82-FD1

Ford 2011-2020 Speaker Adapter Kit - Front or Rear

10
-38.81%

$20.80

List price $33.99

82-5602 main

Metra 82-5602

6X9" Speaker Adapter for select 2011-2020 Explorer and F-Pace

2
-47.51%

$20.99

List price $39.99

82-5603 main

Metra 82-5603

6" to 6-3/4" Speaker Adapter for select 2011-2019 Explorer

2
-50.01%

$19.99

List price $39.99

99-5858CH main

Metra 99-5858CH Dash Kit

[Single DIN and Double DIN Stereo Dash Kit and Harness for select 2011-2019 Explorer with Factory 8" Screens

-33.91%

$379.99

List price $574.99

AXAMP-FD2 main

Axxess AXAMP-FD2

Amplifier Integration Interface for select 2011-2023 vehicles from Ford

-10.07%

$410.99

List price $456.99

XBAF65 main

NVX XBAF65

Universal 6.5" Waterproof Silicone Rubber Speaker Baffle Ring Kit (Pack of 2)

114
-37.15%

$21.99

List price $34.99

Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Description


Boss brand icon

Authorized dealer

Product Features:

  • Speaker Input Gain
  • RCA Inputs: Front, Rear, Subwoofer
  • Remote Subwoofer Level Control
  • Crossover Slope Sub-Channel: 12 Octaves
  • Number of Channels: 3

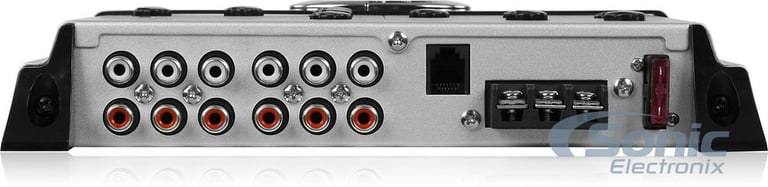

  • RCA Outputs: Front, Rear, Subwoofer
  • High Level Input: NO
  • Variable Low Pass Crossover: 40 to 4.2 Hz
  • Frequency Response: 65 to 4.5 Hz
  • Signal-to-Noise Ratio: 110 dB
  • Total Harmonic Distortion @ RMS Output: 0.01%
  • Dimensions: 8-3/4"W x 6-1/2"D x 1-1/2"H
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

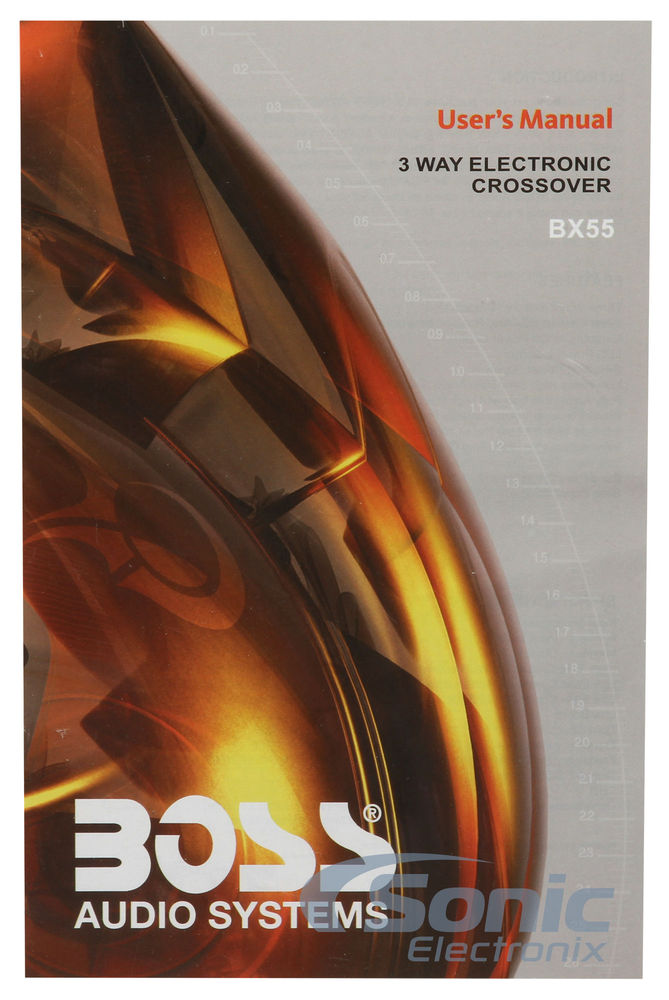

Boss BX55 manual

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

PNW-XN3 small

AudioControl PNW-XN3

• 3-way Passive Crossover Network
• Designed to expand a 2-way component system into a 3-way setup
• Ideal for adding a midrange driver to your 2-way component system
• Includes woofer, midrange and tweeter outputs
• Compatible with AudioControl PNW and Altitude Series speakers

(2)

$159.00

List price $179.00

XM3 small

DS18 XM3

• 3-Way active crossover with sub-level control
• Mixed input and output
• Level output knob with individual output
• Features front and rear high-pass filters
• Includes remote subwoofer level control
• Stereo or mono subwoofer mode selector

$124.95

List price $122.99

XM5 small

DS18 XM5

• 5-Way high-voltage active crossover
• (2) front and (2) rear/sub inputs
• High/mid, high/mid/low, and mid/low outputs
• Features clip indicators

$239.95

List price $287.99

HFXR small

Hifonics HFXR

• 2-Way/3-Way Electronic Crossover
• Bass boost (0-12dB @ 45Hz)
• Quasi-Parametric EQ
• 180-Degree Phase-Shift Switch
• Front/Rear Channel Frequency
• Front and Rear Adjustments
• RCA Pre-Amp Output

(17)

$59.99

List price $99.99

XOHV small

DS18 XOHV

• 2-Channel high-voltage external pre-amplifier with crossover
• Perfect for high-voltage amplifiers
• Selectable bass boost frequency
• Allows match of 2 or more amplifiers with same audio setting

$95.95

List price $115.99

Specifications & Details


Crossover Specifications
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
65 - 5400 Hz
Low-Pass Crossover Frequency
40 - 4600 Hz
Max Output Level
9 volts
Frequency Response
5 - 50000 Hz
THD (Total Harmonic Distortion)
0.01%
Signal-to-Noise Ratio
95 dB
Width
8-3/4"
Height
1-1/2"
Depth
6-1/2"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

BX55

Weight:

3.00lbs

Internal SKU:

bx55

Internal Product ID:

44119

Customer Ratings & Reviews


Boss BX55 thumbnail image

5 star
60%
4 star
40%
3 star
0%
2 star
0%
1 star
0%



Durability
4.8
Value
5
Features
4.2
Design
4.6
Usability
4.6

Customer Reviews

Sort by:

Loading...

Great entry level crossover

Great value for money, does the job, easy yo use

By Kris on January 15, 2015

36 found this helpful


Great piece of kit

I will recommend this to any one .what I love the most is the band pass feature that brings smoothness to the mids. I will put this above the expensive audiocontrol 6xs and expensive modules.

By Linty92 on November 17, 2014

38 found this helpful


Great Value and Plenty of Features

I found features on this unity that more expensive 1s don't have, like constantly variable phase shift for the sub channel. This feature really brought the sub to life. I was able to place the sub sound exactly where I needed it.

By Bobby on January 31, 2015

28 found this helpful


Very good for the price

I've used these to give more part to my amp. Usually the xo'a in ampa aren't very clean. This gives it a better sound and bigger bass. Simple and does a good job

By Henry on July 17, 2015

17 found this helpful


Great Unit

Works well and as intended. I love the bandpass crossover it has. Keeps all the speaker ranges in perfect check and provides a strong signal to the amps.

By Rex on November 16, 2020 Checkmark Icon Verified purchase

13 found this helpful
