  5. Cerwin-Vega HED1000.1-AMP04RD-RCA

See all parts that fit your 2008 Eclipse

1000W Max Cerwin-Vega Amplifier + Tsunami Amplifier Kit

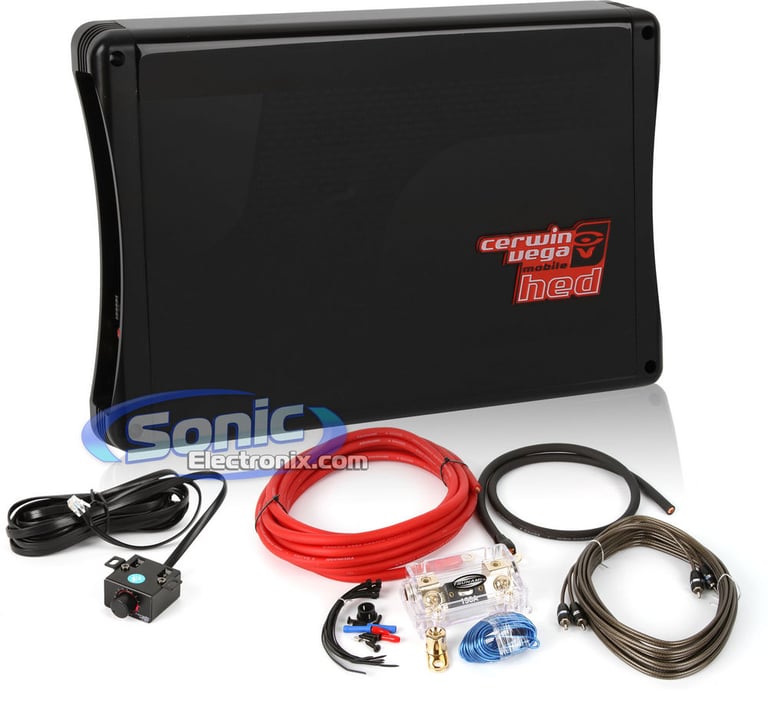

Cerwin-Vega HED1000.1 Amplifier + Tsunami AMP04RD-RCA Amplifier Kit

Cerwin-Vega
Shop all Cerwin-Vega
EXCLUSIVE
Product videos
highlight-star-icon

Cerwin-Vega HED1000.1 Amplifier + Tsunami AMP04RD-RCA Amplifier Kit • 4 ohm: 250 watts x 1 chan. • 2 ohm: 500 watts x 1 chan. • HED Series Monoblock Class AB Car Amplifier

Learn more about the hed10001_amp04rdrca

We apologize

This item has been discontinued

Show me more products from this category
Go to Category
99-7010 main

Metra 99-7010 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2006-2012 Eclipse (Silver)

4
-56.53%

$39.99

List price $91.99

Add to cart
70-7001 main

Metra 70-7001 Wiring Harness

Install a new car stereo in select 1992-2012 vehicles from Mitsubishi, Eagle, Dodge

7

$7.99

Add to cart
FH-S722BS main

Pioneer FH-S722BS

Double DIN CD Receiver with Bluetooth, Amazon Alexa and SiriusXM Ready

7
-11.54%

$229.99

List price $260.00

Add to cart
DPX505BT main

Kenwood DPX505BT

Double DIN CD Receiver with Bluetooth and Built-in Alexa (Sirius XM Ready)

18
-22.17%

$179.00

List price $230.00

Add to cart
SXE-1726S main Out of stock

Alpine SXE-1726S

440W Peak (80W RMS) 6.5" SXE Series 2-way 4-ohm Coaxial Car Speakers

13
-21.82%

$42.99

List price $54.99

Notify Me
PPS4-8 main Out of stock

Rockford Fosgate Punch Pro PPS4-8 (Sold Individually)

250 Peak (125W RMS) 8” Punch Pro Series Pro-Audio 4-ohm Speaker

19

$99.99

Notify Me

Product Highlights

Cerwin-Vega HED1000.1 Amplifier + Tsunami AMP04RD-RCA Amplifier Kit • 4 ohm: 250 watts x 1 chan. • 2 ohm: 500 watts x 1 chan. • HED Series Monoblock Class AB Car Amplifier

Description

Cerwin-Vega brand icon

Authorized dealer

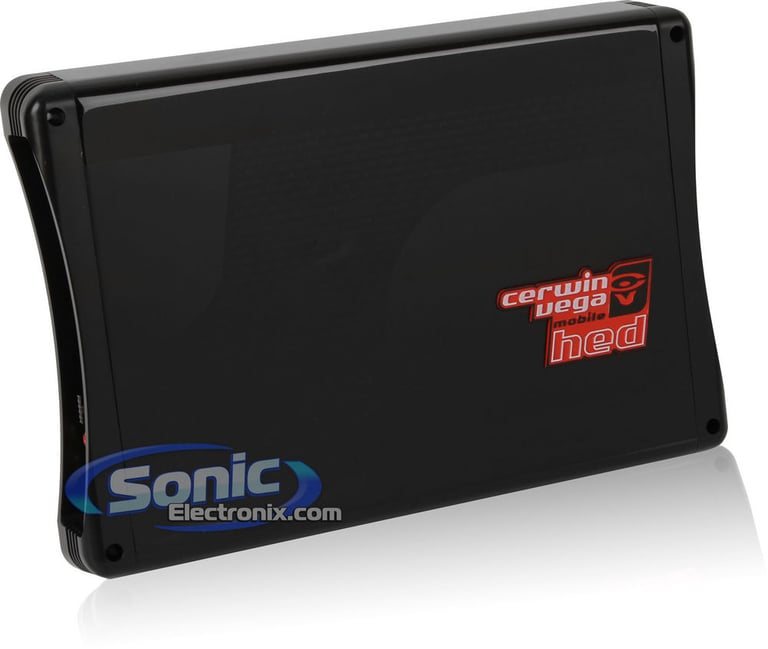

Cerwin-Vega HED1000.1

1000W MAX, HED Series Monoblock Class AB Car Amplifier
Quantity: 1

Amplifier Features:

  • HED Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 250 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • Max power output: 1000 watts x 1 chan.
  • PWM MOSFET power supply

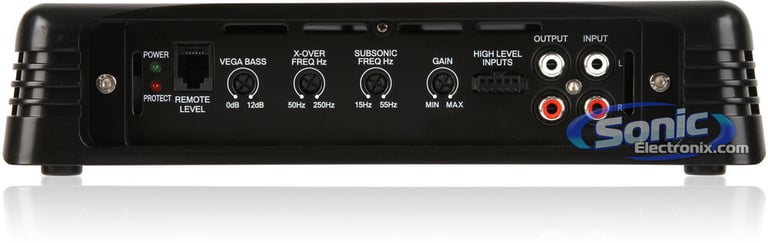

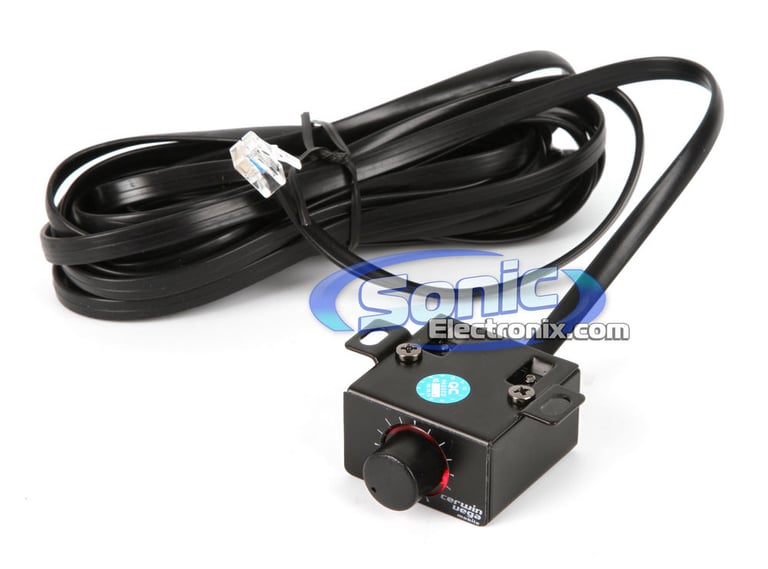

  • Remote bass level control included
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation

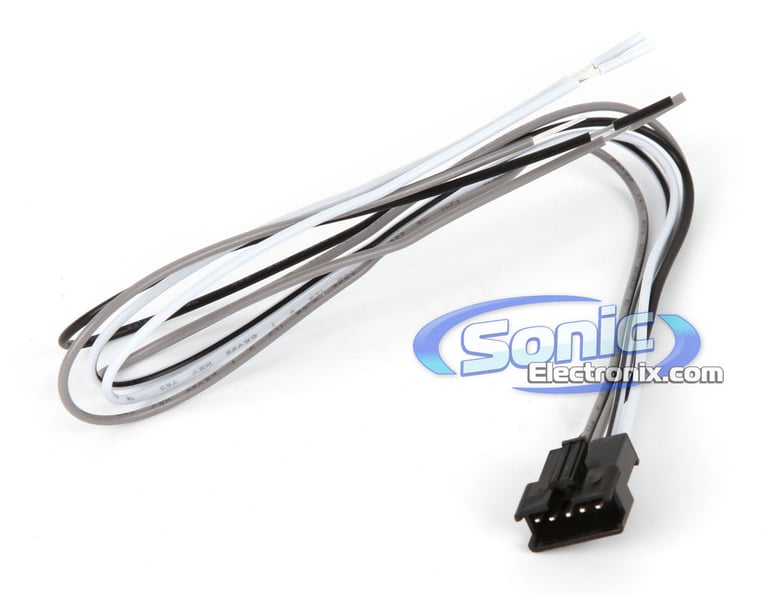

  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 123mV-4.9V
    • High level: 3.63V-20V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Variable sub-sonic filter (15-55 Hz, 12 dB/octave)
  • Damping factor: >153 at 50 Hz
  • Frequency response: 20-234 Hz
  • Dimensions: 13-1/2"L x 9-7/16"W x 2-1/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

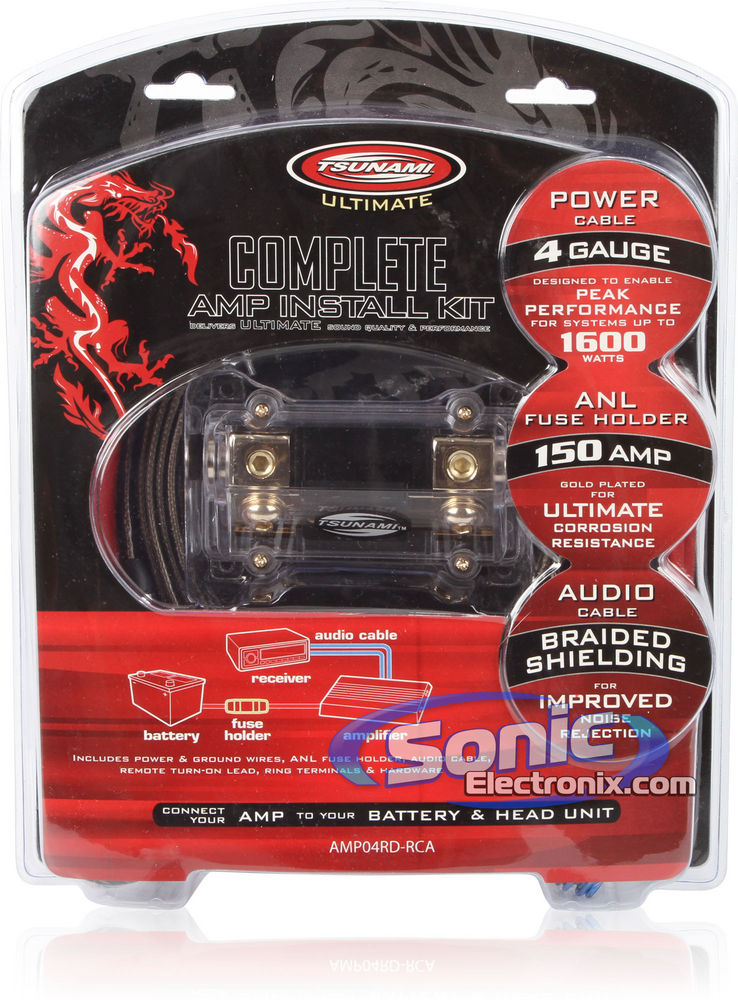

Tsunami AMP04RD-RCA

4 Gauge Complete Amplifier Installation Wiring Kit with Twisted RCA Interconnects
Quantity: 1

Product Features:
  • 4 Gauge Performance Amplifier Installation Kit
  • Designed specifically for car audio systems up to 1600 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • RCA Interconnects are made with twisted-pair technology for noise reduction
  • Terminals are nickel-plated for excellent signal transfer
  • ANL Fuse holder offers ideal protection for mid-to-high power systems
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Package Includes:

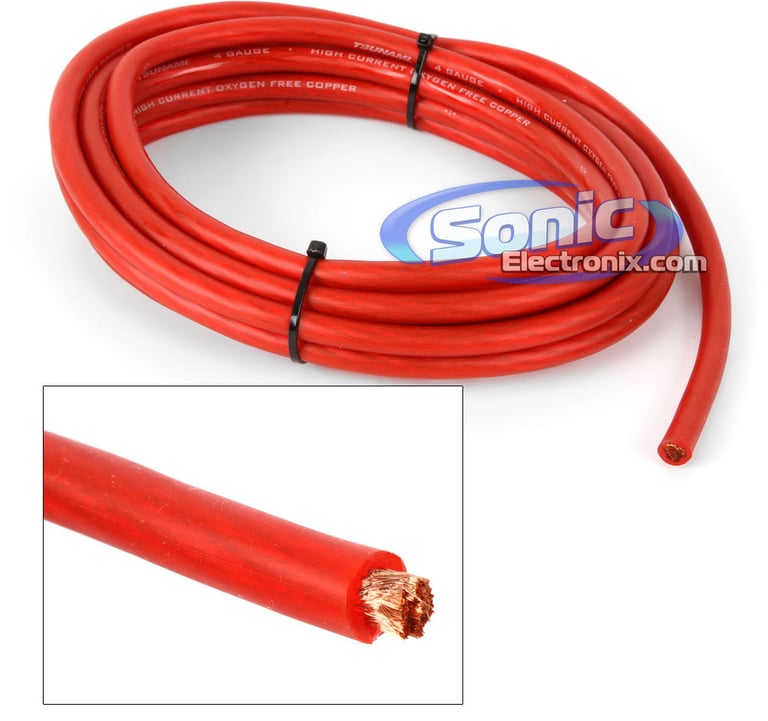

  1. 17 ft. of 4 AWG Red power cable

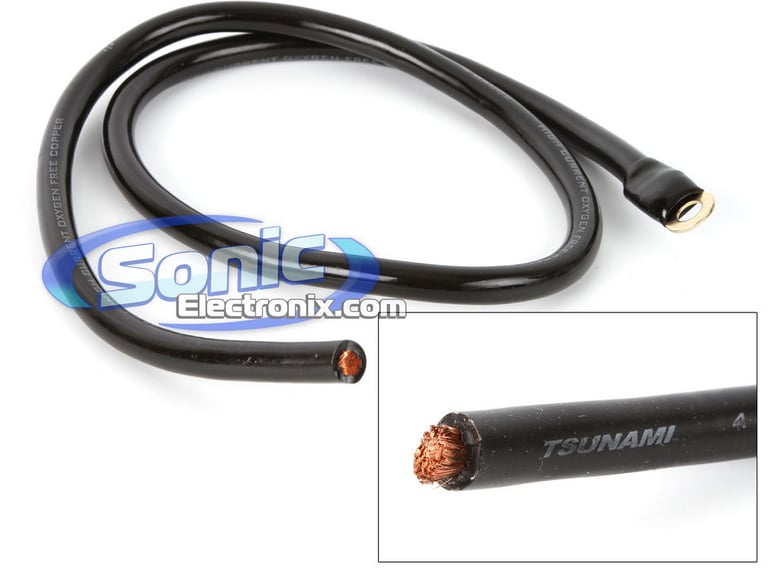

  2. 3 ft. of 4 AWG Silver ground cable
  3. 17 ft. of 18 AWG Red remote turn-on wire

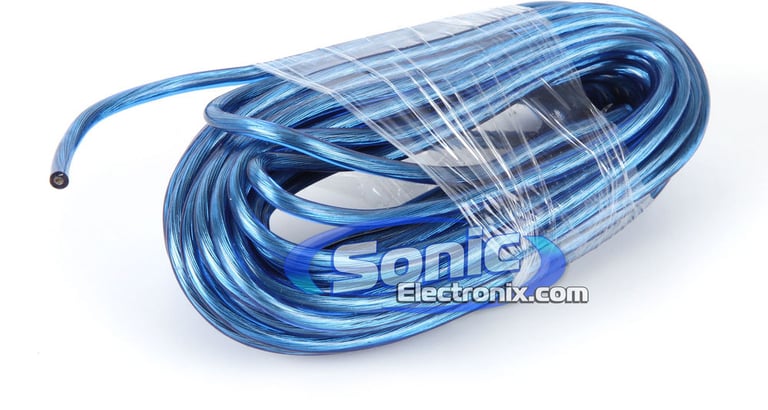

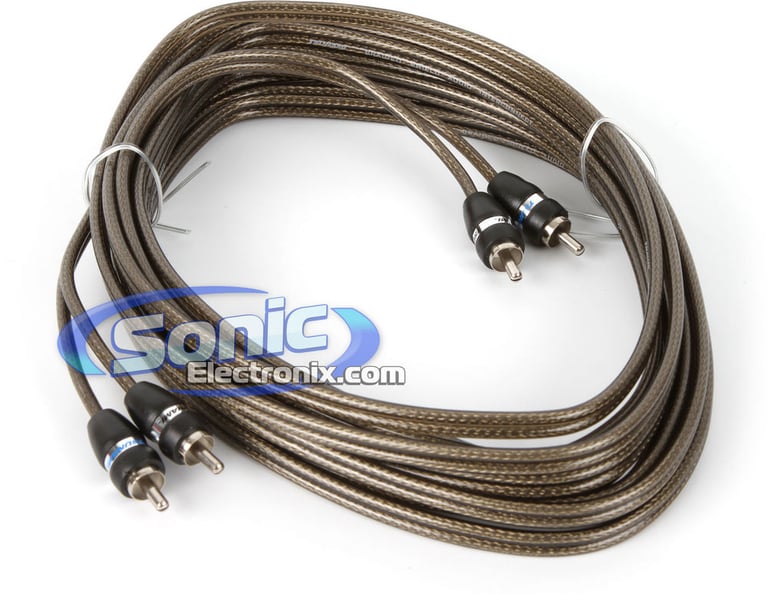

  4. 17 ft. of Clear red twisted pair shielded RCA cable

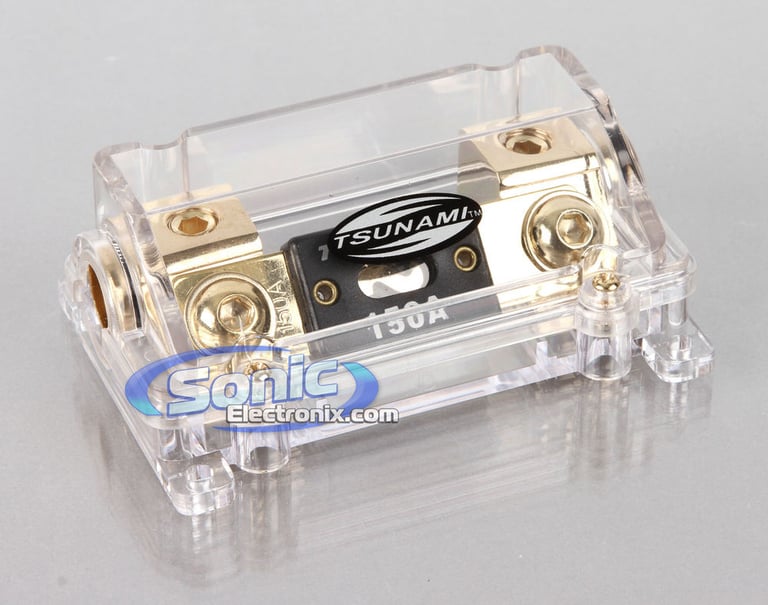

  5. 4 AWG In-line ANL fuseholder
  6. 150 Amp ANL fuse
  7. Two 4 AWG to 5/16" gold-plated ring terminals with blue and silver insulators
  8. Heavy duty 4 AWG to 5/16" gold-plated ring terminal w/clear insulator

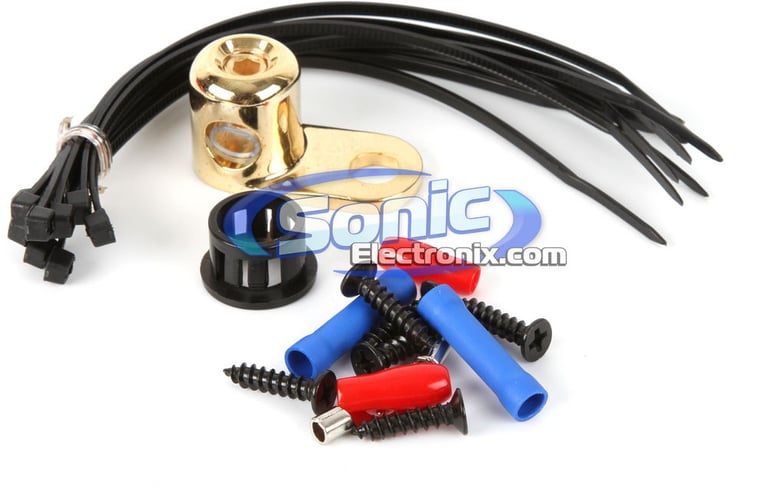

  9. Heavy duty gold-plated ground terminal
  10. Ten 6" vinyl cable ties
  11. Six #8 x 3/4" phillips nickel-plated panhead screws
  12. Two red vinyl #10 nickel-plated spade terminals
  13. Two blue vinyl butt connectors
  14. 4 AWG snap grommet
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5

$329.99

Add to cart
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Add to cart
DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

Add to cart
iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Add to cart
DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

Add to cart
43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

Add to cart
DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Add to cart
Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

Add to cart
CV15BT main

Cerwin-Vega CV15BT

Single Din Digital Media Receiver with Bluetooth

3

$69.99

Add to cart
MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

Add to cart

Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details

Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
250 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
1000 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
1000 watts
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.012%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
High-Pass (HP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 55 Hz
Signal-to-Noise Ratio
107 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes

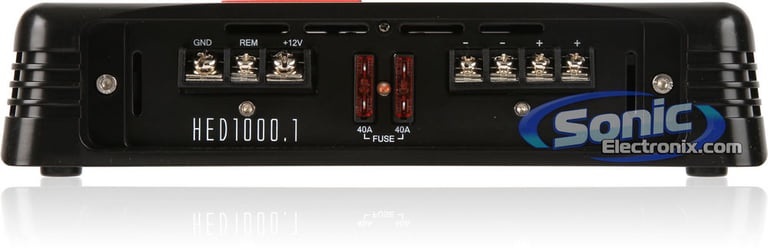

Fuse Rating
40A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
4 gauge
Power Wire Length
17 feet
Ground Wire Length
3 feet
Speaker Wire Included
No
Remote Wire Length
17 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
ANL
Fuse Size
150A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details

Manufacturer:

Cerwin-Vega

Model Number:

HED1000.1-AMP04RD-RCA

Weight:

14.38lbs

Internal SKU:

hed10001_amp04rdrca

Internal Product ID:

44230

Product and How-to Videos

Customer Ratings & Reviews

1000W Max Cerwin-Vega Amplifier + Tsunami Amplifier Kit thumbnail image
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Durability
0
Value
0
Features
0
Design
0
Usability
0

Customer Reviews

Sort by:
Loading...
Sorry, no reviews found
42-1001 small

InstallCard 42-1001 (Car Stereo Deluxe)

Prepaid Mobile Audio InstallCard In-Dash Car Stereo Installation with Kit and Harness

$79.99

List price $79.99

I509WRAJL_XCAMLP small

Alpine i509-WRA-JL with License Plate Camera

Custom-fit Digital Multimedia Receiver With 9" Screen for select 2018-2023 Wrangler (JL) and Gladiator + High-resolution Rearview Backup Camera

(52)

$2949.94

List price $3539.99

180-MT-2A small

SSV Works MT-2A (180-MT-2A)

2 Speaker Audio Upgrade Kit for select 2018-2020 Maverick Trail and Maverick Sport and Maverick Sport Max 1000R DPS Includes One Bluetooth Receiver and Pair of Loaded 6.5" Front Kick Panel Speaker Pods

$789.99

List price $789.99

MX6 small

Hifonics Mercury MX6

6-1/2" 2-way Mercury Series Coaxial Car Speakers

(12)

$64.99

List price $399.99

VET95WT small

Xscorpion VET95WT (White)

60 Ft of 3/4" High Temp Vinyl Electrical Tape

$2.99

List price $3.99

VPRO65BM_2 small

NVX VPRO65BM Pair (2)

400W Peak (200W RMS) 6.5" V-Series Pro Midrange Loudspeaker with Bullet Aluminum Phase Plug

$75.98

List price $143.98

MVH-P8200 small

Pioneer MVH-P8200

3" In-Dash Multimedia Receiver with Built-in SD Card Slot and USB/iPod Direct Control

(9)

$154.99

List price $299.99

MM220 small

Boston Acoustics MM220 (Mist/White)

Powered Stereo Speaker System for Computers (MM-220MIST, MM-220 MIST)

$59.99

List price $119.99

MA8D4_11DX500.1_SQ 1 8-BLACK_CK4_KI22_XBBR small

Loaded SKAR Audio 8" Subwooofer + Kicker Amplifier + Kit Bass Package

Bass Package: SKAR Audio MA8D4 8" Subwoofer + Kicker DX500.1 + Sub Box + Wiring + Bass Processor

$352.77

List price $864.78

Related Searches

› Cerwin-Vega › Cerwin-Vega Monoblock Amplifiers › Monoblock Amplifiers under $200
Save up to 10 different vehicles in your garage
Vehicle
Store Delete

2008 Mitsubishi Eclipse

2016 Volvo XC70

2014 Fiat 500

1985 Buick Century

2009 BMW M5

1975 Mercury Comet

2007 GMC Envoy

2011 Ford Explorer

1994 Dodge Shadow

2006 BMW M3

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm

Cancel

This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue

Cancel

Shop your 2008 Eclipse
Why Use a Vehicle Fit Guide?
Change vehicle | Shop without vehicle
Whoa! Slow down. Add your details below!
additional information required
Add vehicle details to confirm fitment
Ignore fitment details
Find stereos and more that work -- fast.

Additional information:

Remove

Can't find your vehicle? Click here and we'll help.

Where to find vehicle info

Go to Fitment

Didn't find your car?

Submit your details and we'll help!
Please enter the letters as they are shown in the image above. Letters are not case-sensitive.
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon
Back

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.

Back
Track your order
Call our experts
Support Center
Return & Exchanges
Follow on Instagram Instagram logo
Subscribe on YouTube YouTube logo
