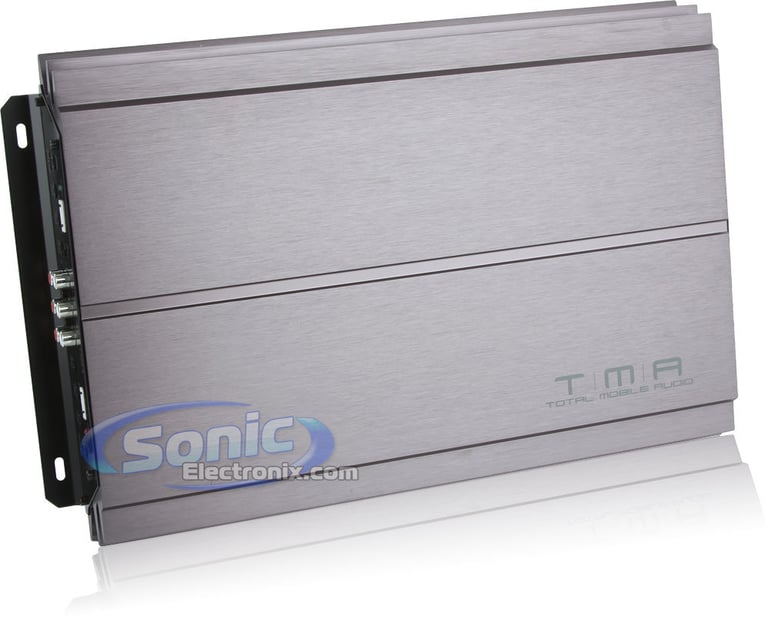

TOTAL Mobile Audio T320.4 (TMA - A JL Audio Company)

320W Max, 4-Channel Full-Range Amplifier (MPN #99309)

Product videos
highlight-star-icon

TMA 4-Channel Class a/B Car Amplifier • 320 Watts Max • 80 Watts X 4 Channels @ 2 Ohm • 60 Watts X 4 Channels @ 4 Ohm • Linear Complementary Bi-Polar Design • High Speaker-Level Inputs • System Protection Circuitry

Learn more about the t3204

Good news and a little bad...

This item has been discontinued

But you may be interested in the newest model that's available.

t23204 thumbnail

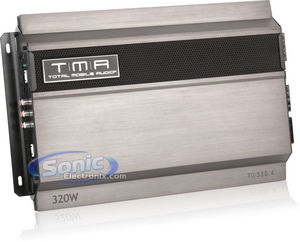

TOTAL Mobile Audio T2 320.4 by JL Audio

OUR PRICE: $139.99

View item

Loading...
XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99

H735 main

Cerwin-Vega H735

500W Peak (60W RMS) 3.5" HED Series 2-Way Coaxial 4-ohm Speakers

34
-16.67%

$59.99

List price $71.99

Product Highlights


TMA 4-Channel Class a/B Car Amplifier • 320 Watts Max • 80 Watts X 4 Channels @ 2 Ohm • 60 Watts X 4 Channels @ 4 Ohm • Linear Complementary Bi-Polar Design • High Speaker-Level Inputs • System Protection Circuitry

Description


  • TMA 4-Channel Class A/B Car Amplifier
  • RMS Power Rating(14.5V):
    • 4 ohm: 60 watts x 4 chan.
    • 2 ohm: 80 watts x 4 chan.
    • Bridged, 4 ohm: 160 watts x 2 chan.
  • Max power output: 320 watts
  • MOSFET power supply
  • Linear complementary bi-polar design
  • LED power and protect indicators
  • Bass Boost/EQ details (0-12 dB bass boost)
  • 4/3/2 channel operation
  • High speaker-level inputs with signal sensing for automatic turn-on
  • Passthrough type preamp RCA output with unity gain
  • Input Sensitivity:
    • High-Level: 2V - 10V
    • Low-Level: 200mV-4V
  • System protection circuitry
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Silver-plated RCA level inputs
  • Silver-plated screw terminals
  • Variable high-pass filter (60-1,200 Hz, 24 dB/octave)
  • Variable low-pass filter (40-150 Hz, 24 dB/octave)
  • Frequency response: 10-25,000 Hz
  • Dimensions: 13-13/16"L x 9-11/16"W x 1-15/16"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year SonicElectronix.com warranty

Product history:

TOTAL Mobile Audio T2320.4 thumbnail
(newest, current model)
TOTAL Mobile Audio T320.4 thumbnail
(previous model, replaced by TOTAL Mobile Audio T2 320.4 by JL Audio)

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

XED62 main

Cerwin-Vega XED62

600W Peak (70W RMS) 6.5" XED Series 2-Way Coaxial 4-ohm Speakers

15
-16.67%

$49.99

List price $59.99


Best selling similar products

NDA6004 small

NVX NDA6004

• 100 watts x 4 channel @ 4 ohm
• 160 watts x 4 channel @ 2 ohm
• Bridged: 320 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(14)

$159.99

List price $215.99

VADM4v2 small

NVX VADM4 v2 (VADM4v2)

• 80 watts x 4 channel @ 4 ohm
• 125 watts x 4 channel @ 2 ohm
• Bridged: 250 watts x 2 channel @ 4 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(41)

$209.99

List price $239.99

MFA 4.220 small

Deaf Bonce MFA 4.220

• 220 watts x 4 channel @ 4 ohm
• 330 watts x 4 channel @ 2 ohm
• Bridged: 660 watts x 2 channel @ 4 ohm
• Total RMS Power: 1320 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$289.90

List price $289.90

RD400/4 small

JL Audio RD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(28)

$379.99

List price $379.99

MFA 4.180 small

Deaf Bonce MFA 4.180

• 180 watts x 4 channel @ 4 ohm
• 270 watts x 4 channel @ 2 ohm
• Bridged: 540 watts x 2 channel @ 4 ohm
• Total RMS Power: 1080 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$259.90

List price $259.90

JD400/4 small

JL Audio JD400/4

• 75 watts x 4 channel @ 4 ohm
• 100 watts x 4 channel @ 2 ohm
• Bridged: 200 watts x 2 channel @ 4 ohm
• Total RMS Power: 400 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(34)

$299.99

List price $299.99

VAD10004v2 small

NVX VAD10004 v2 (VAD10004v2)

• 150 watts x 4 channel @ 4 ohm
• 250 watts x 4 channel @ 2 ohm
• Bridged: 500 watts x 2 channel @ 4 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(24)

$279.99

List price $335.99

MVPA4 small

NVX MVPA4

• 100 watts x 4 channel @ 4 ohm
• 150 watts x 4 channel @ 2 ohm
• Bridged: 300 watts x 2 channel @ 4 ohm
• Total RMS Power: 600 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(70)

$279.99

List price $383.99

AP200/4BT small

JL Audio AP200/4BT

• 40 watts x 4 channel @ 4 ohm
• 50 watts x 4 channel @ 2 ohm
• Bridged: 100 watts x 4 channel @ 4 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

$549.99

List price $659.99

KTA-450 small

Alpine KTA-450 Power Pack

• 50 watts x 4 channel @ 4 ohm
• 45 watts x 4 channel @ 2 ohm
• Total RMS Power: 200 watts
• Class D 2 ohm Stable 4-Channel Amplifier

(20)

$299.95

List price $360.00

Specifications & Details


Power Specifications - Full Range Channels
RMS Power @ 4 ohms
60 watts x 4 channel
RMS Power @ 2 ohms
80 watts x 4 channel
Bridged RMS Power
160 watts x 2 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
4-Channel
Total Peak Power Output
320 watts
Total RMS Power Output
320 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
4 ohms
Speaker Level Inputs
Yes - with included adapter
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
Full (AP)
High-Pass Crossover Frequency
60 - 1,200 Hz
Low-Pass Crossover Frequency
40 - 150 Hz
Bass Boost
0 - 12 dB
Remote bass/level controller
No
Fuse Rating
30A x 2

Item Details


Manufacturer:

Model Number:

T320.4

Weight:

12.50lbs

Internal SKU:

t3204

Internal Product ID:

18919
