Product Highlights

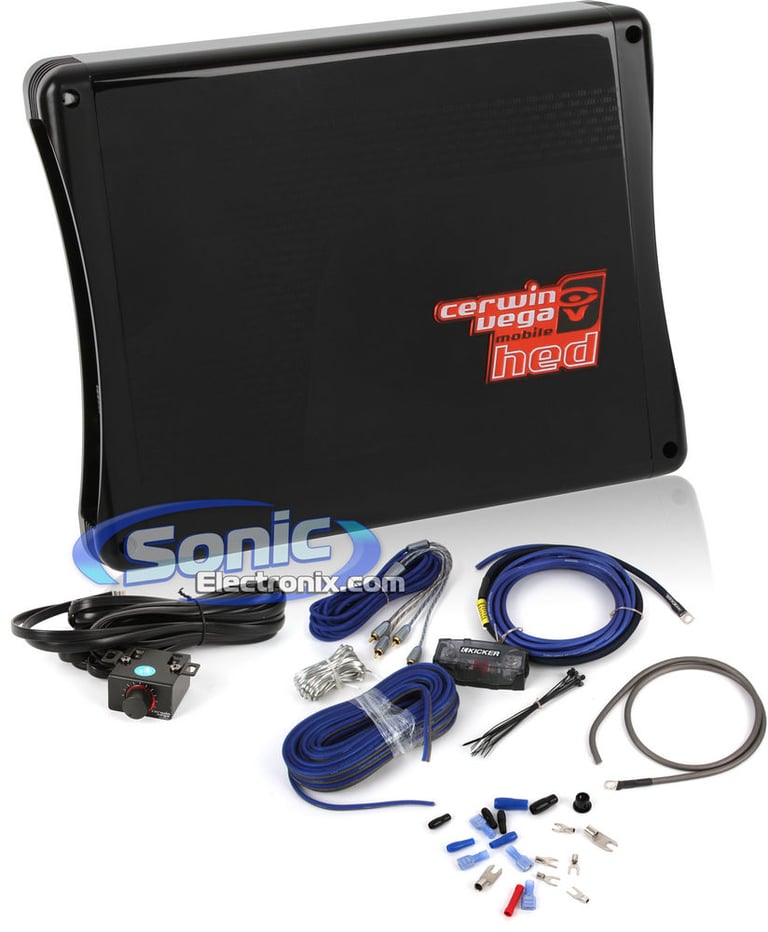

500W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit • 4 ohm: 150 watts x 1 chan. • 2 ohm: 250 watts x 1 chan. • HED Series Monoblock Class AB Car Amplifier

Description


Cerwin-Vega brand icon

Authorized dealer

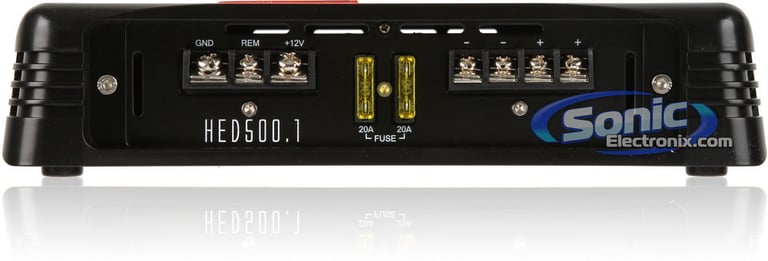

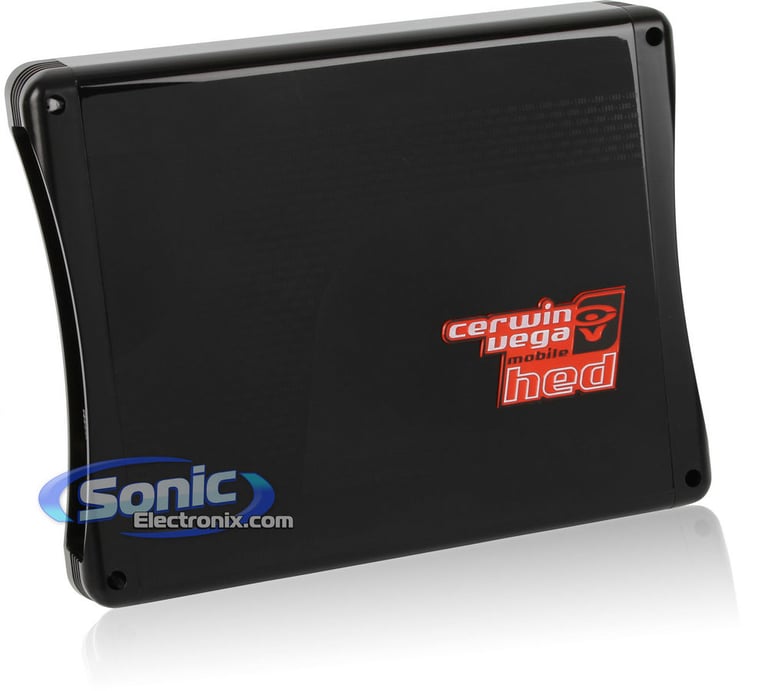

Cerwin-Vega HED500.1

500W MAX, HED Series Monoblock Class AB Car Amplifier
Quantity: 1

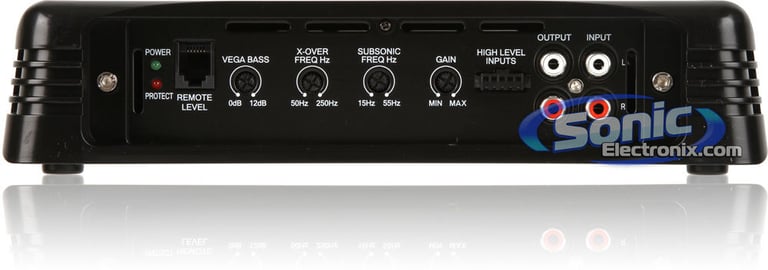

Amplifier Features

  • HED Series Monoblock Class AB Car Amplifier
  • RMS Power Rating:
    • 4 ohm: 150 watts x 1 chan.
    • 2 ohm: 250 watts x 1 chan.
  • Max power output: 500 watts x 1 chan.
  • PWM MOSFET power supply

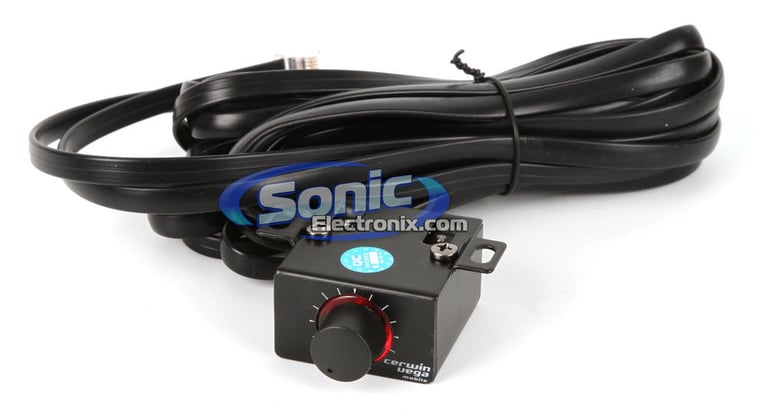

  • Remote bass level control included
  • LED power (green) and protect (red) indicators
  • Vega Bass Boost (0 to +12 dB bass boost at 45 Hz)
  • Soft Start Turn-on
  • Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry
  • High-density aluminum alloy heatsink for extreme heat dissipation
  • Nickel-plated RCA level inputs
  • Nickel-plated screw terminals
  • Input sensitivity:
    • Low level: 112mV-5.4V
    • High level: 3.55V-20V
  • Variable low-pass filter (50-250 Hz, 12 dB/octave)
  • Variable sub-sonic filter (15-55 Hz, 12 dB/octave)
  • Damping factor: >222 at 50 Hz
  • Frequency response: 17-255 Hz
  • Dimensions: 11-5/8"L x 9-7/16"W x 2-1/8"H
  • 8-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website (SonicElectronix.com) when purchased together with this amplifier.
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty

Kicker ZCK8

Complete 8 Gauge Z-Series 2-Channel Amplifier Installation Kit with RCA Interconnect Cable (09ZCK8)
Quantity: 1

Amplifier Kit Features:
  • Complete 8 Gauge Z-Series Amplifier Installation Kit
  • Designed specifically for car audio systems up to 500 watts
  • Premium power and ground wire provides optimal power transfer
  • Made from 100% oxygen-free copper for a pure uninterrupted transfer of power
  • Includes 2-channel RCA interconnect cables for the audio signal connection from the receiver to the amplifier
  • Direct-connect engineering
  • Fewer connections for less signal distortion
  • Twisted-pair technology eliminates noise for crystal clear sound
  • AFS Fuse holder offers ideal protection for high powered systems
  • Hyper-flex cable and wire
  • Full spec cable is true to gauge
  • Authorized Internet Dealer
  • 1-year Manufacturer's warranty
Kit includes:

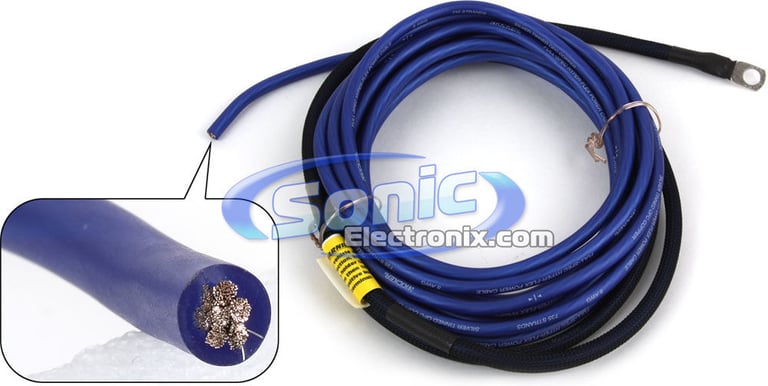

  1. 20ft(6.1m) Blue 8 AWG power wire
  2. 3ft(0.9m) Black 8 AWG ground wire
  3. 20ft(6.1m) Blue 18 AWG remote lead wire

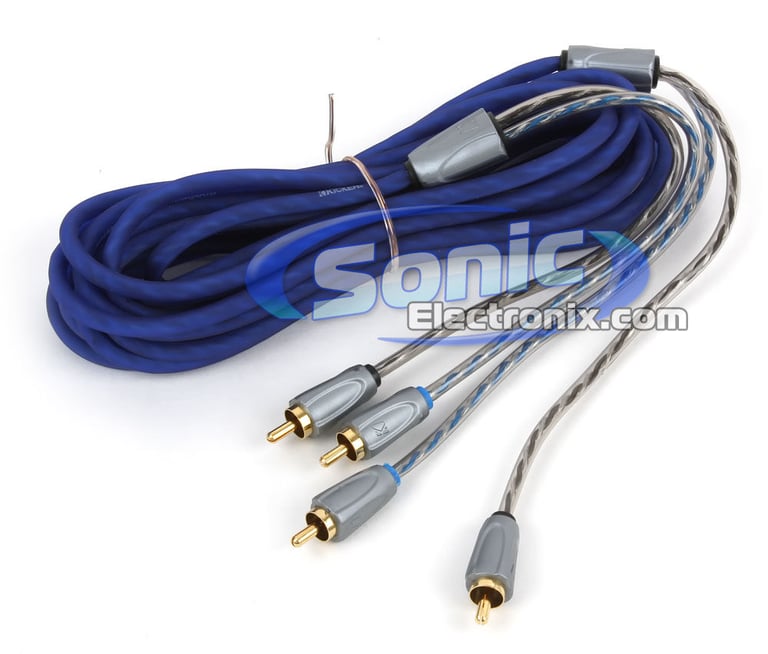

  4. 16.4(5m) Blue, black, and gray 2 Channel RCA cable

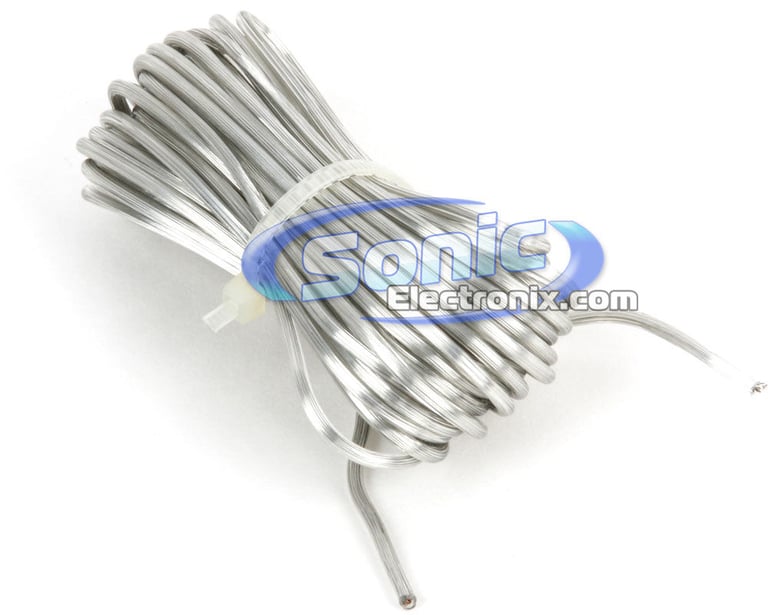

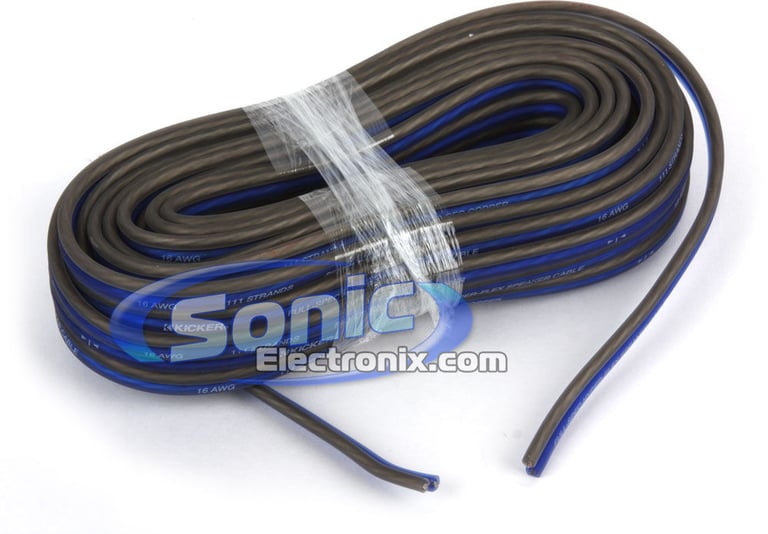

  5. 40ft(12.2m) Blue and gray 16 AWG speaker cable

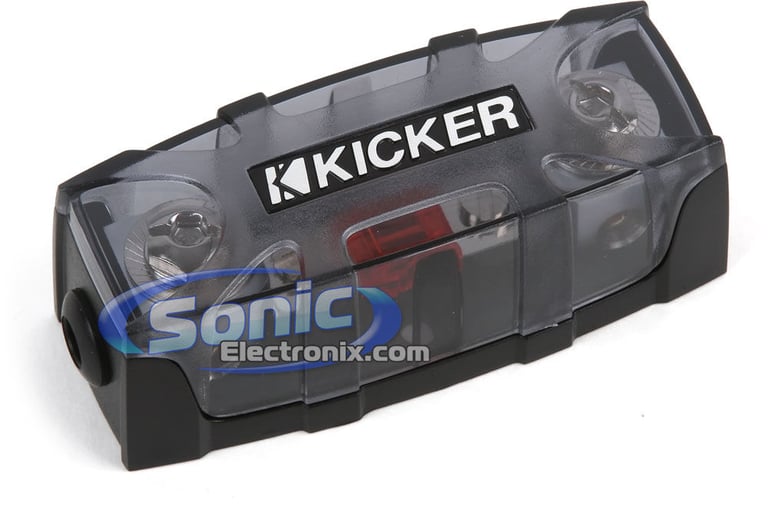

  6. 1 Kicker 09FHS Fuse holder with 50 amp AFS fuse
  7. Black rubber firewall grommet
  8. 2 8 AWG Spade terminals
  9. 5 18 AWG Spade terminals
  10. 4 Female quick disconnect connectors
  11. Black zip ties
  12. Red butt connector

Loading...
BV850ACP main

Boss Elite BV850ACP

6.75" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto with Backup Camera

5
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

Limited time!
46CSC6934 main

Kicker CSC693 (46CSC6934)

900W Peak (300W RMS) 6x9” CS Series 3 Way Coaxial 4-ohm Speakers with Integrated Midrange Speakers

40
-30.02%

$111.96

List price $159.99

DMH-1800NEX main

Pioneer DMH-1800NEX

6.8" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay, Android Auto, and SiriusXM Ready

2
-16.67%

$349.99

List price $420.00

iLX-W650 main

Alpine iLX-W650

7" Double DIN Touchscreen Digital Multimedia Receiver with Bluetooth, Apple CarPlay and Android Auto (SiriusXM Ready)

123
-5.72%

$329.95

List price $349.95

Club 322F main

JBL Club 322F (SPKCB322FAM)

150W Peak (50W RMS) 3.5" Club Series 2 Way Coaxial 3-ohm Speakers

1
-27.29%

$79.95

List price $109.95

DMH-W4660NEX main

Pioneer DMH-W4660NEX

6.8" Double DIN Digital Multimedia Receiver with Bluetooth, Wireless Apple CarPlay, and Android Auto (SiriusXM Ready)

2
-20.00%

$599.99

List price $750.00

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
150 watts x 1 channel
RMS Power @ 2 ohms
250 watts x 1 channel
RMS Power @ 1 ohm
Not Stable
Peak Power Output
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
A/B
Number of Channels
1 - Mono
Total Peak Power Output
500 watts
Total RMS Power Output
250 watts
Maximum Input Gauge Size
8 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
0.04%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
Low-Pass Crossover Frequency
50 - 250 Hz
Subsonic Filter
15 - 55 Hz
Signal-to-Noise Ratio
101 dB
Bass Boost
0 - 12 dB
Remote bass/level controller
Yes
Fuse Rating
20A x 2
CEA-2031 Compliant
No
Amplifier Kit Specifications
Number of Amplifiers Supported
1
Power/Ground Wire Size
8 gauge
Power Wire Length
20 feet
Ground Wire Length
3 feet
Speaker Wire Included
Yes
Speaker Wire Length
40 feet
Remote Wire Length
20 feet
Interconnect (RCA) Signal Cables Included
2 Channel
Fuse Holder
AFS
Fuse Size
50A
Distribution Block Included
No
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

HED500.1_09ZCK8

Weight:

12.67lbs

Internal SKU:

hed5001_09zck8

Internal Product ID:

44231

Product and How-to Videos


Customer Ratings & Reviews


500W Max Cerwin-Vega Amplifier + Kicker Amplifier Kit thumbnail image

5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%



Durability
5
Value
4.9
Features
4.7
Design
4.7
Usability
5

Customer Reviews

Sort by:

Loading...

Do it right!

The following review is for 09ZCK8, which is a part of the bundle you are viewing.

You need this kit for any kicker amps or subs. Magic happens when you match everything perfectly. It's not only important with power handling, it's also important with wire quality and gauge!

By Mark on March 29, 2011

39 found this helpful


GGGreat

The following review is for 09ZCK8, which is a part of the bundle you are viewing.

Great product for its price. Fairly cheap and very nice looking.

By daryle on September 29, 2010

37 found this helpful


great value

The following review is for 09ZCK8, which is a part of the bundle you are viewing.

Awesome amp kit. Kicker really makes great products

By clinton on September 7, 2011

35 found this helpful


Quality

The following review is for 09ZCK8, which is a part of the bundle you are viewing.

This is a nice quality kit, used it on a buddy's rig. The wire is nice and flexible. Comes with everything you need and some things you might not, but it’s always nice to have some extra connectors lying around. Highly recommend this kit for any low watt system. No filler - less heat more power.

By Brandon on January 5, 2012

32 found this helpful


great Wiring Kit!!

The following review is for 09ZCK8, which is a part of the bundle you are viewing.

bought this for a zx300.1 and works perfectly!! It sends plenty of power especially because it is silver cad copper!!!!

By audioZ on July 24, 2012

31 found this helpful


excellent value!

The following review is for HED500.1, which is a part of the bundle you are viewing.

I have this amp hooked to a 10" sub at 250w rms. Nice sound.
Has never run hot. Sits in back window.

By Tom on December 13, 2012

2 found this helpful



NAVIBOX-1 small

Power Acoustik NAVIBOX-1

Add-on GPS Navigation System for use with Select Compatible Power Acoustik In-Dash DVD Players

(13)

$89.99

List price $359.99

KAC-X810D small

Kenwood eXcelon KAC-X810D

$415.99

List price $749.99

K4-2 small

Infinity Kappa K4 Amplifier with Clari-fi Technology

1500W Peak (480W RMS) High Performance Kappa Series Class-D 4-Channel 2-Ohm Stable Amplifier with Bluetooth and Clari-Fi Technology

$549.95

List price $599.95

JX1000/1D small

JL Audio JX1000/1D

1000W RMS JX Series Monoblock Class D Subwoofer Amplifier

(25)

$299.99

List price $499.99

HMS 10 B small

Hertz HMS 10 B

500W Peak (250W RMS) 10" HMS Series Single 4-ohm Marine Subwoofer in White with White Grille

$399.99

List price $450.00

XD-RT1/0-4PAK small

JL Audio XD-RT1/0-4PAK

1/0 AWG Premium Series Crimpable Ring Terminals

$34.99

List price $34.99

MV700/5i small

JL Audio MV700/5i

700W RMS Class D MVi Series 5 Channel Marine Amplifier

$1299.99

List price $1299.99

GTA-500m small

Boston Acoustics GTA-500m

500W Monoblock Class D GTA Series Amplifier

(1)

$169.95

List price $229.95

43KM84LCW small

Kicker KM8 (43KM84LCW)

600W Max (300W RMS) 8" KM Series 2-Way Coaxial Marine Speakers w/ LED Illumination

(2)

$229.95

List price $279.95

Related Searches


Save up to 10 different vehicles in your garage
Vehicle
Store
Delete

2012 Dodge Durango

2003 Subaru Baja

2014 Audi A6

2016 Dodge Ram ProMaster 3500

2018 Ford Fusion

2008 Ford Taurus X

1995 Chrysler Concorde

1997 Dodge Ram 1500

2008 Ford Explorer

2021 Dodge Durango

Vehicle
Store
Delete

2016 Can-Am Defender DPS HD8

Add vehicle Clear all vehicles
Where to find vehicle info
Are you sure you want to clear your garage?
This action cannot be undone. Confirm
This page was not designed for products.
If you continue, you will be redirected to a category customized for your vehicle. Continue
Loading...
Identify your vehicle and submodel details
  • Owner's manual
  • Vehicle's insurance card
  • Vehicle registration
  • Vehicle produced after 2005: Inside driver's side door
  • Vehicle produced before 2005: Rear passenger doorjamb, glove box, center console, or engine compartment
Car Info Side Door Icon
Vehicle Registration Icon
Vehicle Insurance Icon

Modern vehicles often require specific brackets, wiring harnesses, and mounting solutions. A fit guide ensures:

  • You see only parts engineered for your exact vehicle
  • You avoid incompatible radios, speakers, or wiring
  • Installation is smoother, faster, and frustration-free
  • You get the correct accessories the first time

Whether you're replacing a factory stereo or upgrading your entire audio system, the Fit Finder eliminates uncertainty.
