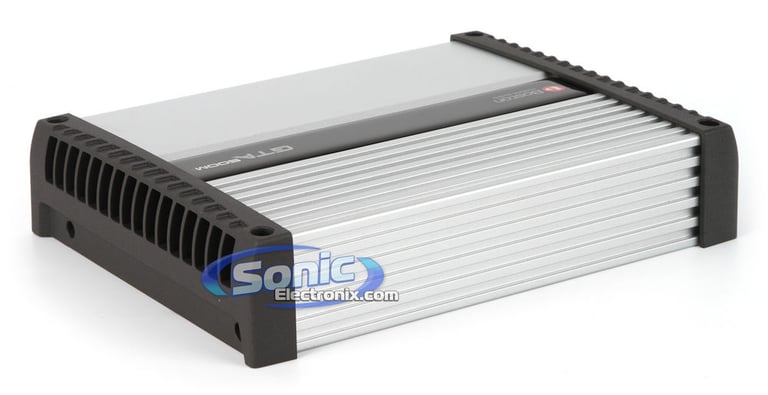

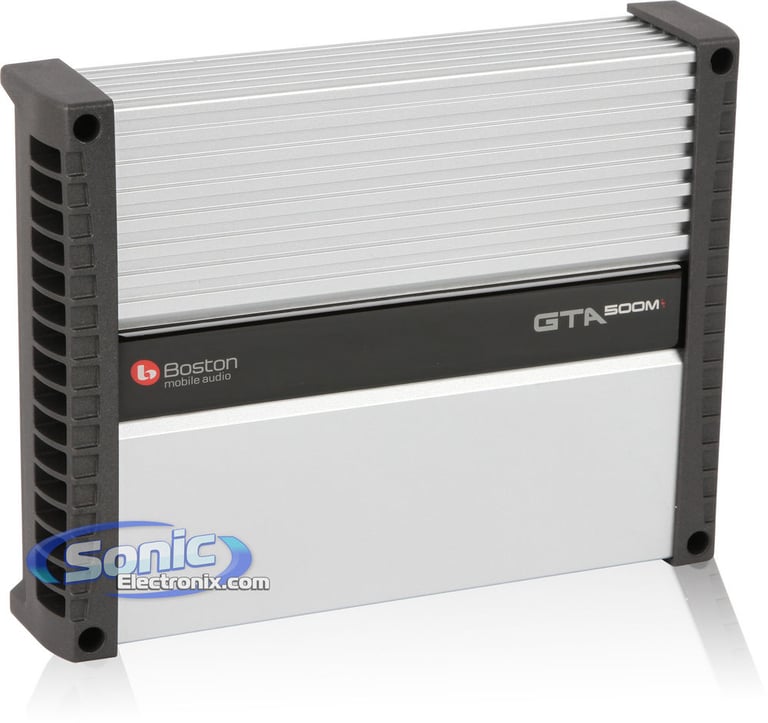

Boston Acoustics GTA-500m

500W Monoblock Class D GTA Series Amplifier

Product videos
highlight-star-icon

GTA Series Class D Monoblock Amplifier • 300W x 1 Chan. @ 4 Ohm • 500W x 1 Chan. @ 2 Ohm • Symmetrical Signal Topology • Q-Tune Circuitry • Integral Mounting System • Wrap-Around Heatsink Design

Learn more about the gta500m

We apologize

This item has been discontinued


Loading...
NSP68 main

NVX NSP68

540W Peak (180W RMS) 6x8" N-Series 2 Way Coaxial Car Speakers

59
-16.67%

$79.99

List price $95.99

C2-525X main

JL Audio C2-525x

120W RMS 5.25" C2 Series 2 Way Coaxial 4-ohm Car Speakers

8
S2-S50 main

Alpine S2-S50

340W Peak (110W RMS) 5.25" S-Series Hi-Res 2-Way Coaxial 4-ohm Car Speakers

2
-18.78%

$129.95

List price $160.00

Product Highlights


GTA Series Class D Monoblock Amplifier • 300W x 1 Chan. @ 4 Ohm • 500W x 1 Chan. @ 2 Ohm • Symmetrical Signal Topology • Q-Tune Circuitry • Integral Mounting System • Wrap-Around Heatsink Design

Description


GTA Series High Performance Amplifier

Sonic Electronix is now carrying the new 2011 line of Boston Acoustics GTA Series Amplifiers. These amps come in Monoblock, 2-Channel, 4-Channel, and 5-Channel configurations as well as numerous different power ratings. Each one these GTA Series amplifiers feature a wrap-around heatsink design, SST (Symmetrical Signal Topology), IMS (Integral Mounting System), 3-way protection circuitry, fully adjustable Q-Tune circuitry, and much more.

The GTA-500m is a Monoblock version of this series and has an RMS power rating of 300 watts x 1-channel wired at 4 ohms and 500 watts x 1-channel wired at 2 ohms. It is equipped with gold-plated RCA level inputs & screw terminals and is powered by a MOSFET power supply. The option of low-level, or high-level inputs will allow the installation of these amplifiers into any system with ease. The fully adjustable low-pass/high-pass crossovers will allow for complete control of all frequencies allowing for personalized tuning of your audio system to better meet your musical needs and preferences. GTA amplifiers offer high performance with advanced features and technologies.

Product Features
  • Monoblock Class D GTA Series Amplifier
  • RMS Power Rating:
    • 4 ohm: 300 watts x 1 chan.
    • 2 ohm: 500 watts x 1 chan.
  • MOSFET power supply
  • Optional Bass Remote available Boston Acoustics GTA-RSL(remote level control sold separately)
  • LED power and protect indicators
  • SST (Symmetrical Signal Topology) system uses balanced asymmetrical inputs for noise cancellation
  • Fully adjustable Q-Tune circuitry for simple bass output optimization

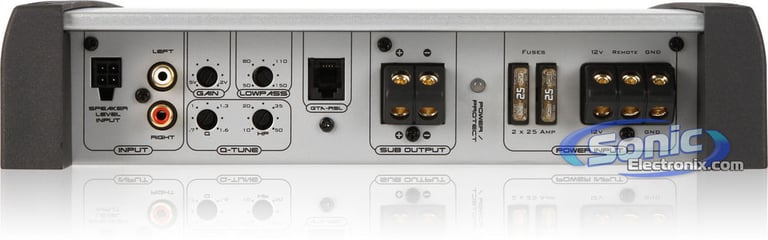

  • Recessed control panel for clean installation
  • IMS (Integral Mounting System) reduces the amplifier footprint
  • All input/output connections are located on one side of the amplifier to ease installation and wire management
  • Optimal angled speaker and power blocks for easy wire connections
  • Mono channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Fully adjustable and selectable lowpass/highpass crossovers
  • Wrap-around heatsink design for extreme heat dissipation
  • Gold-plated RCA level inputs
  • Gold-plated screw terminals
  • Variable High-Pass Filter (50-150 Hz, 12 dB/octave)
  • Variable Low-Pass Filter (10-50 Hz, 12 dB/octave)
  • Subsonic Filter (10-50 Hz)
  • THD (Total Harmonic Distortion): 1%
  • Signal to Noise Ratio: 90 dB
  • Frequency Response: 10-150 Hz
  • Input Voltage: 14.4 volts
  • Fuse Rating: 25 amp x 2
  • CEA-2006 compliant amplifier
  • Dimensions: 8-5/16"D x 10-5/8"W x 2-3/8"H
  • 4-gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits when purchased together with this amplifier.
  • 1-year Manufacturer's warranty

Loading...
Limited time!
46CSC654 main

Kicker CSC65 (46CSC654)

600W Peak (200W RMS) 6.5” CS Series 2 Way Coaxial 4-ohm Speakers

122
-33.36%

$79.96

List price $119.99

43DSC6504 main

Kicker DSC650 (43DSC6504)

480W Peak (120W RMS) 6.5” DS Series 2-way 4-ohm Coaxial Car Speakers (DSC6504)

28
-10.53%

$84.99

List price $94.99

DB652 main

Polk Audio DB652 (DB 652)

600W Peak (200W RMS) 6.5" DB+ Series 2 Way Coaxial 4-ohm Car, Marine and Powersports Speakers

12
-9.16%

$109.00

List price $119.99

Limited time!
Club 622 main

JBL Club 622

360W Peak (120W RMS) 6.5" Club Series 2-way Coaxial 3-ohm Speakers

5
-28.58%

$99.95

List price $139.95

MPK 163.3 main

Hertz MPK163.3

600W Peak (300W RMS) 6.5" Mille PRO Series 3-way 4-ohm Component Speaker System

2
-14.89%

$999.99

List price $1175.00

PNW-65CS2 main

AudioControl PNW-65CS2

250W Peak (200W RMS) 6.5″ PNW Series 2 Way Component 3-ohm Speakers

4
-5.90%

$319.00

List price $339.00

NSP65 main

NVX NSP65

540W Peak (180W RMS) 6.5" N-Series 2 Way Coaxial Car Speakers

93
-35.19%

$69.99

List price $107.99

Club 522F main

JBL Club 522F (SPKCB522FAM)

270W Peak (90W RMS) 5.25" Club Series 2 Way Coaxial 3-ohm Speakers

-42.29%

$74.99

List price $129.95

Club 620F main

JBL Club 620F (SPKCB620FAM)

330W Peak (110W RMS) 6.5" Club Series 2-way 3-ohm Shallow Mount Coaxial Car Speakers

2
-38.48%

$79.95

List price $129.95

PH654 main

Cerwin-Vega PH654

600W Peak (300W RMS) 6.5" PRO Series Full Range Coaxial 4-ohm Speakers

2
-16.67%

$189.99

List price $227.99


Best selling similar products

NDA12001 small

NVX NDA12001

• 500 watts x 1 channel @ 4 ohm
• 850 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(13)

$169.99

List price $239.99

ATOM 1300.1 PRO small

Deaf Bonce Apocalypse ATOM 1300.1 PRO

• 490 watts x 1 channel @ 4 ohm
• 780 watts x 1 channel @ 2 ohm
• 1300 watts x 1 channel @ 1 ohm
• Total RMS Power: 1300 watts
• Class D 1 ohm Stable Monoblock Amplifier

$199.90

List price $199.90

VAD17001v2 small

NVX VAD17001 v2 (VAD17001v2)

• 800 watts x 1 channel @ 4 ohm
• 1350 watts x 1 channel @ 2 ohm
• 1700 watts x 1 channel @ 1 ohm
• Total RMS Power: 1700 watts
• Class D 1 ohm Stable Monoblock Amplifier

(35)

$259.99

List price $335.99

JD1000/1 small

JL Audio JD1000/1

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

(22)

$429.99

List price $429.99

CXA1200.1 small

Kicker CXA1200.1 (46CXA12001T)

• 600 watts x 1 channel @ 4 ohm
• 1200 watts x 1 channel @ 2 ohm
• 1200 watts x 1 channel @ 1 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(18)

$399.99

List price $429.99

VADM1 small

NVX VADM1 v2 (VADM1v2)

• 240 watts x 1 channel @ 4 ohm
• 400 watts x 1 channel @ 2 ohm
• 600 watts x 1 channel @ 1 ohm
• Total RMS Power: 600 watts
• Class D 1 ohm Stable Monoblock Amplifier

(16)

$189.99

List price $239.99

VAD10001v2 small

NVX VAD10001 v2 (VAD10001v2)

• 420 watts x 1 channel @ 4 ohm
• 760 watts x 1 channel @ 2 ohm
• 1000 watts x 1 channel @ 1 ohm
• Total RMS Power: 1000 watts
• Class D 1 ohm Stable Monoblock Amplifier

(37)

$209.99

List price $227.99

JD500/1 small

JL Audio JD500/1

• 250 watts x 1 channel @ 4 ohm
• 500 watts x 1 channel @ 2 ohm
• Total RMS Power: 500 watts
• Class D 2 ohm Stable Monoblock Amplifier

(12)

$299.99

List price $299.99

R2-1200X1 small

Rockford Fosgate Prime R2 R2-1200X1

• 400 watts x 1 channel @ 4 ohm
• 800 watts x 1 channel @ 2 ohm
• Total RMS Power: 1200 watts
• Class D 1 ohm Stable Monoblock Amplifier

(23)

$399.99

List price $449.99

Reference 10001A small

Infinity Reference 10001A (AMPRF10001AAM)

• 600 watts x 1 channel @ 4 ohm
• 1000 watts x 1 channel @ 2 ohm
• Total RMS Power: 1000 watts
• Class D 2 ohm Stable Monoblock Amplifier

$499.95

List price $569.95

Specifications & Details


Power Specifications - Subwoofer Channel
RMS Power @ 4 ohms
300 watts x 1 channel
RMS Power @ 2 ohms
500 watts x 1 channel
Amplifier Specifications
Amplifier Class
D
Number of Channels
1 - Mono
Total Peak Power Output
Not specified by manufacturer
Total RMS Power Output
500 watts
Maximum Input Gauge Size
4 AWG
Minimum Impedance Unbridged
2 ohm
Minimum Impedance Bridged
Not Bridgeable
THD at Rated RMS Power
1%
Speaker Level Inputs
Yes
Preamp Outputs
1 pair
Built-in Crossover
Low-Pass (LP)
High-Pass (HP)
High-Pass Crossover Frequency
50 - 150 Hz
Low-Pass Crossover Frequency
10 - 50 Hz
Subsonic Filter
10 - 50 Hz
Signal-to-Noise Ratio
90 dB
Channel Separation
Not specified by manufacturer
Bass Boost
Q-Tune Circuitry
Remote bass/level controller
Optional (Accessory required and sold separately)
Fuse Rating
25A x 2
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

GTA-500m

Weight:

7.00lbs

Internal SKU:

gta500m

Internal Product ID:

39776
