Zoom B3

Bass Effects & Amp Simulator w/ Three Large LCD Displays

Zoom
Shop all Zoom
highlight-star-icon

Bass Effects & Amp Simulator • Three Large LCD Displays • Create And Store Up To 100 Original Tones • Integrated Drum Machine • 6 Hrs Of Operation w/ 4 AA Batteries

Learn more about the zoomb3

We apologize

This item has been discontinued


Loading...
72-6514 main

Metra 72-6514

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

70
-37.52%

$9.99

List price $15.99

CR-6 main

American International CR-6

Connect Factory Antenna to New Aftermarket Radio in select 2002-2020 vehicles from Ford, Chevrolet, GMC

39
-73.38%

$3.99

List price $14.99

82-6901 main

Metra 82-6901

5.25” or 6.5” Speaker Mounting Adapters for select 1977-2024 vehicles from Dodge, Chevrolet, Chrysler

39
-34.80%

$14.99

List price $22.99

OL-RS-CH5 main

Omega OL-RS-CH5

Remote Start and Car Alarm System for select 2005-2018 vehicles from Dodge, Jeep, Chrysler

23
-53.00%

$93.99

List price $199.99

RP4-CH11 main

PAC RP4-CH11

Install New Car Stereo and Retain Steering Wheel Controls, Entertainment System, and Other Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-59.63%

$152.99

List price $379.00

MET-CH14 main

Metra MET-CH14

Install a New Car Stereo and Retain Steering Wheel Controls and Other Factory Features in

-10.38%

$94.99

List price $105.99

72-6514-12 main

Metra 72-6514-12

Install New Speakers in select 1999-2026 vehicles from Dodge, Ram, Jeep

7
-14.30%

$11.99

List price $13.99

SOOCR-26 main

CRUX SOOCR-26 Wiring Interface

Install a New Car Stereo and Retain Factory Features in select 2004-2018 vehicles from Dodge, Jeep, Chrysler

12
-35.71%

$75.60

List price $117.60

99-6510 main

Metra 99-6510 Dash Kit

Install a new Single-DIN or Double-DIN car stereo in select 2005-2009 vehicles from Dodge, Jeep, Chrysler (Black)

11
-41.19%

$19.99

List price $33.99

CDK637B main

PAC CDK637B

Double DIN Stereo Dash Kit for select 2005-2007 300 (Black)

-53.03%

$69.99

List price $149.00

Description


Zoom brand icon

Authorized dealer

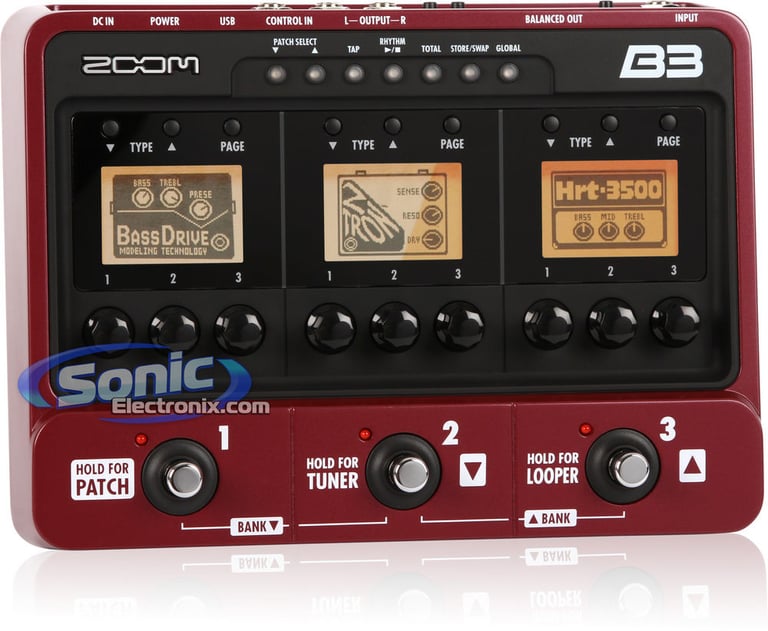

The Zoom B3:

Zoom’s B3 Bass Effects and Amp Simulator combines the ease of a stompbox pedalboard with the power of a multi-effects processor and USB audio interface. With complete control over individual effects and amp modeling, you can change your tones on the fly for both stage and studio.

"All For One, One For All":
B3 offers three large LCD displays and corresponding footswitches that form a graphical interface, allowing you to utilize up to three stompbox and amp effects simultaneously. The interface has also been simplified with three control knobs for each display. This intuitive design makes creating, saving and rearranging the effect chain of your own sounds a breeze and provides easy navigation in live and studio settings.

Stompbox Models and Presets:
B3 is packed with 12 amp models along with some of the world’s most popular bass pedals. You can use up to three effects in any combination. B3’s wide range of effects includes distortion, compression, modulation, delay and reverb. Its HD Reverb uses DSP power to produce a rich resonance that rivals outboard gear used in professional studios and live setups.

*Only two effects can be used in some combinations that feature amp models or HD Reverb.

99 Powerful DSP Effects On-Board:
Select from 99 built-in DSP effects to create your own sounds on B3. Try its renowned compression and wah pedals, chorus effects with stunning depth and resonant reverbs. Or let your tonal imagination run free with dynamic flangers, tremolos, harmonized pitch shifters, multi-tap delays, reverse delays and much more. B3 can also store up to 100 of your original creations without a hitch.

USB Audio Interface For DAW Recording:
B3 operates as an audio interface, letting you record directly to your computer via USB. All of your sound settings used during rehearsals or live performances can be recorded to your favorite DAW such as the included Steinberg Sequel LE recording software. The pedal’s direct monitoring capability eliminates any latency problems, assuring realistic studio conditions and hassle-free operation.


What's In The Box?

  1. (1) B3 Unit
  2. (1) Owner's Manual
    (see list below for other languages)
  3. (1) Amp Model and Effect Description List
  4. (1) Sequel LE Startup Guide
  5. (1) Warranty Card
  6. (1) Sequel LE Installation CD

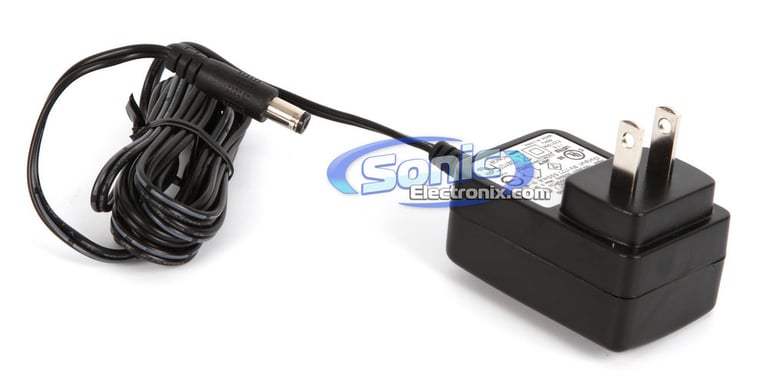

  7. (1) AC Adapter

Product Features:

  • Bass Effects & Amp Simulator
  • Three large LCD displays
  • Authentic modeling simulates amps and cabinets separately
  • Create and store up to 100 original tones
  • Integrated drum machine
  • 6 hrs of operation w/ 4 AA batteries
  • Also found as: B-3
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Specifications:

  • Effect Types: 111 (click here for full list)
  • Simultaneous Effects: 3
  • Patch Memory: 10 patchs x 10 banks
  • Sampling Frequency: 44.1 kHz
  • A/D-D/A Conversion: 24-bit, 128 times over-sampling
  • Signal Processing: 32-bit floating point and 32-bit fixed point
  • Frequency Response: 20Hz ~ 20kHz + 1dB, -3dB (10k ohm)
  • Display: LCD x 3

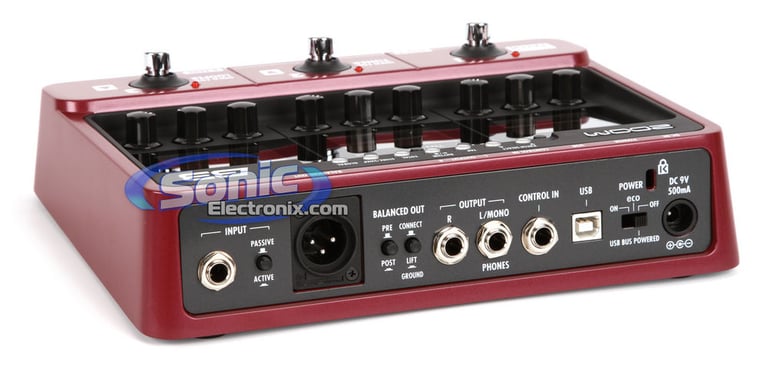

  • Input:
    • 1/4" phone jack
    • Rated Input Level: -20dBm
    • Input Impedance: 1M ohm
    • Input Switches: ACTIVE/PASSIVE
  • Output:
    • Right:
      • 1/4" phone jack
      • Maximum Output Level: +5dBm (Output Load Impedance: 10k ohm or higher)
    • Left/Mono/Phone:
      • 1/4" stereo phone jack (LINE / PHONES)
      • Maximum Output Level: [LINE] +5dBm (Output Load Impedance: 10k ohm or higher)
        [PHONES] 20mW + 20mW into 32 ohm load
    • Balanced Output:
      • XLR jack
      • Output Impedance: 100 ohm (HOT-GND, COLD-GND), 200 ohm (HOT-COLD)
      • PRE / POST (Switch Selectable)
      • GND LIFT (Switch Selectable)
  • Control Input: For FP02 / FS01
  • USB Audio Interface: 16-bit/44.1kHz
  • S/N Ratio: 120dB
  • Noise Floor: -100dBm
  • Power Supply:
    • AC Adapter: DC9V/Center negative/500mA (ZOOM AD-16)

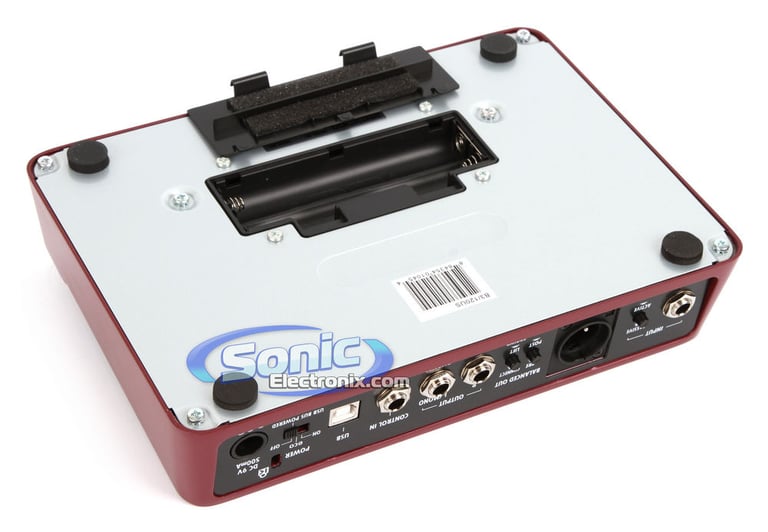

    • Batteries: 4 x AA/LR6 batteries (Battery Life: 6 hrs w/ alkaline batteries)
    • USB Bus Power
  • Size & Weight:
    • Weight: 2 lbs. 11 oz. (1.2 kg)
    • Width: 9-1/4" (234 mm)
    • Depth: 6-11/16" (170 mm)
    • Height: 2-1/8" (54 mm)

System Requirements:

  • Windows:
    • OS: Windows XP SP3 (32-bit), Windows Vista SP1 (32-bit/64-bit) or Windows 7 (32-bit/64-bit)
    • Processor: (if 32-bit) Intel® Pentium 4 1.8 GHz or faster, (if 64-bit) Intel® Pentium DualCore 2.7 GHz or faster
    • RAM: (if 32-bit) 1 GB or more, (if 64-bit) 2 GB or more
    • HDD Space: At least 1 GB
    • Display Resolution: 1280 x 800 pixels
    • DVD-ROM drive
    • USB port for G3 connection
    • Internet connection for license activation
  • Mac:
    • OS: OS X 10.5.8 and 10.6.5 or later
    • Processor: Intel CoreDuo 1.83 GHz or faster
    • RAM: 1 GB or more
    • HDD Space: At least 1 GB
    • Display Resolution: 1280 x 800
    • DVD-ROM drive
    • USB component port for G3 connection
    • Internet connection for license activation

B3 Owner's Manual in Other Languages:
