Metra TE-THC

Install Bay 120 Degree Viewing Angle Small Through-Hole Backup Camera W/ IR LED's For Night Vision

Product videos
highlight-star-icon

• Small Black Through-Hole Mountable Camera
• 120° Degree Viewing Angle
• Selectable Parking Assist Lines
• Waterproof Design
• Night Vision Camera

Learn more about the tethc

We apologize

This item has been discontinued

NVX - Worth the Envy - Direct to Consumer Car Audio

Loading...
Limited time!
Kappa 63XF main

Infinity Kappa 63XF (INFSPKKA63XFAM)

510W Peak (170W RMS) 6.5" Kappa Series 2 Way Coaxial 3-ohm Speakers

10
-33.34%

$199.95

List price $299.95

Product Highlights


• Small Black Through-Hole Mountable Camera
• 120° Degree Viewing Angle
• Selectable Parking Assist Lines
• Waterproof Design
• Night Vision Camera

Description


Install Bay brand icon

Authorized dealer

Product Features:

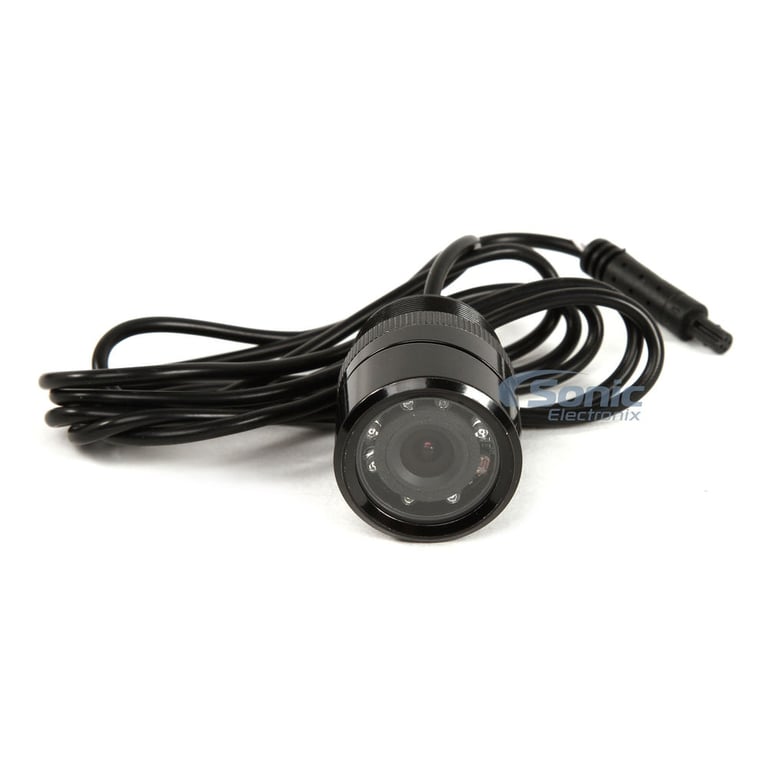

  • Small black through-hole mountable camera
  • 120° Degree viewing angle
  • Selectable parking assist lines
  • Waterproof design
  • IR LED's for night vision

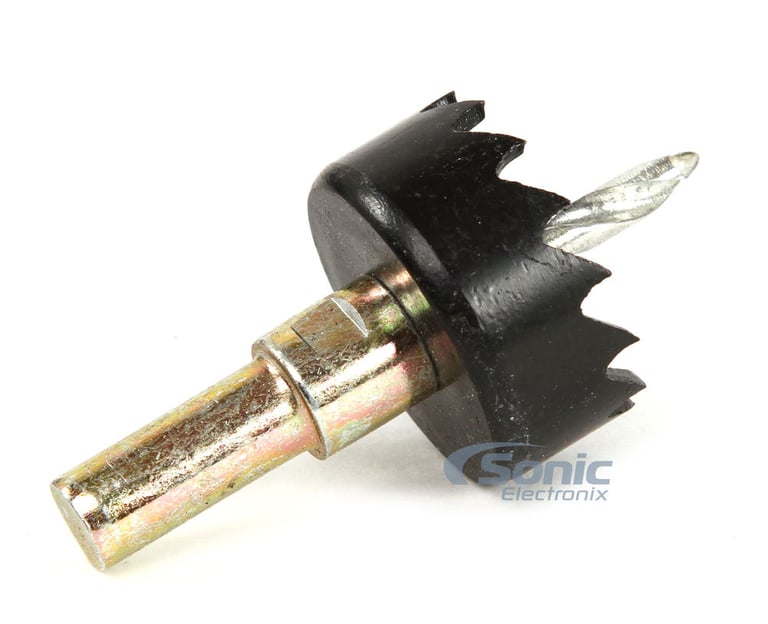

  • Complete with hole saw
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Special Features:

  • Effective Pixel: 510 x 492
  • Horizontal Sync Frequency: 15625 KHz
  • Vertical Sync Frequency: PAL 50Hz / NTSC 60Hz
  • Scanning System: 2:1 Interlace
  • Sync System: Internal
  • AGC: Auto
  • BLC: Auto
  • Resolution: 380 TV Lines
  • S/N Ration: More Than 48dB
  • Current Consumption: No more than 150mA
  • Power Supply: DC12V±10%
  • Operating Temperature: -20°C~60°C RH95%MAX
  • Storage Temperature: -30°C~60°C RH95%MAX
  • Horizontal Angle: 92° / 110°
  • Lens Angle: 92° / 120°
  • Water-proof: IP67/IP68
  • Minimum Illumination: 3 Lux/F1.2 (0 Lux with Red)
