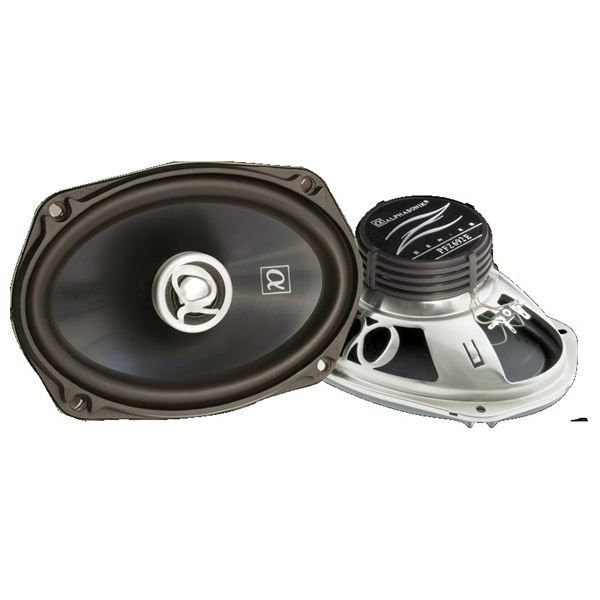

Alphasonik PFZ692E

6" x 9" PFZ Series 2-way Coaxial Car Speakers

Alphasonik
Shop all Alphasonik
highlight-star-icon

6" x 9" PFZ Series Speakers • 2-Way Coaxial Design • 200W Max • 100W RMS • 4 ohm Impedance • Polypropylene-Injected Cone • Butyl Rubber Surround • Titanium Dome Tweeter

Learn more about the pfz692e

We apologize

This item has been discontinued


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00

Description


General Features:

  • 6" x 9" PFZ Series 2-Way Car Speakers
  • Power Handling:
    • Peak: 400 watts per pair / 200 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Polypropylene-injected cone material
  • Butyl Rubber speaker surround
  • 360° swiveling 25mm Titanium Dome tweeter
  • Black Anodized Aluminum high-temperature voice coil
  • High-gauge Steel basket frame
  • 25mm Titanium deposit voice coil former
  • Oversized Poly-Cotton spider assembly
  • Bottomless motor geometry reduces distortion
  • Integrated crossover filter with tweeter protection
  • 4 ohm impedance
  • Frequency response: 46-22,000 Hz
  • Top-mount depth: 3-1/2"
  • Sensitivity: 93dB
  • Authorized Internet Dealer
  • 1-year Manufacturer's Warranty

Priced Per Pair


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

TERMINATOR69 small

MTX Audio TERMINATOR69

• 120 watts Peak Each, 60 watts RMS Each
• Silk Dome Tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 87.8 dB

(1)

$79.95

List price $89.95

NSP69 small

NVX NSP69

• 450 watts Peak Each, 150 watts RMS Each
• 3/4" Silk Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB
• Mounting Depth: 3.14""

(53)

$89.99

List price $107.99

A69 small

AudioControl A69

• 100 watts RMS Each
• Silk Dome Tweeters
• Precision-Molded Glass Fiber cone
• Impedance: 4 ohm
• Sensitivity: 86.5 dB

$159.00

List price $179.00

AP-X69A small

Deaf Bonce Apocalypse AP-X69A

• 400 watts Peak Each, 200 watts RMS Each
• Pressed Paper cone material
• Impedance: 4 ohm
• Sensitivity: 94 dB

(3)

$159.90

List price $159.90

JS69K small

Jensen JS69K

• 375 watts Peak Each, 100 watts RMS Each
• 1-3/16" PEI (Polyetherimide) Dome tweeters
• 2-1/4" PEI (Polyetherimide) Dome midranges
• Woven Aramid Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 89 dB

$169.99

List price $169.99

TS-A6991FH small

Pioneer TS-A6991FH

• 750 watts Peak Each, 150 watts RMS Each
• 3/4" PET Hard Dome tweeters
• 7/16" and 3/8" PET dome super tweeters
• 2-1/4" Polyetherimide (PEI) film cone midrange
• Carbon-Mica Reinforced IMPP cone material
• Impedance: 4 ohm
• Sensitivity: 93 dB

$160.00

List price $180.00

P1692 small

Rockford Fosgate Punch P1 P1692

• 150 watts Peak Each, 75 watts RMS Each
• 3/4" PEI (Polyetherimide) Dome Tweeters
• Mineral-Filled Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 91 dB

(82)

$109.99

List price $109.99

Specifications & Details


Speaker Specifications
Speaker Size
6" x 9"
Design
2-way Coaxial
Tweeter Design
Dome
Tweeter Size
1"
Tweeter Composition
Titanium
Woofer Composition
Polypropylene
Woofer Surround
Butyl Rubber
Peak Power Handling
200 watts
RMS Power Handling
100 watts
Sensitivity
93 dB
Frequency Response
46 - 22000 Hz
Impedance (Per Voice Coil)
4 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-1/2"
Bottom-Mount Depth
3-3/4"
Cutout Dimensions
6" x 8-3/4"
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Sonic Electronix

Item Details


Manufacturer:

Model Number:

PFZ692E

Weight:

8.00lbs

Internal SKU:

pfz692e

Internal Product ID:

44635
