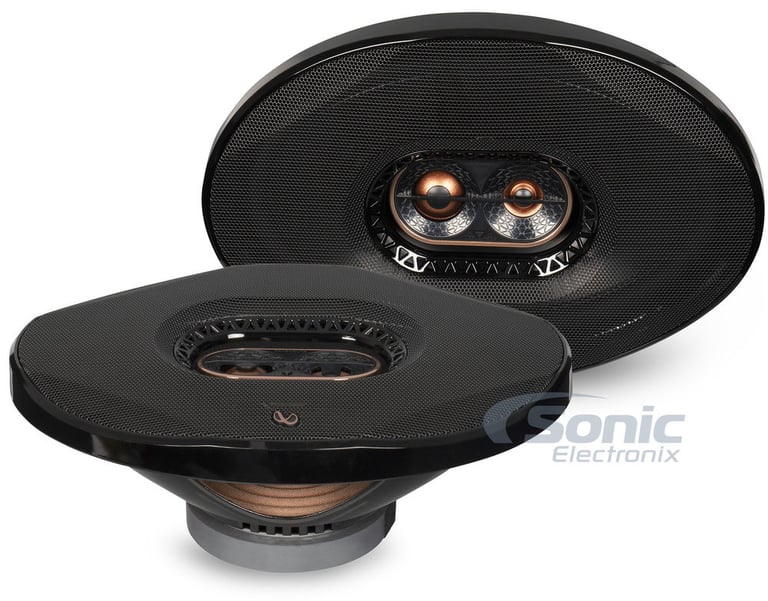

Infinity Reference 9633IX (REF9633IXAM)

600W Peak (200W RMS) 6x9" Reference Series 3-Way Coaxial 3-ohm Car Speakers

Infinity
Shop all Infinity
Limited time!
highlight-star-icon

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeter
• Textile Semi-Dome super tweeter
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

Learn more about the ref9633ixam
No Fit Icon

Doesn't fit your 2012 R8

Similar items | Update vehicle | Vehicle store
List price $199.95
Save $90.00
Thanks , You Pay:
-45%

$109.95

/pair  with warranty
Starting at $10/mo or 4 payments of $28 Buy now, pay later and installment payment plans are offered by Afterpay and Affirm. Learn more

Heads up

Your vehicle can use this product in multiple locations. Only a quantity of one can be selected from the product page. You will have the option to adjust the quantity within your cart.

shipping truck icon Free shipping in USA. Provide zip for delivery date.
Quantity
Available: Ships in 10-14 days
Brand new
ESP69 main
NVX NVX ESP69 480W Peak (160W RMS) 6x9" E-Series 2 Way Coaxial Car Speakers

(5)

$49.99 $59.99
Sponsored

Acima Logo

No Credit Option

Flexible Lease Payments

Early Purchase Options

Quick Approval Decision

Extend logo

Keep your product protected longer! Extend the warranty after the manufacturer warranty expires.

  • Hassle-free immediate replacement within minutes!
  • Easy online claims 24/7
  • Covers product breakdowns and failures
Swoosh Icon Icon of Swoosh

For over 25 years, we've been your X-Factor – the team dedicated to having the biggest impact on your shopping experience!

Award winning icon
Award-Winning Service
Shipping icon
FREE Shipping Orders $49+
60 days return policy icon
60-Day Easy Returns
lowest price guarantee icon
Guaranteed Lowest Price
inHouseExpert
In-House Experts

Loading...
72-9002 main

Metra 72-9002

Install New Speakers in select 1994-2024 vehicles from Audi, Mercedes-Benz, Chevrolet

5
-26.68%

$10.99

List price $14.99

82-9101 main

Metra 82-9101

6" to 6 3/4" Speaker Adapter for select 2000-2023 vehicles from Audi

1
-56.27%

$13.99

List price $31.99

Current Promotions (14 offers)


This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

20% off


Priced separately $199 89

Promo Savings of $17 99

Total price:

$181 90

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

40% off


Priced separately $167 51

Promo Savings of $23 02

Total price:

$144 49

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $144 13

Promo Savings of $10 25

Total price:

$133 88

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $152 94

Promo Savings of $12 90

Total price:

$140 04

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $175 94

Promo Savings of $19 80

Total price:

$156 14

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $167 94

Promo Savings of $17 40

Total price:

$150 54

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $145 94

Promo Savings of $10 80

Total price:

$135 14

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $165 94

Promo Savings of $16 80

Total price:

$149 14

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $159 94

Promo Savings of $15 00

Total price:

$144 94

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

20% off


Priced separately $139 94

Promo Savings of $6 00

Total price:

$133 94

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

30% off


Priced separately $138 94

Promo Savings of $8 70

Total price:

$130 24

This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

20% off


Priced separately $125 94

Promo Savings of $3 20

Total price:

$122 74

Reduce panel vibration, increase midbass, reduce destructive waves, and get better sound! The NVX XBAF69 Rings Kit help to focus all the sound into the cabin, bringing out the full potential of your speakers.

Infinity Reference 9633IX (REF9633IXAM)

20% off


Priced separately $132 94

Promo Savings of $4 60

Total price:

$128 34

Get 40% Off NVX SDSK2 Sound Dampening Speaker Kit with your Speaker purchase! Simply click the "Add Both to Cart" button. This offer cannot be combined with any other coupons or offers.

Infinity Reference 9633IX (REF9633IXAM)

40% off


Priced separately $124 94

Promo Savings of $6 00

Total price:

$118 94

Description


Infinity brand icon

Authorized dealer

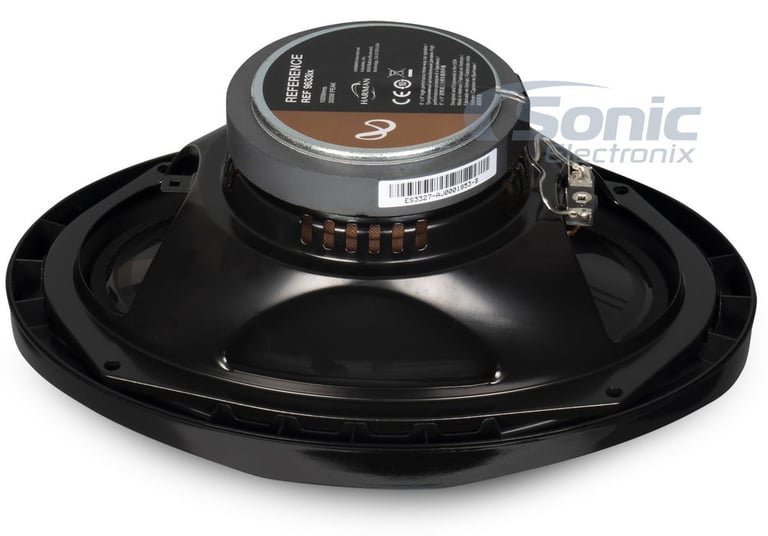

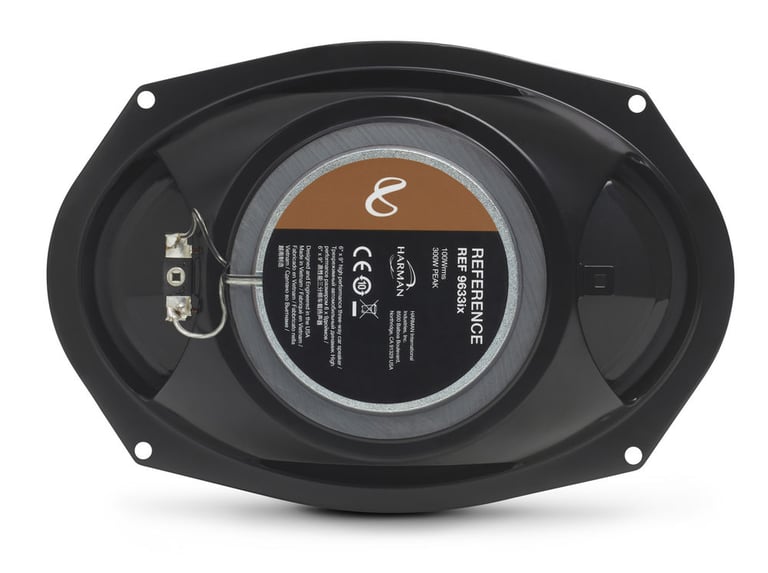

Infinity Reference 9633IX (REF9633IXAM)

The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels. The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference. Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction. Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today. Reference speakers provide step-up Infinity sound at mainstream prices.


Product Details:

  • 6" x 9" Reference Series 3-way Coaxial Car Speakers
  • Power Handling:
    • Peak: 600 watts per pair / 300 watts each
    • RMS: 200 watts per pair / 100 watts each
  • Polypropylene cone material
  • Hi-Roll Rubber speaker surround
  • Patented Plus One woofer speaker construction
  • 1" Textile Edge Driven Dome tweeter
  • Textile Semi-Dome super tweeter
  • Adjustable tweeter output level function
  • Optimized frame size to fit into any vehicles
  • Compatible with aftermarket car stereos
  • Top-mount Depth: 3-1/8"
  • Cutout Dimensions: 8-1/2" x 5-3/4"
  • Impedance: 3 ohm
  • Frequency Response: 46 - 30000 Hz
  • Sensitivity: 94 dB

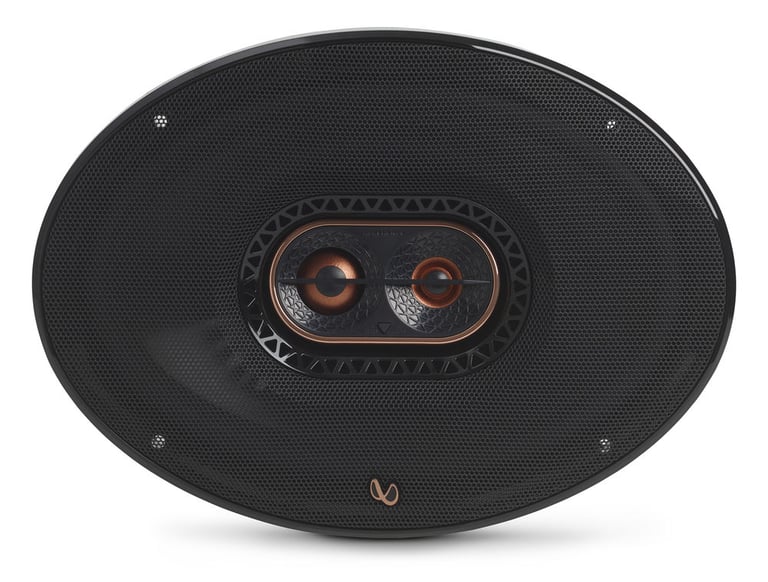

  • Protective speaker grilles included
  • Authorized Internet Dealer
  • MFR #: Reference 9633IX
  • 1-year Manufacturer's Warranty

  • Priced Per Pair


Loading...
RVM-35V1 main

MB Quart RVM-35V1

3.5" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-10.38%

$189.99

List price $211.99

RV.R1 main

DS18 RV.R1

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

RVDVD3.0 main

MB Quart RVDVD3.0

Multi-Zone DVD Receiver with Bluetooth for RV's

1
-10.10%

$257.99

List price $286.99

MB Quart RVM2.0

Multi-Zone Digital Audio Receiver with Bluetooth Audio Streaming for RV's

-10.29%

$156.99

List price $174.99

RVM-10V1 main

MB Quart RVM-10V1

10" Touchscreen Multi-Zone Digital Multimedia Receiver with Bluetooth for RV's

-9.09%

$250.00

List price $275.00


Best selling similar products

46CSC6934 small

Kicker CSC693 (46CSC6934)

• 450 watts Peak Each, 150 watts RMS Each
• 1/2" PEI (Polyetherimide) Balanced Dome tweeters
• Polypropylene cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(40)

$111.96

List price $159.99

SXE-6926S small

Alpine SXE-6926S

• 280 watts Peak Each, 90 watts RMS Each
• Mylar Dome tweeters
• Natural Pulp Fiber cone material
• Impedance: 4 ohm
• Sensitivity: 92 dB

(13)

$56.99

List price $71.99

REF697F small

Infinity REF697F (INFSPKRF697FUS)

• 300 watts Peak Each, 100 watts RMS Each
• 1" Textile Edge Driven Dome tweeters
• Polypropylene cone material
• Impedance: 3 ohm
• Sensitivity: 94 dB

(5)

$139.95

List price $169.95

Specifications & Details


Speaker Specifications
Series
Reference Series
Priced Per
Pair
Number of Speakers
2
Speaker Size
6" x 9"
Design
3-way Coaxial
Tweeter Design
Edge Driven Dome
Tweeter Size
1"
Tweeter Composition
Textile
Woofer Composition
Polypropylene
Woofer Surround
Hi-Roll Rubber
Peak Power Handling
300 watts
RMS Power Handling
100 watts
Total PEAK Per Pair/Set
600 watts
Total RMS Per Pair/Set
200 watts
Sensitivity
94 dB
Frequency Response
46 - 30000 Hz
Impedance (Per Voice Coil)
3 ohm
Shallow Mount Installation
No
Top-Mount Depth (Mounting Depth)
3-1/8"
Bottom-Mount Depth
3-11/16"
Cutout Dimensions
8-1/2" x 5-3/4"
CTA-2031 Compliant
No
General specifications
Marine Certified
No
Hi-Res Certified
No
Color
Black
Illumination
None
Speaker Grilles
Yes
Includes Damping Kit
without Damping Kit
Compatible vehicle types
Car/Truck/SUV/Van
What is in the box?
Paperwork

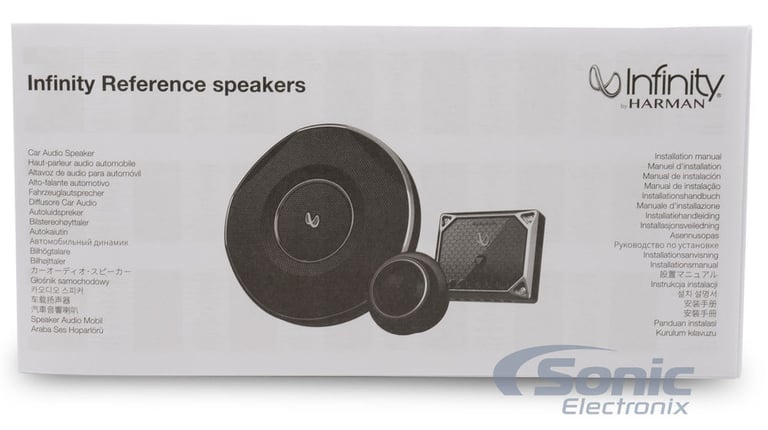

User manual
Warranty/Registration card
WITB: Speakers

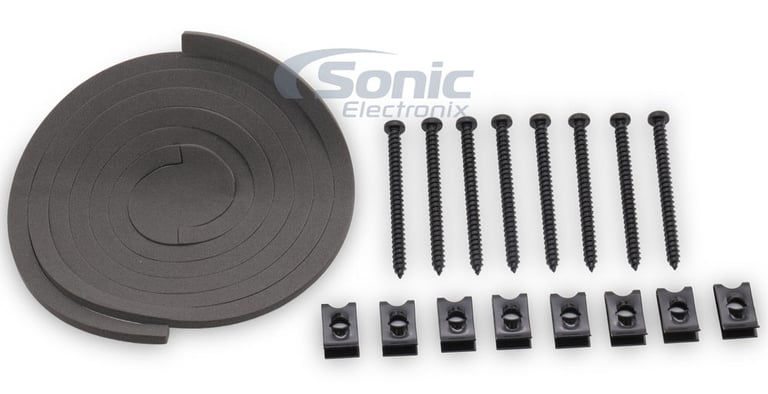

Foam Gasket
Speakers (2)
Grilles (2, attached)
Mounting screws (8)
Mounting clips (8)
Other Accessory #1
2 Grille frames
Other Accessory #2
2 Bottom mount rings
Warranty and Return Policy
Parts Warranty Duration
1 year
Labor Warranty Duration
1 year
Warranty Provider
Manufacturer

Item Details


Manufacturer:

Model Number:

Reference 9633IX

Weight:

6.29lbs

Internal SKU:

ref9633ixam

Internal Product ID:

174191
